MPEX2S1P552

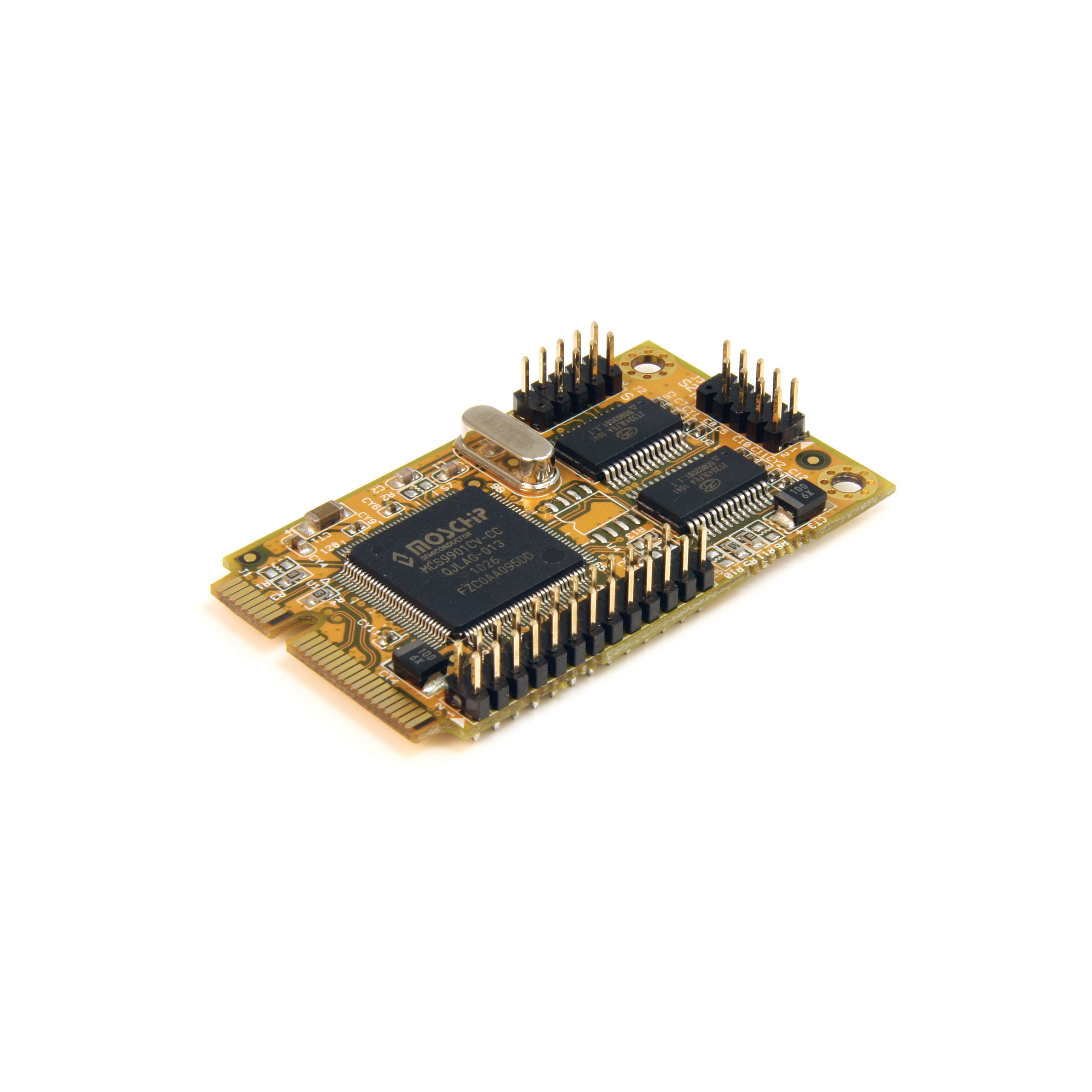

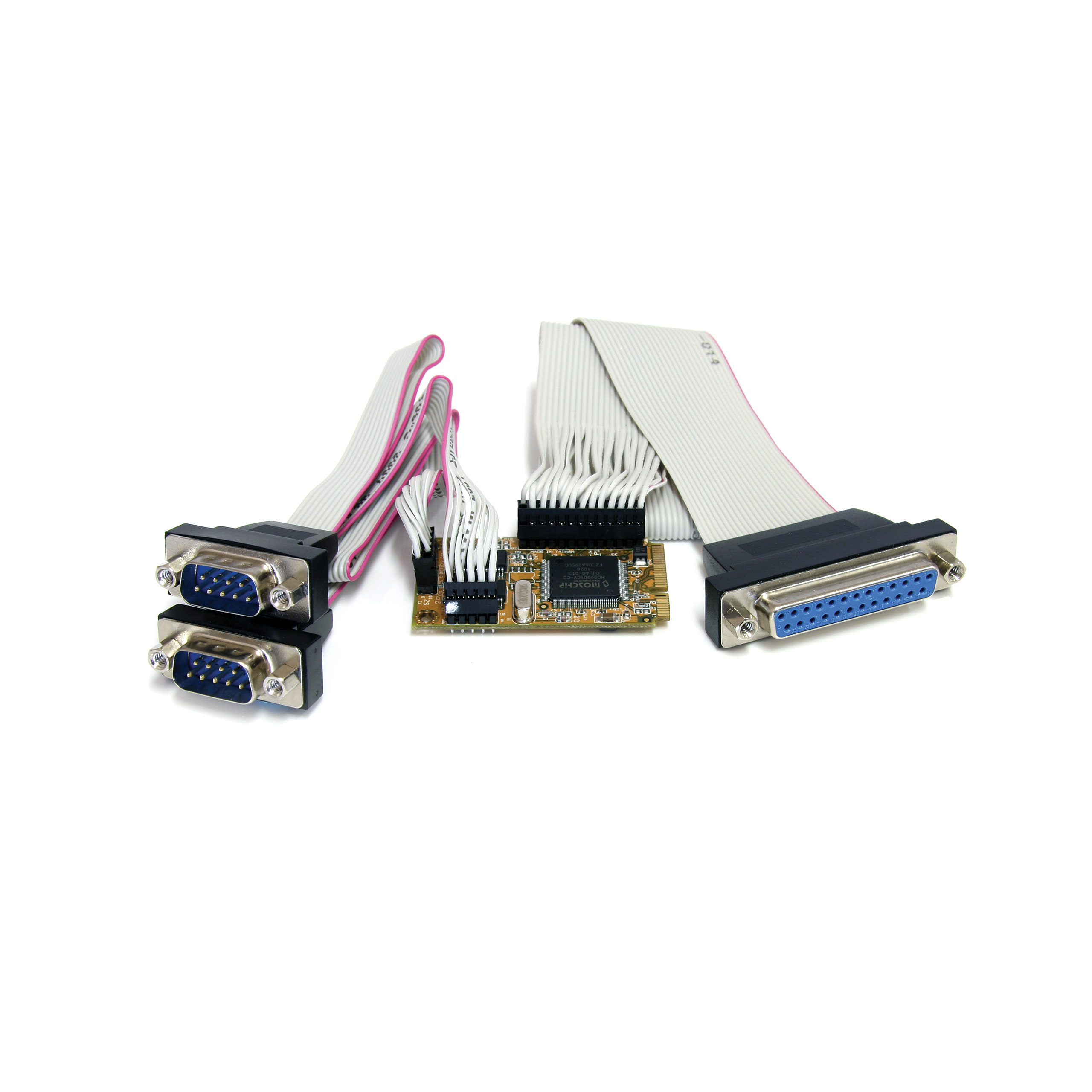

Mini PCI Express 2 Serial 1 Parallel
Add two RS232 Serial Ports, and one Parallel Port to an Embedded System, through a mini PCI-Express Slot
Main Image
Product Images
BOM Image
Product Name Mini PCI Express 2 Serial 1 Parallel Product Number MPEX2S1P552 UPC 065030844659 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 2s1p Serial Parallel Mini PCIe Card Product Title (Standard) 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems Product Title (Long) 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems Product Title (AMZ) 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems (MPEX2S1P552) Title Ingram (Part 1) 2s1p Serial Parallel Mini PCIe C Title Ingram (Part 2) ard for Embedded Systems Website Product Headline Add two RS232 Serial Ports, and one Parallel Port to an Embedded System, through a mini PCI-Express Slot Bullet 1 256-byte deep FIFO Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Bullet 4 Compliant with PCI Express base specifications revision 1.1 Bullet 5 Includes two 30cm IDC ribbon cables Bullets (Consolidated) Parallel/serial adapter - Mini PCI Express - parallel - serial - 2 ports + 1 x parallel port Marketing Copy Applications - Add serial RS232 and IEEE 1284 parallel control to an embedded or slim media center/media server/all-in-one PC
- Additional ports to slimline POS systems
- Add two serial and one parallel port to industrial embedded computers and systems
- Connect to any motherboard with a mini PCIe slot
Website Search Keyword - PCI Express mini
- Mini PCIe
- Mini-PCIe
- Parallel Serial
- PCIe mini
- Mini PCI-E
- PCI-E
- RS232
- RS-232
- embedded systems small form factor pcie pci express 2 port serial 1 port parallel combo card
- embedded parallel
- embedded rs232
- embedded rs 232
- embedded serial
- embedded rs-232
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - PLATE9
- PLATE925
- MXT100
- MXT100_25
- MXT100FF
- SC10MF
- SC10MM
- SC6MF
Related Products - PEX1S1PMINI
- PEX1S552
- PEX1S552LP
- PEX1S952
- PEX1S952LP
- PEX2S552
- PEX2S552LP
- PEX2S952LP
- MPEX2S952
- MPEX4S552
- ICUSB232INT2
- ICUSB232INT1
- ICUSB1284INT
Color Green Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 50 Product Width (mm) 30 Product Height (mm) 8.5 Product Weight (g) 10 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type Mini PCI Express Card Type Embedded Chipset ID ASIX - MCS9901CV-CC Industry Standards PCI Express Base Specification, Revision 1.1 Interface/Bridge - Serial
- Parallel

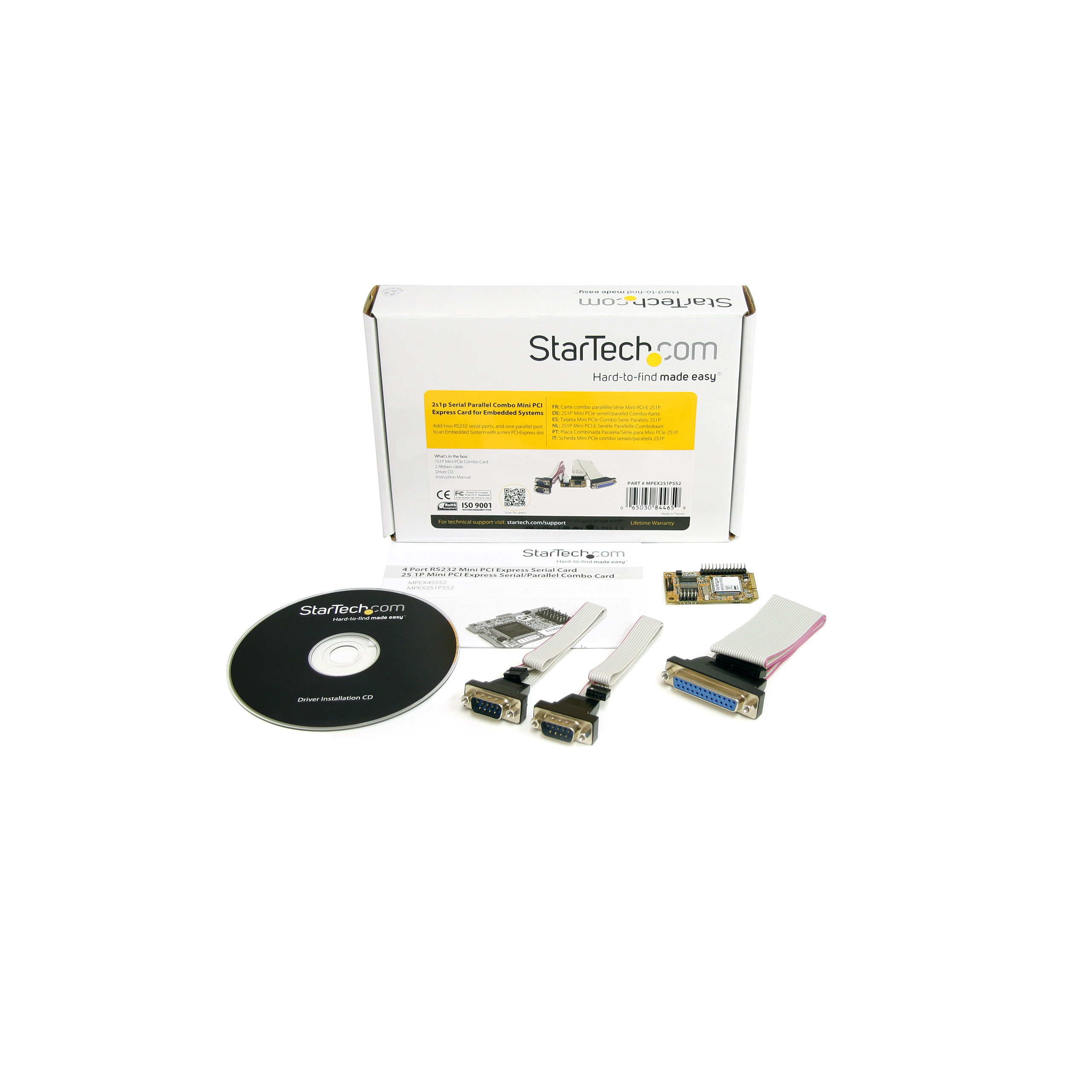

IO Card Port Style Dongle (Included) Carton Depth (mm) 400 Carton Height (mm) 510 Carton Quantity 60 Carton Weight Gross (g) 12700 Included in Package - 1 - 2S1P Mini-PCIe Combo Card
- 2 - Ribbon cable - Serial
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Ribbon Cable - Parallel
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 195 Packaging Description 2S1P Mini PCIe Serial Parallel Combo Card Packaging Description India 2S1P Mini PCIe Serial Parallel Combo Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Connector 3 DB-9 Serial Connector 3 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
