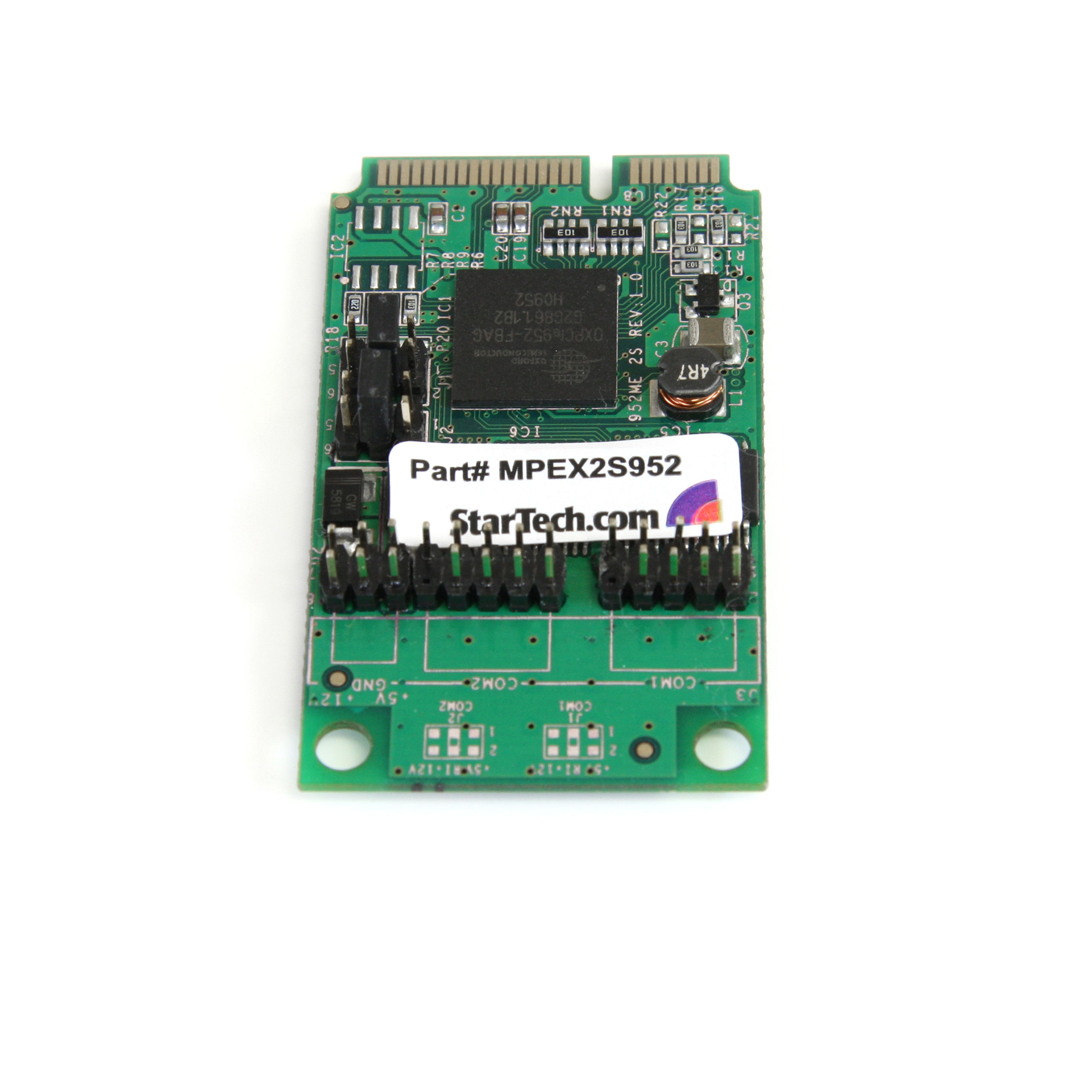

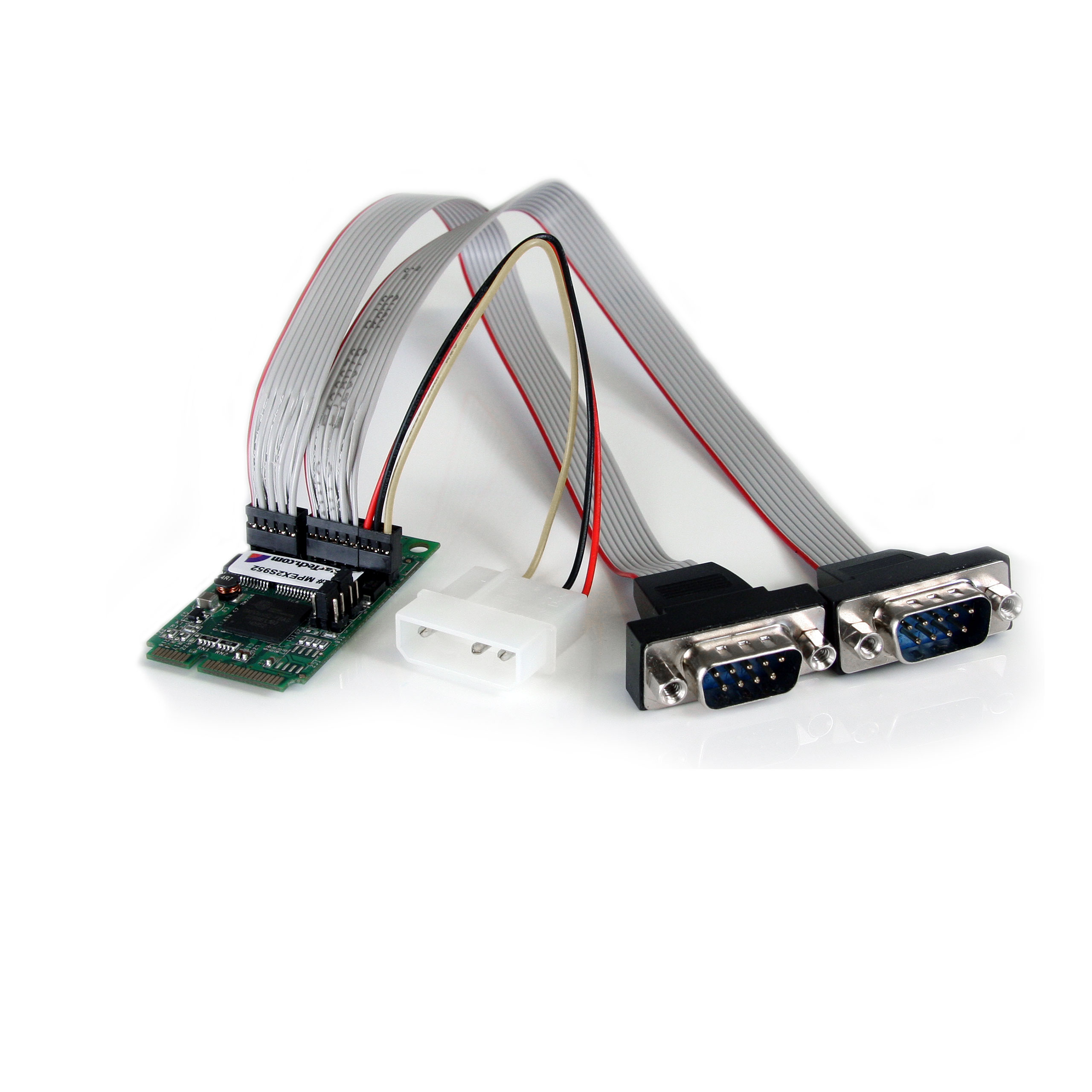

MPEX2S952
2 Port Mini PCI Express Serial Card w/ 16950 UART
Add two RS232 serial ports to an Embedded System with a mini PCI-Express slot
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Mini PCI Express Serial Card w/ 16950 UART Product Number MPEX2S952 UPC 065030840019 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port Mini PCIe Serial Card w/ 16950 Product Title (Standard) 2 Port RS232 Mini PCI Express Serial Card w/ 16950 Product Title (Long) 2 Port RS232 Mini PCI Express Serial Card w/ 16950 UART Product Title (AMZ) 2 Port RS232 Mini PCI Express Serial Card w/ 16950 UART - 2 Port Serial Adapter - 2 Port Serial PCIe Mini Card (MPEX2S952) Title Ingram (Part 1) 2 Port RS232 Mini PCI Express Se Title Ingram (Part 2) rial Card w/ 16950 UART Website Product Headline Add two RS232 serial ports to an Embedded System with a mini PCI-Express slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Asynchronous baud rates up to 15Mbps Bullet 3 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 4 Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Bullet 5 Compliant with PCI Express base specifications revision 1.1a Marketing Copy Applications - Add serial RS232 control to an embedded or slim media center/media server
- Additional ports to slimline POS systems
- Add serial ports to industrial embedded computers and systems
- Connect to any motherboard with a PCI Express mini slot
Website Search Keyword - PCI Express mini
- Mini PCIe
- Mini-PCIe
- Dual serial
- RS232
- PCIe mini
- Mini PCI-E
- PCI-E
- RS-232
Microsoft WHQL Certified Yes Accessory Products - PLATE9
- PLATE925
Related Products - PEX1S1PMINI
- PEX1S552
- PEX1S552LP
- PEX1S952
- PEX1S952LP
- PEX2S552
- PEX2S5521P
- PEX2S552LP
- PEX2S950
- PEX2S952
- PEX2S952LP
Color Green Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 50 Product Width (mm) 30 Product Height (mm) 10 Product Weight (g) 6 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 4, 5, 6, 7, 8 FIFO 128 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 460.8 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows Server 2016

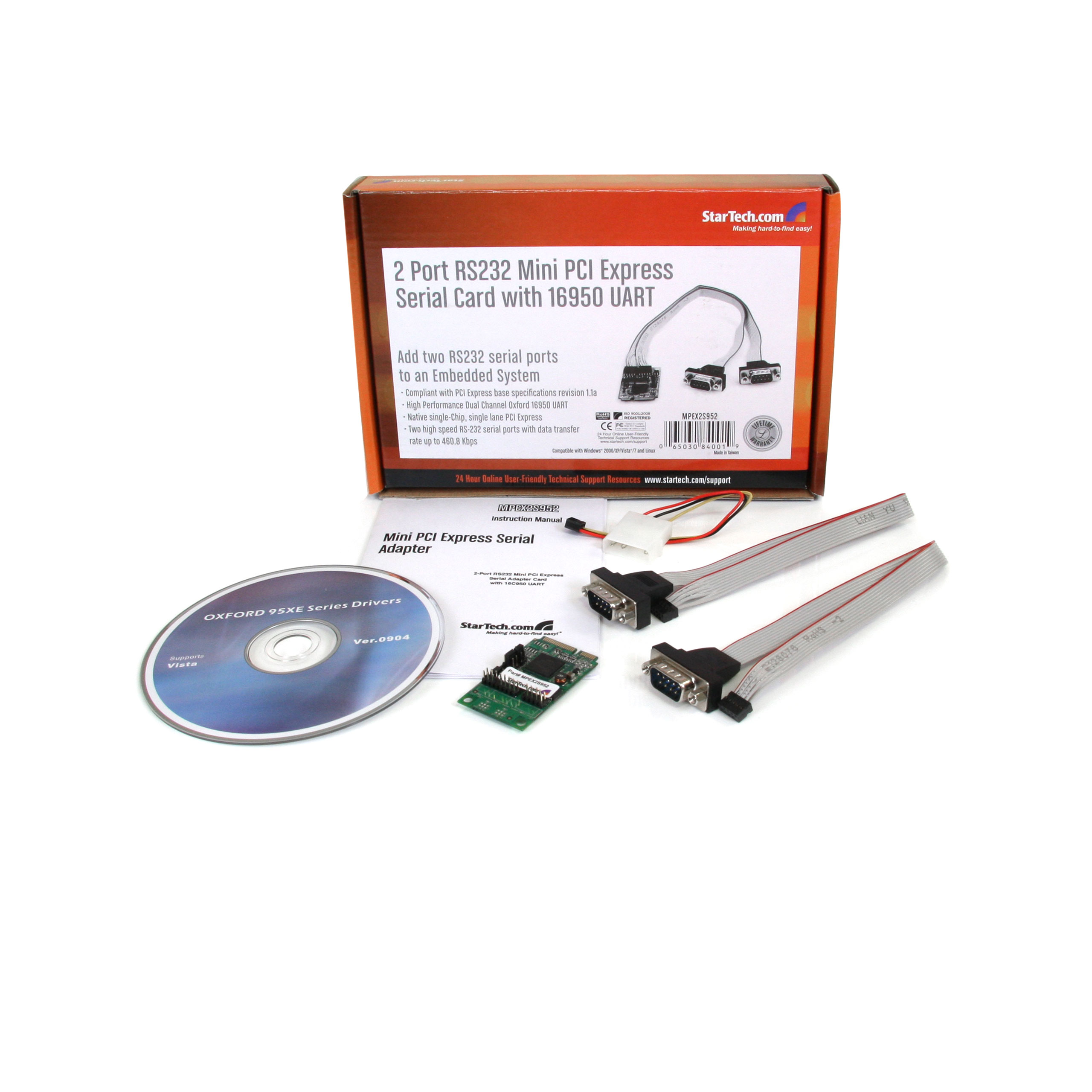

Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type Mini PCI Express Card Type Embedded Chipset ID PLX/Oxford - OXPCIe952 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 500 Carton Height (mm) 300 Carton Quantity 30 Carton Weight Gross (g) 5400 Included in Package - 1 - 2 Port Mini-PCIe Serial Card

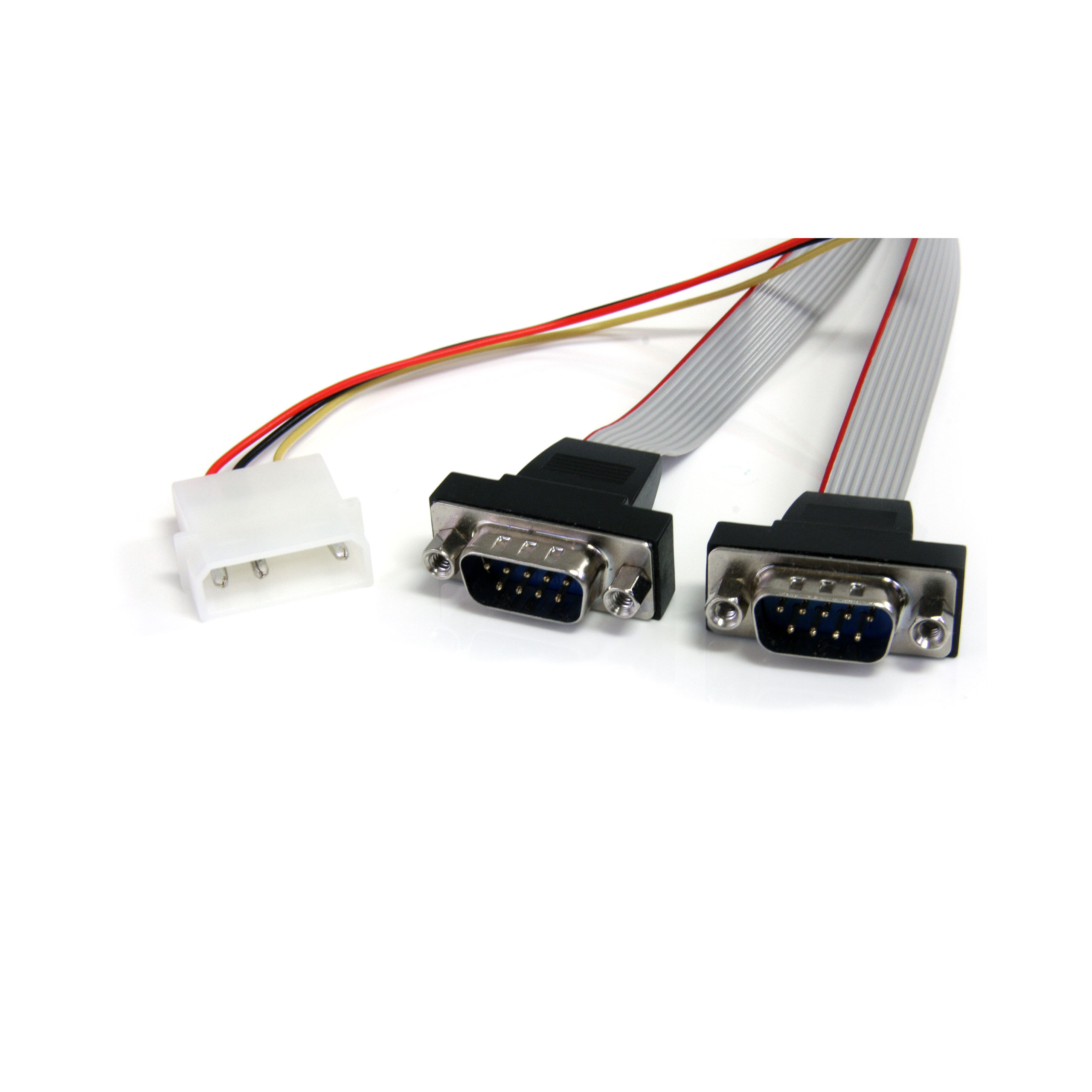

- 2 - DB9 ribbon cable
- 1 - LP4 to 6 pin power cable
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 38 Package Height (mm) 150 Package Width (mm) 212.5 Package Weight (g) 140 Packaging Description 2 Port Mini PCIe Serial Card 16950 UART Packaging Description India 2 Port Mini PCIe Serial Card 16950 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
