MPEX300WN2X2

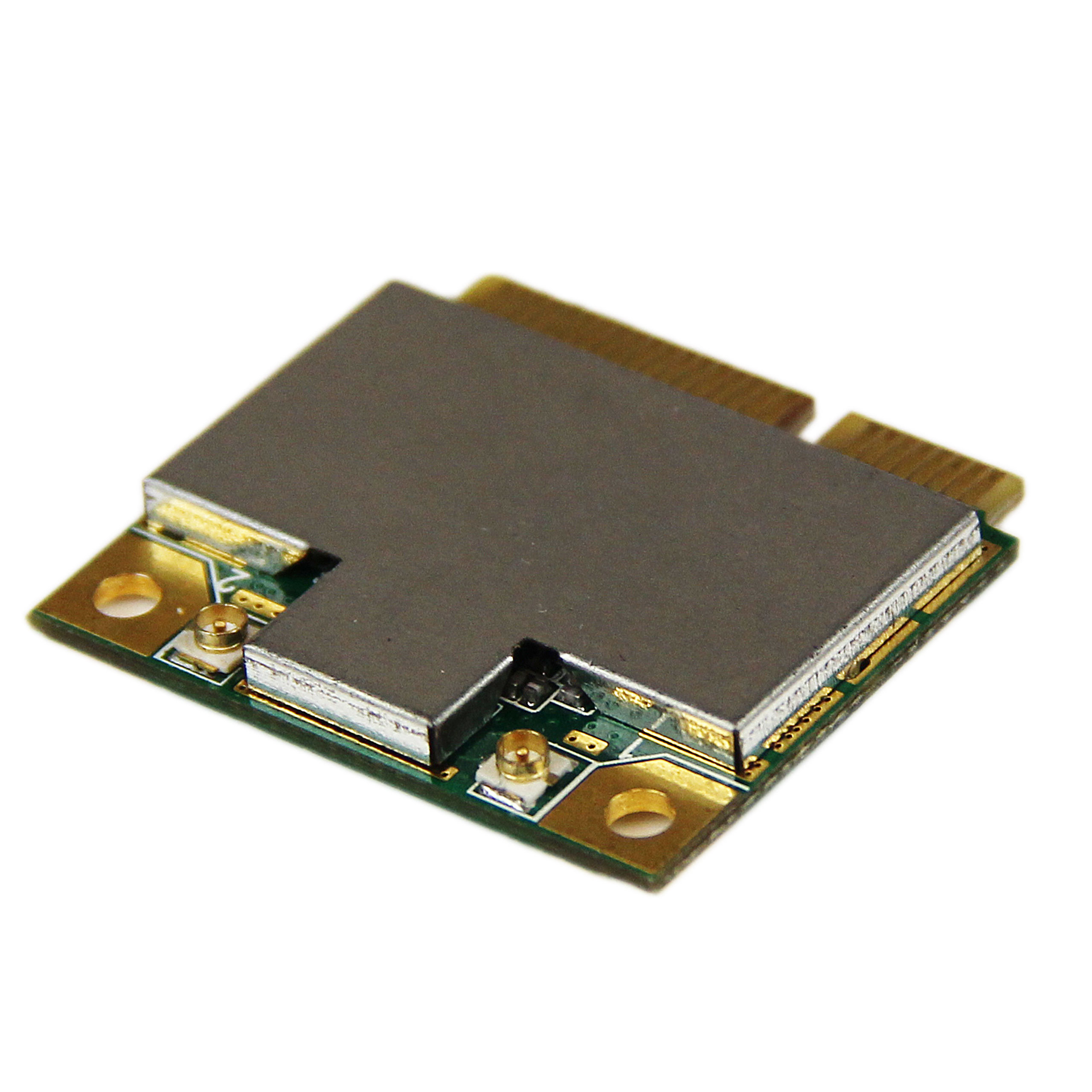

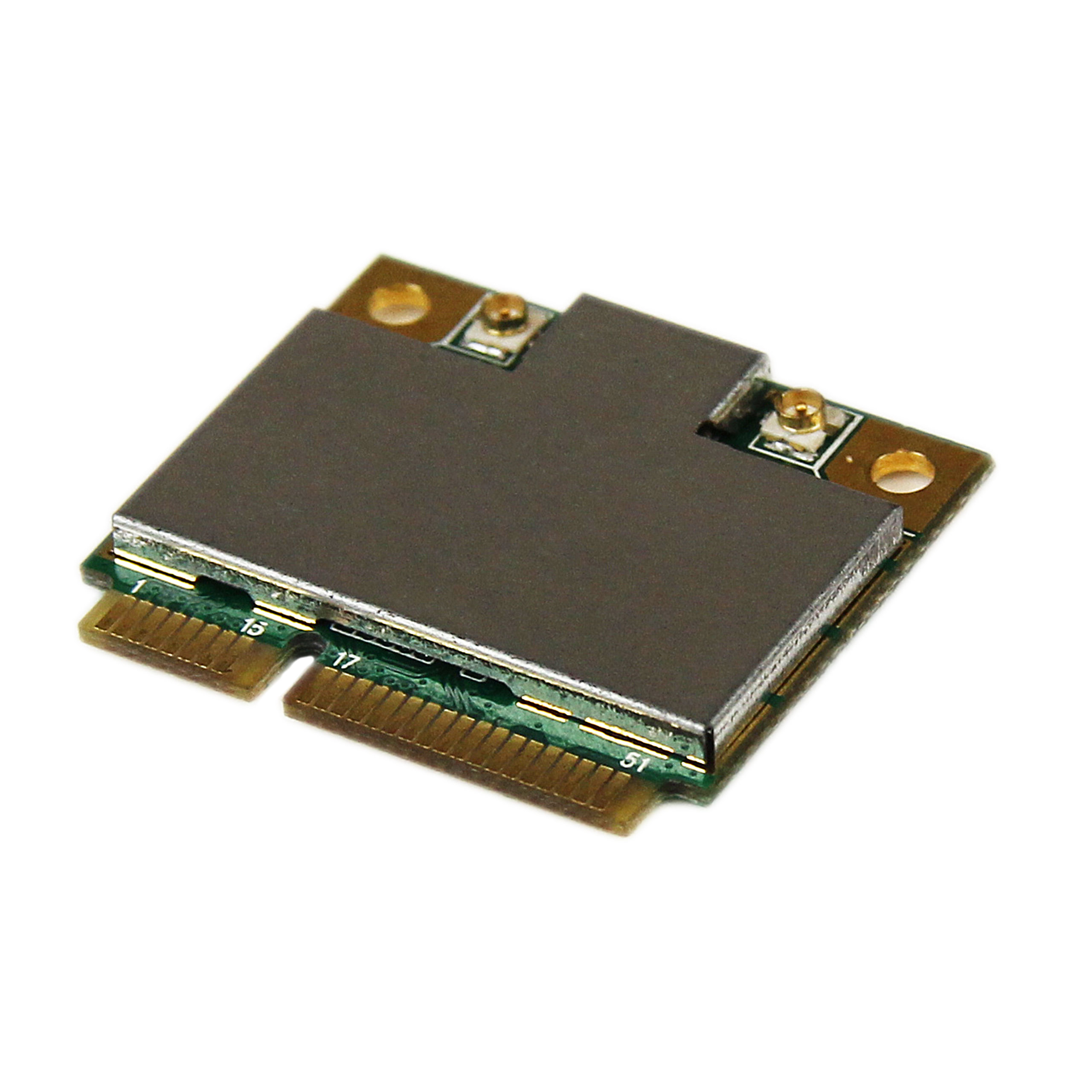

PCIe Half Mini Wireless N Card - Wireless NIC
Add high speed Wireless-N connectivity through a Mini PCI Express slot
Main Image
Product Images
BOM Image
Product Name PCIe Half Mini Wireless N Card - Wireless NIC Product Number MPEX300WN2X2 UPC 065030852753 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Wireless Cards Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) mPCIe WirelessN Card Product Title (Short) Mini PCI Express 300Mbps Wireless N Card Product Title (Standard) Mini PCI Express Wireless N Card - 300Mbps Mini PCIe 802.11b/g/n WiFi Adapter - 2T2R Product Title (Long) Mini PCI Express Wireless N Card - 300Mbps Mini PCIe 802.11b/g/n WiFi Adapter - 2T2R Product Title (AMZ) Mini PCI Express Wireless N Card - 300Mbps Mini PCIe 802.11b/g/n WiFi Adapter - 2T2R - PCI Express Half Mini Wireless NIC (MPEX300WN2X2) Title Ingram (Part 1) PCI Express Half Mini Wireless Title Ingram (Part 2) N Card - 300Mbps Wireless NIC Website Product Headline Add high speed Wireless-N connectivity through a Mini PCI Express slot Bullet 1 Compliant with IEEE 802.11n standards, with transfer rates up to 300Mbps Bullet 2 Support for 64/128 bit WEP and WPA/WPA2 security Bullet 3 Half-height Mini PCI Express interface Bullet 4 Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively Bullet 5 Infrastructure and Ad-Hoc network mode support Bullets (Consolidated) Add high speed Wireless-N connectivity through a Mini PCI Express slot - Mini PCI Express Wireless N Card - 300Mbps Mini PCIe 802.11b/g/n WiFi Adapter - 2T2R - PCI Express Half Mini Wireless NIC - mPCIe Wireless Network Card - Half Height Mini PCIe - Comparable to Intel 7260HMWANWB Marketing Copy Applications - Replace or upgrade an existing WiFi connection to IEEE 802.11n standards
- Add wireless-N networking capabilities to a mini-ITX or custom embedded system with no room for a standard PCI Express card
- Connect to a wireless-N network in remote locations where wired connections are unavailable
- Add high-speed WiFi connectivity to support demanding applications such as streaming video, VoIP and network backups
Required Regulatory Compliance Marks - ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
System and Cable Requirements Available Mini PCI Express expansion slot Accessory Products HMPEXADP Related Products - PEX300WN2X2
- USB300WN2X2D
- USB150WN1X1
- PCI300WN2X2
Humidity 10~90% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 30 Product Width (mm) 26 Product Height (mm) 3 Product Weight (g) 4 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Bandwidth 20/40 MHz Maximum Data Transfer Rate 802.11n: 300 Mbps OS Compatibility - Windows 8
- Linux
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows 11
Security Features - WEP Data Encryption
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption

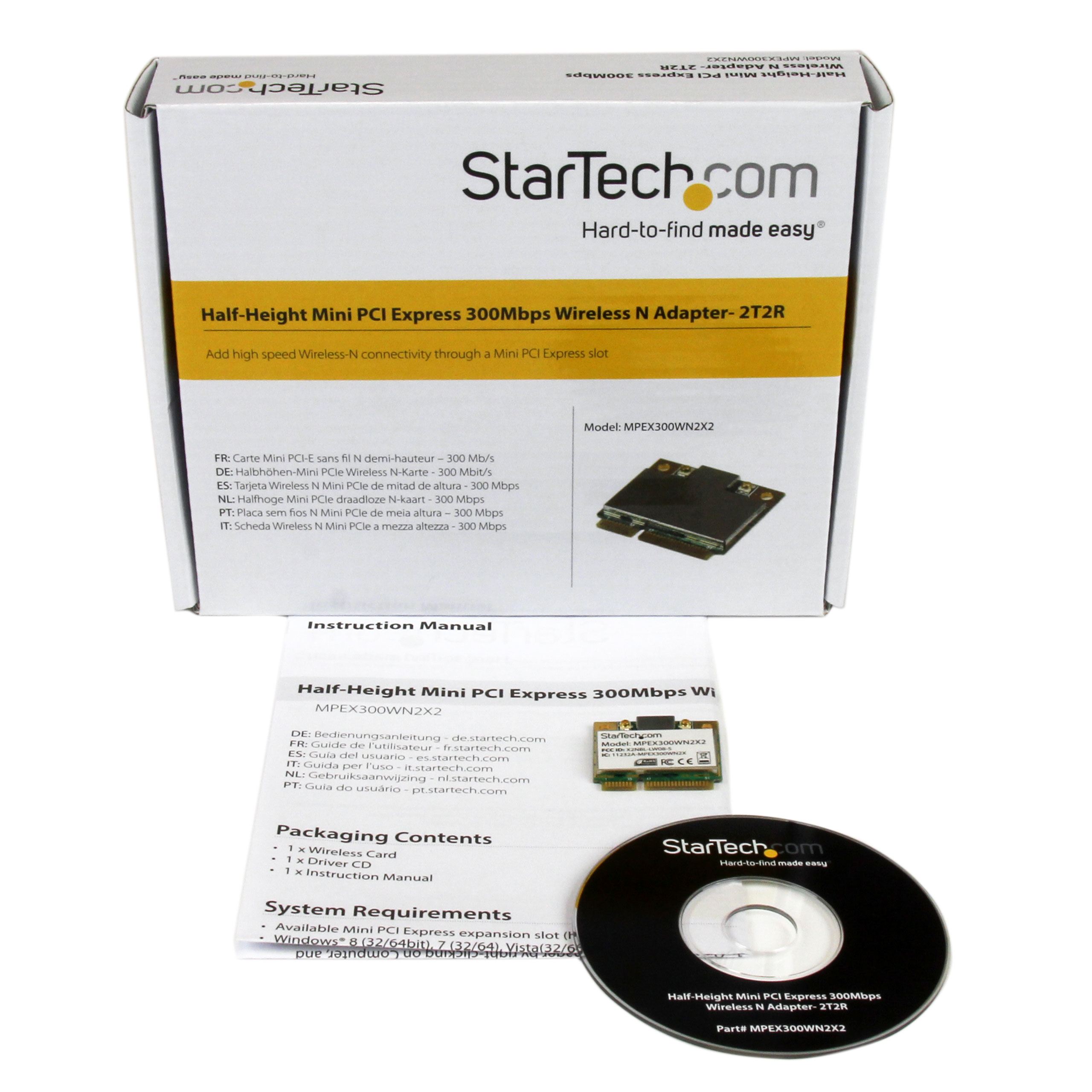

Antenna Configuration 2x2:2 (TxR:S) Bus Type Mini PCI Express Card Type Embedded Chipset ID Realtek - RTL8192CE Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Interface/Bridge Wireless Ethernet Carton Depth (mm) 362 Carton Height (mm) 317 Carton Quantity 100 Carton Weight Gross (g) 7874 Included in Package - 1 - Wireless Card
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 170 Package Height (mm) 30 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 66 Packaging Description Half-Height Mini PCIe Wireless N Card - 300Mbps Packaging Description India Half-Height Mini PCIe Wireless N Card - 300Mbps Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini PCI Express x1 Connector 1 (Quantity) 1 Connector 2 Wi-Fi 4 (802.11n, 600Mbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-30 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
