MPEX4S552
4 Port RS232 Mini PCI Express Serial Card w 16650 UART
Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot

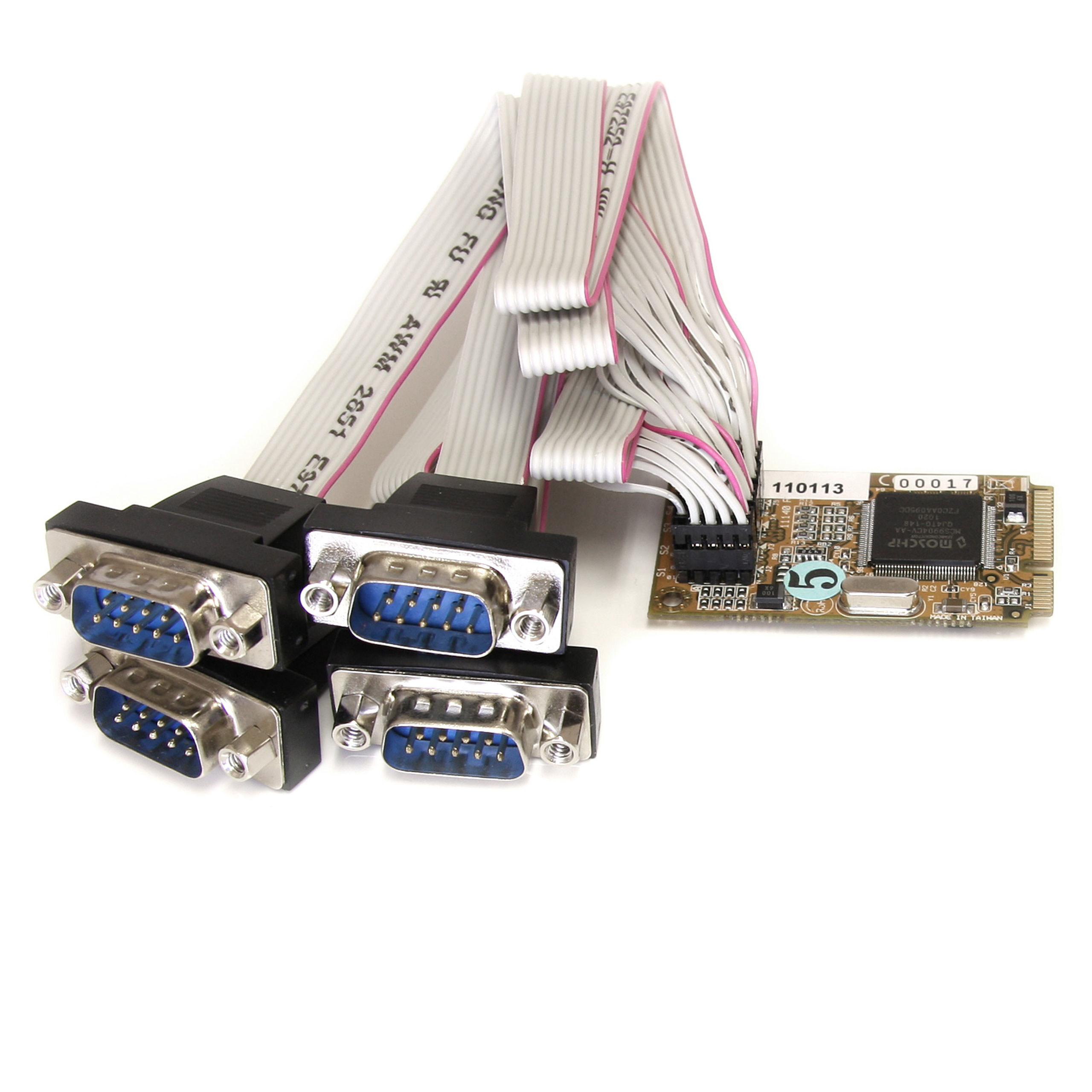

Main Image

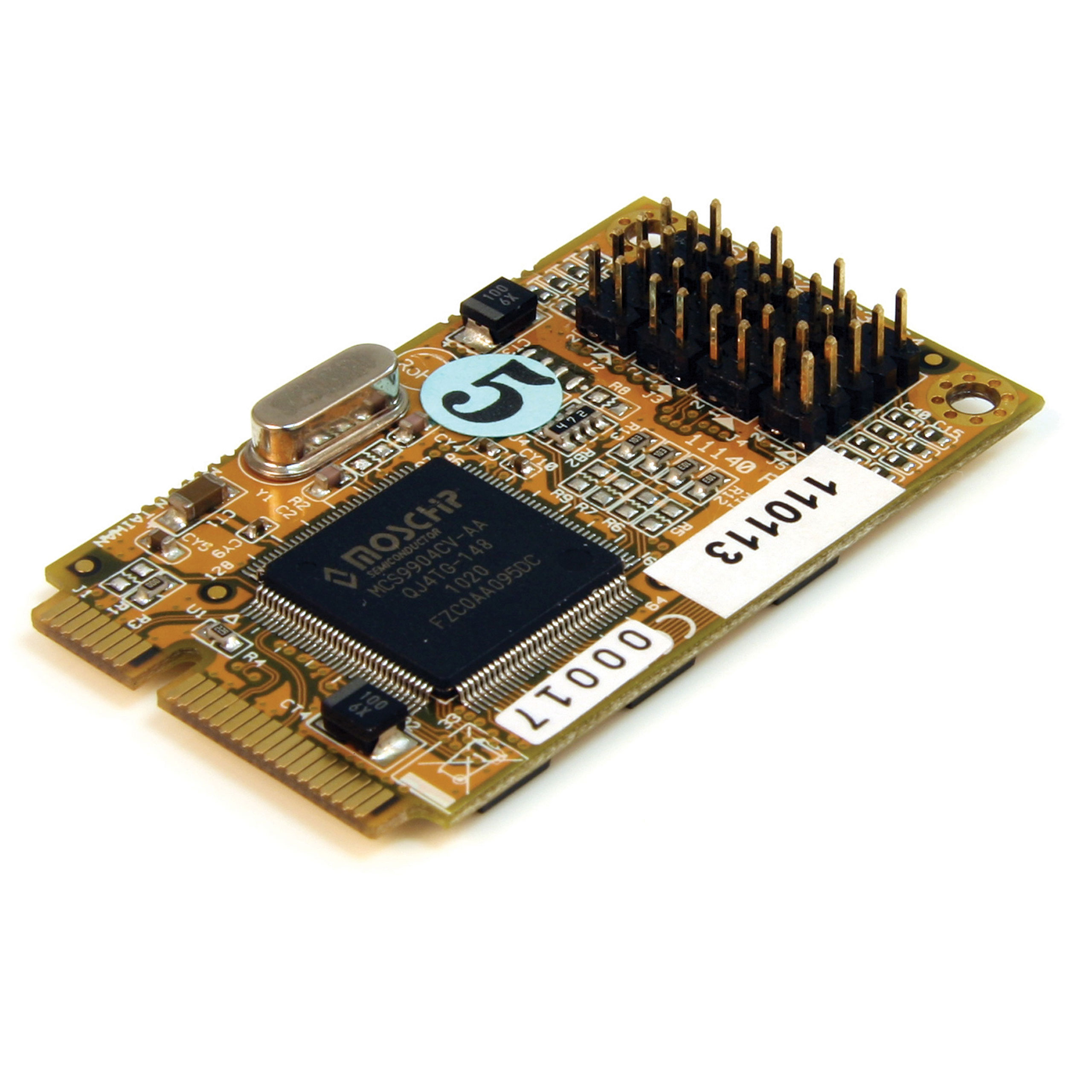

Product Images
BOM Image
Product Name 4 Port RS232 Mini PCI Express Serial Card w 16650 UART Product Number MPEX4S552 UPC 065030844611 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 4 Port Mini PCIe Serial Card w/ 16650 Product Title (Standard) 4 Port RS232 Mini PCI Express Serial Card w/ 16650 Product Title (Long) 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART - TAA Product Title (AMZ) 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART (MPEX4S552) Title Ingram (Part 1) 4 Port RS232 Mini PCI Express Se Title Ingram (Part 2) rial Card w/ 16650 UART Website Product Headline Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot Bullet 1 256-byte deep FIFO per transmitter and receiver Bullet 2 In-band software flow control, using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using RTS/CTS Bullet 4 Compliant with PCI Express base specifications revision 1.1 Bullet 5 High Performance 16650 UART Bullets (Consolidated) Serial adapter - Mini PCI Express - RS-232 x 4 Marketing Copy Applications - Add RS232 serial control to an embedded or slim media center/media server/all-in-one PC
- Add RS232 serial ports to slimline POS systems
- Add serial ports to industrial embedded computers and systems
Website Search Keyword - PCI Express mini
- Mini PCIe
- Quad serial
- PCIe mini
- Mini PCI-E
- PCI-E
- RS232
- RS-232
- 4 serial
- 4 port serial
- embedded serial
- embedded rs-232
- All in one systems
- embedded rs 232
- embedded rs232
- all-in-one
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - PLATE9
- PLATE925
- MXT100
- MXT100_25
- MXT100FF
Related Products - PEX1S1PMINI
- PEX1S552
- PEX1S552LP
- PEX1S952
- PEX1S952LP
- PEX2S552
- PEX2S950
- PEX2S952LP
- MPEX2S952
- MPEX2S1P552
- ICUSB232INT2
Constrained SKU Alternatives (Limited Stock) PEX4S953 Color Green Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 50.95 Product Width (mm) 10 Product Height (mm) 30 Product Weight (g) 150 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Mac OS X Yosemite (10.10)
- Windows Server 2016
- Windows Server 2019
Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type Mini PCI Express Card Type Embedded Chipset ID ASIX - MCS9904CV-AA Industry Standards PCI Express Base Specification, Revision 1.1 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 444 Carton Height (mm) 342 Carton Quantity 50 Carton Weight Gross (g) 10722 Included in Package - 1 - 4 Port Mini-PCIe Serial Card

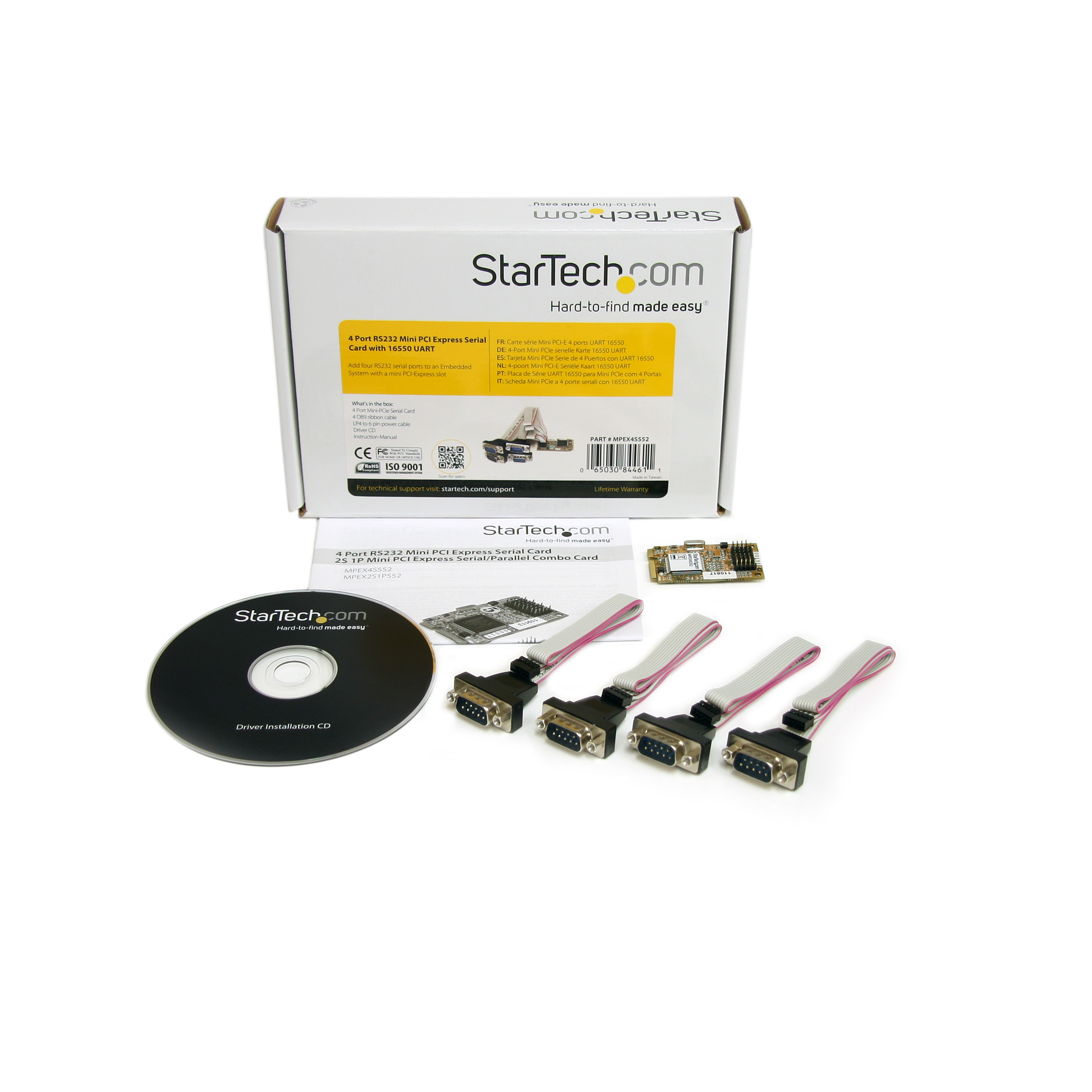

- 4 - DB9 ribbon cable
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 145 Package Height (mm) 41 Package Width (mm) 209 Package Quantity 1 Package Weight (g) 196 Packaging Description 4 Port Mini PCIe Serial Card 16650 UART Packaging Description India 4 Port Mini PCIe Serial Card 16650 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
