MPEXSATA22I

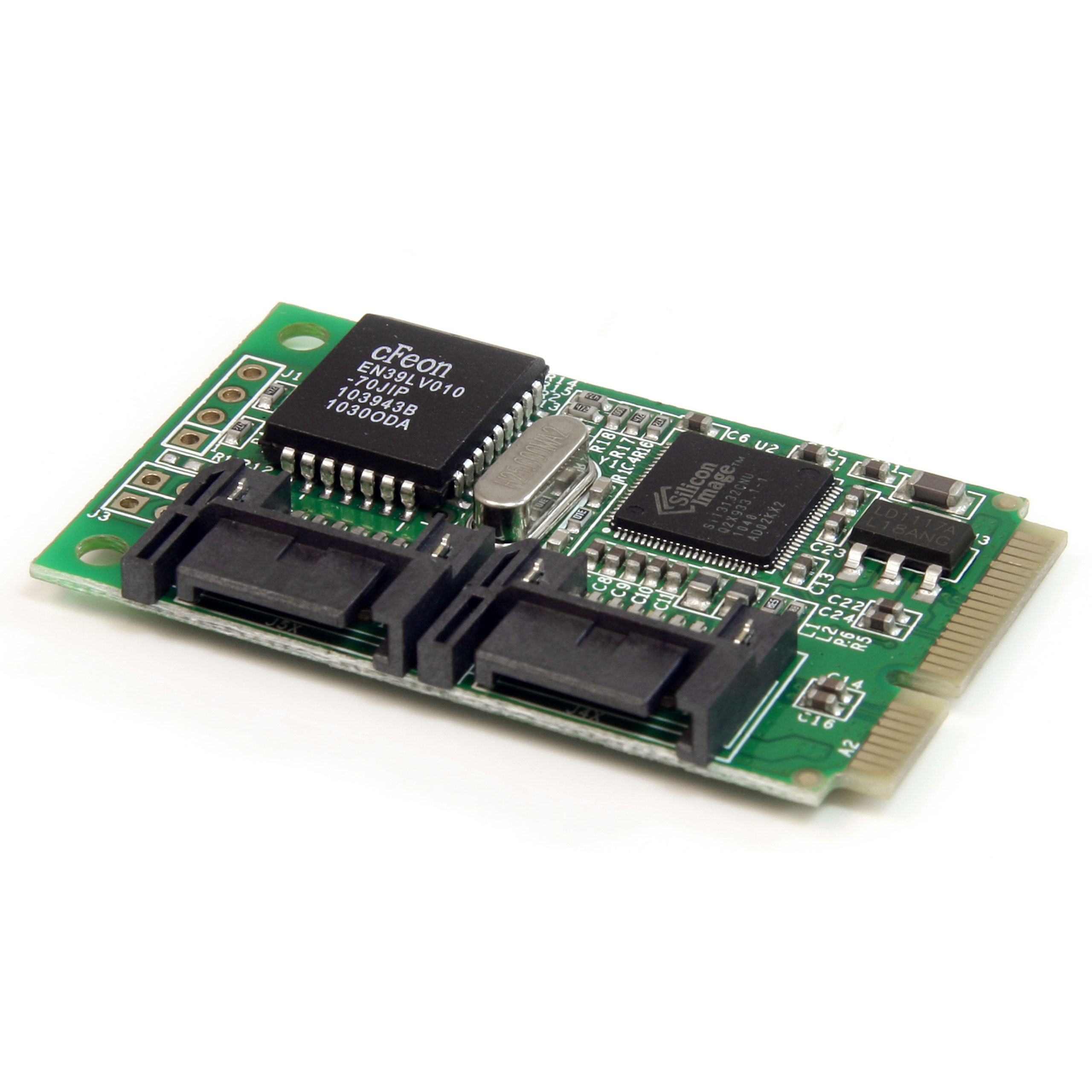

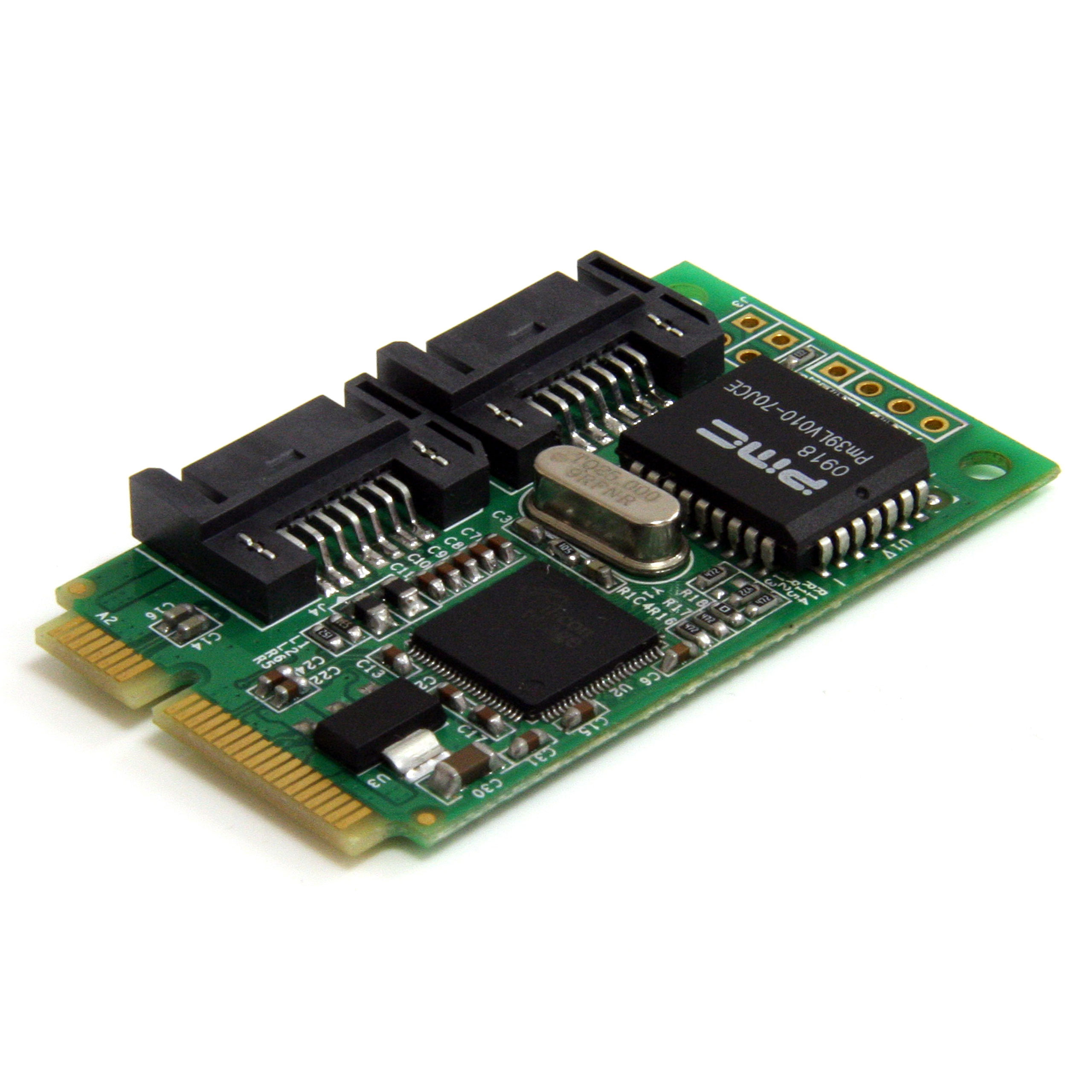

2 Port Mini PCIe Internal SATA II Controller Card
Add 2 SATA ports to a small form factor or embedded system, through a Mini PCIe slot
Main Image
Product Images
BOM Image
Product Name 2 Port Mini PCIe Internal SATA II Controller Card Product Number MPEXSATA22I UPC 065030842501 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port Mini PCIe Internal SATA Card Product Title (Standard) 2 Port Mini PCI Express Internal SATA II Controller Card Product Title (Long) 2 Port Mini PCI Express Internal SATA II Controller Card Product Title (AMZ) 2 Port Mini PCI Express Internal SATA II Controller Card (MPEXSATA22I) Title Ingram (Part 1) 2 Port Mini PCI Express Internal Title Ingram (Part 2) SATA II Controller Card Website Product Headline Add 2 SATA ports to a small form factor or embedded system, through a Mini PCIe slot Bullet 1 Two independent SATA channels Bullet 2 Fully compatible with SATA revision 1 & 2 hard drives (HDD), Solid State Drives (SSD) and optical drives (CD/DVD/BD) Bullet 3 Full length Mini PCI Express form factor Bullet 4 Support for large capacity SATA drives through a 48-bit LBA Bullet 5 Support for Legacy Command Queuing (LCQ) and Native Command Queuing (NCQ) Marketing Copy Applications - Add additional SATA ports to systems with mini PCI Express slots, such as some mini-ITX and smaller boards
- Add RAID support to small form factor or embedded system builds
Website Search Keyword - mini pci express sata adapter
- mini PCIe adapter card
- mPCIe SATA card
- SATA II controller
Special Notes The MPEXSATA22I does not support RAID when used in a Linux operating system System and Cable Requirements Full length Mini PCI Express slot Accessory Products - SATA6
- SATA12
- SATA18
- SATA18LA1
- SATA18RA1
- SATA24
- SATA36
- SATA36S
- LSATA12
- LSATA12RA1
- LSATA12RA2
Related Products - PEXSATA22I
- PEXSATA24E
- PCISATA4R1
Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 50 Product Width (mm) 30 Product Height (mm) 4 Product Weight (g) 7.8 Storage Temperature -65°C to 150°C (-85°F to 302°F) TAA Compliant No Maximum Data Transfer Rate 3.0 Gbps OS Compatibility - Windows Server 2012
- Linux
- Mac OS X Mavericks (10.9)
- Windows 8
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Mac OS X El Capitan (10.11)
- Windows 11

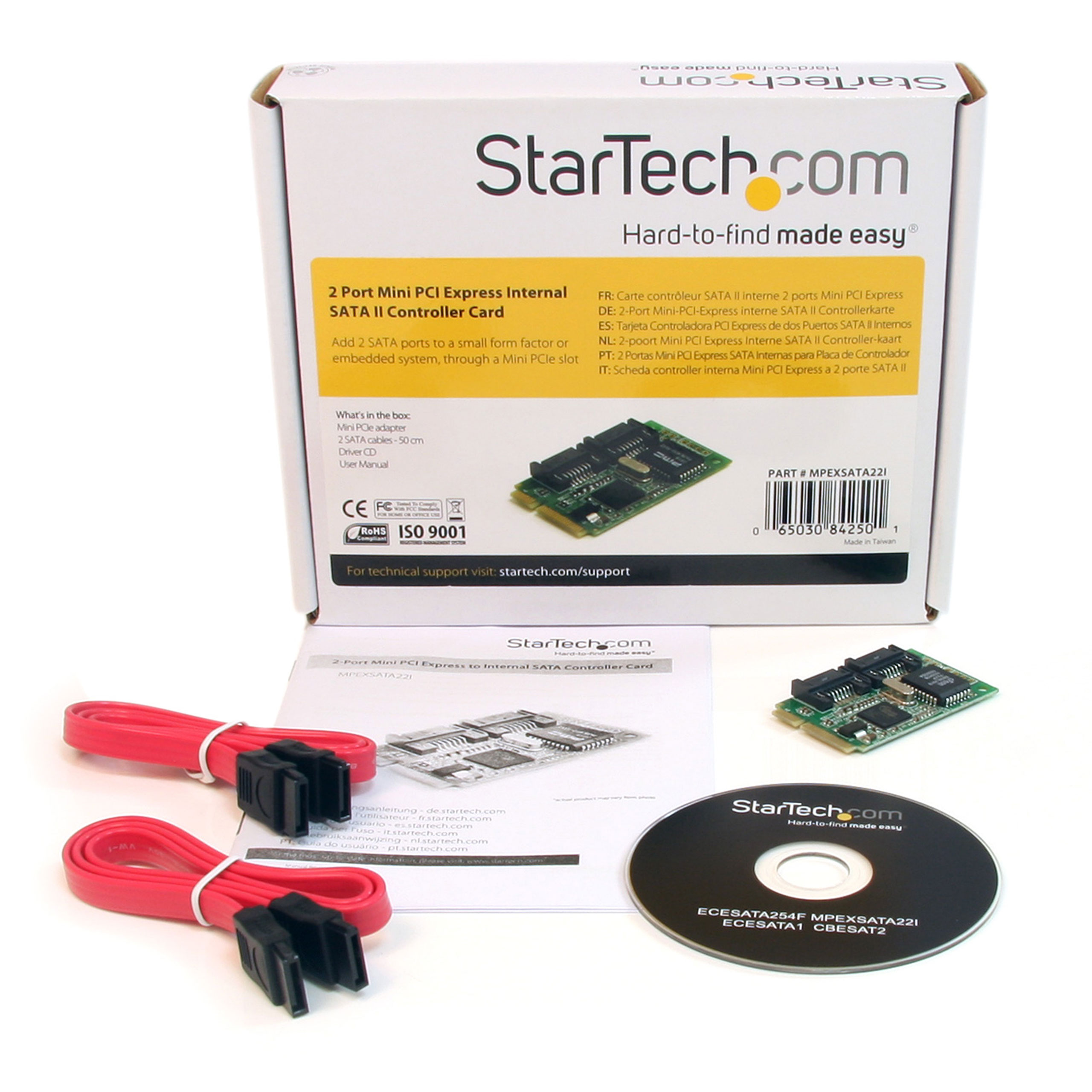

Port Multiplier No RAID Yes SATA Type and Rate SATA II (3 Gbps) Bus Type Mini PCI Express Card Type Embedded Chipset ID Silicon Image - SiI3132 Interface/Bridge SATA Carton Depth (mm) 440 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 7550 Included in Package - 1 - Mini PCIe SATA Card
- 1 - Driver CD
- 2 - SATA cable - 50 cm
- 1 - Instruction Manual
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 130.9968 Packaging Description 2 Port Mini PCIe Internal SATA Card Packaging Description India 2 Port Mini PCIe Internal SATA Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini PCI Express x1 Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
