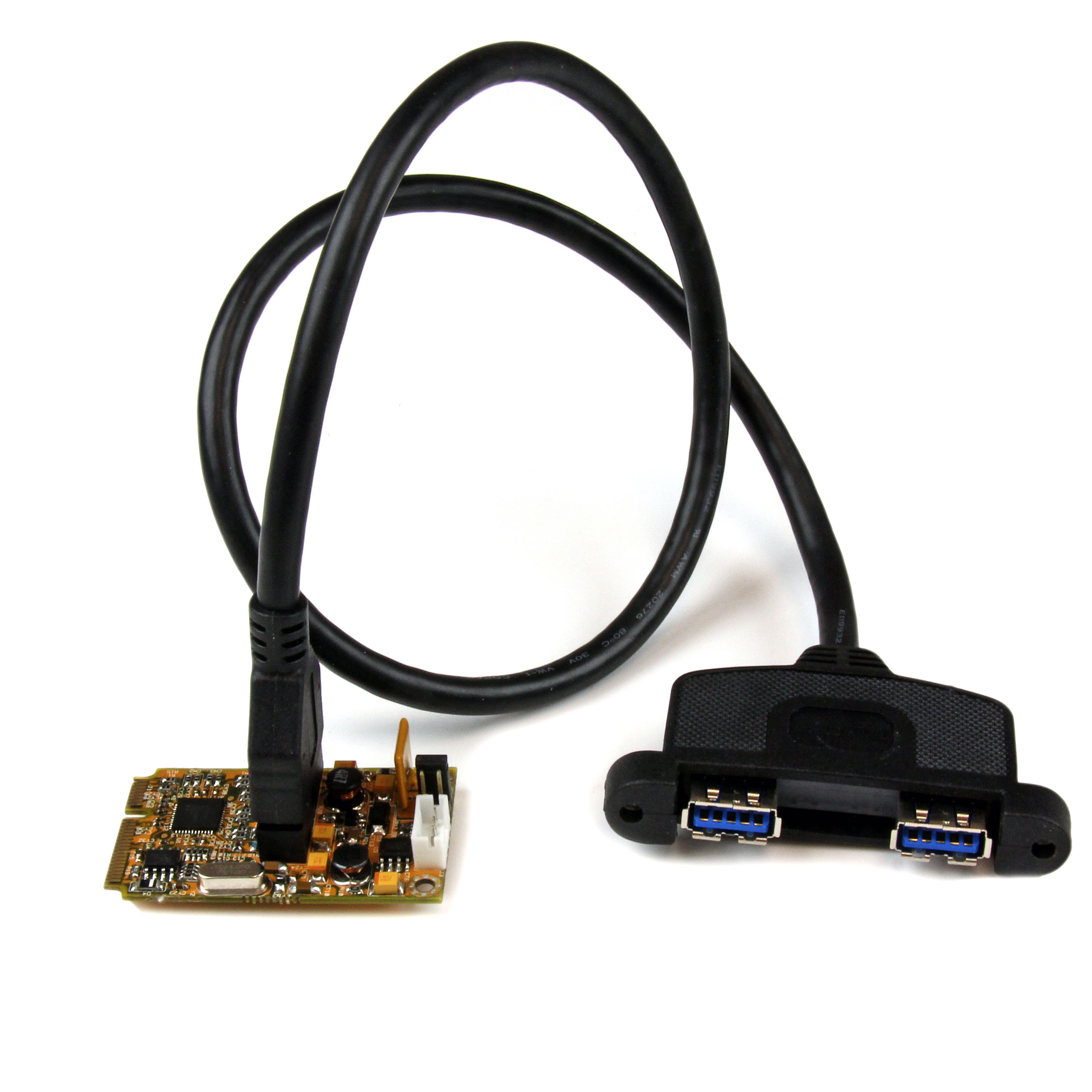

MPEXUSB3S22B
2 Port Mini PCIe USB 3 Adapter Card - Dual Profile
Add two USB 3.0 (USB 3.2 Gen 1) ports through a Mini PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port Mini PCIe USB 3 Adapter Card - Dual Profile Product Number MPEXUSB3S22B UPC 065030851114 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) Mini PCIe USB 3 Card Product Title (Short) 2 Port Mini PCIe USB 3.0 Adapter Card Product Title (Standard) 2 Port SuperSpeed Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support - 5Gbps Product Title (Long) 2 Port SuperSpeed (5Gbps) Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support Product Title (AMZ) 2 Port SuperSpeed Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support - Dual Port Mini PCIe USB 3 Card - 5Gbps (MPEXUSB3S22B) Title Ingram (Part 1) 2Port Mini PCIe USB 3 Adapter Title Ingram (Part 2) Card w/ Dual Profile Website Product Headline Add two USB 3.0 (USB 3.2 Gen 1) ports through a Mini PCI Express slot Bullet 1 Two external USB 3.2 Gen 1 type A ports Bullet 2 Provides up to 900mA of power per port Bullet 3 Backward compatible with USB 2.0 and USB 1.0/1.1 devices Bullet 4 PCI Express Base Specification 2.0 Compliant (backward compatible with 1.0a/1.1) Bullet 5 Supports Control / Bulk / Interrupt / Isochronous USB Transfer Modes Marketing Copy Applications - System builders creating a small form factor HTPC with external USB 3.2 Gen 1 storage or other peripherals
- Add two USB 3.2 Gen 1 device connections to a mini-ITX or custom embedded system with no room for a standard PCI Express card
- Connecting external USB 3.2 Gen 1 storage devices for quick backup or archiving
Website Search Keyword MPEXUSB3S2 Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements - Available Mini PCI Express expansion slot (full length)
- Case/Chassis with available Low or Full profile expansion card slot
Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SEXTAA6
- LP4LSATAADAP
Related Products - PEXUSB3S4V
- MPEXUSB3S2
Cable Length (mm) 600 Color Black Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 51.000 Product Width (mm) 30.000 Product Height (mm) 0.000 Product Weight (g) 61.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Maximum Data Transfer Rate 5 Gbps OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type Mini PCI Express Card Type Embedded Chipset ID Renesas/NEC - µPD720202 Industry Standards - PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1)
- Intel xHCI
- USB 3.0

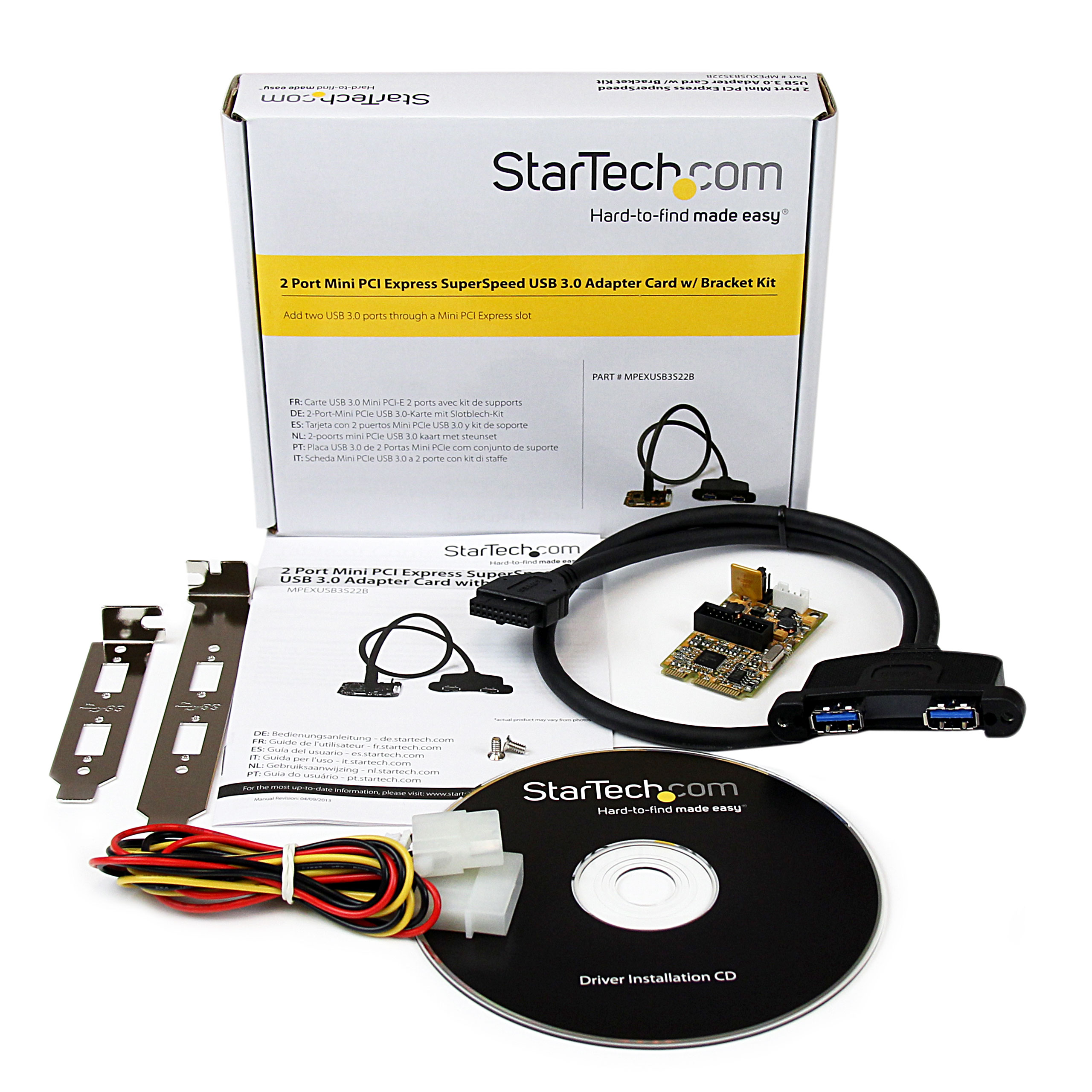

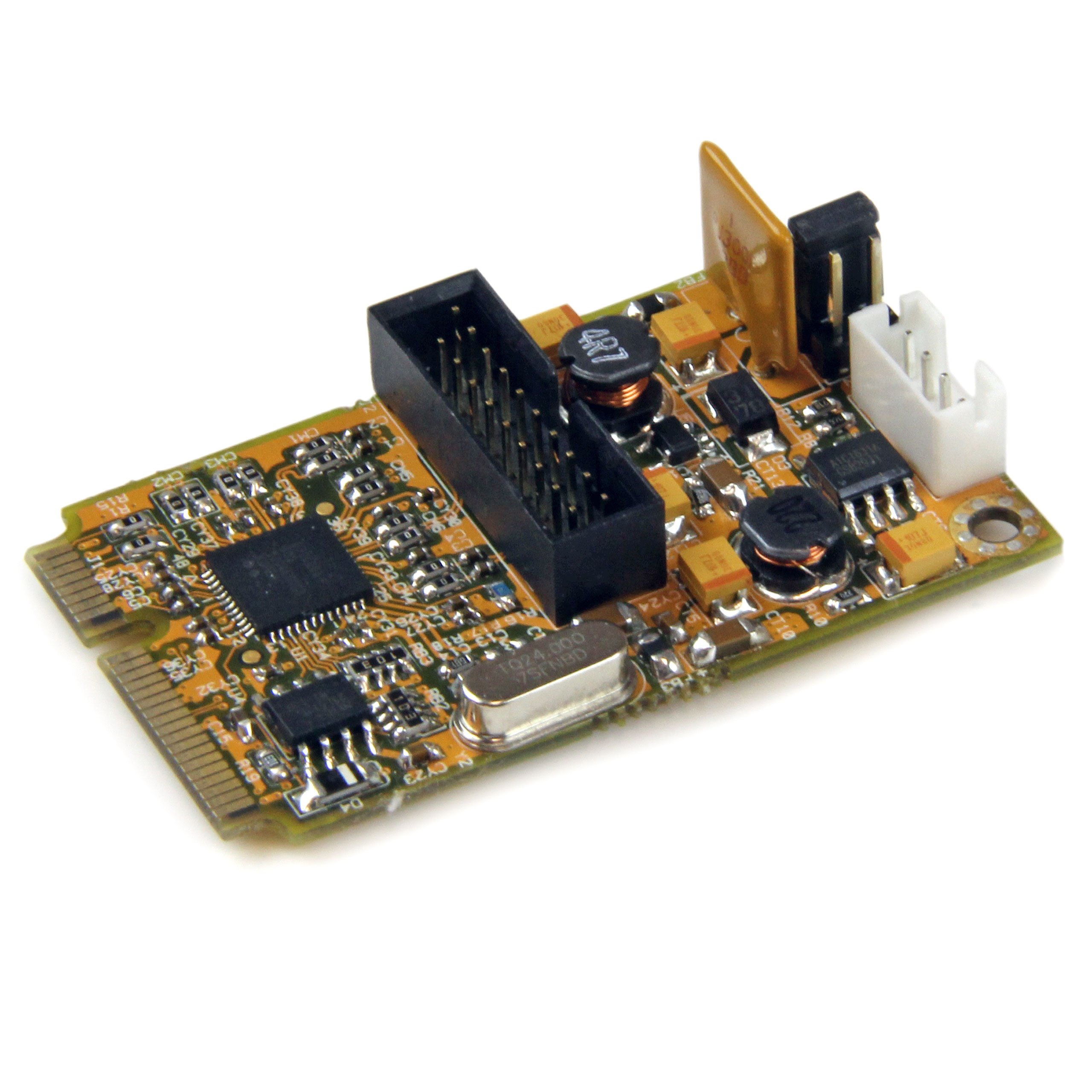

Interface/Bridge USB 3.2 Gen 1 (5Gbps) USB Port Type USB-A Carton Depth (mm) 450 Carton Height (mm) 347 Carton Quantity 80 Carton Weight Gross (g) 17990 Included in Package - 1 - Mini PCIe USB 3.0 Card

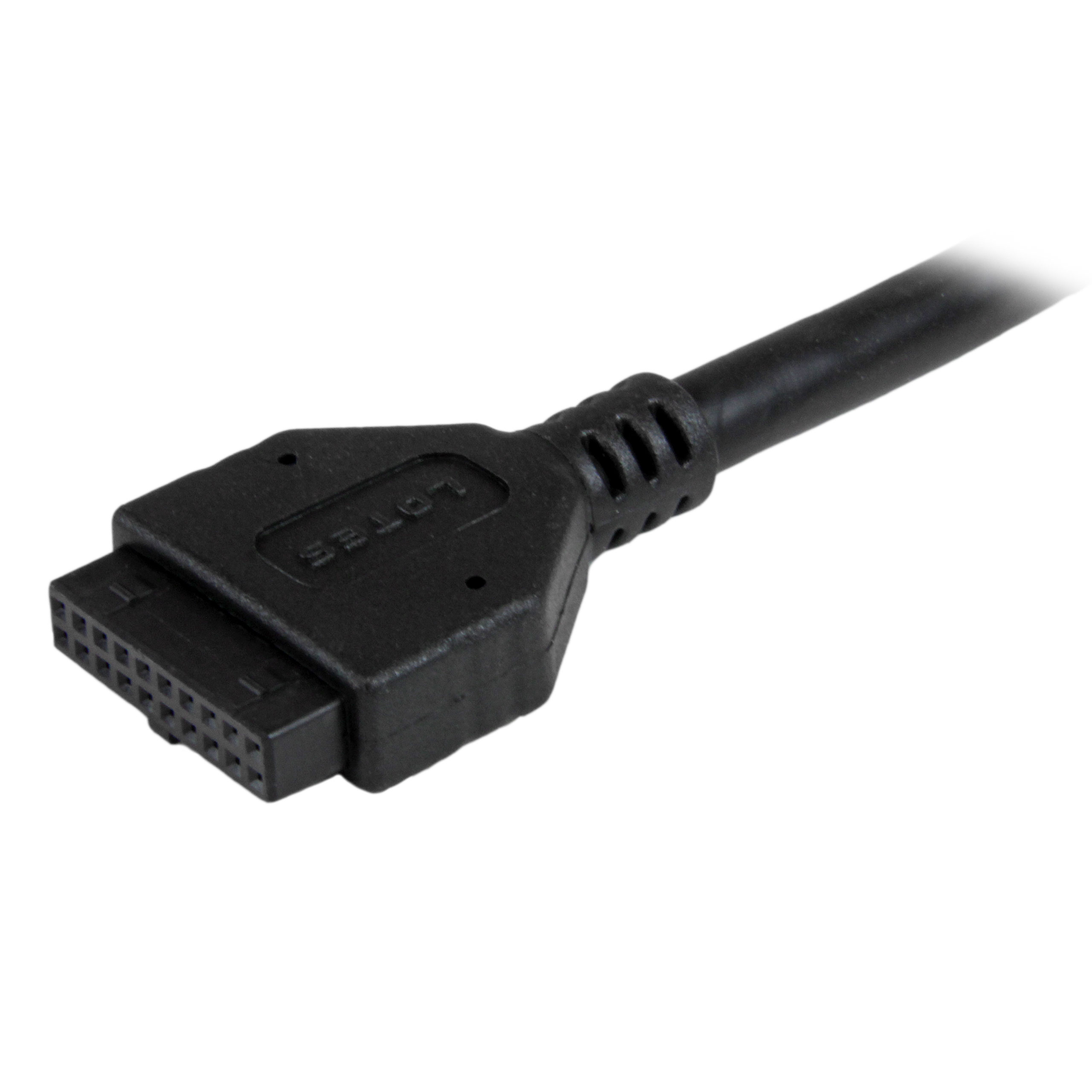

- 1 - USB Header to 2 Port Cable
- 1 - Standard Profile Bracket
- 1 - Driver CD
- 1 - Screw Kit
- 1 - Instruction Manual
- 1 - Low Profile Bracket
- 1 - LP4 Power Cable

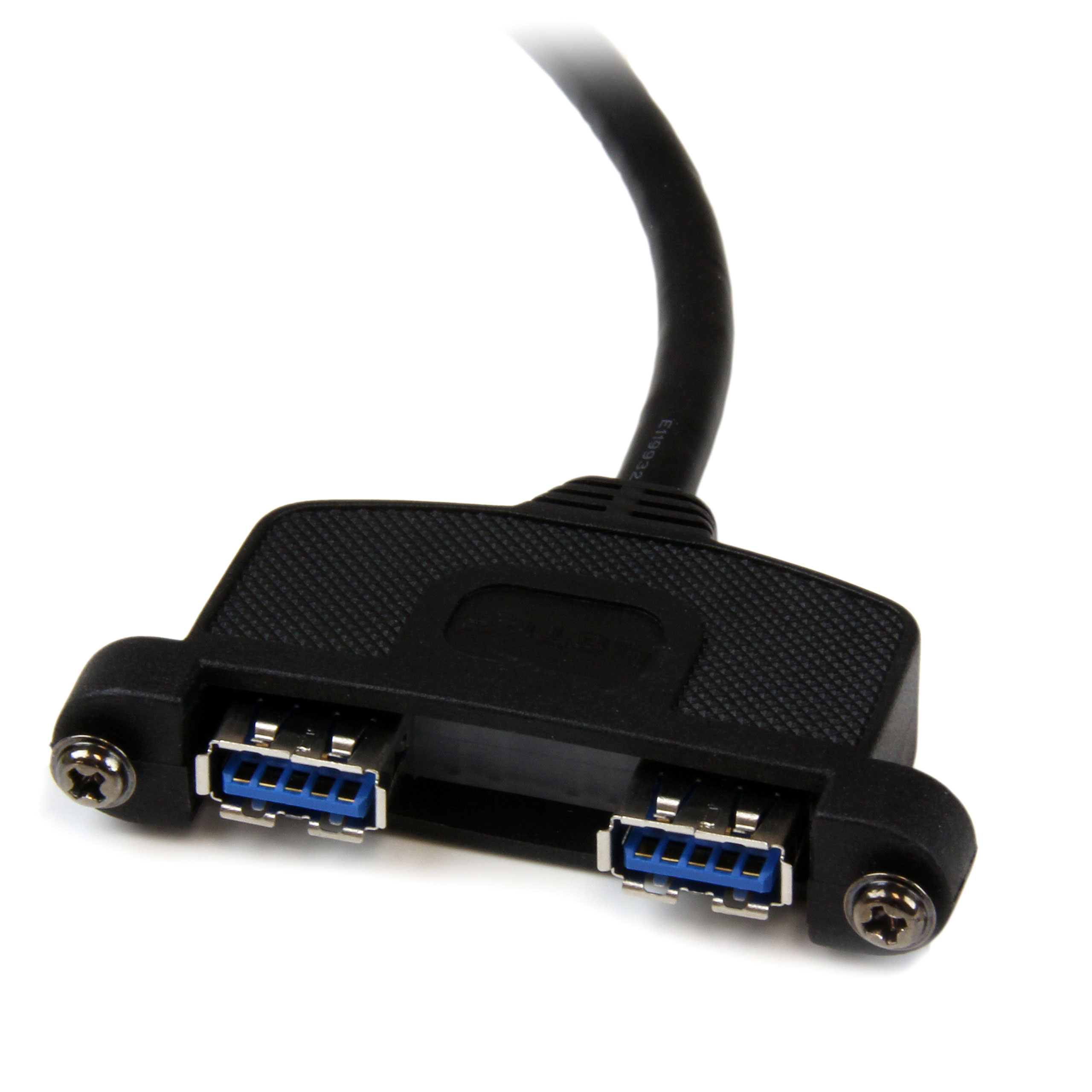

Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 212 Packaging Description 2 Port Mini PCIe USB 3.0 Card w/ Bracket Kit Packaging Description India 2 Port Mini PCIe USB 3.0 Card w/ Bracket Kit Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini PCI Express x1 Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 IDC (20-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-03-20 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
