MPO8LCPL3M

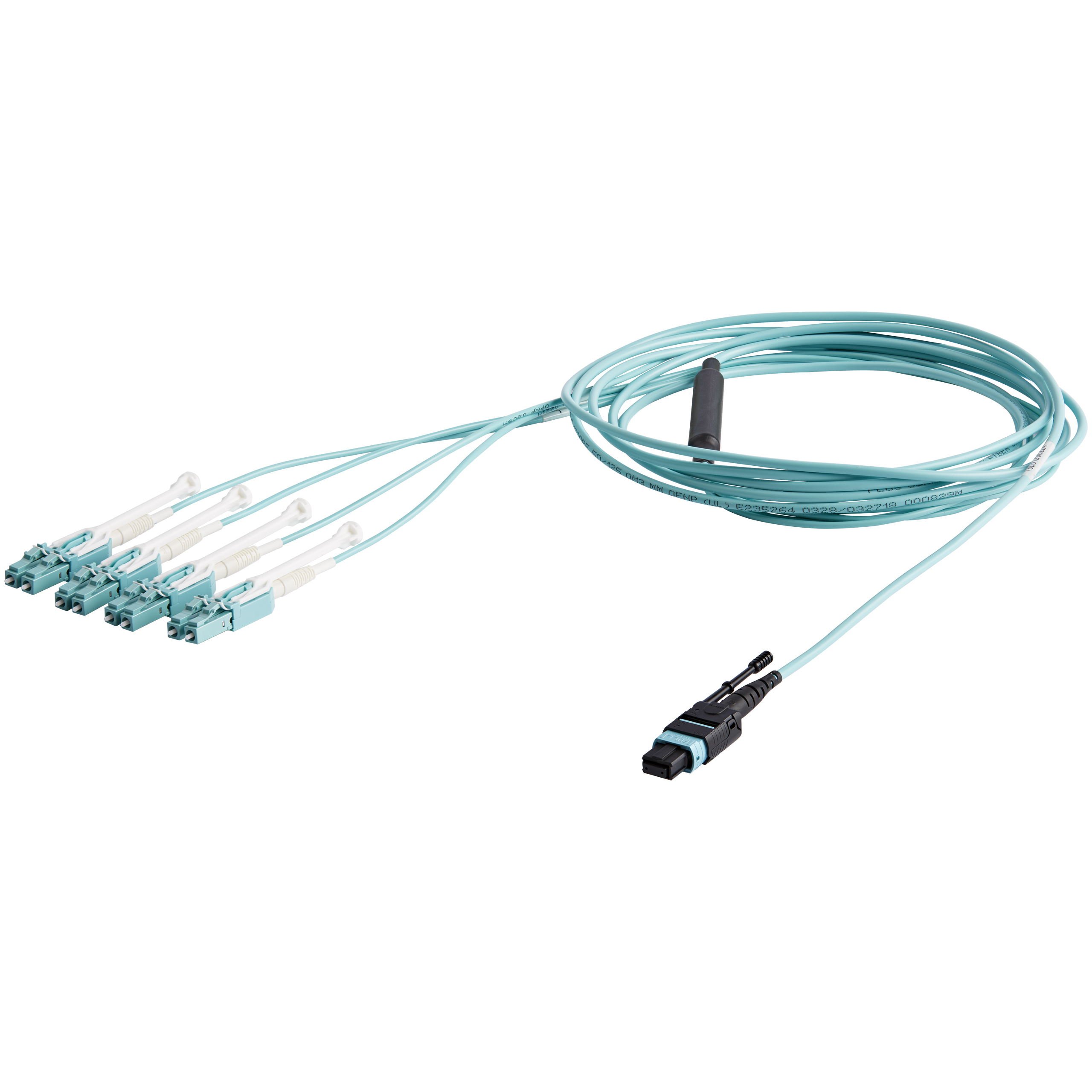

3m MTP MPO 8 x LC 40G OM3 Multi mode Aqua Plenum Pull
Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 3m MTP MPO 8 x LC 40G OM3 Multi mode Aqua Plenum Pull Product Number MPO8LCPL3M UPC 065030878944 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Fiber Network Cables Category Level 1 Network Cables Category Level 2 Fiber Cables Category Level 3 Multimode MPO Fiber Cables Family MPO/MTP 8 Fiber Cable Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX001X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX001X Product Title (Ultra-Short) MTP to 4x LC Cable Product Title (Short) 3m MTP/MPO to 4xLC/PC Fiber Cable Product Title (Medium) 3m (10ft) MPO/MTP to LC Breakout OM3 Multimode Fiber Optic Cable Product Title (Standard) 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, 40G, Low Insertion Loss, Fiber Jumper Cord Product Title (Long) 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP Plenum, 40G Networks, Low Insertion Loss - Fiber Jumper Cord Product Title (AMZ) 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, 40G, Fiber Jumper Cord Title Ingram (Part 1) Cavo fibra MTP/MPO a 4xLC 3 m Title Ingram (Part 2) Cavo Breakout OM3, 40Gb Website Product Headline Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+ Bullet 1 OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers Bullet 2 QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal Bullet 3 RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss Bullet 4 COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers Bullet 5 SPECS: 3m (9.8ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz·km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: Below 0.5dB (MTP), 0.2dB (LC) Bullets (Compact) 3m (9.8ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable; OFNP Plenum; 8F Type-A; 50/125µm Core; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 3.0mm; Temp Range: -10 to 70°C (14 to 158°F) Bullets (Consolidated) 3m (9.8ft) MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors - Cable individually tested for signal integrity | Ideal for high-density network applications such as SANs data servers QSFP+ and SFP+ connections - 850nm or 1300nm VCSEL | Modal Bandwidth: >=2000MHz·km at 850nm | OFNP Plenum-rated jacket with 50/125µm fiber core/cladding | Cord O.D.: 3.0mm (MTP) | Temperature Range: -10 to 70DEG C (14 to 158DEG F) Marketing Copy Applications - Use in 10/40 Gigabit Ethernet and fiber channel applications

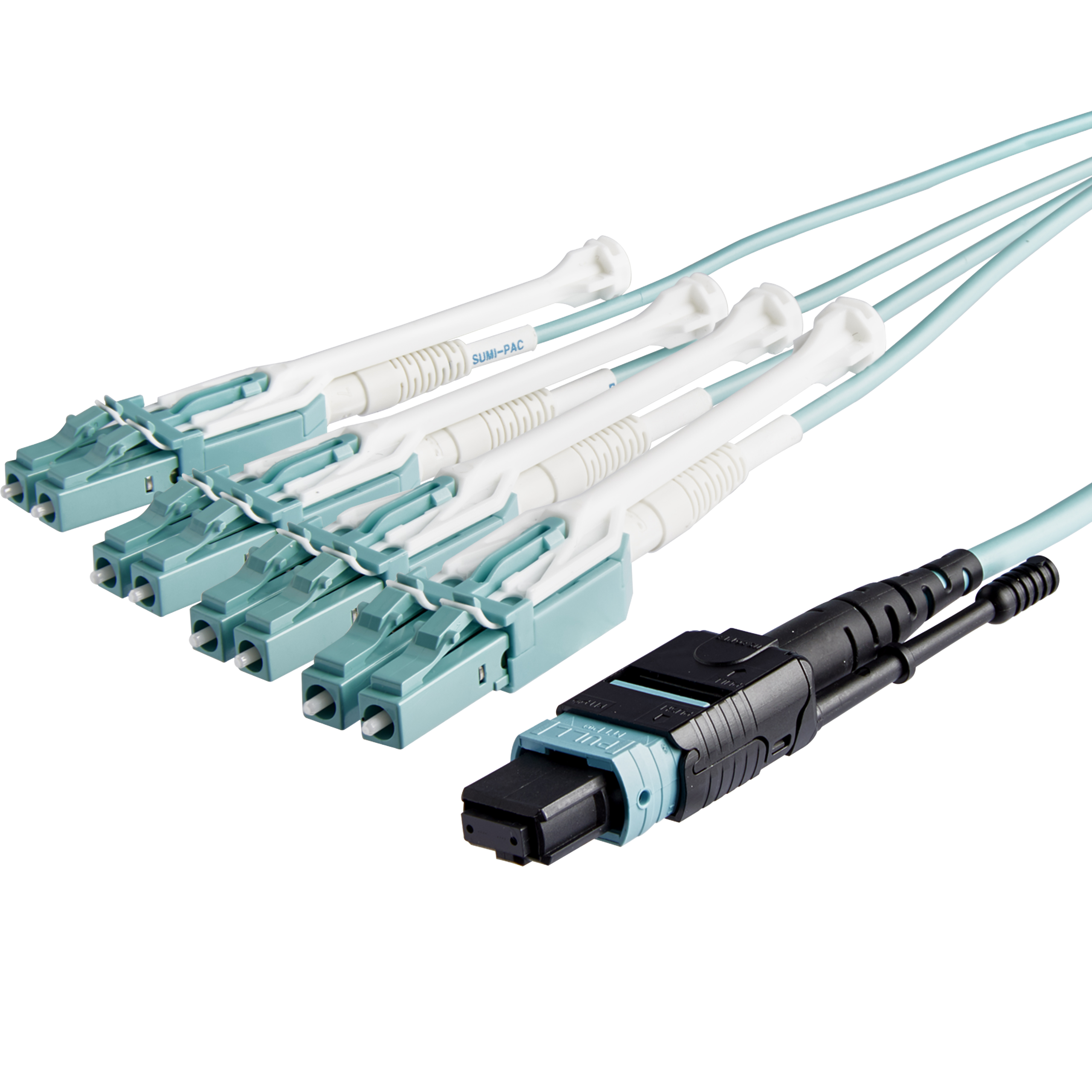

- Fan out a single 40Gbps MPO/MTP connection to four 10Gbps LC connections on devices such as fiber patch panels, hubs, switches, media converters, and routers
- Used with 40GBase-SR4 networking hardware
Website Search Keyword - N844-03M-8LC-P
- N844X-03M-8L-P
- N844-03M-8LC-PT
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
Related Products - MPO8LCPL1M
- MPO8LCPL2M
- MPO8LCPL5M
- MPO8LCPL10M
Cable Length (mm) 3000 Color Aqua Humidity 55 ～ 65%RH Operating Temperature -10°C to 70°C (14°F to 158°F) Primary Material Plastic Product Length (mm) 3000.000 Product Width (mm) 13.800 Product Height (mm) 8.000 Product Weight (g) 52.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Type Multi Mode Cable Jacket Material Low Smoke Zero Halogen Classification OM3 Fiber Cable Type Multifiber Fiber Classification OM3 Fiber Size 50/125 Fire Rating OFNP Plenum Rated Carton Depth (mm) 200 Carton Height (mm) 238 Carton Quantity 50 Carton Weight Gross (g) 3698 Included in Package 1 - fiber optic cable Number of Sub-Cartons 5 Package Depth (mm) 199 Package Height (mm) 21 Package Width (mm) 154 Package Quantity 1 Package Weight (g) 62 Packaging Description Plenum-Rated Fiber Optic Cable - 40Gb - Push/Pull-Tab Packaging Description India Plenum-Rated Fiber Optic Cable - 40Gb - Push/Pull-Tab Sub-Carton Depth (mm) 260 Sub-Carton Height (mm) 92 Sub-Carton Width (mm) 244 Sub-Carton Quantity 10 Sub-Carton Weight (g) 648 Connector 1 MPO / MTP Fiber Connector 1 (Quantity) 1 Connector 2 LC Duplex Fiber Connector 2 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-01-19 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2018-01-19 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,EU,IE,JP,NL,SG,UK,US Primary Technology None Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2017-11-24 Target Production Release 2018-01-19 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
