MR12GI-NETWORK-CARD
2 5GBASE T M 2 B M Key Ethernet Module Right Angle RJ 45

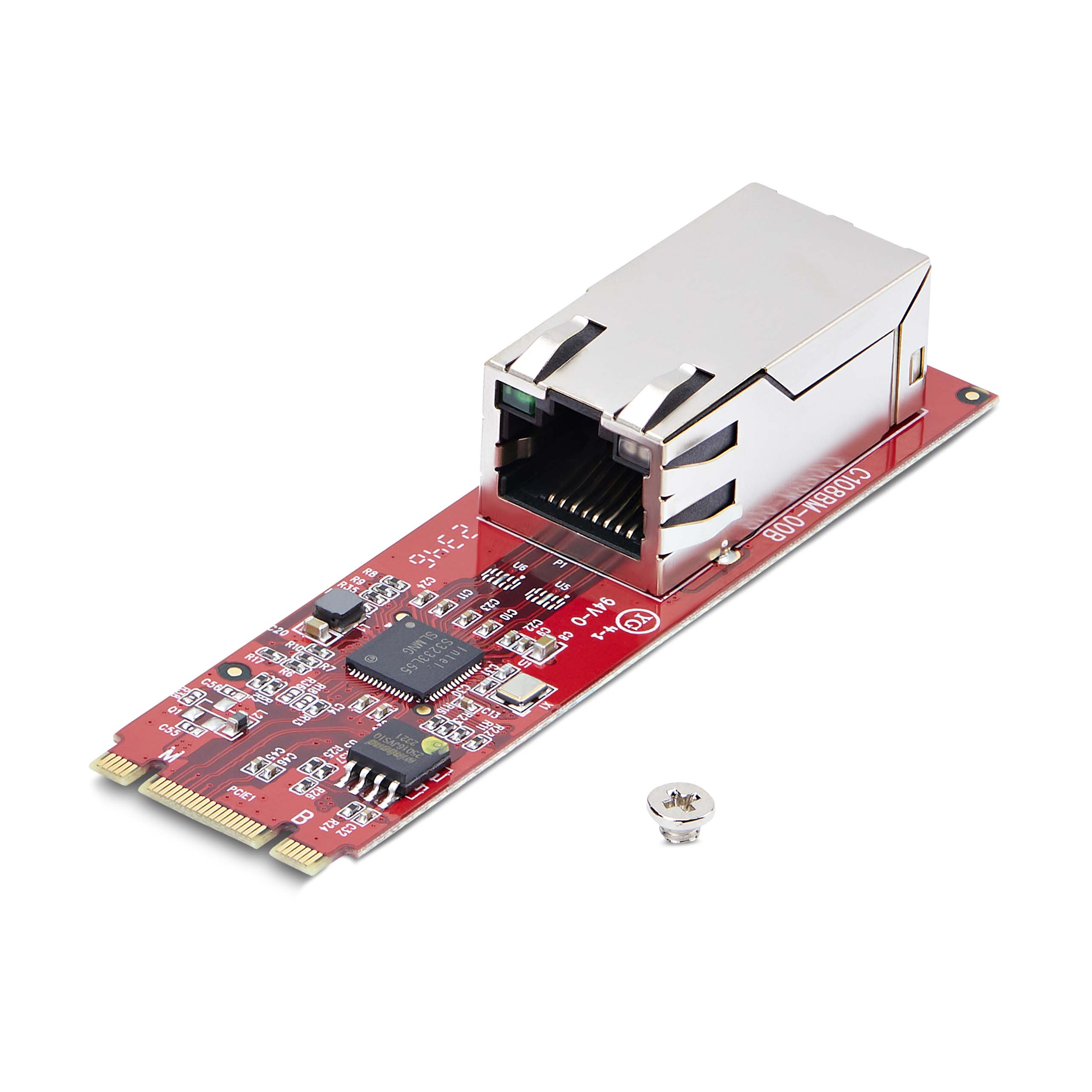

M.2 PCIe network card featuring the Intel® I225-V-chip, offering multi-gigabit speeds with support for NBASE-T
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 5GBASE T M 2 B M Key Ethernet Module Right Angle RJ 45 Product Number MR12GI-NETWORK-CARD UPC 065030901611 Lifecycle status Active Warranty 2 Years Weighted Opportunity 24180 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) M.2 Network Card/NIC Product Title (Short) 1Port 2.5G M.2 NBASE-T PCIe Ethernet NIC Product Title (Medium) 1-Port 2.5G M.2 2280 Network Card, NBASE-T PCIe Ethernet, Intel I225-V, SFF PC Product Title (Standard) 1-Port 2.5GbE M.2 2280 Network Card, NBASE-T PCIe Ethernet Card, Intel I225-V, Multi-Gigabit Desktop NIC/LAN Card, TAA Product Title (Long) 1-Port 2.5GbE M.2 2280 Network Card, Multi-Gigabit Speeds (2.5G/1G/100M/10M), NBASE-T (802.3bz) NIC, M.2 B+M Key, PCIe Ethernet Interface, For SFF/Desktop PCs - TAA Product Title (AMZ) 1-Port 2.5GbE 2280 M.2 Network Card, NBASE-T PCIe Ethernet, Intel I225-V, Multi-Gigabit, SFF/Desktop PC LAN Card, TAA Title Ingram (Part 1) 2.5G M.2 Network Card, Intel - Title Ingram (Part 2) NBASE-T, PCIe Ethernet NIC/LAN Website Product Headline M.2 PCIe network card featuring the Intel® I225-V-chip, offering multi-gigabit speeds with support for NBASE-T Bullet 1 1-PORT 2.5GbE M.2 NETWORK CARD: High-performance M.2 Ethernet 2.5Gbps network card with Intel I225-V-chip; Multi-gigabit; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T (802.3bz); PCI Express M2 2280 B or M key compatible Bullet 2 IT MANAGEMENT: Intel vPro® for remote management and troubleshooting; PXE boot enabled for faster deployment/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management Bullet 3 M.2 INTERFACE: M.2 2280 form factor is ideal for upgrading systems that do not have PCIe expansion slots or where slots are already in use; Includes 2ft (60cm) M/F Cat6 cable adapter for running Ethernet port to full/low-profile bracket on the rear of the PC Bullet 4 COMPATIBILITY: 2.5GBASE-T variable speed options (2.5/1Gbps and 100/10Mbps) with auto-negotiation; Supports B or M key M.2 PCIe Gen 2 slots; Network interface card for PC is compatible with Windows/Linux; Full and low profile bracket included Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2.5 GbE M.2 NIC is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) 1-Port 2.5GbE M.2 Network Card; Multi-gigabit speeds (2.5G/1G/100M/10M) - NBASE-T (802.3bz) NIC; PCIe Ethernet Card M.2 2280; B/M key compatible - Compact design for SFF/desktop PCs - Incl. 2ft Cat6 adapter; Full/low profile brackets - Windows/Linux Bullets (Consolidated) - 1-Port 2.5GbE M.2 Network Card with Intel I225-V-chip; Multi-gigabit speeds (2.5G/1G/100M/10M) - NBASE-T (802.3bz); PCIe M.2 2280 B or M key compatible - Intel vPro® for remote management; PXE boot; 9K jumbo frame; VLAN support - Compact M.2 Ethernet card is ideal for systems that lack available PCIe slots - Includes 2ft (60cm) Cat6 adapter for flexible routing and full and low profile brackets - Windows/Linux compatible - Backed for two years and free lifetime assistance Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11. Power Source Bus Powered Color Red Network Adapter Form Factor Separate Cable Product Length (mm) 22.000 Product Width (mm) 80.000 Product Height (mm) 15.000 Product Weight (g) 15.000 TAA Compliant Yes Auto MDIX Yes Compatible Networks 2.5G/1G/100Mbps/10Mbps Device Power Consumption (In Watts) 2.3 W Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2.5Gbps OS Compatibility - Windows 11
- Windows 10
- Windows Server 2019
- Windows Server 2022
- Linux
Promiscuous Mode Yes PXE Yes Wake-On-LAN (WOL) Yes Bus Type M.2 Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - I225-V Ethernet Port Yes Industry Standards Interface/Bridge - RJ45 (2.5G Ethernet)
- M.2 PCIe

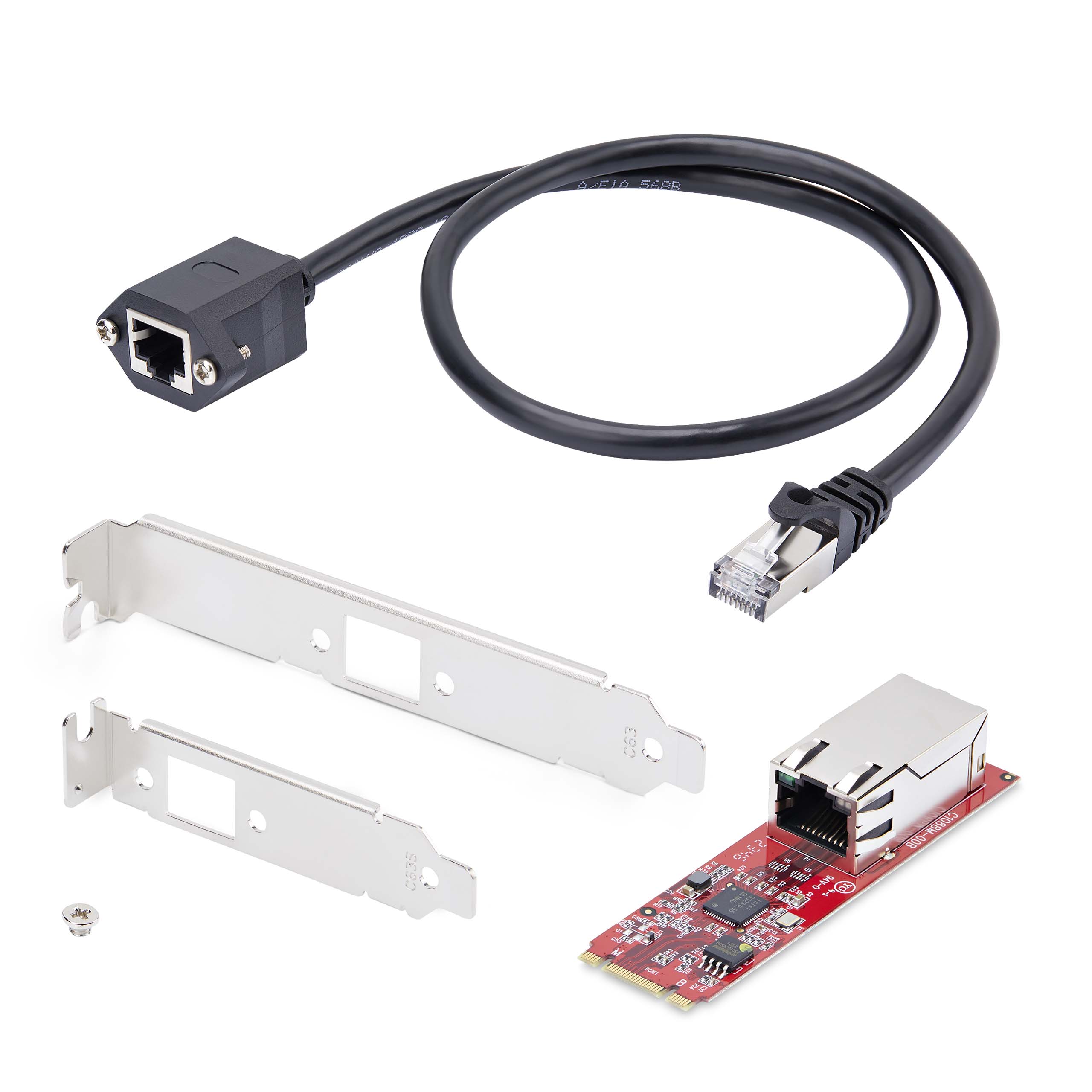

LED Indicators Network Adapter LAN Ports 1 Carton Depth (mm) 500 Carton Height (mm) 320 Carton Quantity 60 Carton Weight Gross (g) 9330 Included in Package - 1 - M.2 Network Card
- 1 - CAT6 Cable Adapter
- 1 - Full-Profile Bracket
- 1 - Low-Profile Bracket
- 1 - M3x2 Screw
- 1 - Quick-Start Guide
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 176 Package Weight (g) 142 Packaging Description M.2 2.5GBase-T Ethernet Network Card - PCIe 2.0 Packaging Description India M.2 2.5GBase-T Ethernet Network Card - PCIe 2.0 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 B+M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2023-11-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment PCIe 1 port 2.5G card, Realtek based Comparable SKU 2 Comment 2-port, 2.5G Intel PCIe Network Card I225-V Digital Content Due Date 2024-01-25 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2023-10-25 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
