MSAT2SAT3

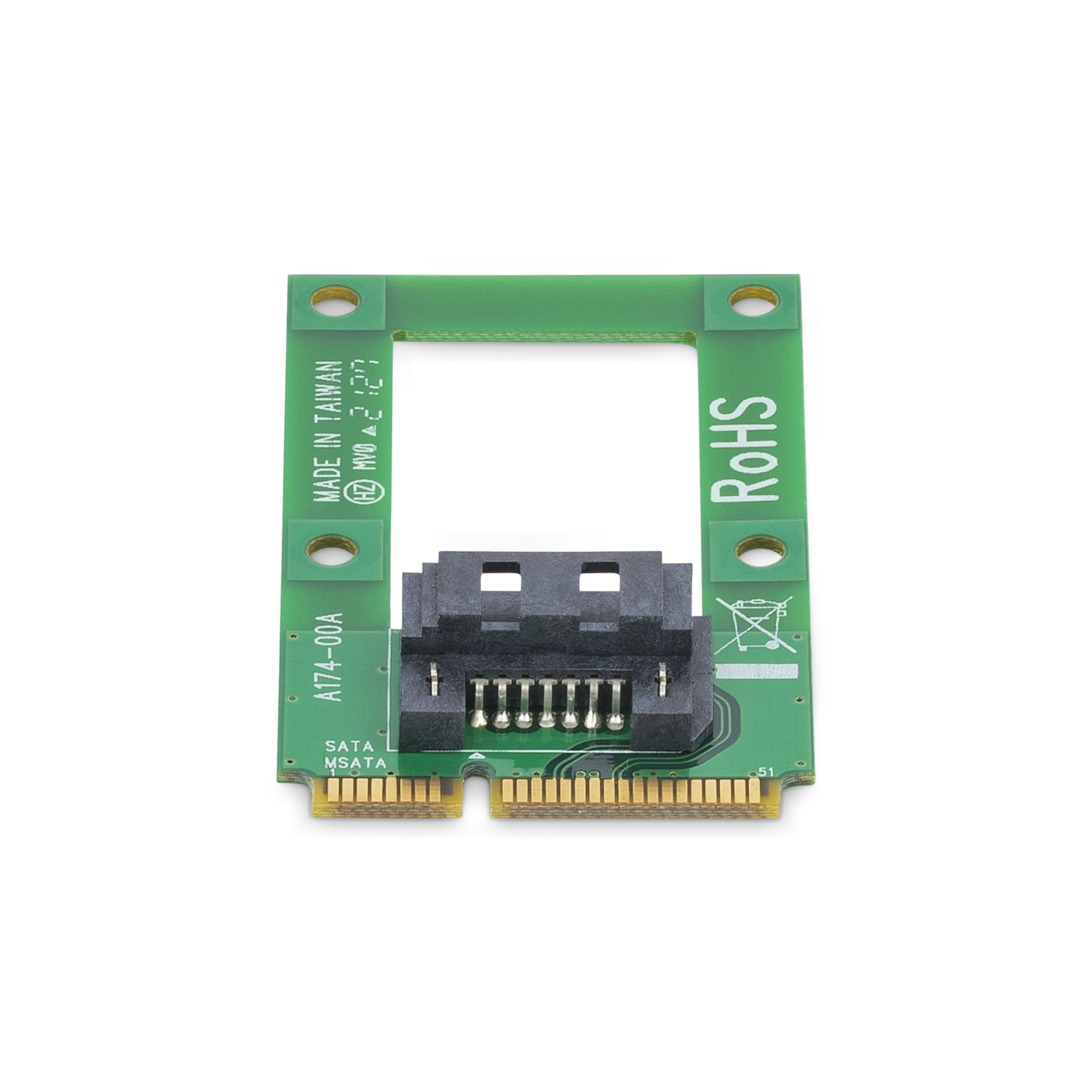

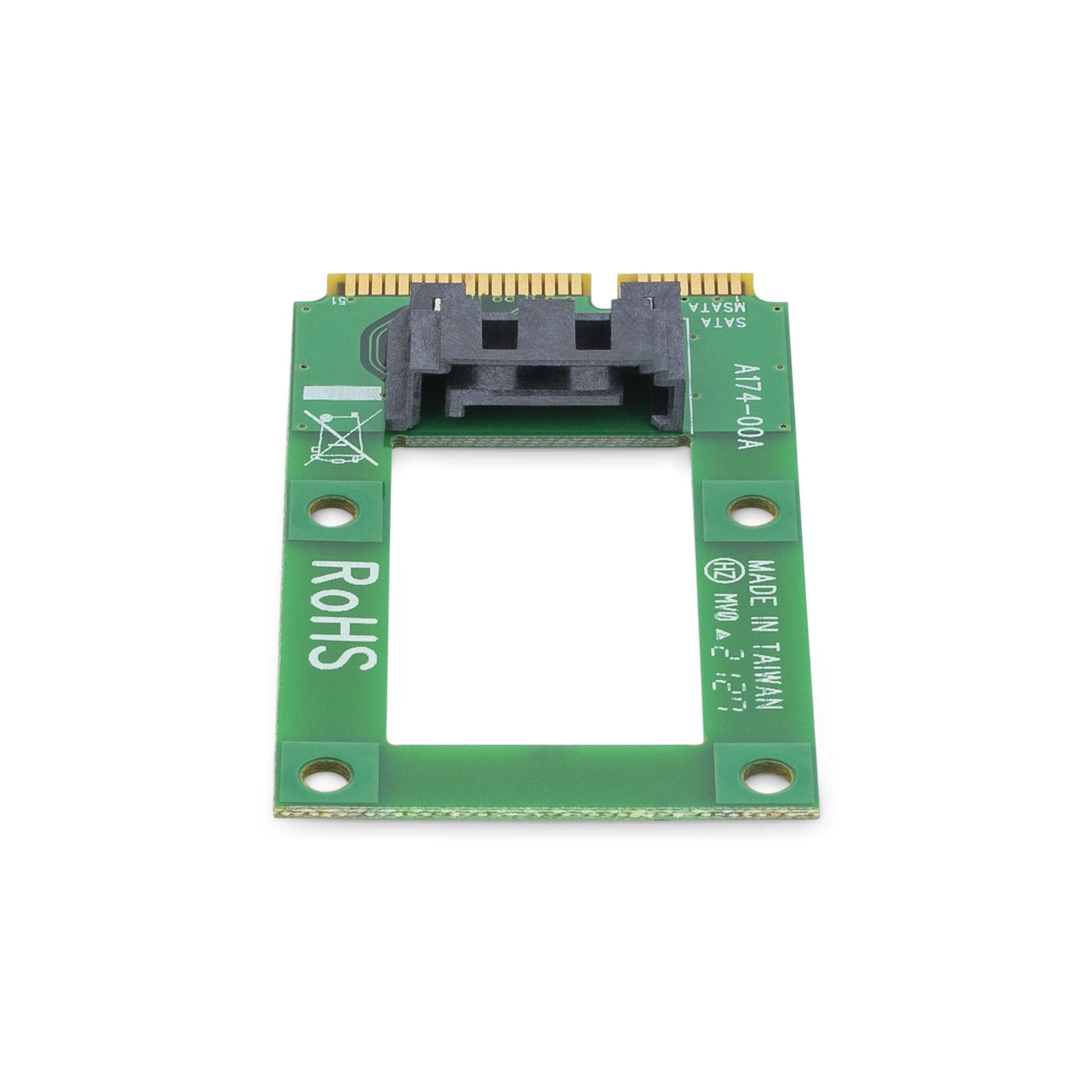

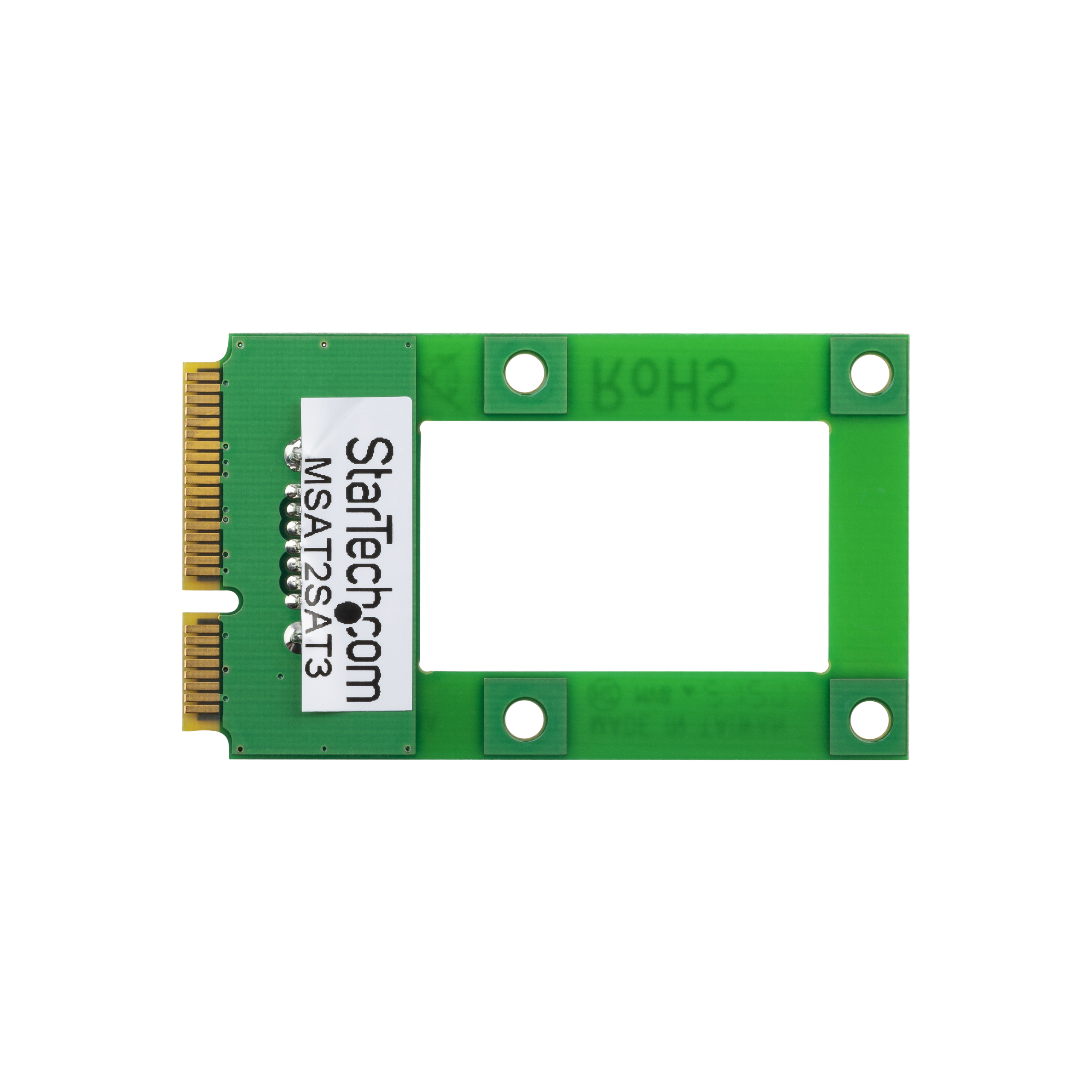

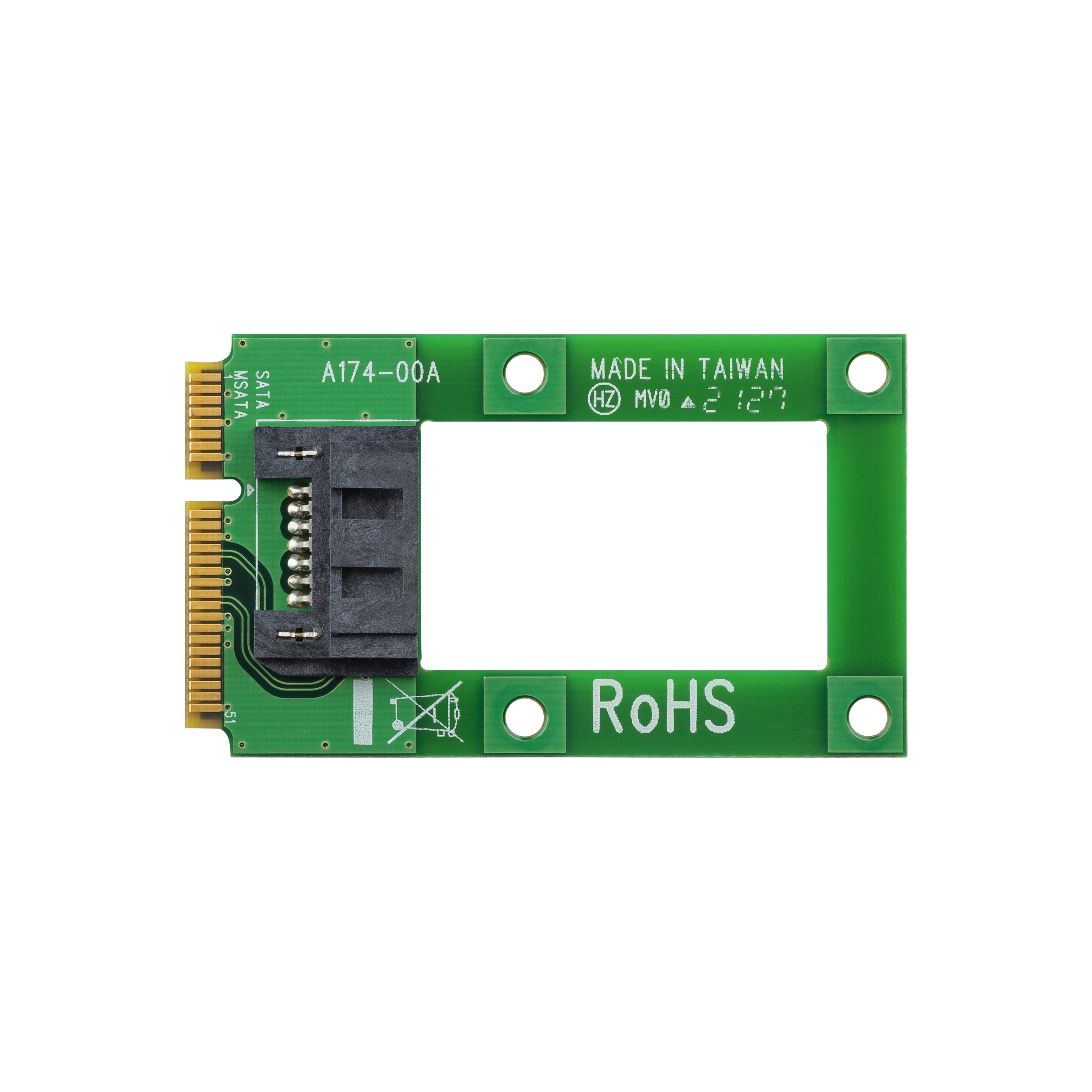

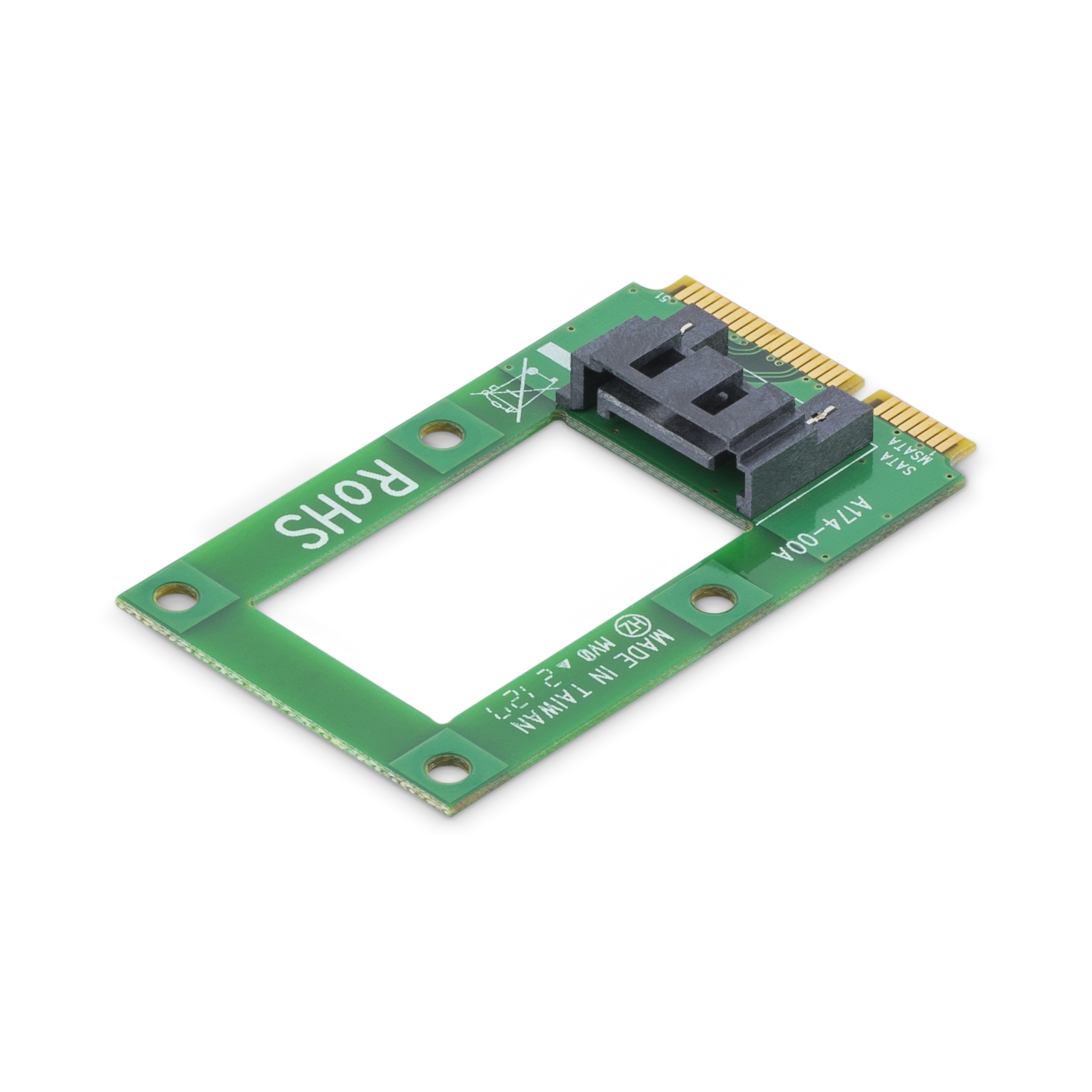

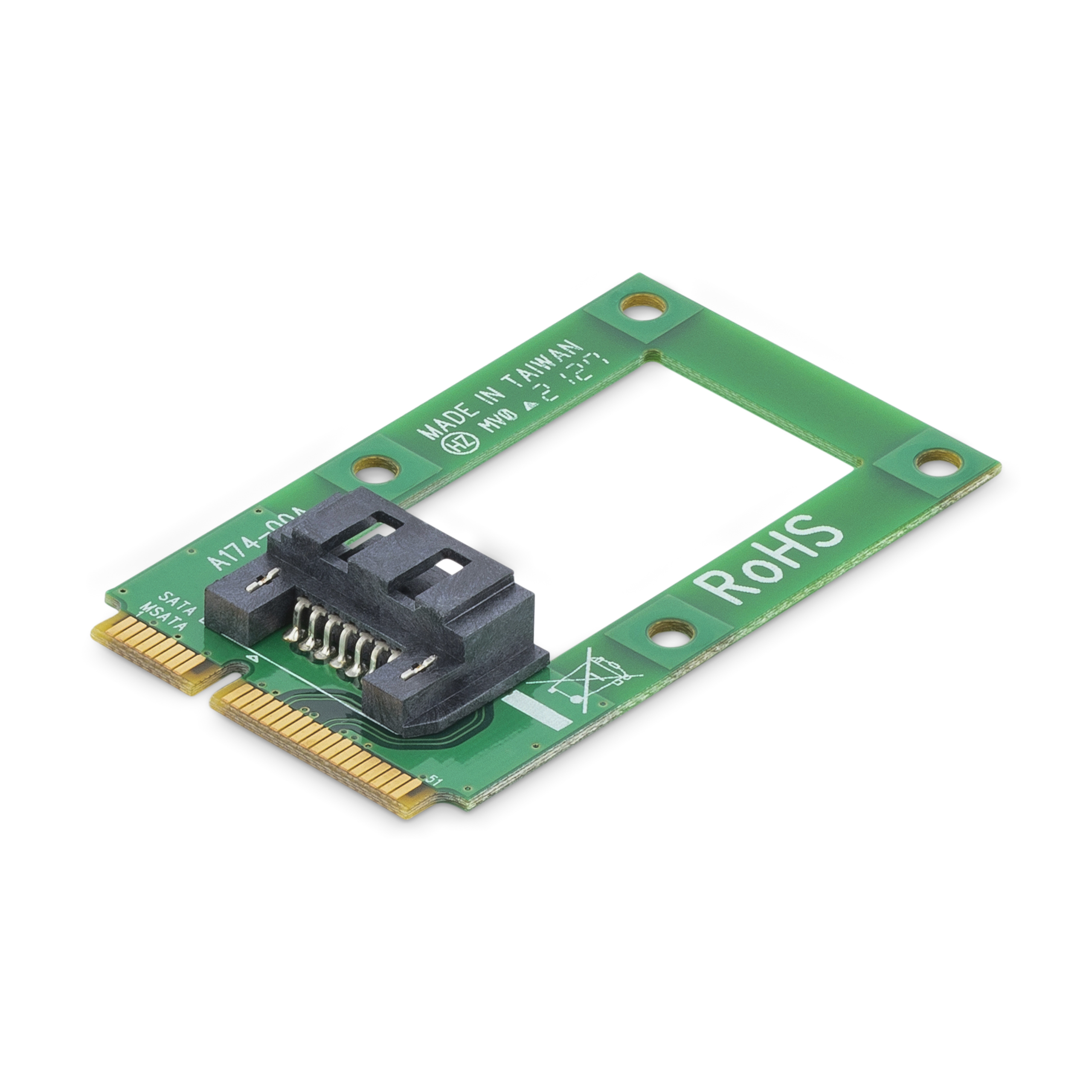

mSATA to SATA 7 pin Adapter
Turn an mSATA host connection into a standard SATA port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name mSATA to SATA 7 pin Adapter Product Number MSAT2SAT3 UPC 065030854825 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Adapter Enclosures/Converters Family SATA to mSATA Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) mSATA to SATA Card Product Title (Short) mSATA to SATA HDD/SSD Adapter Converter Product Title (Medium) x Product Title (Standard) mSATA to SATA HDD / SSD Adapter – Mini SATA to SATA Converter Card, TAA Product Title (Long) SATA Drive to mSATA Host Adapter for 2.5in / 3.5in SATA Drives - TAA Product Title (AMZ) mSATA to SATA HDD / SSD Adapter – Mini SATA to SATA Converter Card - mSATA to SATA 2.5/3.5 Hard Drive Adapter Converter Card , TAA (MSAT2SAT3) Title Ingram (Part 1) mSATA to SATA SSD/HDD Adapter Title Ingram (Part 2) Converter Card Website Product Headline Turn an mSATA host connection into a standard SATA port Bullet 1 IMPROVE STORAGE CAPACITY: This mSATA to SATA adapter enables support of 2.5in and 3.5in SATA drives from an existing mSATA host port; A cost-effective solution to increase your system storage by adding a higher capacity SATA drive to your PC Bullet 2 ADD SATA CONNECTIVITY: The mSATA to SATA converter also supports 3.5in SATA devices such as optical disk drives from an existing mSATA port Bullet 3 CONVENIENT SETUP: This mSATA to SATA adapter includes a mounting screw kit and installs directly onto the motherboard; Supports any operating system, no software or drivers required Bullet 4 COMPATIBILITY: mSATA to SATA adapter supports SATA III (6 Gbps) and is backward compatible with SATA I/II; Supports 2.5/3.5in SATA drives and SATA devices (Blu-ray, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk); Additional power required for 3.5in SATA devices Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this mSATA to SATA adapter is backed for 2 years, including free lifetime 24/5 multi-lingual assistance Bullets (Consolidated) Turn an mSATA host connection into a standard SATA port - mSATA to SATA HDD/SSD Adapter - Storage adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive - Mini SATA to SATA converter card supports SATA I/II/III (up to 6 Gbps) - Tested with drives of up to 4TB capacity - Supports all drive heights Marketing Copy Applications - Add a larger SATA hard drive to a system board that only supports mSATA
- Turn an unused mSATA port into a supporting SATA port to connect a standard SATA hard drive
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - ESATAPLATE1
- SATA24RA1
- SATA18RA1
- SATA18LA1
- LSATA12
- SATA12RSA1
- SATA12
- SATA12LSA1
Related Products - SAT2MSAT25
- SAT32MSATM
- SAT32MSATPEX
- OPT2IDE
- CF2X2IDE25
- SAT2CF
- USB2SLSATINT
- OPT2SATA
- CF2IDE18
- IDE502CFE
- 2CF2SATAR
- IDE2CFINT
- CF2USAT18E
- IDE2CF
- ZIF2CF
Color Green Humidity Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 51.000 Product Width (mm) 30.000 Product Height (mm) 8.000 Product Weight (g) 10.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drive OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SATA Interface/Bridge - Micro SATA
- SATA
Number of Drives 1 Carton Depth (mm) 292 Carton Height (mm) 218 Carton Quantity 100 Carton Weight Gross (g) 2722 Included in Package - 1 - mSATA to SATA Adapter
- 1 - Installation Guide
- 1 - Screw kit
Included In Package for Label - 1 - Screw Kit
- 1 - Installation Guide
- 1 - Msata To SATA Converter
Package Depth (mm) 126 Package Height (mm) 14 Package Width (mm) 150 Package Quantity 1 Package Weight (g) 16 Packaging Description mSATA to SATA port Adapter Packaging Description India mSATA to SATA port Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Host Connector 1 mSATA (52-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-11-05 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
