MST14CD123DP

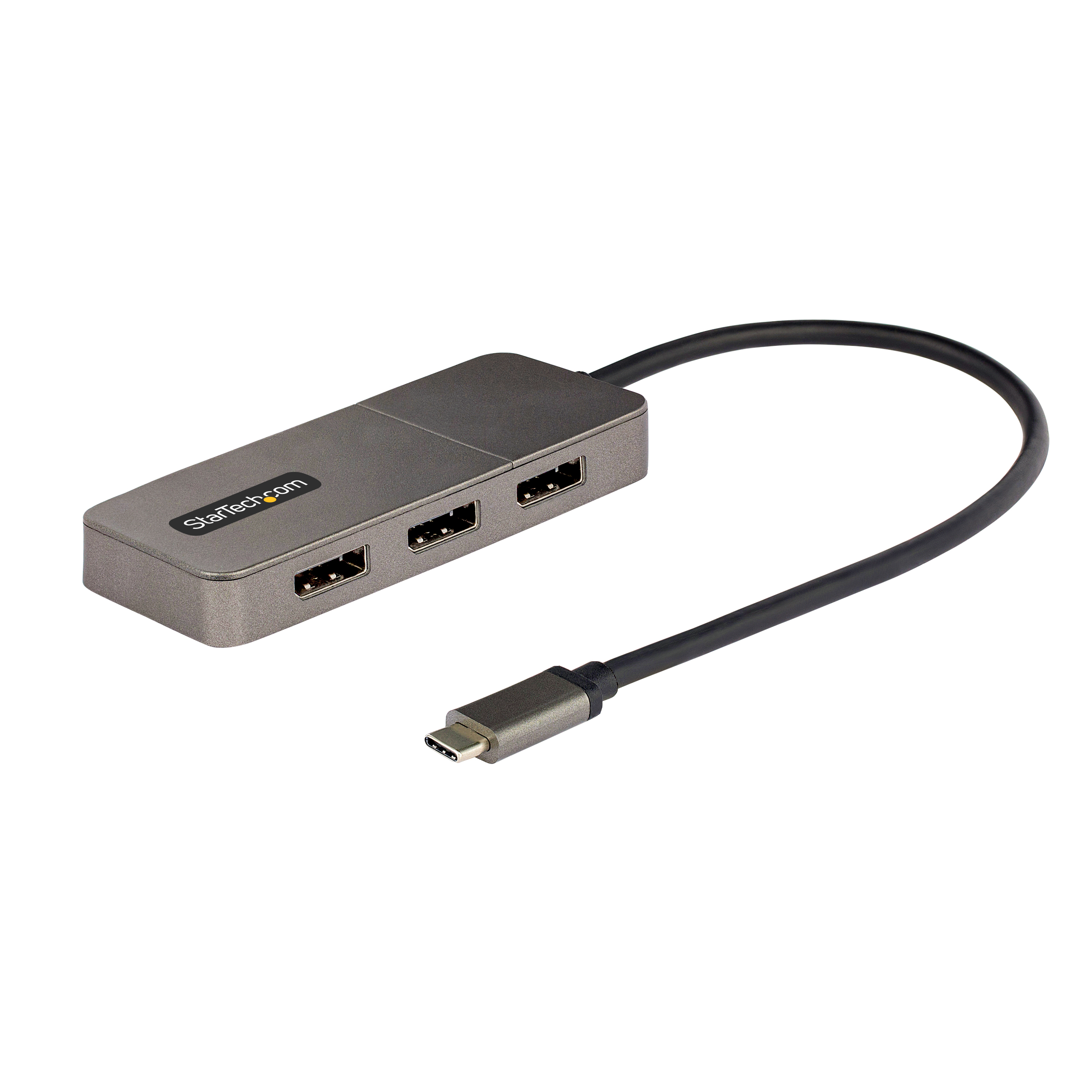

USB C DP 1 4 MST to 3 x DisplayPort

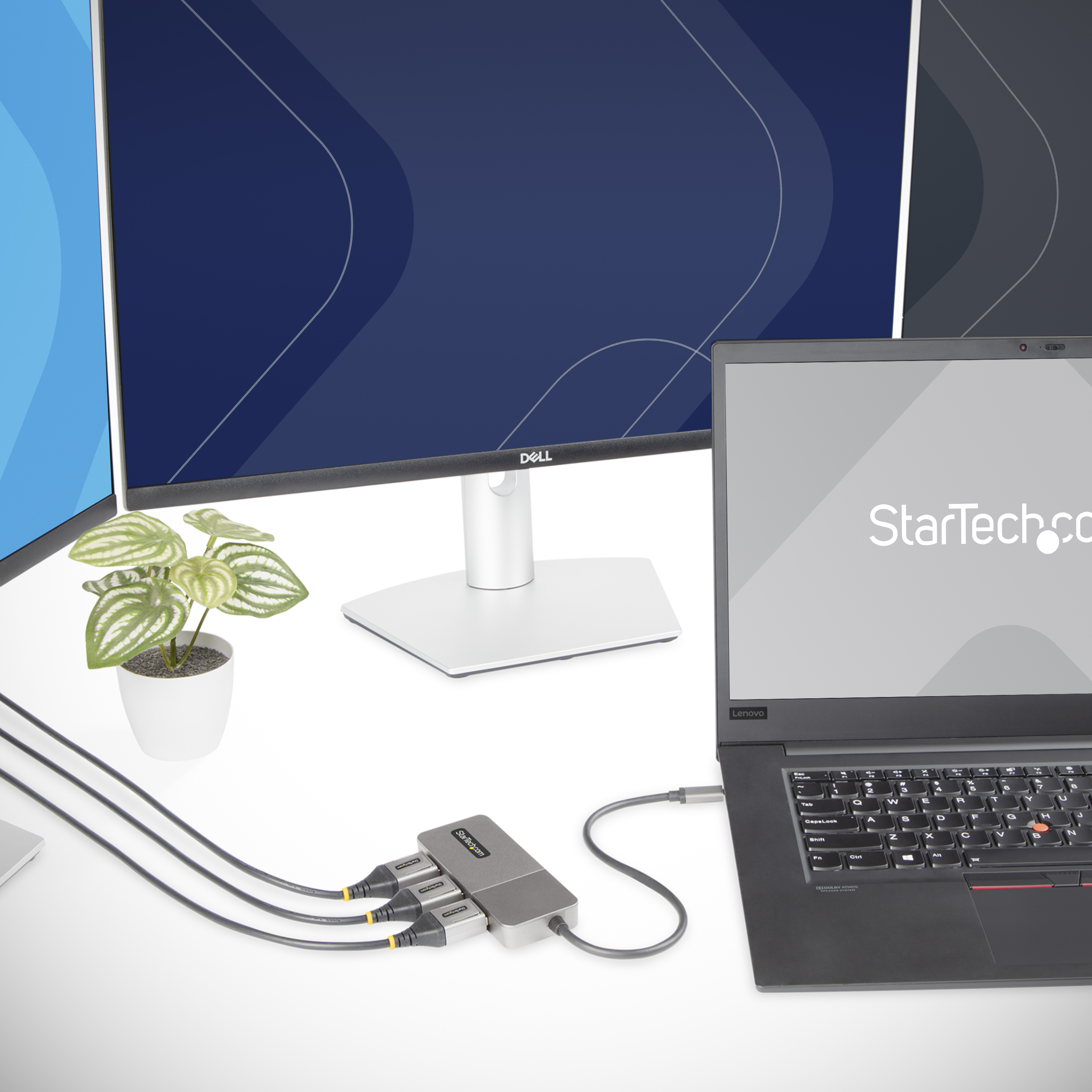

Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent DisplayPort™ monitors
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name USB C DP 1 4 MST to 3 x DisplayPort Product Number MST14CD123DP UPC 065030884389 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 MST USB-C Family USBC MST Hubs, DP 1.4 Alt Mode Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Product Title (Ultra-Short) Triple DP MST HUB Product Title (Short) USB-C to Triple DP MST Hub 4K60Hz, DP1.4 Product Title (Medium) USB-C to Triple DisplayPort 1.4 MST Hub, 4K 60Hz USB C Multi Monitor Adapter Product Title (Standard) 3-Port USB-C Multi-Monitor Adapter, Type-C to 3x DisplayPort MST Hub, Triple 4K60Hz DP Display Extender / Splitter, Windows Product Title (Long) 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x DisplayPort 1.4 MST Hub, Triple 4K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only Product Title (AMZ) 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x DisplayPort 1.4 MST Hub, Triple 4K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable, Windows (MST14CD123DP) Title Ingram (Part 1) USB-C to Triple DP MST Hub - Title Ingram (Part 2) DisplayPort 1.4, 4K 60Hz Website Product Headline Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent DisplayPort™ monitors Bullet 1 MULTI-MONITOR CONFIGURATION: USB Type-C to Triple DisplayPort MST Hub/Splitter drives up to three 4K60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS Bullet 2 NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage Bullet 3 HARDWARE COMPATIBILITY: Triple 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU Bullet 4 EXTRA LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple DisplayPort Adapter Bullets (Compact) USB-C to Triple-DisplayPort Multi-Monitor Adapter for 3x 4K 60Hz displays; Discrete GPUs/12th gen and up Intel Processors w/ DP 1.4 and DSC required for 3x 4K 60Hz; Driverless MST Hub; Extra-long 1ft cable reduces USBC connector strain; Windows Only Bullets (Consolidated) USB Type-C to Triple DisplayPort Multi-Monitor Adapter for laptop adds up to 3x 4K 60Hz displays using a USB-C DisplayPort 1.4 host with DSC - DP1.4/DSC/HBR3/32.4Gbps/HDR/2ch Audio - MST Hub works in extended/mirrored modes; Utilize the host's built-in GPU capabilities - Unique signal booster for reliable performance even with lower-quality or longer cables - Discrete GPUs/12th gen and up Intel Processors w/ DP 1.4 and DSC required for 3x 4K 60Hz monitors - 1ft Cable | Windows Only | Driverless Marketing Copy Marketing Copy (No HTML) Applications - Mirror or extend your desktop onto three additional UHD monitors, TVs or projectors
- Utilize additional displays to edit photos, videos, and/or digital content
- Stream high-resolution content to multiple monitors
Website Search Keyword - displayport 1.4 mst hub
- displayport splitter
- MST Hub
- multi monitor adapter for laptop
- multi monitor splitter
- multi stream transport hub
- triple monitor adapter
- usb c to displayport 1.4
- U444-3DP-MST
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - DP14VMM1M
- DP14VMM2M
- DP14VMM3M
- DP14VMM4M
- DP14VMM5M
Related Products - MSTCDP122DP
- MSTCDP122HD
- MSTCDP123HD
- MST14CD122HD

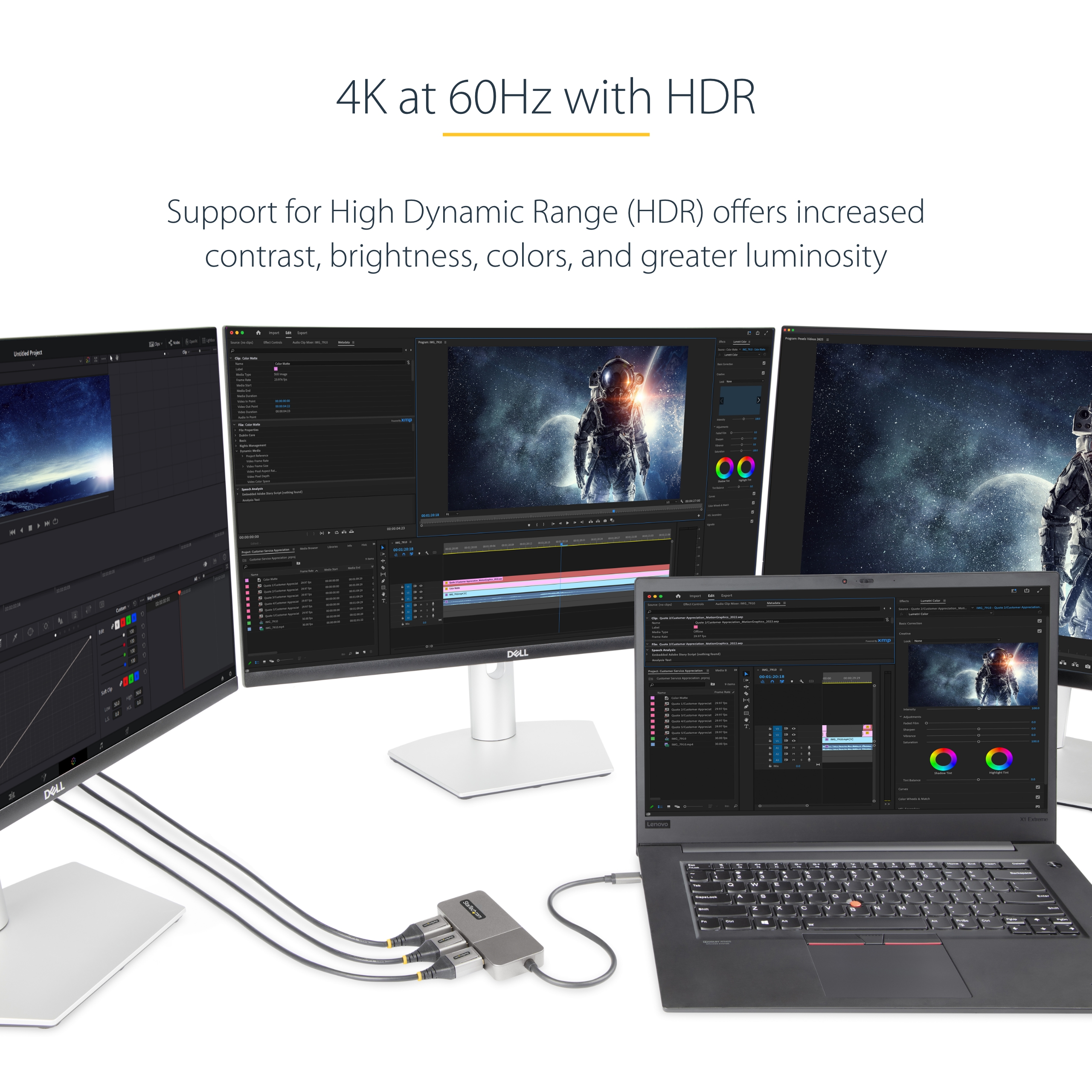

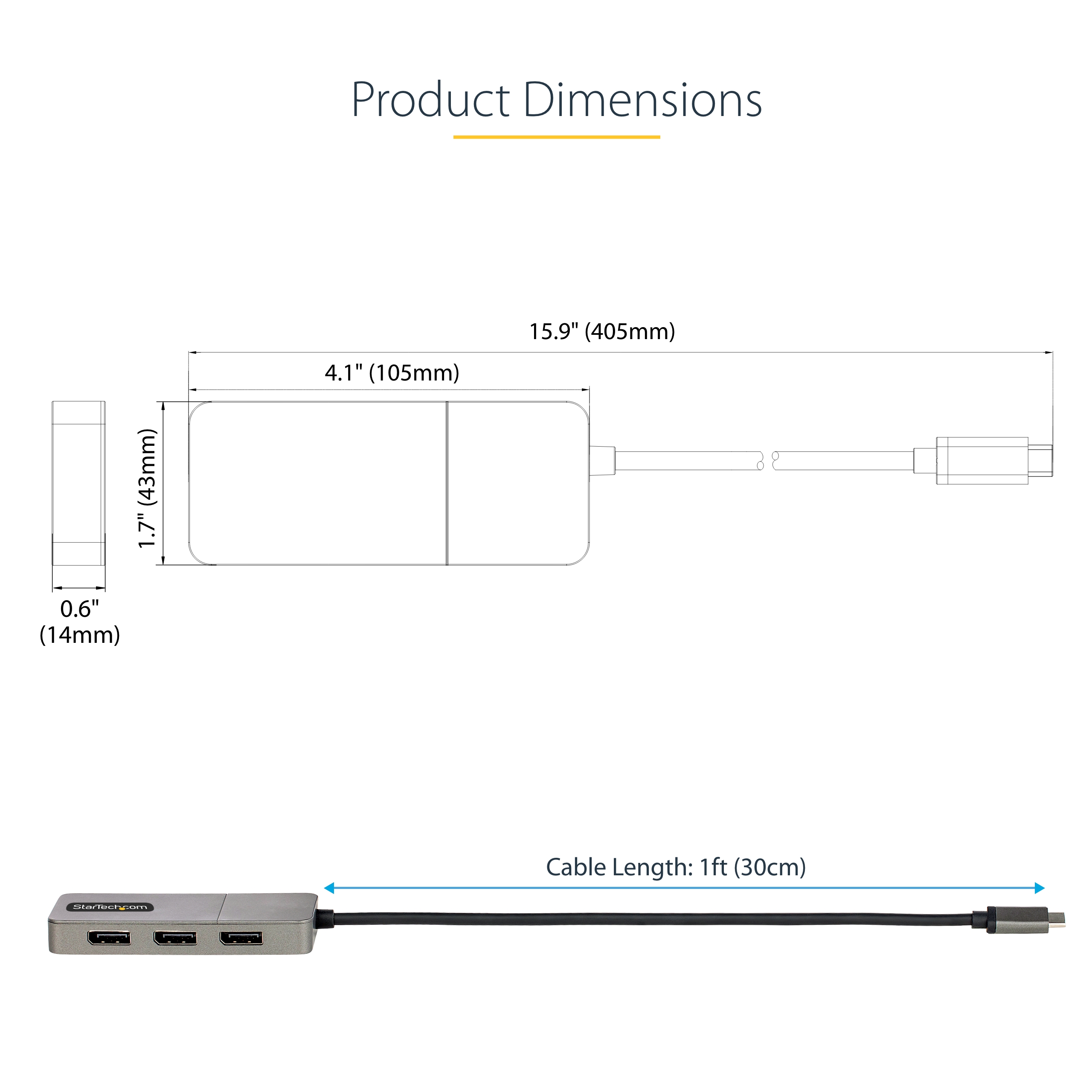

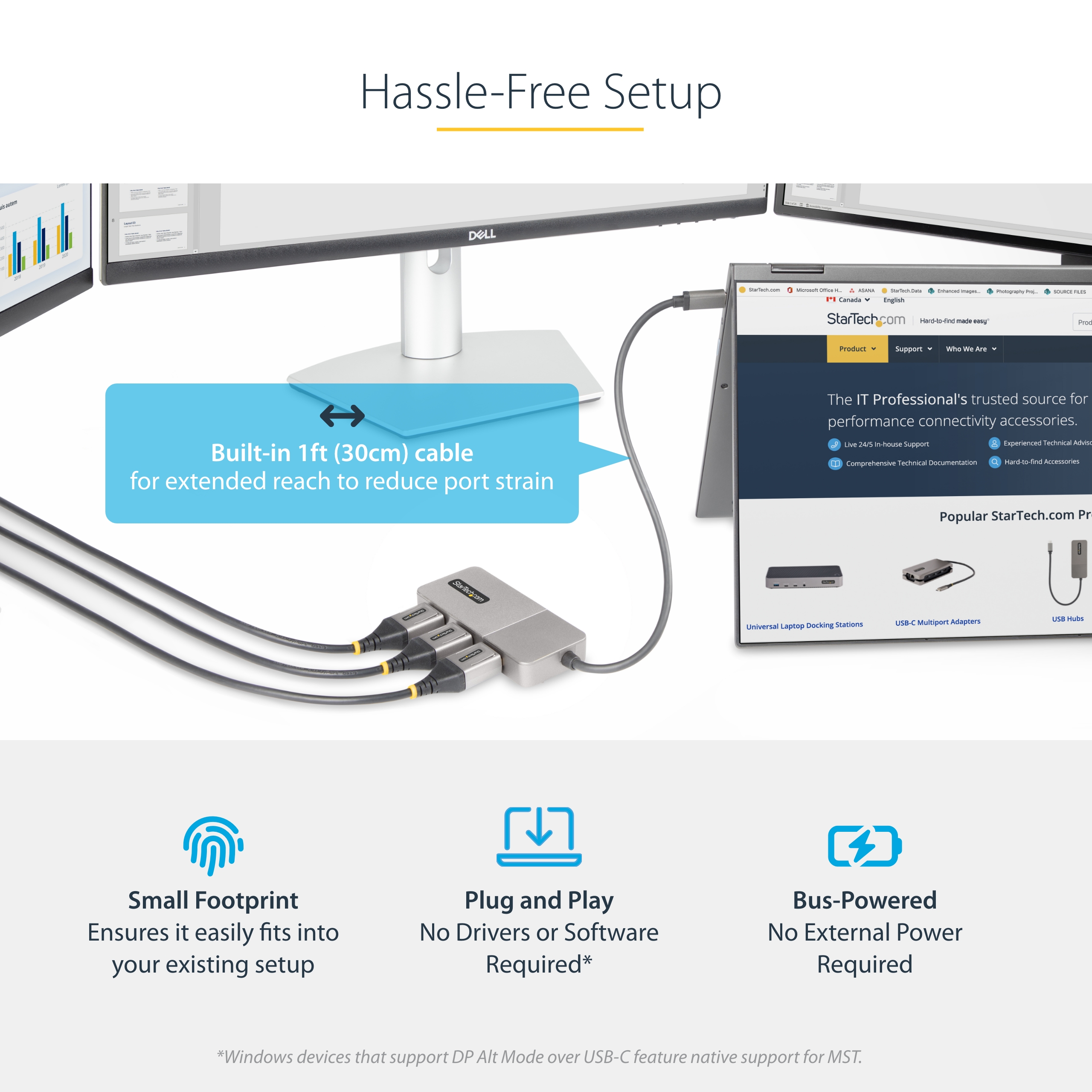

Constrained SKU Alternatives (Limited Stock) MSTCDP122DP Power Delivery No PD Pass-Through Power Source Bus Powered Cable Length (mm) 300 Color Gray Humidity 0% to 85% RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 43.000 Product Width (mm) 105.000 Product Height (mm) 14.000 Product Weight (g) 54.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Audio Specifications DisplayPort - 2 Channel Audio HDR Support Yes Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- Windows 11 ARM

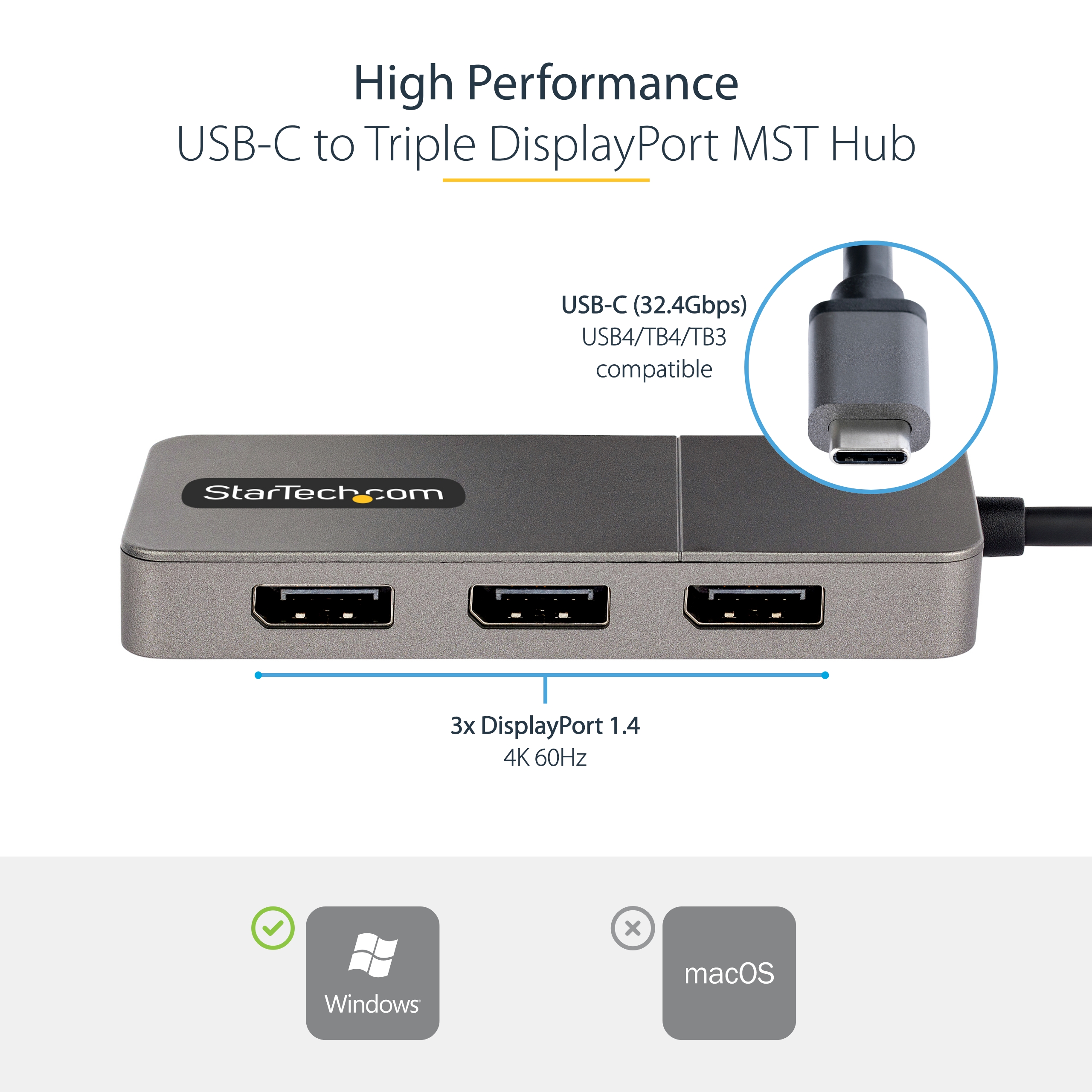

Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input USB-C AV Output DisplayPort - 1.4 Chipset ID Synaptics VMM5330 Converter Type MST Hubs Host Connection Port USB-C Number of Displays 3 Carton Depth (mm) 473 Carton Height (mm) 440 Carton Quantity 70 Carton Weight Gross (g) 8682 Included in Package 1 - USB-C to 3x DisplayPort MST Hub Included In Package for Label 1 - USB-C To 3X Displayport Mst Hub Package Depth (mm) 145 Package Height (mm) 34 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 108 Packaging Description USB-C (DP 1.4) to 3 x DisplayPort - MST Hub Packaging Description India USB-C (DP 1.4) to 3 x DisplayPort - MST Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 3 Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2021-12-09 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-04-29 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Priority New Product 4 Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2022-02-28 Target Production Release 2022-03-07 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle Mainstream
