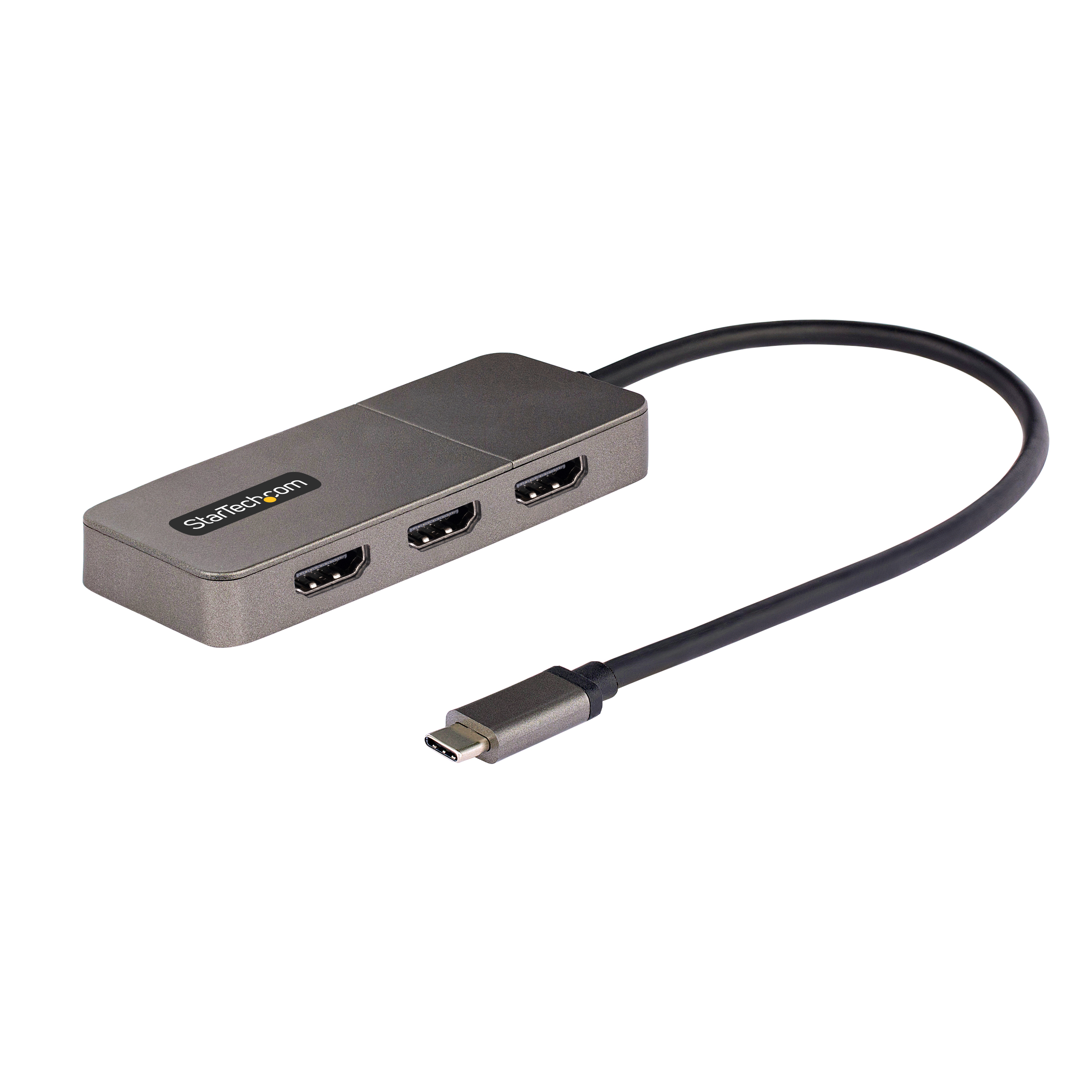

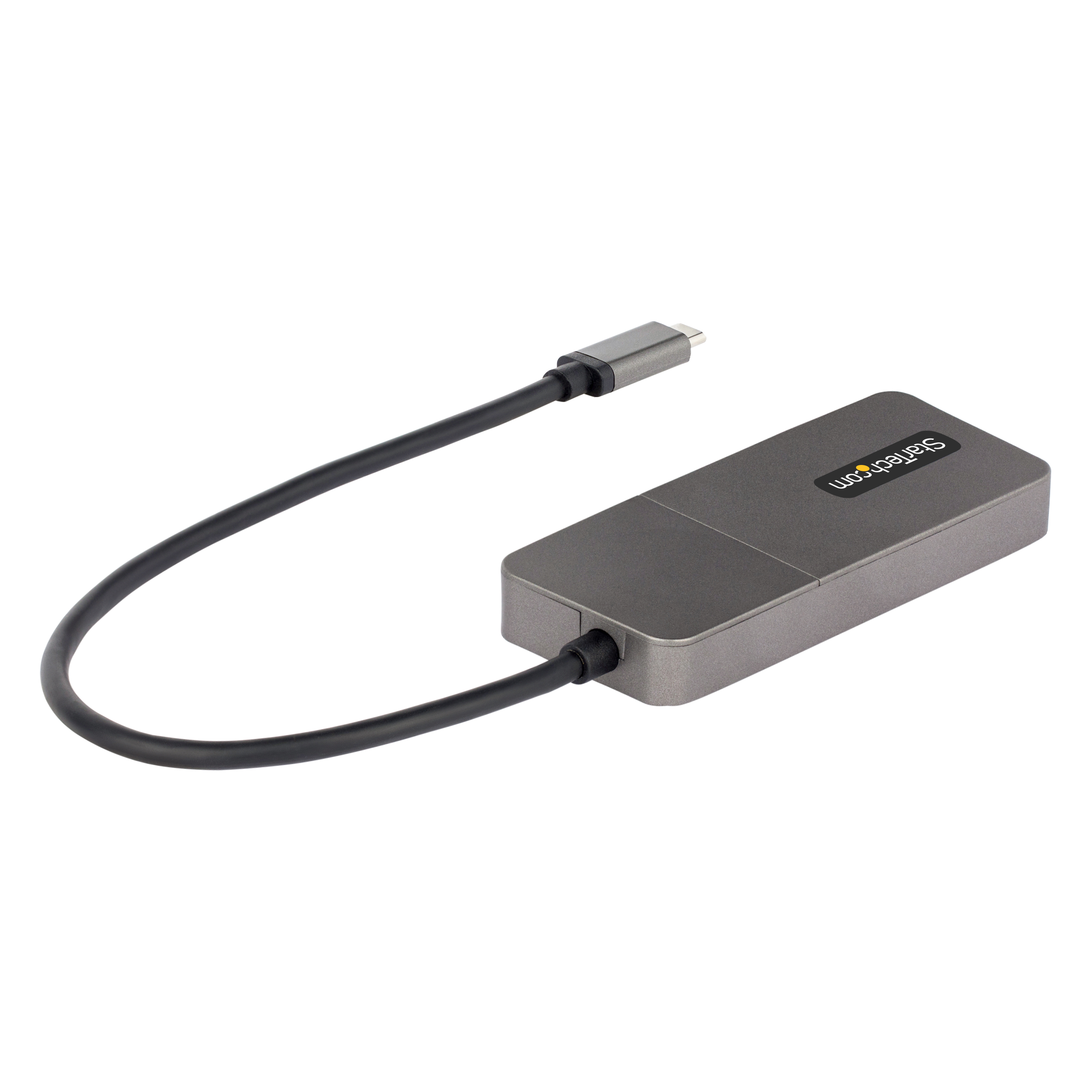

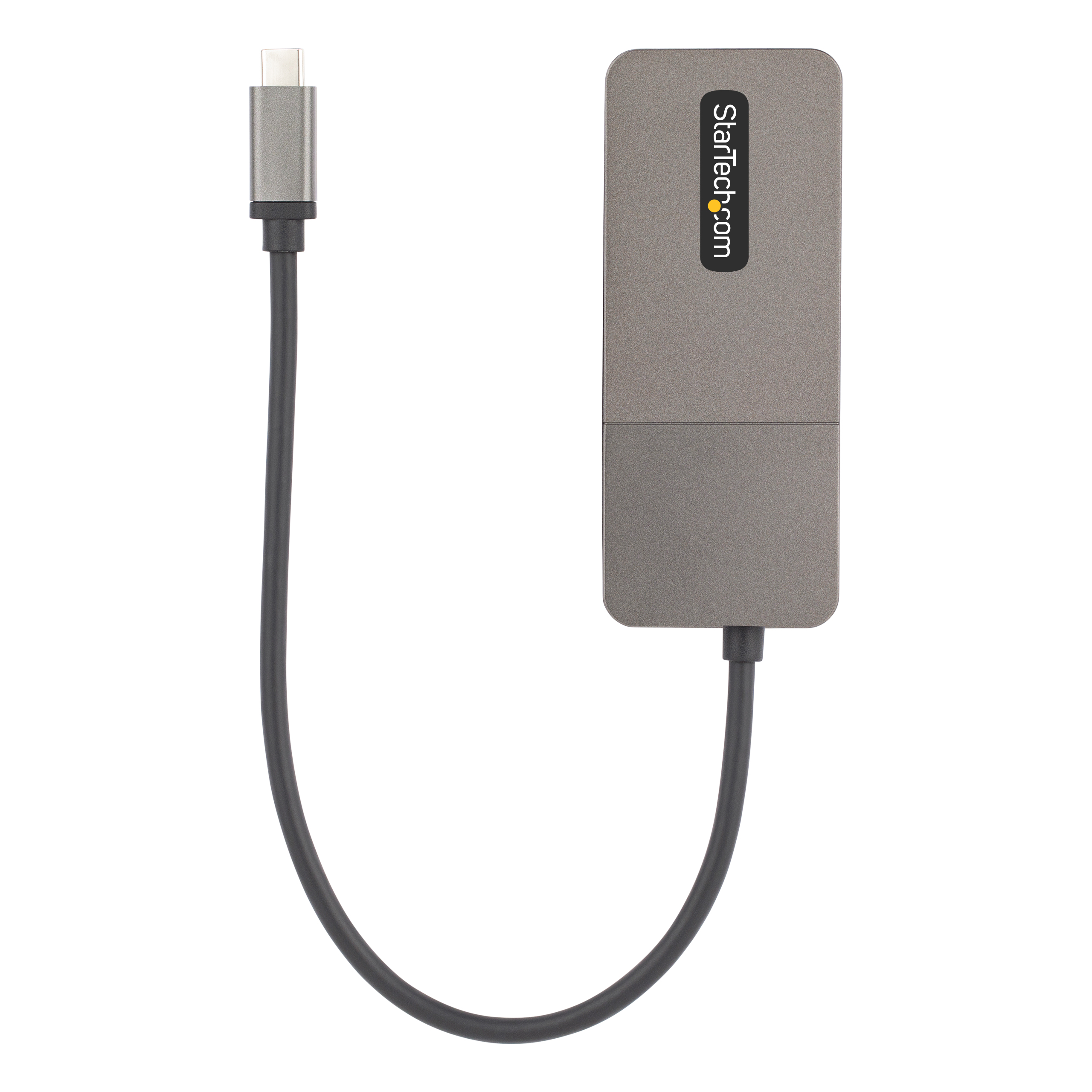

MST14CD123HD

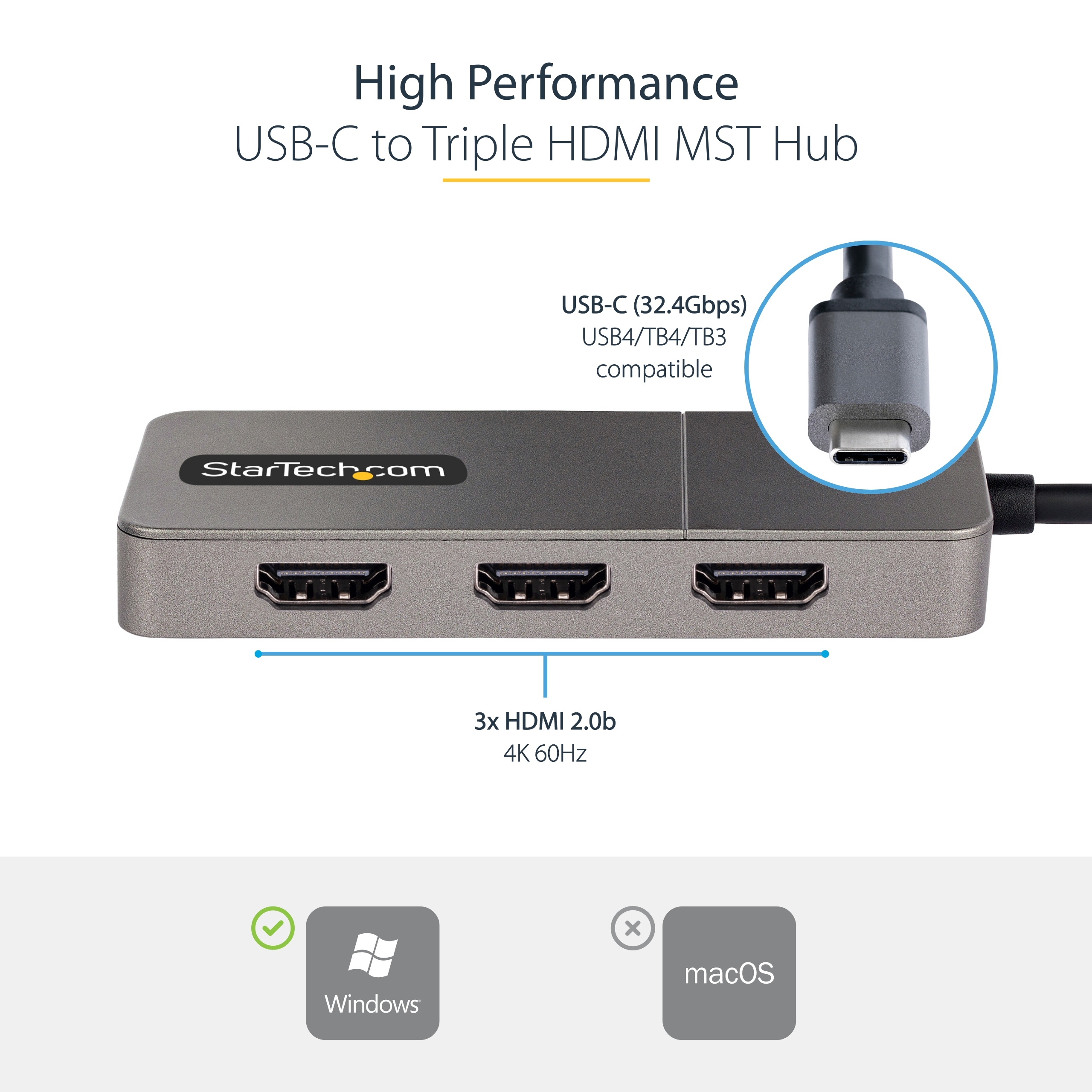

USB C DP 1 4 MST to 3 x HDMI
Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitors
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name USB C DP 1 4 MST to 3 x HDMI Product Number MST14CD123HD UPC 065030887663 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 MST USB-C Family USBC MST Hubs, DP 1.4 Alt Mode Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 3-Port USB-C MST Hub Product Title (Short) 3-Port USB-C to HDMI MST Hub, 4K 60Hz Product Title (Medium) 3-Port USB-C MST Hub - Triple HDMI up to 4K 60Hz w/ DP 1.4 & DSC - Windows Only Product Title (Standard) 3-Port USB-C Multi-Monitor Adapter, Type-C to 3x HDMI MST Hub, Triple 4K60Hz HDMI Laptop Display Extender / Splitter, Windows Product Title (Long) 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x HDMI MST Hub, Triple 4K 60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only Product Title (AMZ) 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x HDMI MST Hub, Triple 4K 60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable, Windows (MST14CD123HD) Title Ingram (Part 1) 3-Port USB-C MST Hub, HDMI - Title Ingram (Part 2) Triple 4K 60Hz, Windows Only Website Product Headline Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitors Bullet 1 MULTI-MONITOR CONFIGURATION: USB Type-C to Triple-HDMI MST Hub/Splitter drives up to three 4K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS Bullet 2 NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage Bullet 3 HARDWARE COMPATIBILITY: Triple 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU Bullet 4 EXTRA-LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 USB C devices like Surface Pro 7/8, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple HDMI Adapter Bullets (Compact) USB-C to Triple HDMI MST Hub for 3x 4K 60Hz displays; Discrete GPUs/12th gen and up Intel Processors w/ DP 1.4 and DSC required for 3x 4K 60Hz monitors; Multi-Monitor Adapter/Splitter works w/ DP 1.4/1.2 hosts at lower resolutions; Windows Only Bullets (Consolidated) Replacement for MSTCDP123HD - USB Type-C to Triple HDMI MST Hub for laptop drives up to 3x 4K 60Hz displays using a USB C DisplayPort 1.4 host with DSC - HDR; 2ch HDMI Audio; HDCP 2.2; Backwards compatible with DP 1.4/DP 1.2 hosts at lower resolutions - Multi-monitor adapter adds up to three extended or mirrored displays - Driverless extender/splitter requires discrete GPUs/Intel 12th gen and up with DP 1.4 and DSC - Utilize the hosts built-in GPU capabilities; 1ft (30cm) cable; Windows Only Marketing Copy Marketing Copy (No HTML) Applications - Utilize additional displays to edit photos, videos, and/or digital content

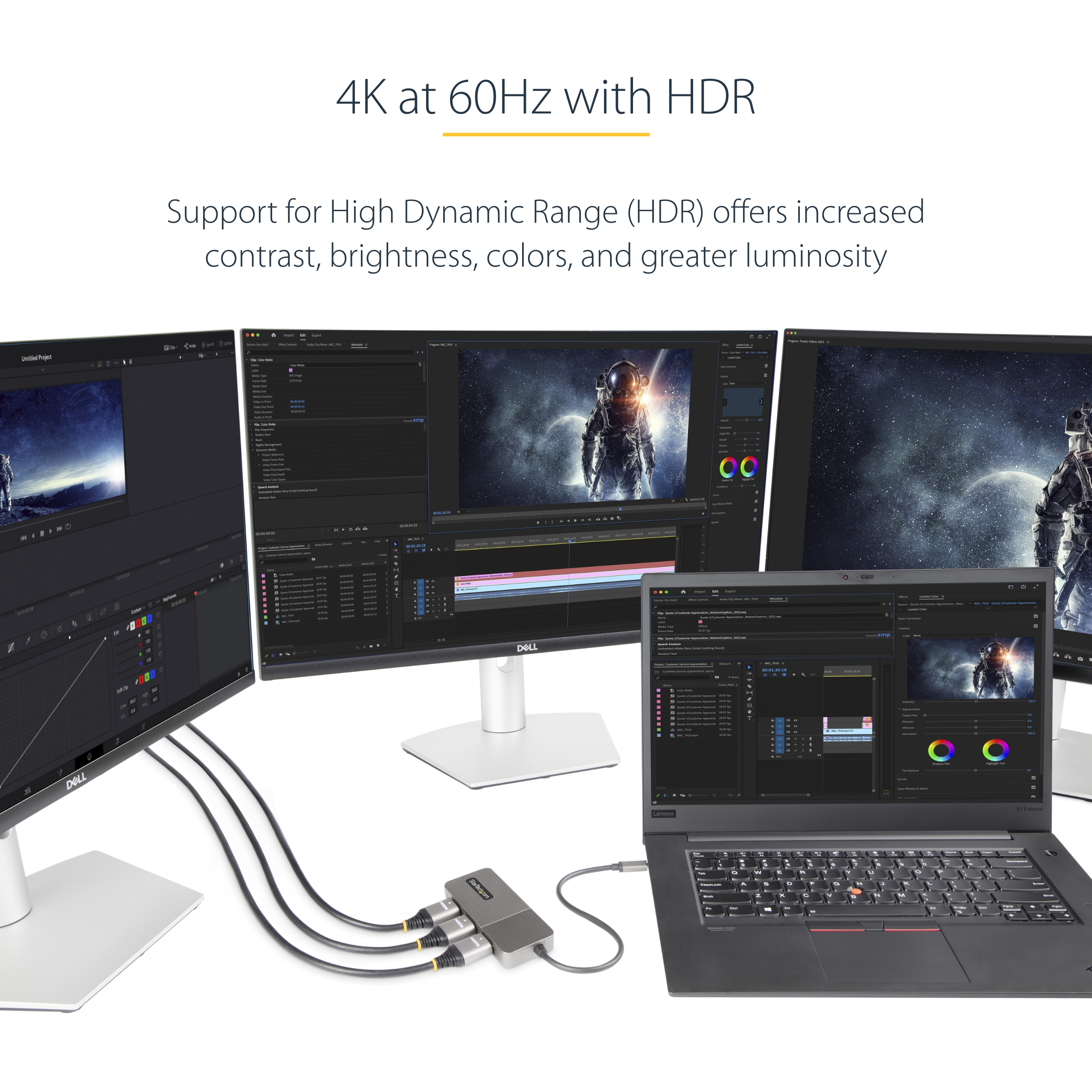

- Stream high-resolution content to multiple monitors

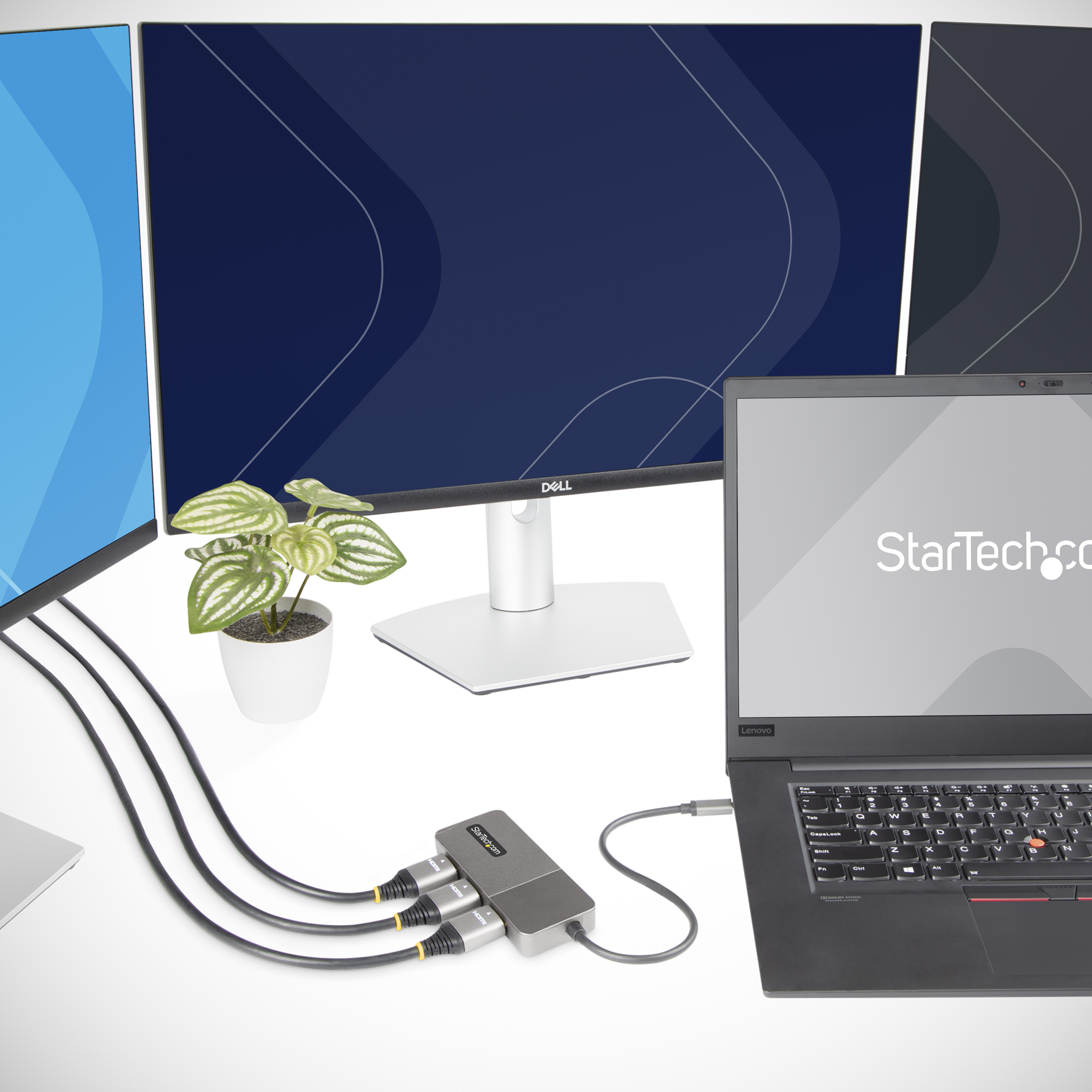

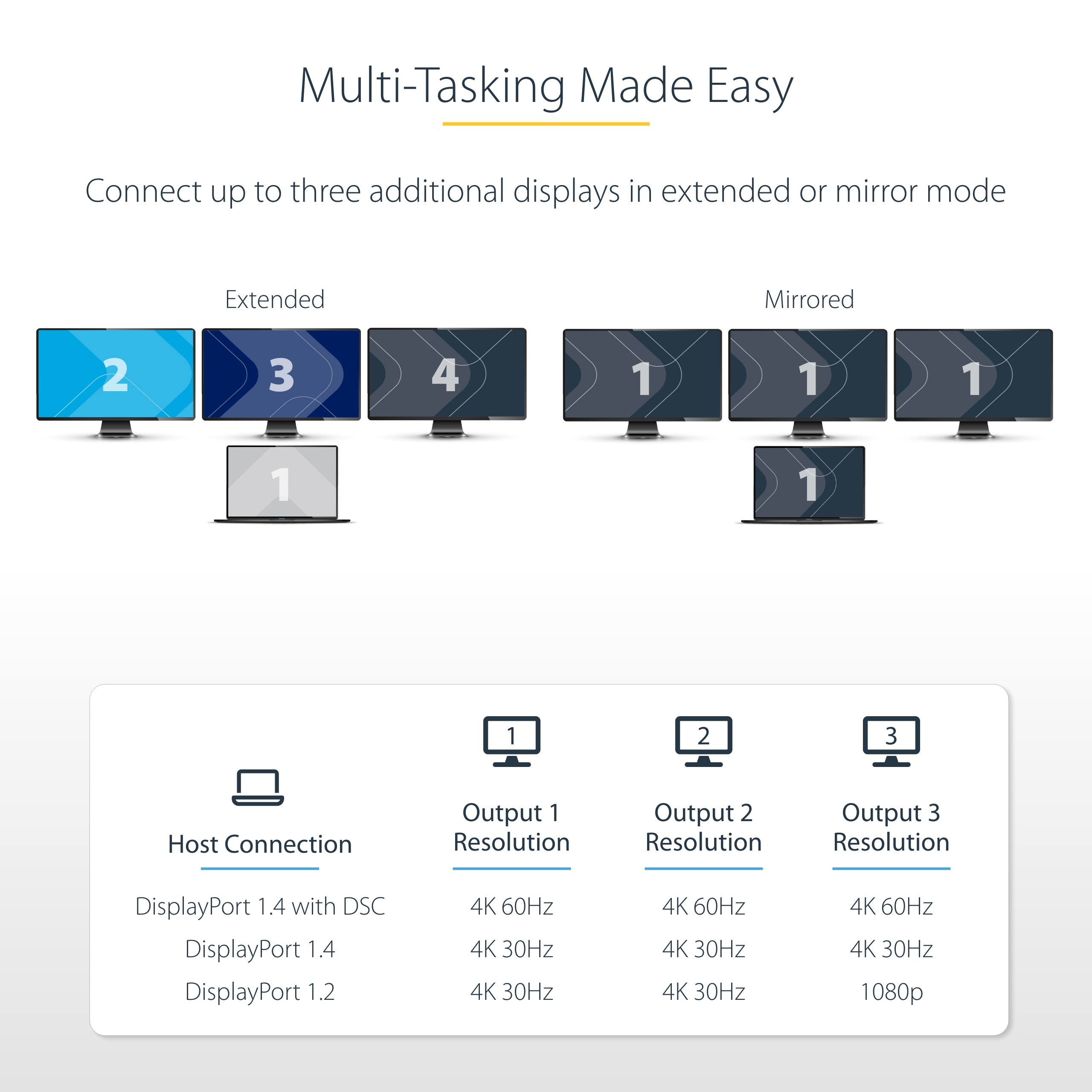

- Mirror or extend a desktop onto three additional UHD monitors, TVs, or projectors
Website Search Keyword - displayport 1.4 mst hub
- hdmi triple monitor adapter
- MST Hub
- multi monitor adapter for laptop
- multi monitor splitter
- multi stream transport hub
- usb c to hdmi adapter
- Dell Pro Max 14
- Intel Core Ultra 200H Series
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Accessory Products - HDMM21V1M
- HDMM21V2M
- HDMM21V3M
- HDMM21V5M
Related Products - MSTCDP122DP
- MSTCDP122HD
- MSTCDP123HD
- MST14CD122HD

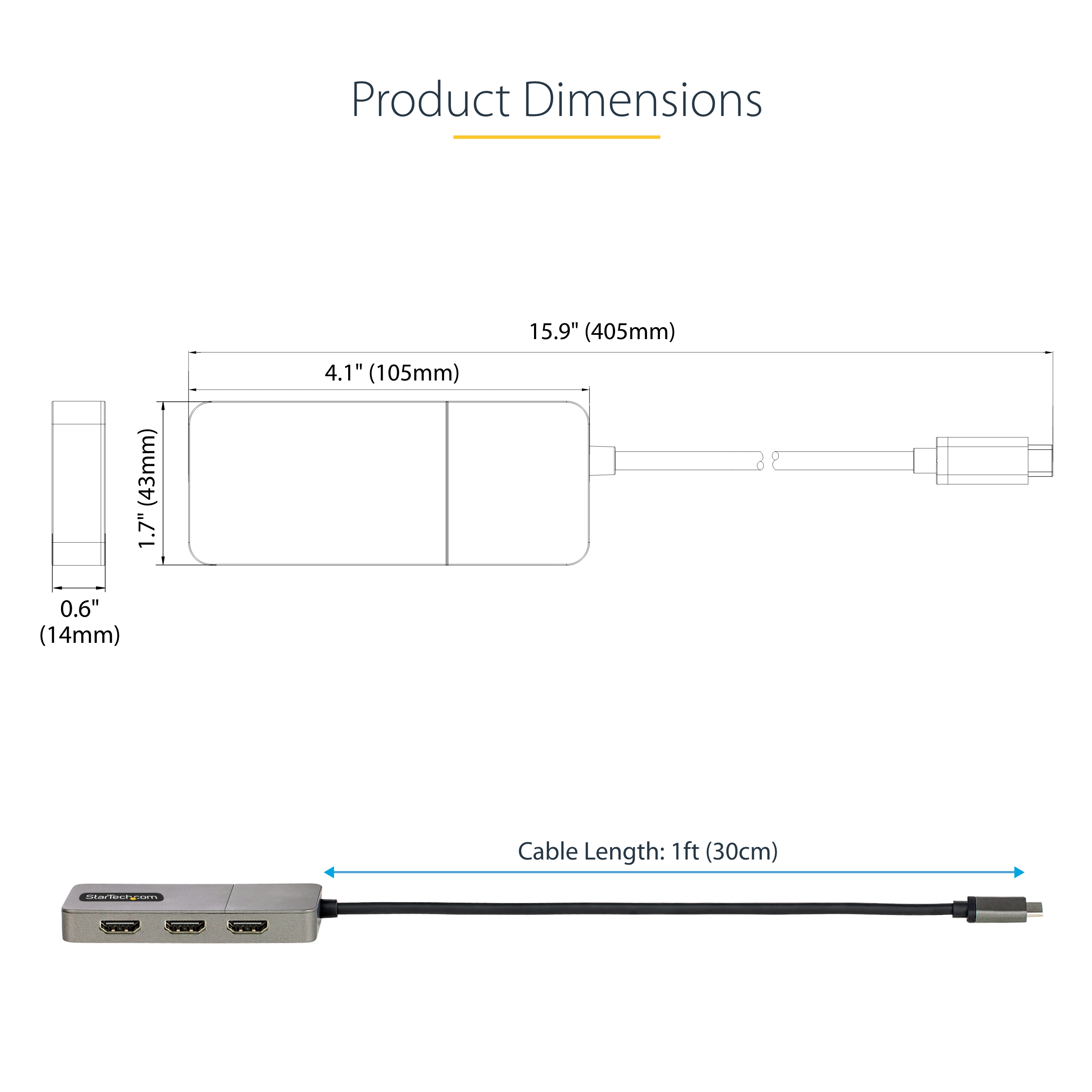

Power Delivery No PD Pass-Through Power Source Bus Powered Cable Length (mm) 300 Color Space Gray Humidity 0% to 85% RH (non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 105.000 Product Width (mm) 43.000 Product Height (mm) 14.000 Product Weight (g) 72.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Audio Specifications HDMI - 2 Channel Audio HDR Support Yes Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- Windows 11 ARM
Supported Resolutions HDMI: 3840x2160 (4K) / 60Hz Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active AV Input USB-C AV Output HDMI - 2.0 Chipset ID Synaptics VMM5310 Converter Type MST Hubs Host Connection Port USB-C Number of Displays 3 Carton Depth (mm) 473 Carton Height (mm) 440 Carton Quantity 70 Carton Weight Gross (g) 9700 Included in Package 1 - USB-C to 3x HDMI MST Hub Included In Package for Label 1 - USB-C To 3X HDMI Mst Hub Package Depth (mm) 145 Package Height (mm) 32 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 126 Packaging Description USB-C (DP 1.4) to HDMI - 3 Port - Multi-Stream Transport Hub Packaging Description India USB-C (DP 1.4) to HDMI - 3 Port - Multi-Stream Transport Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 3 A+ Not Required Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-08-24 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology USB-C Priority New Product 4 Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2022-04-15 Target Production Release 2022-04-22 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle Mainstream Video Required
