MST14DP123HD
MST DP 1 4 HUB with 3 x HDMI Out

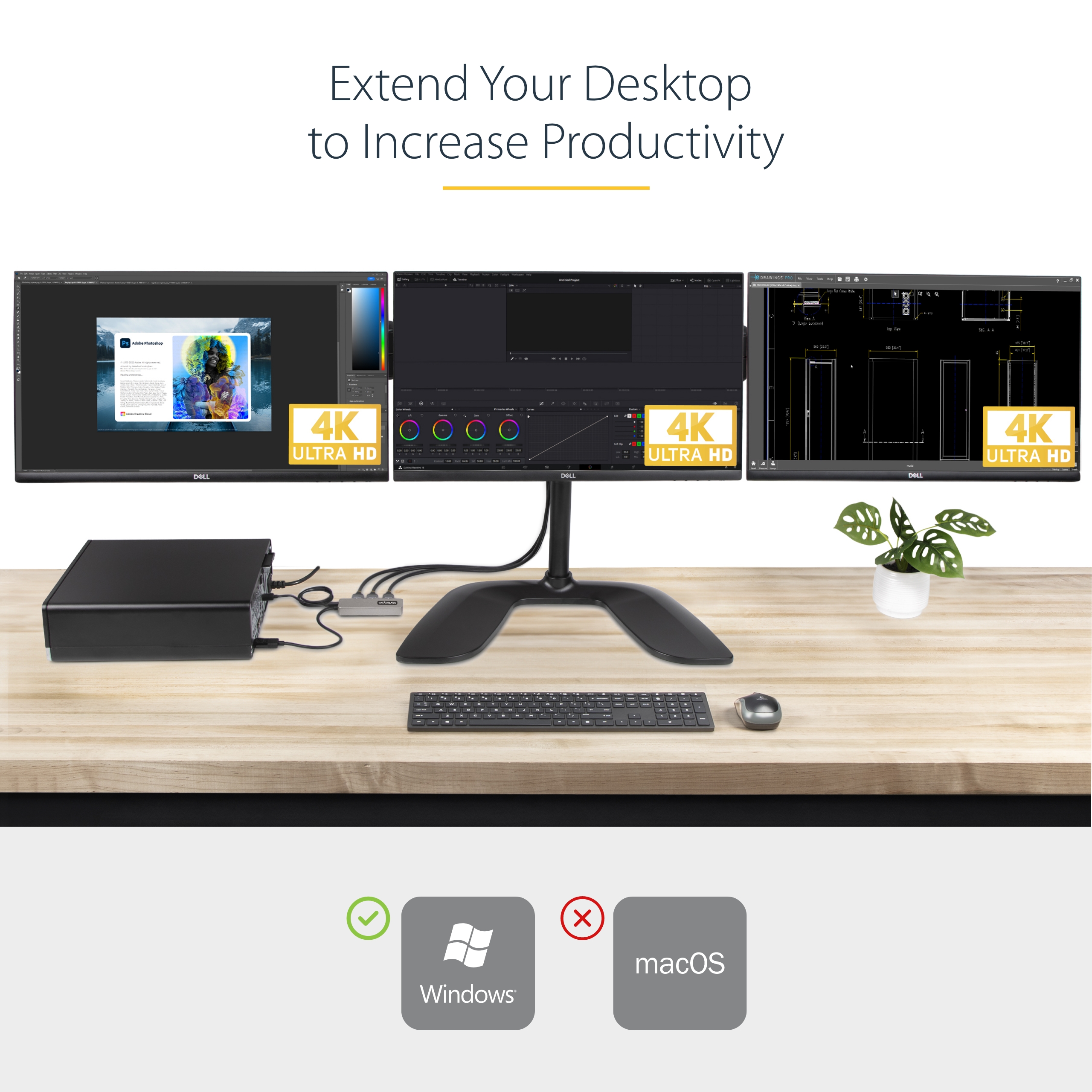

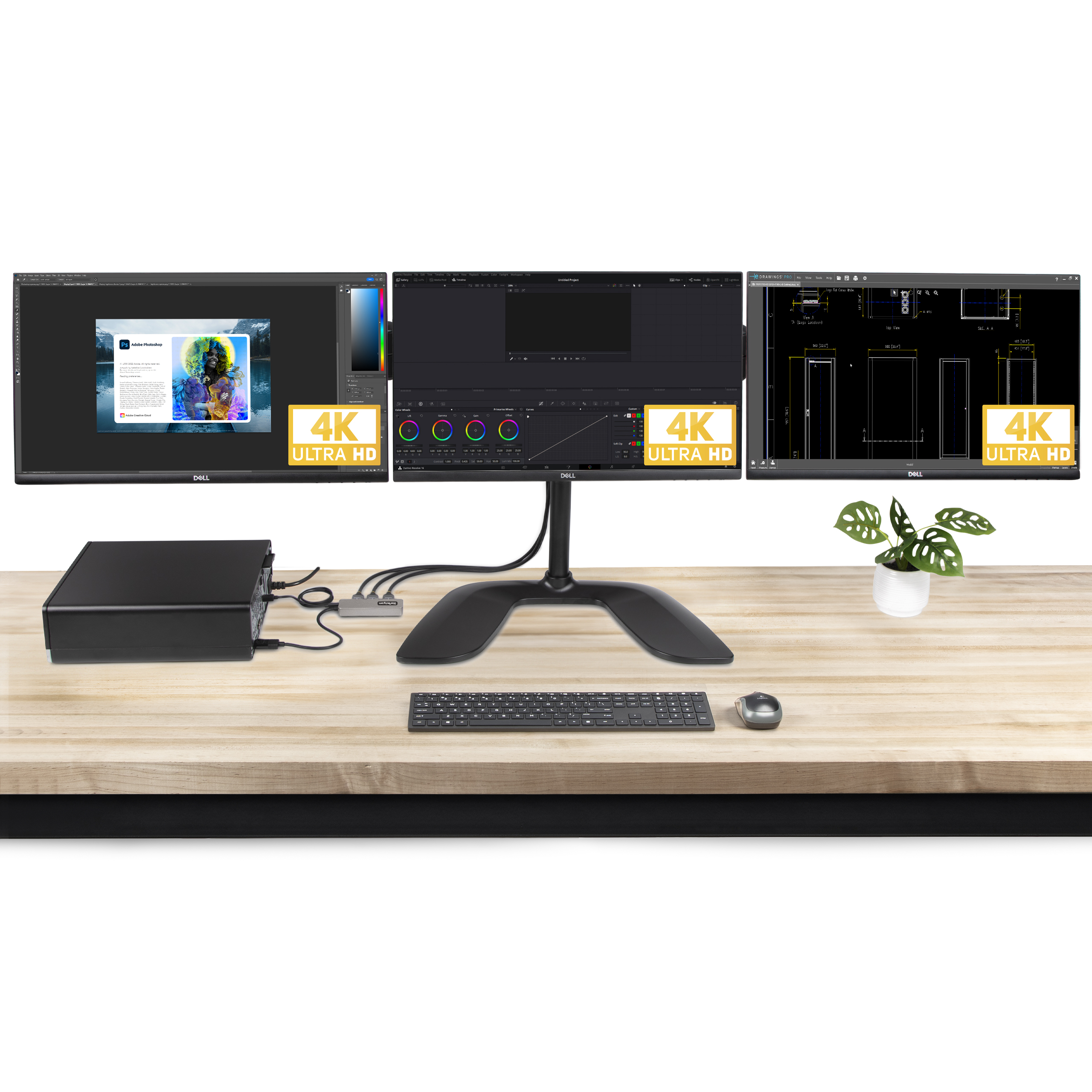

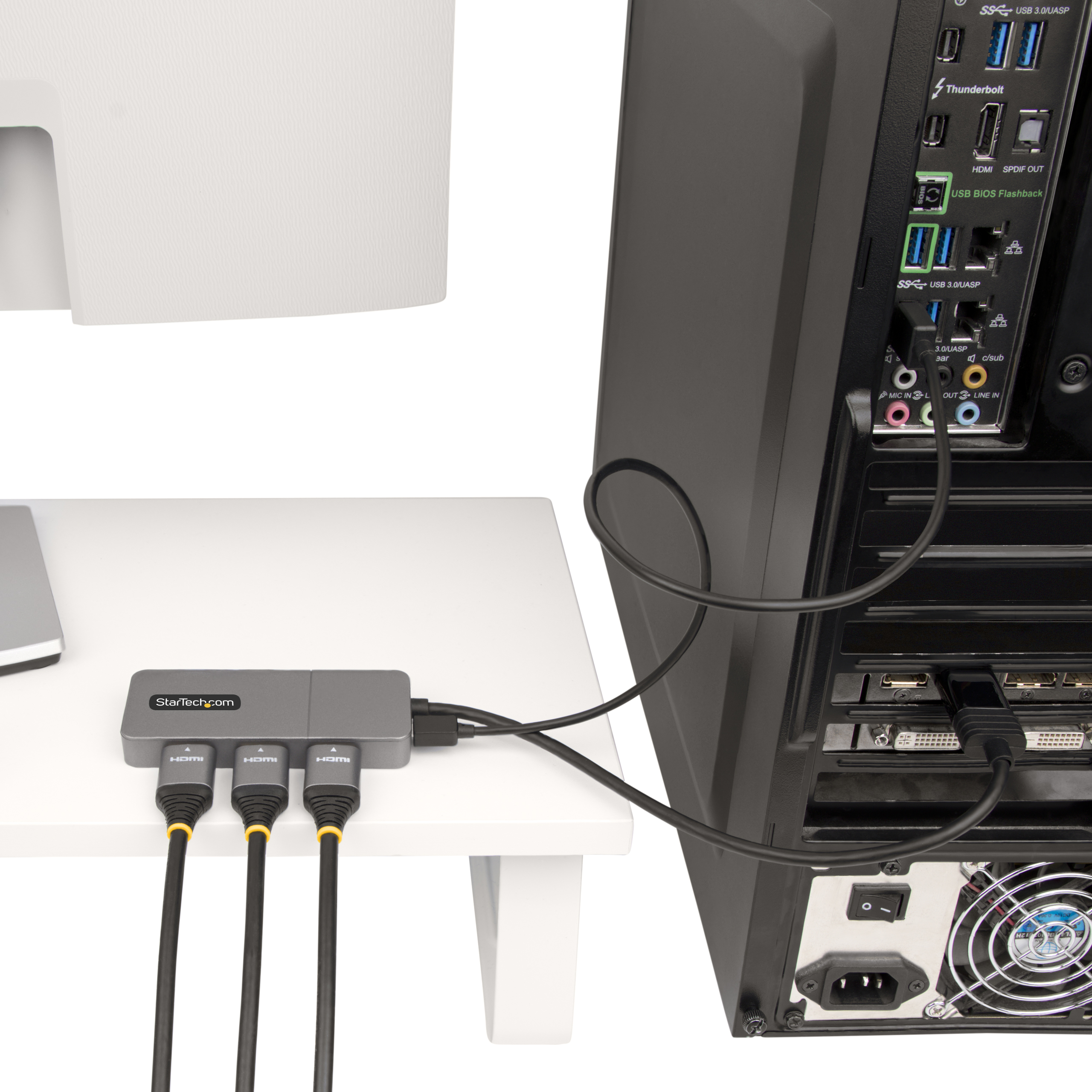

Create a high-performance triple-monitor workstation by connecting a DisplayPort Desktop to three independent HDMI monitors
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name MST DP 1 4 HUB with 3 x HDMI Out Product Number MST14DP123HD UPC 065030897631 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MST DP Family DP MST Hubs, DP 1.4 Alt Mode Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 3-Port DP MST Hub Product Title (Short) 3-Port MST Hub, DP to Triple 4K60Hz HDMI Product Title (Medium) 3-Port MST Hub, DisplayPort to Triple 4K 60Hz HDMI, Multi-Monitor Video Adapter Product Title (Standard) 3-Port MST Hub, DisplayPort to Triple 4K 60Hz HDMI, DP 1.4 Multi-Monitor Adapter, Windows Only Product Title (Long) 3-Port MST Hub - DisplayPort to 3x HDMI, Triple 4K 60Hz Monitors, DP 1.4 Multi-Monitor Video Adapter, 1ft (30cm) Built-in Cable, USB Powered, Windows Only Product Title (AMZ) 3-Port MST Hub - DisplayPort to 3x HDMI, Triple 4K 60Hz Monitors, DP 1.4 Multi-Monitor Video Adapter, 1ft (30cm) Built-in Cable, USB Powered, Windows Only (MST14DP123HD) Title Ingram (Part 1) 3-Port DisplayPort MST Hub - Title Ingram (Part 2) Multi-Monitor Adapter, Windows Website Product Headline Create a high-performance triple-monitor workstation by connecting a DisplayPort Desktop to three independent HDMI monitors Bullet 1 MULTI-MONITOR CONFIGURATION: DisplayPort to Triple-HDMI MST Hub drives up to three 4K 60Hz displays from a DP 1.4 host with DSC; USB Powered; Supports HDR and 7.1ch HDMI Audio; HDCP 2.2; Backwards compatible with DP 1.2 hosts at lower resolutions Bullet 2 NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows desktop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage Bullet 3 HARDWARE COMPATIBILITY: Windows computers with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC support up to three 4K 60Hz monitors; See resolution chart for a list of other supported display configurations Bullet 4 EXTRA-LONG CABLE: 1ft (30cm) built-in cable provides extended reach and reduced port strain, enabling flexible placement of the adapter; Adapters with short cables provide no flexibility in placement, adding clutter and cables to the workspace Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the adapter Bullets (Compact) DisplayPort to Triple-HDMI MST Hub for 3x 4K 60Hz displays; Discrete GPUs/12th gen and up Intel Processors w/ DP 1.4/DSC required for 3x 4K 60Hz monitors; Works with DP 1.2 hosts at lower resolutions; 1ft cable; USB Powered; Driverless; Windows Only Bullets (Consolidated) DisplayPort to Triple-HDMI MST Hub drives up to 3x 4K 60Hz displays using a DP 1.4 host with DSC - HDR; 7.1ch HDMI Audio; HDCP 2.2; Backwards compatible with DP 1.2 hosts at lower resolutions - Multi-monitor adapter adds three extended or mirrored displays; Utilize the host's built-in GPU capabilities; No drivers required - Dedicated GPUs/12th gen and up Intel Processors with DP 1.4 with DSC for Triple-4K 60Hz monitors - 1ft built-in host cable; 20in USB power cable included; Windows Only Marketing Copy Marketing Copy (No HTML) Applications - Utilize additional displays to edit photos, videos, and/or digital content
- Stream high-resolution content to multiple monitors
- Mirror or extend a desktop onto three additional UHD monitors, TVs, or projectors
Website Search Keyword - 8k hdmi splitter
- displayport 1.4 mst hub
- displayport 1.4 to hdmi 4k
- displayport to dual hdmi multi monitor adapter
- dp to hdmi splitter
- hdmi mst hub
- mst hub
- multi stream transport hub
- displayport 1.2 hub
- displayport 1.2 multi stream hub
- 3 port mst hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark

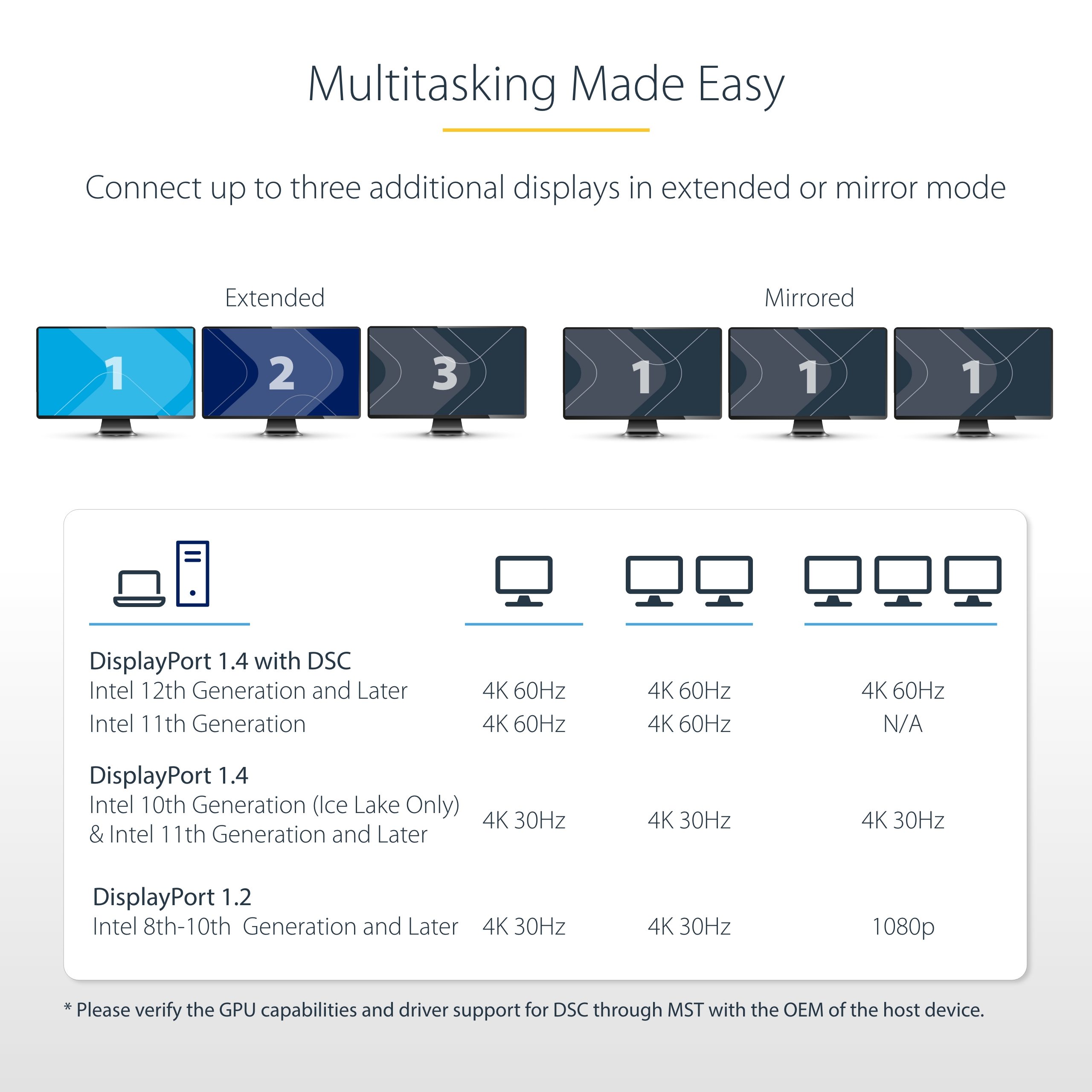

System and Cable Requirements Please verify the GPU capabilities and driver support for Display Stream Compression (DSC) through MST with the OEM of the host device Accessory Products - HDMM21V1M
- HDMM21V2M
- HDMM21V3M
Related Products - MST14DP123DP
- MST14DP122HD
- MST14DP122DP
- MST14CD123HD
- MST14CD123DP
Power Source USB-Powered Cable Length (mm) 300 Color Space Gray Humidity 5% to 90% RH (non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 105.000 Product Width (mm) 43.000 Product Height (mm) 14.000 Product Weight (g) 71.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support Yes Maximum Cable Distance To Display 15000 Maximum Supported Resolution 4K 60Hz (3840x2160) OS Compatibility - Windows 10
- Windows 11
- Windows 8
- Windows 7
Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input DisplayPort - 1.4 AV Output HDMI - 2.0 Chipset ID - VMM5310
- IT6563FN
Converter Type MST Hubs Host Connection Port DisplayPort Industry Standards - Display Stream Compression (DSC)
- High Bit Rate 3 (HBR3)

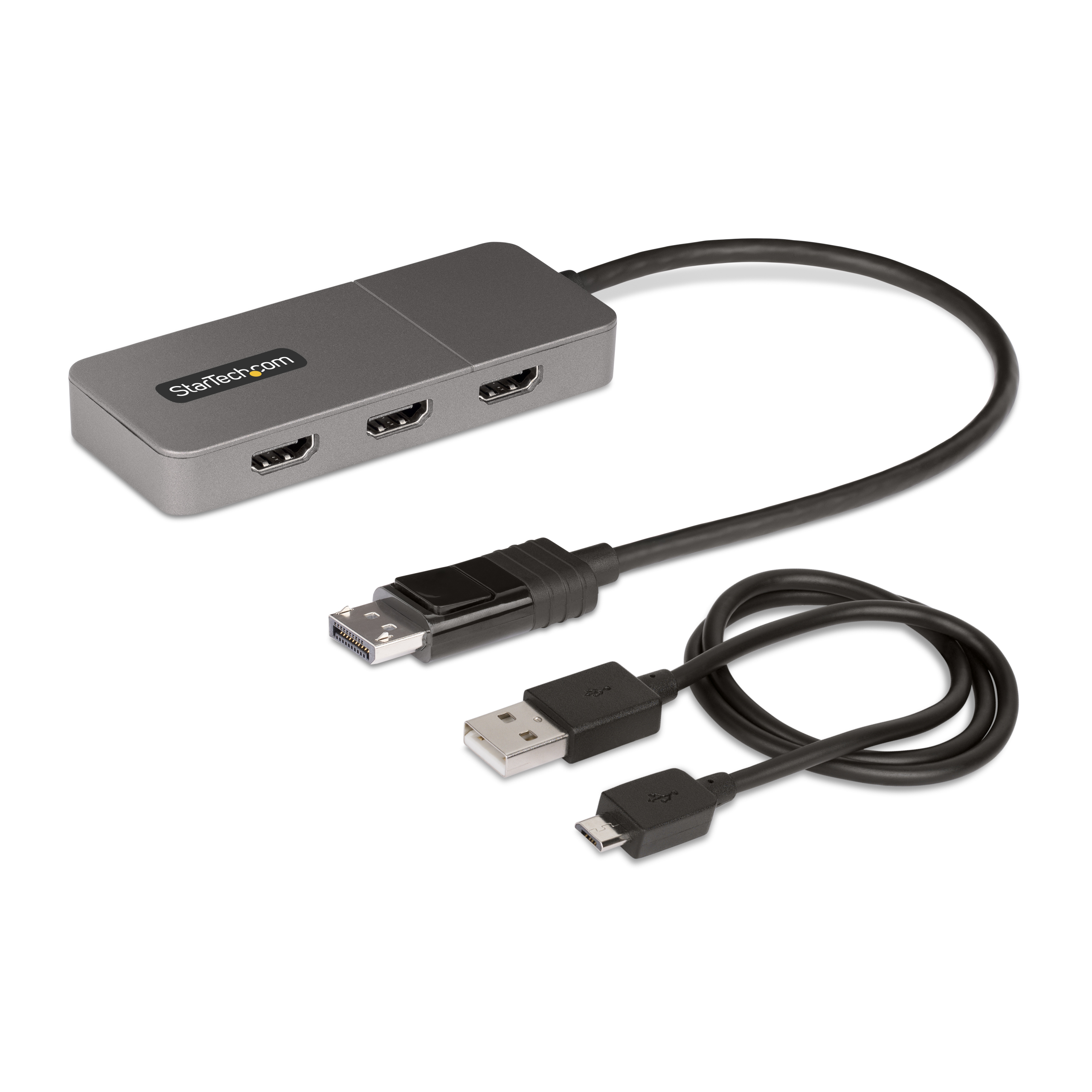

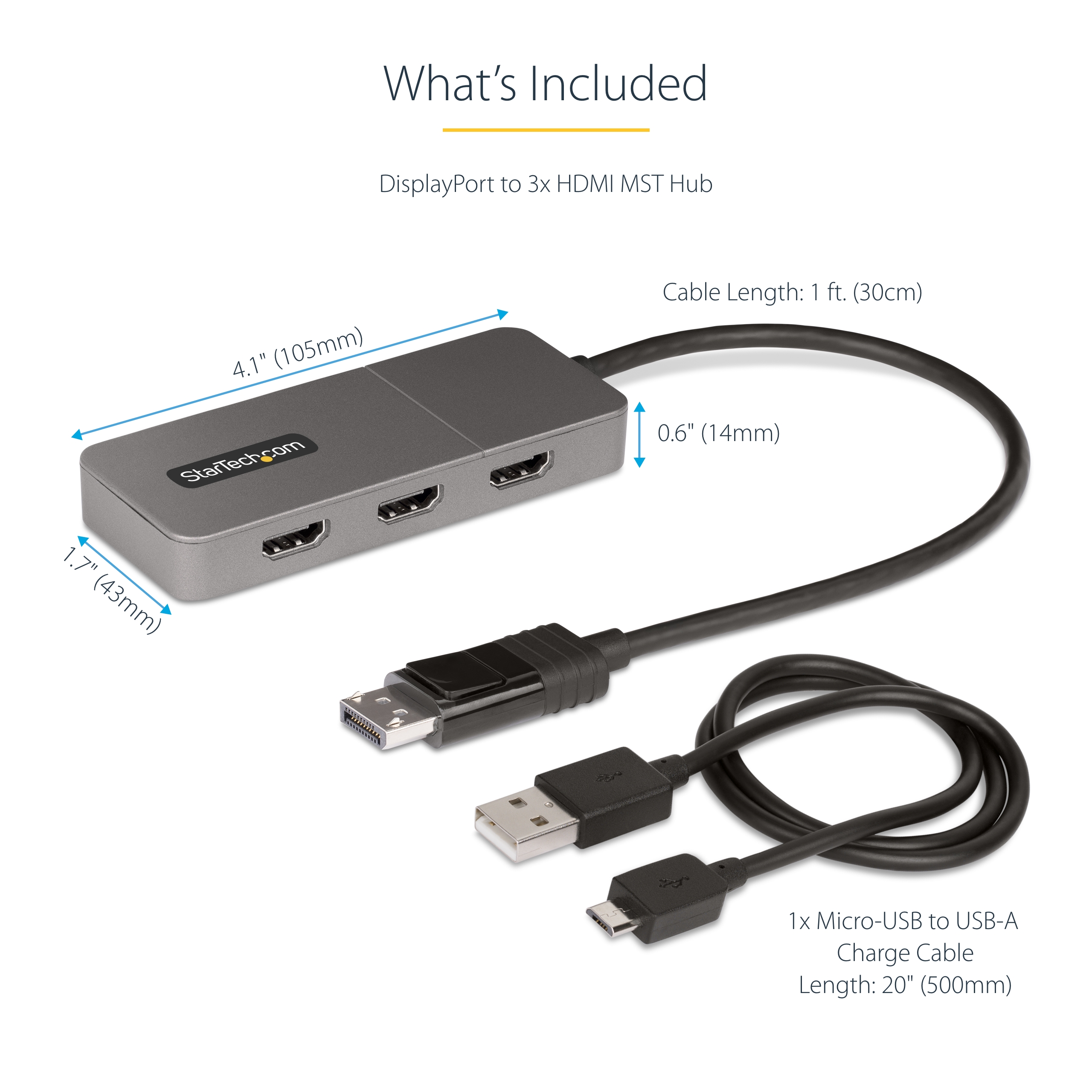

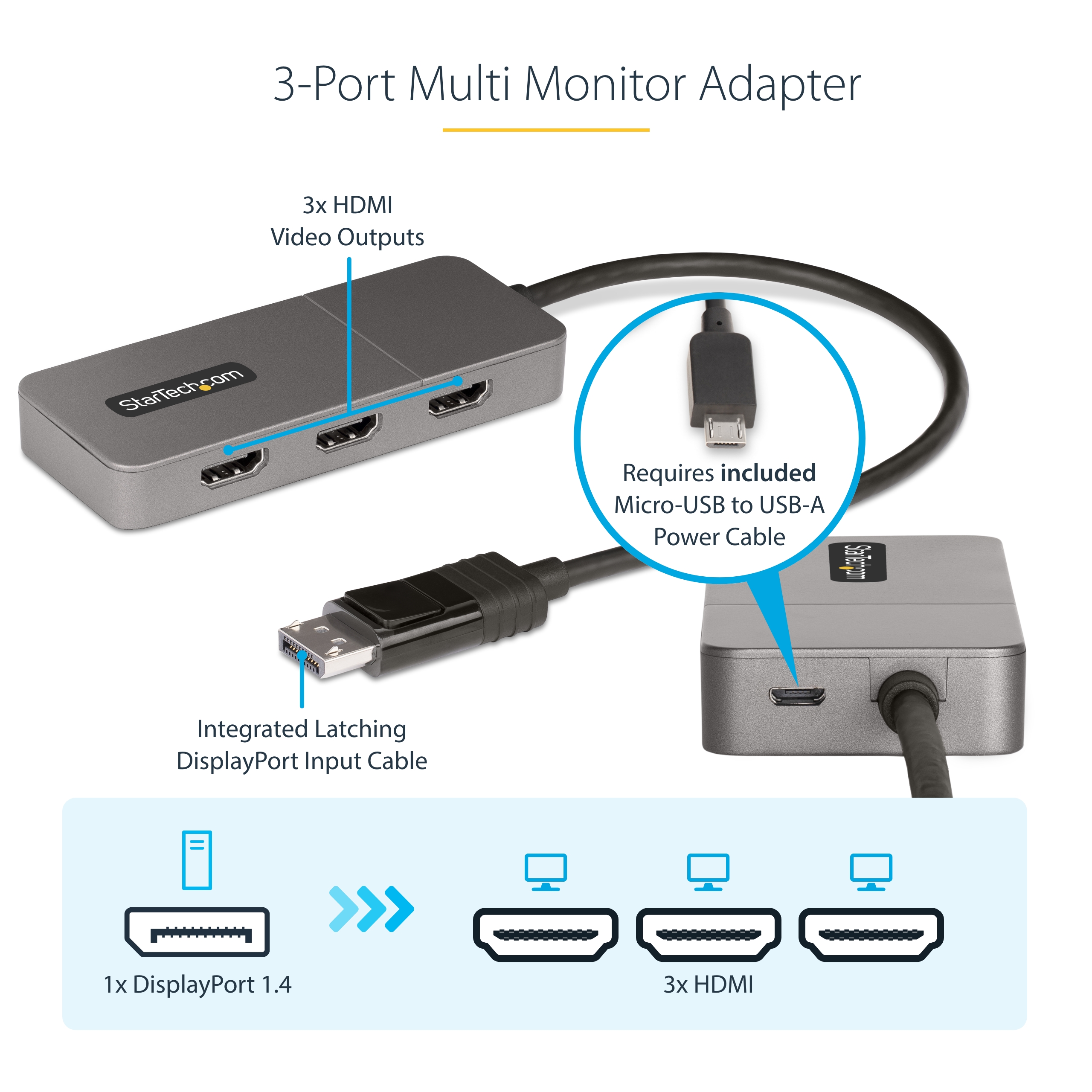

Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Number of Displays 3 Carton Depth (mm) 336 Carton Height (mm) 444 Carton Quantity 70 Carton Weight Gross (g) 11300 Included in Package - 1 - DisplayPort to 3x HDMI MST Hub
- 1 - Micro-USB Power Cable
Included In Package for Label - 1 - Displayport To 3X HDMI Mst Hub
- 1 - Micro-USB Cable
Package Depth (mm) 171 Package Height (mm) 35 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 142 Packaging Description DisplayPort 1.4 to 3 x HDMI - MST Hub Packaging Description India DisplayPort 1.4 to 3 x HDMI - MST Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 USB Micro-B (2.5W Power Only) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 3 A+ Not Required Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-05-01 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Supports DP 1.2 only - with 3 x 1080p monitors Comparable SKU 2 Comment USB-C version Digital Content Due Date 2023-07-12 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology - DisplayPort 1.4
- HDMI 2.0 / 4K 60 Hz and HDR
Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2023-02-24 Target Production Release 2023-05-15 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Required
