MST30C2DPPD
USB Type-C Laptop Dock - Power Delivery and MST
Laptop Docking Station | 60W PD | HDMI/DP | HDMI Cable | No Display Driver Setup
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name USB Type-C Laptop Dock - Power Delivery and MST Product Number MST30C2DPPD UPC 065030863506 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX064X Product Title (Ultra-Short) USB-C Dock - Windows Product Title (Short) USB-C Dock - Dual Monitor - HDMI / DP Product Title (Medium) USB-C Dock - For Windows - Dual Monitor HDMI / DP - 60W Power Delivery Product Title (Standard) Dual Monitor USB-C Dock - Windows - USB-C Docking Station - 60W PD - HDMI / DP - 4 x USB 3.0 - No Display Driver Setup Product Title (Long) Dual-Monitor USB-C Dock for Windows® - 4x USB 3.0 Ports Product Title (AMZ) Dual Monitor USB-C Laptop Docking Station with 4K HDMI, DisplayPort, 4xUSB 3.0 Ports & 60W PD - USB C Dock for Windows (MST30C2DPPD) Title Ingram (Part 1) USB-C Dock for Windows with 60W Title Ingram (Part 2) PD - Dual Monitor - HDMI / DP Website Product Headline Laptop Docking Station | 60W PD | HDMI/DP | HDMI Cable | No Display Driver Setup Bullet 1 Easily connect dual monitors (DisplayPort and HDMI) right out of the box, with no display driver setup Bullet 2 Power and charge your laptop with Power Delivery 2.0 (up to 60W) Bullet 3 Add wired network connectivity with the Gigabit Ethernet RJ45 port Bullet 4 Includes long 3.3 ft. (1 m) USB-C cable and HDMI cable Bullet 5 Connect your USB devices with 4 x USB 3.0 ports - 1x USB-C and 3x USB-A (including 1x Fast-Charge) Bullets (Compact) This USB-C dock for Windows lets you connect dual monitors (DisplayPort and HDMI) or a single 4K monitor to your USB-C laptop - No display driver setup - USB C port replicator with 60W Power Delivery, 4x USB 3.0 ports (1x USB-C 3x USB-A) & GbE port Bullets (Consolidated) This USB-C dock for Windows lets you easily connect two monitors (HDMI and DP)using one USB-C cable (HDMI cable included) - No setup of display driver required right out of the box - Power and charge your laptop and power your peripherals with this USB C docking station with 60W Power Delivery - USB C port replicator lets you connect USB devices with more bandwidth with 4 x USB 3.0 ports (1x USB-C and 3x USB-A including 1x Fast-Charge) - USB Type C dock adds network connectivity with a GbE port Marketing Copy Marketing Copy (No HTML) Applications - Add essential ports required for mass deployment and standard workstation use in an office environment
- Ideal for USB-C equipped Windows laptops such as Dell XPS™, Lenovo® ThinkPad™, HP® Spectre, HP EliteBook and HP ProBook
Website Search Keyword - 4k displayport
- 4k usb c dock
- anker docking station
- belkin docking station
- dell laptop docking station dual monitor
- dell usb c dock
- dell xps dock
- dell xps docking station
- docking station
- dual monitor docking station
- dual monitor for laptop
- dual monitor usb c dock
- kensington docking station
- laptop dock
- laptop docking station
- macbook pro docking station
- MST Dock
- mst docking station
- multi monitor docking station
- plugable docking station
- port replicator
- universal docking station
- universal laptop docking station
- usb 3.1 dock
- usb 3.1 docking
- usb 3.1 docking station
- usb 3.1 type c docking station
- usb c dock
- usb c docking station
- usb c docking station with power delivery
- usb c hub
- usb c laptop dock
- usb c mst dock
- usb c port replicator
- usb c to hdmi
- usb dock
- usb type c daisy chain
- usb type c dock
- usb type c docking station
- usb type c hub
- usb type c mst dock
- usb type c splitter
- usb type-c docking station
- usb-c dock
- usb-c docking station
- xps 13 docking station
- xps 15 docking station
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - This docking station provides up to 60W of Power Delivery to charge your laptop. Some laptops may have specific charging requirements such as the full 60W for charging. In the event that your laptop is not charging, simply unplug any peripheral accessories attached to the dock’s USB-C port (on back of dock) and the USB 3.0 (Type-A) charging port (on front of dock) during charging. This will ensure the full 60 W of power is available for charging your laptop.
- Ensure your laptop’s drivers, firmware, and operating system are up to date prior to using the docking station.

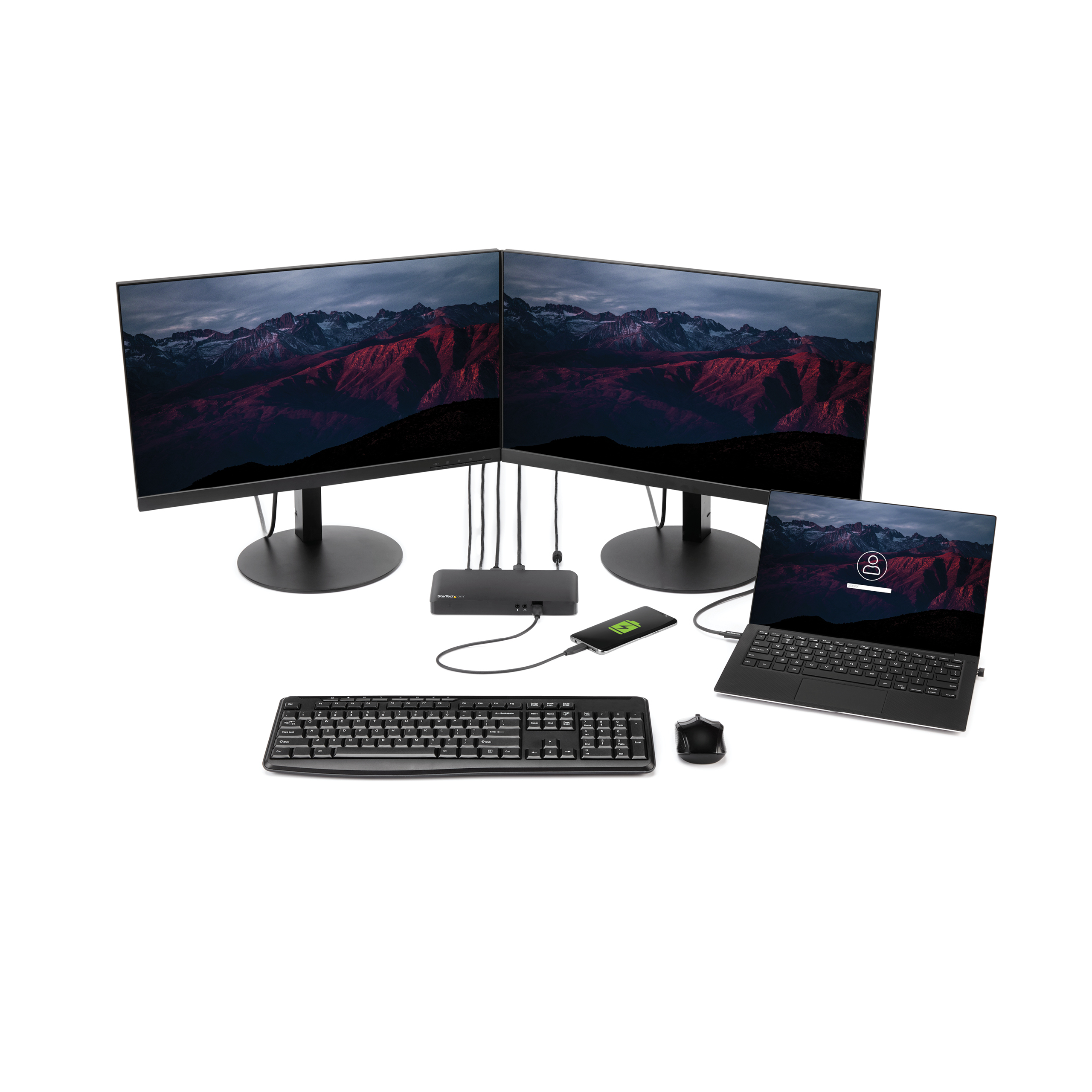

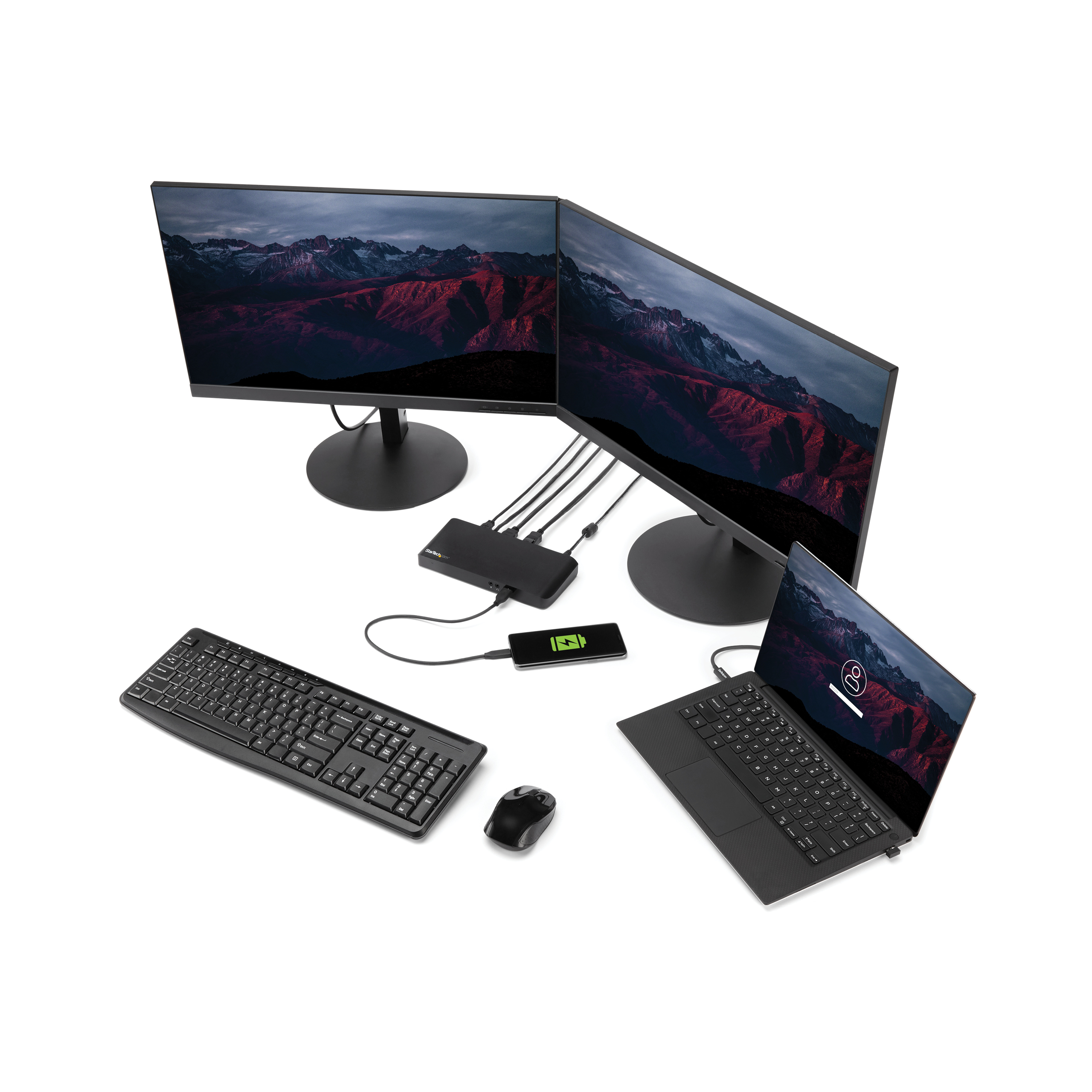

- For a dual-monitor configuration, the Windows laptop must support MST.
- A 4K-capable HDMI display is required to achieve 4K resolution
- Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP Alt Mode, as well as USB Power Delivery.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
- Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
System and Cable Requirements A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode) Accessory Products - DISPLPORT6L
- DISPLPORT10L
- DISPL10MA
- HDMM6
- HDMM15
- HB30C3A1CFB
- ST7300U3M
- UUSBHAUB1
- USBLT30CMW
- SAT3540U3ER
- HB30C3A1CFS
- DP2DVIS
- HDMIDVIMF
- DP2DVIMM6BS
- DP2DVIMM3BS
- HD2VGAMM6
- HD2VGAA2
- DP2VGA2
- RJ45PATCH10
- RJ45PATCH25
- USB31CC1M
- TBLT3MM2M
Related Products - USB3DOCKH2DP
- USB3DDOCKFT
- USB3SMDOCK4K
- USB3DOCKHDPC
- USB3VDOCK4DP
- TB2DOCK4K2DP
- TB2DOCK4KDHC
Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 4.5 A Output Voltage (V) 20V DC Power Consumption (In Watts) 90 Power Delivery 60W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 5%~95% RH (Non-condensing) Material Plastic Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 210.000 Product Width (mm) 90.000 Product Height (mm) 28.000 Product Weight (g) 261.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows 11
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB-C Chipset ID Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power (Green)
- 1 - RJ45 Link (Green/Amber)
- 1 - RJ45 Activity (Yellow)

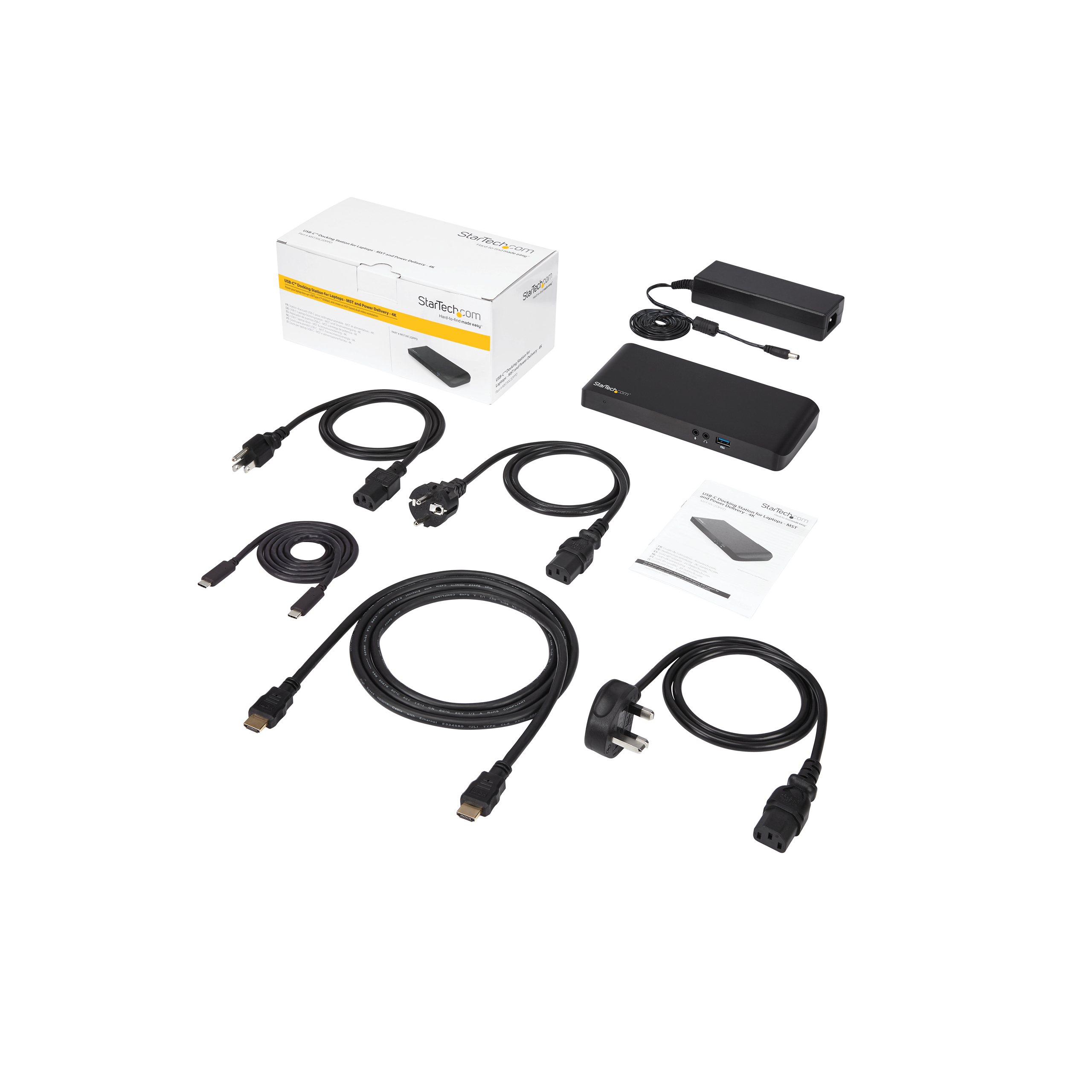

Carton Depth (mm) 419 Carton Height (mm) 253 Carton Quantity 12 Carton Weight Gross (g) 18678 Included in Package - 1 - USB-C docking station for laptops
- 1 - USB-C cable [1 m/3.3 ft]
- 1 - quick-start guide
- 1 - universal power adapter
- 3 - power cords (NA/JP, UK, EU)
- 1 - HDMI cable
Package Depth (mm) 130 Package Height (mm) 115 Package Width (mm) 250 Package Quantity 1 Package Weight (g) 1331 Packaging Description USB-C Laptop Dock - Power Delivery - 4K Packaging Description India USB-C Laptop Dock - Power Delivery - 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-A (7.5W Power Only) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 2 Connector 5 USB-C (5Gbps, 4.5W) Connector 5 (Quantity) 2 Connector 6 RJ-45 Connector 6 (Quantity) 1 Connector 7 3.5mm (3 Conductors, TRS) Connector 7 (Quantity) 2 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2016-06-23 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-07-07 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,CL,CO,DE,DK,ES,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2016-07-08 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
