MST30C2HDPPD
Dual DisplayPort USB C Dock, 2.5" SATA SSD/HDD Bay
Laptop Docking Station | 60W PD | Dual DP | No Display Driver Setup | 3x USB 3.0
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Dual DisplayPort USB C Dock, 2.5" SATA SSD/HDD Bay Product Number MST30C2HDPPD UPC 065030864923 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Ultra-Short) Dual DP USB C Dock Product Title (Short) Dock - USB-C - Windows - Dual DP Product Title (Medium) Dual-Monitor USB-C Dock - Windows - Dual DP - 2.5” SATA SSD / HDD Bay Product Title (Standard) Dual Monitor USB-C Dock - Windows - Dual DisplayPort Docking Station - 60W Power Delivery - No Display Driver Setup - 3x USB 3.0 Product Title (Long) Dual-Monitor USB-C Dock for Windows® - 2.5” SATA SSD/HDD Bay Product Title (AMZ) Dual Monitor USB C Dock - 4K - Dual DisplayPort - 2.5in SSD / HDD Bay - with Power Delivery - Laptop Docking Station (MST30C2HDPPD) Title Ingram (Part 1) USB-C Dock for Windows - 2.5in. Title Ingram (Part 2) SSD / HDD Bay - 60W PD - Dual DP Website Product Headline Laptop Docking Station | 60W PD | Dual DP | No Display Driver Setup | 3x USB 3.0 Bullet 1 Connect your USB devices with 3x USB 3.0 (Type-A) ports including 1x Fast-Charge Bullet 2 Easily connect dual DisplayPort monitors right out of the box, with no display drivers to set up Bullet 3 Add data storage and backup with an internal 2.5” SATA SSD/HDD drive bay Bullet 4 Reliable Gigabit Ethernet port, with PXE Boot support and Wake-on-LAN Bullet 5 Power and charge your laptop with Power Delivery 2.0 (up to 60W) Bullets (Compact) This dual monitor USB-C dock for Windows lets you connect two DisplayPort monitors or single 4K DP monitor to your USB-C laptop - Features a 2.5” SATA SSD/HDD Bay - USB C port replicator w/ 60W Power Delivery, 3x USB 3.0 ports & GbE port Bullets (Consolidated) This dual monitor USB-C dock for Windows lets you easily connect two DisplayPort monitors with a single USB-C cable and with no video driver set up required right out of the box - USB Type-C laptop docking station features a 2.5" SATA SSD/HDD bay(SATA I, II, III)for external data storage and backup - Power and charge your laptop and power your peripherals with 60W Power Delivery - USB C port replicator provides 3 x USB 3.0 Type A port including 1x Fast-Charge and a GbE port(PXE Boot support) Marketing Copy Marketing Copy (No HTML) Applications - Ideal for professionals requiring multiple sources for external storage or large file backups
- For USB-C equipped laptops, supports backup functions using Windows Backup or other backup software
Website Search Keyword - 4k docking station
- apple docking station
- asus docking station
- Belkin Docking Station
- best docking station for laptop
- best laptop docking station
- byod
- chromebook docking station
- dell usb c dock
- dell xps 13 accessories
- dell xps docking station
- desktop docking station
- docking station
- dual display monitor
- dual displayport docking station
- dual hdmi docking station
- dual monitor docking station
- dual monitor laptop docking station
- dual monitor usb c dock
- dual video docking station
- HDMI docking station
- hp usb c dock
- laptop dock
- laptop docking station
- mac docking station
- macbook air dock
- macbook dock
- macbook docking station
- macbook pro dock
- macbook pro docking station
- macbook pro docking station dual monitor
- macbook pro usb c dock
- mst hub
- multi monitor docking station
- owc usb c dock
- plugable docking station
- plugable usb c docking station
- port replicator
- power docking station
- Targus Docking station
- universal dock
- universal docking station
- universal laptop docking station
- universal laptop docking station dual monitor
- usb 3.1 dock
- usb 3.1 type c docking station
- usb c display
- usb c dock
- usb c docking station
- usb c docking station with power delivery
- usb c dual monitor
- usb c hard drive dock
- usb c hub
- usb c laptop dock
- usb c mst dock
- usb c port replicator
- usb c to a
- usb c to displayport
- usb c to dvi
- usb c to hdmi
- usb c to hdmi dock
- usb c to usb
- usb type c dock
- usb type c docking station
- usb type c to hdmi
- usb type c to type a
- usb-c dock
- usb-c docking station
- usb-c hdmi
- usb-c to hdmi
- Video splitter
- xps 13 docking station
- xps 15 docking station
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
- Ensure your laptop’s drivers, firmware, and operating system are up to date prior to using the docking station.
- For a dual-monitor configuration, the Windows laptop must support MST.
- A 4K-capable HDMI display is required to achieve 4K resolution
- Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP Alt Mode, as well as USB Power Delivery.
- Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
- This docking station provides up to 60W of Power Delivery to charge your laptop. Some laptops may have specific charging requirements such as the full 60W for charging. In the event that your laptop is not charging, simply unplug any peripheral accessories attached to the dock’s USB-C port (on back of dock) and the USB 3.0 (Type-A) charging port (on front of dock) during charging. This will ensure the full 60 W of power is available for charging your laptop.
System and Cable Requirements A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode) Accessory Products - DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- HDMM6
- HDMM10
- HDMM15
- RJ45PATCH10
- RJ45PATCH25
- USB315CC2M
- USB315AC1M
- USB315CB2M
- MUYHSMFF

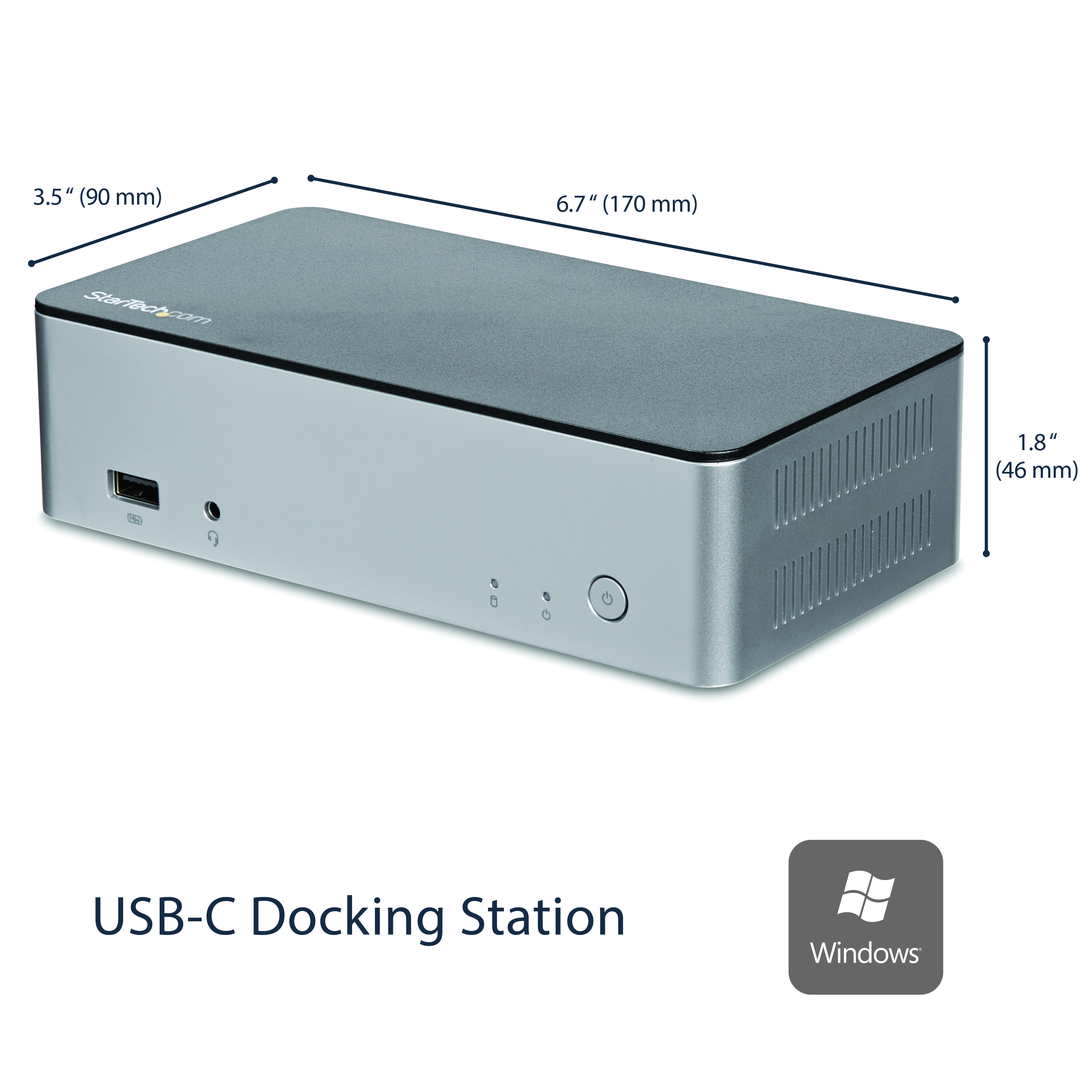

Input Current 2 A Input Voltage 100 - 240 AC Output Current 5 A Output Voltage (V) 20V DC Power Consumption (In Watts) 100 Power Delivery 60W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 1000 Color Black & Silver Humidity 0%~95% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 170.000 Product Width (mm) 90.000 Product Height (mm) 46.000 Product Weight (g) 321.000 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No 4Kn Support Yes Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows 11
PXE Yes S.M.A.R.T. Support Yes TRIM Support Yes UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port DisplayPort Video Transport Technology USB-C (DP Alt-Mode) Wake-On-LAN (WOL) Yes Bus Type USB-C Chipset ID Host Connection Port USB-C Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

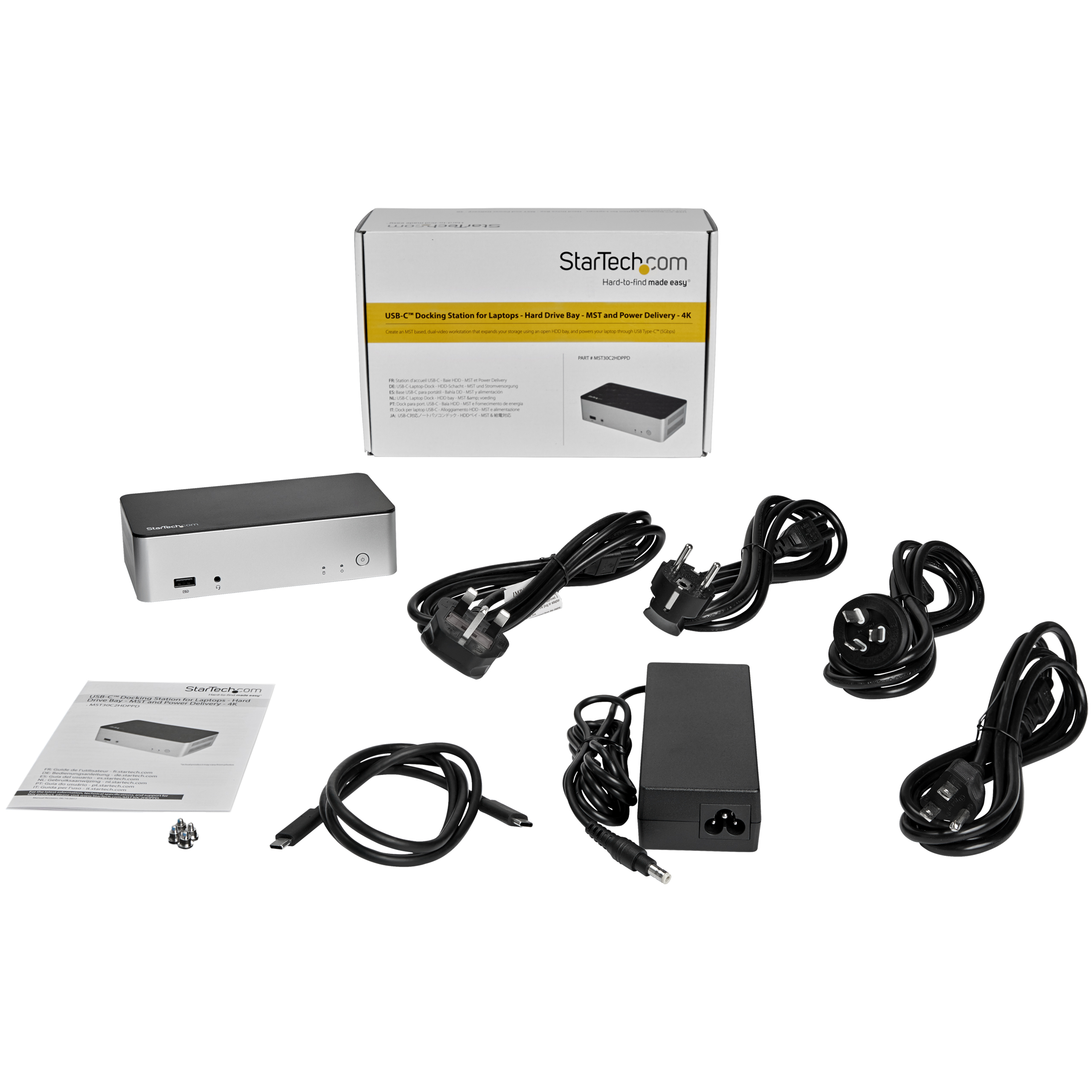

Carton Depth (mm) 303 Carton Height (mm) 369 Carton Quantity 6 Carton Weight Gross (g) 12161 Included in Package - 1 - docking station
- 1 - 1 m USB-C cable
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - Quick-start guide
- 4 - hard-drive mounting screws
Package Depth (mm) 185 Package Height (mm) 118 Package Width (mm) 288 Package Quantity 1 Package Weight (g) 1913 Packaging Description USB-C Laptop Dock - HDD Bay - Power Delivery Packaging Description India USB-C Laptop Dock - HDD Bay - Power Delivery Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 2 Connector 3 USB-A (7.5W Power Only) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 2 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 3.5mm (4 Conductors, TRRS) Connector 6 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-06-23 Buying Center - End User Compute Yes Digital Content Due Date 2017-08-11 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology USB-C Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-06-30 Target Production Release 2017-07-07 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
