Main Image
MST30C2HHPD
USB-C MST Dual HDMI Dock with Power Delivery
Laptop Docking Station | 60W PD | Dual HDMI/DVI | No Display Driver Setup
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name USB-C MST Dual HDMI Dock with Power Delivery Product Number MST30C2HHPD UPC 065030868334 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Family no family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX158X Product Title (Ultra-Short) Dual USB-C Dock Product Title (Short) Dual Monitor USB C Docking Station HDMI Product Title (Medium) Dual Monitor USB-C Dock - Windows - 60W PD - 5x USB 3.0 - HDMI / DVI Product Title (Standard) Dual Monitor USB C Docking Station w/ 60W Power Delivery - USB 3.1 Gen 1 Type C to HDMI or DVI - 5x USB - Windows Laptop Dock Product Title (Long) Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible Product Title (AMZ) Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible Title Ingram (Part 1) USB-C Dock for Windows - With Title Ingram (Part 2) 60W Power Delivery - Dual HDMI/DVI Website Product Headline Laptop Docking Station | 60W PD | Dual HDMI/DVI | No Display Driver Setup Bullet 1 FULL FEATURE USB-C DOCK: USB 3.1 Gen 1 5Gbps type-c docking station with dual monitor 1080p HDMI or DVI, 4x USB-A (incl. 1 front fast charge), 1x USB-C, 60W PD, Gigabit Ethernet & 3.5mm headset audio Bullet 2 NEW & EXISTING MONITOR SUPPORT: Dual monitor USB-C dock offers flexible setup w/ support for multiple video output combinations: dual HDMI, HDMI + DVI & Dual DVI w/ incl. HDMI to DVI display adapters Bullet 3 EASY TO SET UP & MANAGE: The plug and play USB-C laptop dock has automatic driver installation, 2x HDMI to DVI adapters, 1m/3.3ft. host cable, front facing power button Bullet 4 WIDE DEVICE COMPATIBILITY: This USB Type-C MST (Multi Stream Transport) docking station is compatible with Windows USB-C and Thunderbolt 3 (TB3) laptops incl. HP, Lenovo, Dell and Microsoft Surface Bullet 5 60W POWER DELIVERY & CHARGING: This USB-C port replicator with 60W PD powers & charges ultrathin laptops & Ultrabooks like Lenovo Thinkpad X1 Carbon, Dell XPS 13, HP EliteBook, Microsoft Surface Pro 7 Bullets (Compact) Dual monitor USB C dock w/ 4x USB-A, USB-C, GbE, headset audio – 1080p Dual HDMI or HDMI + DVI or Dual DVI w/ incl. HDMI to DVI adapters – USB-C docking station w/ 60W PD - Windows USB-C/Thunderbolt 3 laptops/Lenovo ThinkPad X1 Dell XPS Surface Pro7 Bullets (Consolidated) Dual monitor USB C dock w/ 1080p HDMI or DVI video/4x USB-A/USB-C/Gigabit Ethernet/headset audio - Dual HDMI or HDMI + DVI or Dual DVI w/ incl. 2x HDMI to DVI adapters - USB 3.1 Gen 1 Type-C docking station w/ automatic driver install/Front facing power button/MAC Address Changer Utility/3.3ft. cable - USB-C/Thunderbolt 3 (TB3) dock w/ 60W Power Delivery - MST Dock for Windows ultrathin laptops/Ultrabooks like Lenovo ThinkPad X1 Carbon Dell XPS 13 HP EliteBook Surface Pro7 Marketing Copy Marketing Copy (No HTML) Applications - Add essential ports required for mass deployment in an office environment
- Ideal for USB-C equipped Windows laptops such as Dell XPS™, Lenovo® ThinkPad™, HP® Spectre, HP EliteBook and HP ProBook
Website Search Keyword - 4k docking station
- apple docking station
- Belkin Docking Station
- best docking station for laptop
- best laptop docking station
- chromebook docking station
- dell usb c dock
- dell xps 13 accessories
- dell xps docking station
- desktop docking station
- docking station
- dual display monitor
- dual dvi docking station
- dual hdmi docking station
- dual hdmi usb c dock
- dual monitor docking station
- dual monitor laptop docking station
- dual monitor usb c dock
- dual video docking station
- HDMI docking station
- hp usb c dock
- laptop dock
- laptop docking station
- mac docking station
- macbook air dock
- macbook dock
- macbook docking station
- macbook pro dock
- macbook pro docking station
- macbook pro docking station dual monitor
- macbook pro usb c dock
- mst hub
- multi monitor docking station
- owc usb c dock
- plugable docking station
- plugable usb c docking station
- port replicator
- power docking station
- Targus Docking station
- universal dock
- universal docking station
- universal laptop docking station
- universal laptop docking station dual monitor
- usb 3.1 dock
- usb 3.1 type c docking station
- usb c display
- usb c dock
- usb c docking station
- usb c docking station with power delivery
- usb c dual monitor
- usb c hub
- usb c laptop dock
- usb c mst dock
- usb c port replicator
- usb c to a
- usb c to dvi
- usb c to hdmi
- usb c to hdmi dock
- usb c to usb
- usb type c dock
- usb type c docking station
- usb type c to hdmi
- usb type c to type a
- usb-c docking station
- usb-c hdmi
- usb-c to hdmi
- Video splitter
- xps 13 docking station
- xps 15 docking station
- U442-DOCK1-B
- U442-DOCK2-S
- U442-DOCK1
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - Ensure your laptop’s drivers, firmware, and operating system are up to date prior to using the docking station.
- A 4K-capable HDMI display is required to achieve 4K resolution
- Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP Alt Mode, as well as USB Power Delivery.
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
- Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
- For a dual-monitor configuration, the Windows laptop must support MST
- This docking station provides up to 60W of Power Delivery to charge your laptop. Some laptops may have specific charging requirements such as the full 60W for charging. In the event that your laptop is not charging, simply unplug any peripheral accessories attached to the dock's USB-C port (on back of dock) and the USB 3.0 (Type-A) charging port (on front of dock) during charging. This will ensure the full 60W of power is available for charging your laptop.
System and Cable Requirements A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP Alt Mode) Accessory Products - HDMM6
- HDMM10
- DVIDDMM10
- DVIDDMM6
- RJ45PATCH10
- RJ45PATCH25
- 158-DOCKPOWERADAPTER
Related Products - MST30C2DPPD
- DKT30CHPD
- DKT30CHV
Equivalent Part Number in the EU MST30C2HHPDU Equivalent Part Number in the UK MST30C2HHPDU Input Current 2 A Input Voltage 110V-240V AC Output Current 5 A Output Voltage (V) 20V DC Power Consumption (In Watts) 100 W Power Delivery 60W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 5%~95% RH (Non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 220.000 Product Width (mm) 80.000 Product Height (mm) 24.000 Product Weight (g) 259.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows 11
- Windows 11 ARM
PXE Yes UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Video Output Port - HDMI
- DVI
Video Transport Technology USB-C (DP Alt-Mode) Bus Type USB-C Chipset ID Host Connection Port USB-C Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes Number of Displays 2 Other Ports - Gigabit Ethernet
- USB-A BC 1.2 Fast Charge
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack

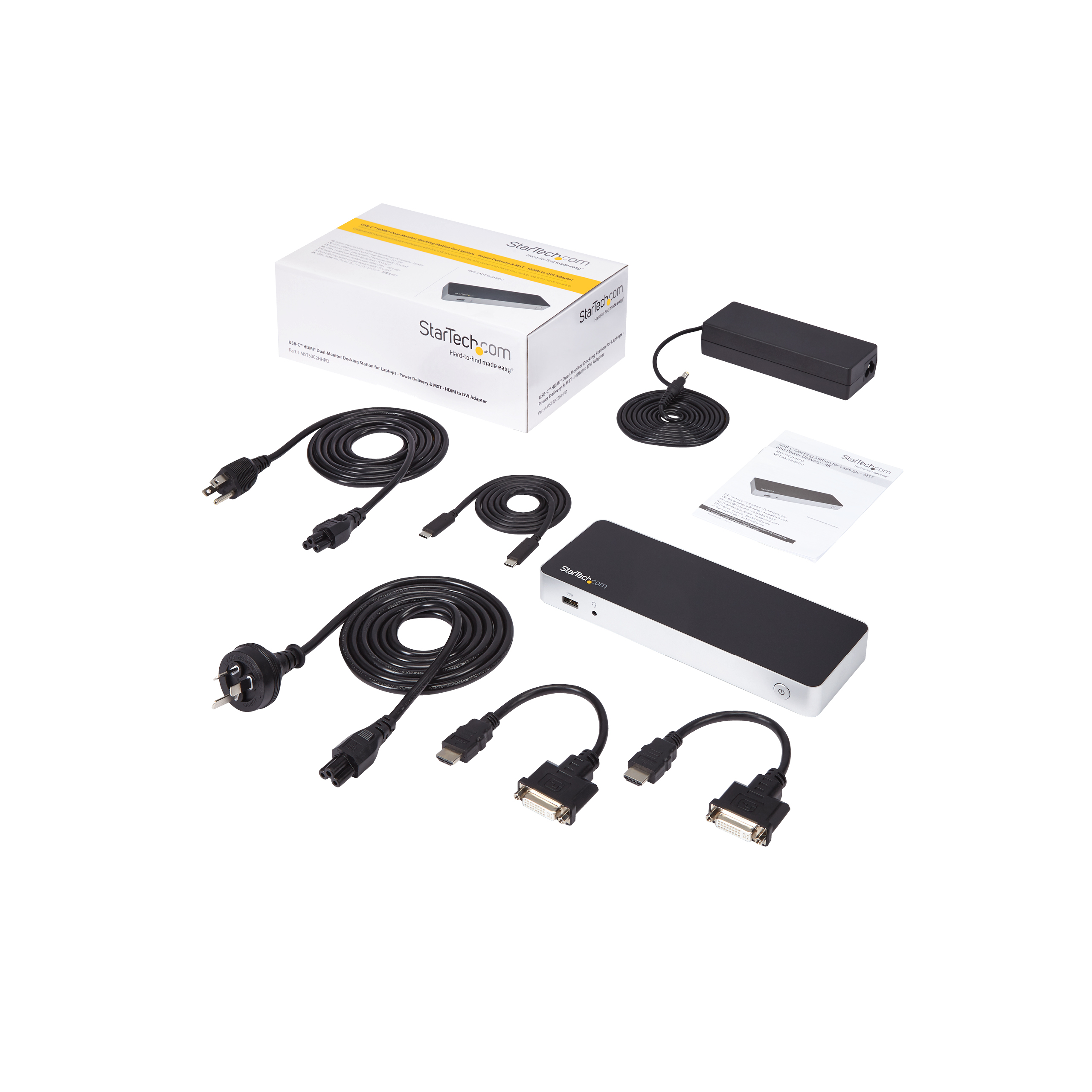

Carton Depth (mm) 343 Carton Height (mm) 308 Carton Quantity 6 Carton Weight Gross (g) 8668 Included in Package - 1 - docking station
- 1 - 1m USB-C to USB-C cable
- 2 - HDMI to DVI adapters
- 1 - universal power adapter (NA/JP, ANZ)
- 1 - quick-start guide
Package Depth (mm) 272 Package Height (mm) 93 Package Width (mm) 161 Package Quantity 1 Package Weight (g) 1368 Packaging Description USB-C HDMI Dual-Monitor Laptop Dock - PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 HDMI Connector 2 (Quantity) 2 Connector 3 USB-A (7.5W Power Only) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 3 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 3.5mm (4 Conductors, TRRS) Connector 6 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-09-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-11-10 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,HK,JP,MX,NZ,PE,US Primary Technology USB-C Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-11-10 Target Production Release 2017-11-10 Tech Lead Sam Raskas Technical Writer Dan Dagenais Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
