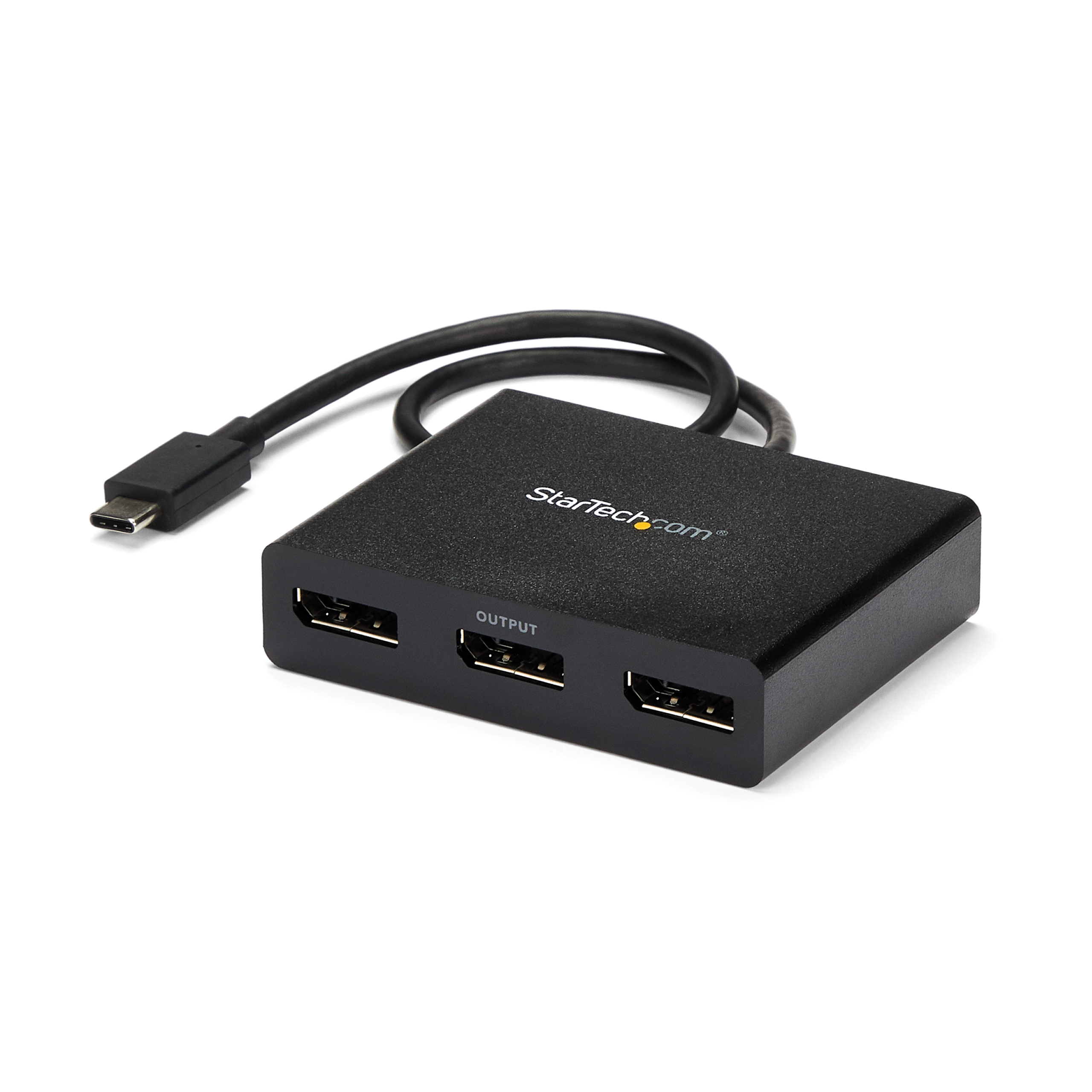

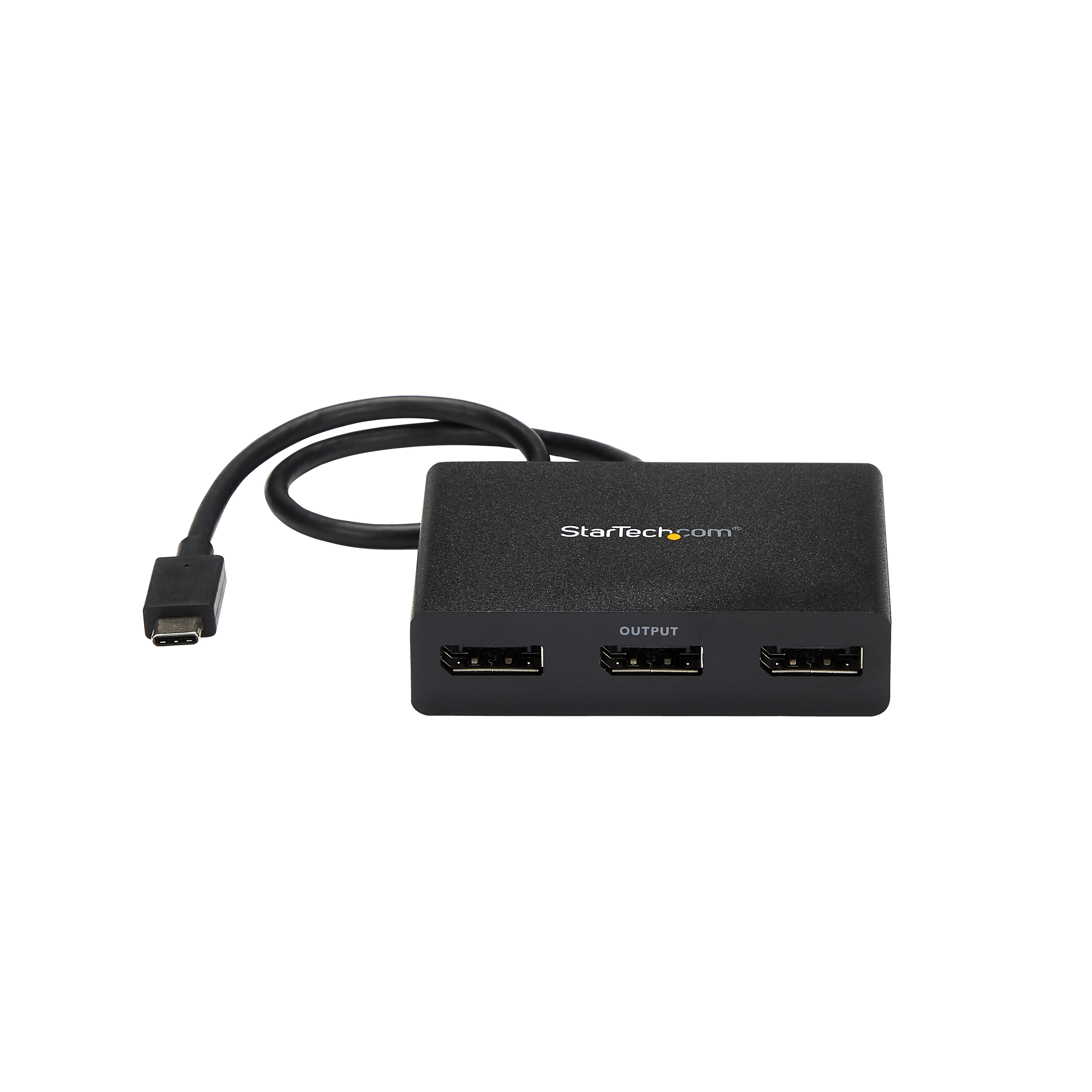

MSTCDP123DP
USB-C MST to 3xDP hub

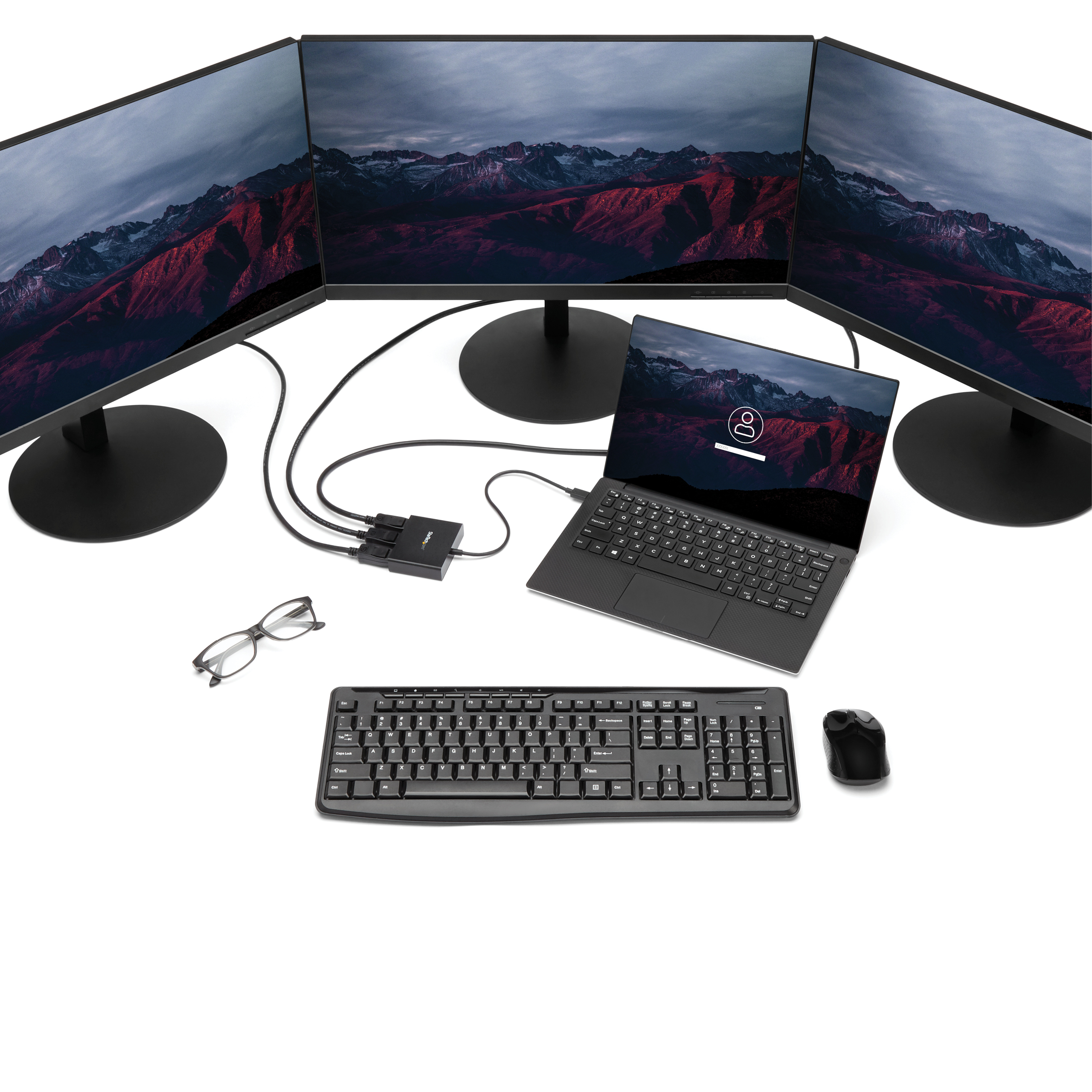

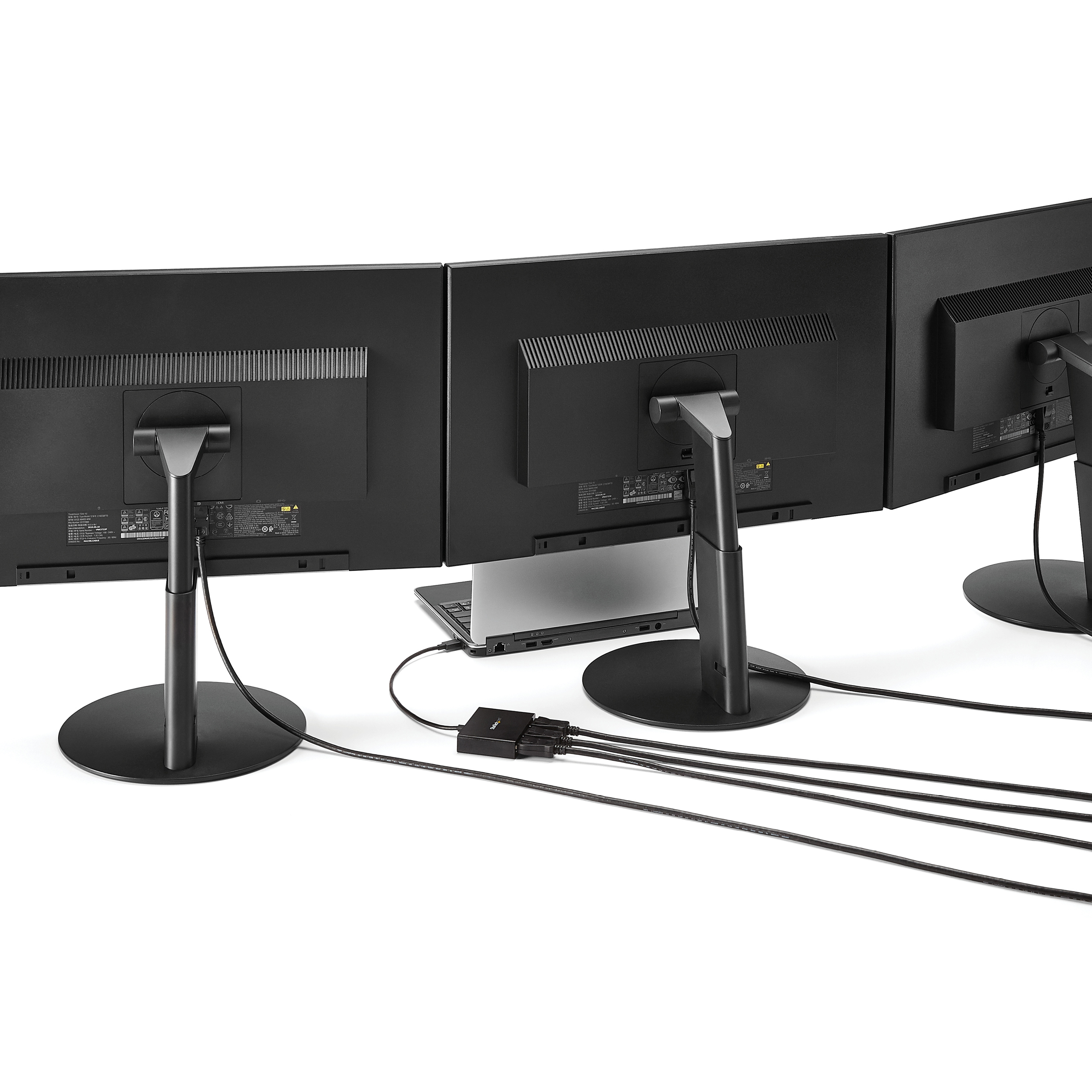

Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent DisplayPort™ monitors
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name USB-C MST to 3xDP hub Product Number MSTCDP123DP UPC 065030864503 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 USB-C Display Adapters Category Level 3 MST USB-C Family USBC MST Hubs, DP 1.2 Alt Mode Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) USB-C to DP MST Hub Product Title (Short) USB-C to 3x DP Multi Monitor Adapter MST Product Title (Medium) 3-Port USB-C to DisplayPort MST Hub - 4K 30Hz - Multi-Monitor Splitter Product Title (Standard) 3-Port USB-C Multi-Monitor Adapter, Type-C to 3x DisplayPort 1.2 MST Hub, Triple 1080p DP Display - Replaced by MST14CD123DP Product Title (Long) 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x DisplayPort 1.2 MST Hub, Triple 1080p 30Hz DP Laptop Display Extender / Splitter, Windows Only - Replaced by MST14CD123DP Product Title (AMZ) 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x DisplayPort 1.2 MST Hub, Triple 1080p 30Hz DP Laptop Display Extender / Splitter, Windows Only - Replaced by MST14CD123DP Title Ingram (Part 1) USB-C to DisplayPort MST Hub Title Ingram (Part 2) 3-Port - 4K 30Hz - Video Splitter Website Product Headline Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent DisplayPort™ monitors Bullet 1 MULTI-MONITOR CONFIGURATION: USB Type-C to Triple DisplayPort adapter splitter hub drives up to three 1080p 60Hz or two 4K 30Hz displays using a USB-C DP Alt-Mode port on Windows laptops; Thunderbolt, USB4 Compatible; Not compatible with macOS Bullet 2 NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel, AMD, Nvidia) capabilities enabling high performance graphics with minimal CPU usage Bullet 3 HARDWARE COMPATIBILITY: Host system must support DP Alt Mode 1.2, HBR2, MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays Bullet 4 EXTRA LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port connector strain on 2-in-1 devices like Surface Pro 7, HP Elite x2 laptops on riser stands; Ideal for on-the-go travel use in office, home office, shared workspaces Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple DisplayPort Adapter Bullets (Compact) USB Type-C Multi-Monitor adapter drives triple 1080p 60Hz or dual 4K 30Hz DisplayPort displays in extended/mirrored mode; DP 1.2/HBR2 MST Hub/Splitter; TB3/TB4/USB4 Compatible; Extra-long 1ft cable reduces USBC connector strain; Windows/No drivers Bullets (Consolidated) USB Type-C Multi-Monitor adapter works with USB-C DP Alt-mode Windows laptops to connect up to 3 independent displays in extended/mirrored mode - Triple 1080p 60Hz or Dual 4K 30Hz DisplayPort MST Hub | Compatible with Thunderbolt 3/4 - Host system must support DP 1.2/HBR2 - Extra-long 1ft cable reduces USBC connector strain - Please verify maximum number of displays supported by your GPU - Windows Layout Utility included which restores windows app locations - Windows only | No drivers Marketing Copy Marketing Copy (No HTML) Applications - Extend your desktop onto additional monitors or displays
- Create dynamic digital signage with a panoramic video wall
- Span across multiple monitors to avoid side-scrolling
- Edit media across additional displays in any orientation
- Ideal for travel or hot-desking
Website Search Keyword - mst
- usb c
- usb-c
- usb type c
- usb type-c
- multi-monitor
- mst hub
- displayport mst hub
- multi monitor set up
- MST Hub - 3x DisplayPort - USB-C
- usb c displayport mst hub
- usb c mst hub
- USB C to Displayport MST hub
- usb c triple displayport mst hub
- triple displayport mst hub
- USB_C MST hub - 3x DisplayPort output
- usb-c displayport mst hub
- usb-c mst hub
- USB-C to MST 3x DisplayPort Hub
- usb-c triple displayport mst hub
- U444-3DP-MST
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Your USB-C equipped device must support video (DP alt mode) to work with this adapter Accessory Products - DISPLPORT10L
- DISPLPORT15L
- DP2HDMI
- DP2VGA3
- DP2DVI2
Related Products - MSTCDP122DP
- MSTCDP122HD
- MSTMDP122DP
- MSTMDP123DP
- MSTMDP124DP
- MSTMDP123HD
- MSTDP122DP
- MSTDP123DP
- MSTDP124DP
Replacement Product MST14CD123DP Constrained SKU Alternatives (Limited Stock) MST14CD123DP Power Delivery No PD Pass-Through Cable Length (mm) 322 Color Black Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 78.000 Product Width (mm) 60.000 Product Height (mm) 18.000 Product Weight (g) 86.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Audio Specifications DisplayPort - 5.1 Channel Audio HDR Support No Maximum Cable Distance To Display 2000 Maximum Digital Resolutions 3840x2160 @ 30hz Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 8
- Windows 10
- Windows 11
- Windows 11 ARM

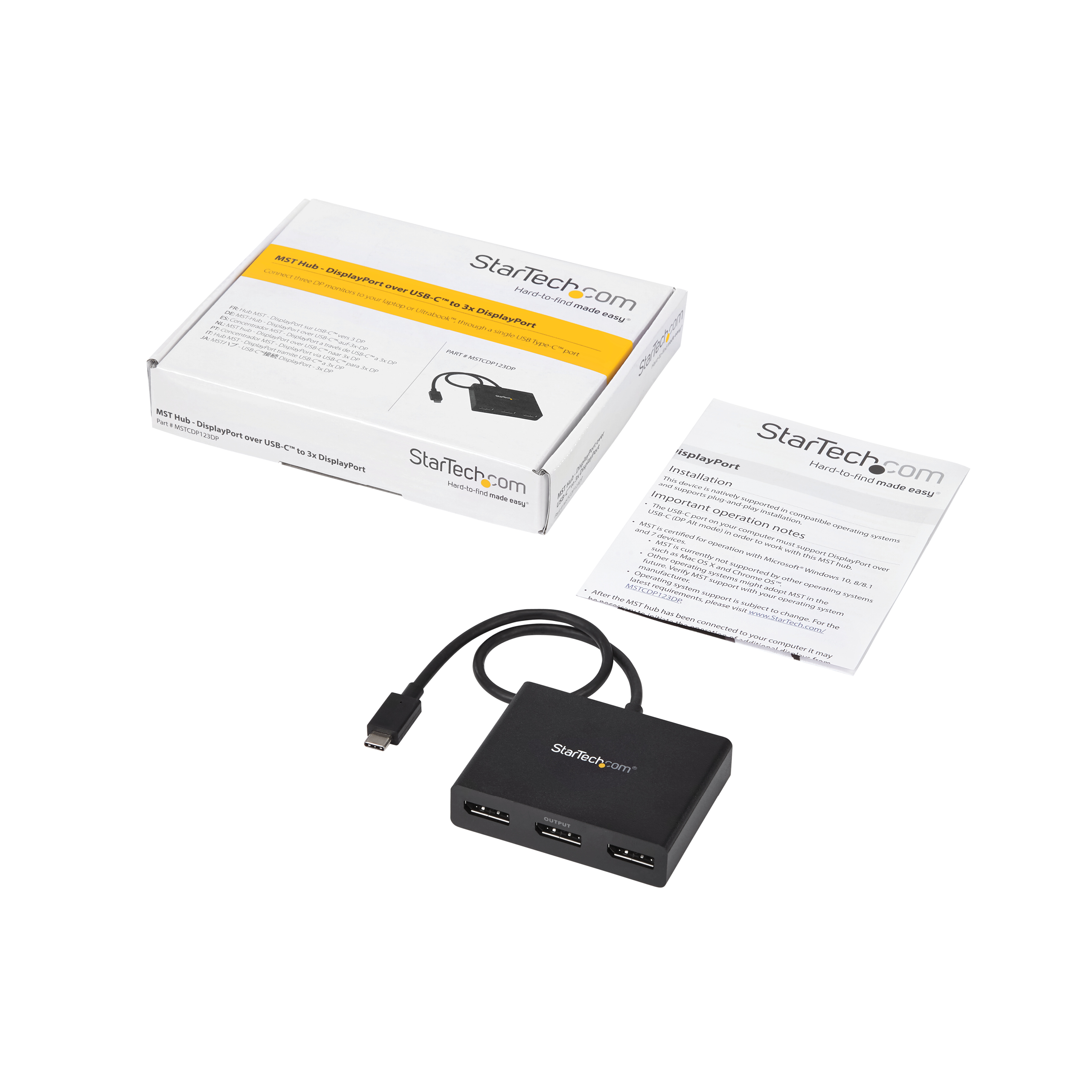

Supported Resolutions Video Output Port DisplayPort Wide Screen Supported Yes Audio Yes AV Input USB-C AV Output DisplayPort - 1.2 Chipset ID Converter Type MST Hubs Host Connection Port USB-C Number of Displays 3 Carton Depth (mm) 336 Carton Height (mm) 224 Carton Quantity 28 Carton Weight Gross (g) 5696 Included in Package - 1 - MST hub
- 1 - quick-start guide
Package Depth (mm) 144 Package Height (mm) 34 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 168 Packaging Description MST Hub - DisplayPort over USB-C™ to 3x DP Packaging Description India MST Hub - DisplayPort over USB-C™ to 3x DP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C DP++ (DP Alt-Mode) Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 3 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2017-02-01 Buying Center - AV & Collaboration Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2017-03-17 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2017-01-13 Target Production Release 2017-02-03 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy
