MSTDP122DP

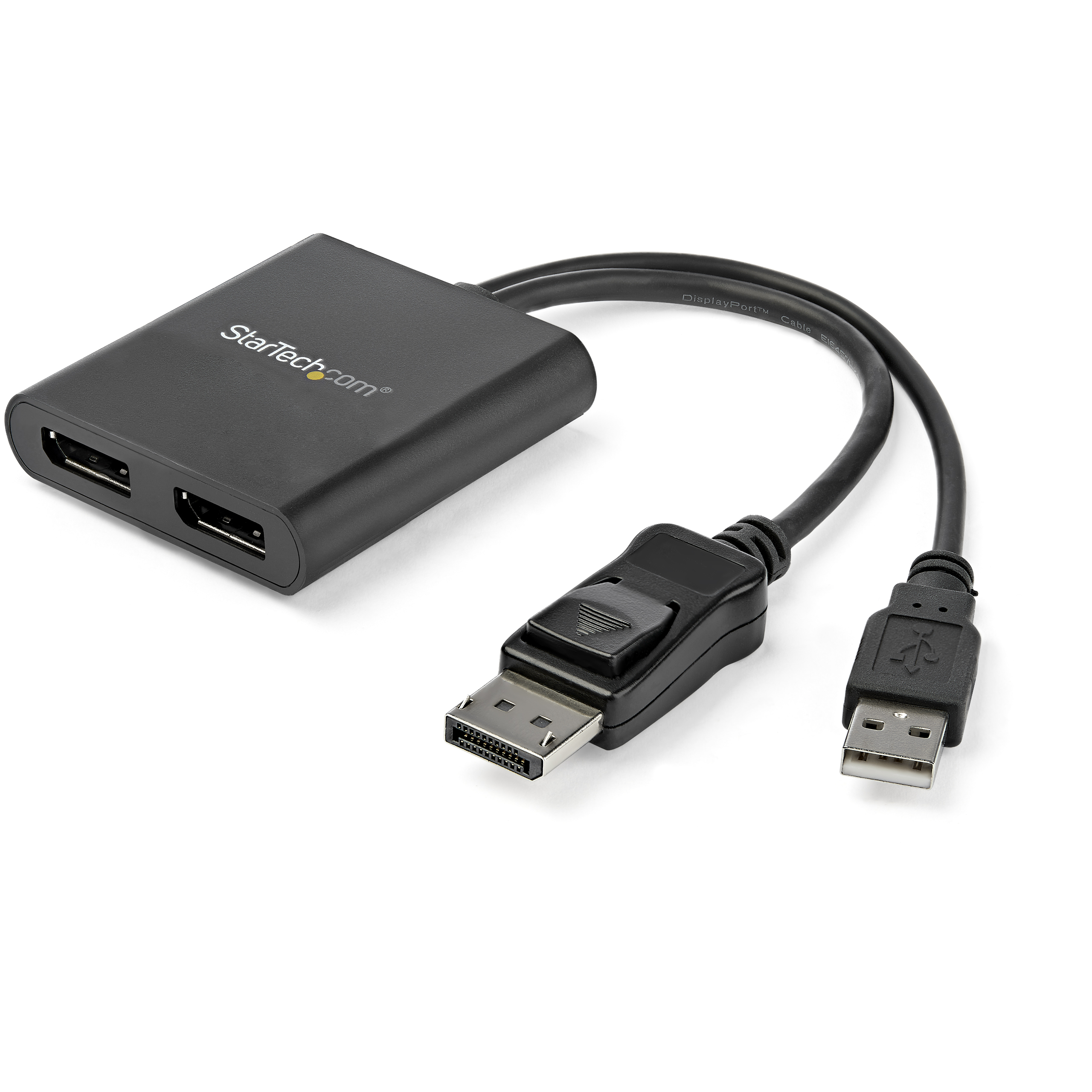

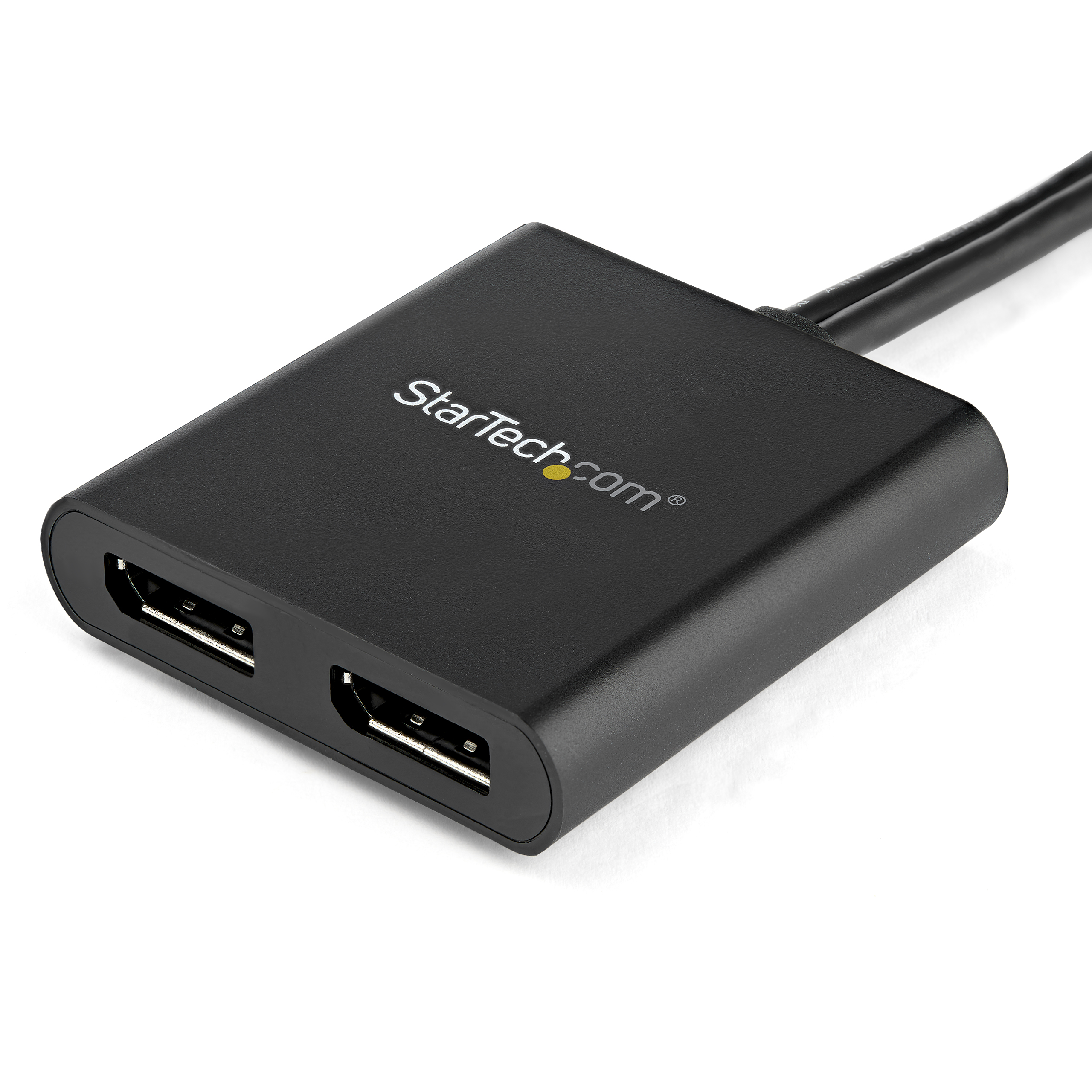

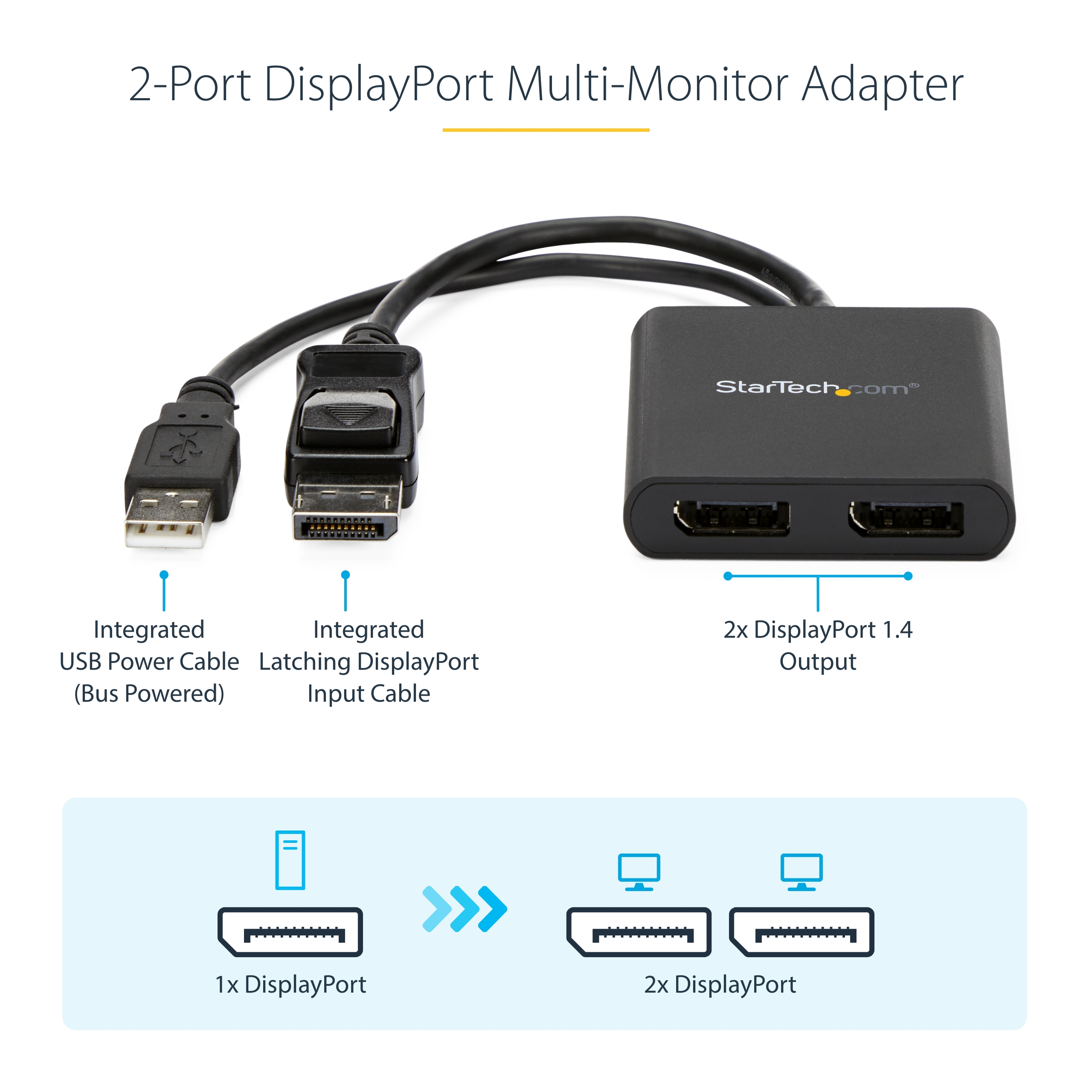

DisplayPort MST to 2 x DisplayPort
Use this adapter to connect two independent displays to a single DP 1.2 port
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name DisplayPort MST to 2 x DisplayPort Product Number MSTDP122DP UPC 065030860574 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MST DP Family DP/mDP MST Hubs, DP 1.2 Alt Mode Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) MST Hub - 2x DP Product Title (Short) 2 Port DP Multi Monitor Adapter MST Hub Product Title (Medium) DisplayPort to DisplayPort Multi Monitor Splitter - 2-Port MST Hub Product Title (Standard) Dual-Monitor DisplayPort 1.2 Splitter, DisplayPort to 2x DP Multi-Monitor Adapter, Dual 4K 30Hz Computer MST Hub, Windows Product Title (Long) Dual-Monitor DisplayPort 1.2 Splitter, DisplayPort to 2x DP Multi-Monitor Adapter, Dual 4K 30Hz or 1080p 60Hz Computer MST Hub, USB Bus-Powered - Windows Only Product Title (AMZ) Dual-Monitor DisplayPort 1.2 Splitter, DP to 2x DP Multi-Monitor Adapter, 4K 30Hz/1080p 60Hz MST Hub for Windows Title Ingram (Part 1) MST Hub - DisplayPort to 2-Port Title Ingram (Part 2) DisplayPort - DP to DP Website Product Headline Use this adapter to connect two independent displays to a single DP 1.2 port Bullet 1 MULTI-MONITOR CONFIGURATION: Dual-Monitor DisplayPort 1.2 MST Hub drives up to 2x 4K 30Hz (UHD) or 2x 1080p 60Hz DisplayPort monitors using a DP video port on a Windows desktop PC or laptop; Not compatible with macOS Bullet 2 NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows computer; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage Bullet 3 HARDWARE COMPATIBILITY: Host system must support DP 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays Bullet 4 EASY TO USE: Extend your desktop at your workstation in the office/home office; Built-In 9.8" (25cm) USB-A cable for power (USB bus-powered); Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the Dual DisplayPort Multi-Monitor Adapter Bullets (Compact) Dual Port DisplayPort Multi-Monitor Adapter drives up to two 4K 30Hz (UHD) displays to extend or mirror your desktop; DP 1.2/HBR2/MST; Built-in cables; Bus-powered MST Hub/Video splitter; Latching DP connector; No Drivers or software; Windows only Bullets (Consolidated) - Dual Port DisplayPort Multi-Monitor Adapter drives 2x 4K 30Hz or 2x 1080p 60Hz DP displays to extend or mirror your desktop - MST hub/video splitter - Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics - Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST and HBR2) - No drivers or software; Works w/ Windows only - USB bus-powered | Latching DP connector ensures a reliable connection| Built-in cables for power/video Marketing Copy Marketing Copy (No HTML) This 2-port DisplayPort MST hub lets you daisy chain dual DP monitors to your DisplayPort Windows device, conveniently helping you to increase and maximize your productivity. With devices becoming more portable than ever, you are limited to fewer video outputs and confined to your small integrated screen. This MST hub solves that problem by enabling you to connect two separate displays to your DisplayPort-equipped computer, making multi-tasking much easier. Using this DisplayPort to DisplayPort MST splitter, you can mirror your display onto additional monitors or stream independent content to each display which makes it the ideal accessory for travel or hot-desking environments. MST technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for two monitors or displays simultaneously. Plus, because the DP hub can output high-definition 1080p, it's perfect for all high-resolution applications such as graphic design and CAD drawing. With this DisplayPort multi-monitor splitter, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI monitors. This ensures your DP MST hub will be compatible with virtually any television, monitor or projector. The splitter hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment. This DisplayPort to DisplayPort MST Hub is backed by a 3-year warranty, and free lifetime technical support. Applications - Use one screen for reference data such as websites, while composing in another screen
- Dock your DP 1.2 device and add two high-resolution displays to your workstation
- Create a panoramic video wall for DisplayPort digital signage applications
- Edit images, video or audio clips across two additional displays in any orientation or resolution
- Perfect for spanning a spreadsheet or worksheet across two additional displays, to avoid side-scrolling
Website Search Keyword - DisplayPort Splitter
- DisplayPort Desktop Extender
- External Multi-Display
- Multi-Display DisplayPort
- Matrox
- doubleHead2GO
- DualHead2GO
- Clone
- Mirror
- External DisplayPort Video Card
- Triple Monitor
- Dual Monitor
- DP
- double Head DisplayPort Graphics Expansion Module
- Graphics Expansion Module
- Desktop Expansion
- B156-002-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output Accessory Products - DISPLPORT1L
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- DP2DVI
- DP2HDMI
- DP2HDMI2
- DP2VGA2
- DP2VGA
- DP2VGA3
- DP2DVI2
- DP14MM1M
Related Products - MSTMDP123DP
- MSTMDP124DP
- MSTMDP123HD
- MSTDP123DP
- MSTDP124DP
- MSTDP123HD
- MSTMDP122DP
Constrained SKU Alternatives (Limited Stock) - MST14DP123DP
- MST14DP122DP

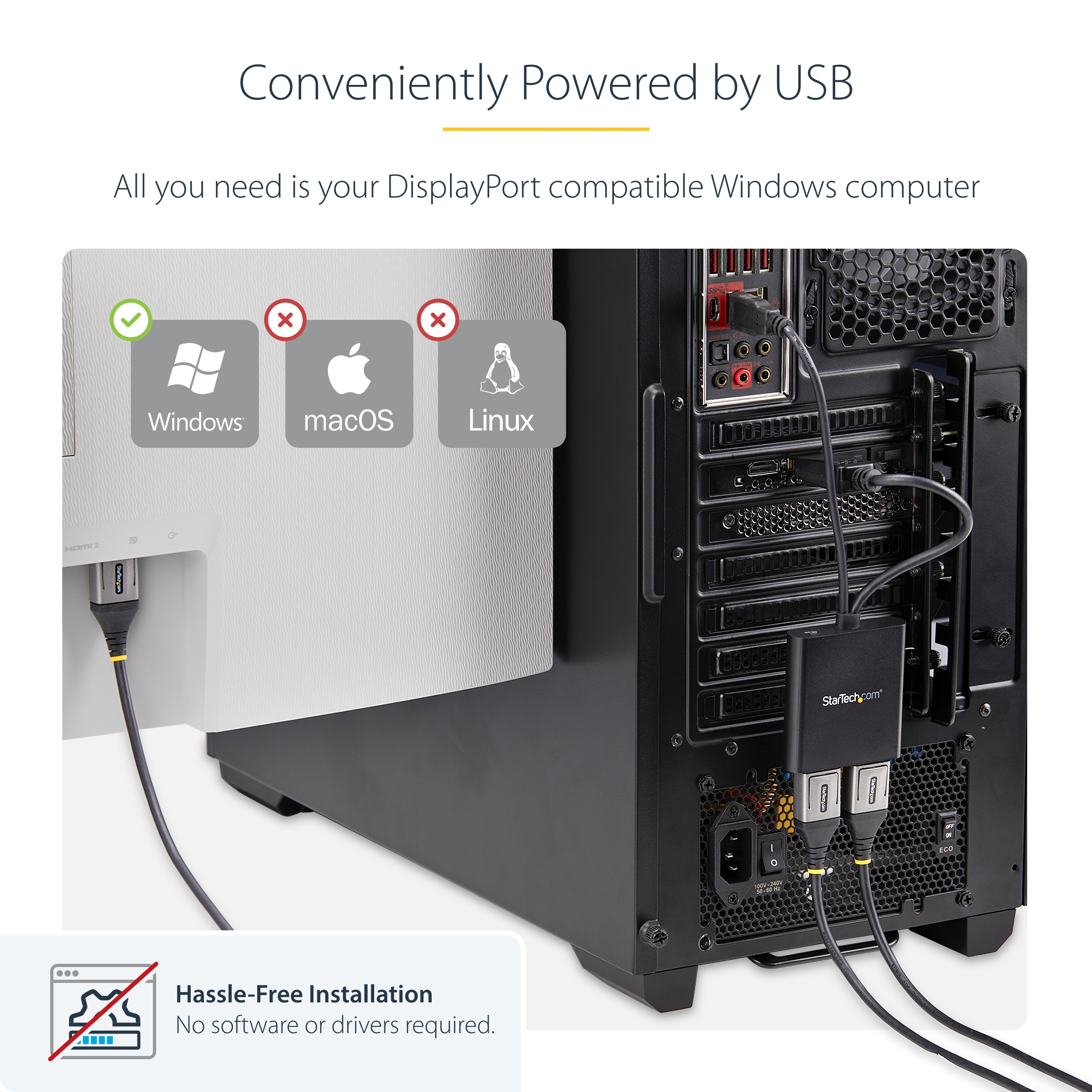

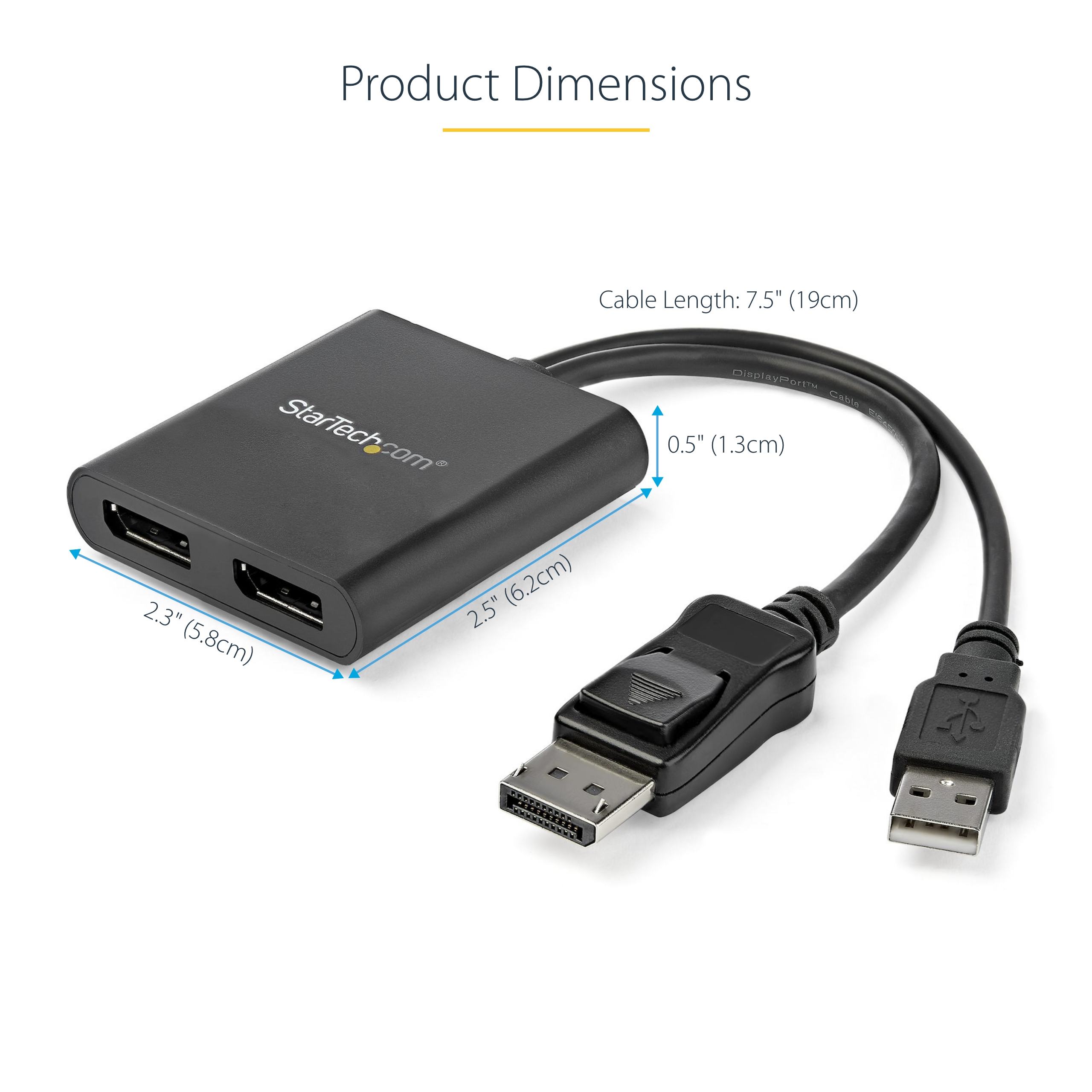

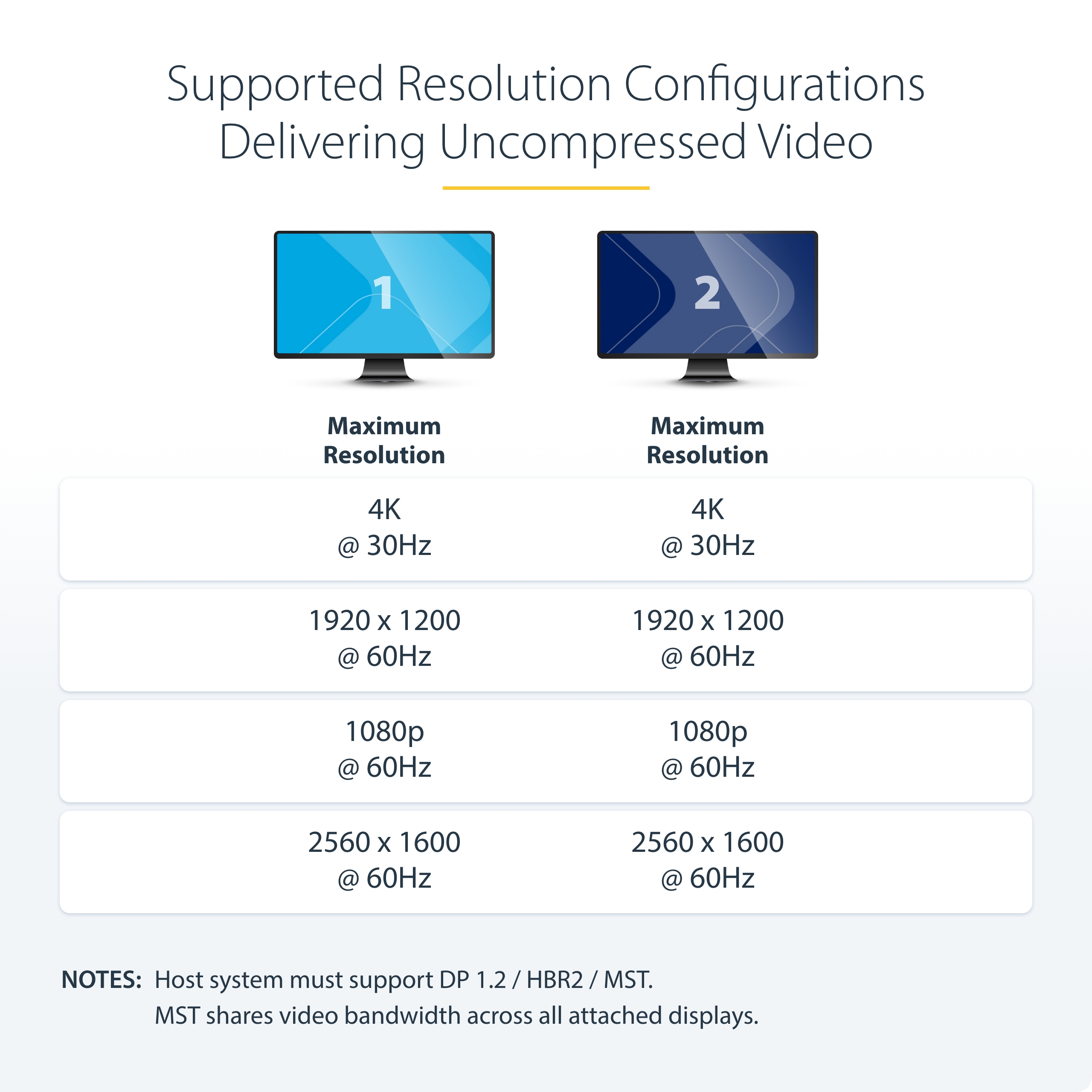

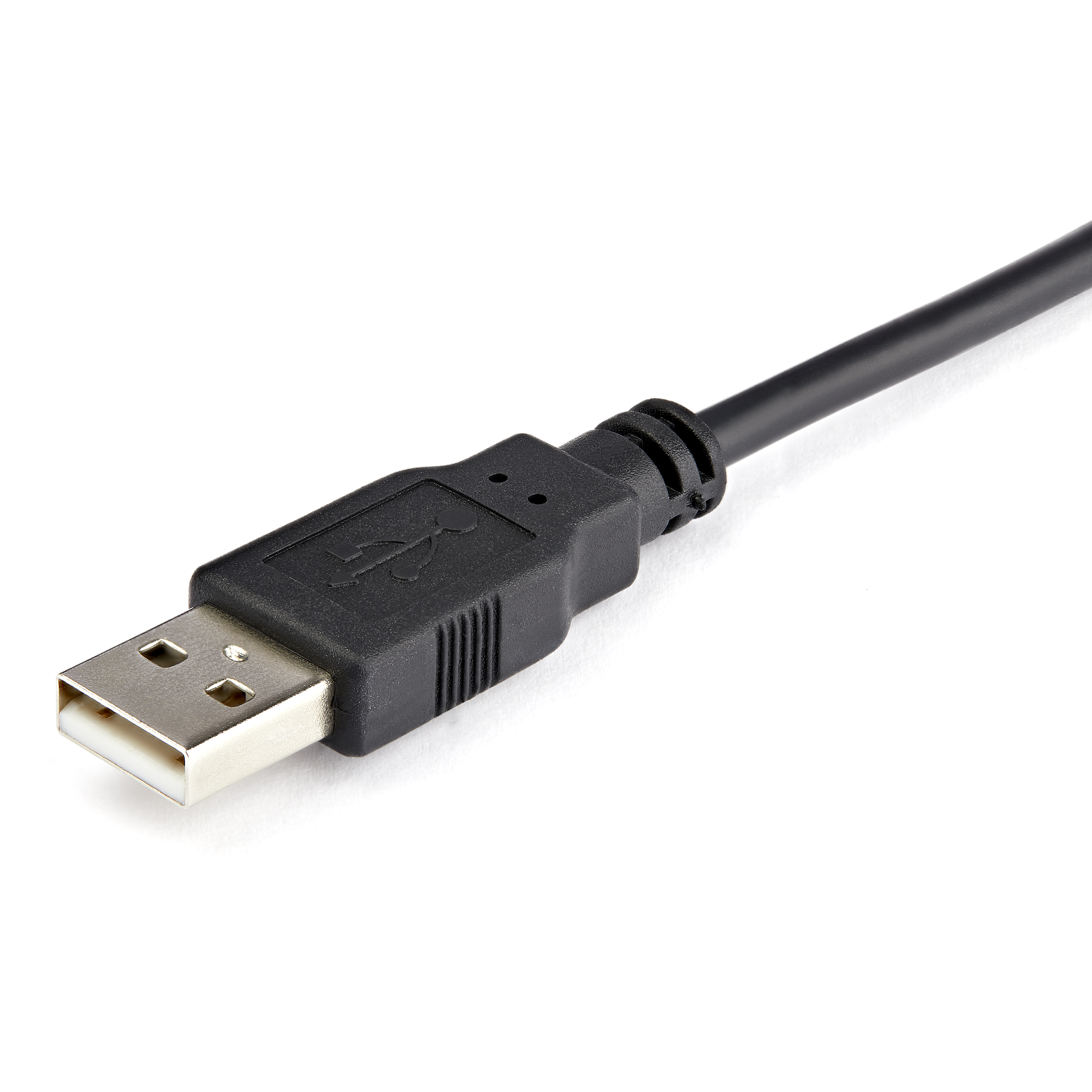

Power Source USB-Powered Cable Length (mm) 190 Color Black Humidity 50-90% Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 250.000 Product Width (mm) 58.000 Product Height (mm) 13.600 Product Weight (g) 52.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications DisplayPort - 5.1 Channel Audio HDR Support No Maximum Cable Distance To Display 2000 Maximum Digital Resolutions 3840 x 2160 @30hz Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows 11

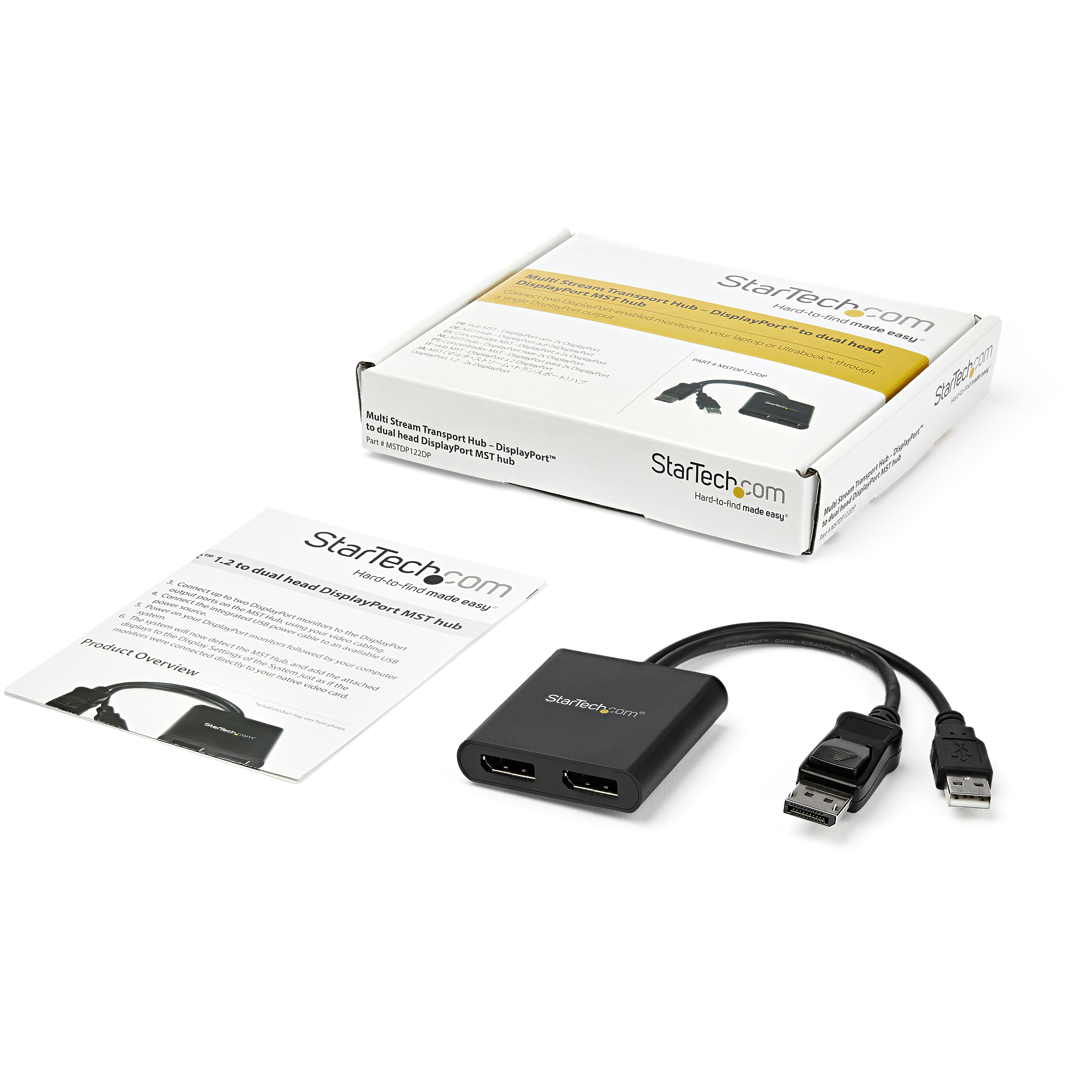

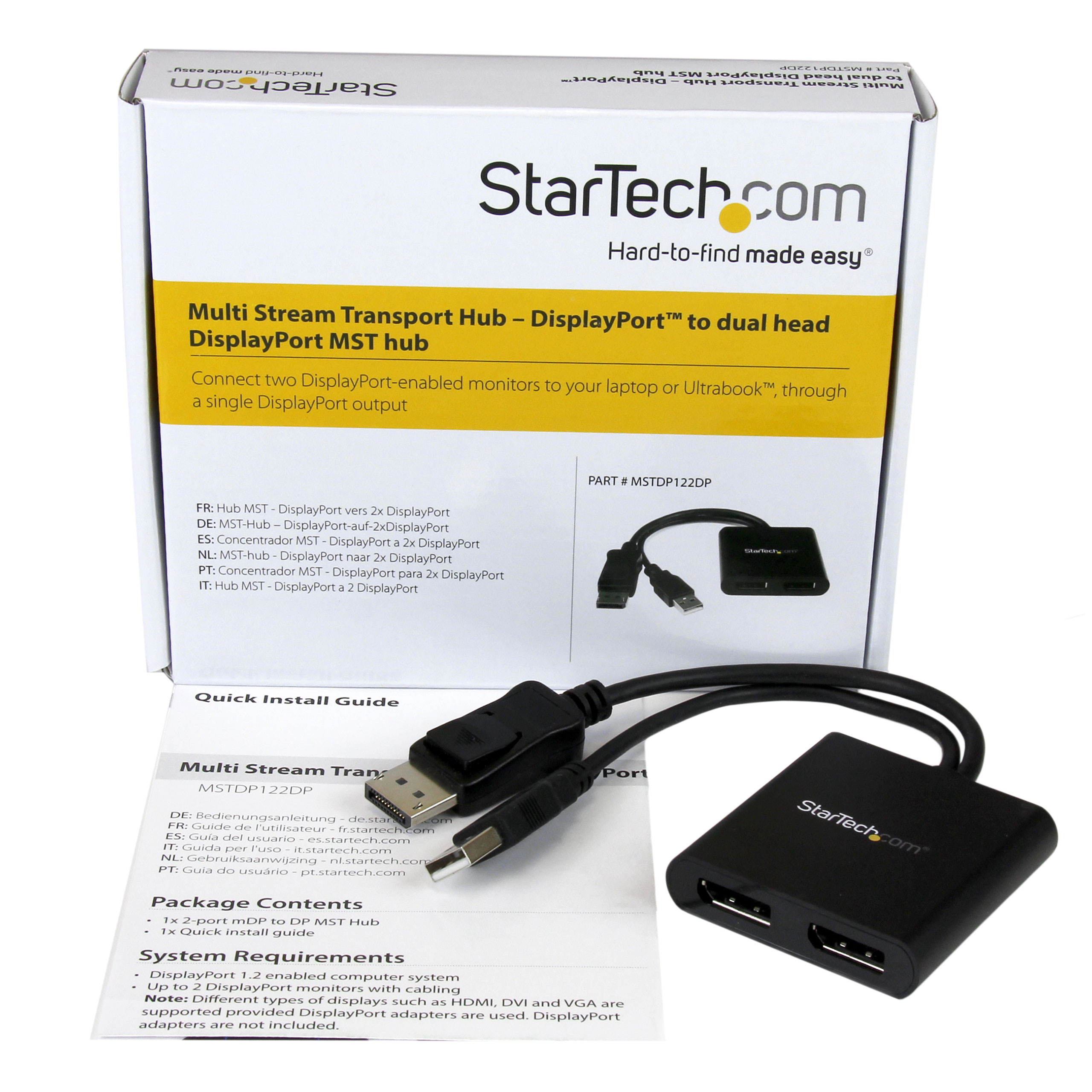

Supported Resolutions Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input DisplayPort - 1.2 AV Output DisplayPort - 1.2 Chipset ID MegaChips - STDP4320 Converter Type MST Hubs Host Connection Port DisplayPort Number of Displays 2 Carton Depth (mm) 510 Carton Height (mm) 228 Carton Quantity 28 Carton Weight Gross (g) 5458 Included in Package - 1 - 2-port DP MST Hub
- 1 - Quick install guide
Included In Package for Label - 1 - Quick Install Guide
- 1 - 2-Port Dp Mst Hub
Package Depth (mm) 176 Package Height (mm) 35 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 166 Packaging Description MST Hub - DisplayPort 1.2 to 2x DisplayPort Packaging Description India MST Hub - DisplayPort 1.2 to 2x DisplayPort Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 2 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-12-23 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-02-13 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Legacy Video Uploaded
