MSTDP123DP

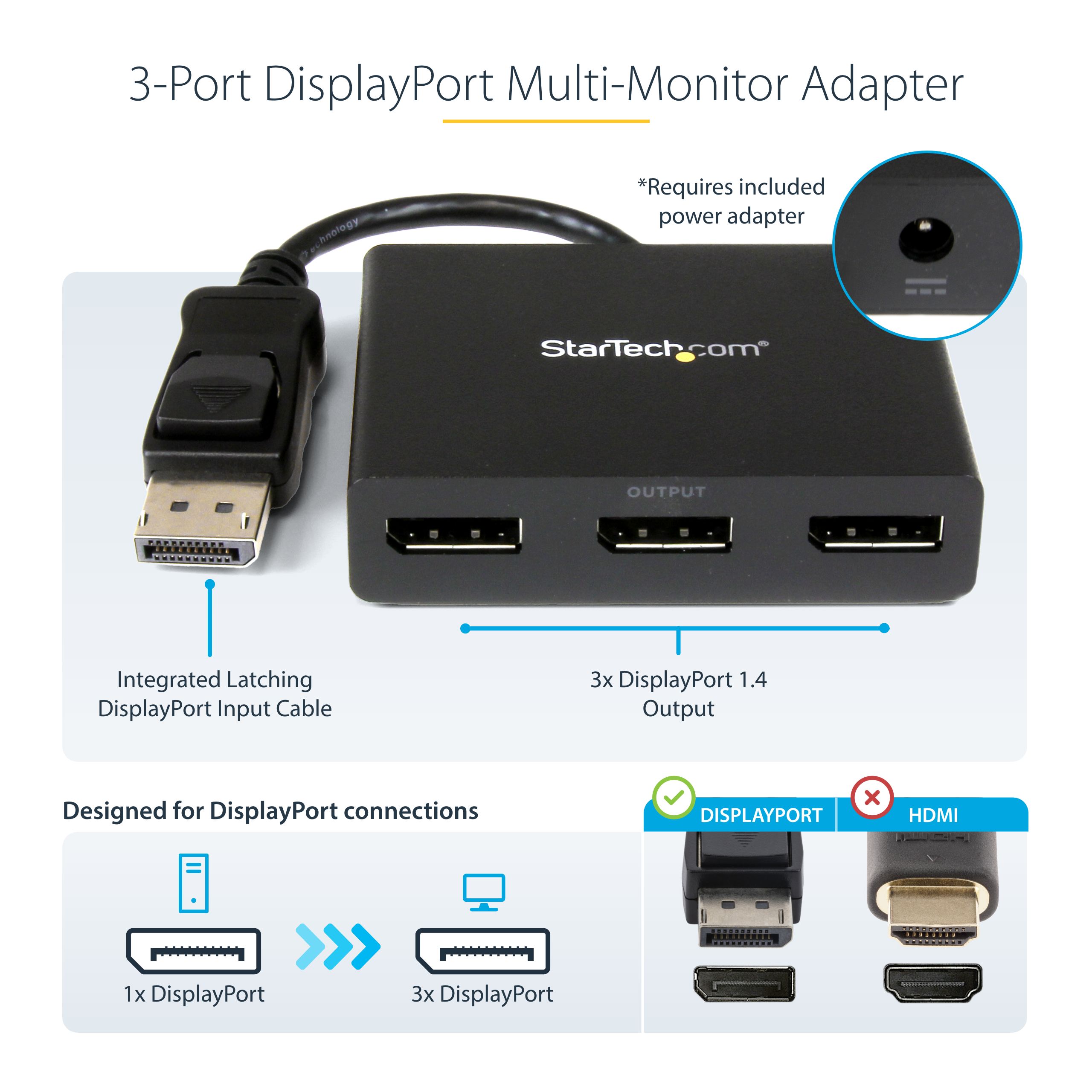

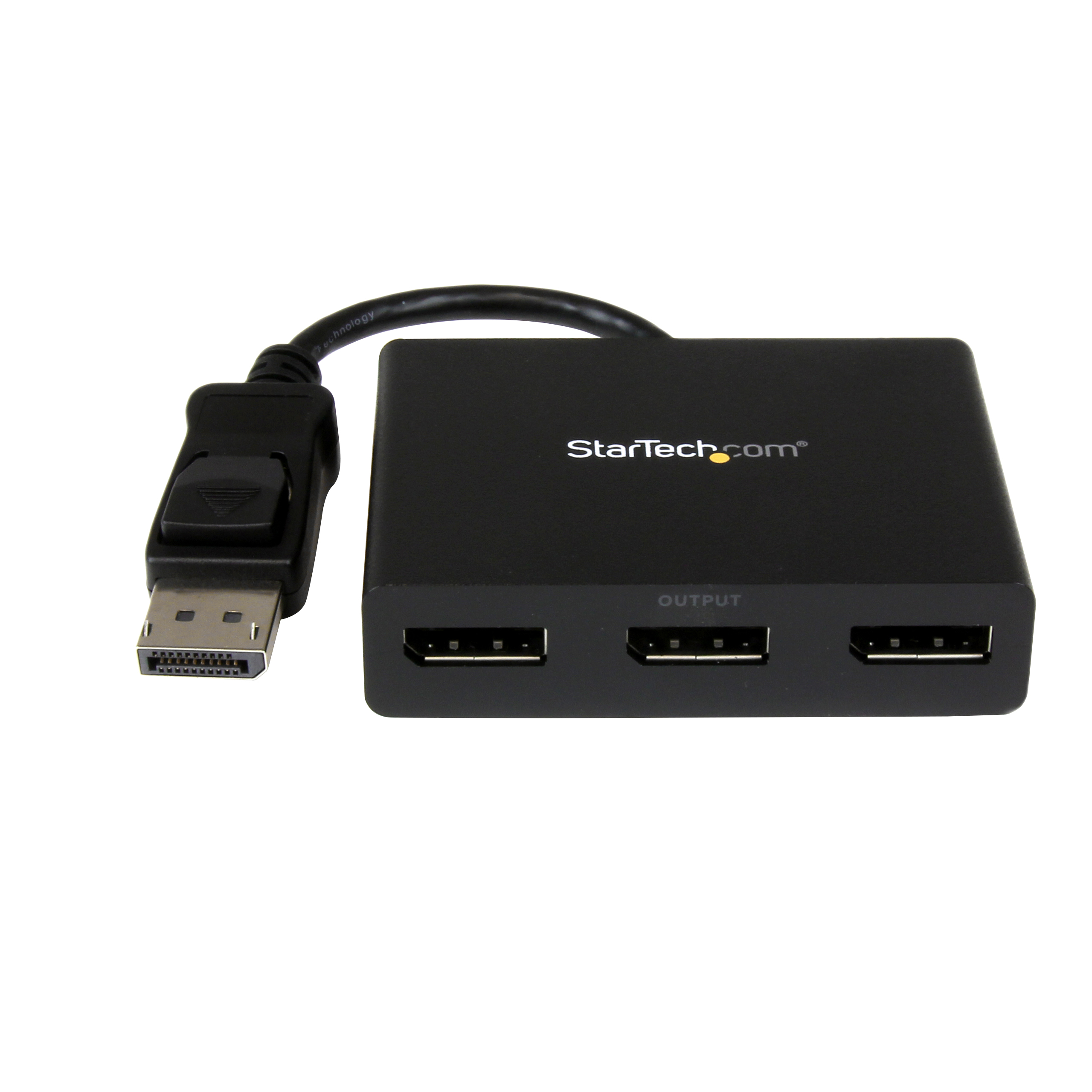

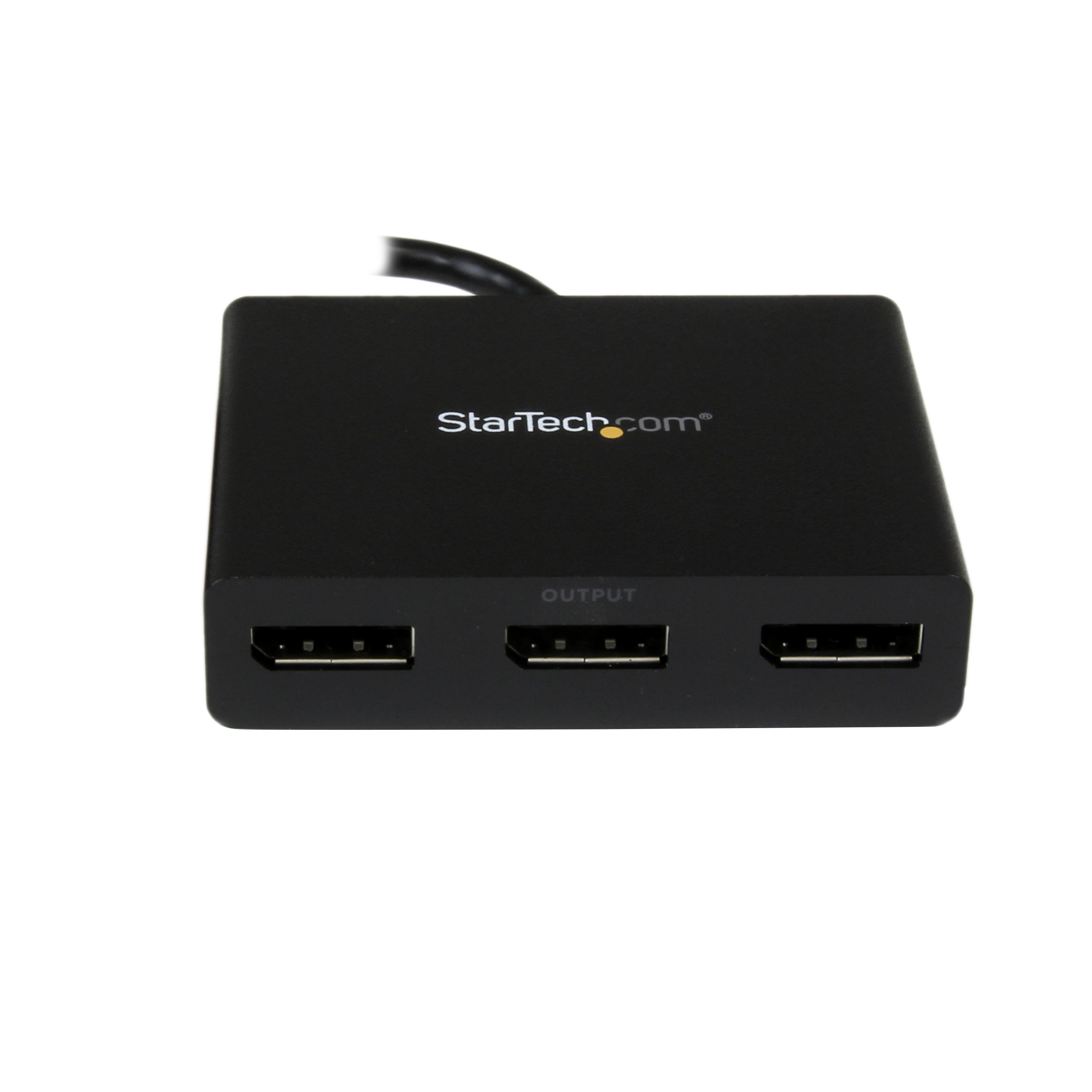

DP to DP Multi Monitor Hub - 3-Port MST Splitter
Use this adapter to connect three independent displays to a single DP 1.2 port
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name DP to DP Multi Monitor Hub - 3-Port MST Splitter Product Number MSTDP123DP UPC 065030851886 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MST DP Family DP/mDP MST Hubs, DP 1.2 Alt Mode Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) DisplayPort MST Hub Product Title (Short) 3 Port DP Multi Monitor Adapter MST Hub Product Title (Medium) DisplayPort to DisplayPort Multi-Monitor Splitter - 3-Port MST Hub Product Title (Standard) 3-Port DisplayPort 1.2 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Dual 4K 30Hz and 1080p Computer MST Hub, Windows Product Title (Long) 3-Port DisplayPort 1.2 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Dual 4K 30Hz and 1080p 60Hz Computer MST Hub - Windows Only Product Title (AMZ) 3-Port DisplayPort 1.2 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Dual 4K 30Hz and 1080p 60Hz Computer MST Hub, Windows Only (MSTDP123DP) Title Ingram (Part 1) DP to DP Multi Monitor Hub - Title Ingram (Part 2) 3-Port DisplayPort Splitter Website Product Headline Use this adapter to connect three independent displays to a single DP 1.2 port Bullet 1 MULTI-MONITOR CONFIGURATION: Triple-Monitor DisplayPort 1.2 MST Hub drives up to 2x 4K 30Hz (UHD) + 1x 1080p 60Hz DisplayPort monitors using a DP video port on a Windows desktop PC or laptop; Not compatible with macOS Bullet 2 NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows computer; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage Bullet 3 HARDWARE COMPATIBILITY: Host system must support DP 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays; Bullet 4 EASY TO USE: Extend your desktop at your workstation in the office/home office; Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection; Not compatible with HDMI output ports; Universal Power Adapter included Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the 3-Port DisplayPort Multi-Monitor Adapter Bullets (Compact) 3-port DisplayPort multi-monitor adapter drives 2x 4K 30Hz + 1x 1080p 60Hz DP displays to extend or mirror your desktop; DP 1.2/HBR2/MST; MST Hub/video splitter w/latching DP connector; Universal Power Adapter included; No Drivers / Windows only Bullets (Consolidated) - 3-Port DisplayPort multi-monitor adapter drives 2x 4K 30Hz and 1 x 1080p 60Hz DP displays to extend or mirror your desktop - MST hub/video splitter - Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics - Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST and HBR2) - Please verify maximum number of displays supported by your GPU - No drivers or software; Works w/ Windows only - Universal Power Adapter included | Latching DP connector Marketing Copy Marketing Copy (No HTML) Applications - Create a panoramic video wall for DisplayPort digital signage applications

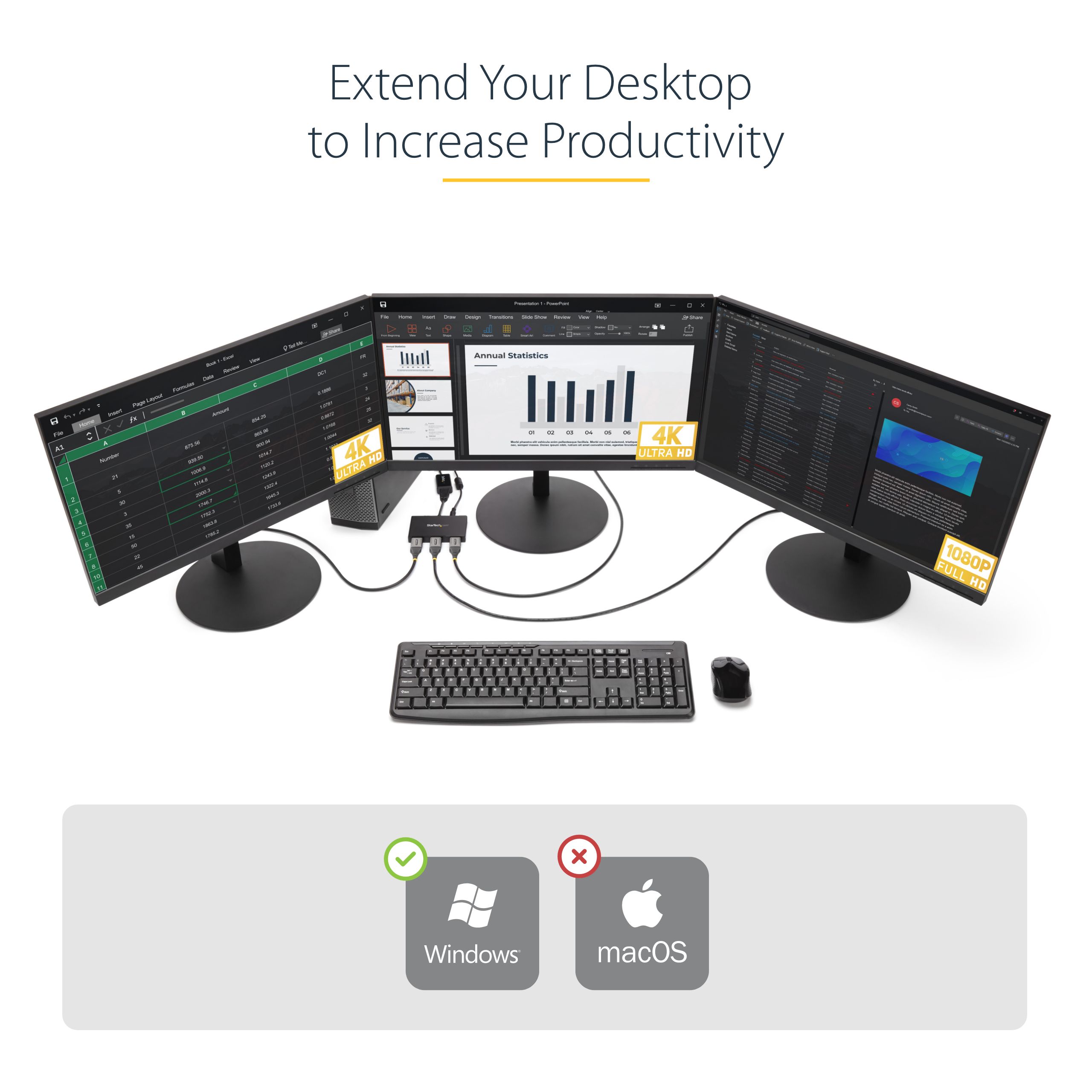

- Dock your DP 1.2 device and add three high-resolution displays at your workstation
- Use one screen for reference data such as websites, while composing in another screen
- Perfect for spanning a spreadsheet/worksheet across all three displays, to avoid side-scrolling
- Edit images, video or audio clips across three displays in any orientation or resolution
- Enjoy the panoramic views built into games and display helpful codes/walk-through data on a third display, at the same time
Website Search Keyword - DisplayPort Splitter
- DisplayPort Desktop Extender
- External Multi-Display
- Multi-Display DisplayPort
- Matrox
- TripleHead2GO
- DualHead2GO
- Clone
- Mirror
- External DisplayPort Video Card
- Triple Monitor
- Dual Monitor
- DP
- Triple Head DisplayPort Graphics Expansion Module
- Graphics Expansion Module
- Desktop Expansion
- displayport to displayport multi monitor splitter
- displayport to displayport splitter
- mst hub
- club 3d displayport hub
- display port hub
- display port splitter
- displayport 1.2 hub
- displayport 1.2 multi-stream hub
- displayport hub
- displayport mst hub
- displayport splitter
- displayport splitter 1 in 3 out
- B156-003-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output Accessory Products - DISPLPORT1L
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- DP2DVI
- DP2HDMI
- DP2HDMI2
- DP2VGA2
- DP2VGA
- DP2VGA3
- SVA5N3NEUA
- DP2DVI2
- DP14MM1M
Related Products - MSTDP122DP
- MSTDP124DP
- MSTDP123HD
- MSTMDP122DP
- MSTMDP123DP
- MSTMDP124DP
- MSTMDP123HD

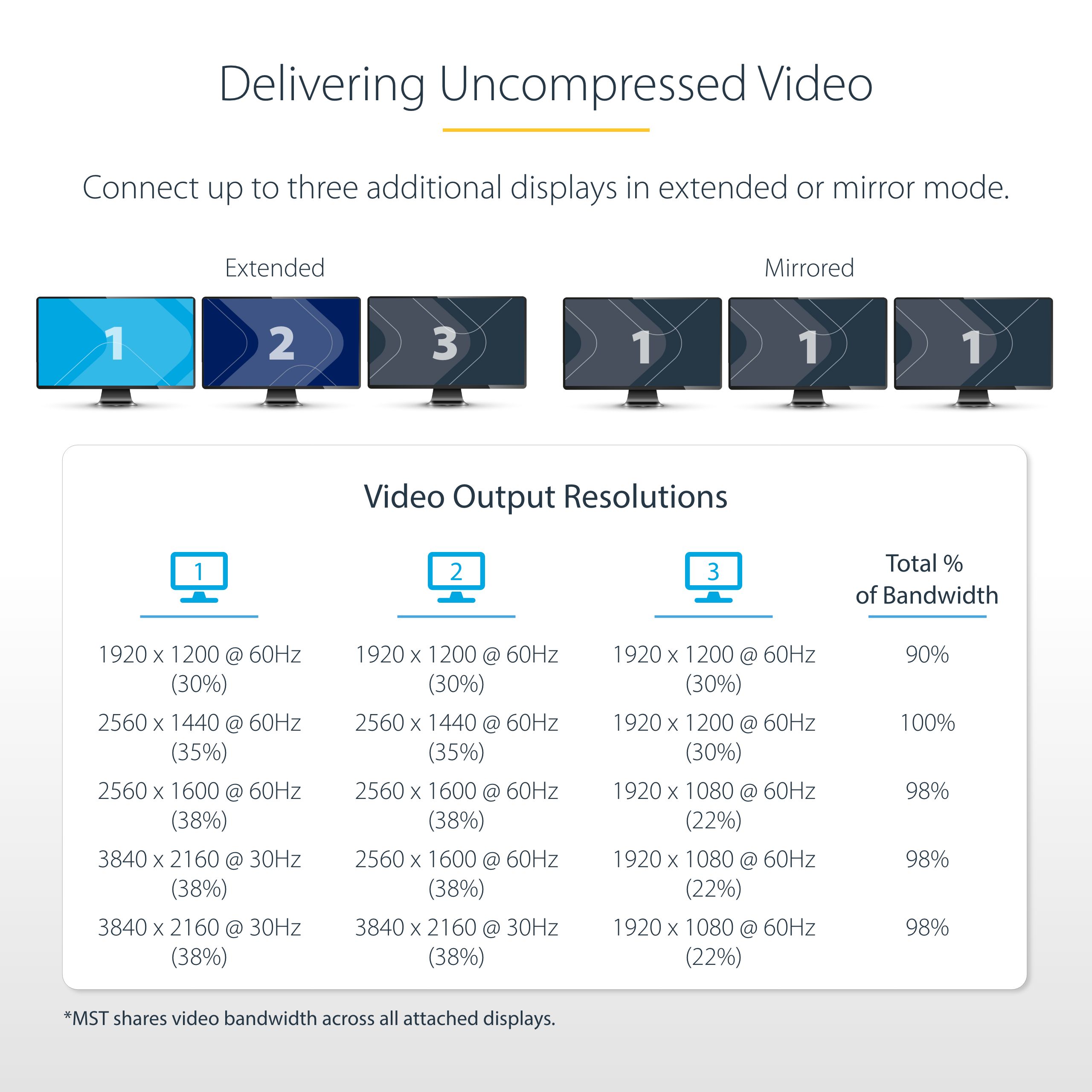

Constrained SKU Alternatives (Limited Stock) MST14DP123DP Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 190 Color Black Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 200.000 Product Width (mm) 78.000 Product Height (mm) 20.000 Product Weight (g) 94.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Audio Specifications DisplayPort - 5.1 Channel Audio HDR Support No Maximum Cable Distance To Display 2000 Maximum Digital Resolutions Up to 4K Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows 11

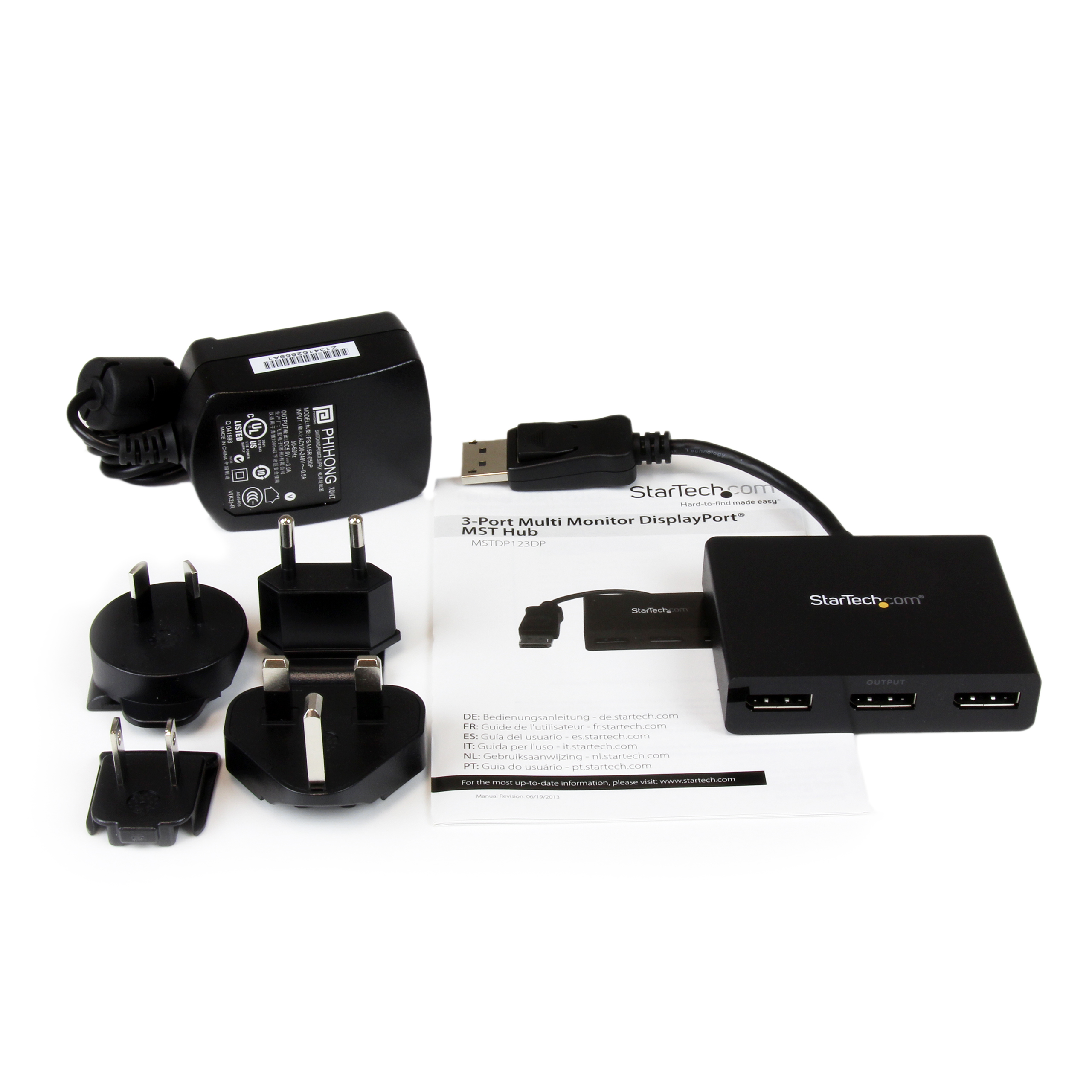

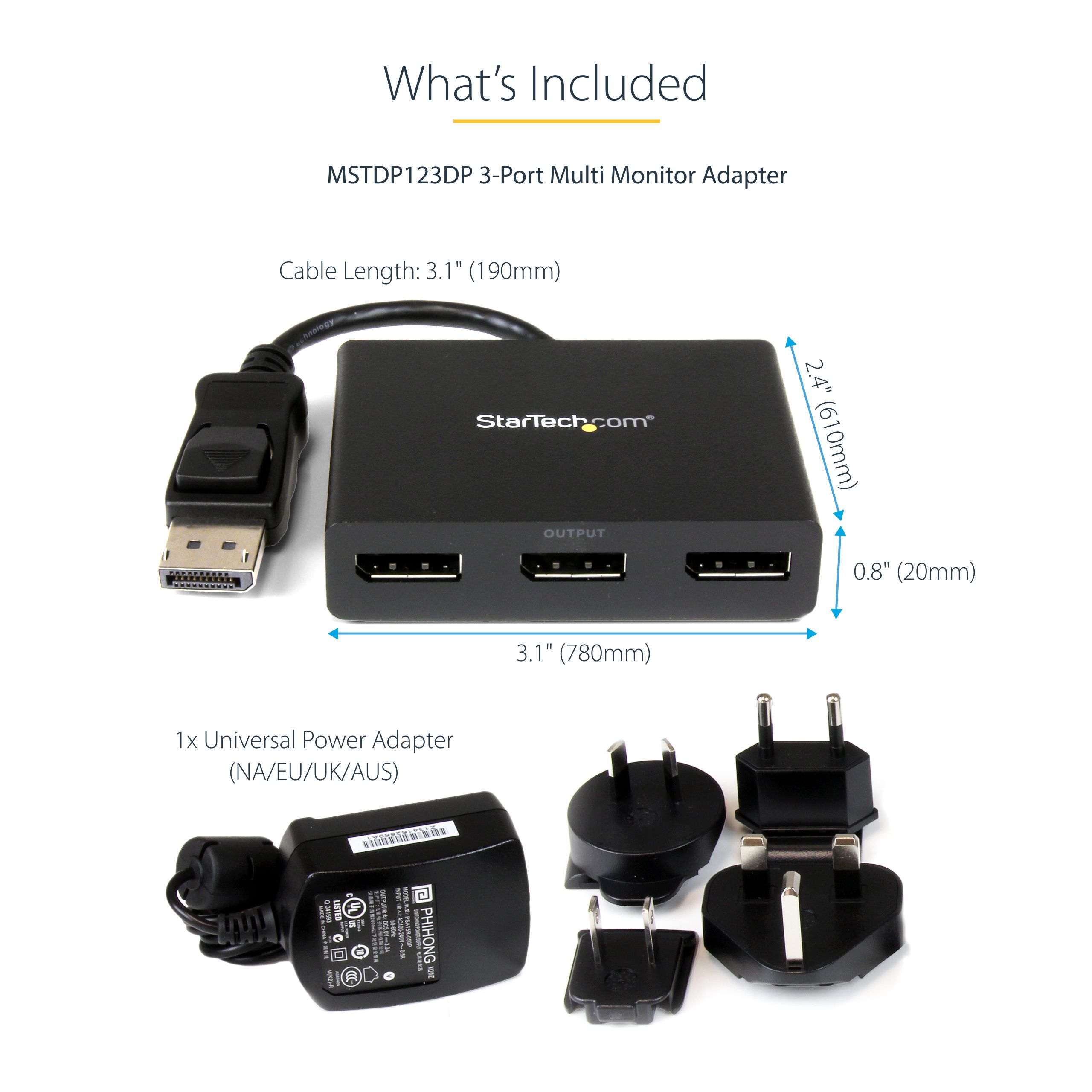

Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input DisplayPort - 1.2 AV Output DisplayPort - 1.2 Chipset ID MegaChips - STDP4320 Converter Type MST Hubs Host Connection Port DisplayPort Number of Displays 3 Carton Depth (mm) 507 Carton Height (mm) 227 Carton Quantity 10 Carton Weight Gross (g) 5106 Included in Package - 1 - 3-Port Multi Monitor DisplayPort™ MST Hub
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/EU/UK/AUS)
Package Depth (mm) 244 Package Height (mm) 65 Package Width (mm) 153 Package Quantity 1 Package Weight (g) 426 Packaging Description MST Hub - DisplayPort to 3x DisplayPort Packaging Description India MST Hub - DisplayPort to 3x DisplayPort Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 3 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-05-28 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
