MSTMDP122DP

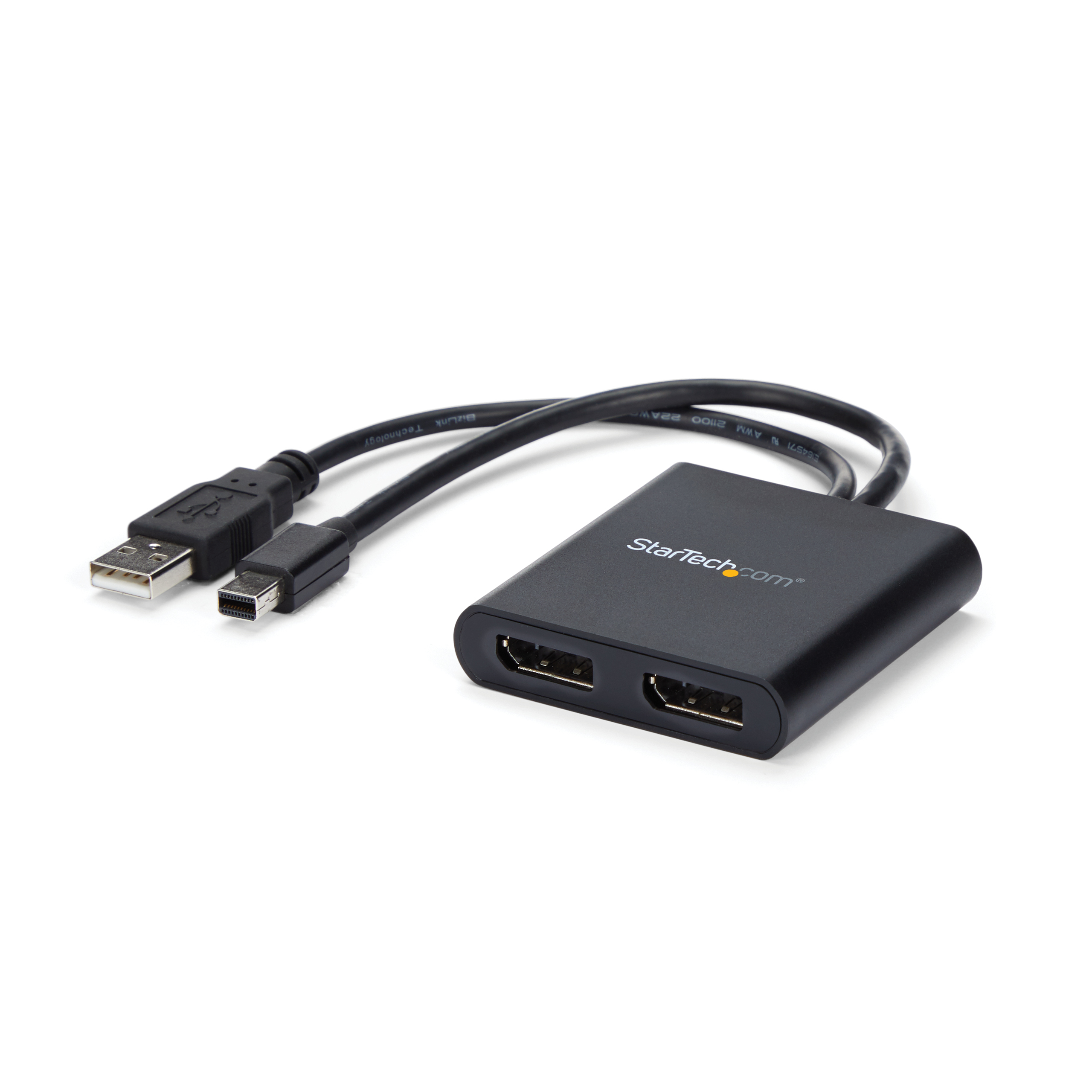

Mini DisplayPort MST to 2 x DisplayPort
Use this adapter to connect two independent displays to a single mDP 1.2 port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Mini DisplayPort MST to 2 x DisplayPort Product Number MSTMDP122DP UPC 065030861113 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MST MDP Family DP/mDP MST Hubs, DP 1.2 Alt Mode Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) MST mDP to 2x DP Product Title (Short) mDP to 2x DP Multi Monitor Adapter/MST Product Title (Medium) Mini DisplayPort to DisplayPort Multi Monitor Splitter - 2-Port MST Hub Product Title (Standard) 2-Port Multi Monitor Adapter, Mini DisplayPort to DP MST Hub, Dual 4K 30Hz, Video Splitter for Extended Desktop Mode, Windows Product Title (Long) 2-Port Multi Monitor Adapter - Mini DisplayPort to 2x DisplayPort MST Hub - Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows PCs Only - mDP 1.2 to 2x DP Product Title (AMZ) 2-Port Multi Monitor Adapter - Mini DisplayPort to 2x DisplayPort MST Hub - Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows PCs Only - mDP 1.2 to 2x DP (MSTMDP122DP) Title Ingram (Part 1) mDP to DP Multi Monitor Hub - Title Ingram (Part 2) 2-port DisplayPort - mDP to DP Website Product Headline Use this adapter to connect two independent displays to a single mDP 1.2 port Bullet 1 MULTI MONITOR ADAPTER FOR WINDOWS: Mini DisplayPort to Dual DisplayPort MST hub drives up to two DP displays in extended or duplicate mode using a Mini DP port on Windows desktop PCs or laptops | Not compatible with macOS Bullet 2 DISPLAY RESOLUTION: Dual monitor mDP to DP MST hub supports resolutions up to 4K 30Hz (UHD) or 1080p 60Hz on both monitors, or can support two ultrawide displays up to 3440x1440 60Hz Bullet 3 COMPATIBILITY: 2-Port Mini DP to DisplayPort MST video splitter works with laptops, computers or desktop graphics cards | Requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, Nvidia & Intel video cards Bullet 4 INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office | MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources Bullet 5 EASY TO USE: Multiple monitor adapter natively supports 2x DP screens; Works with Windows only and provides an easy driverless setup Bullets (Compact) 2-port Mini DisplayPort to DisplayPort multi-monitor adapter drives dual DP displays at up to 4K 30Hz to extend your desktop - DP 1.2/HBR2/MST (multi stream transport) - Built-in cables - Bus-powered mDP MST Hub/video splitter - No Drivers - Windows Bullets (Consolidated) 2-Port Mini DisplayPort to DisplayPort multi-monitor adapter drives dual 4K 30Hz or 2x 1080p 60Hz DP displays w/no video compression - mDP MST hub/video splitter for multiple monitors increases productivity by extending your desktop - Multi Stream Transport hub works w/ computer brands like HP Dell Lenovo AMD/Nvidia/Intel video cards | Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST and HBR2) - No drivers; Works w/ Windows only - USB bus-powered | Built-in cables for power/video Marketing Copy Marketing Copy (No HTML) Applications - Connect additional displays to your Surface Pro 3

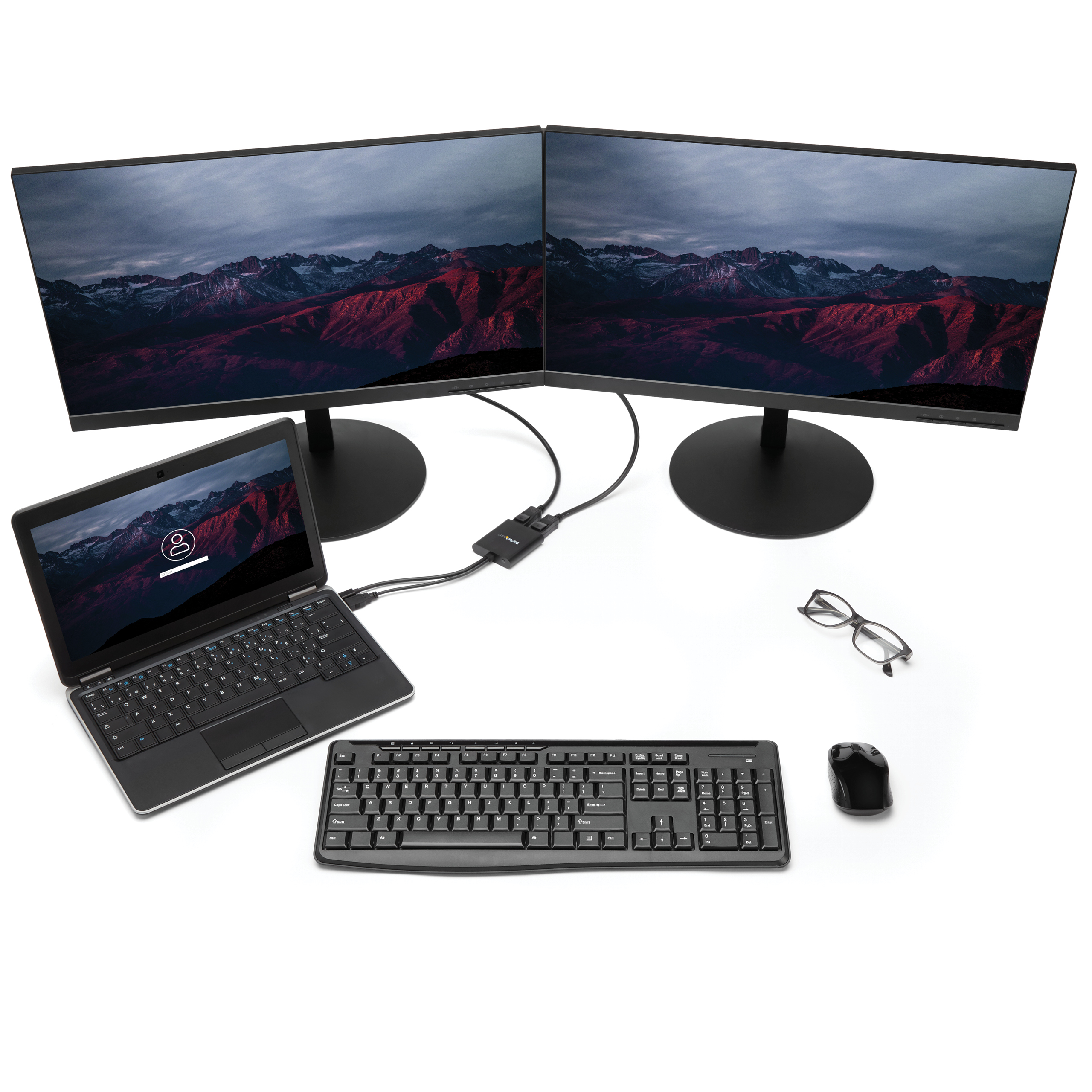

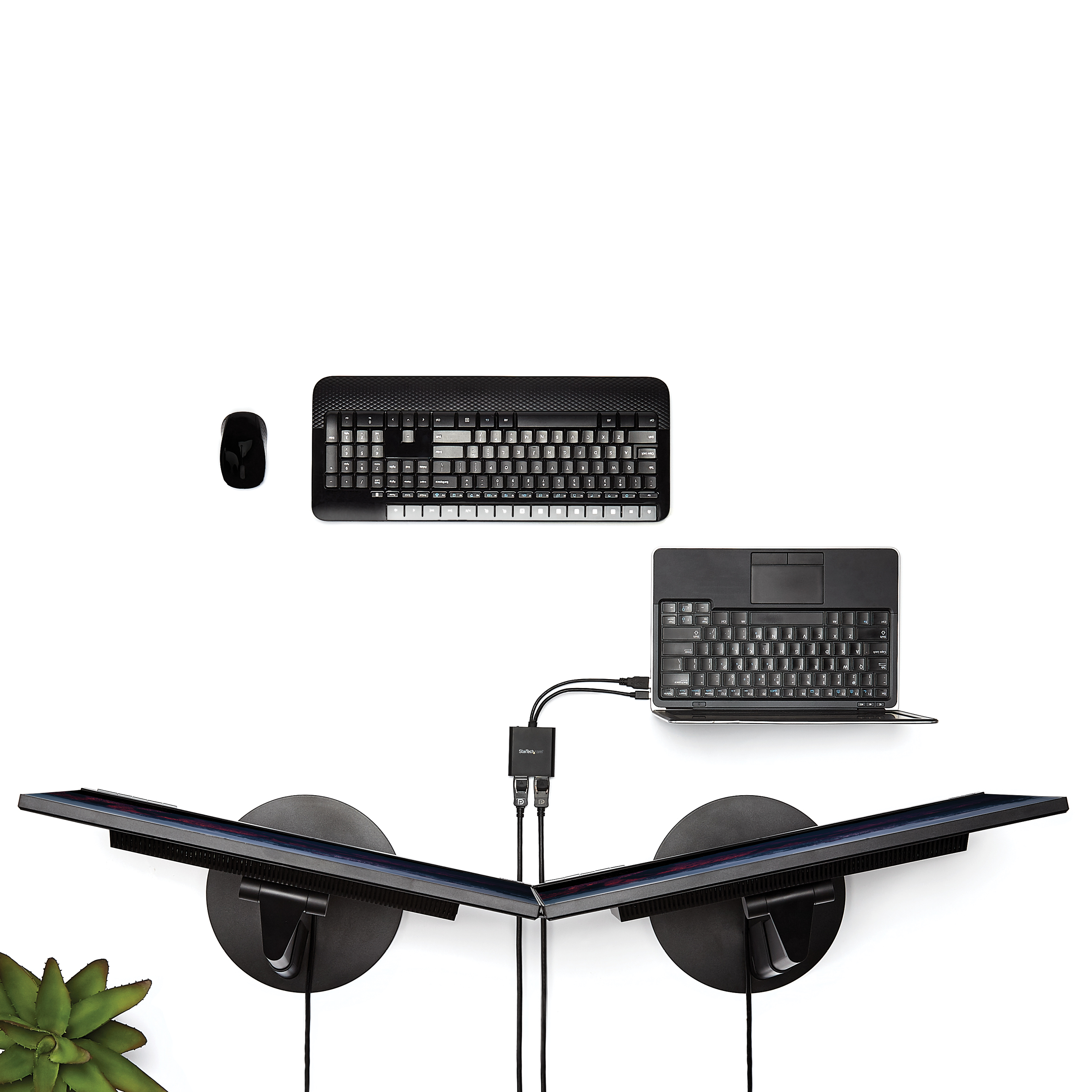

- Use one screen for reference data such as websites, while composing your documents on another screen

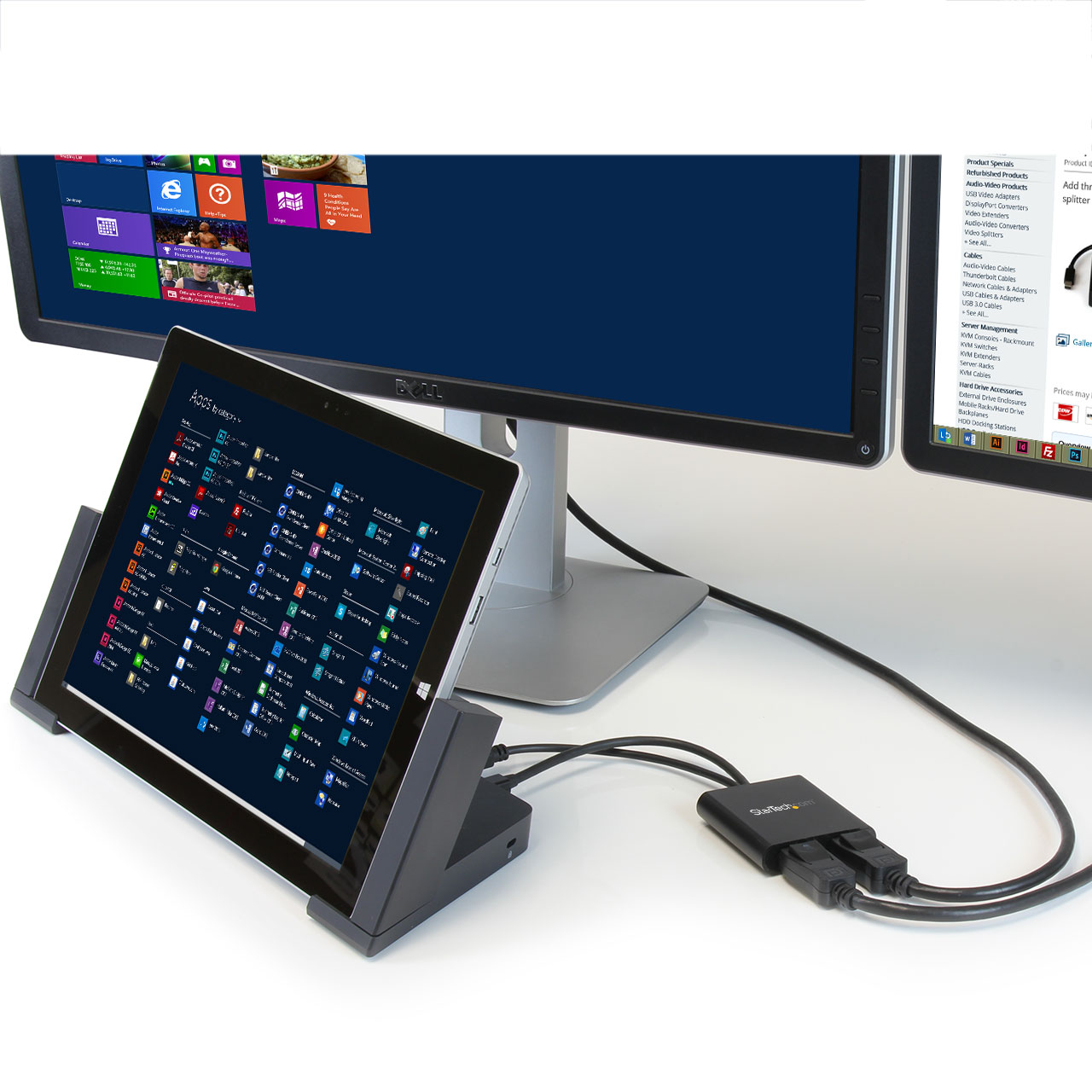

- Dock your mDP 1.2 device and add two high-resolution displays at your workstation
- Create a panoramic video wall for DisplayPort digital signage applications
- Edit images, video or audio clips across two additional displays in any orientation or resolution
- Perfect for spanning a spreadsheet or worksheet across two additional displays, to avoid side-scrolling
Website Search Keyword - MST hub
- Multi-Stream Transport
- DisplayPort Splitter
- DisplayPort Desktop Extender
- External Multi-Display
- Multi-Display DisplayPort
- bizlink
- doubleHead2GO
- DualHead2GO
- Clone
- Mirror
- External DisplayPort Video Card
- Triple Monitor
- Dual Monitor
- DP
- double Head DisplayPort Graphics Expansion Module
- Graphics Expansion Module
- Desktop Expansion
- MiniDP video hub
- DisplayPort Video Hub
- Mini DisplayPort video hub
- mst adapter
- B155-002-DP-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output
- When using a DisplayPort 1.1 video card the MSTMDP122DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply
Accessory Products - DP14MM1M
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- DP2DVI
- DP2VGA
- DP2HDMI
- DP2HDMI2
- DP2VGA2
- DP2VGA3
- DP2DVI2

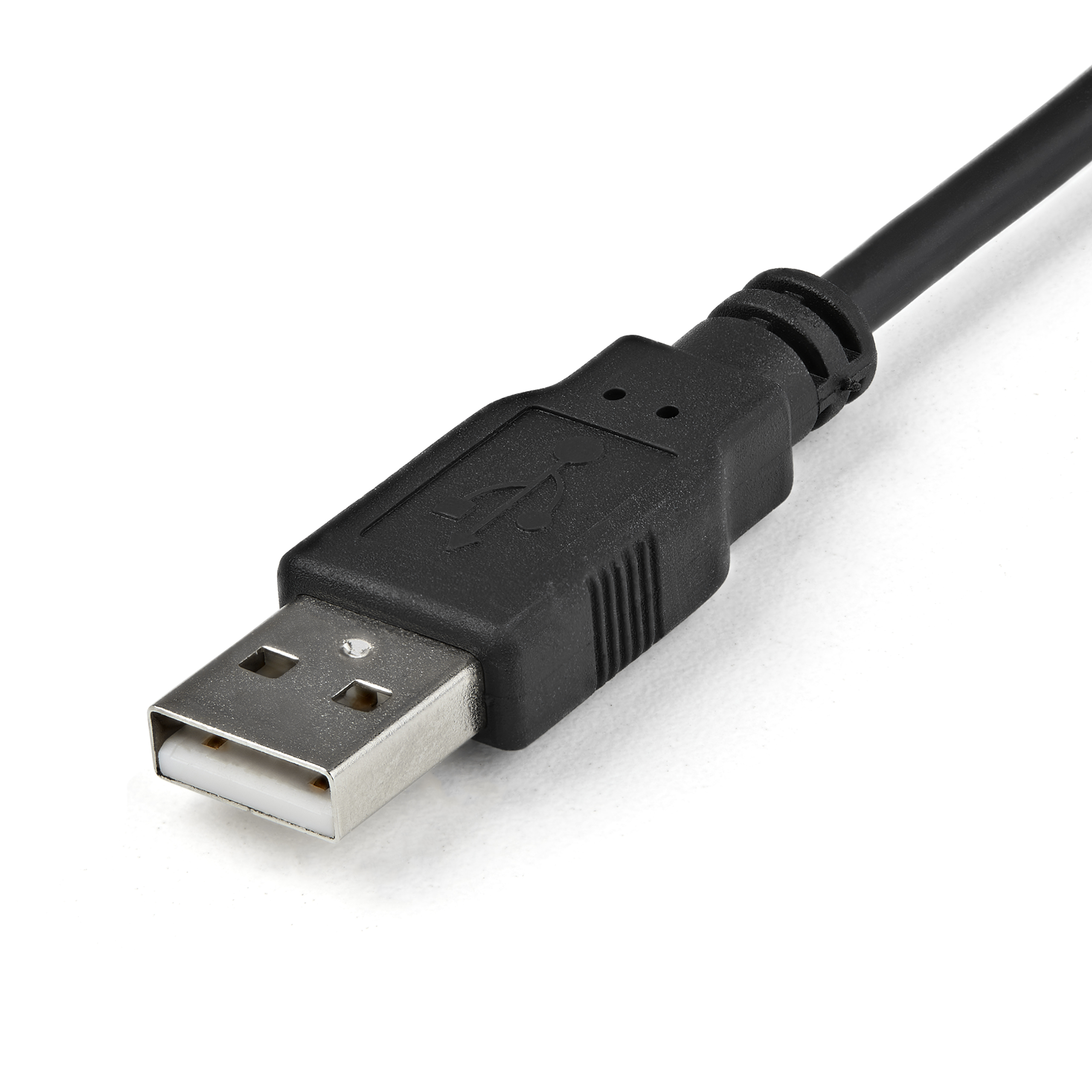

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 190 Color Black Humidity 50-90% Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 386 Product Width (mm) 58 Product Height (mm) 14 Product Weight (g) 51 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications DisplayPort - 5.1 Channel Audio HDR Support No Maximum Cable Distance To Display 2000 Maximum Digital Resolutions 3840x2160 @ 30hz Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows 11

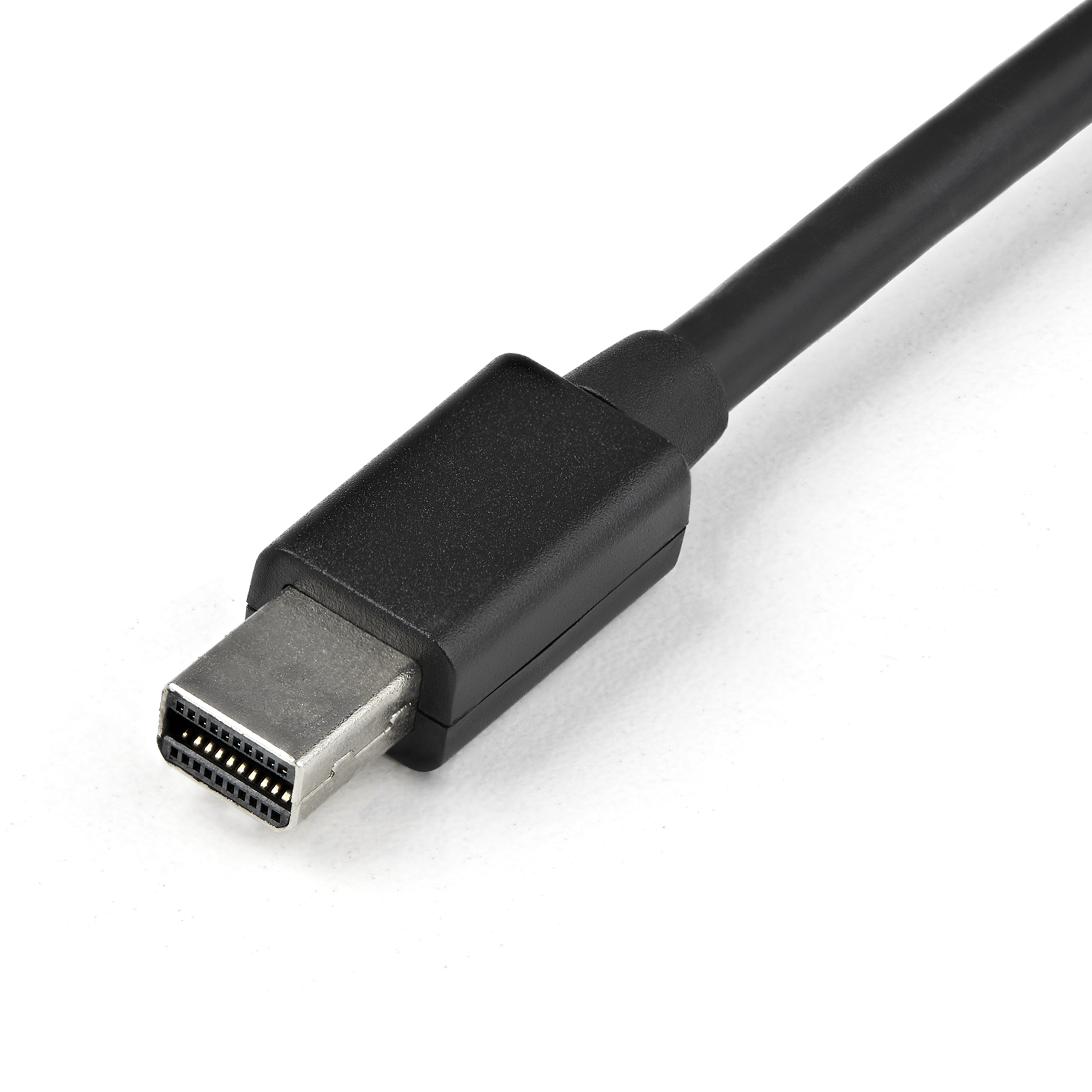

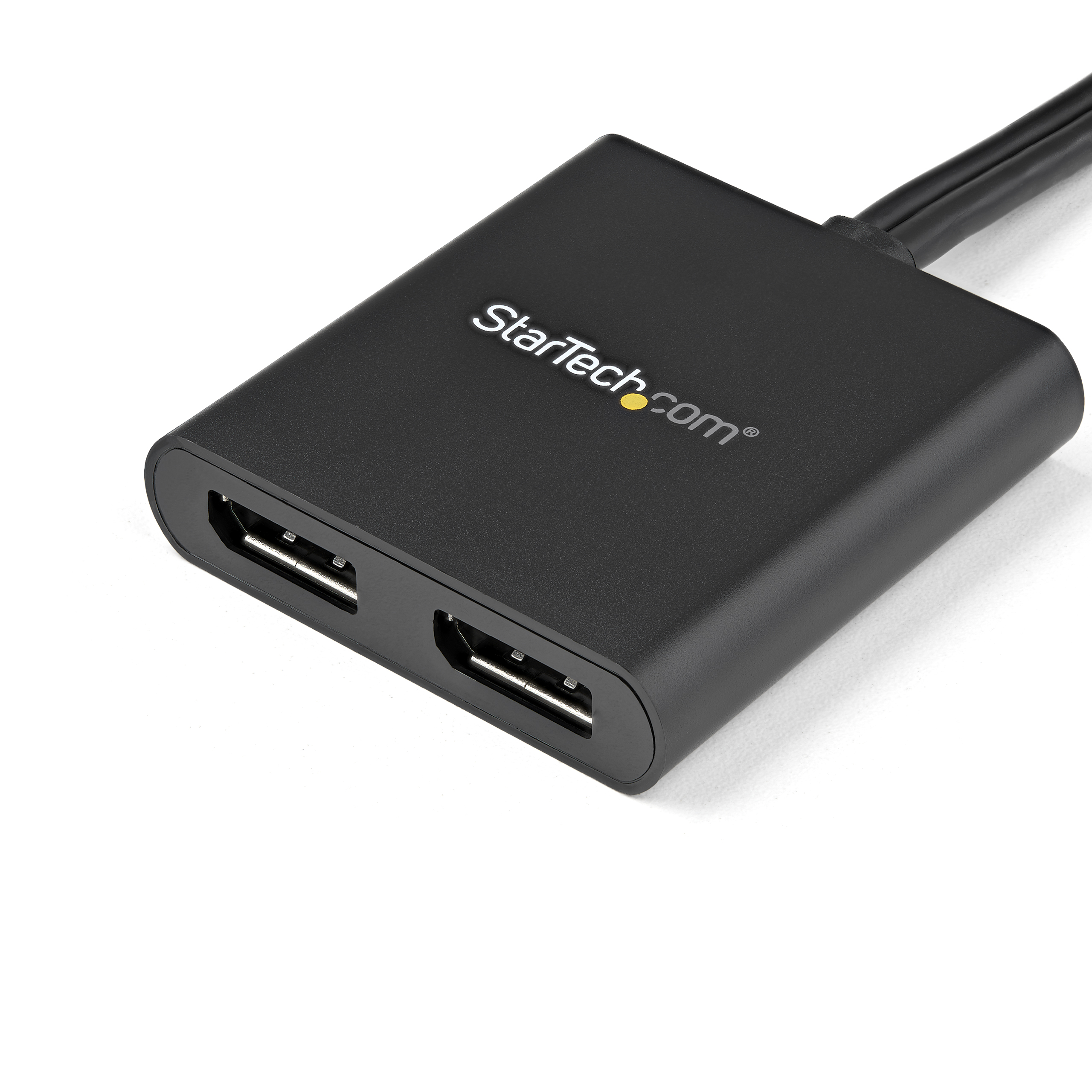

Supported Resolutions Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Mini DisplayPort - 1.2 AV Output DisplayPort - 1.2 Chipset ID MegaChips - STDP4320 Converter Type MST Hubs Host Connection Port Mini DisplayPort Number of Displays 2 Carton Depth (mm) 506 Carton Height (mm) 225 Carton Quantity 28 Carton Weight Gross (g) 4790 Included in Package - 1 - 2-port mDP to DP MST Hub
- 1 - Quick install guide
Included In Package for Label - 1 - 2-Port Mdp To Dp Mst Hub
- 1 - Quick Install Guide
Package Depth (mm) 144 Package Height (mm) 33 Package Width (mm) 173 Package Quantity 1 Package Weight (g) 134 Packaging Description MST Hub - Mini DisplayPort to 2x DisplayPort Packaging Description India MST Hub - Mini DisplayPort to 2x DisplayPort Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 2 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2015-01-29 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-02-13 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy Video Uploaded
