MSTMDP123DP

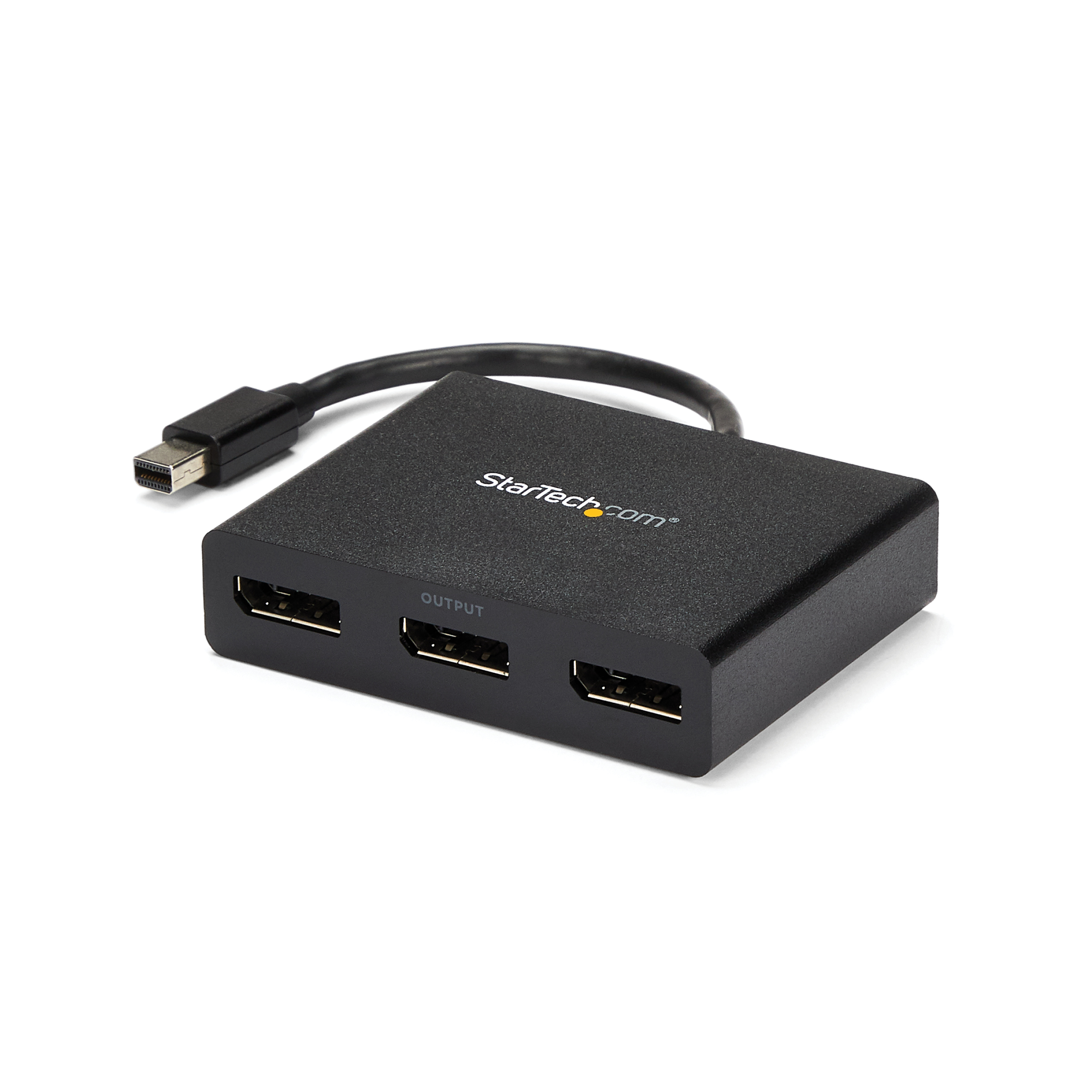

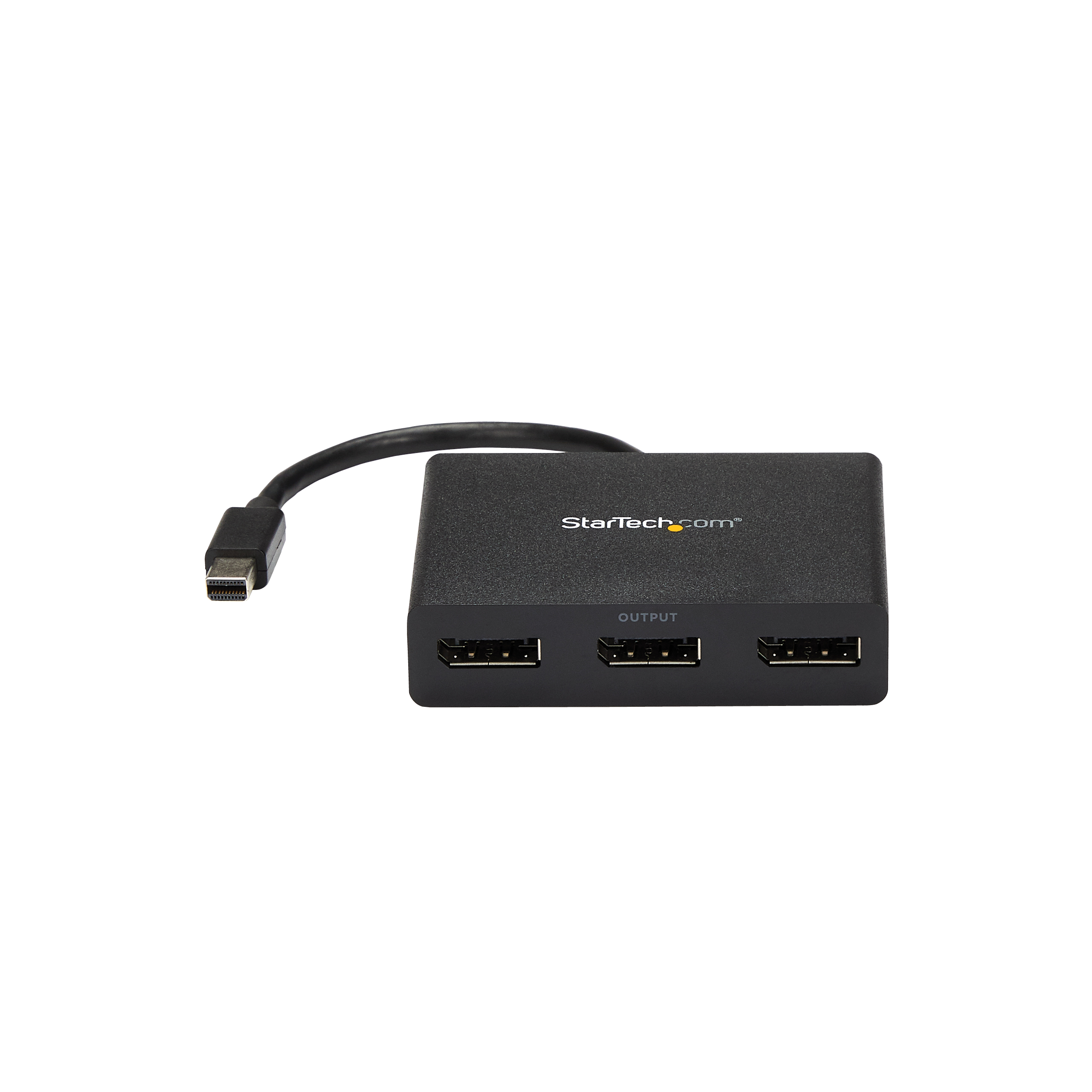

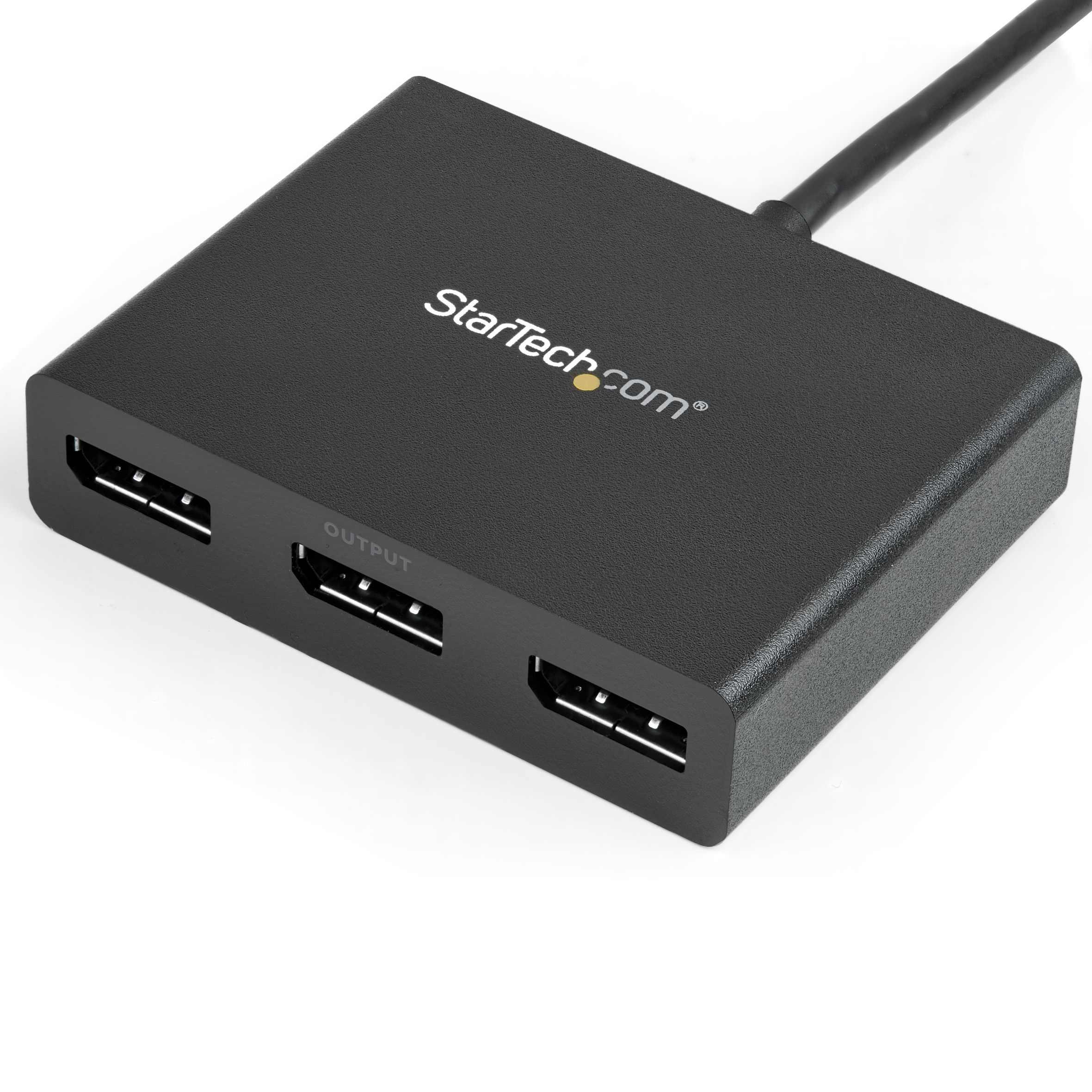

mDP to DP Multi Monitor Hub - 3-Port MST Splitter

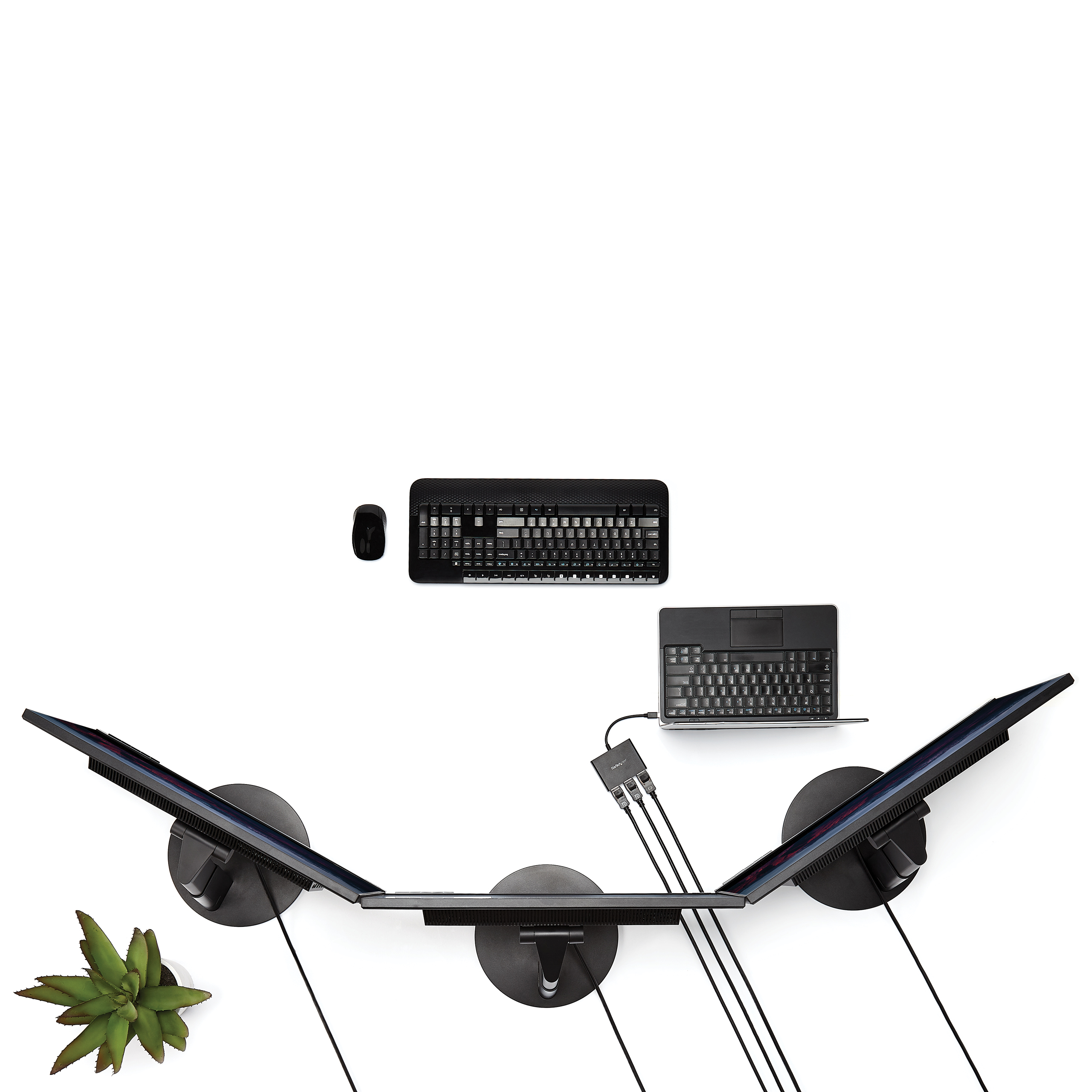

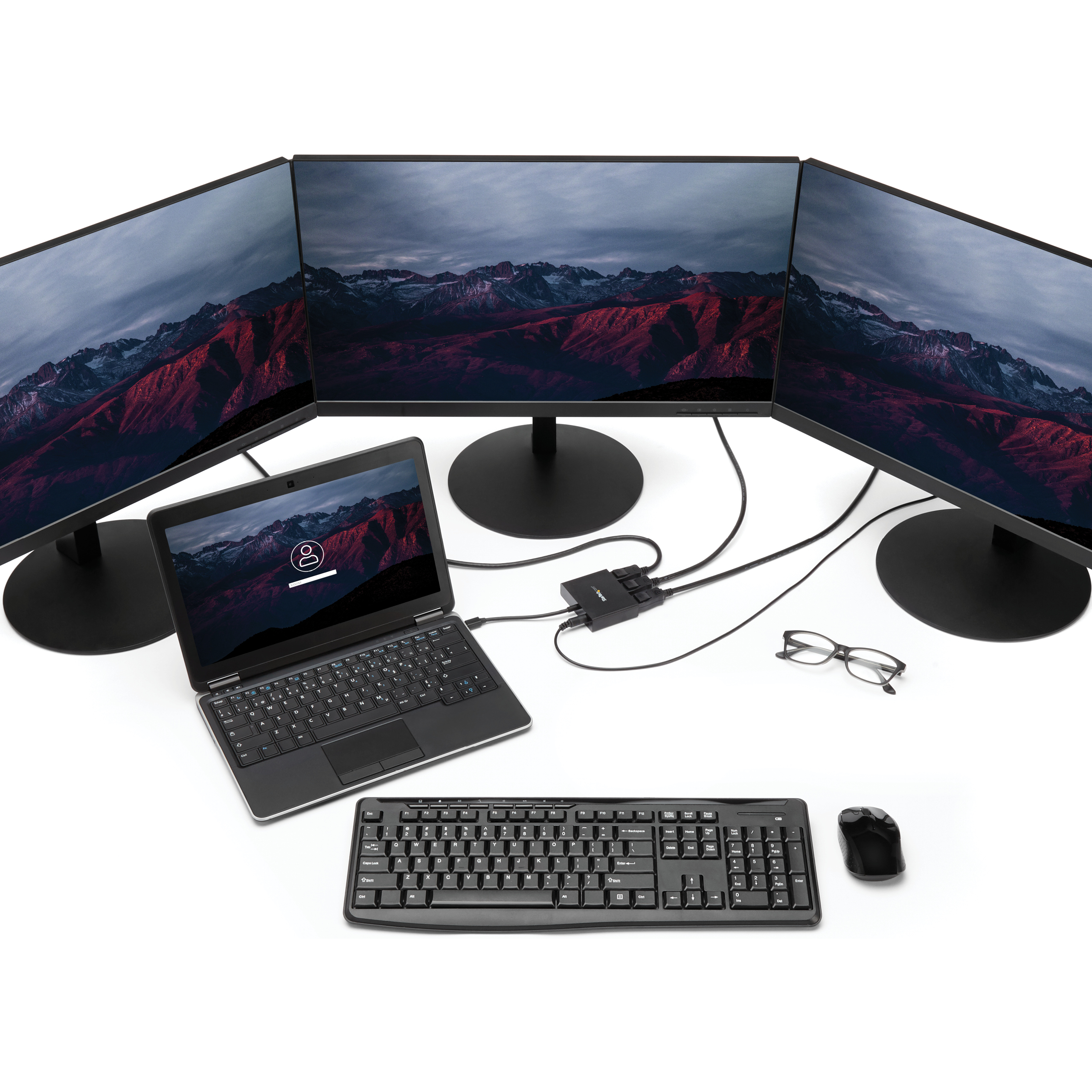

Use this adapter to connect three independent displays to a single mDP 1.2 port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name mDP to DP Multi Monitor Hub - 3-Port MST Splitter Product Number MSTMDP123DP UPC 065030851879 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MST MDP Family DP/mDP MST Hubs, DP 1.2 Alt Mode Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) mDP to DP MST Hub Product Title (Short) mDP to 3x DP Multi Monitor Adapter/MST Product Title (Medium) Mini DisplayPort to DisplayPort Multi-Monitor Splitter - 3-Port MST Hub Product Title (Standard) 3-Port Multi Monitor Adapter, Mini DisplayPort 1.2 to DP MST Hub, Video Splitter for Extended Desktop Mode, Windows Only Product Title (Long) 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP Product Title (AMZ) 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP (MSTMDP123DP) Title Ingram (Part 1) mDP to DP Multi Monitor Hub - Title Ingram (Part 2) 3-Port Mini DisplayPort Splitter Website Product Headline Use this adapter to connect three independent displays to a single mDP 1.2 port Bullet 1 MULTI MONITOR ADAPTER FOR WINDOWS: Mini DisplayPort to Triple DisplayPort MST hub drives up to 3x DP monitors in extended or duplicate mode using a Mini DP port on Windows desktop PCs or laptops | Not compatible with macOS Bullet 2 DISPLAY RESOLUTION: Triple monitor mDP to DP MST hub supports resolutions up to 2x 4K 30Hz + 1x 1080p 60Hz on three screens or three ultrawide displays up to 2560x1080 60Hz Bullet 3 COMPATIBILITY: 3-Port Mini DP to DisplayPort MST video splitter works with laptops, computers or desktop graphics cards |Requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, Nvidia & Intel video cards Bullet 4 INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office | MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources Bullet 5 EASY TO USE: Multiple monitor adapter natively supports 3x DP monitors; Works with Windows only and provides an easy driverless setup Bullets (Compact) 3-port Mini DisplayPort to DisplayPort multi-monitor adapter drives 2x 4K 30Hz + 1x 1080p 60Hz DP displays to extend your desktop - DP 1.2/HBR2/MST (multi stream transport) - mDP to DP MST hub/video splitter - Built-in mDP cable - No Drivers; Windows Bullets (Consolidated) 3-Port Mini DisplayPort to DisplayPort multi-monitor adapter drives 2x 4K 30Hz and 1x 1080p 60Hz DP displays (no video compression) - mDP to DP MST hub/video splitter for multiple monitors increases productivity by extending your desktop - Triple monitor Multi Stream Transport hub works w/computer brands like HP Lenovo AMD/Nvidia/Intel video cards | Works w/ laptops/desktop PCs/graphics cards w/ DP 1.2 (MST and HBR2) - No drivers; Works w/ Windows only - Built-in video cable; AC power adapter Marketing Copy Marketing Copy (No HTML) Applications - Edit images, video or audio clips across three displays in any orientation or resolution
- Use one screen for reference data such as websites, while composing in another screen
- Add additional displays to your computer
- Enjoy panoramic game environments spanning two displays, while displaying helpful codes or walkthrough data on a third display
- Perfect for spanning a spreadsheet/worksheet across all three displays, to avoid side-scrolling
Website Search Keyword - DisplayPort Splitter
- DisplayPort Desktop Extender
- External Multi-Display
- Multi-Display DisplayPort
- bizlink
- TripleHead2GO
- DualHead2GO
- Clone
- Mirror
- External DisplayPort Video Card
- Triple Monitor
- Dual Monitor
- DP
- Triple Head DisplayPort Graphics Expansion Module
- Graphics Expansion Module
- Desktop Expansion
- Multi-Stream Transport
- MST hub
- MiniDP video hub
- DisplayPort Video Hub
- Mini DisplayPort video hub
- mst adapter
- peanut butter
- billetera
- papeles
- B155-003-DP-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output
- When using a DisplayPort 1.1 video card the MSTMDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply
- Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Accessory Products - DISPLPORT1L
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- DP2DVI
- DP2HDMI
- DP2HDMI2
- DP2VGA2
- DP2VGA
- DP2VGA3
- SVA5N3NEUA
- DP2DVI2
- DP14MM1M
Related Products - MSTMDP122DP
- MSTMDP124DP
- MSTMDP123HD
- MSTDP122DP
- MSTDP123DP
- MSTDP124DP
- MSTDP123HD
Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 101.6 Color Black Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 200.000 Product Width (mm) 78.000 Product Height (mm) 20.000 Product Weight (g) 87.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Audio Specifications DisplayPort - 5.1 Channel Audio HDR Support No Maximum Cable Distance To Display 2000 Maximum Digital Resolutions Up to 4K Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows 11
Supported Resolutions Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Mini DisplayPort - 1.2 AV Output DisplayPort - 1.2 Chipset ID MegaChips - STDP4320 Converter Type MST Hubs Host Connection Port Mini DisplayPort Number of Displays 3 Carton Depth (mm) 334 Carton Height (mm) 228 Carton Quantity 10 Carton Weight Gross (g) 5364 Included in Package - 1 - Mini DisplayPort to DisplayPort MST Hub
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/EU/UK/AUS)
Package Depth (mm) 156 Package Height (mm) 64 Package Width (mm) 240 Package Quantity 1 Package Weight (g) 440 Packaging Description MST Hub - Mini DisplayPort to 3x DisplayPort Packaging Description India MST Hub - Mini DisplayPort to 3x DisplayPort Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 3 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-06-03 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy Video Uploaded
