MSTMDP123HD

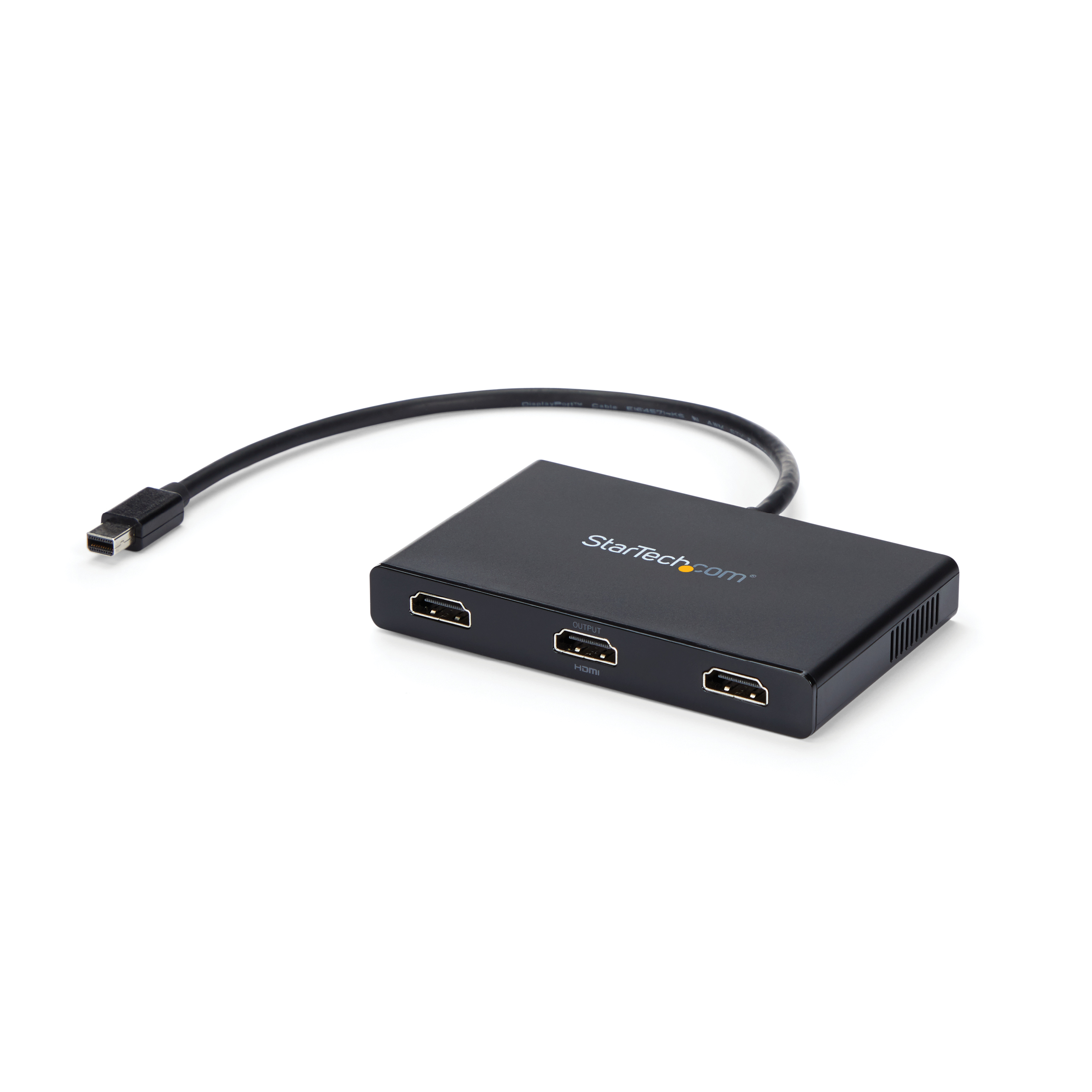

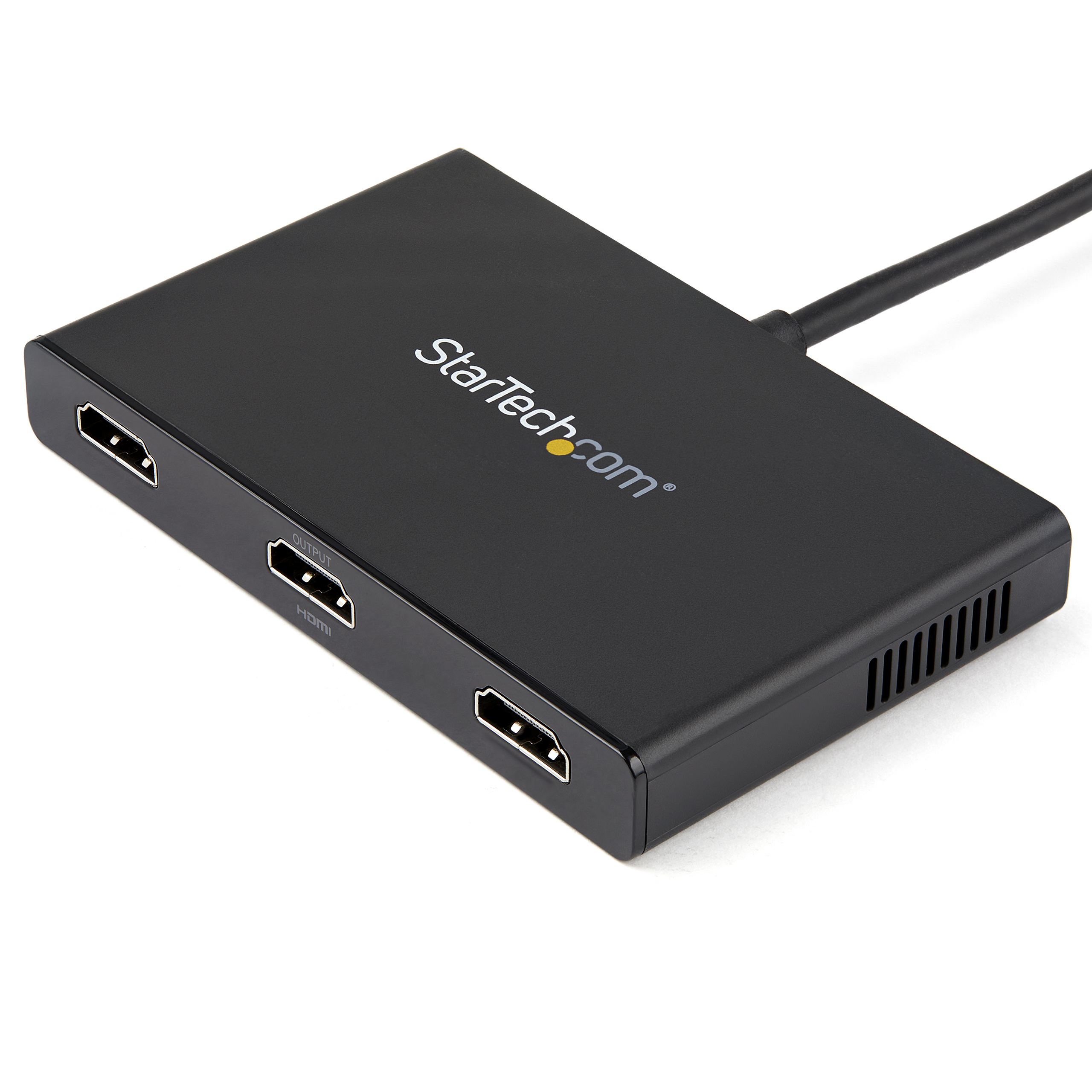

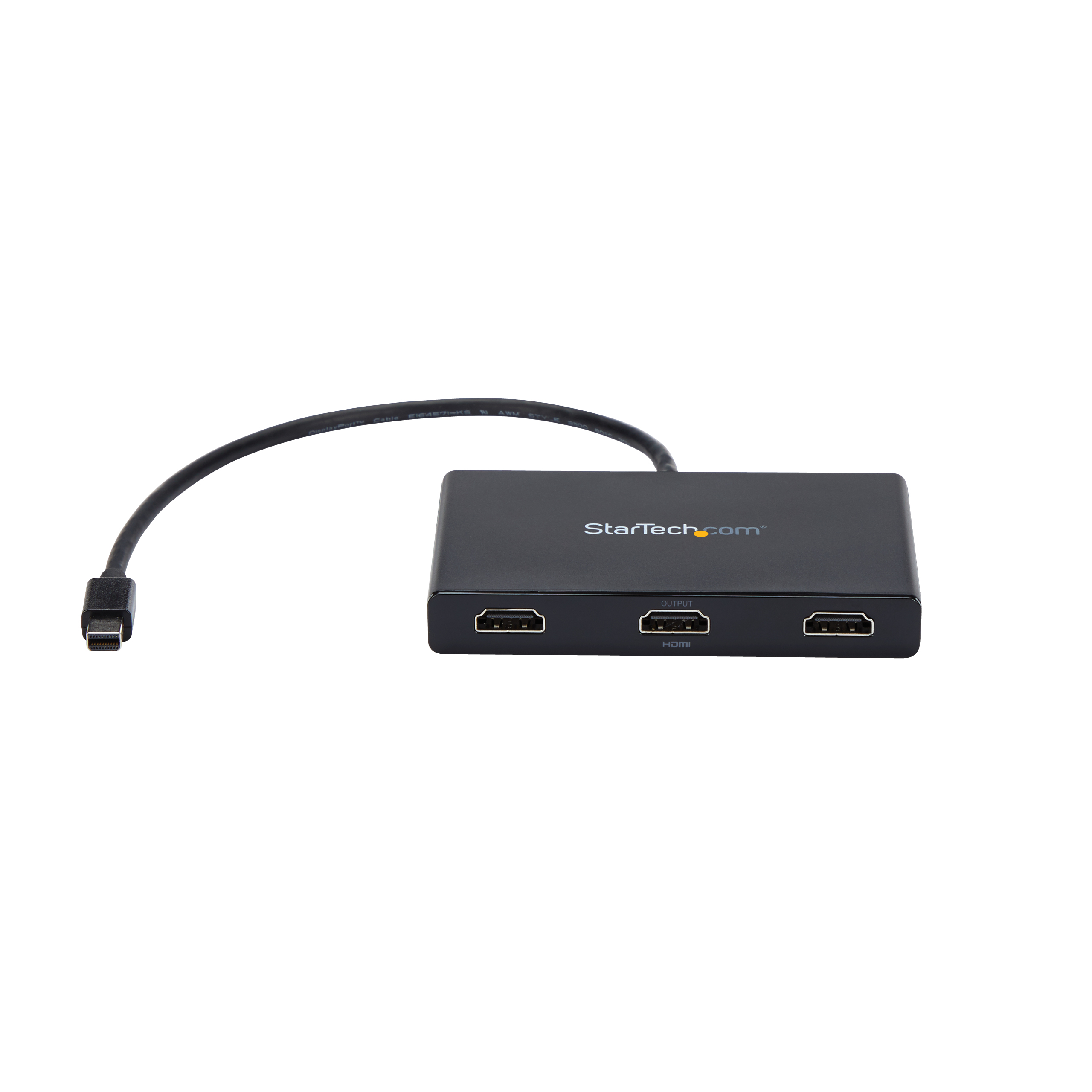

Mini Displayport MST Adapter to 3 HDMI Monitors
Use this adapter to connect three independent displays to a single mDP 1.2 port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Mini Displayport MST Adapter to 3 HDMI Monitors Product Number MSTMDP123HD UPC 065030861519 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MST MDP Family DP/mDP MST Hubs, DP 1.2 Alt Mode Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) mDP to HDMI MST Hub Product Title (Short) mDP to 3x HDMI Multi Monitor Adapter/MST Product Title (Medium) Mini DisplayPort to HDMI Multi Monitor Splitter - 3-Port MST Hub Product Title (Standard) 3-Port Multi Monitor Adapter, Mini DisplayPort to HDMI MST Hub, 3x 1080p, Video Splitter for Extended Desktop Mode, Windows Product Title (Long) 3-Port Multi Monitor Adapter - Mini DisplayPort to HDMI MST Hub - Triple 1080p or Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x HDMI Product Title (AMZ) 3-Port Multi Monitor Adapter - Mini DisplayPort to HDMI MST Hub - Triple 1080p/Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x HDMI (MSTMDP123HD) Title Ingram (Part 1) mDP to HDMI Multi Monitor Hub - Title Ingram (Part 2) 3-port DisplayPort - mDP to HDMI Website Product Headline Use this adapter to connect three independent displays to a single mDP 1.2 port Bullet 1 MULTI MONITOR ADAPTER FOR WINDOWS: Triple Mini DisplayPort to HDMI MST hub drives up to 3x HDMI monitors in extended or duplicate mode using a Mini DP port on Windows desktop PCs or laptops | Not compatible with macOS Bullet 2 DISPLAY RESOLUTION: Multiple monitor Mini DP to HDMI MST hub supports HD resolutions up to 3x 1080p 60Hz on three monitors, or dual 4K 30Hz on two monitors, or can support three ultrawide displays up to 2560x1080 60Hz Bullet 3 COMPATIBILITY: 3-Port mDP to HDMI MST video splitter works with laptops, computers or desktop graphics cards | Requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, Nvidia & Intel video cards Bullet 4 INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office | MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources Bullet 5 EASY TO USE: Triple monitor adapter natively supports 3x HDMI screens; Works with Windows only and provides an easy driverless setup Bullets (Compact) 3-port Mini DisplayPort to HDMI multi-monitor adapter drives triple 1080p 60Hz or dual 4K 30Hz HDMI displays to extend your desktop - DP 1.2/HBR2/MST (multi stream transport) - Mini DP MST Hub/video splitter w/built-in mDP cable; No Drivers - Windows Bullets (Consolidated) 3-Port Mini DisplayPort to HDMI multi-monitor adapter drives triple 1080p 60Hz or dual 4K 30Hz HDMI displays w/ no video compression - mDP to HDMI MST hub/video splitter for multiple monitors increases productivity by extending your desktop - Mini DP to HDMI Multi Stream Transport hub works w/ computer brands HP Dell Lenovo AMD/Nvidia/Intel video cards | Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST/HBR2) - No drivers; Works w/ Windows - Built-in video cable; AC power adapter Marketing Copy Marketing Copy (No HTML) Applications - Add more displays to your Surface Pro 3
- Use one screen for reference data such as websites, while composing in another screen

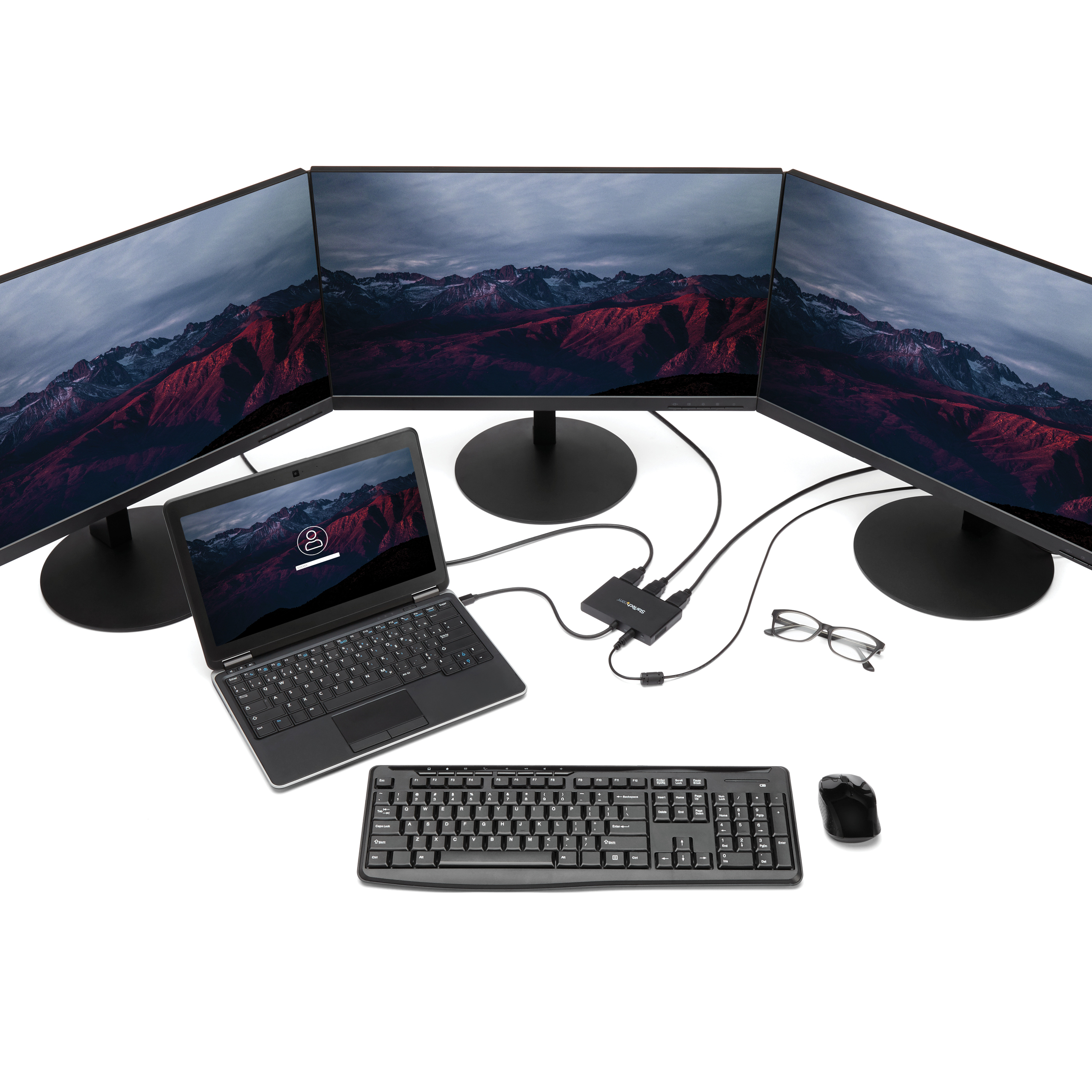

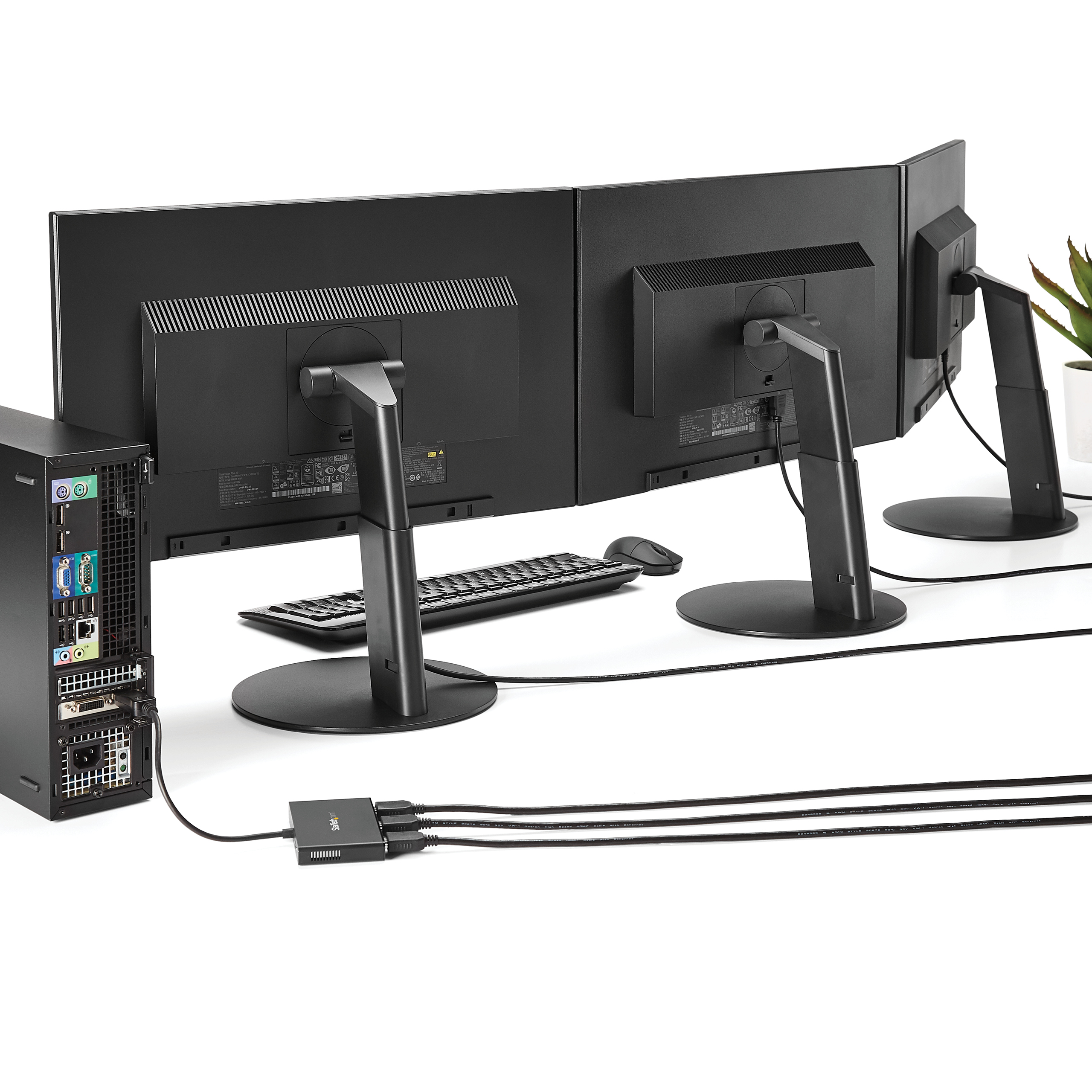

- Dock your mDP 1.2 device and add three high-resolution displays to your workstation
- Create a panoramic video wall for DisplayPort digital signage applications
- Edit images, video or audio clips across three displays in any orientation or resolution
- Perfect for spanning a spreadsheet/worksheet across all three displays, to avoid side-scrolling
- Enjoy the panoramic views built into games and display helpful codes/walkthrough data on a third display, at the same time
Website Search Keyword - MST hub
- Multi-Stream Transport
- Mini DisplayPort to HDMI Splitter
- HDMI Desktop Extender
- External Multi-Display
- Multi-Display DisplayPort
- bizlink
- TripleHead2GO
- DualHead2GO
- Clone
- Mirror
- External DisplayPort Video Card
- Triple Monitor
- Dual Monitor
- DP
- Triple Head DisplayPort Graphics Expansion Module
- Graphics Expansion Module
- Desktop Expansion
- MiniDP video hub
- HDMI Video Hub
- Mini DisplayPort to HDMI video hub
- mst adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SVA5N3NEUA
- HDMM6
- RHDMM2MP
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMMV2M
Related Products - MSTDP122DP
- MSTDP123DP
- MSTDP124DP
- MSTMDP122DP
- MSTMDP123DP
- MSTMDP124DP
- MSTDP123HD
Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 50-90% Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 114 Product Width (mm) 66 Product Height (mm) 14 Product Weight (g) 120 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support No Maximum Cable Distance To Display 15200 Maximum Digital Resolutions 3840 x 2160 @30hz Maximum Supported Resolution 4K 30Hz (3840x2160) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows 11

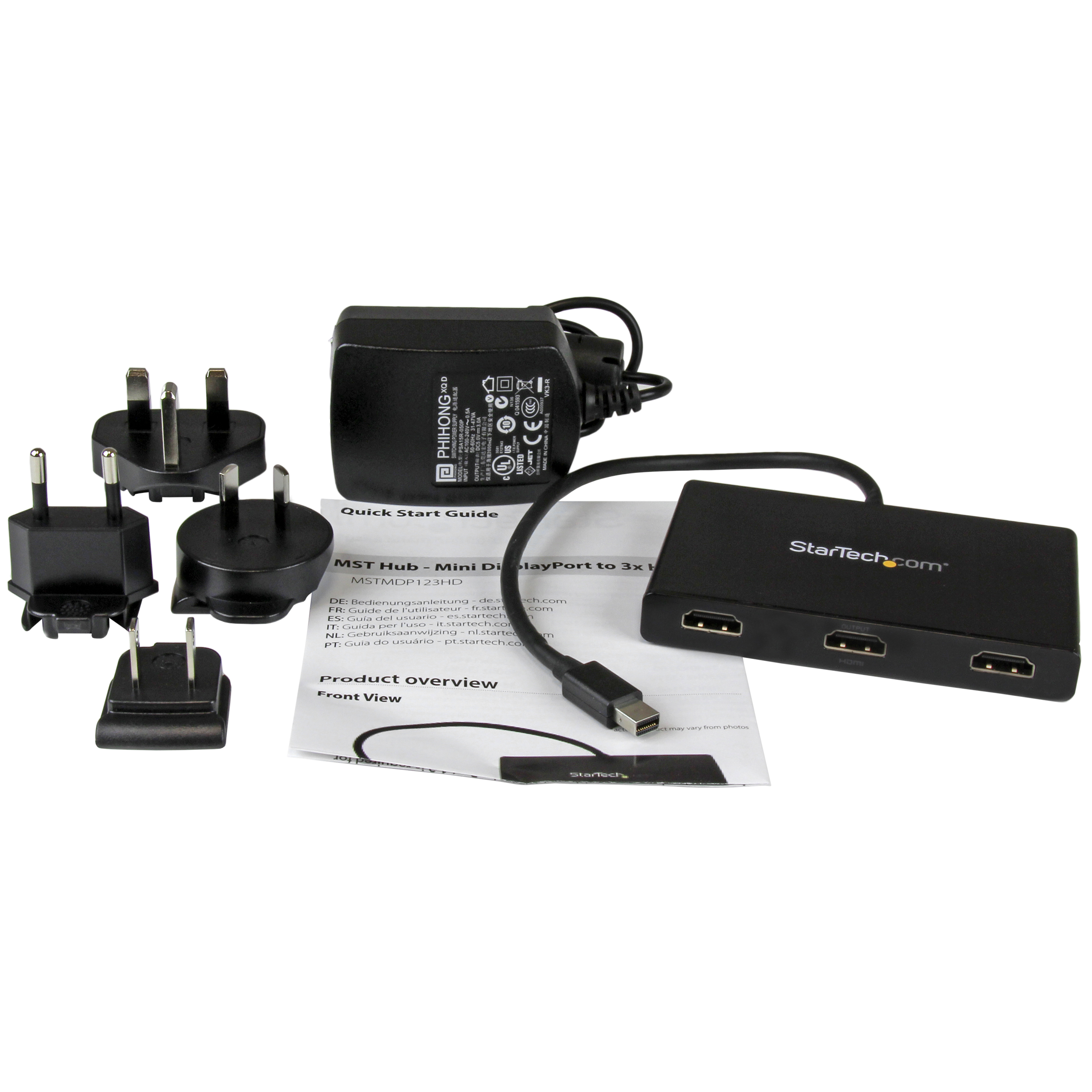

Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Mini DisplayPort - 1.2 AV Output HDMI - 1.4 Chipset ID MegaChips - STDP4320 Converter Type MST Hubs Host Connection Port Mini DisplayPort Number of Displays 3 Carton Depth (mm) 521 Carton Height (mm) 231 Carton Quantity 10 Carton Weight Gross (g) 5962 Included in Package - 1 - Mini DisplayPort to 3x HDMI MST Hub
- 1 - Universal power adapter (NA/EU/UK/AU)
- 1 - Quick install guide
Package Depth (mm) 151 Package Height (mm) 65 Package Width (mm) 243 Package Quantity 1 Package Weight (g) 502 Packaging Description MST Hub - Mini DisplayPort to 3x HDMI Packaging Description India MST Hub - Mini DisplayPort to 3x HDMI Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 3 Amazon Merchandising Manager Kristian Haighton Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-06-30 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy Video Uploaded
