MSTMDP124DP

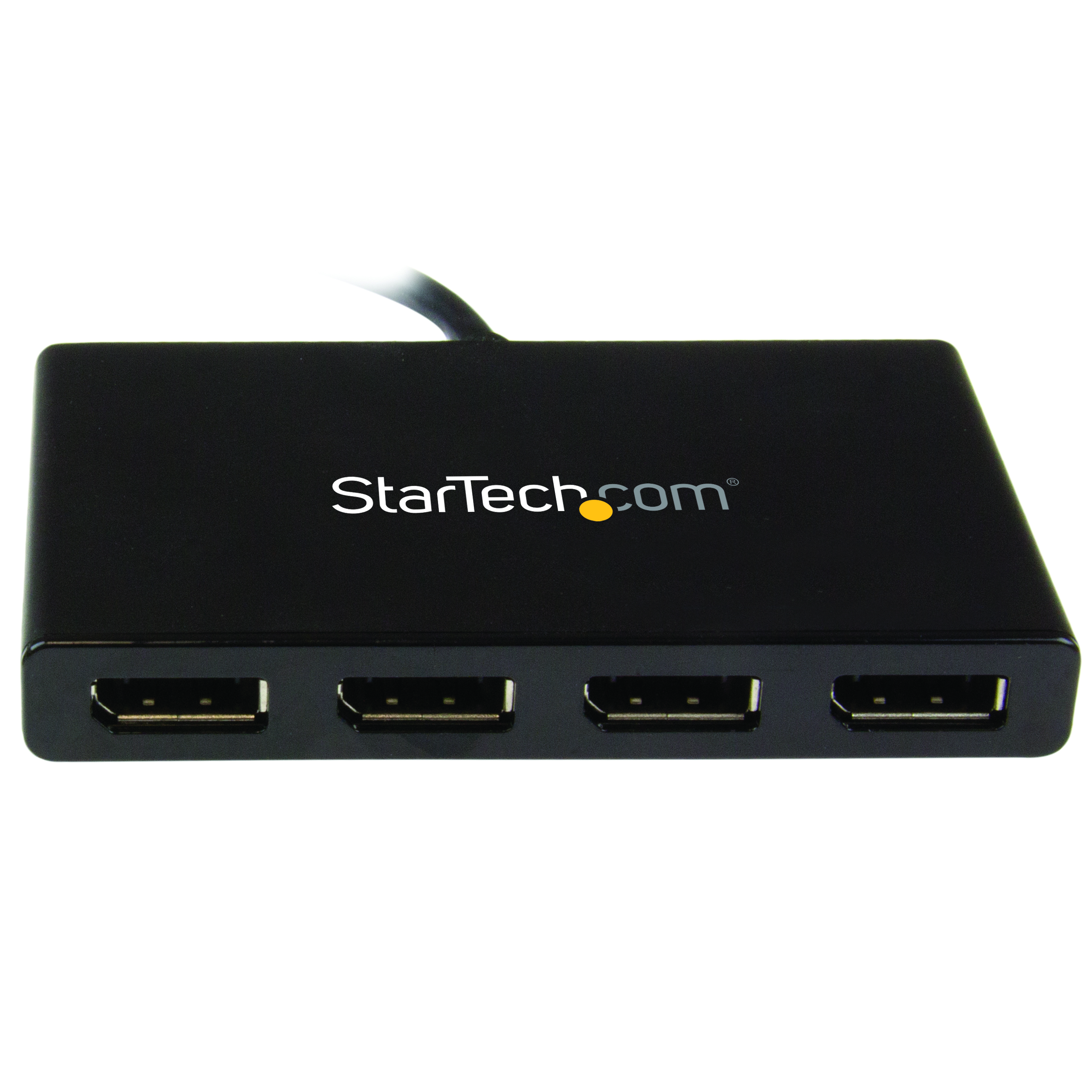

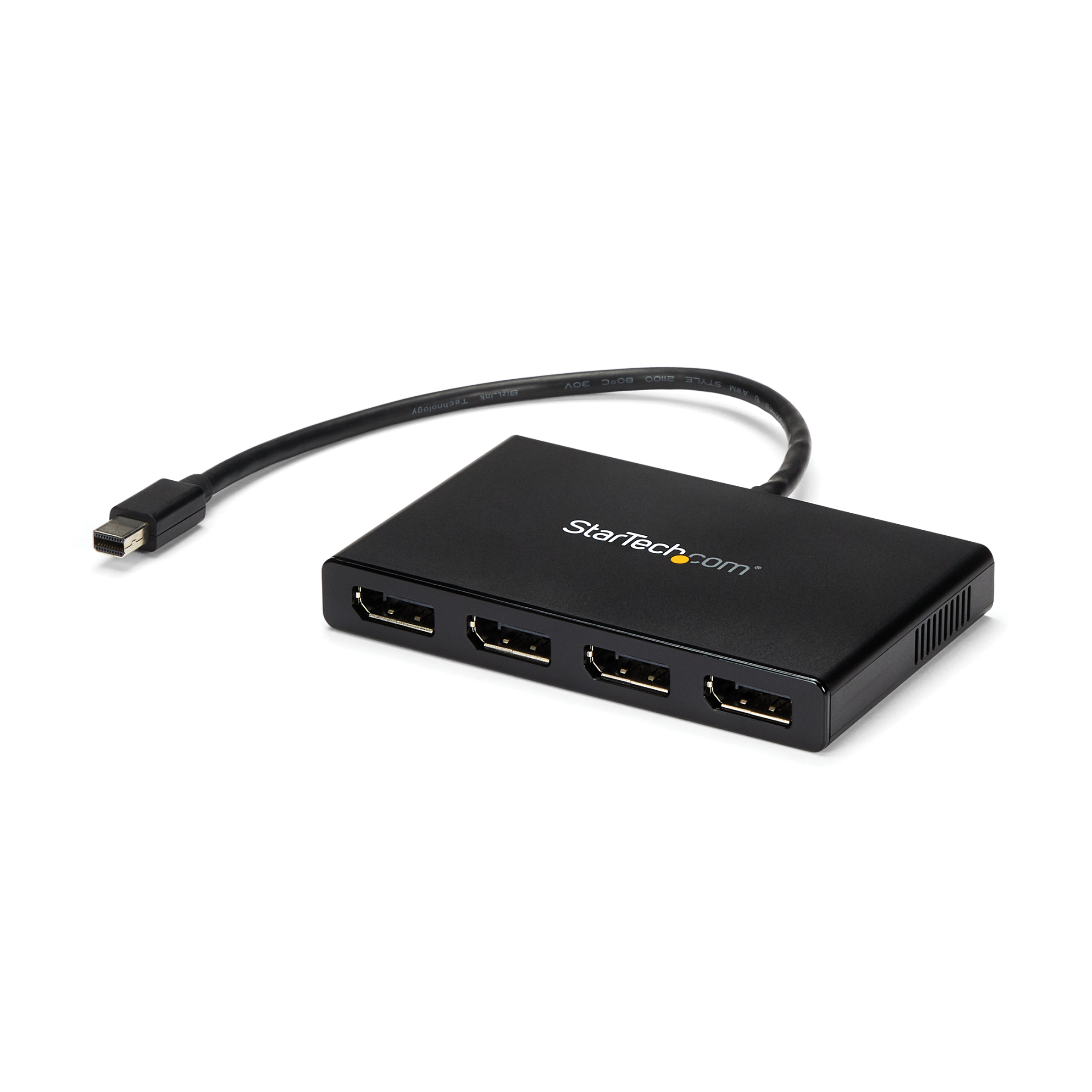

Mini DisplayPort MST to 4 x DisplayPort
Use this adapter to connect four independent displays to a single mDP 1.2 port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Mini DisplayPort MST to 4 x DisplayPort Product Number MSTMDP124DP UPC 065030861502 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 MST MDP Family MST Adapter - 4-port Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX008X Product Title (Ultra-Short) MST mDP to 4x DP Product Title (Short) mDP to 4x DP Multi Monitor Adapter/MST Product Title (Medium) Mini DisplayPort to DisplayPort Multi Monitor Splitter - 4-Port MST Hub Product Title (Standard) 4-Port Multi Monitor Adapter, Mini DisplayPort 1.2 to DP MST Hub, 4x 1080p, Video Splitter for Extended Desktop Mode, Windows Product Title (Long) 4-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub - 4x 1080p - Video Splitter for Extended Desktop Mode on Windows PCs Only - mDP to Quad DP Monitors Product Title (AMZ) 4-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub - 4x 1080p - Video Splitter for Extended Desktop Mode on Windows PCs Only - mDP to Quad DP Monitors (MSTMDP124DP) Title Ingram (Part 1) mDP to DP Multi Monitor Hub - Title Ingram (Part 2) 4-Port Mini DisplayPort Splitter Website Product Headline Use this adapter to connect four independent displays to a single mDP 1.2 port Bullet 1 MULTI MONITOR ADAPTER FOR WINDOWS: 4-port Mini DisplayPort to DisplayPort MST hub drives up to four DP displays in extended or duplicate mode using a Mini DP port on Windows desktop PCs or laptops | Not compatible with macOS Bullet 2 DISPLAY RESOLUTION: Quad monitor mDP to DP MST hub supports HD resolutions up to 1080p 60Hz on all four monitors Bullet 3 COMPATIBILITY: 4-Port Mini DP to DisplayPort MST video splitter works with laptops, computers or desktop graphics cards |Requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, Nvidia & Intel video cards Bullet 4 INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office | MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources Bullet 5 EASY TO USE: Multiple monitor adapter natively supports Quad DP screens; Works w/ Windows only and provides an easy driverless setup Bullets (Compact) 4-port Mini DisplayPort to DisplayPort multi-monitor adapter drives 4x 1080p 60Hz DP displays to extend your desktop - DP 1.2/HBR2/MST (multi stream transport) - mDP to DP MST hub/video splitter - Built-in mDP cable - No Drivers - Windows only Bullets (Consolidated) 4-Port Mini DisplayPort to DisplayPort multi monitor adapter drives 4x 1080p 60Hz DP displays w/ no video compression - mDP to DP MST hub/video splitter for multiple monitors increases productivity by extending your desktop - Quad monitor Multi Stream Transport hub works with computer brands like HP Dell Lenovo AMD/Nvidia/Intel video cards | Supports laptops/desktop PCs or graphics cards w/ DP 1.2 (MST and HBR2) - No drivers; Works w/ Windows only - Built-in video cable; AC power adapter Marketing Copy Marketing Copy (No HTML) Applications - Add additional displays to your Surface Pro 3
- Use one screen for reference data such as websites, while composing in another screen

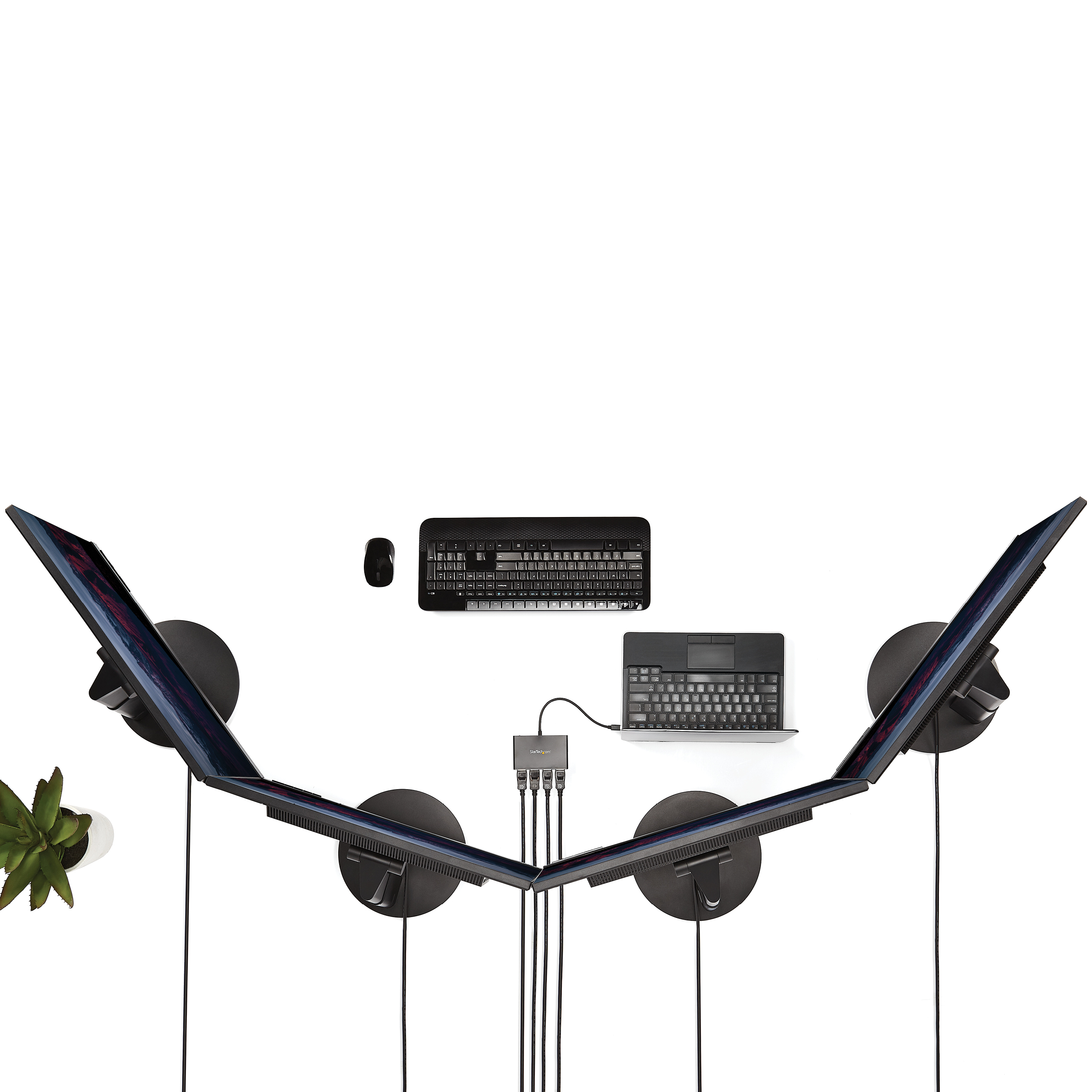

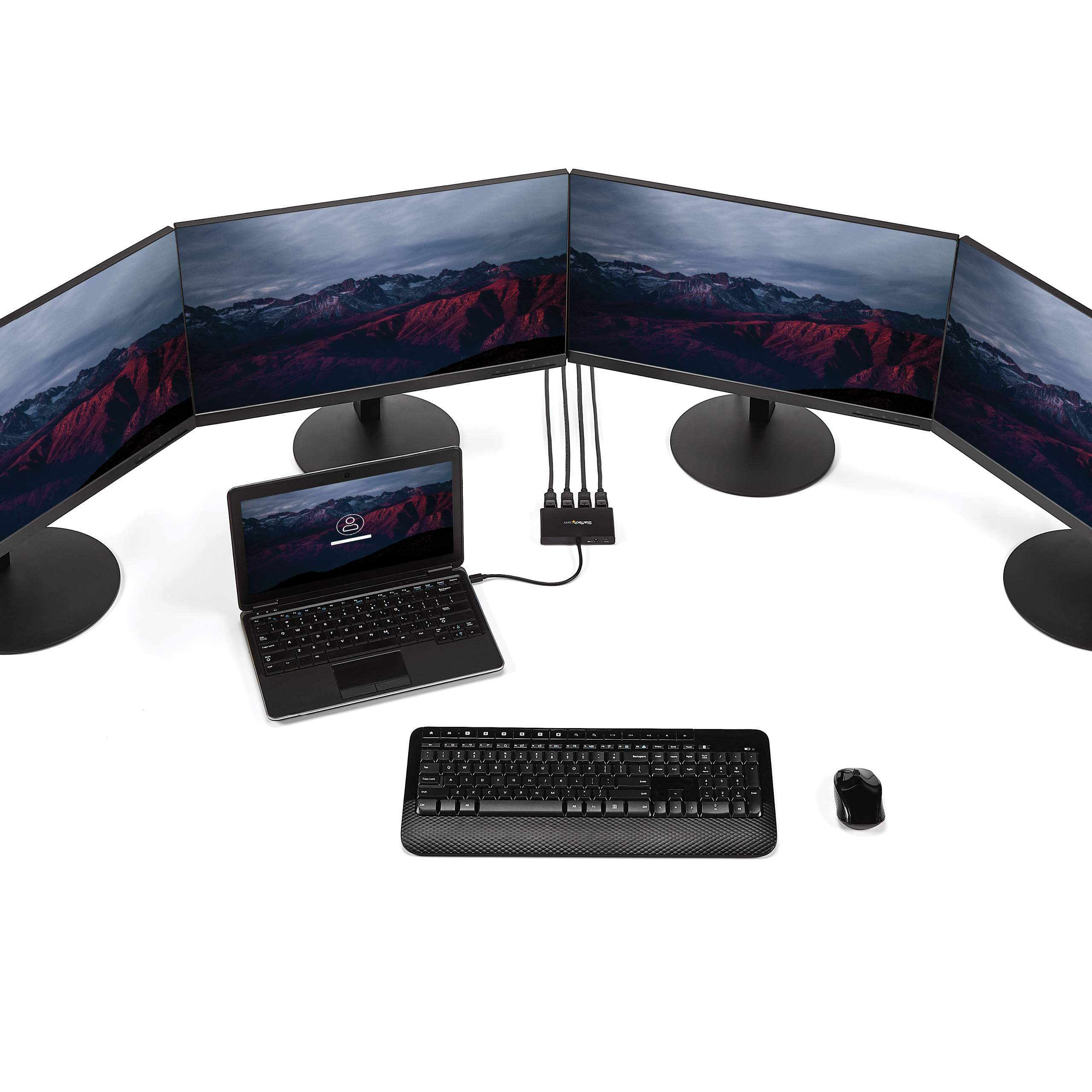

- Dock your mDP 1.2 device and add four high-resolution displays to your workstation

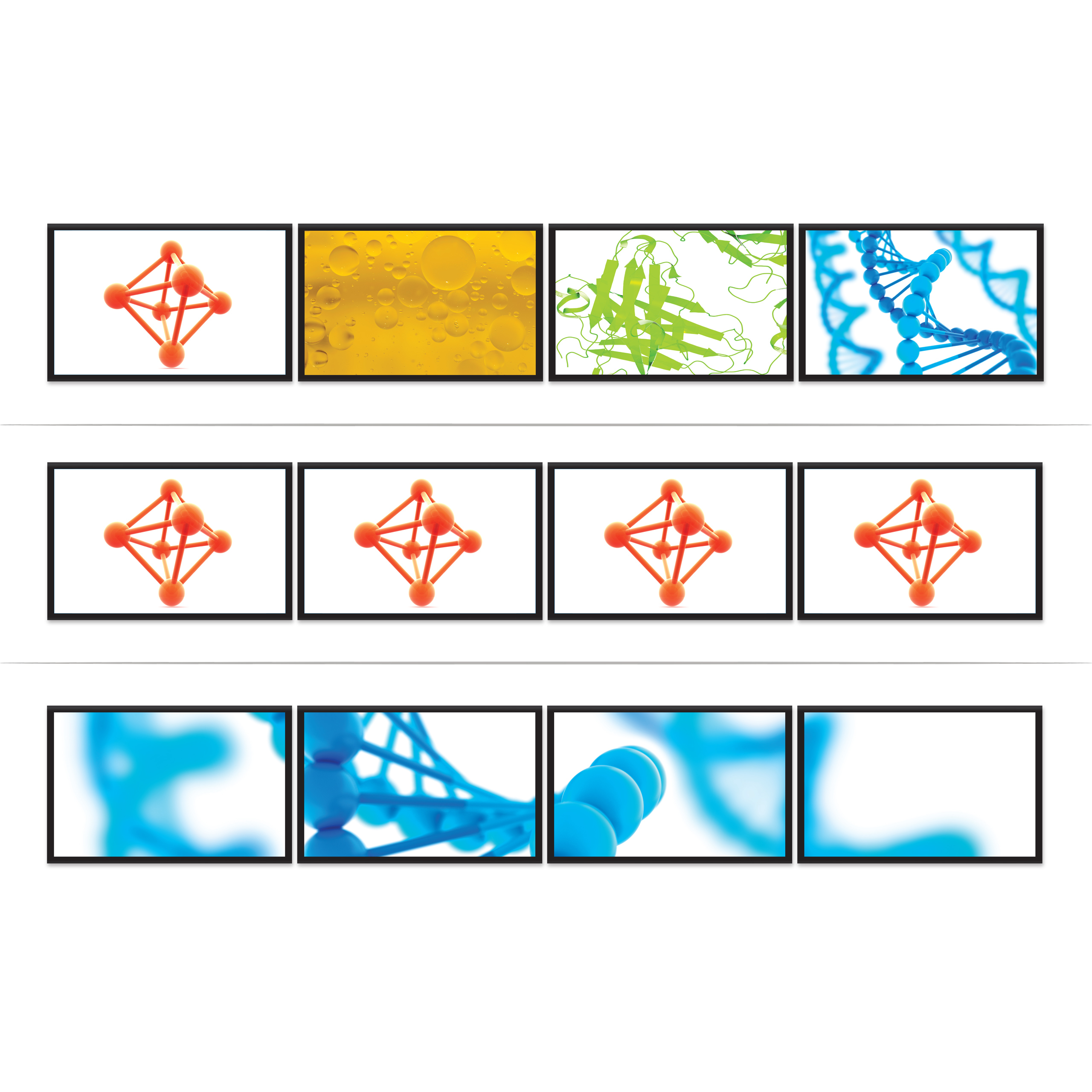

- Create a panoramic video wall for digital signage applications
- Edit images, video or audio clips across four additional displays in any orientation or resolution
- Span a spreadsheet or worksheet across multiple displays, to avoid side-scrolling
- Build a four-display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
Website Search Keyword - MST hub
- Multi-Stream Transport
- DisplayPort Splitter
- DisplayPort Desktop Extender
- External Multi-Display
- Multi-Display DisplayPort
- bizlink
- TripleHead2GO
- DualHead2GO
- Clone
- Mirror
- External DisplayPort Video Card
- Triple Monitor
- Dual Monitor
- DP
- Triple Head DisplayPort Graphics Expansion Module
- Graphics Expansion Module
- Desktop Expansion
- MiniDP video hub
- DisplayPort Video Hub
- Mini DisplayPort video hub
- mst adapter
- B155-004-DP-V2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - SVA5N3NEUA
- DP2VGA3
- DP2HDMI
- DISPLPORT6L
- DISPLPORT6L10PK
- DISPLPORT15L
- DP2DVI2
- DP14MM1M
Related Products - MSTMDP123DP
- MSTMDP122DP
- MSTDP122DP
- MSTDP124DP
- MSTDP123DP
Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 190 Color Black Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Plastic Product Length (mm) 386.000 Product Width (mm) 65.000 Product Height (mm) 15.000 Product Weight (g) 127.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Audio Specifications DisplayPort - 5.1 Channel Audio HDR Support No Maximum Cable Distance To Display 2000 Maximum Digital Resolutions 3840 x 2160 (Ultra HD 4K) @30hz Maximum Supported Resolution 1080p OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows 11

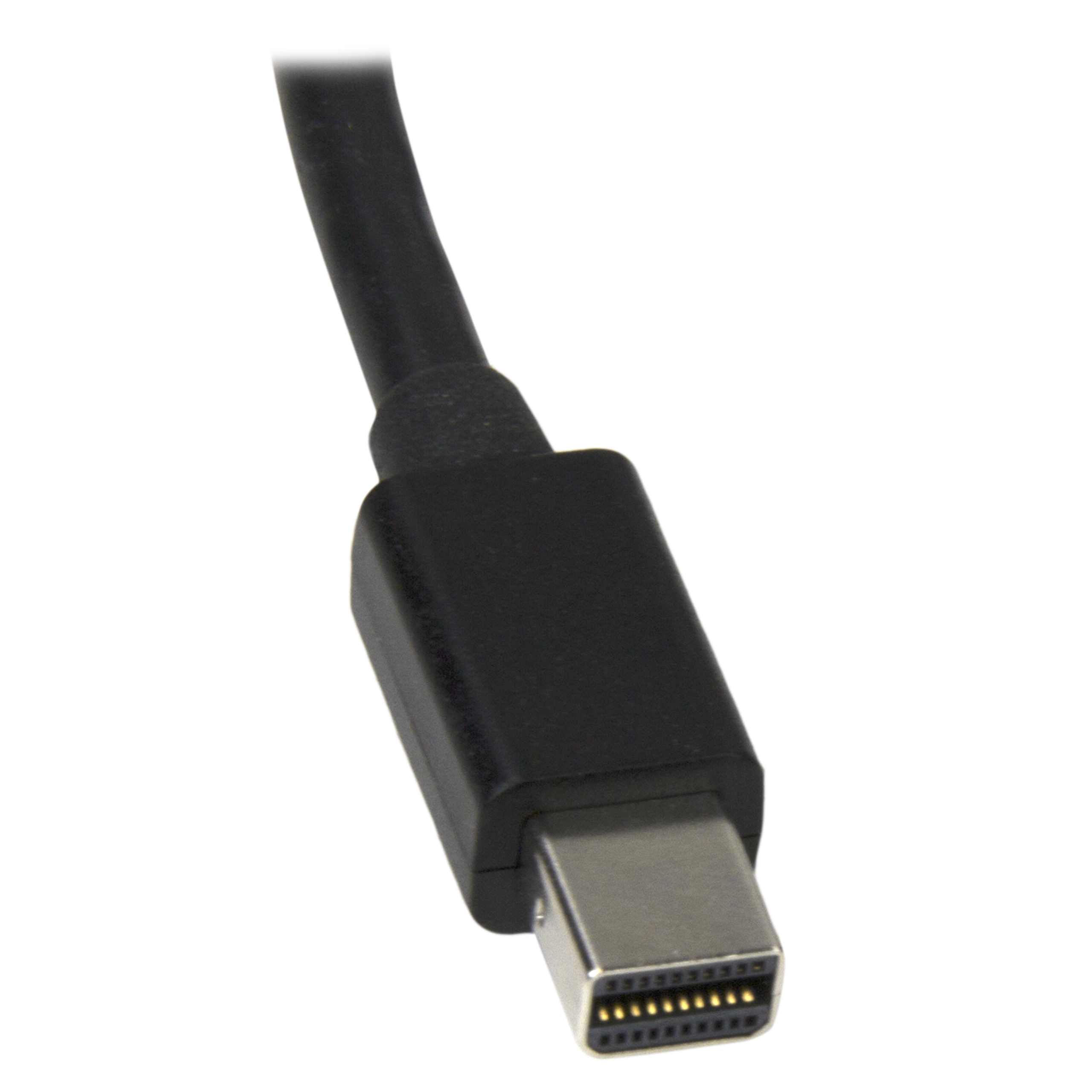

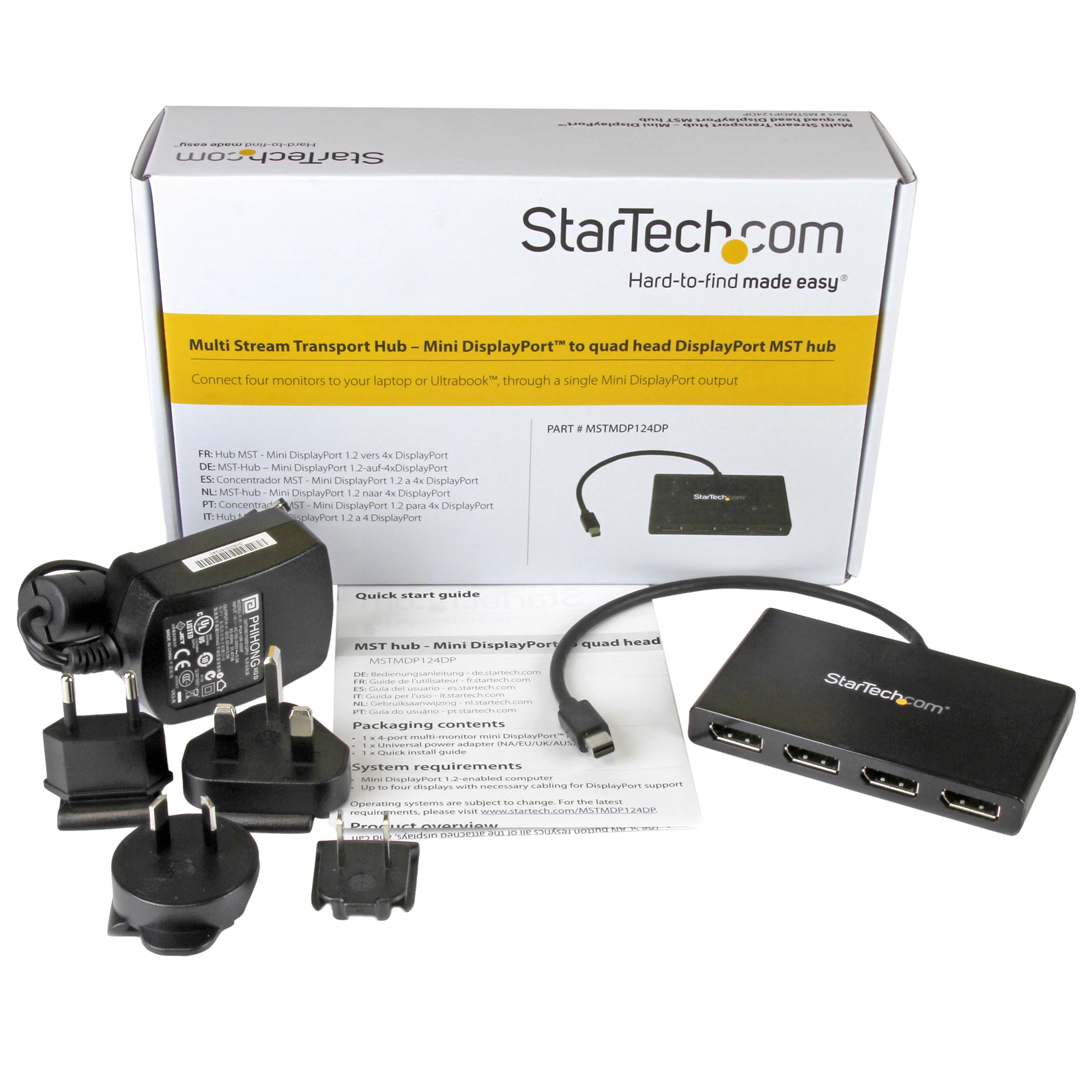

Supported Resolutions Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input Mini DisplayPort - 1.2 AV Output DisplayPort - 1.2 Chipset ID MegaChips - STDP4320 Converter Type MST Hubs Host Connection Port Mini DisplayPort Number of Displays 4 Carton Depth (mm) 334 Carton Height (mm) 226 Carton Quantity 10 Carton Weight Gross (g) 6168 Included in Package - 1 - 4-Port Multi Monitor Mini DisplayPort™ MST Hub
- 1 - Universal power adapter (NA/EU/UK/AUS)
- 1 - Quick install guide
Package Depth (mm) 153 Package Height (mm) 64 Package Width (mm) 245 Package Quantity 1 Package Weight (g) 524 Packaging Description MST Hub - Mini DisplayPort 1.2 to 4x DisplayPort Packaging Description India MST Hub - Mini DisplayPort 1.2 to 4x DisplayPort Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 4 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2015-03-23 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Production Release 2015-04-30 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None Video Uploaded
