MUYHSMFF

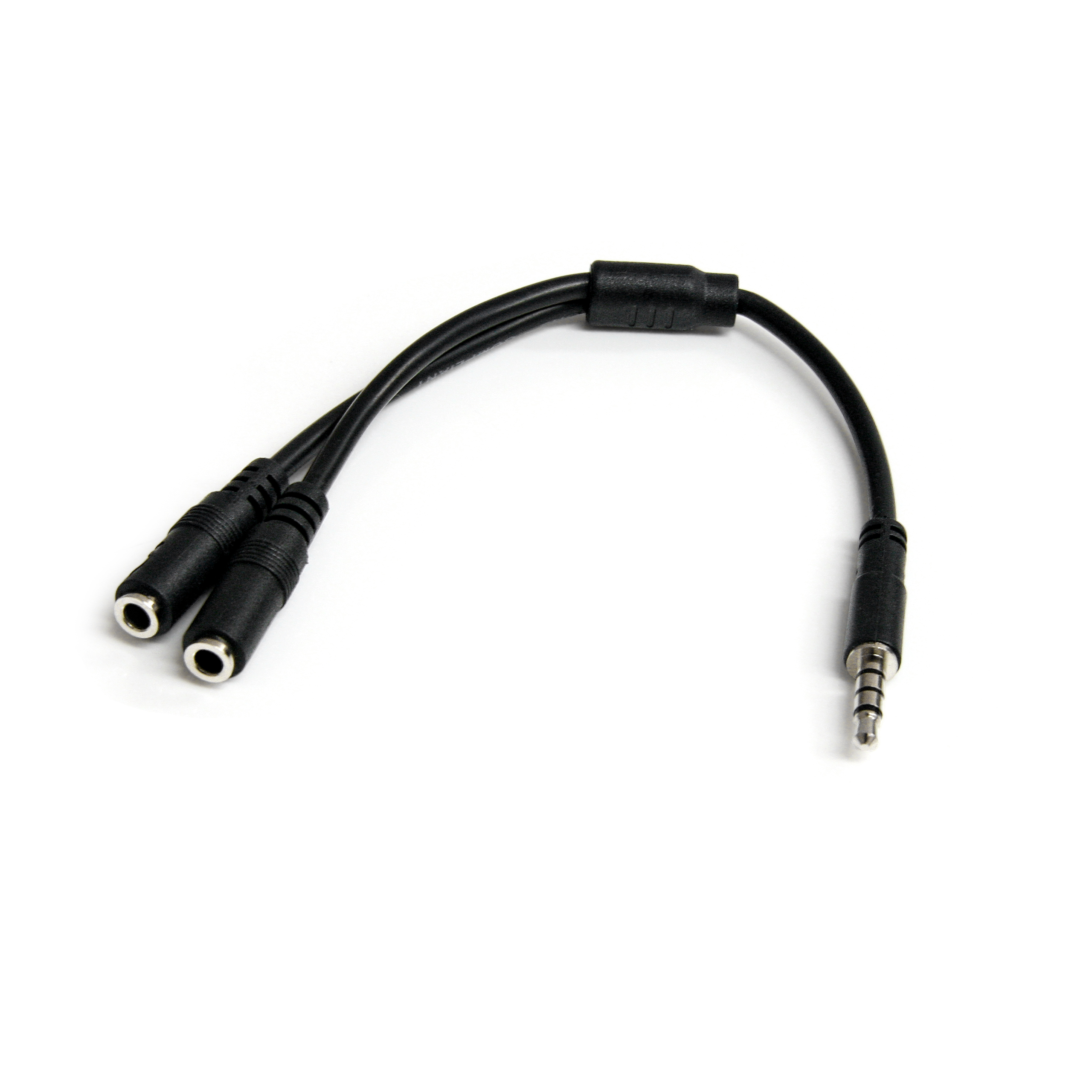

3.5mm Headphone / Microphone splitter
Turns a 3.5mm audio output port into two distinct ports – one 3.5mm headphone jack and one 3.5mm microphone port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 3.5mm Headphone / Microphone splitter Product Number MUYHSMFF UPC 065030843515 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Audio Cables Category Level 1 Cables - Other Category Level 2 DVI, VGA, Audio Cables Category Level 3 3.5mm Audio Cables Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX067X Product Title (Ultra-Short) Headset adapter Product Title (Short) Headset adapter with headphone/mic plugs Product Title (Medium) Headset adapter for headsets with separate headphone / microphone plugs Product Title (Standard) Headset adapter for headsets with separate headphone / microphone plugs - 3.5mm 4 position to 3 position and 2 position 3.5mm M/F Product Title (Long) Headset adapter for headsets with separate headphone / microphone plugs - 3.5mm 4 position to 3 position and 2 position 3.5mm M/F Product Title (AMZ) Headset Adapter, Microphone and Headphone Splitter - 3.5mm Male Aux to 3.5mm Female Audio & Mic Combo Jack Y Cable for Laptop / PC (MUYHSMFF) Title Ingram (Part 1) Headphone and microphone Title Ingram (Part 2) headset adapter - 3.5mm M/F Website Product Headline Turns a 3.5mm audio output port into two distinct ports – one 3.5mm headphone jack and one 3.5mm microphone port Bullet 1 Lightweight, yet sturdy design that can easily be plugged in when required Bullet 2 Compact design for maximum portability - a great solution to have on hand in your laptop bag Bullet 3 Headset not included Bullets (Compact) Turns a 3.5mm audio output port into two distinct ports: one 3.5mm headphone jack and one 3.5mm microphone port - Connect a headset equipped with separate headphone and microphone plugs to the audio port on your laptop - Warranty: Lifetime Bullets (Consolidated) Turns a 3.5mm audio output port into two distinct ports: one headphone port and one microphone port - Headset adapter for headsets with separate headphone and microphone plugs/3.5mm 4 pin to 3 pin and 2 pin 3.5mm - Connect a headset equipped with separate headphone and microphone plugs to the audio port on your laptop or your phone or your tablet - Connect an external microphone and powered speakers to the audio port on your laptop - Guaranteed reliability backed by a Marketing Copy Marketing Copy (No HTML) Applications - Connect an external microphone and powered speakers to the audio port on your laptop

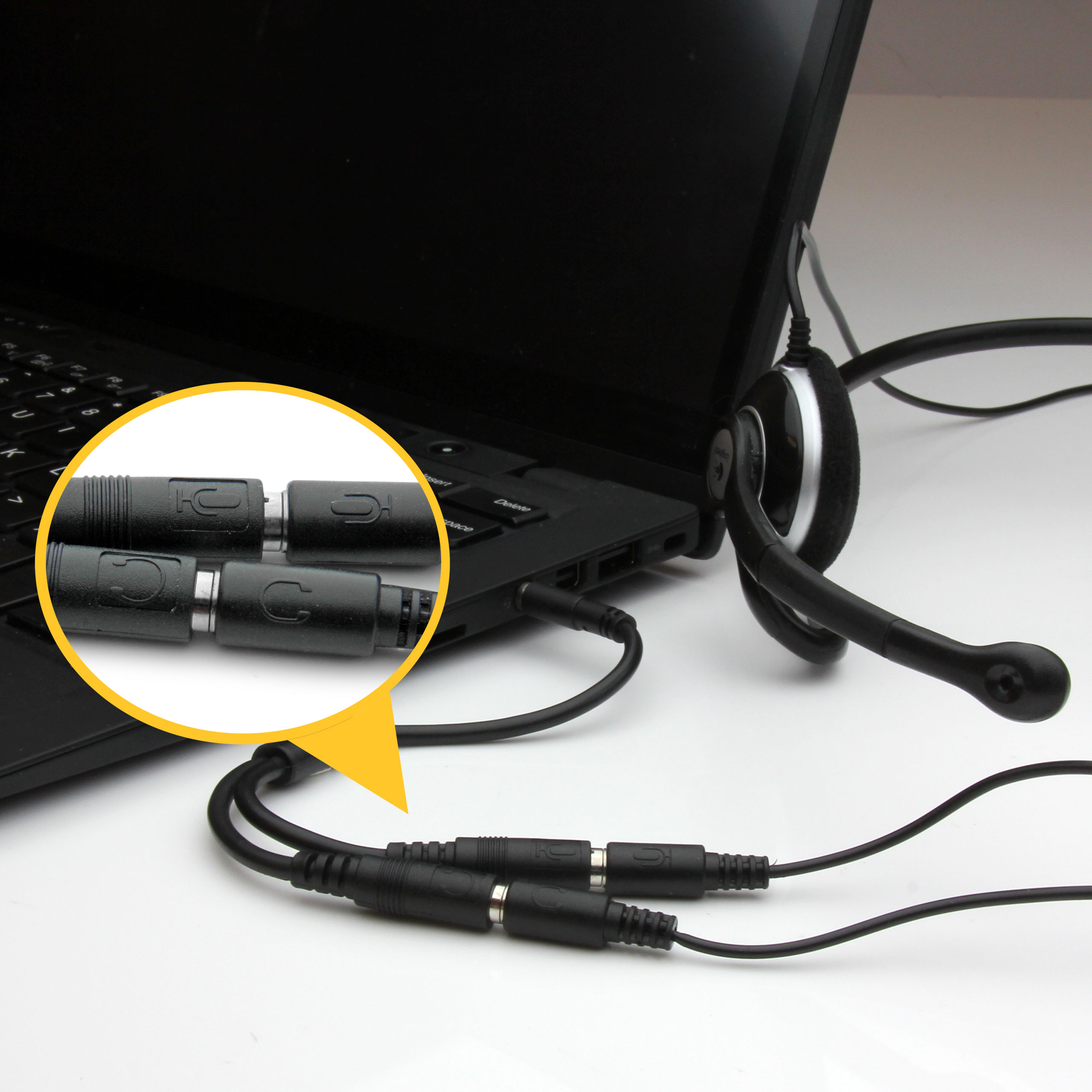

- Connect a headset equipped with separate headphone and microphone plugs to the audio port on your laptop
- Connect a headset equipped with separate headphone and microphone plugs to the audio port on your phone or tablet
Website Search Keyword - Stereo audio cable 3.5mm adapter Splitter headset adapter audio and mic microphone headphone mic splitter
- MUYHSMFFS5
- CTIA
- P318-06N-MFF
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)

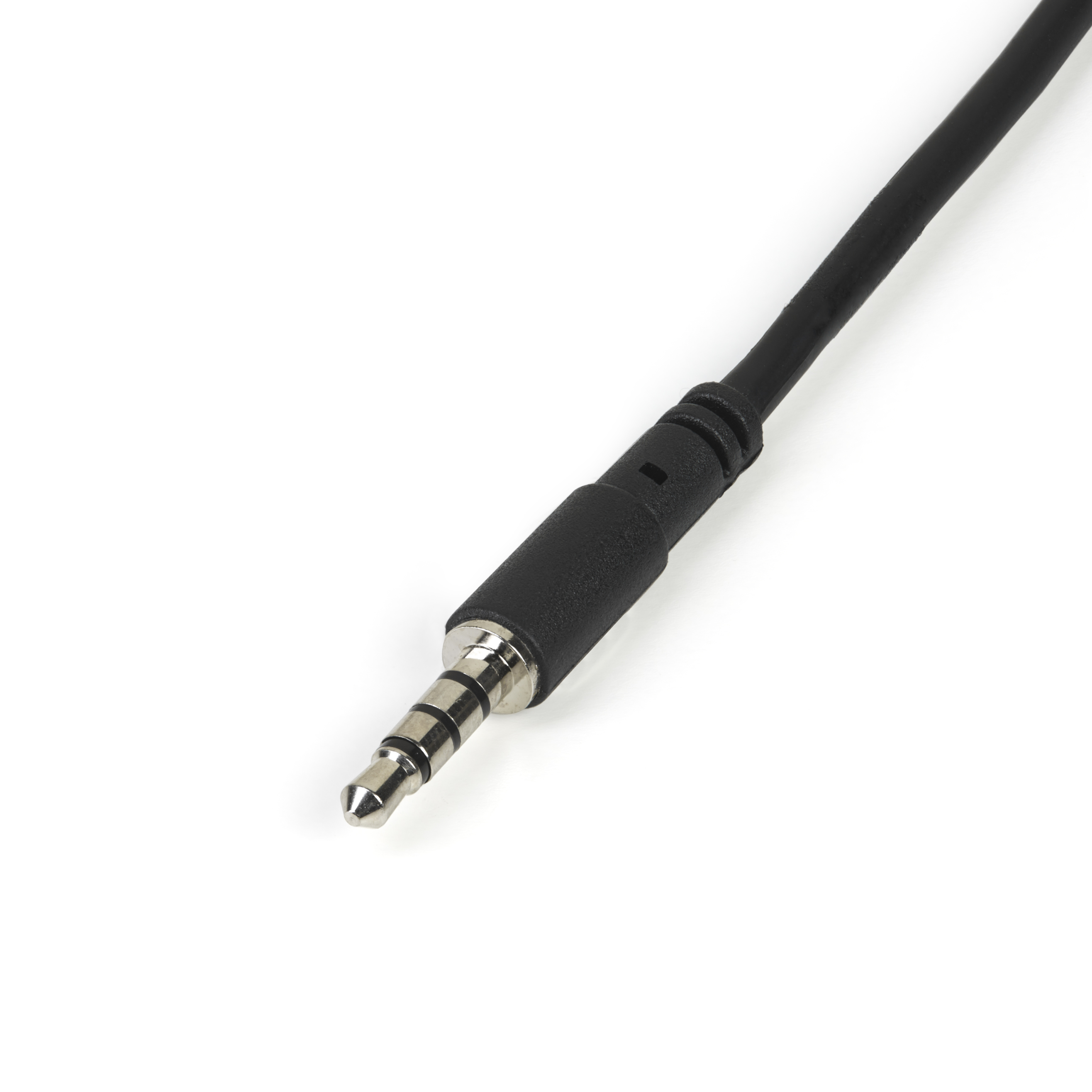

Special Notes 3.5 mm Mini-Jack (4 position) male is configured per CTIA Standard Accessory Products - MUHSMF1M
- MUHSMF2M
Related Products - MUYHSFMM
- MUY1MFFADP
- MUYHSMFFADW
- MUY1MFFADPW
- MUY1MFF
- MUY1MFFS
Cable Length (mm) 200 Color Black Connector Style Straight Humidity 30~60% RH Primary Material Plastic Product Length (mm) 200.000 Product Width (mm) 6.000 Product Height (mm) 6.000 Product Weight (g) 12.000 Storage Temperature -15°C to 75°C (-59°F to 167°F) TAA Compliant No Wire Gauge 28 AWG Cable Jacket Material PVC - Polyvinyl Chloride Connector Plating Nickel Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 506 Carton Height (mm) 283 Carton Quantity 800 Carton Weight Gross (g) 12396 Included in Package 1 - 3.5mm 4 Pin to 2x 3 Pin 3.5mm Headset Splitter Adapter - M/F Included In Package for Label 1 - 3.5mm 4 Pin to 2x 3 Pin 3.5mm Headset Splitter Converter - M/F Number of Sub-Cartons 80 Package Depth (mm) 89 Package Height (mm) 12 Package Width (mm) 95 Package Quantity 1 Package Weight (g) 8 Packaging Description 3.5mm Headphone / Microphone splitter Packaging Description India 3.5mm Headphone / Microphone splitter Sub-Carton Depth (mm) 206 Sub-Carton Height (mm) 29 Sub-Carton Width (mm) 142 Sub-Carton Quantity 10 Sub-Carton Weight (g) 142 Connector 1 3.5mm (4 Conductors, TRRS) Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
