Main Image
MXT1003MBK

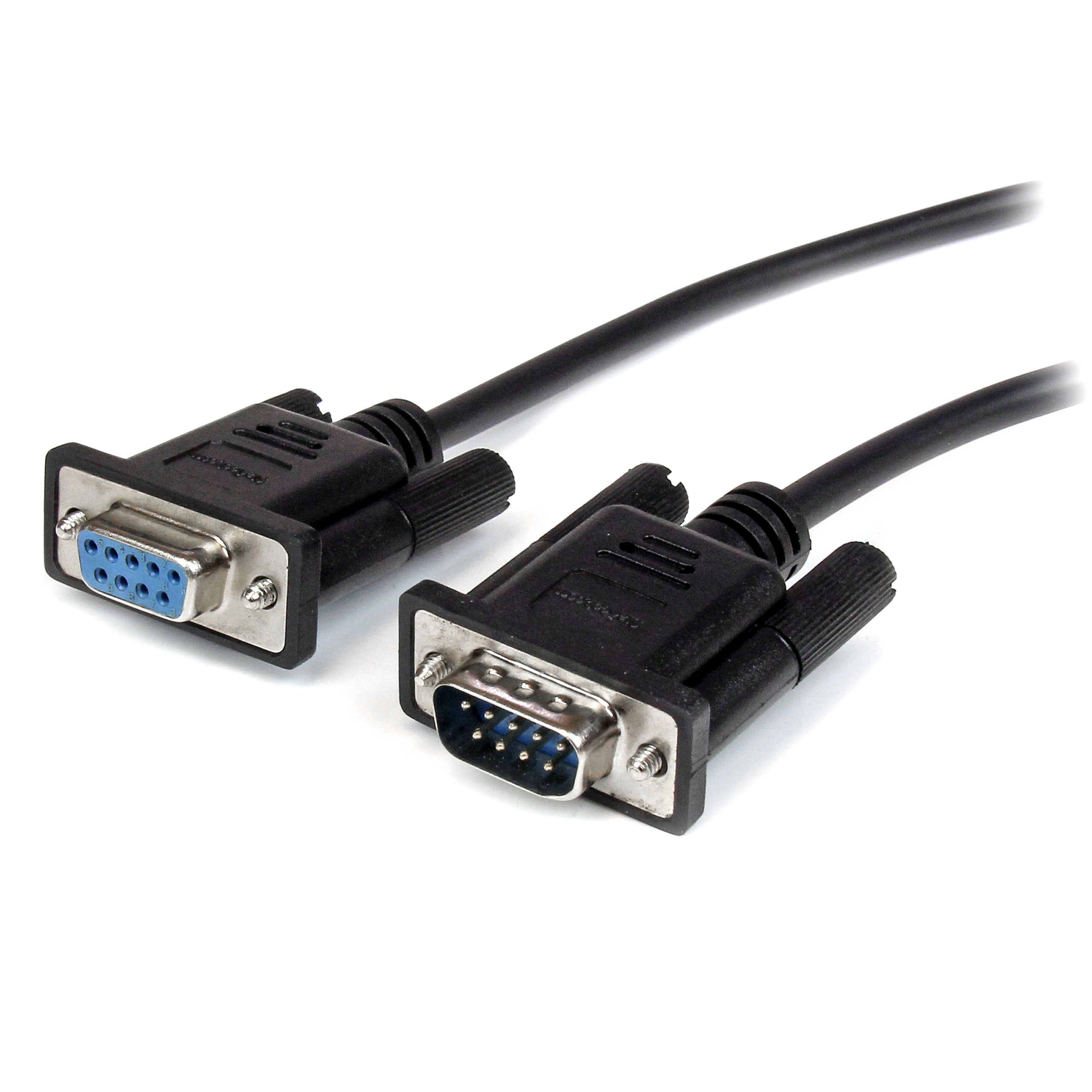

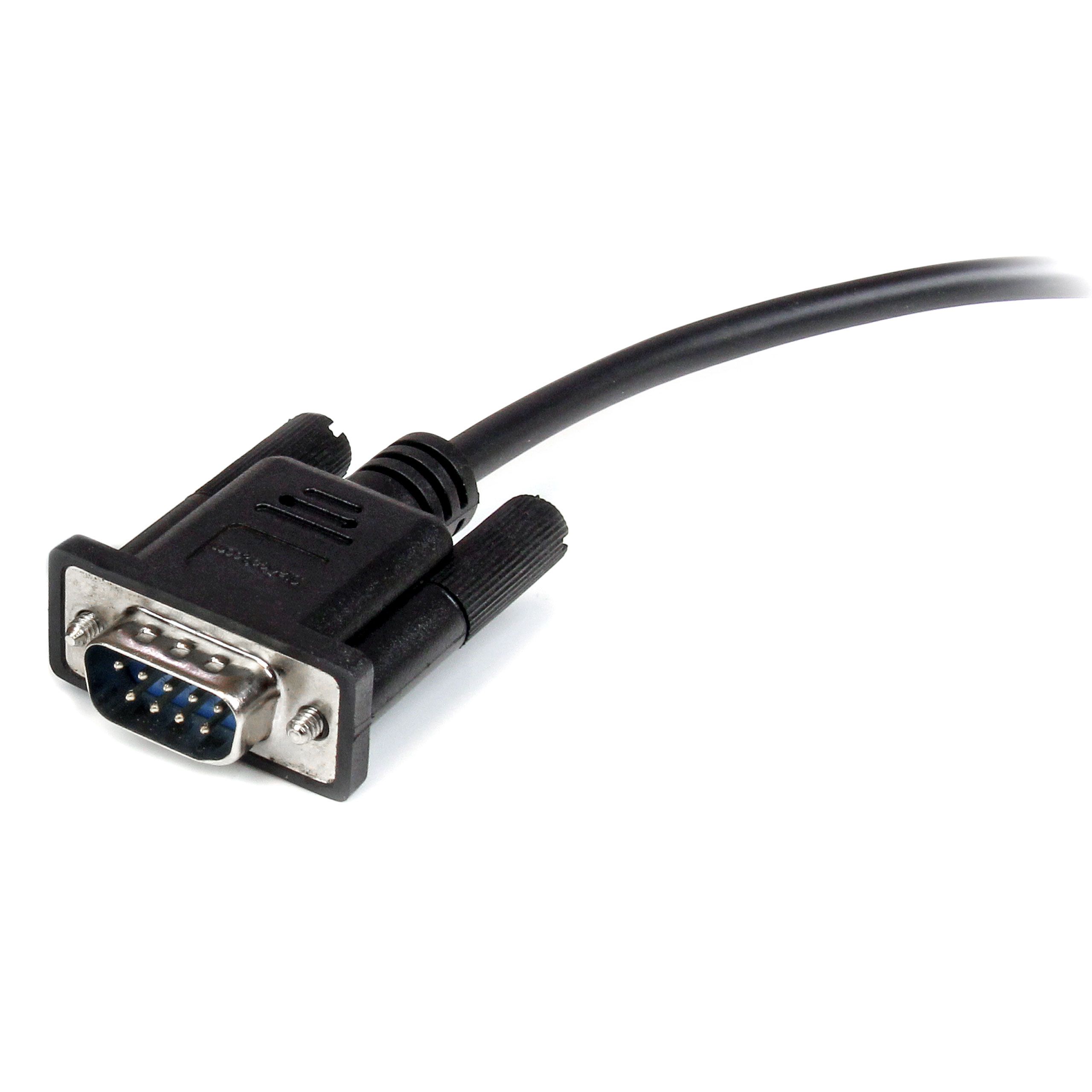

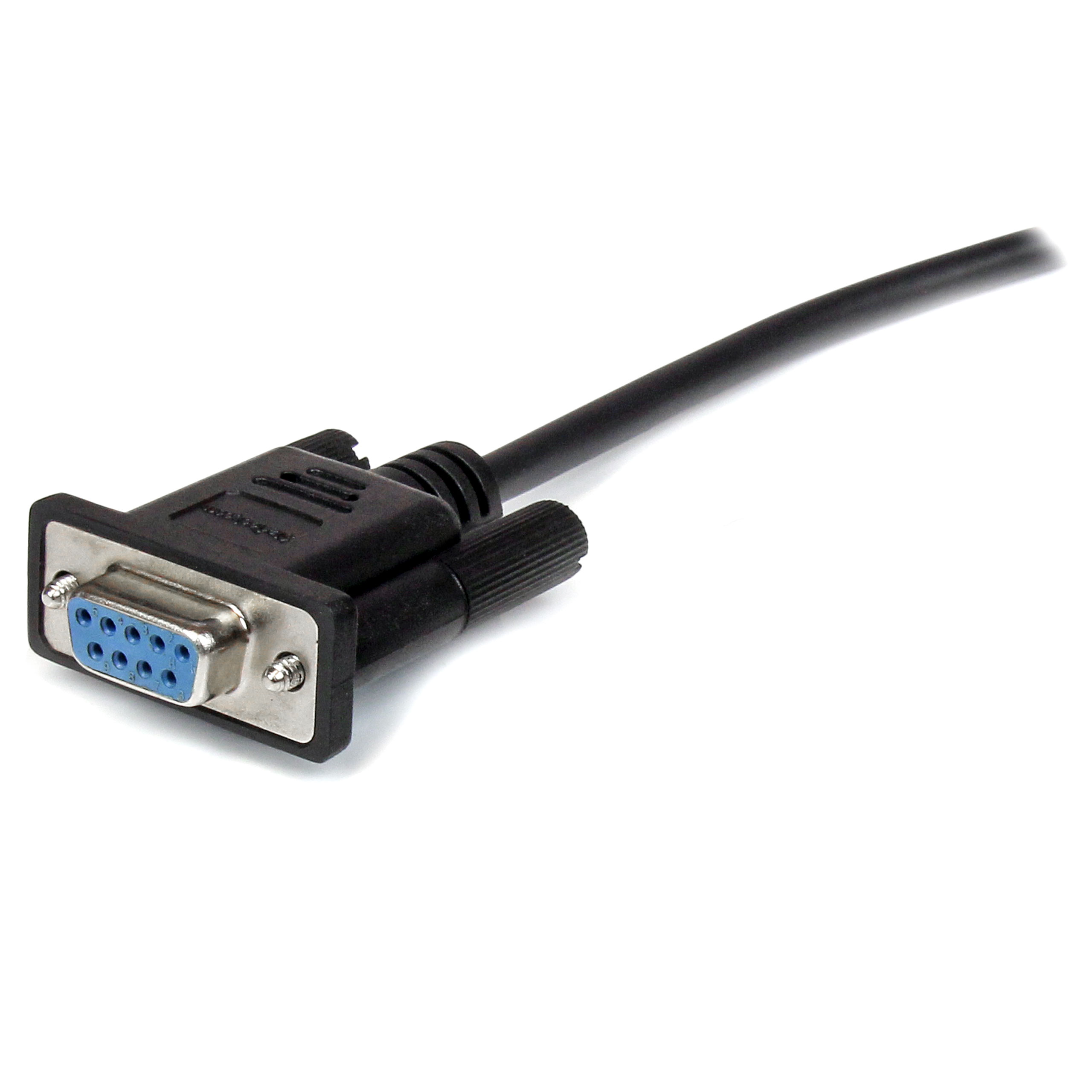

3 m Black Straight Through Serial Cable DB9 M F
Extend the connection between your DB9 serial devices by up to 3m
Main Image
Product Images
Product Images
Product Name 3 m Black Straight Through Serial Cable DB9 M F Product Number MXT1003MBK UPC 065030849012 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Serial, Parallel and PS2 Cables Category Level 1 Cables - Other Category Level 2 Serial, Parallel and PS2 Cables Category Level 3 Serial Cables Family Straight through Serial Cables Male to Male Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Short) 3m Straight Through Serial Cable M/F BK Product Title (Medium) x Product Title (Standard) 3m Black Straight Through DB9 RS232 Serial Cable - M/F Product Title (Long) 3m Black Straight Through DB9 RS232 Serial Cable - M/F Product Title (AMZ) 3m Black Straight Through DB9 RS232 Serial Cable - DB9 RS232 Serial Extension Cable - Male to Female Cable (MXT1003MBK) Title Ingram (Part 1) DB9 RS232 Serial Extension Cable Title Ingram (Part 2) - 3m Black Male to Female Cable Website Product Headline Extend the connection between your DB9 serial devices by up to 3m Bullet 1 1x DB9 Serial (male) connector Bullet 2 1x DB9 Serial (female) connector Bullet 3 High quality shielding prevents EMI interference Bullet 4 DB9 connectors with strain relief molding Bullets (Compact) Extend the connection between your DB9 serial devices by up to 3m - db9 extension cable - serial extension cable - male to female serial cable - db9 male to female cable - rs232 extension cable Bullets (Consolidated) M/F - Serial extension cable - DB-9 (M) to DB-9 (F) - 10 ft - black Marketing Copy Applications Extend RS232 serial connections by up to 3 meters Website Search Keyword - db9 male to female cable
- serial extension cable
- db9 extension cable
- male to female serial cable
- straight through serial cable
- RS-232
- RS232
- rs232 extension cable
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - GC96FF
- GC96MF
- GC96FM
- GC96MM
Related Products - MXT10050CMBK
- MXT1001MBK
- MXT1002MBK
Cable Length (mm) 3000 Color Black Humidity 0% to 95% Operating Temperature 20°C to 45°C (68°F to 131°F) Primary Material Plastic Product Length (mm) 3000.000 Product Width (mm) 32.000 Product Height (mm) 15.000 Product Weight (g) 150.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Wire Gauge 28 AWG Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Drain Connector Plating Nickel Screw Lock Yes Serial/Parallel Cable Type Straight Through (RS232) Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 436 Carton Height (mm) 280 Carton Quantity 100 Carton Weight Gross (g) 16282 Included in Package 1 - 3m Black Straight Through Serial Cable - DB9 M/F Included In Package for Label 1 - 3m Black Straight Through Serial Cable - DB9 M/F Number of Sub-Cartons 10 Package Depth (mm) 127 Package Height (mm) 21 Package Width (mm) 167 Package Quantity 1 Package Weight (g) 150 Packaging Description Black Straight Through Serial Cable - DB9 Packaging Description India 3m Black Straight Through Serial Cable - DB9 Sub-Carton Depth (mm) 238 Sub-Carton Height (mm) 92 Sub-Carton Width (mm) 214 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1550 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
