MXT101MMHQFF
6 ft. Coax SVGA Monitor Cable HDDB15M/M
Connect your VGA monitor with the highest quality connection available
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 6 ft. Coax SVGA Monitor Cable HDDB15M/M Product Number MXT101MMHQFF UPC 065030849319 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 6 ft Coax VGA Monitor Cable - HD15 M/M Product Title (Standard) StarTech.com High-Resolution Coaxial SVGA - VGA Monitor cable - HD-15 (M) - HD-15 (M) - 1.8 m Product Title (Long) 6 ft Coax High Resolution Monitor VGA Cable - HD15 M/M Title Ingram (Part 1) 6 ft Coax High Resolution VGA Mo Title Ingram (Part 2) nitor Cable - HD15 M/M Website Product Headline Connect your VGA monitor with the highest quality connection available Bullet 1 Triple-coaxial + twisted-pair wire for crystal clear display Bullet 2 Impedence matched at 75 Ohms for full brightness and vibrant picture color Bullet 3 Ferrite core eliminates EMI interference Bullet 4 Molded connector ends with strain relief Marketing Copy Applications - Ideal for high resolution monitors (1920x1200 and above)
- Connect any VGA display to a VGA source
- Connect a high resolution display to a Desktop PC or video switch, up to 6 feet away
Website Search Keyword VGA Male Male Related Products - MXT101HQ
- MXT105MMHQ
- MXT105HQ
- MXT101HQ_25
Cable Length (mm) 1829.27 Cable OD 9 Color Black Humidity 0 - 80 %RH Operating Temperature 0 to 60 °C Product Length (mm) 1829.27 Product Weight (g) 280 Storage Temperature -20 to 80 °C TAA Compliant No Wire Gauge 28 AWG Impedance (Ohm) 75 Ohm Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Nickel Fire Rating CMG Rated (General Purpose) Number of Conductors 14 Number of Ferrites 1 Regulatory Approvals UL2919 Carton Depth (mm) 407 Carton Height (mm) 275 Carton Quantity 60 Carton Weight Gross (g) 16800 Included in Package - 1 - 6 ft Coax High Resolution VGA Monitor Cable - HD15 M/M

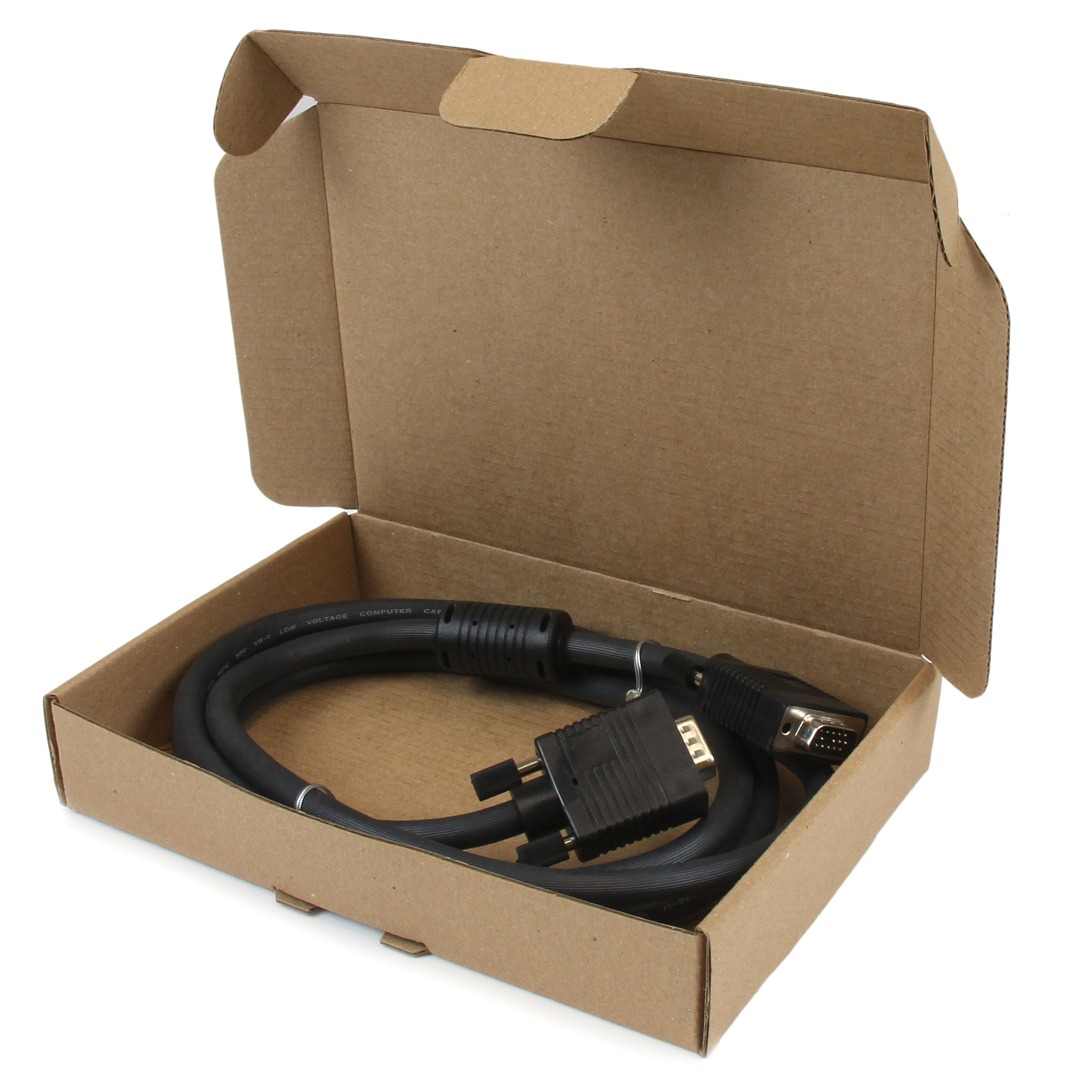

- 2 - Nuts
Package Depth (mm) 15 Package Height (mm) 210 Package Width (mm) 200 Package Weight (g) 280 Packaging Description Coax High Res VGA Monitor Cable HD15 M/M Packaging Description India Coax High Res VGA Monitor Cable HD15 M/M Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Keith Rodrigues
