Main Image
MXTMMHQ3M

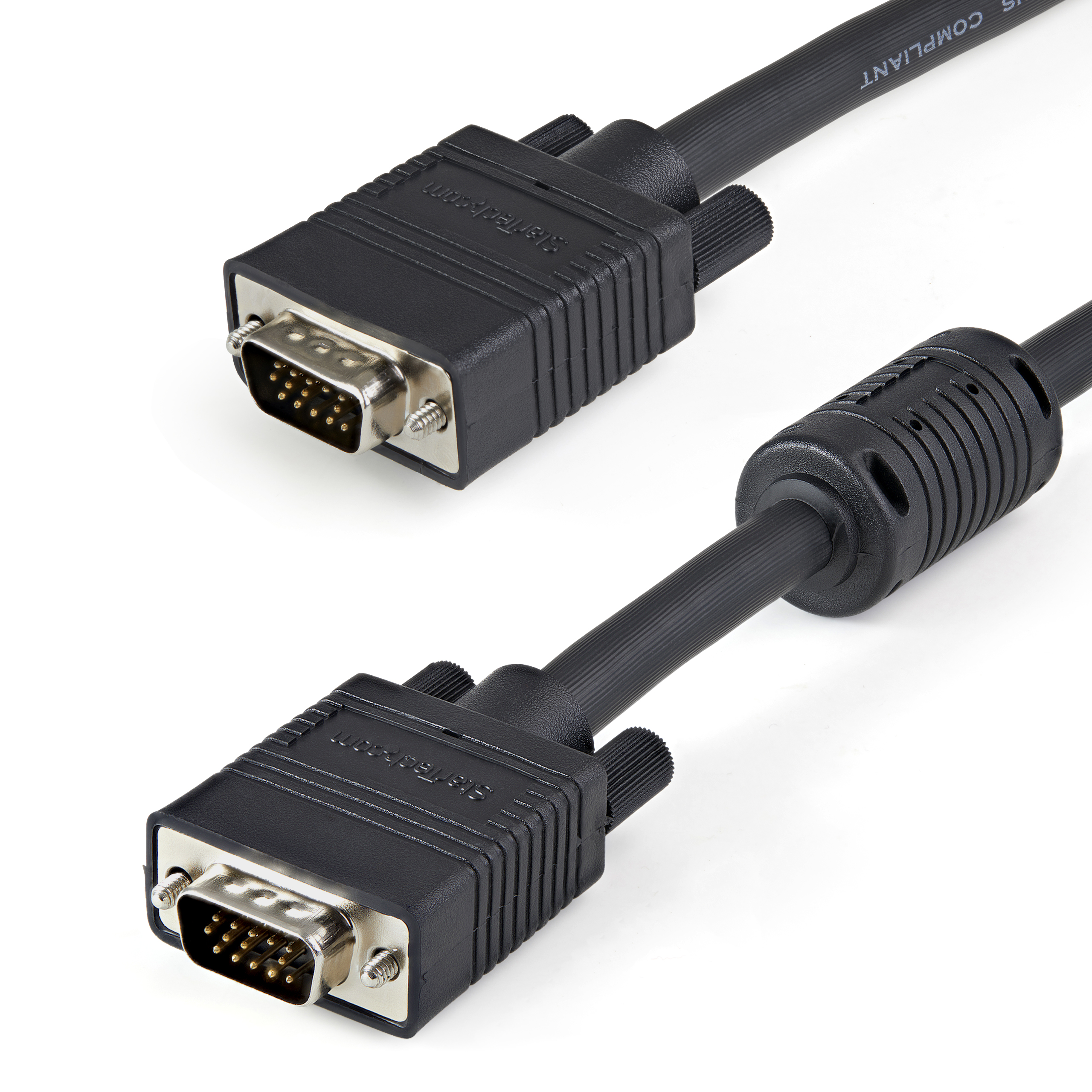

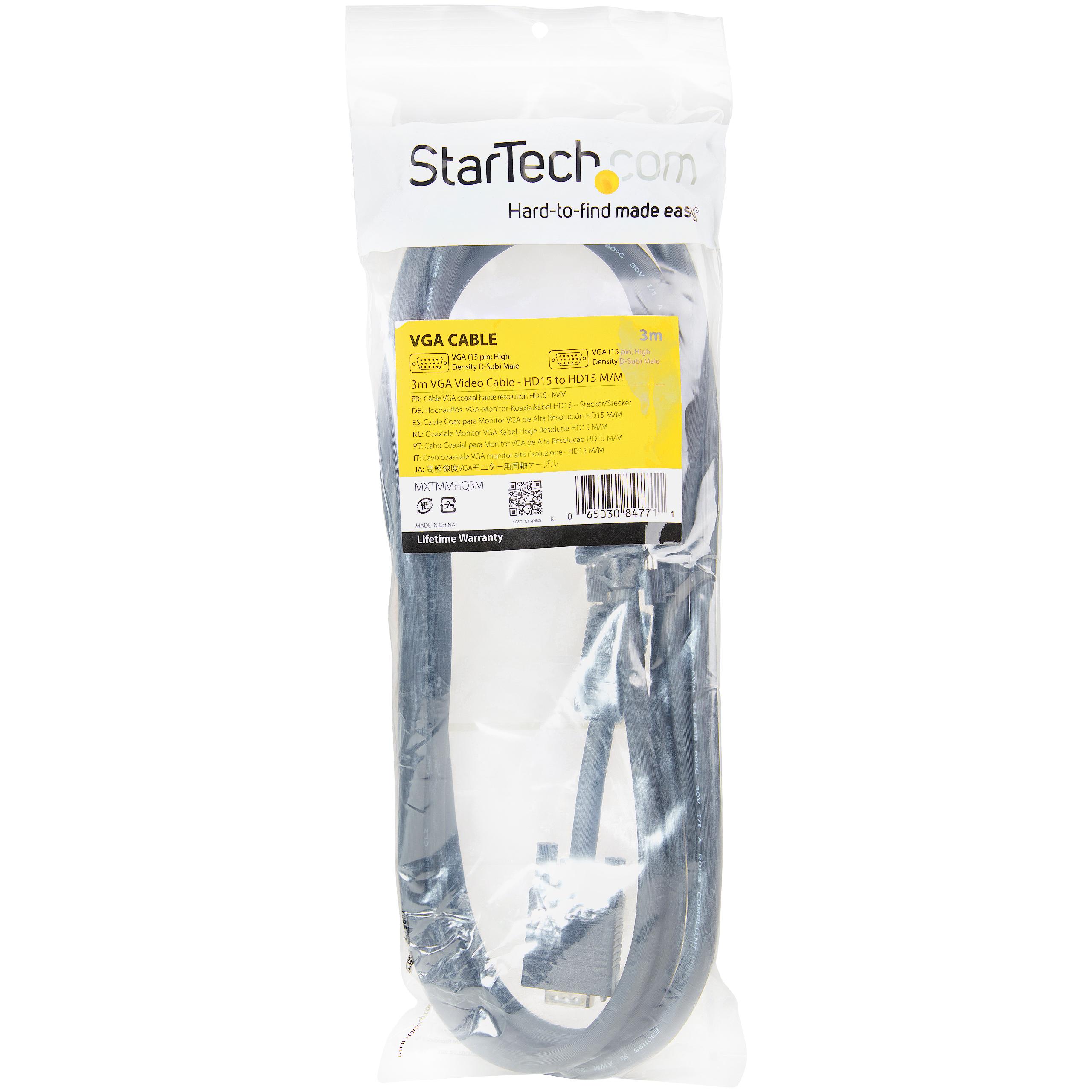

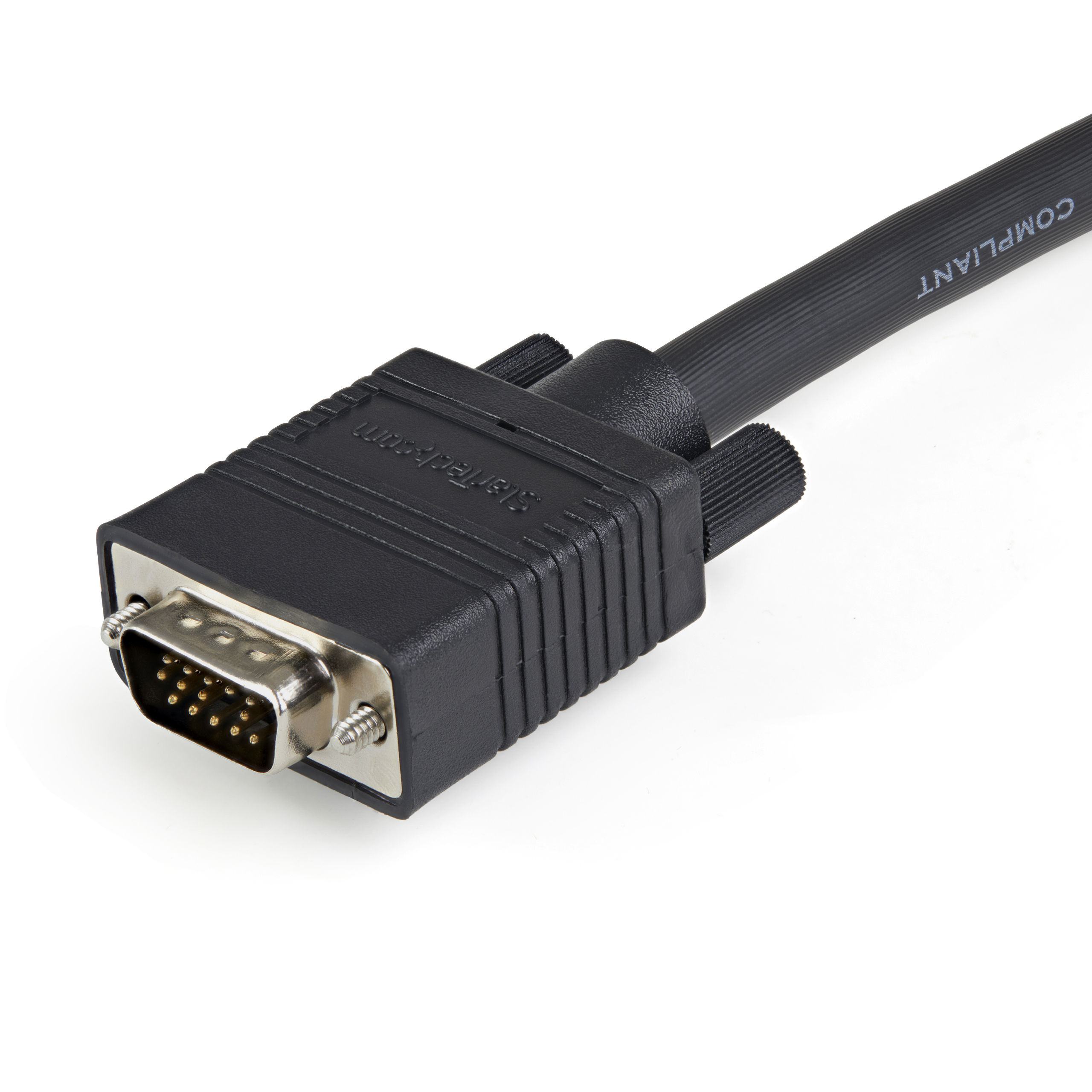

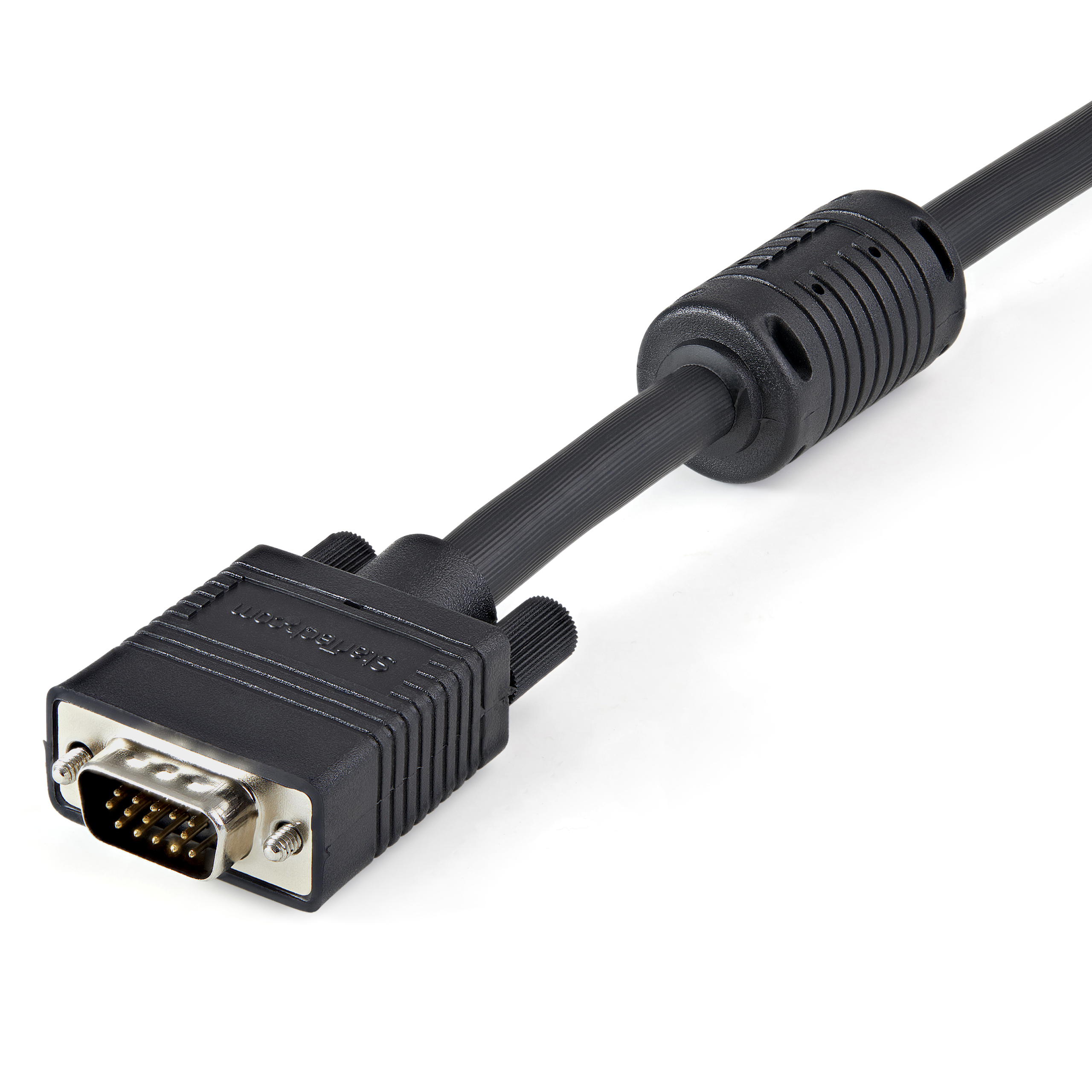

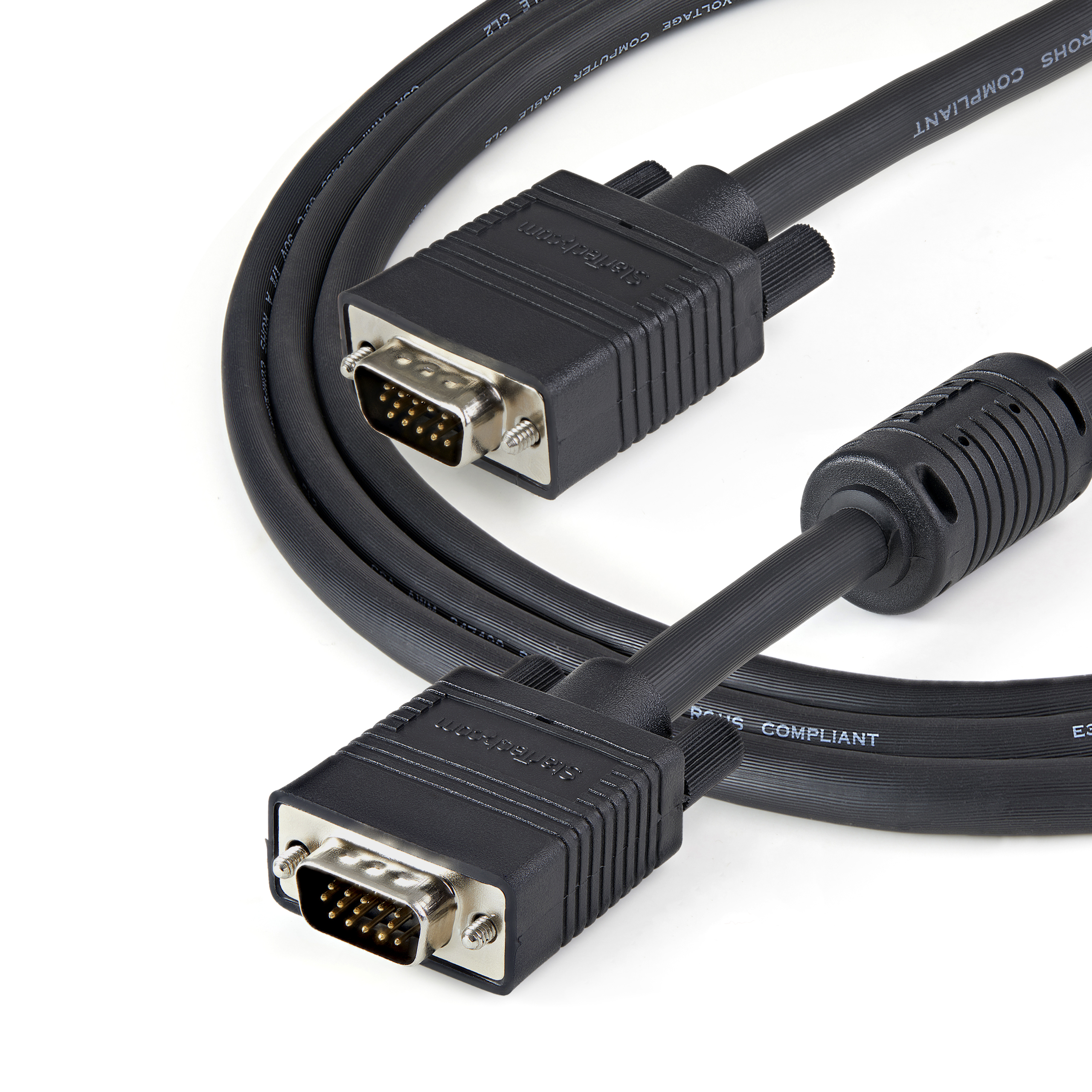

3m VGA Video Cable HD15 to HD15 M F 3 Meters
Connect your VGA monitor with the highest quality connection available
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 3m VGA Video Cable HD15 to HD15 M F 3 Meters Product Number MXTMMHQ3M UPC 065030847711 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Video Cables Category Level 1 Cables - Other Category Level 2 DVI, VGA, Audio Cables Category Level 3 VGA Cables - High Res Family VGA Cable Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Ultra-Short) 3m Monitor VGA Cable Product Title (Short) 3m Monitor VGA Video Cable HD15 to HD15 Product Title (Medium) x Product Title (Standard) 3m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M Product Title (Long) 3m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M Product Title (AMZ) 3m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M - 3 meter VGA Cable - 3m VGA Cable (MXTMMHQ3M) Title Ingram (Part 1) 3m VGA Video Cable - HD15 to HD1 Title Ingram (Part 2) 5 M/F 3 Meters Website Product Headline Connect your VGA monitor with the highest quality connection available Bullet 1 Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor Bullet 2 High quality VGA connectors with molded PVC strain relief Bullet 3 Triple coaxial + twisted-pair wire for crystal clear display Bullet 4 Durably constructed cable, with high quality HD15 connectors Bullets (Consolidated) Connect your VGA monitor with the highest quality connection available - 3m vga cable - vga video cable - vga monitor cable - hd15 to hd15 cable - 3 meter vga cable Marketing Copy Applications - Replace a worn-out or missing VGA monitor cable with this high quality, coax VGA cable
- Supports high resolution VGA monitors (1920x1200)
Website Search Keyword - 15pin RGB
- Coax VGA
- High Resolution
- LCD Cable
- Monitor Cable
- VGA Male Male
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - GC1515MFRA1
- GC15HSF
Related Products - MXTMMHQ15M
- MXTMMHQ20M
- MXTMMHQ10M
- MXTMMHQ1M
- MXTMMHQ50CM
- MXTMMHQ25M
- MXTMMHQ2M
- MXTMMHQ5M
Cable Length (mm) 3000 Color Black Humidity 0 - 80 %RH Operating Temperature 0 to 60 °C Primary Material Plastic Product Length (mm) 3000.000 Product Width (mm) 33.000 Product Height (mm) 15.000 Product Weight (g) 377.000 Storage Temperature -20 to 80 °C TAA Compliant No Wire Gauge 28 AWG Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Nickel Fire Rating CMG Rated (General Purpose) Number of Conductors 14 Number of Ferrites 1 Carton Depth (mm) 364 Carton Height (mm) 272 Carton Quantity 50 Carton Weight Gross (g) 20680 Included in Package 1 - 3m Coax High Resolution Monitor VGA Cable - HD15 M/M Included In Package for Label 1 - 3M Coax High Resolution Monitor VGA Cable - Hd15 M/M Number of Sub-Cartons 5 Package Depth (mm) 133 Package Height (mm) 49 Package Width (mm) 338 Package Quantity 1 Package Weight (g) 382 Packaging Description Coax High Resolution VGA Monitor Cable Packaging Description India Coax High Resolution VGA Monitor Cable Sub-Carton Depth (mm) 173 Sub-Carton Height (mm) 209 Sub-Carton Width (mm) 378 Sub-Carton Quantity 10 Sub-Carton Weight (g) 3748 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
