N2-M2-SSD-DUPLICATOR
USB C 10Gbps to M 2 NVMe or SATA 2 5 Adapter with Dupl

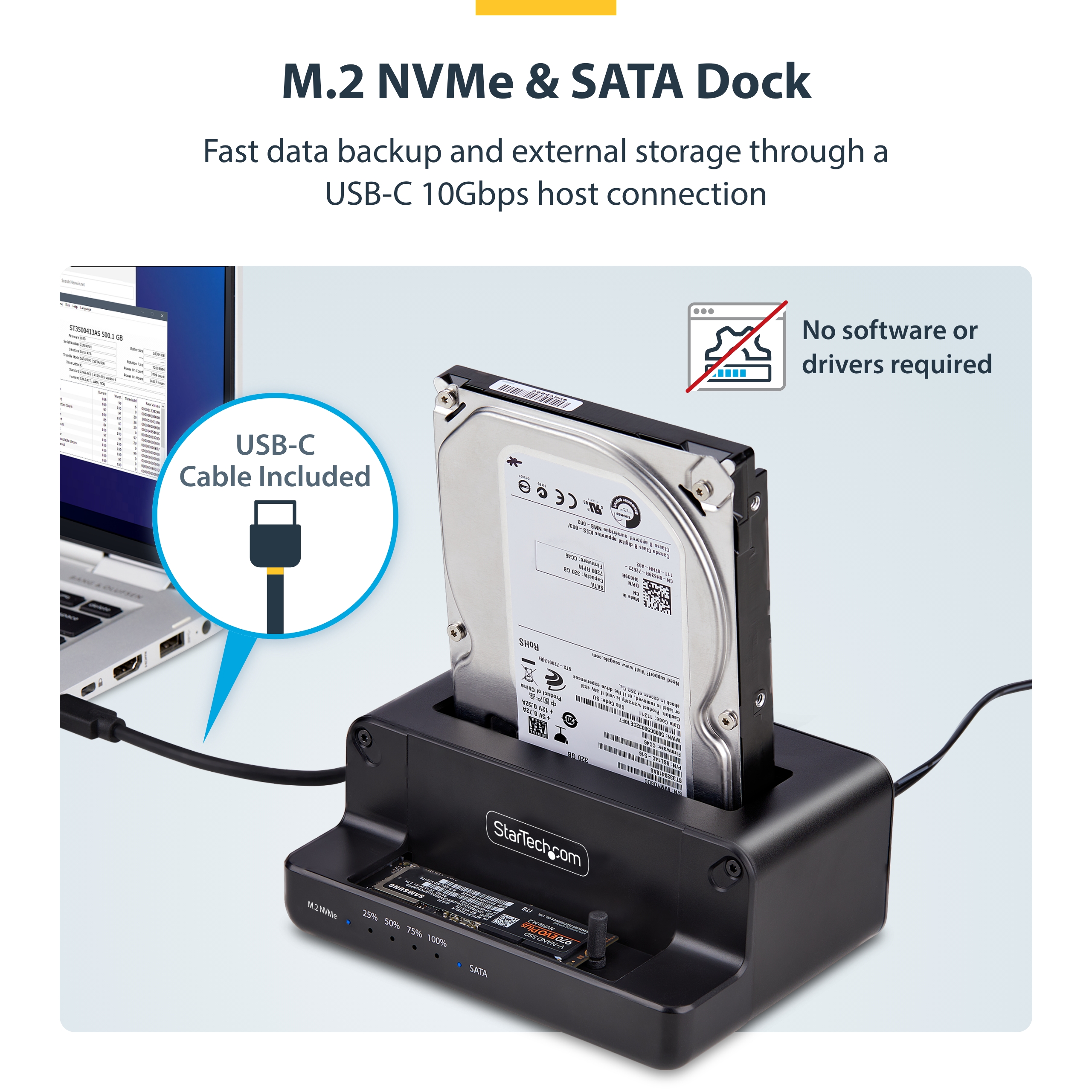

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name USB C 10Gbps to M 2 NVMe or SATA 2 5 Adapter with Dupl Product Number N2-M2-SSD-DUPLICATOR UPC 065030904728 Lifecycle status Active Warranty 2 Years Weighted Opportunity 80592 Taxonomy Product > Cards & Adapters > Duplicators and Erasers Category Level 1 Data Storage Category Level 2 Drive Duplicators and Erasers Category Level 3 Drive Duplicators and Erasers - M.2 NVMe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX129X Product Title (Ultra-Short) NVMe to SATA Cloner Product Title (Short) M.2 NVMe to 2.5/3.5" SATA Duplicator Product Title (Medium) M.2 NVMe to 2.5/3.5" SATA Drive Duplicator, Dual Bay Standalone Cloner/Drive Dock Product Title (Standard) M.2 NVMe to 2.5/3.5" SATA Drive Duplicator, Dual Bay Standalone Cloner/Dock, Bidirectional NVMe to SATA/SATA to NVMe, TAA Product Title (Long) M.2 NVMe to 2.5/3.5" SATA Drive Duplicator, Dual Bay Standalone SSD Cloner/Drive Dock, Bidirectional NVMe to SATA / SATA to NVMe, Up to 27GBpm, TAA Product Title (AMZ) M.2 NVMe to 2.5"/3.5" SATA Drive Duplicator, Dual Bay Standalone Cloner/Drive Dock, 27GB/min, NVMe to SATA / SATA to NVMe, TAA Title Ingram (Part 1) Dual Bay Standalone SSD Cloner Title Ingram (Part 2) M.2 NVMe to 2.5/3.5 SATA Duplicator Website Product Headline Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB Bullet 1 STANDALONE BIDIRECTIONAL CLONING: Copy an M.2 NVMe drive to a 2.5/3.5" SATA SSD/HDD, or clone from a SATA drive to M.2 NVMe without the need for a computer; Up to 27GB/min sector-by-sector duplication copies the entire drive; Works with any file format Bullet 2 M.2 NVME AND SATA DOCK: USB 10Gbps (USB 3.2) host connection enables external access and storage for M.2 NVMe and SATA SSD/HDDs; Perform data transfer without installing the drives internally; Supports up to SATA III (6Gbps) and PCIe Gen3x2 (7.8Gbps) Bullet 3 COMPACT & USER-FRIENDLY: Small form factor requires minimal desktop or storage space; LEDs indicate power, drive activity, and progress; Top-loading design promotes greater passive cooling for optimal performance Bullet 4 WIDE COMPATIBILITY: No drivers or software required; Toaster-style SATA drive bay fits all standard 2.5/3.5" SATA drives; M.2 NVMe slot supports 2242, 2260, & 2280 types; Supports 4Kn sector sizes; Target disk must be equal to or larger than source disk Bullet 5 APPLICATIONS: Seamlessly clone data from legacy SATA drives to M.2 NVMe; Backup data from M.2 NVMe to a SATA SSD/HDD; Ideal for hardware upgrades, IT system imaging and deployments, support tasks, and routine maintenance; USB-C Cable is included Bullets (Compact) Copy an M.2 NVMe drive to a 2.5/3.5in SATA SSD/HDD, or clone a SATA drive to M.2 NVMe without a computer; Sector-by-sector whole drive duplication; Up to 27GBpm; USB 10Gbps host connection; Progress/Status/Power LEDs; No drivers/software required Bullets (Consolidated) Copy an M.2 NVMe drive to a 2.5/3.5in SATA SSD/HDD, or clone from a SATA drive to M.2 NVMe without a computer - Sector-by-sector duplication copies the entire drive up to 27GBpm; Works with any file format - USB 10Gbps (USB 3.2) host port for fast data transfer - No drivers/software required; Progress/Status/Power LEDs - Toaster-style SATA drive bay supports any 2.5/3.5in SATA drive; M.2 NVMe slot fits 2242/2260/2280 sizes; Target drive must be equal to (or larger than) the source drive Marketing Copy Marketing Copy (No HTML) Applications - Enable quick drive access to M.2 NVMe and SATA SSDs/HDDs over a 10Gbps USB-C host connection
- Standalone Duplicator function is ideal for instant data backup, drive re-imaging, or deployments

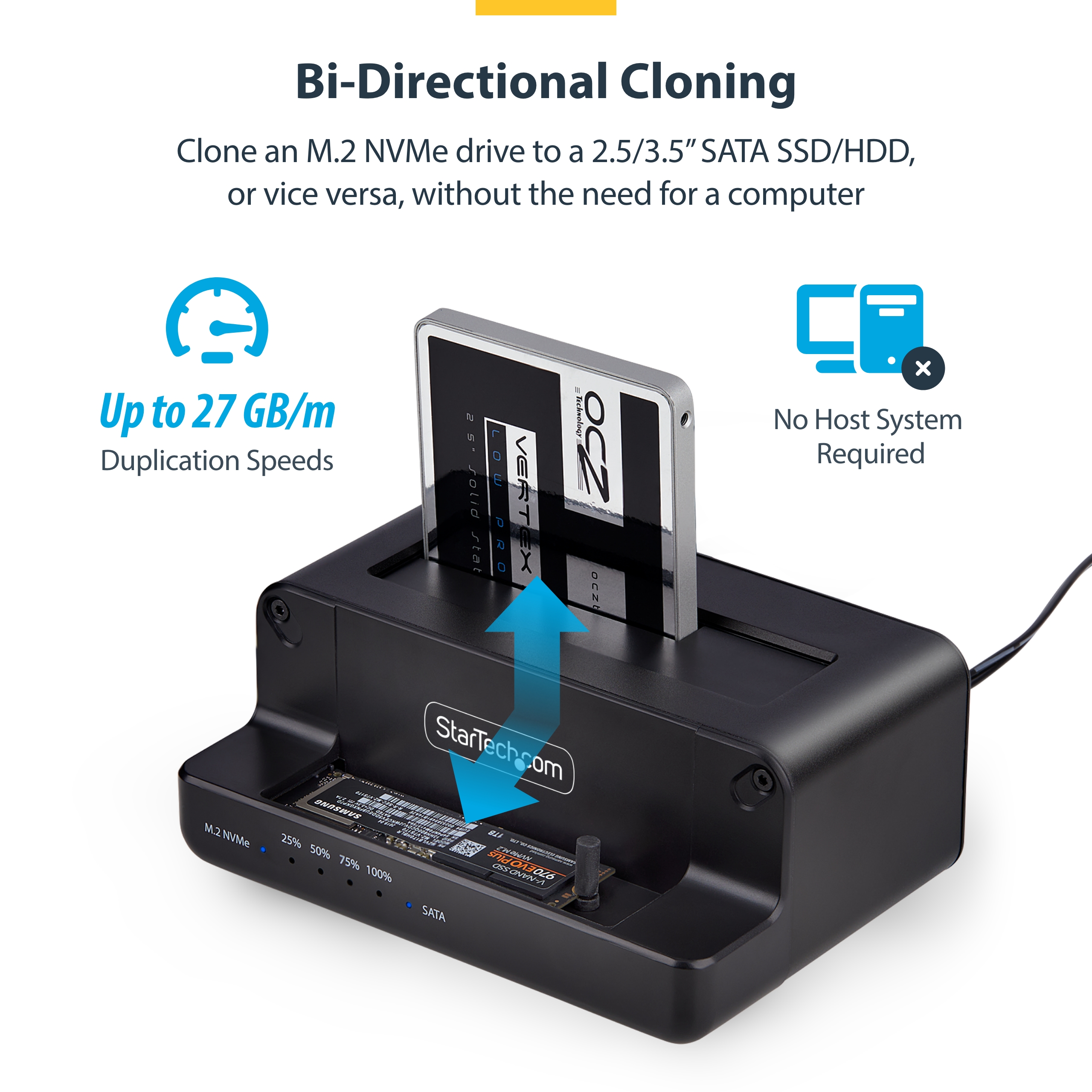

- Clone data from legacy SATA drives to M.2 NVMe
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - For duplication, the target drive must be of equal or greater size than the source drive.
- Actual duplication speed will vary based on drive model, algorithm, and other factors. Results may vary.
Input Current 1.5A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 0.1W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1000 Color Black Humidity 10% ~ 85% RH Material ABS Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 135 Product Width (mm) 100.000 Product Height (mm) 55.000 Product Weight (g) 308 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes 4Kn Support Yes Duplication Modes Sector by Sector (Whole Drive) Hot Swap Capability Yes OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 10Gbps Bus Type - PCI Express
- USB-C

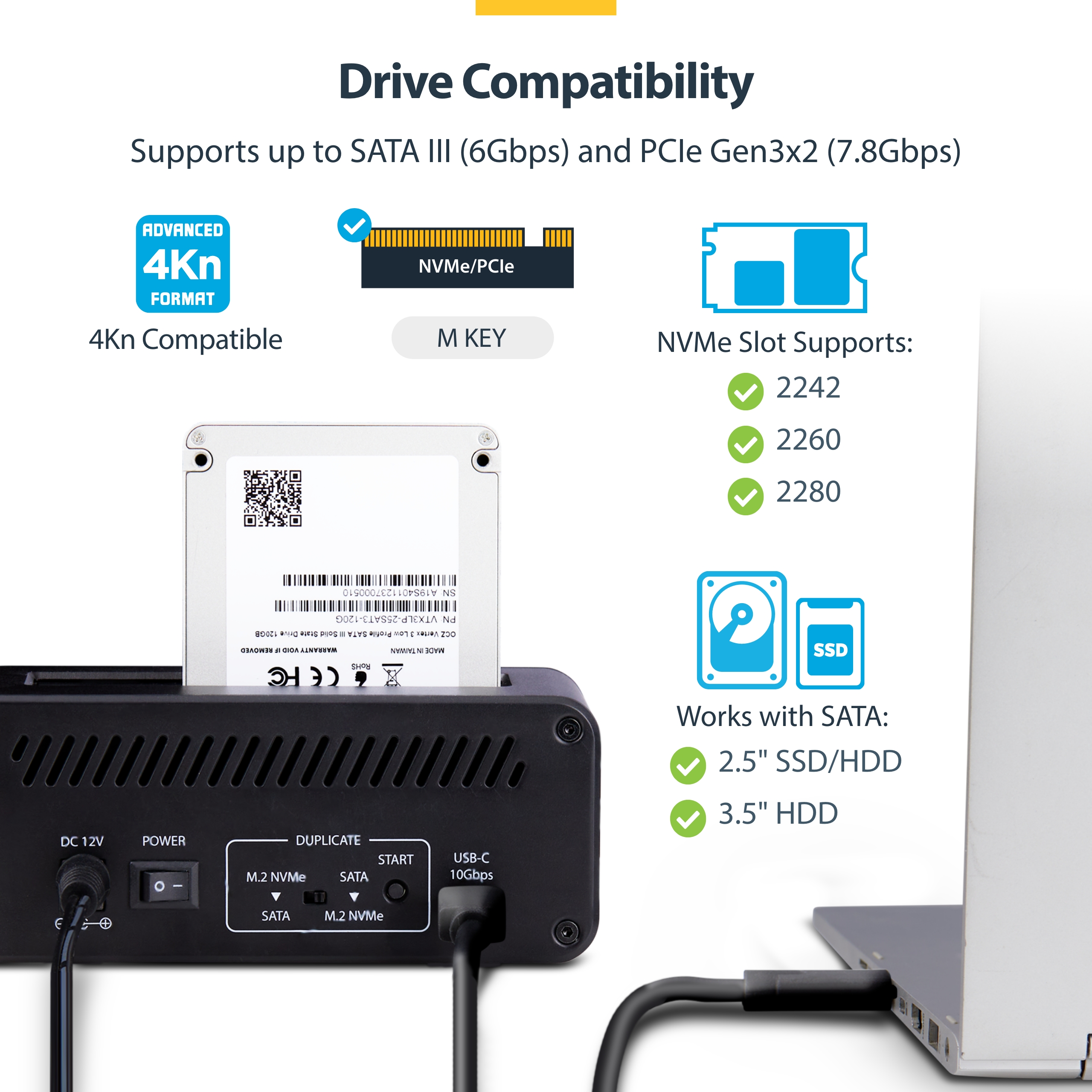

Chipset ID JMS581D Compatible Drive Types - M.2 (PCIe, NVMe, M-Key, NGFF)
- SATA

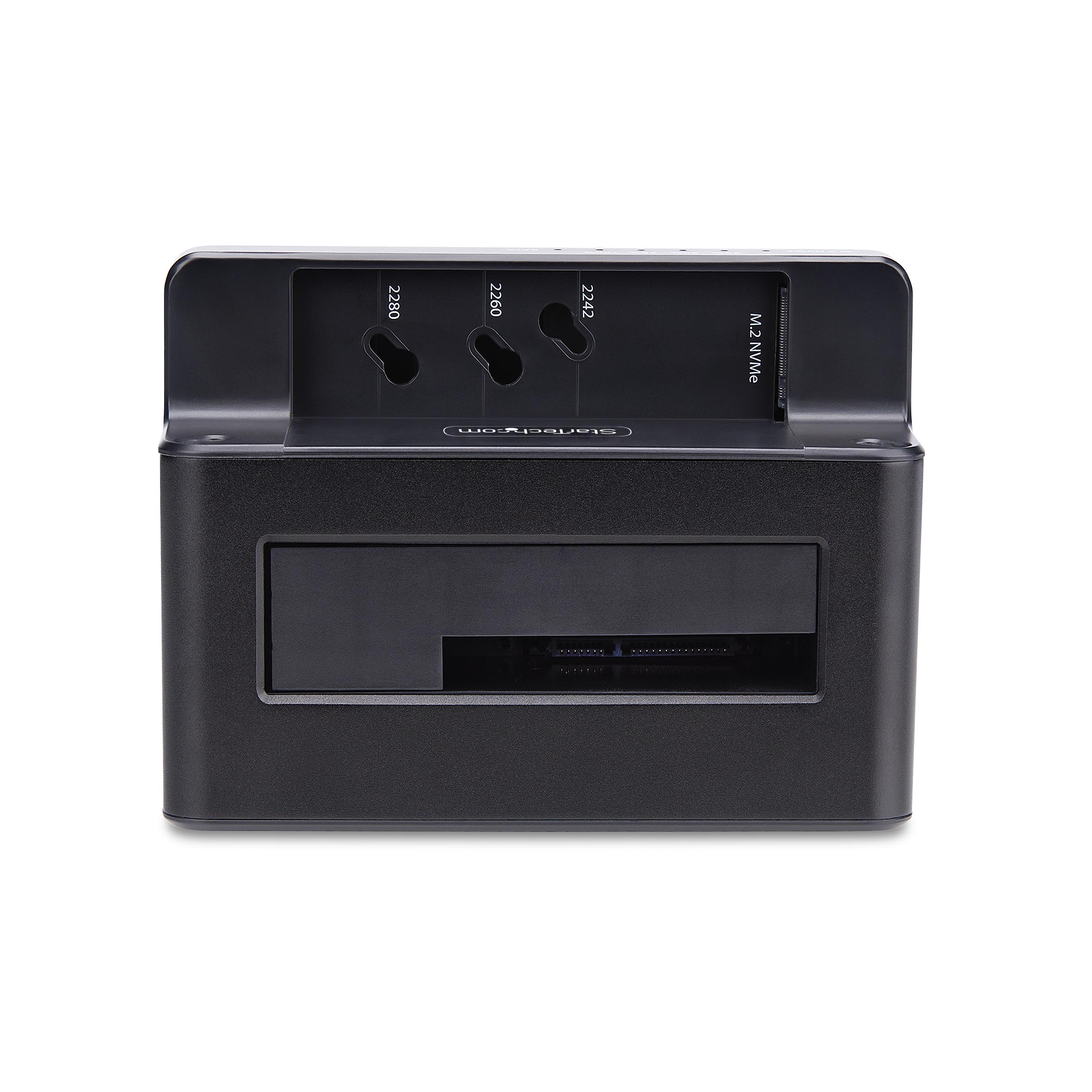

Fans Included? Yes/No No LED Indicators Number of Drives 2 Supported Drive Height(s) - 2242
- 2260
- 2280

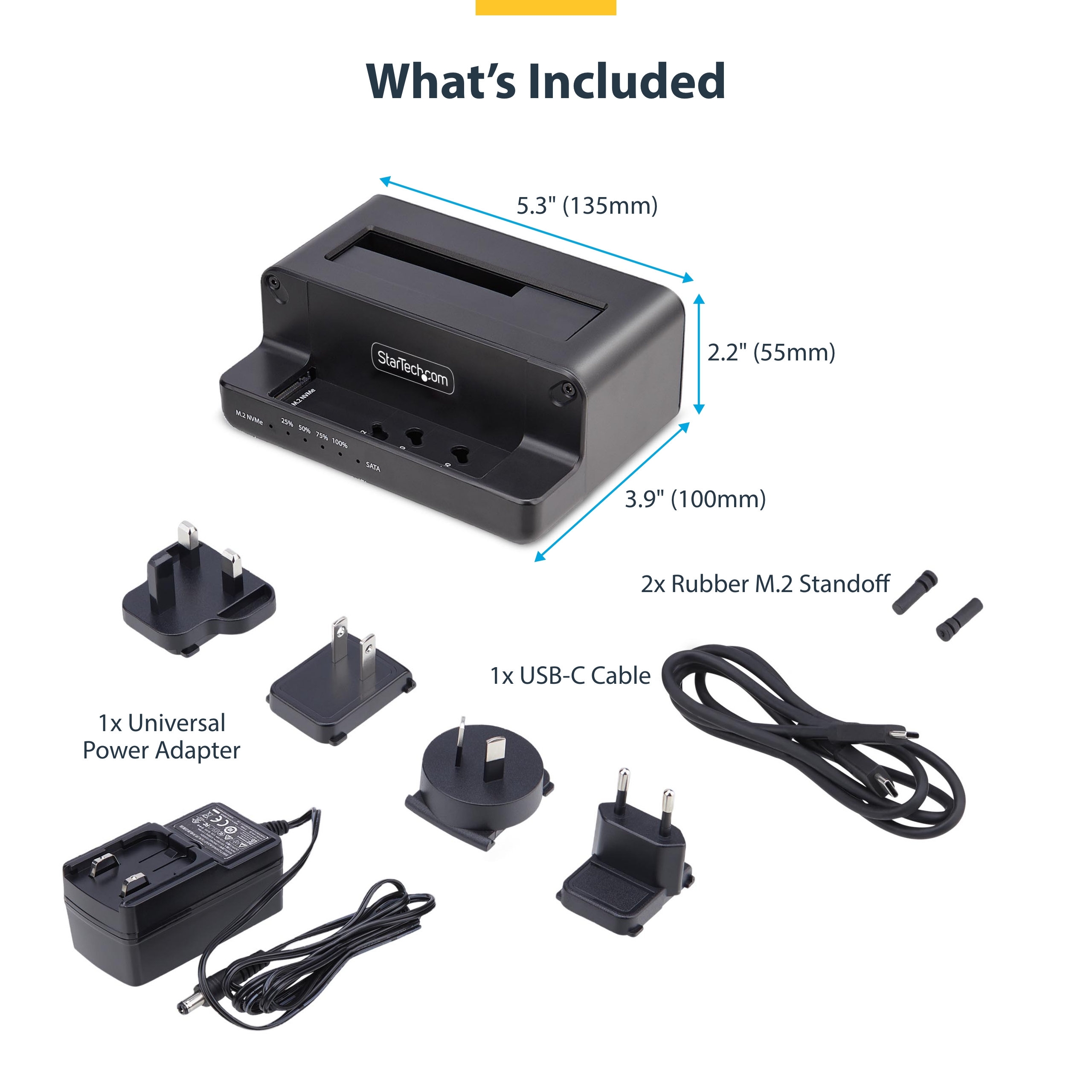

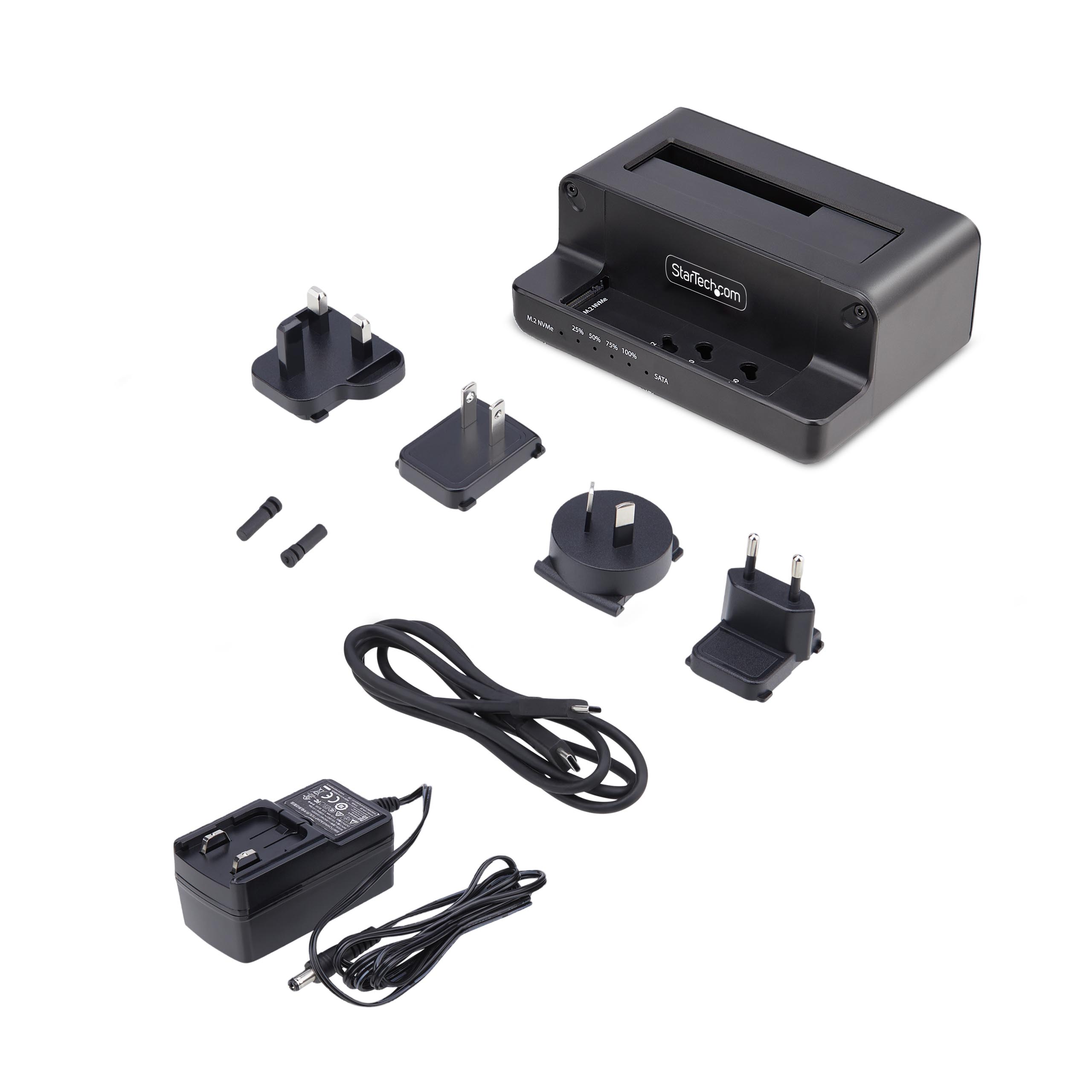

Carton Depth (mm) 510 Carton Height (mm) 255 Carton Quantity 20 Carton Weight Gross (g) 12750 Included in Package - 1 - M.2 NVMe/SATA Duplicator Dock
- 1 - USB-C Cable
- 2 - Rubber M.2 Standoff
- 1 - Power Adapter (NA/JP, UK, EU, ANZ)
- 1 - Quick-Start Guide
