NETRS232
Cost-effective 1-Port RS-232 Serial Device Server
A cost-effective way to connect, configure, and manage a remote RS-232 serial device over an IP network
Main Image
Product Images
BOM Image
Product Name Cost-effective 1-Port RS-232 Serial Device Server Product Number NETRS232 UPC 065030857161 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Family Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX018X Product Title (Ultra-Short) Serial Device Server Product Title (Short) 1 Port RS-232 Serial to IP Device Server Product Title (Medium) 1 Port RS-232 Serial to IP Ethernet Device Server - DIN Rail Mountable Product Title (Standard) 1 Port RS-232 Serial to IP Ethernet Device Server - DIN Rail Mountable Product Title (Long) 1-Port Serial-to-IP Ethernet Device Server - RS232 - DIN Rail Mountable Product Title (AMZ) 1 Port RS-232 Serial to IP Ethernet Device Server - DIN Rail Mountable - Serial Device Server - Serial Over IP Device Server (NETRS232) Title Ingram (Part 1) 1Port Ethernet to Serial Device Title Ingram (Part 2) Server - Serial Over IP Adapter Website Product Headline A cost-effective way to connect, configure, and manage a remote RS-232 serial device over an IP network Bullet 1 Supports Telnet, for OS independent communication, perfect for Windows, Mac, and Linux® users Bullet 2 Supports VCOM, TCP Server, TCP Client, UDP, HTTP, DHCP, ICMP(PING), Static IP, ARP Bullet 3 Redundant and flexible power input using the included power adapter, or 10~30V DC terminal block input Bullet 4 A compact, cost-effective, serial-over-IP solution that includes a DIN rail mounting bracket Bullet 5 Configurable using the software utility (Windows only), or web browser Bullets (Consolidated) Connect to configure and remotely manage an RS-232 serial device over an IP network - Serial to IP Ethernet Device Server - DIN Rail Mountable - Serial Device Server - Serial Over IP Device Server - Serial Over Ethernet - RS232 Serial to IP Converter - Serial Port Server - Solid housing design w/ DIN Rail mounting bracket Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, serial printers)
- Security (UPS control, access key panels, video cameras, card readers)
- Environmental control (lighting, temperature, clocks)
- POS (credit/debit card readers, receipt printers, cash registers, scales)
- Integrate the cost-effective serial device server into mixed OS environments
Website Search Keyword - serial device server
- rs232 device server
- rs-232 device server
- serial over ip device server
- serial to ip device server
- serial to ethernet
- serial over ethernet
- serial server
- serial to ip
- rs232 over IP
- netrs232
- NETRS232
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - M45PATCH50BL
- 45PATCH10BK
- GC9SF
- SCNM9FF
- SCNM9FM
- AT925FM
- M45PATCH100B
- 45PATCH6BK
- M45PATCH25BK
- M45PATCH100K
- M45PATCH50BK
Related Products - NETRS2321E
- NETRS232485
- NETRS232485W
- NETRS42348PD
- NETRS2321P
- NETRS2321POE
- NETRS232_4
- NETRS232_2
Constrained SKU Alternatives (Limited Stock) NETRS2322P Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 1.2 A Output Voltage (V) 12V DC Power Consumption (In Watts) 14.4 Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Black Humidity 0~90% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 95.000 Product Width (mm) 55.000 Product Height (mm) 22.000 Product Weight (g) 68.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100 Mbps Data Bits 5, 6, 7, 8 Flow Control RTS/CTS, None Max Baud Rate 230.4 Kbps OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows Server 2016
- Windows 10
- Windows Server 2019
- Linux
- Windows 11
- Windows Server 2022
Parity None, Even, Odd, Space, Mark Remote Management Ability Yes Stop Bits 1, 1.5, 2 Supported Protocols VCOM, TCP Server, TCP Client, UDP, HTTP, DHCP, ICMP(PING), Static IP, ARP, Telnet Supported Serial Protocol RS-232 Surge Protection 15KV ESD (Electrostatic Discharge) Protection Industry Standards IEEE 802.3, IEEE 802.3u Interface/Bridge Serial LED Indicators - 1 - Power
- 1 - Tx
- 1 - Rx
- 1 - 10/100Mbps LAN
- 1 - Link/Activity

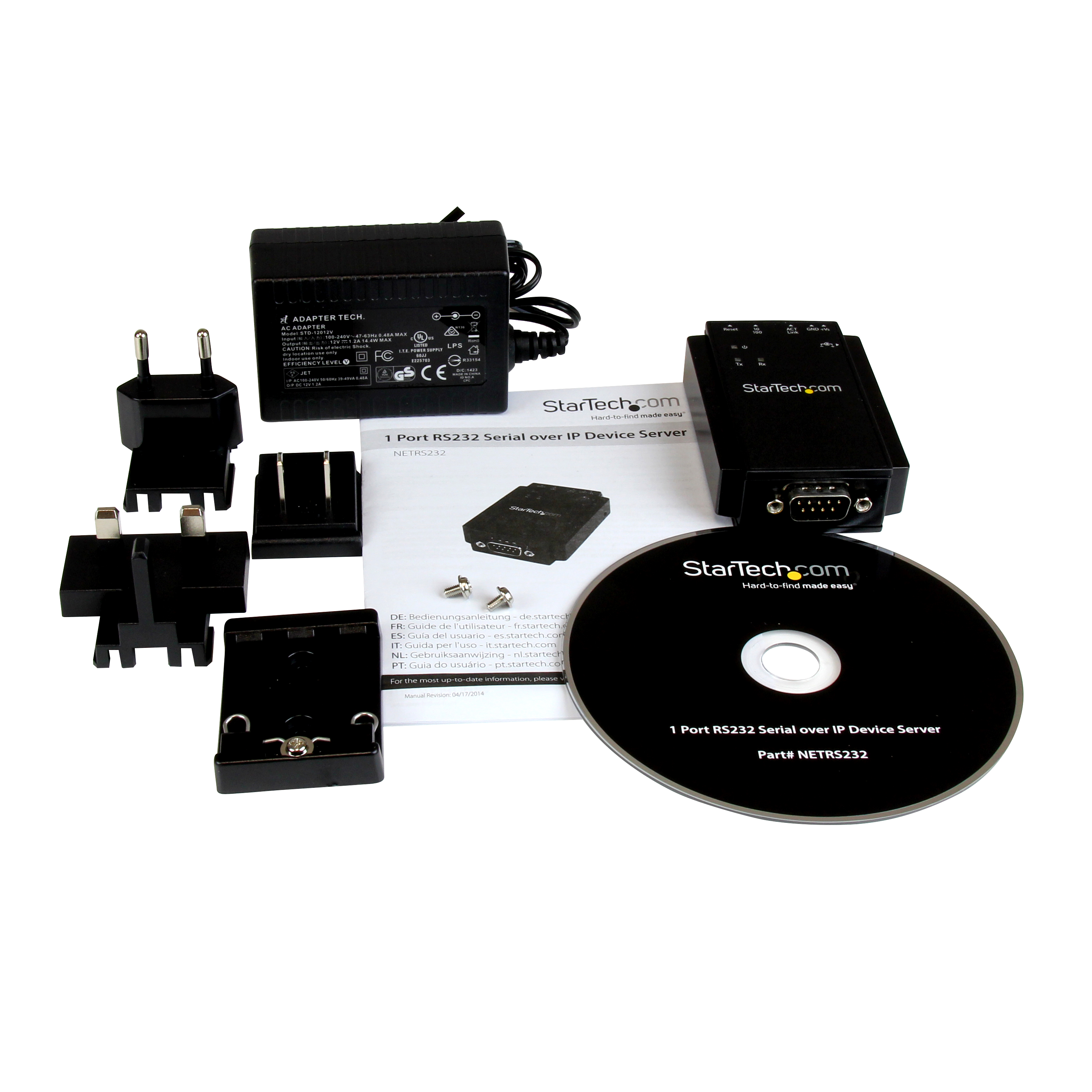

Carton Depth (mm) 330 Carton Height (mm) 274 Carton Quantity 12 Carton Weight Gross (g) 5984 Included in Package - 1 - Serial over IP Device Server
- 1 - Instruction Manual
- 1 - Software CD
- 1 - DIN Rail Kit
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Terminal Block
Package Depth (mm) 158 Package Height (mm) 80 Package Width (mm) 180 Package Quantity 1 Package Weight (g) 450 Packaging Description 1 Port RS232 Serial over IP Device Server Packaging Description India 1 Port RS232 Serial over IP Device Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-03-06 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
