NETRS2321E
1-port RS-232/422/485 Over IP Adapter
Connect to, configure and remotely manage a serial device over an IP network or the internet
Main Image
Product Images
Product Images
BOM Image
Product Name 1-port RS-232/422/485 Over IP Adapter Product Number NETRS2321E UPC 065030825290 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) RS232/422/485 Serial Device Server Product Title (Standard) StarTech.com 1 Port RS-232/422/485 Serial Ethernet Device Server Product Title (Long) 1 Port RS-232/422/485 Serial over IP Ethernet Device Server Product Title (AMZ) 1 Port RS-232/422/485 Serial over IP Ethernet Device Server (NETRS2321E) Title Ingram (Part 1) 1 Port RS-232/422/485 Serial ove Title Ingram (Part 2) r IP Ethernet Device Server Website Product Headline Connect to, configure and remotely manage a serial device over an IP network or the internet Bullet 1 Browser based configuration Bullet 2 Comes complete with software to configure device Bullet 3 Data transfer rates of up to 115.2 Kb/sec per port Bullet 4 Remote Telnet configuration Bullet 5 Wall mountable Bullets (Consolidated) Connect to - configure and remotely manage a serial device over an IP network or the internet - Serial to IP - Serial Device Server - Serial over IP -Ethernet Device Server - 1 Port RS-232/RS-422/RS-485 Serial over IP Ethernet Device Server Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Security (UPS control, access key panels, video cameras, card readers)
- Environmental Control (lighting, temperature, clocks)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Hospital (monitoring equipment, nurses' stations)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
Website Search Keyword - Ethernet Adapter
- Serial
- RS232
- RS422
- RS485
- 1 port
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes Virtual COM port is not supported by 64bit Windows Accessory Products - GC9SF
- SC6MF
- SC6MM
- SC10MF
- SCNM9FM
- SCNM9FF
- AT925FM
- M45PATCH100B
- M45PATCH50BL
- SVA9M2NEUA
Related Products - NETRS232_1
- NETRS232_2
- NETRS232_4
Replacement Product NETRS232 Equivalent Part Number in the EU NETRS2321EEU Equivalent Part Number in the UK NETRS2321EGB Input Current 0.2A Input Voltage 115V AC Output Current 0.5A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80%RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 90 Product Width (mm) 90 Product Height (mm) 26 Product Weight (g) 105 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Data Bits 7, 8 Maximum Data Transfer Rate 115.2 Kbps OS Compatibility - Windows 7
- Windows Server 2008 R2
- Windows 8

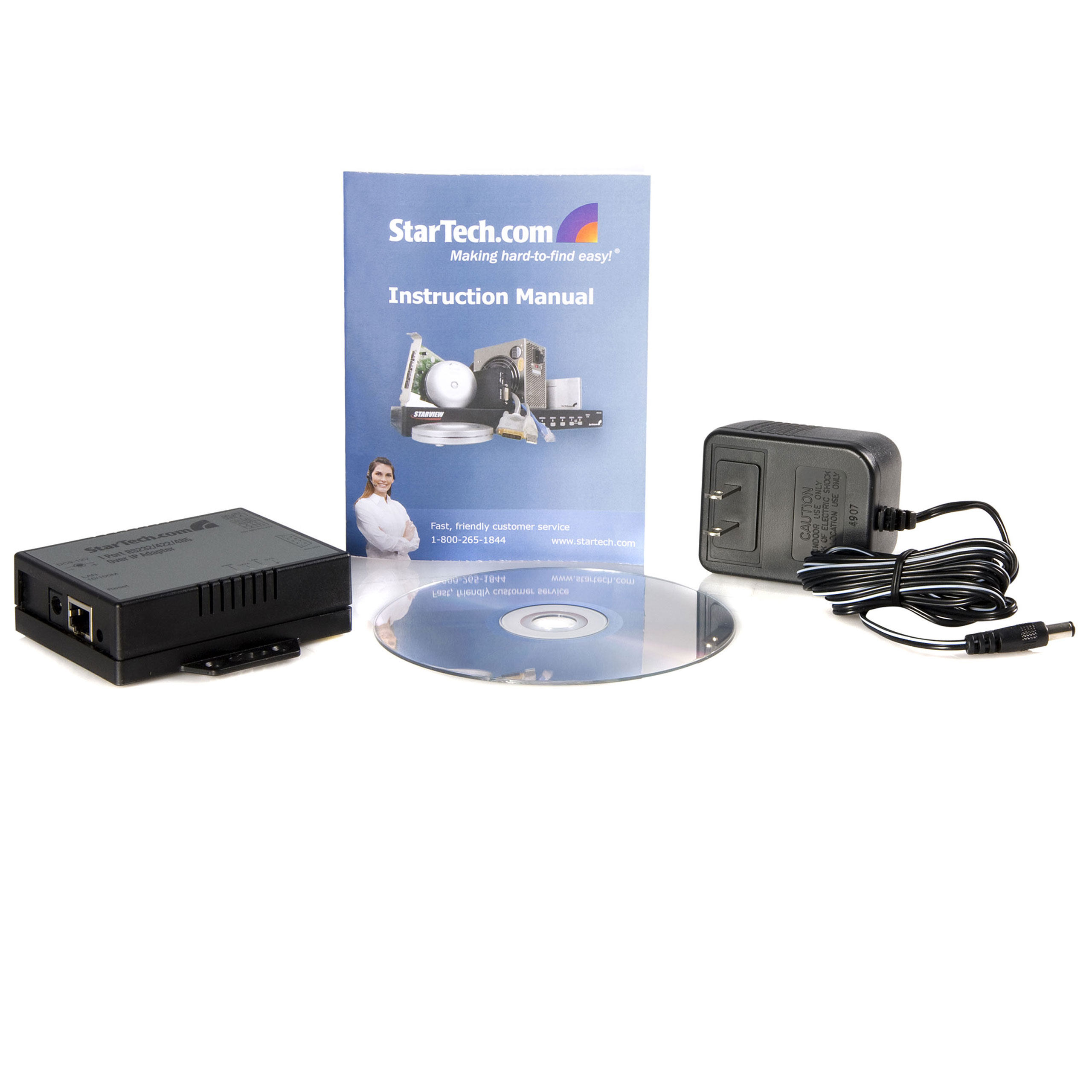

Parity Even, Odd, None Stop Bits 1, 2 Supported Protocols LED Indicators 4 - Power, Data, LAN Link, System Carton Depth (mm) 392 Carton Height (mm) 334 Carton Quantity 30 Carton Weight Gross (g) 13498.8 Included in Package - 1 - 1 port Serial Over IP Adapter
- 1 - Instruction Manual
- 1 - Drive CD
- 1 - Power Adapter
Package Depth (mm) 128 Package Height (mm) 67 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 429.86 Packaging Description RS232/422/485 Serial over IP Device Server Packaging Description India RS232/422/485 Serial over IP Device Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
