NETRS2321EEU

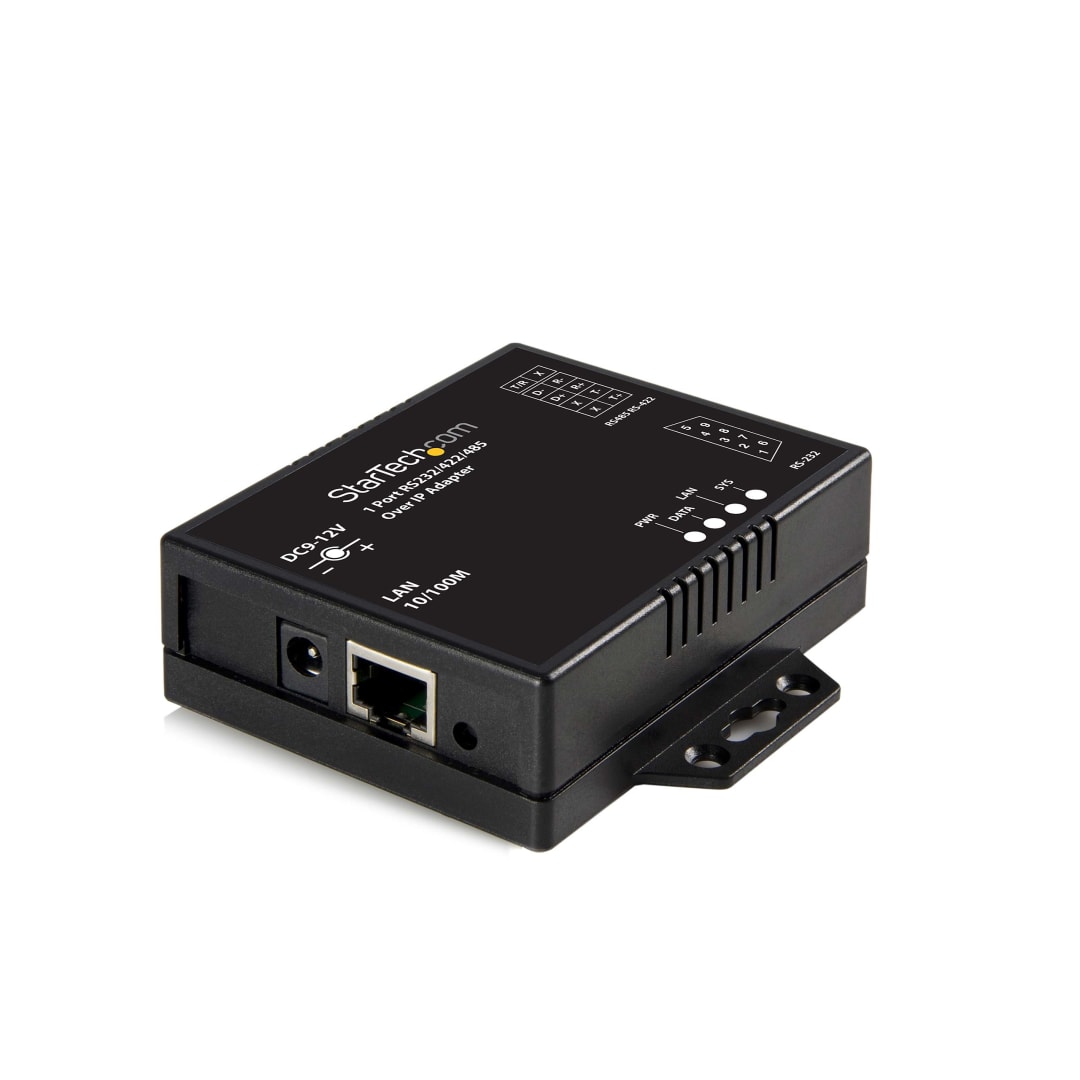

1 port RS-232/422/485 Over IP Adapter
Connect to, configure and remotely manage a serial device over an IP network or the internet
Main Image
Product Images
Product Images
BOM Image
Product Name 1 port RS-232/422/485 Over IP Adapter Product Number NETRS2321EEU UPC 065030833981 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) RS232/422/485 Serial Device Server Product Title (Standard) StarTech.com 1 Port RS-232/422/485 Serial over IP Ethernet Device Server - Serial adapter - Fast Ethernet - RS-232, RS-422, RS-485 - 10Base-T, 100Base-TX Product Title (Long) 1 Port RS-232/422/485 Serial over IP Ethernet Device Server Product Title (AMZ) 1 Port RS-232/422/485 Serial over IP Ethernet Device Server (NETRS2321EEU) Title Ingram (Part 1) 1 Port RS-232/422/485 Serial ove Title Ingram (Part 2) r IP Ethernet Device Server Website Product Headline Connect to, configure and remotely manage a serial device over an IP network or the internet Bullet 1 Browser based configuration Bullet 2 Comes complete with software to configure device Bullet 3 Data transfer rates of up to 115.2 Kbps per port Bullet 4 Remote Telnet configuration Bullet 5 Supports IP, HTTP, ICMP and TCP protocols Marketing Copy Applications - Environmental Control (lighting, temperature, clocks)
- Hospital (monitoring equipment, nurses' stations)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers)
Website Search Keyword - 1 port
- Ethernet Adapter
- RS232
- RS422
- RS485
- Serial
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes Virtual COM port is not supported by Vista Accessory Products - AT925FM
- GC9SF
- M45PATCH100B
- M45PATCH50BL
- SC10MF
- SC6MF
- SC6MM
- SCNM9FF
- SCNM9FM
- SVA9M2NEUA
Related Products NETRS232_1EU Replacement Product NETRS232 Input Current 0.2A Input Voltage 230 AC Output Current 0.5A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80%RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 90 Product Width (mm) 90 Product Height (mm) 26 Product Weight (g) 105 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Compatible Networks 10/100 Mbps Data Bits 7, 8 Max Baud Rate 115.2 Kbps OS Compatibility - Windows 7
- Windows 8

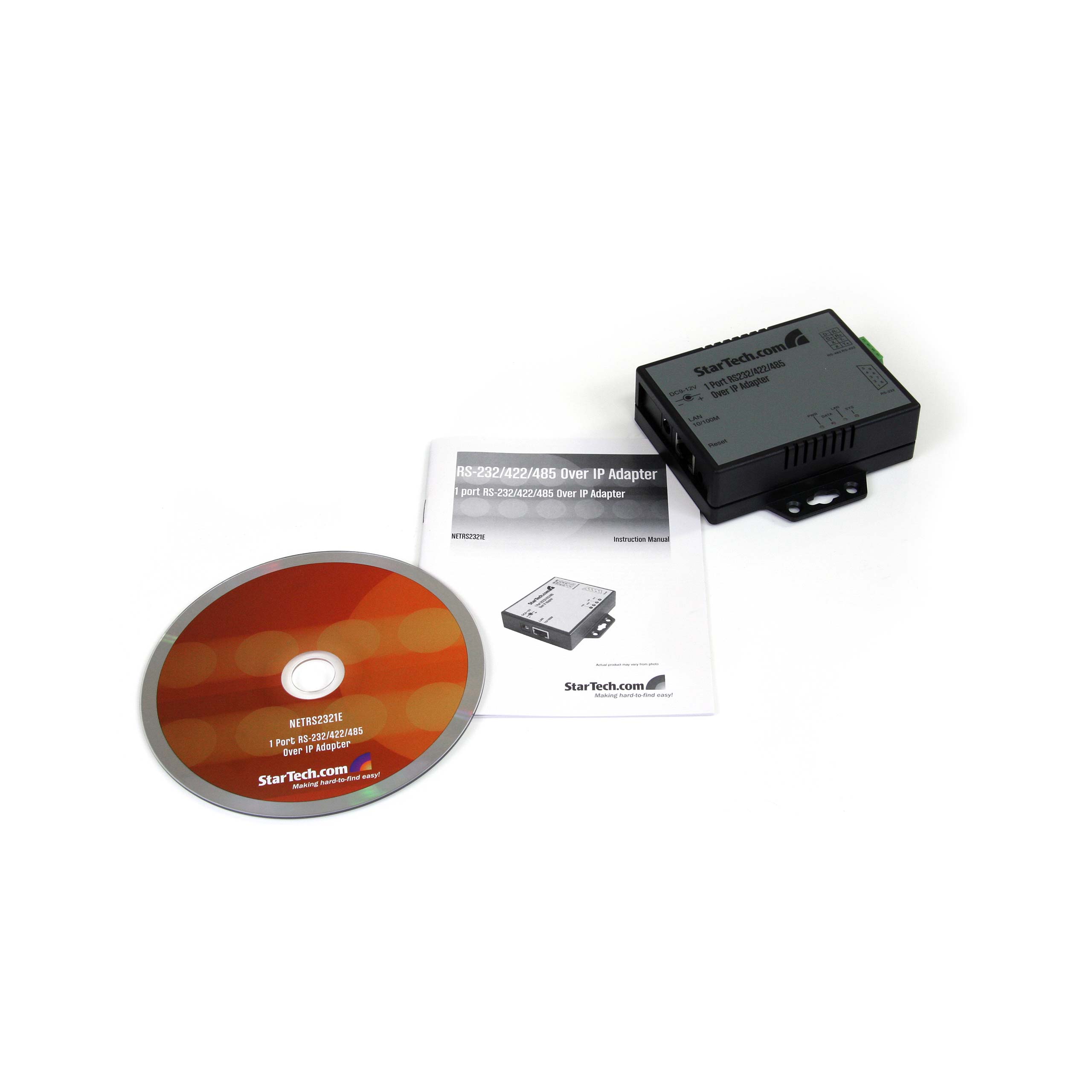

Parity Even, Odd, None Stop Bits 1, 2 Supported Protocols Interface/Bridge Serial LED Indicators 4 - Power, Data, LAN Link, System Carton Depth (mm) 334 Carton Height (mm) 360 Carton Quantity 1 Carton Weight Gross (g) 7200 Included in Package - 1 - 1 port RS-232/422/485 Over IP Adapter
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 126 Package Height (mm) 64 Package Width (mm) 155 Package Quantity 1 Package Weight (g) 200 Packaging Description RS232/422/485 Serial over IP Device Server Packaging Description India RS232/422/485 Serial over IP Device Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
