Main Image
NETRS2321EGB

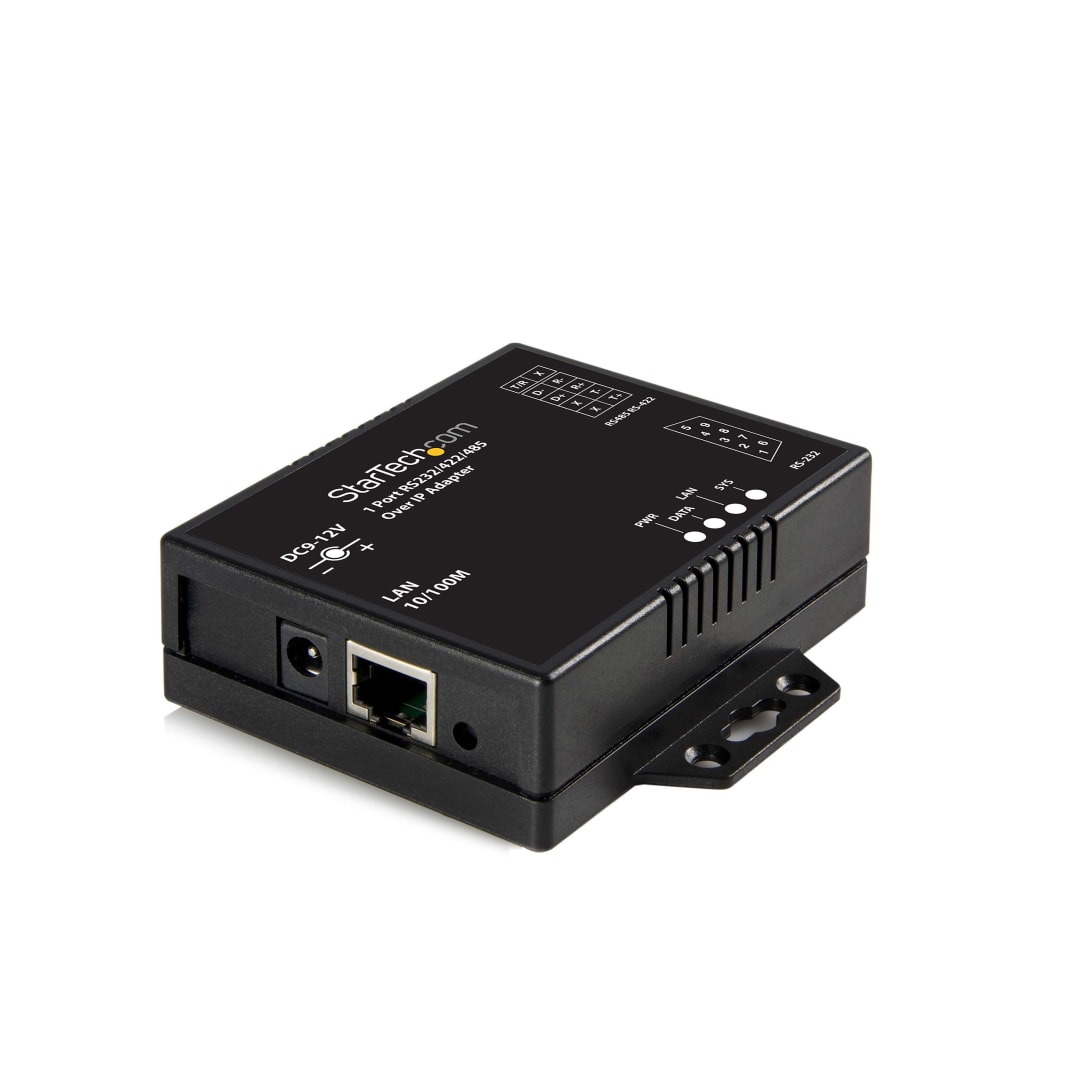

1 Port RS232/422/485 Serial Ethernet Device Server
Connect to, configure and remotely manage a serial device over an IP network or the internet
Main Image
Product Images
Product Images
BOM Image
Product Name 1 Port RS232/422/485 Serial Ethernet Device Server Product Number NETRS2321EGB UPC 065030833974 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) RS232/422/485 Serial Device Server Product Title (Standard) StarTech.com 1 Port RS-232/422/485 Serial over IP Ethernet Device Server Product Title (Long) 1 Port RS-232/422/485 Serial over IP Ethernet Device Server Title Ingram (Part 1) 1 Port RS-232/422/485 Serial ove Title Ingram (Part 2) r IP Ethernet Device Server Website Product Headline Connect to, configure and remotely manage a serial device over an IP network or the internet Bullet 1 Browser based configuration Bullet 2 Comes complete with software to configure device Bullet 3 Data transfer rates of up to 115.2 Kbps per port Bullet 4 Remote Telnet configuration Bullet 5 Wall mountable Marketing Copy Applications - Environmental Control (lighting, temperature, clocks)
- Hospital (monitoring equipment, nurses' stations)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers)
Website Search Keyword - 1 port
- Ethernet Adapter
- RS232
- RS422
- RS485
- Serial
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes Virtual COM port is not supported by 64bit Windows Accessory Products - AT925FM
- GC9SF
- M45PATCH100B
- M45PATCH50BL
- SC10MF
- SC6MF
- SC6MM
- SCNM9FF
- SCNM9FM
Related Products - NETRS232_1
- NETRS232_2
- NETRS232_4
- NETRS232_1GB
- NETRS232_2GB
Replacement Product NETRS232 Input Current 0.2 A Input Voltage 100 - 240 AC Output Current 0.6 A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Plastic Operating Temperature 0 - 60 Product Length (mm) 90 Product Width (mm) 90 Product Height (mm) 26 Product Weight (g) 105 Storage Temperature -10 - 70 TAA Compliant No Data Bits 7, 8 Max Baud Rate 115.2 Kbps Maximum Data Transfer Rate Network - 10/100Mbps (Auto-detect) OS Compatibility - Windows 7
- Windows 8

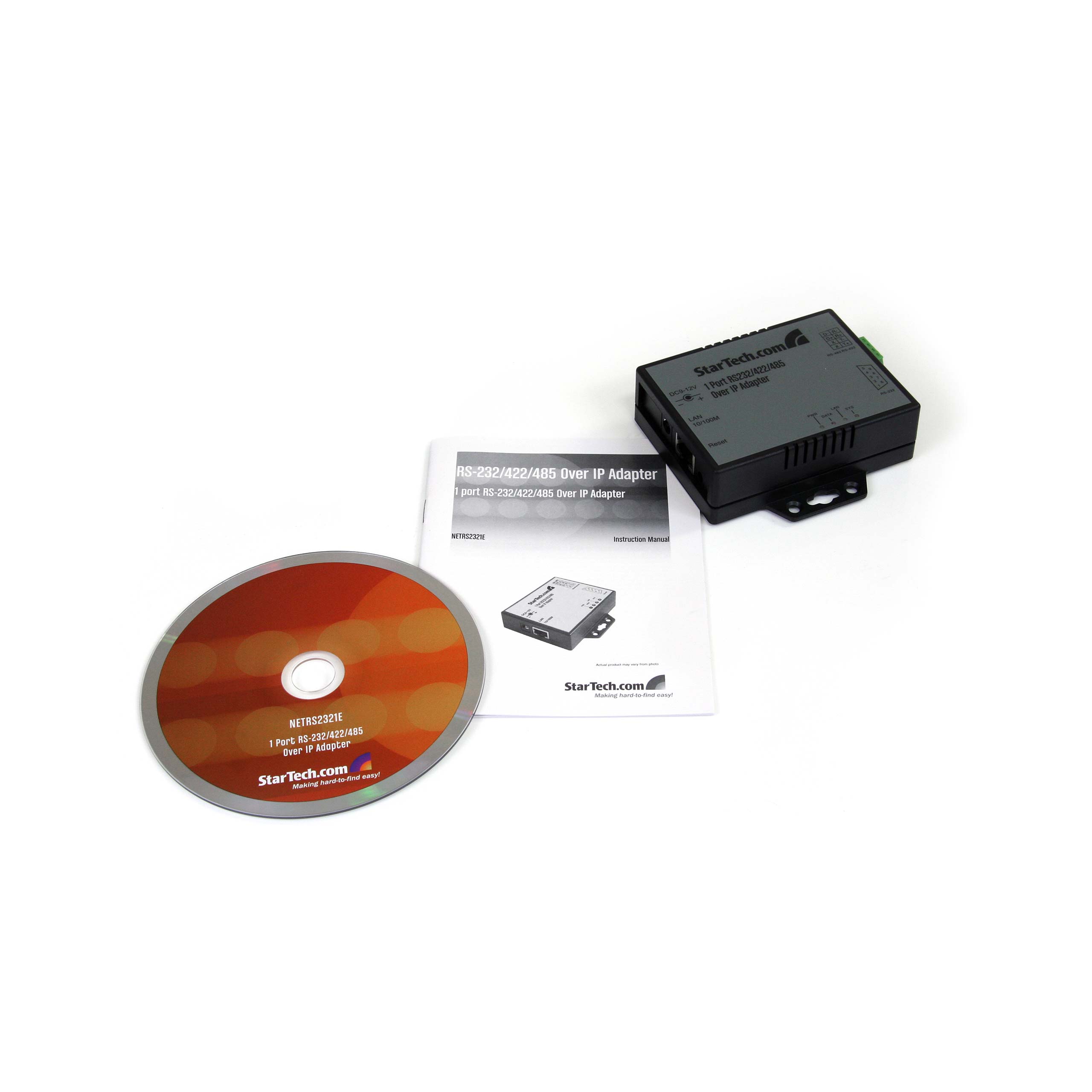

Parity Even, Odd, None Stop Bits 1, 2 Supported Protocols Interface/Bridge Serial LED Indicators 4 - Power, Data, LAN Link, System Carton Depth (mm) 334 Carton Height (mm) 360 Carton Quantity 1 Carton Weight Gross (g) 7200 Included in Package - 1 - 1 port RS-232/422/485 Over IP Adapter
- 1 - Drive CD
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 126 Package Height (mm) 64 Package Width (mm) 155 Package Quantity 1 Package Weight (g) 200 Packaging Description RS232/422/485 Serial over IP Device Server Packaging Description India RS232/422/485 Serial over IP Device Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
