Main Image
NETRS2321P
1Port RS232 Serial Over IP Device Server Adapter
Connect to, configure and remotely manage an RS-232 serial device over an IP network
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1Port RS232 Serial Over IP Device Server Adapter Product Number NETRS2321P UPC 065030851459 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Extenders > Serial Extenders Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Family Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) 1Pt Serial to IP Product Title (Short) 1 Port Serial to Ethernet Converter Product Title (Medium) x Product Title (Standard) 1-Port Serial-to-IP Ethernet Device Server, RS232, DIN Rail / Surface Mount, Aluminum, TAA - Replaced by I13-SERIAL-ETHERNET Product Title (Long) 1-Port Serial-to-IP Ethernet Device Server, RS232, DIN Rail and Surface Mountable, Aluminum, TAA - Replaced by I13-SERIAL-ETHERNET Product Title (AMZ) 1-Port Serial-to-IP Ethernet Device Server, RS232, Aluminum, TAA - Replaced by I13-SERIAL-ETHERNET Title Ingram (Part 1) 1 Port RS232 Serial Over IP Title Ingram (Part 2) Device Server Adapter Website Product Headline Connect to, configure and remotely manage an RS-232 serial device over an IP network Bullet 1 SERIAL OVER IP: Unlock remote control capabilities with this 1-port serial-to-Ethernet device server, allowing network administrators to configure and manage RS232 DB9 serial devices over an IP network Bullet 2 COMPATIBILITY: Compatible with the Serial Device Application Software for iOS and Android (NETRSAPP); Supports Telnet for OS independent communication and is also configurable using the software utility (Windows only), or web browser; TAA Compliant Bullet 3 ROBUST DESIGN: Versatile device server features rugged aluminum housing and delivers reliable performance; Mount to any surface or DIN rail with built-in mounting bracket and included DIN rail clips Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this serial to IP ethernet device server is backed for 2-years, including free lifetime 24/5 multilingual technical assistance Bullet 5 TECH SPECS: Serial Protocol: RS232; Stop Bits: 1, 1.5, 2; Max. Baud Rate: 230.4 Kbps; IEEE 802.3 and IEEE 802.3u Complaint; Compatible Networks: 10/100 Mbps; Auto MDIX: Yes; 9K Jumbo frames; DIN rail/wall mountable Bullets (Compact) Connect to, configure and remotely manage an RS-232 serial device over an IP network - Aluminum Enclosure RS232 Serial Device Server - Serial over IP - Serial to IP Converter - RS232 to Ethernet Adapter - 230Kbps - Wall or DIN-Rail mountable Bullets (Consolidated) Connect to, configure and remotely manage an RS-232 serial device over an IP network - Aluminum - Serial over IP / Serial to IP Converter / RS232 to Ethernet Adapter - 230Kbps / Wall or DIN-Rail mountable - 1 Port RS232 Serial to IP Ethernet Converter / Device Server - Aluminum Enclosure RS232 Serial Device Server / RS232 Device Server / Serial Ethernet Device Server - Suitable for hash environments with a rugged enclosure / Access a serial device from anywhere with an IP-based connection Marketing Copy Marketing Copy (No HTML) Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Security (UPS control, access key panels, video cameras, card readers)
- Environmental Control (lighting, temperature, clocks)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Hospital (monitoring equipment, nurses' stations)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
Website Search Keyword - NETRS232_1
- NETRS232_1GB
- NETRS232_1EU
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Accessory Products - SCNM9FM
- AT925FM
- SC10MF
- M45PATCH50BL
- 45PATCH10BK
- SCNM9FF
- GC9SF
- DS51002
- DS51072
- DS81072
- IES51000POE
- SVA12M2NEUA
- SVA12M5NA
Related Products - NETRS2321E
- NETRS2321POE
- NETRS232_1
- NETRS232_4
- NETRS232_2
Replacement Product I13-SERIAL-ETHERNET Constrained SKU Alternatives (Limited Stock) NETRS2322P Input Current 0.36 A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 19.2 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~90% RH (Non-condensing) Material Aluminum Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Aluminum Product Length (mm) 86.000 Product Width (mm) 53.000 Product Height (mm) 23.000 Product Weight (g) 92.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100 Mbps Data Bits 5, 6, 7, 8 Flow Control RTS/CTS, None Max Baud Rate 230.4 Kbps OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Parity Even, Odd, None Stop Bits 1, 1.5, 2 Supported Protocols DHCP, TCP/IP, UDP, HTTP, ICMP, ARP, Telnet Supported Serial Protocol RS-232 Interface/Bridge Serial LED Indicators - 1 - Ready
- 1 - Link / Act
- 1 - Tx / Rx

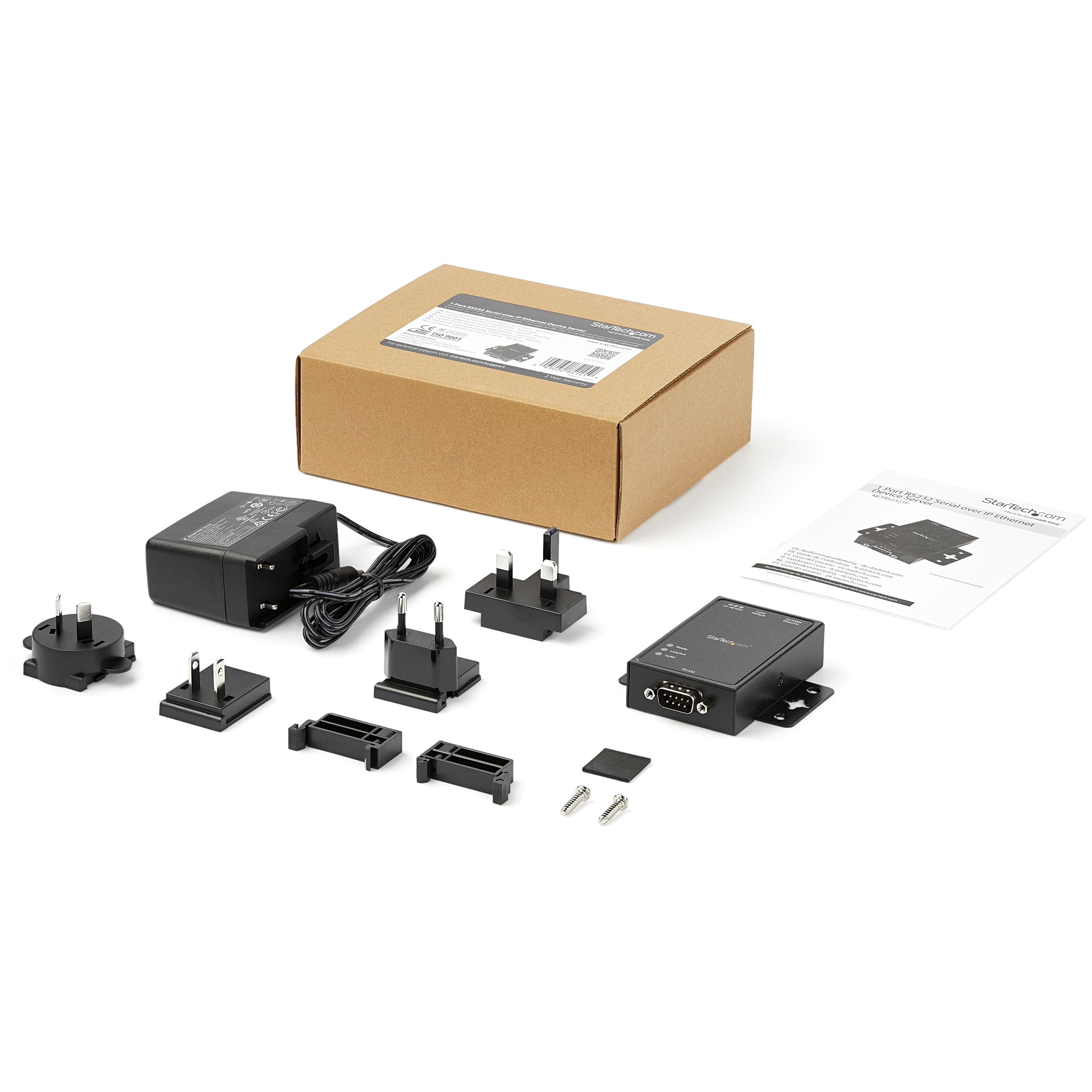

Carton Depth (mm) 388 Carton Height (mm) 314 Carton Quantity 25 Carton Weight Gross (g) 11346 Included in Package - 1 - Serial over IP Device Server
- 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 - Instruction Manual
- 1 - DIN Rail Kit
Package Depth (mm) 148 Package Height (mm) 66 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 412 Packaging Description 1 Port RS232 Serial over IP Device Server - Aluminum Packaging Description India 1 Port RS232 Serial over IP Device Server - Aluminum Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-05-01 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
