NETRS2321POE
1 - port Industrial RS-232 Ethernet Device Server
Connect to, configure and remotely manage an RS-232 serial device over an IP network
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 - port Industrial RS-232 Ethernet Device Server Product Number NETRS2321POE UPC 065030834162 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Extenders > Ethernet Extenders Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Family Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) Servidor IP Serie Product Title (Short) 1 Port Serial Ethernet Device Server PoE Product Title (Standard) 1 Port RS232 Serial Ethernet Device Server, PoE Power Over Ethernet, TAA - Replaced by I13P-SERIAL-ETHERNET Product Title (Long) 1 Port RS232 Serial Ethernet Device Server, PoE Power Over Ethernet, TAA - Replaced by I13P-SERIAL-ETHERNET Product Title (AMZ) 1 Port RS232 Serial Ethernet Device Server, PoE Power Over Ethernet, TAA - Replaced by I13P-SERIAL-ETHERNET Title Ingram (Part 1) 1 Port Serial Ethernet Device Se Title Ingram (Part 2) rver - Power Over Ethernet Website Product Headline Connect to, configure and remotely manage an RS-232 serial device over an IP network Bullet 1 Supports standard Ethernet or Power over Ethernet (POE) Bullet 2 Supports UDP, IP, TCP, ICMP, HTTP, DHCP and ARP-Ping protocols Bullet 3 Wall mountable Bullet 4 Integrated 10/100Mbps RJ45 LAN port Bullet 5 Data transfer rates of up to 115.2 Kbps per port Bullets (Compact) Connect to, configure and remotely manage an RS-232 serial device over an IP network - Serial to IP - Serial device server - Serial over IP - Power over Ethernet switch - Ethernet device server Bullets (Consolidated) Connect to configure and remotely manage an RS-232 serial device over an IP network - 1 Port PoE Serial Device Server - RS232/Power over Ethernet Serial Device Server - Serial over IP Device Server Adapter - PoE-Powered/PoE PD Serial over Ethernet Device Server - Serial to IP Ethernet Device Server - Place a serial device where it is needed even in locations where there is no power outlet available - IP-based connection allows remote administration (even over the Internet) - Wall mountable Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Security (UPS control, access key panels, video cameras, card readers)
- Environmental Control (lighting, temperature, clocks)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Hospital (monitoring equipment, nurses' stations)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
Website Search Keyword - POE
- rs232
- power over ethernet
- ethernet serial ip adapter
- baud rates for serial ports
- serial ports
- POI
- industrial ethernet switch
- ethernet adapter
- NETRS23POEEU
- NETRS23POEGB
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - GC9SF
- SC6MF
- SC6MM
- SC10MF
- SCNM9FM
- SCNM9FF
- AT925FM
- M45PATCH100B
- M45PATCH50BL
- M45PATCH25BL
- SVA12M5NA
Related Products - NETRS232_1
- NETRS232_2
- NETRS232_4
- NETRS2321E

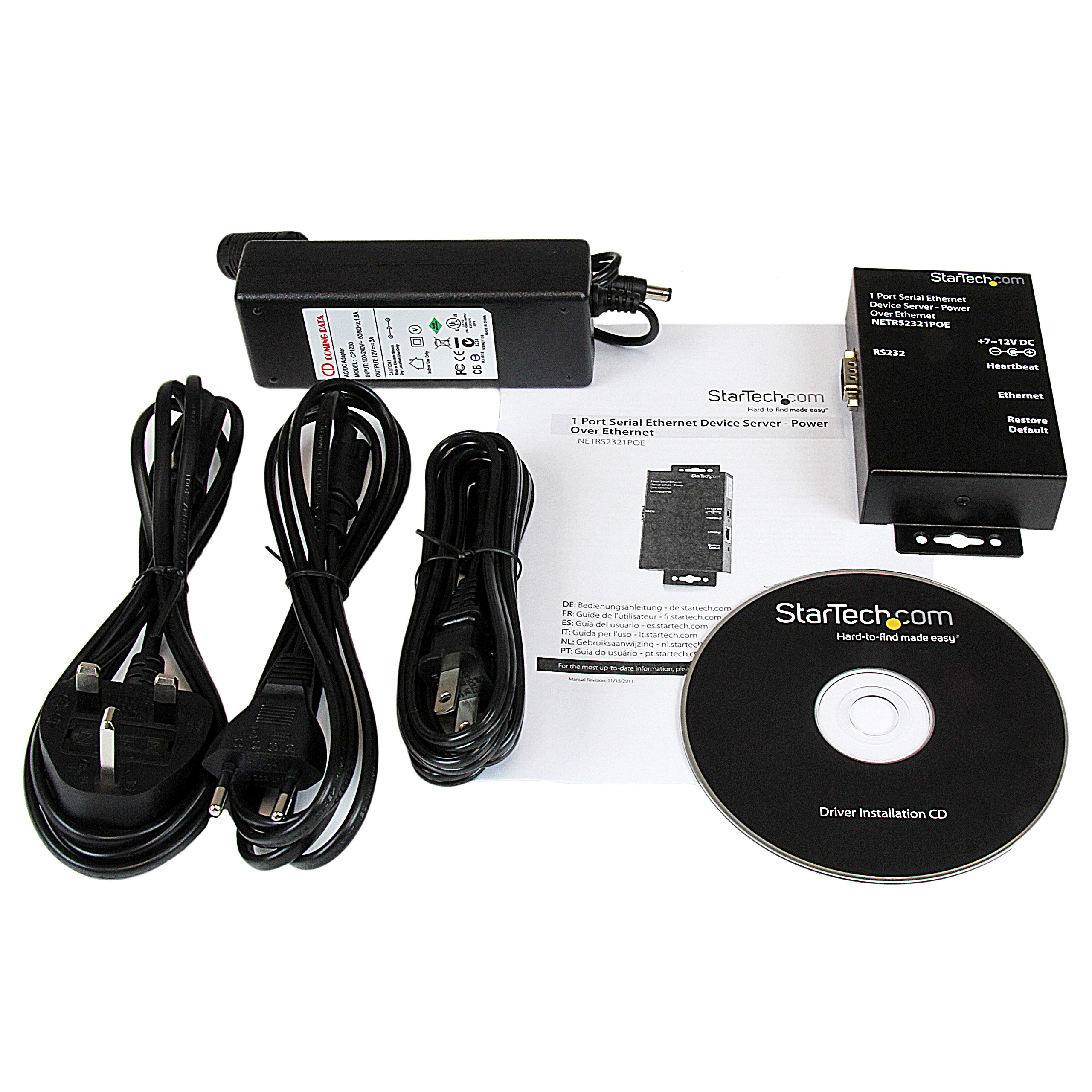

Replacement Product I13P-SERIAL-ETHERNET Input Current 0.3 A Input Voltage 100 - 240 AC Output Current 0.1A Output Voltage (V) 12V DC Power Consumption (In Watts) 1.2 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Aluminum Product Length (mm) 107.000 Product Width (mm) 66.300 Product Height (mm) 25.400 Product Weight (g) 259.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 6, 7, 8 Maximum Data Transfer Rate 115.2Kbps MTBF (hours) 233,403 Hours Stop Bits 1, 2 Supported Protocols UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping Industry Standards IEEE 802.3af Power-over-Ethernet LED Indicators 3 - Heartbeat, Link/Activity, 10/100 Mbps Carton Depth (mm) 396 Carton Height (mm) 324 Carton Quantity 14 Carton Weight Gross (g) 14240 Included in Package - 1 - Industrial Serial over IP Device Server
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/UK/EU)
Package Depth (mm) 192 Package Height (mm) 70 Package Width (mm) 294 Package Quantity 1 Package Weight (g) 940 Packaging Description 1 Port Serial over IP Device Server w/ PoE Packaging Description India 1 Port Serial over IP Device Server w/ PoE Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,MX,NL,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
