NETRS232485
Ethernet to Serial Device Server - Serial over IP
Remotely manage an industrial RS232 or RS422/485 serial device over an IP network, with redundant 10/100 Ethernet ports
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Ethernet to Serial Device Server - Serial over IP Product Number NETRS232485 UPC 065030854559 Lifecycle status Discontinued Warranty 5 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX058X Product Title (Ultra-Short) 1 Port Serial to IP Product Title (Short) 1 Port Industrial Serial Device Server Product Title (Medium) 1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server Product Title (Standard) 1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server - 2x 10/100Mbps Ports Product Title (Long) 1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server - 2x 10/100Mbps Ports Product Title (AMZ) 1 Port Industrial RS-232/422/485 Serial to IP Ethernet Device Server - 2x 10/100Mbps Ports - Ethernet to Serial Device Server (NETRS232485) Title Ingram (Part 1) 1Port Ethernet to Serial Device Title Ingram (Part 2) Server - Serial over IP Adapter Website Product Headline Remotely manage an industrial RS232 or RS422/485 serial device over an IP network, with redundant 10/100 Ethernet ports Bullet 1 Simultaneous connection with up to five host devices Bullet 2 Redundant power input via 12-48V DC terminal block, or optional 12V DC power adapter Bullet 3 SSL, SSH, and HTTPS data encryption and security protocols Bullet 4 Configurable via software utility, or web browser Bullet 5 Redundant dual Ethernet ports with < 10ms recovery time Marketing Copy Applications - Industrial locations where critical equipment requires backup power and LAN connections
- Factory or warehouse environments subject to harsh conditions and large temperature variances
- Manufacturing (CNC machinery, process control equipment, serial printers)
- Security (UPS control, access key panels, video cameras, card readers)
- POS (credit/debit card readers, receipt printers, cash registers, scales)
- Environmental control (lighting, temperature, clocks)
Website Search Keyword device server Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - IM12D1500P
- AT925FM
- SCNM9FM
- M45PATCH50BL
- 45PATCH10BK
- SCNM9FF
- GC9SF
Related Products - NETRS2321P
- NETRS232_4
- NETRS2321POE
- NETRS232_2
- NETRS2321E
- NETRS232_1
- NETRS42348PD
- NETRS232485W

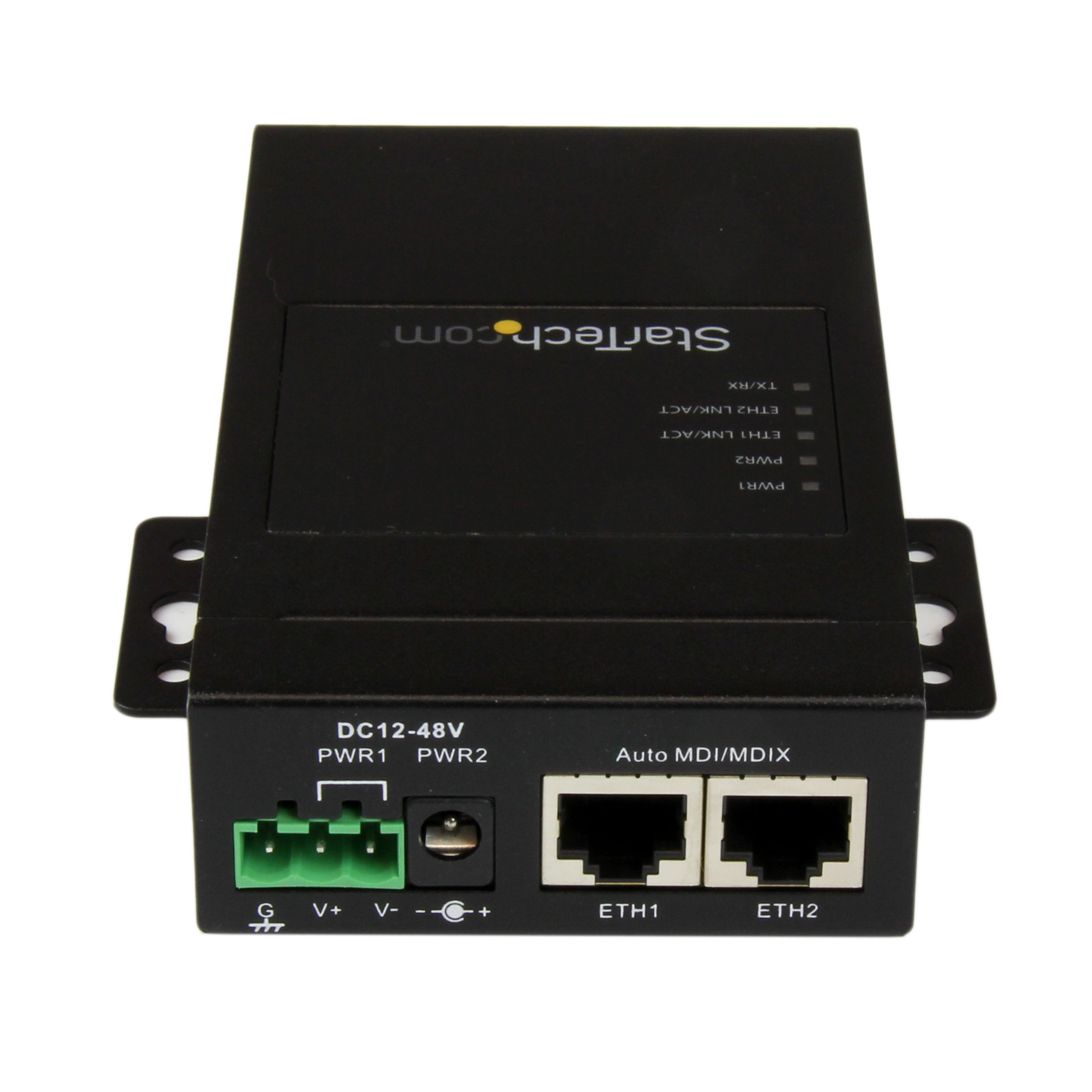

Input Voltage 12 ~ 48 DC Power Source Terminal Block Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature -40°C to 70°C (-40°F to 158°F) Product Length (mm) 72 Product Width (mm) 127 Product Height (mm) 31 Product Weight (g) 329 Storage Temperature -40°C to 85°C (40°F to 185°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100 Mbps Data Bits 5, 6, 7, 8 Flow Control XON/XOFF, RTS/CTS, DTR/DSR Max Baud Rate 460.8 Kbps Maximum Data Transfer Rate 460.8 Kbps MTBF (hours) 533,615 Hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows Server 2016
- Windows Server 2022
- Windows Server 2019

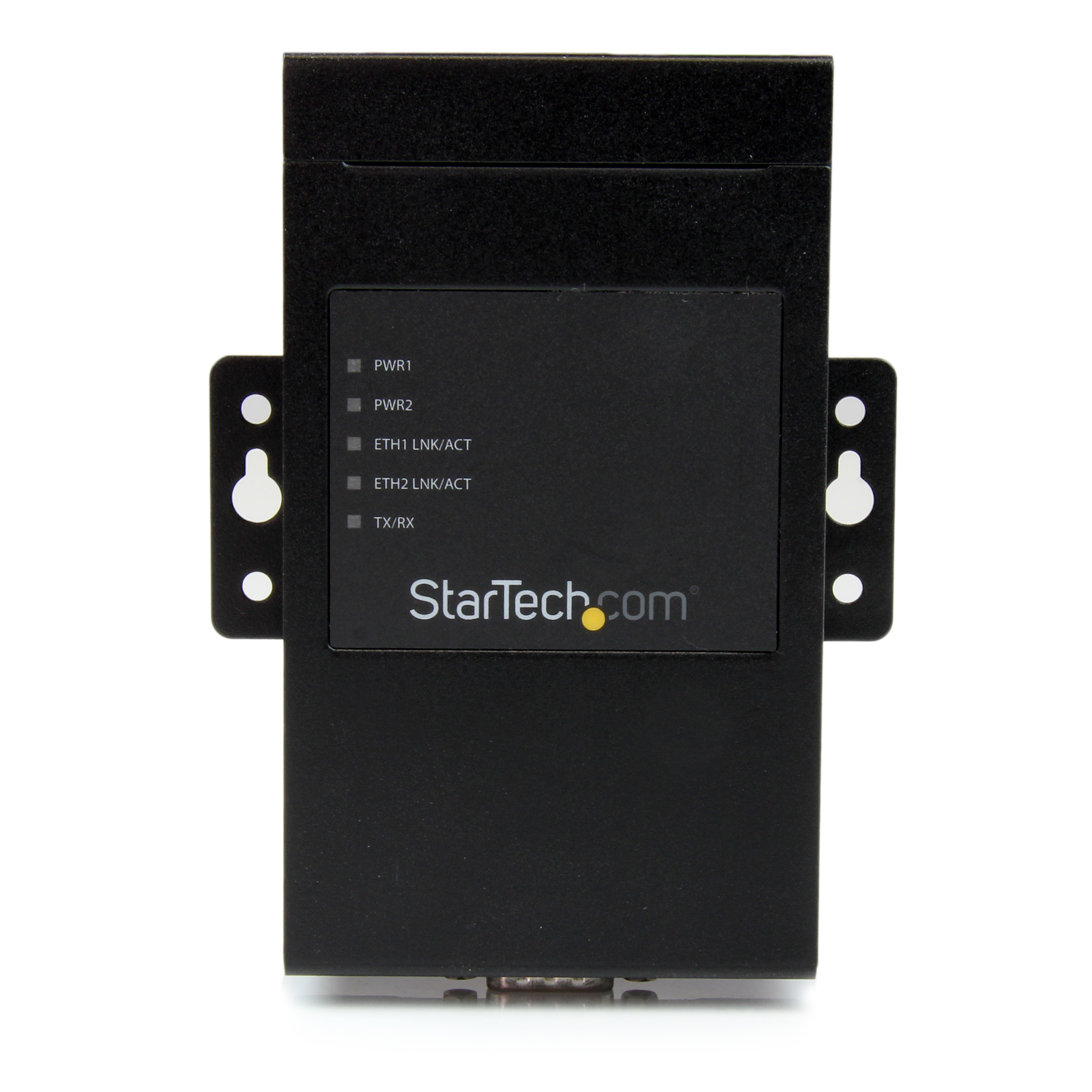

Parity Odd, Even, None, Mark, Space Remote Management Ability Yes Security Features 128-bit SSL Encryption Stop Bits 1, 1.5, 2 Supported Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, SSL, PPPoE, DDNS Supported Serial Protocol RS-232/422/485 Industry Standards IEEE 802.3, IEEE 802.3u Interface/Bridge Serial LED Indicators - 2 - Power
- 2 - Ethernet Link
- 1 - TX/RX

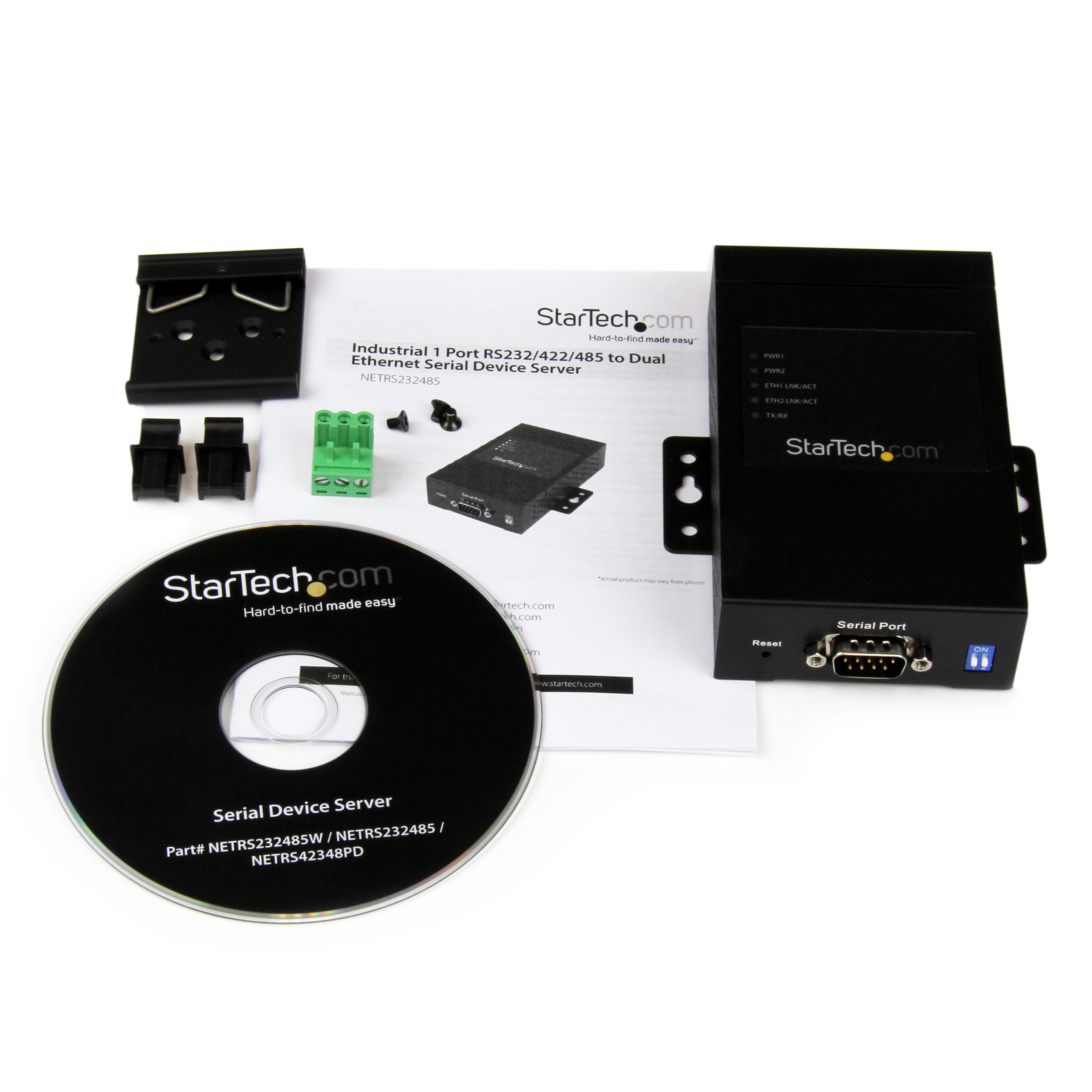

Carton Depth (mm) 325 Carton Height (mm) 230 Carton Quantity 20 Carton Weight Gross (g) 10960 Included in Package - 1 - Software CD
- 1 - Installation Guide
- 1 - Serial Device Server
- 1 - Wall-Mount Kit w/ Screws
- 1 - DIN-Rail Kit
- 2 - RJ-45 Dust Covers
Package Depth (mm) 153 Package Height (mm) 48 Package Width (mm) 198 Package Quantity 1 Package Weight (g) 504 Packaging Description Dual Ethernet 1 Port RS232/422/485 Serial Device Server Packaging Description India Dual Ethernet 1 Port RS232/422/485 Serial Device Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Connector 2 Terminal Block (3 Wire) Connector 2 (Quantity) 1 Connector 3 DB-9 Serial Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-10-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
