Main Image
NETRS232485W

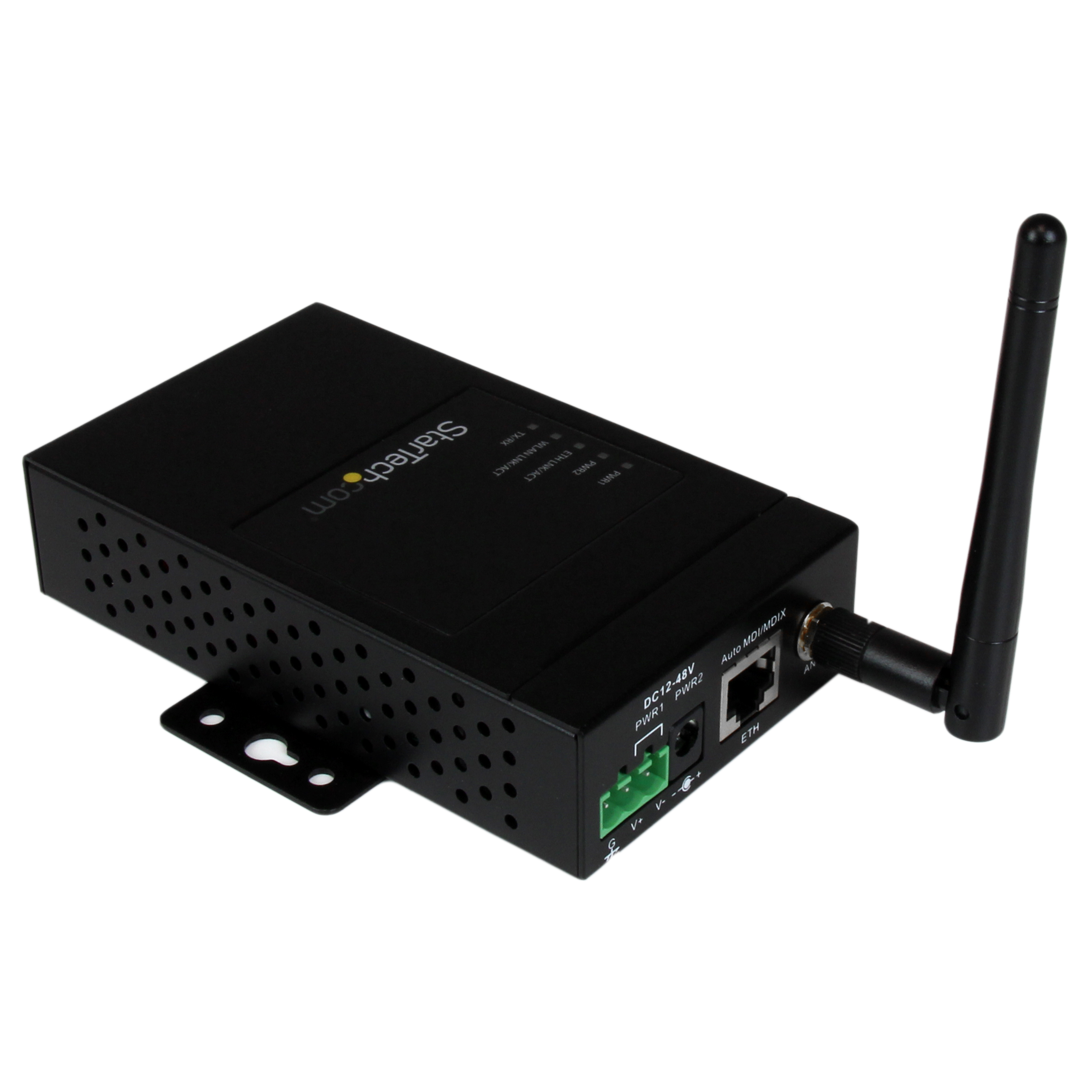

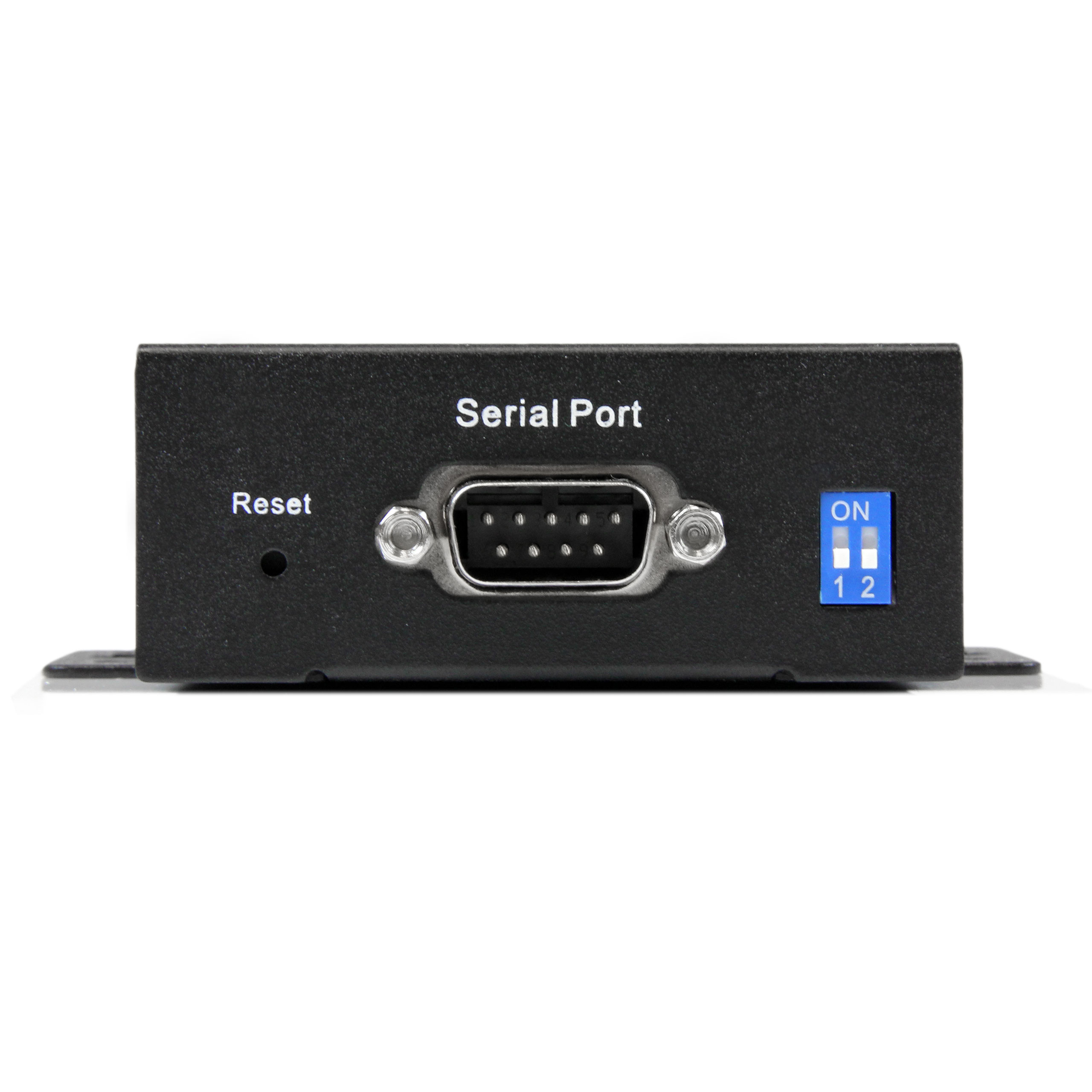

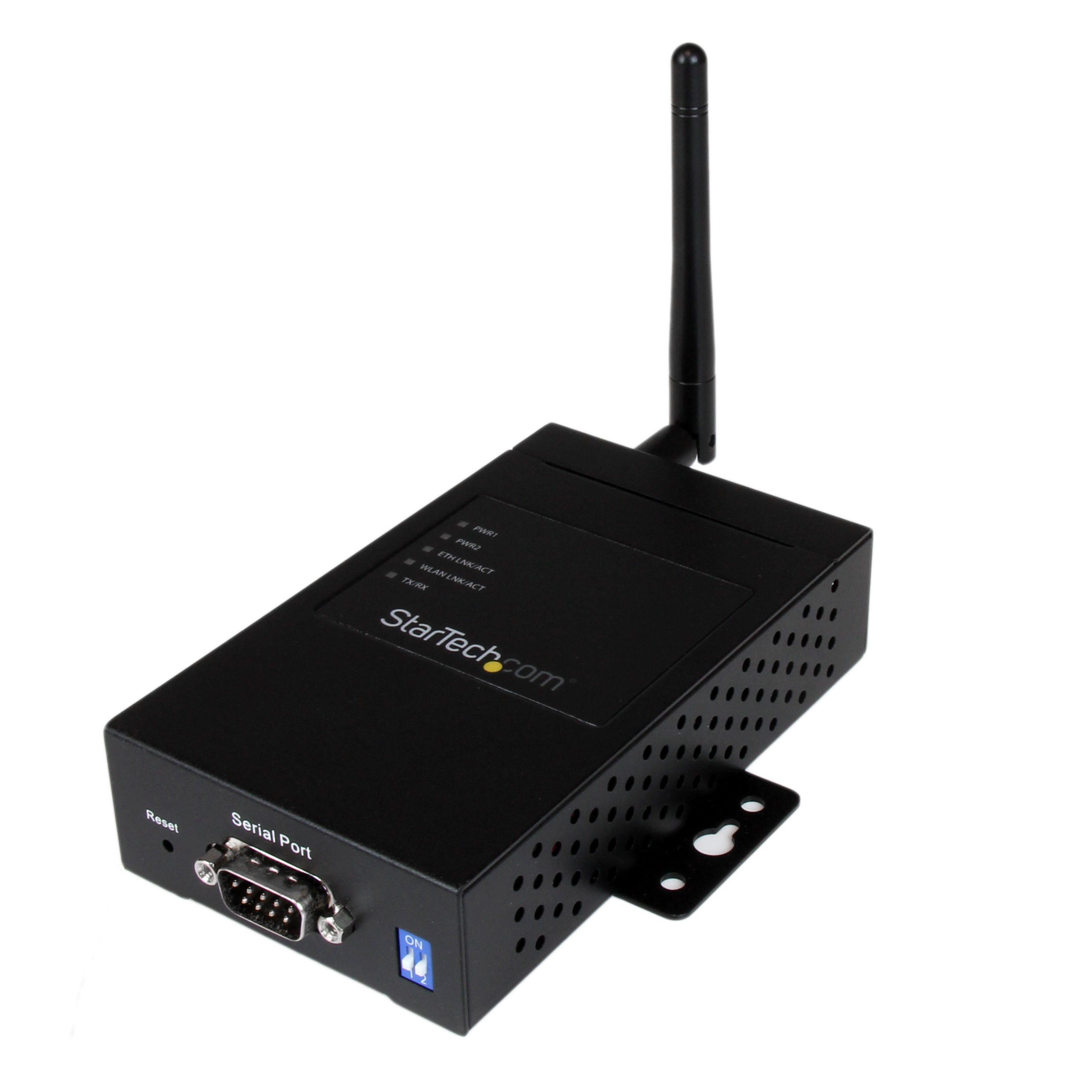

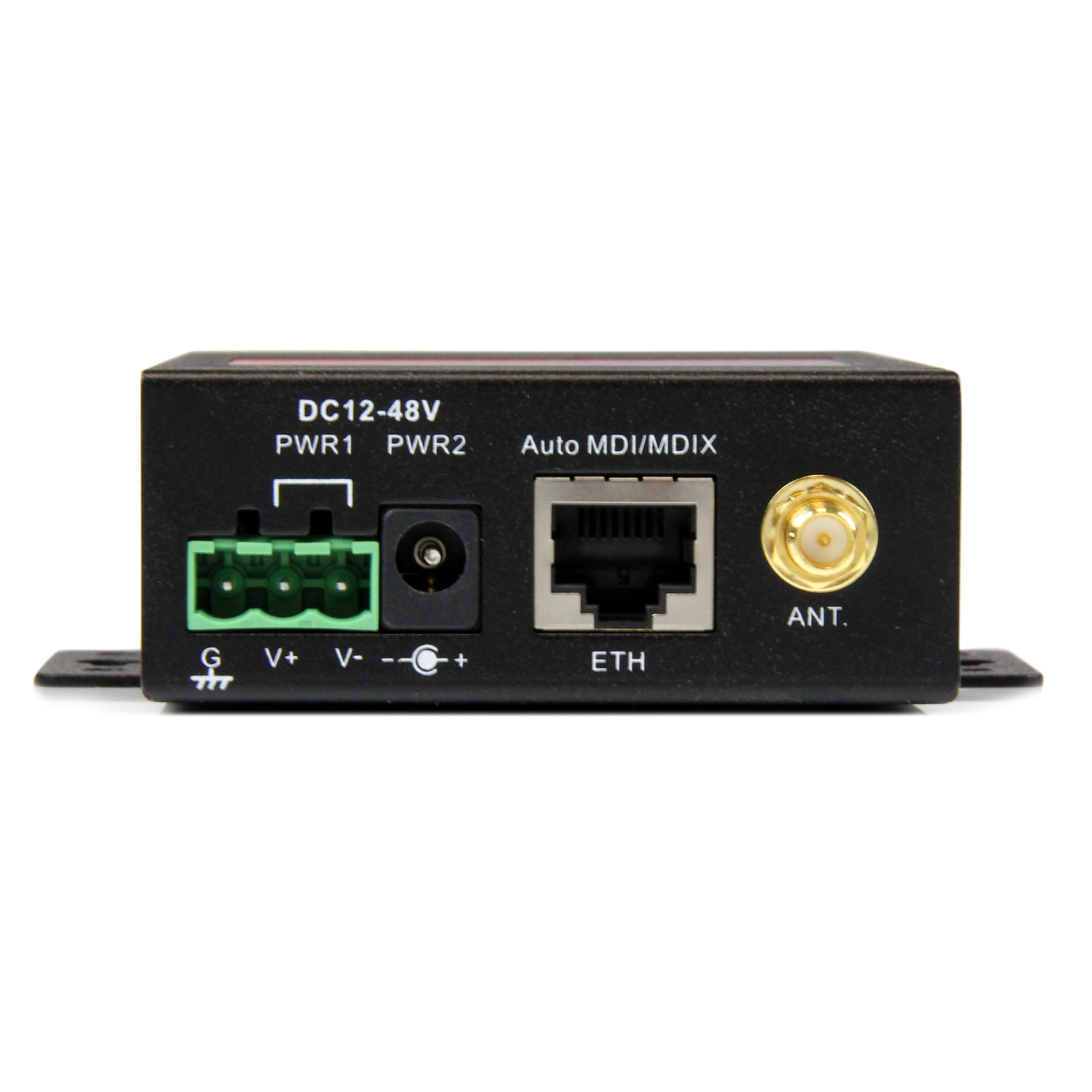

802.11 b/g WiFi Ethernet to Serial Device Server
Connect to, configure and remotely manage an RS232 or RS422/485 serial device over a WiFi/wired connection
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 802.11 b/g WiFi Ethernet to Serial Device Server Product Number NETRS232485W UPC 065030855129 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX058X Product Title (Ultra-Short) WiFi Serial to IP Product Title (Short) Industrial Wireless Serial Device Server Product Title (Medium) 1 Port Industrial RS-232 / 422 / 485 Serial to IP Wireless Device Server Product Title (Standard) 1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Wireless Device Server with Redundant Power Product Title (Long) 1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Wireless Device Server with Redundant Power Product Title (AMZ) 1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Wireless Device Server with Redundant Power - Serial Device Server (NETRS232485W) Title Ingram (Part 1) 1Port WiFi Ethernet to Serial Title Ingram (Part 2) Device Server - Serial over IP Website Product Headline Connect to, configure and remotely manage an RS232 or RS422/485 serial device over a WiFi/wired connection Bullet 1 Redundant power input via 12-48V DC terminal block, or optional 12V DC power adapter Bullet 2 IP-30 industrial casing Bullet 3 Up to 230.4 Kbps baud rate Bullet 4 Supports RS232, RS422 and RS485 serial protocols Bullet 5 SSL, SSH, and HTTPS data encryption and security protocols Bullets (Consolidated) Remotely manage an industrial serial device over a WiFi/wired network connection with redundant power inputs - 1 Port Industrial RS-232/422/485 Serial to IP Ethernet Wireless Device Server - 802.11 b/g WiFi Ethernet Serial Device Server Adapter Marketing Copy Applications - Factory or warehouse environments subject to harsh conditions and large temperature variances
- POS (credit/debit card readers, receipt printers, cash registers, scales)
- Environmental control (lighting, temperature, clocks)
- Security (UPS control, access key panels, video cameras, card readers)
- Manufacturing (CNC machinery, process control equipment, serial printers)
- Industrial locations where critical equipment requires backup power
Website Search Keyword device server Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
Accessory Products - IM12D1500P
- AT925FM
- SCNM9FM
- M45PATCH50BL
- 45PATCH10BK
- SCNM9FF
- GC9SF
Related Products - NETRS42348PD
- NETRS232485
- NETRS2321P
- NETRS2321POE
- NETRS2321E
- NETRS232_4
- NETRS232_2
- NETRS232_1
Input Voltage 12 ~ 48 DC Power Source Terminal Block Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature -10°C to 65°C (14°F to 149°F) Product Length (mm) 224.000 Product Width (mm) 173.000 Product Height (mm) 107.000 Product Weight (g) 346.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100 Mbps Data Bits 5, 6, 7, 8 Flow Control XON/XOFF, RTS/CTS, DTR/DSR Frequency 2.4 Ghz Max Baud Rate 230.4 Kbps Maximum Data Transfer Rate 230.4 Kbps OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
Parity Odd, Even, None, Mark, Space Remote Management Ability Yes Security Features - 128-bit SSL Encryption
- WEP Data Encryption
- WPA Data Encryption
- TKIP
Supported Protocols Supported Serial Protocol RS-232/422/485 Antenna Configuration 2dBi Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g Interface/Bridge Serial LED Indicators - 2 - Power
- 1 - Ethernet Link
- 1 - Wireless LAN Link
- 1 - TX/RX

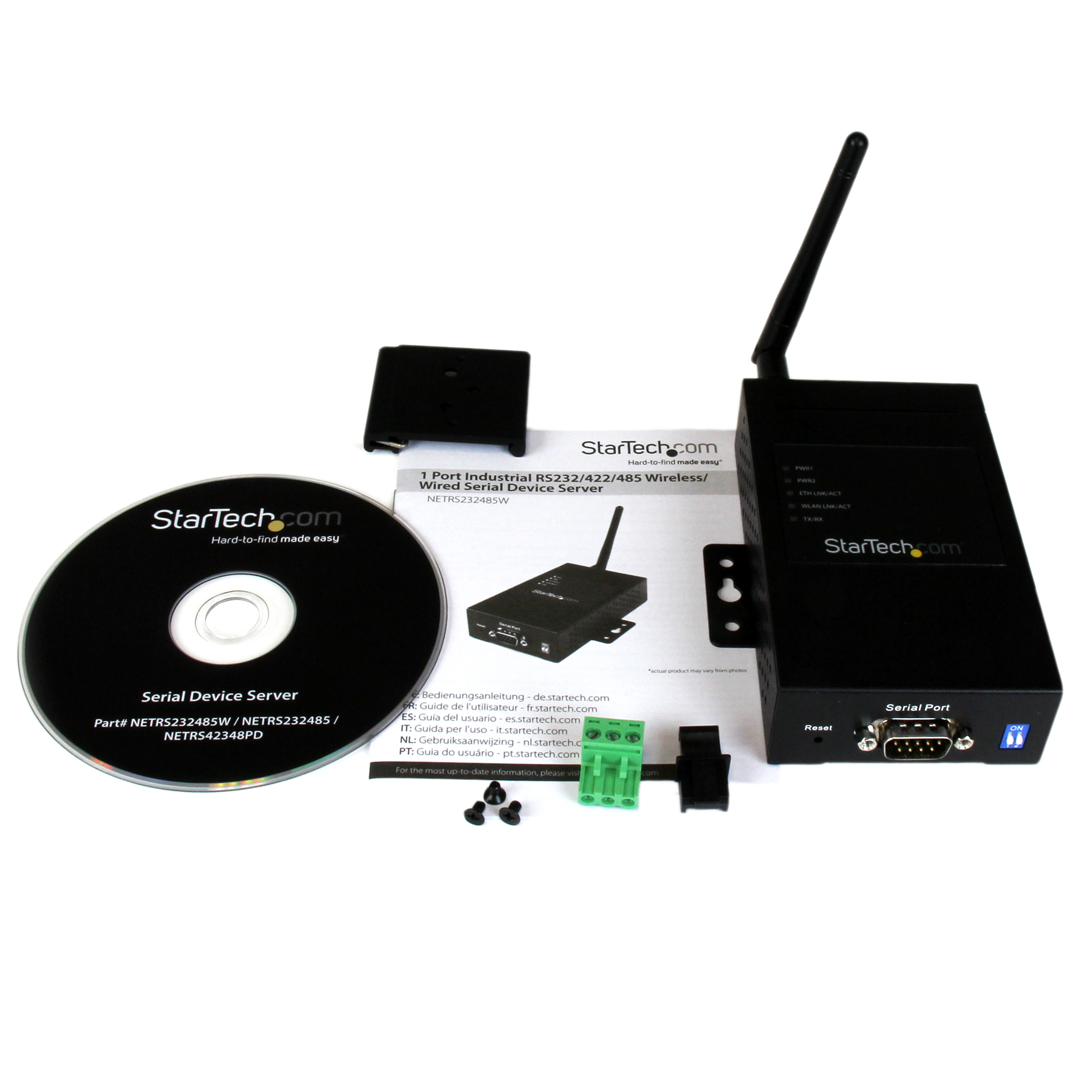

Carton Depth (mm) 408 Carton Height (mm) 320 Carton Quantity 20 Carton Weight Gross (g) 10500 Included in Package - 1 - Software CD
- 1 - Installation Guide
- 1 - Serial Device Server
- 1 - Wall-Mount Kit w/ Screws
- 1 - DIN-Rail Kit
- 1 - 2dBi Antenna
- 1 - RJ-45 Dust Cover
Package Depth (mm) 234 Package Height (mm) 126 Package Width (mm) 279 Package Quantity 1 Package Weight (g) 450 Packaging Description 1 Port RS232/422/485 Wireless/Wired Serial Device Server Packaging Description India 1 Port RS232/422/485 Wireless/Wired Serial Device Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 Terminal Block (3 Wire) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 RP-SMA (50 Ohm) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-10-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
