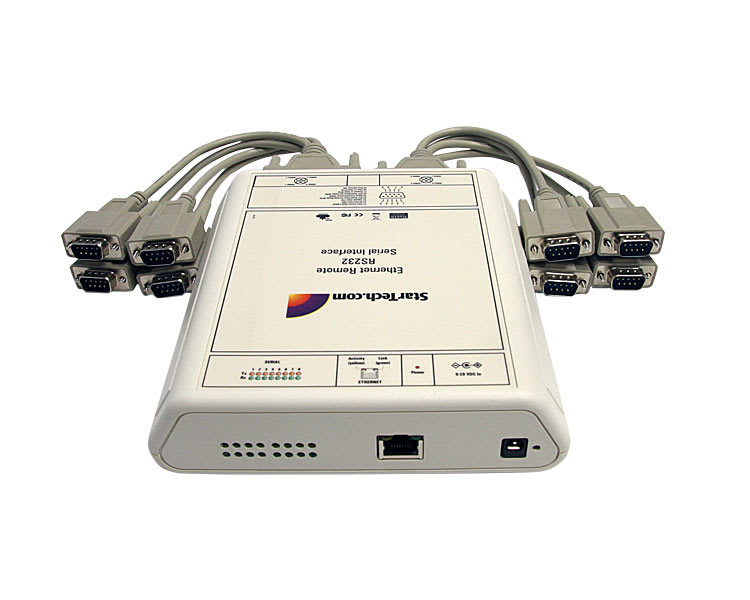

NETRS2328
8 Port RS232 Serial over IP Ethernet Device Server
Control up to eight serial devices remotely over LAN or WAN
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 8 Port RS232 Serial over IP Ethernet Device Server Product Number NETRS2328 UPC 065030837729 Warranty Lifetime Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Canada Country of Origin North America Canada Country of Origin History (1) Canada Country of Origin Revision (1) 1 Country of Origin History (2) Canada Product Title (Short) 8 Port Serial Ethernet Device Server Product Title (Standard) 8 Port RS232 Serial over IP Ethernet Device Server Product Title (Long) 8 Port RS232 Serial over IP Ethernet Device Server Title Ingram (Part 1) 8 Port RS232 Serial over IP Ethe Title Ingram (Part 2) rnet Device Server Website Product Headline Control up to eight serial devices remotely over LAN or WAN Bullet 1 Built in web service for browser based configuration Bullet 2 Data transfer rates up to 115.2 Kbps Bullet 3 Remote Telenet configuration Bullet 4 Supports the following network protocols: IP, HTTP, ICMP, TCP, TFTP and UDP Bullet 5 Upgradeable firmware Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Security (UPS control, access key panels, video cameras, card readers)
- Environmental Control (lighting, temperature, clocks)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Hospital (monitoring equipment, nurses' stations)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
Website Search Keyword - Serial Server
- Console Server
- Serial over IP
- RS232
- RS-232
Accessory Products - AT925FM
- GC9SF
- M45PATCH100B
- M45PATCH50BL
- SC10MF
- SC6MF
- SC6MM
- SCNM9FF
- SCNM9FM
Related Products - NETRS232_1
- NETRS232_2
- NETRS232_4
- NETRS2321E
- NETRS2321POE
- ECS0016
Input Voltage 115V AC Output Current 0.5A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Beige Humidity 0~90% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 165 Product Width (mm) 159 Product Height (mm) 44 Product Weight (g) 450 Storage Temperature -20°C to 90°C (-4°F to 194°F) TAA Compliant No Maximum Data Transfer Rate 115200 OS Compatibility - Linux
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7
Industry Standards - HTTP
- ICMP
- TCP/IP
- TFTP
- UDP
LED Indicators - 8 - Yellow - TX indicators
- 8 - Green - RX indicators
- 1 - Red - Power
- 2 - Ethernet link and activity
Included in Package - 1 - 8 Port Serial Server
- 1 - Manual
- 1 - Driver CD

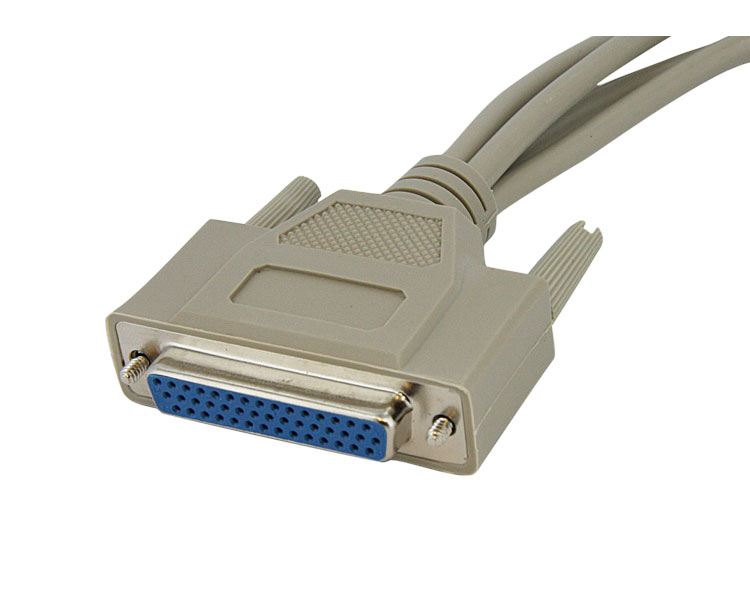

- 2 - 4 Port DB9 breakout cable
- 1 - Power adapter
Packaging Description 8 Port RS232 Serial over IP Device Server Packaging Description India 8 Port RS232 Serial over IP Device Server Connector 1 DB-9 Serial Connector 1 (Quantity) 8 Connector 2 RJ-45 Connector 2 (Quantity) 1 en-US Content Approved Yes
