NETRS232_1EU
1 Port RS-232 Serial Ethernet Adapter EU
Connect to, configure and remotely manage an RS-232 serial device over an IP network
Main Image
Product Images
Product Images
BOM Image
Product Name 1 Port RS-232 Serial Ethernet Adapter EU Product Number NETRS232_1EU UPC 065030818865 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Short) 1 Port Serial Ethernet Device Server Product Title (Standard) StarTech.com Serial over IP Ethernet Adapter (Device Server, Console Server) - Device server - EN, RS-232 - 1 port Product Title (Long) 1 Port RS232 Serial over IP Ethernet Device Server Product Title (AMZ) 1 Port RS232 Serial over IP Ethernet Device Server (NETRS232_1EU) Title Ingram (Part 1) 1 Port RS232 Serial over IP Ethe Title Ingram (Part 2) rnet Device Server Website Product Headline Connect to, configure and remotely manage an RS-232 serial device over an IP network Bullet 1 Browser based configuration of network settings, serial port line settings, UART transmit and receive buffer trigger levels and serial port flow control Bullet 2 Comes complete with Ether Link Manager software making serial device configuration easy Bullet 3 Data transfer rates of up to 115.2 Kb/sec per port Bullet 4 Remote Telenet configuration Bullet 5 Supports the following network protocols: IP, HTTP, ICMP, TCP, TFTP and UDP Marketing Copy Applications - Environmental Control (lighting, temperature, clocks)
- Hospital (monitoring equipment, nurses' stations)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers)
Website Search Keyword - RS-232
- Serial Ethernet
- Serial over IP
Special Notes All modes other than Driver Mode operate independently of the operating system Accessory Products - AT925FM
- GC9SF
- M45PATCH100B
- M45PATCH50BL
- SC10MF
- SC6MF
- SC6MM
- SCNM9FF
- SCNM9FM
Related Products - NETRS232_2
- NETRS232_4
Replacement Product NETRS2321P Output Current 200 mA Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Operating Temperature 0° to 70° C Product Length (mm) 130 Product Width (mm) 95 Product Height (mm) 44 Product Weight (g) 227 TAA Compliant No Max Baud Rate 115.2 Kbps OS Compatibility - Windows 8
- Windows 7
- Linux

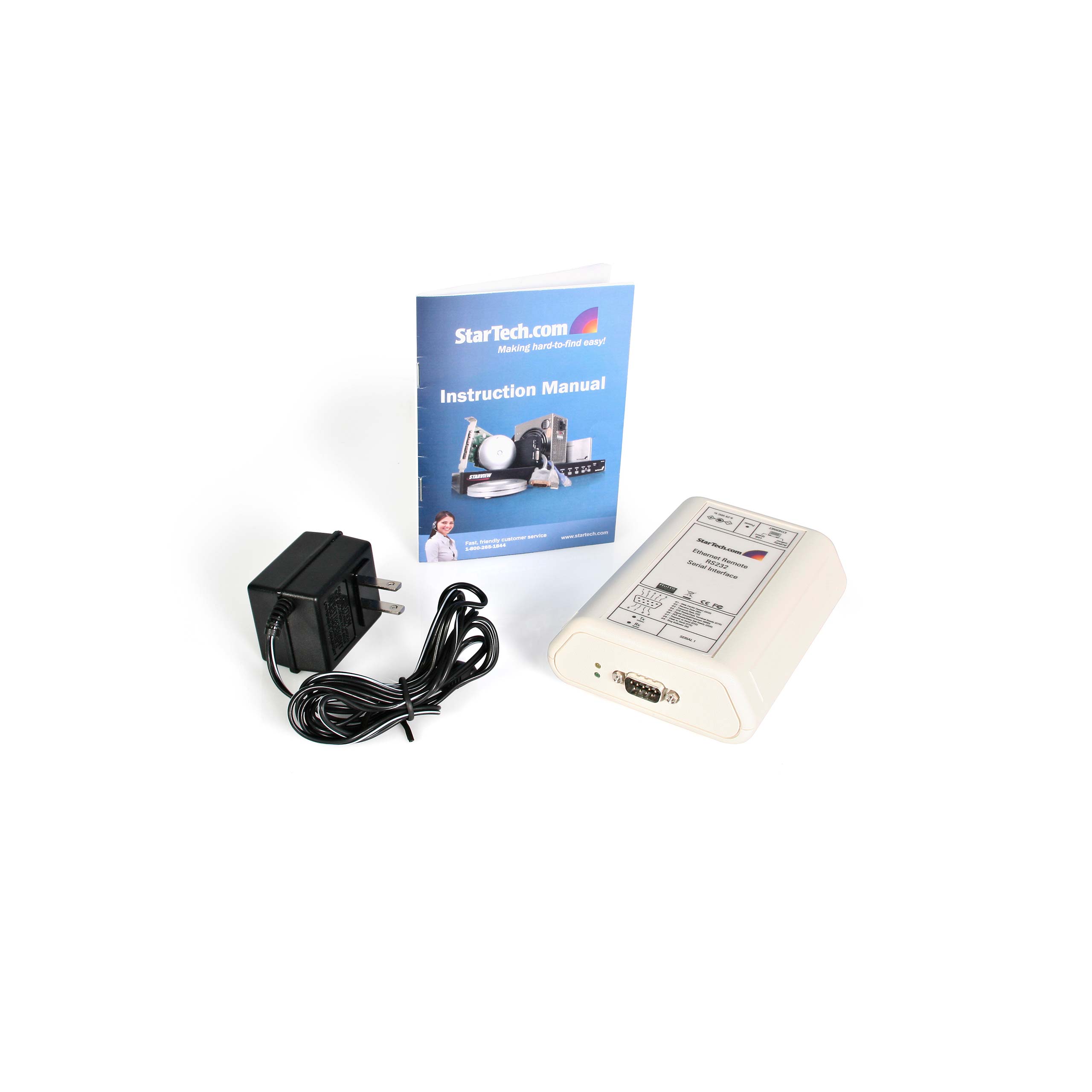

Supported Protocols RS-232, TCP/IP, UDP, HTTP, ICMP, TFTP Interface/Bridge Serial Carton Depth (mm) 458 Carton Height (mm) 320 Carton Quantity 1 Carton Weight Gross (g) 12200 Included in Package - 1 - Serial over IP Unit
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 110 Package Height (mm) 62 Package Width (mm) 236 Package Weight (g) 500 Packaging Description 1 Port RS232 Serial over IP Device Server Packaging Description India 1 Port RS232 Serial over IP Device Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
