NETRS232_2GB

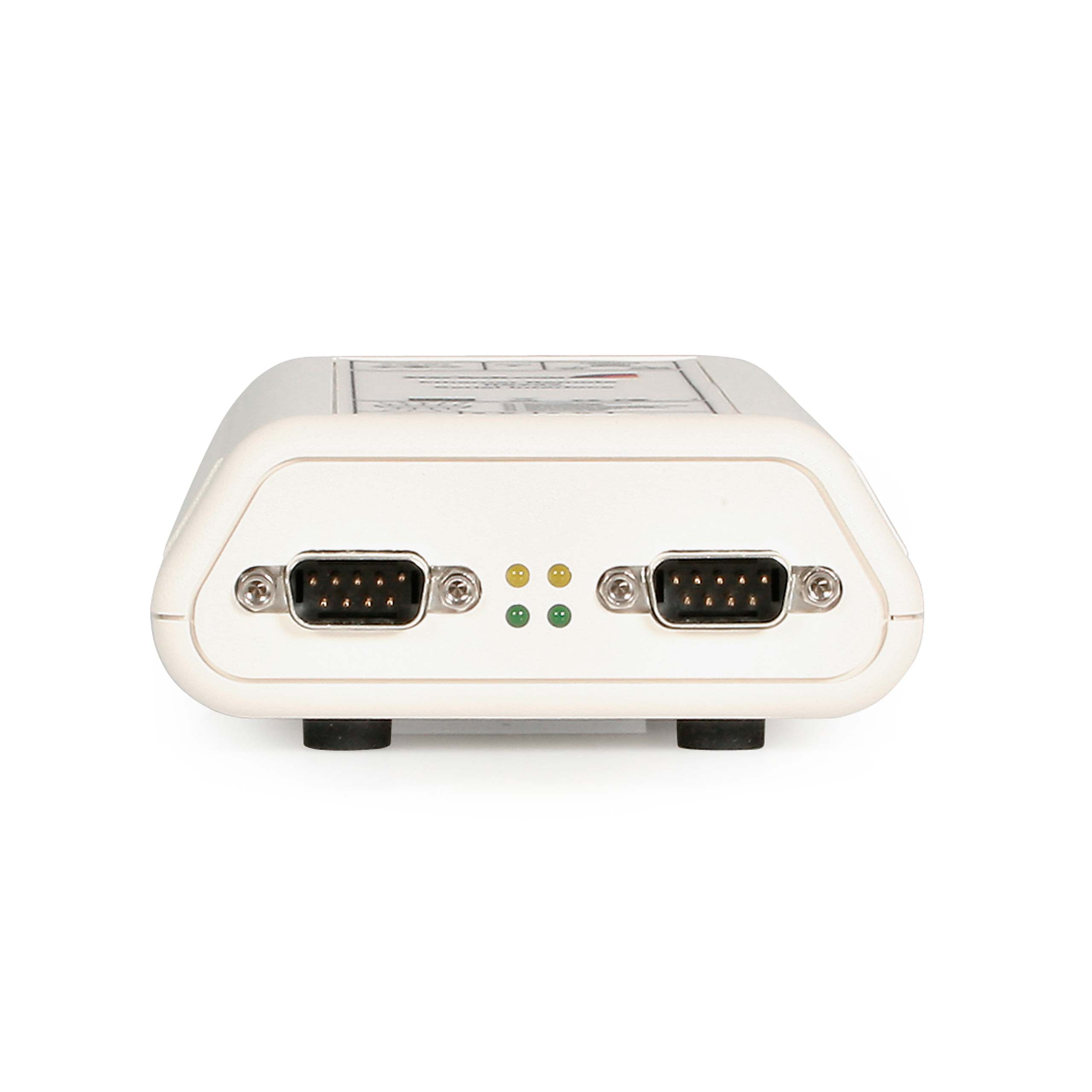

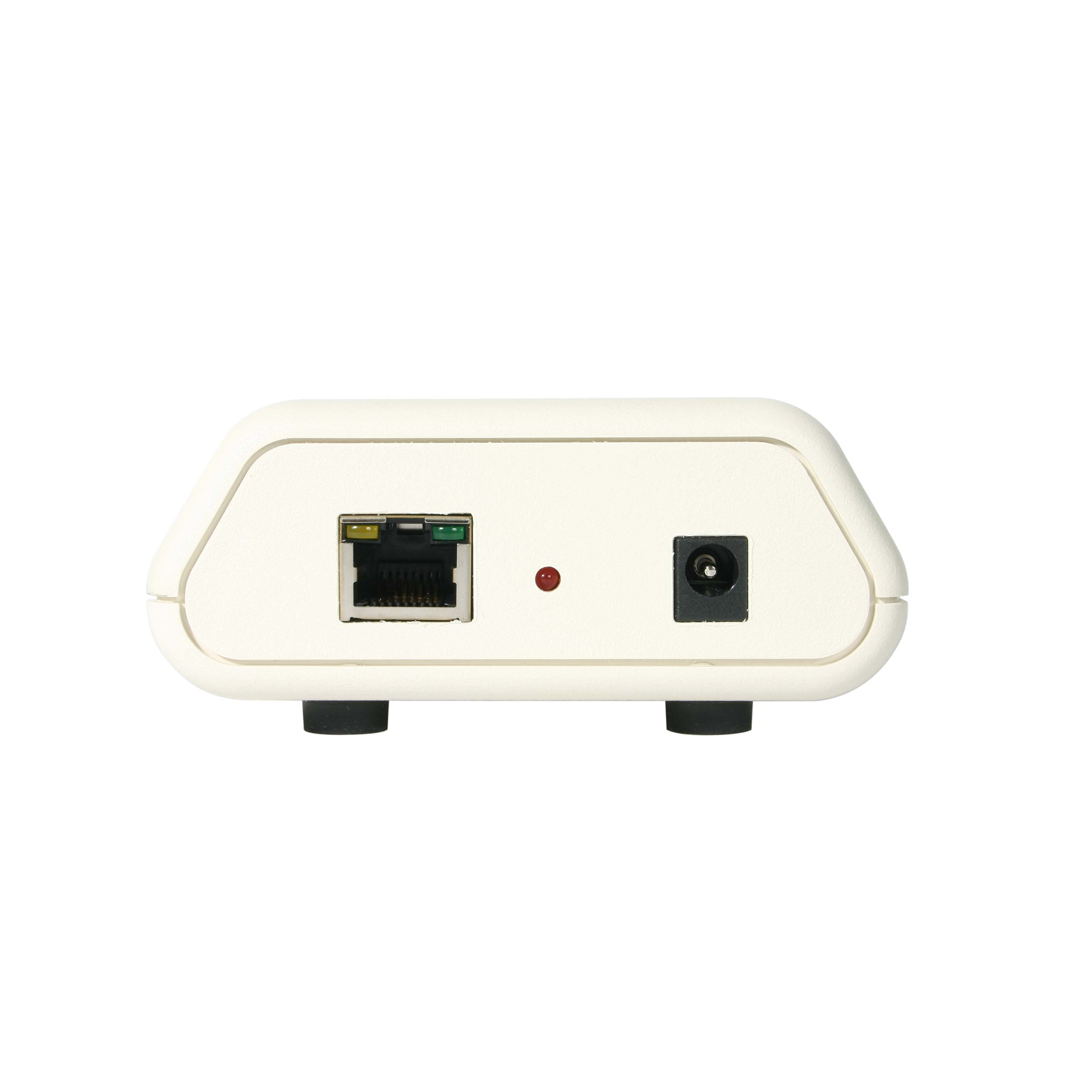

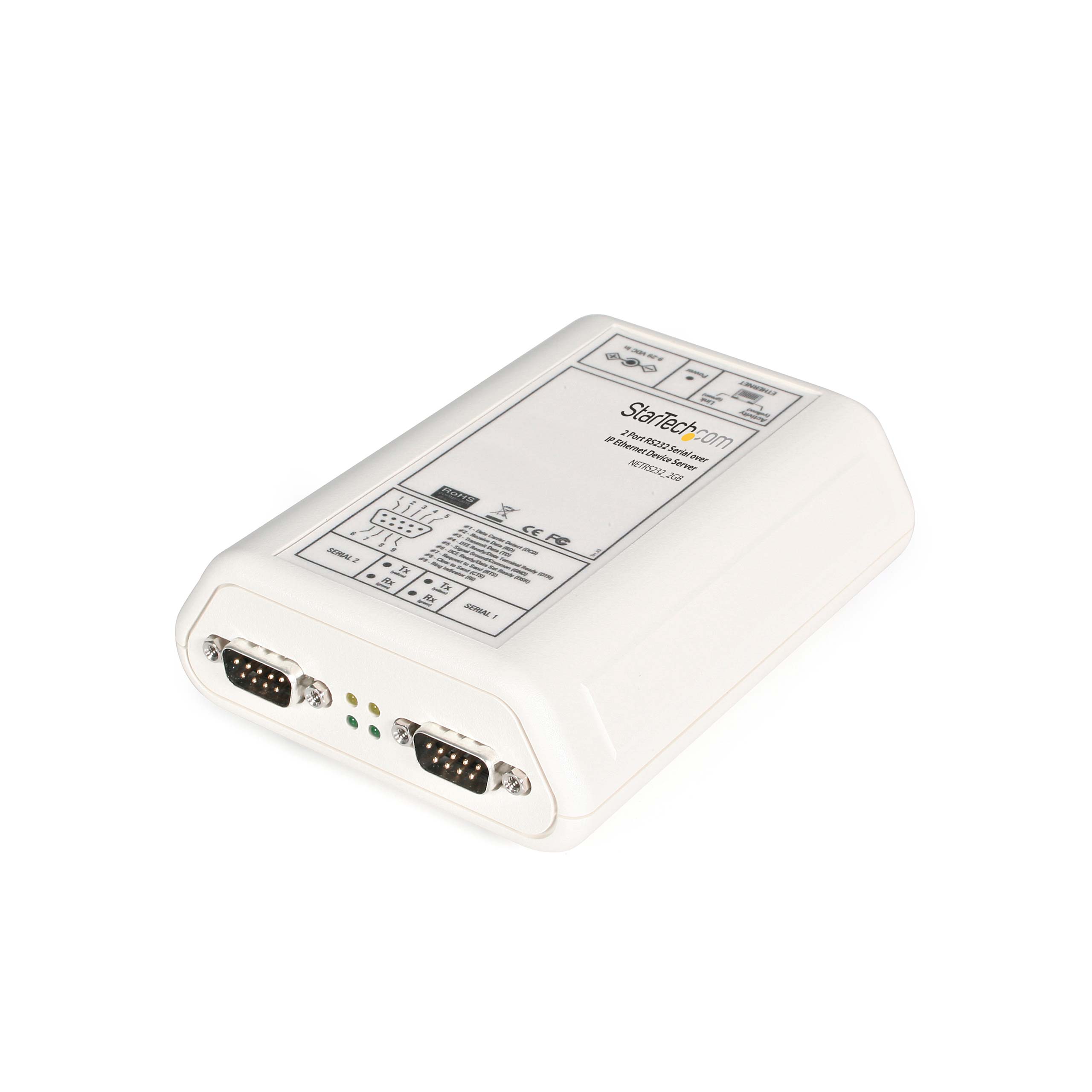

2 Port RS-232 to Ethernet Adapter
Connect to, configure and remotely manage two RS-232 serial device over an IP network
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port RS-232 to Ethernet Adapter Product Number NETRS232_2GB UPC 065030810975 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Country of Origin Europe & Japan Canada Country of Origin North America Canada Product Title (Short) 2 Port Serial Ethernet Device Server Product Title (Standard) StarTech.com 2 Port RS-232 Serial Ethernet Device Server Product Title (Long) 2 Port RS232 Serial over IP Ethernet Device Server Title Ingram (Part 1) 2 Port RS232 Serial over IP Ethe Title Ingram (Part 2) rnet Device Server Website Product Headline Connect to, configure and remotely manage two RS-232 serial device over an IP network Bullet 1 Browser based configuration of network settings, serial port line settings, UART transmit and receive buffer trigger levels and serial port flow control Bullet 2 Comes complete with Ether Link Manager software making serial device configuration easy Bullet 3 Data transfer rates of up to 115.2 Kb/sec per port Bullet 4 Remote Telenet configuration Bullet 5 Supports the following network protocols: IP, HTTP, ICMP, TCP, TFTP and UDP Marketing Copy Applications - Environmental Control (lighting, temperature, clocks)
- Hospital (monitoring equipment, nurses' stations)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers)
Special Notes All modes other than Driver Mode operate independently of the operating system Related Products - NETRS232_1GB
- NETRS232_4GB
- NETRS2321EGB
Output Current 200 mA Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Operating Temperature 0° to 70° C Product Length (mm) 95 Product Width (mm) 130 Product Height (mm) 40 Product Weight (g) 227 TAA Compliant No Maximum Data Transfer Rate 115.2 Kbps OS Compatibility - Windows 7
- Windows 8
- Windows 10
- Windows 11
Industry Standards - HTTP
- ICMP
- TCP/IP
- TFTP
- UDP

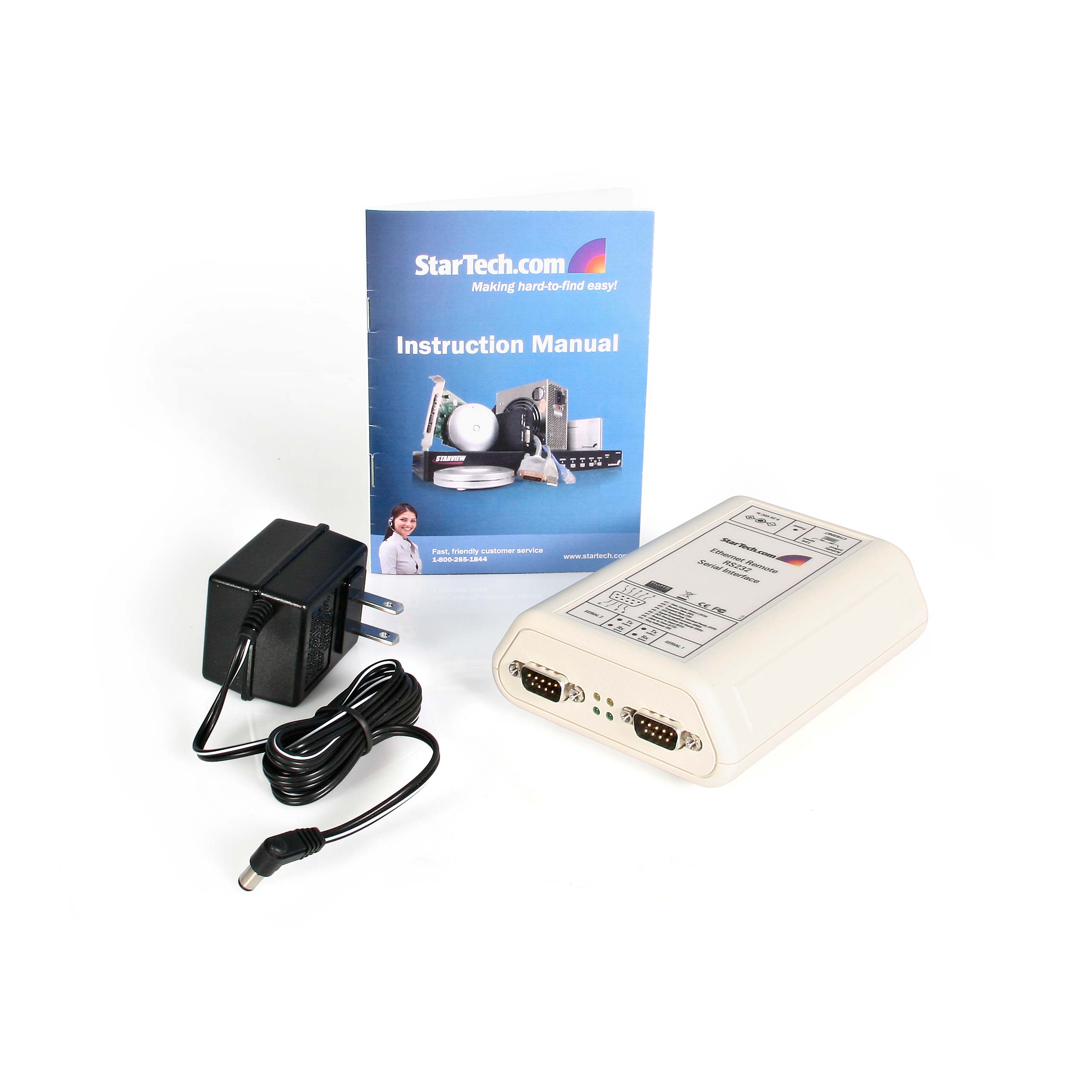

Carton Depth (mm) 478 Carton Height (mm) 320 Carton Quantity 20 Carton Weight Gross (g) 15880 Included in Package - 1 - 2 Port Serial over IP converter
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 180 Package Height (mm) 80 Package Width (mm) 150 Package Quantity 1 Package Weight (g) 700 Packaging Description 2 Port RS232 Serial over IP Device Server Packaging Description India 2 Port RS232 Serial over IP Device Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
