NETRS42348PD

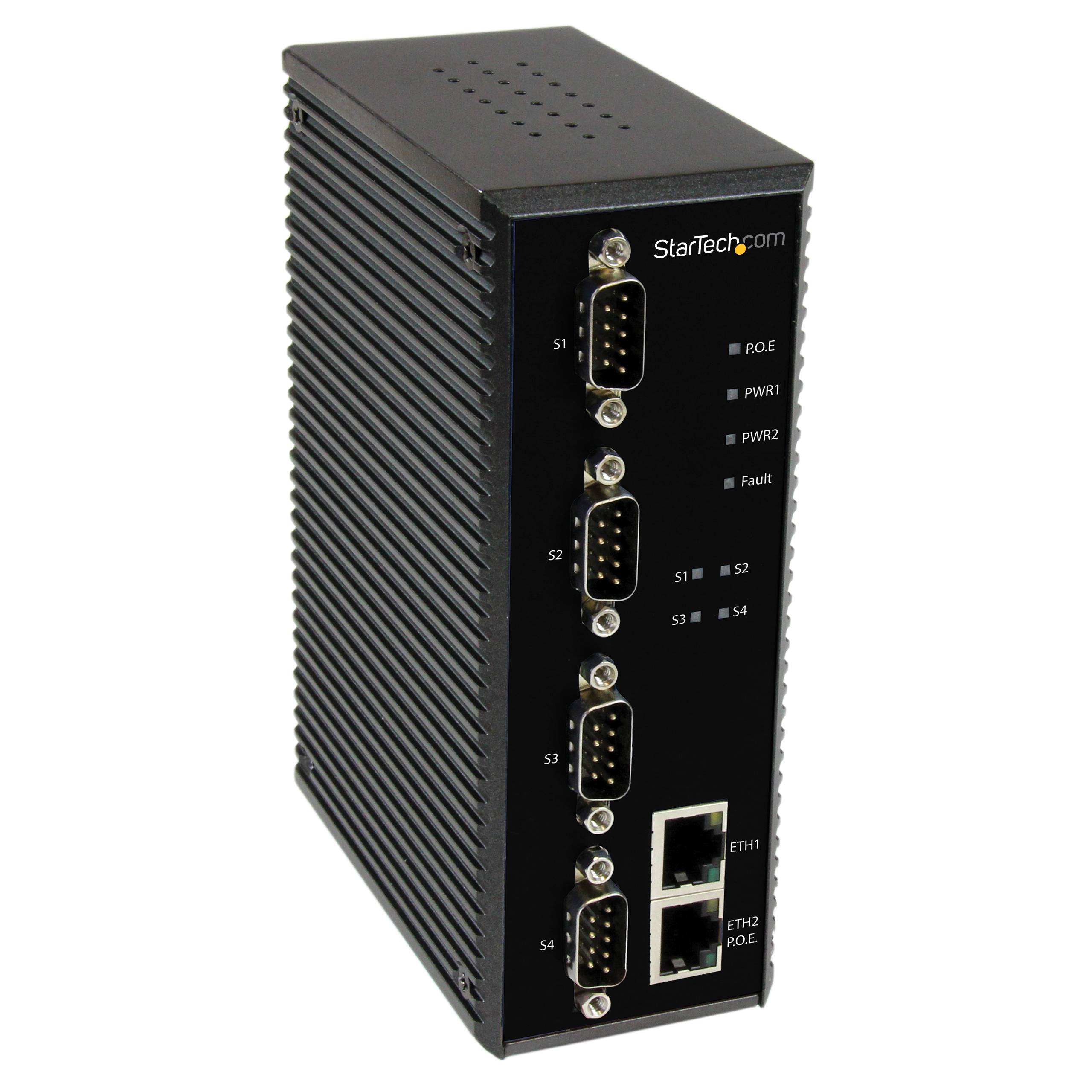

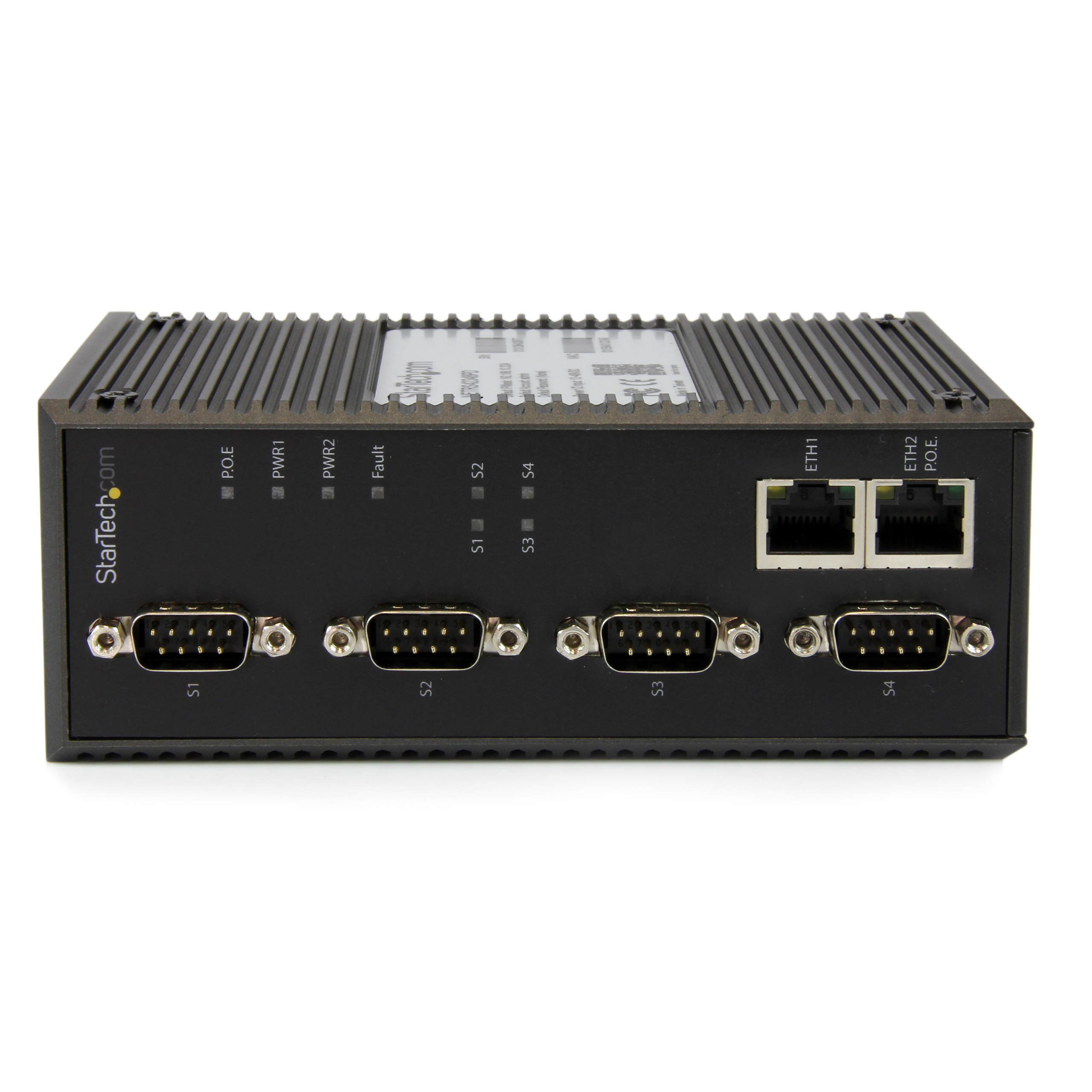

4Pt Ethernet Serial Device Server - Serial to IP
Remotely manage 4 industrial RS232 or RS422/485 serial device over an IP network, with redundant 10/100 Ethernet ports
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4Pt Ethernet Serial Device Server - Serial to IP Product Number NETRS42348PD UPC 065030854542 Lifecycle status Discontinued Warranty 5 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX058X Product Title (Ultra-Short) 4 Port Serial to IP Product Title (Short) 4 Port Industrial Serial Device Server Product Title (Medium) 4 Port Industrial RS-232 / 422 / 485 Serial to IP Device Server - PoE-Powered Product Title (Standard) 4 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server - PoE-Powered - 2x 10/100Mbps Ports Product Title (Long) 4 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server - PoE-Powered - 2x 10/100Mbps Ports Product Title (AMZ) 4 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server - PoE-Powered - 2x 10/100Mbps Ports - Serial over IP (NETRS42348PD) Title Ingram (Part 1) 4Port Ethernet to Serial Device Title Ingram (Part 2) Server - Serial over IP Adapter Website Product Headline Remotely manage 4 industrial RS232 or RS422/485 serial device over an IP network, with redundant 10/100 Ethernet ports Bullet 1 Redundant power input via Power over Ethernet, or 12-48V DC terminal block Bullet 2 Redundant dual Ethernet ports with < 10ms recovery time Bullet 3 Up to 460.8 Kbps baud rate Bullet 4 IP-30 industrial casing Bullet 5 Supports RS232, RS422 and RS485 serial protocols Bullets (Consolidated) Remotely manage four industrial serial devices over a network with redundant power inputs and dual 10/100 Ethernet ports - 4 Port Industrial RS-232/422/485 Serial to IP Ethernet Device Server - PoE-Powered - 2x 10/100Mbps Ports - Serial over IP - PoE-Powered Device Server - Ethernet to Serial DB9 TS - Redundant power input via Power over Ethernet or 12-48V DC terminal block - 4 Port Industrial Serial Device Server supports RS232 and RS422 and RS485 serial protocols Marketing Copy Applications - Factory or warehouse environments subject to harsh conditions and large temperature variances
- Industrial locations where critical equipment requires backup power and LAN connections
- Manufacturing (CNC machinery, process control equipment, serial printers)
- Security (UPS control, access key panels, video cameras, card readers)
- Environmental Control (lighting, temperature, clocks)
- POS (credit/debit card readers, receipt printers, cash registers, scales)
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - AT925FM
- SCNM9FM
- M45PATCH50BL
- 45PATCH10BK
- SCNM9FF
- GC9SF
- POEINJ100
- POEINJ2GI
- IES8100POE
Related Products - NETRS2321P
- NETRS2321POE
- NETRS2321E
- NETRS232_4
- NETRS232_2
- NETRS232_1
- NETRS232485
- NETRS232485W

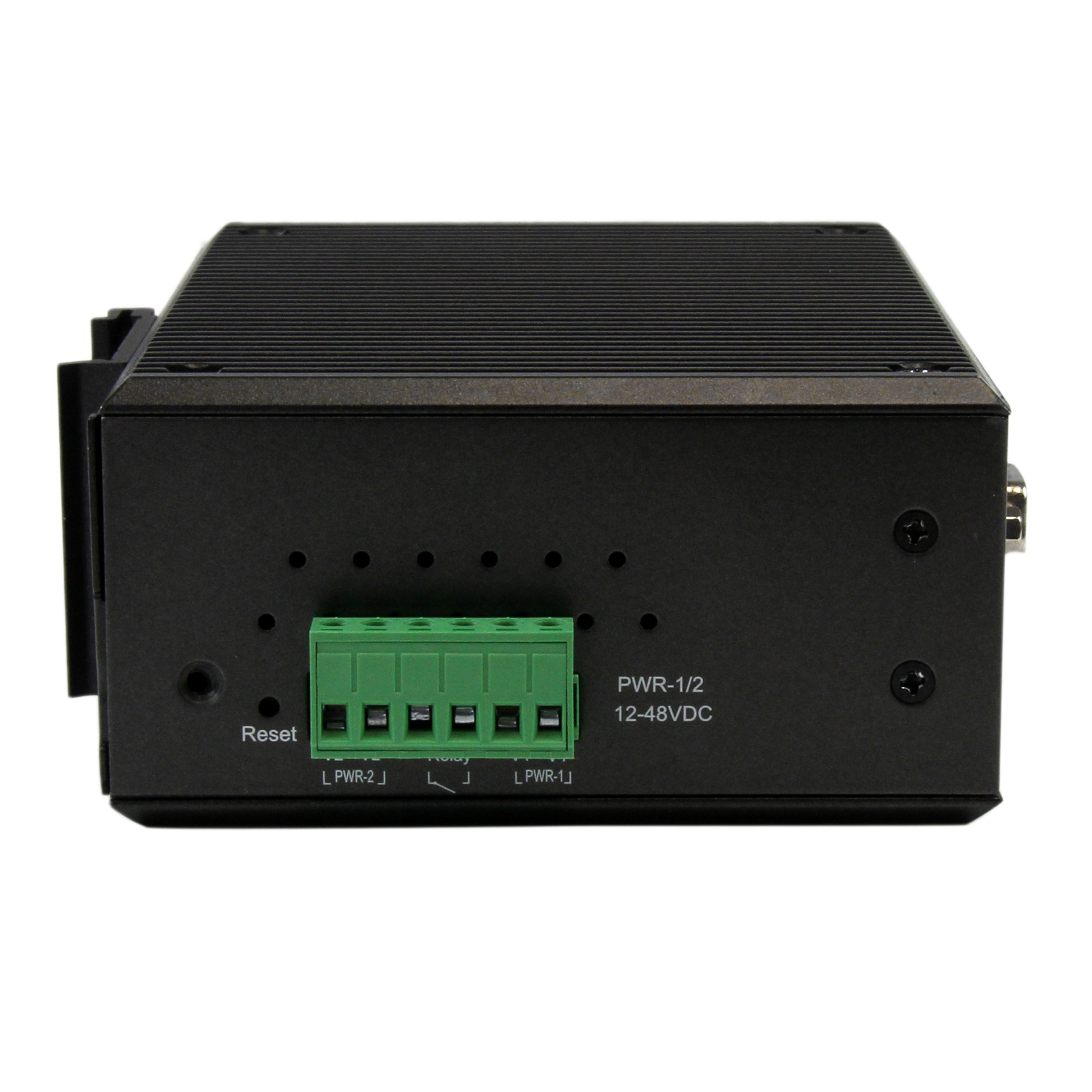

Input Voltage 12 ~ 48 DC Power Source Terminal Block Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature -10°C to 70°C (14°F to 158°F) Product Length (mm) 224.000 Product Width (mm) 210.000 Product Height (mm) 144.000 Product Weight (g) 730.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100 Mbps Data Bits 5, 6, 7, 8 Flow Control XON/XOFF, RTS/CTS, DTR/DSR Max Baud Rate 460.8 Kbps Maximum Data Transfer Rate 460.8 Kbps MTBF (hours) 569,972 Hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
Parity Odd, Even, None, Mark, Space Remote Management Ability Yes Security Features 128-bit SSL Encryption Stop Bits 1, 1.5, 2 Supported Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, SSL, PPPoE, DDNS Supported Serial Protocol RS-232/422/485 Industry Standards Interface/Bridge Serial LED Indicators - 1 - PoE
- 4 - Serial
- 2 - Power
- 1 - Fault
- 2 - Ethernet Link

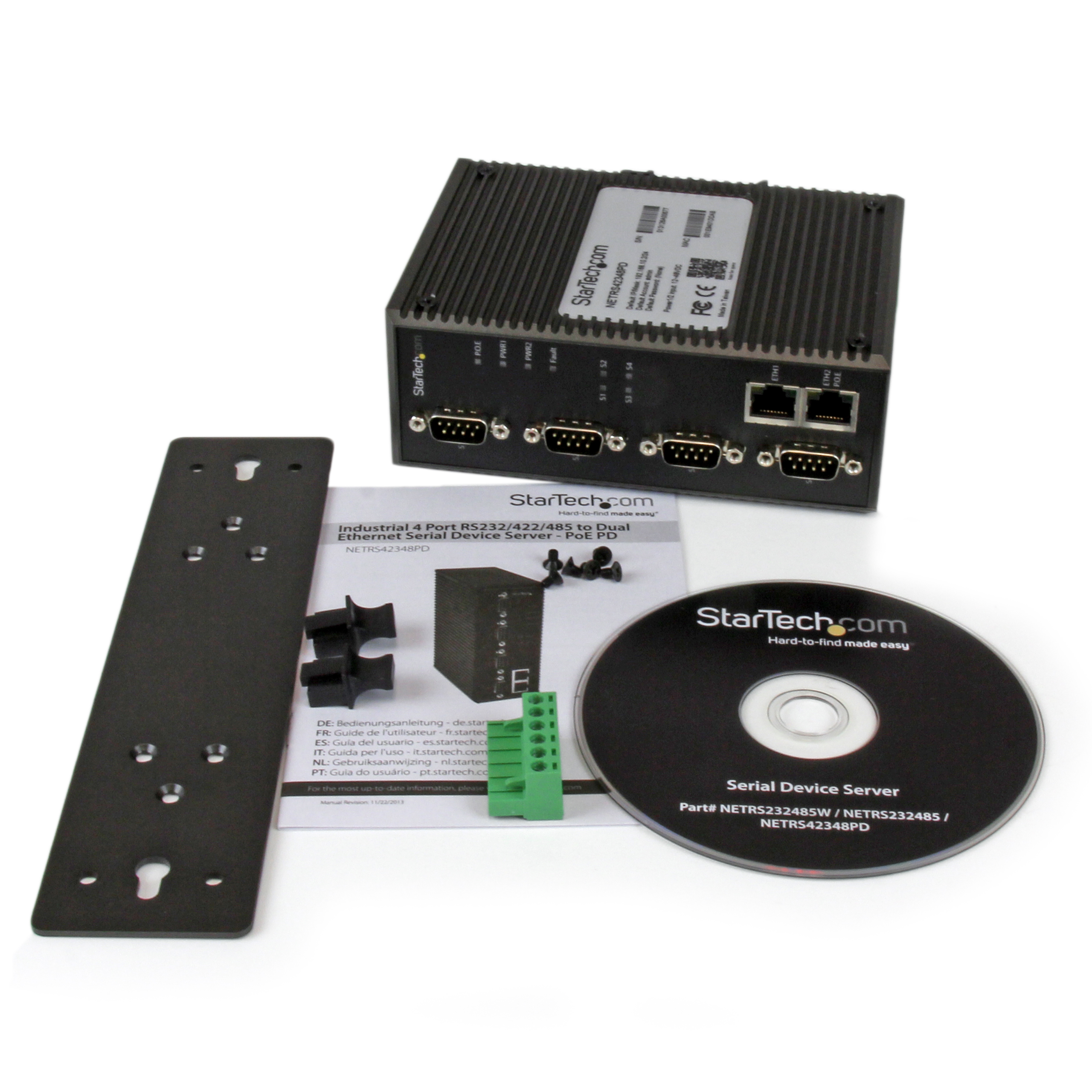

Carton Depth (mm) 389 Carton Height (mm) 278 Carton Quantity 10 Carton Weight Gross (g) 12900 Included in Package - 1 - Serial Device Server
- 2 - RJ-45 Dust Covers
- 1 - Installation Guide
- 1 - Software CD
- 1 - DIN-Rail Kit
- 1 - Wall-Mount Kit w/ Screws
Package Depth (mm) 186 Package Height (mm) 92 Package Width (mm) 237 Package Quantity 1 Package Weight (g) 830 Packaging Description 4 Port RS232/422/485 Dual Ethernet Serial Device Server - PoE Packaging Description India 4 Port RS232/422/485 Dual Ethernet Serial Device Server - PoE Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 4 Connector 2 RJ-45 Connector 2 (Quantity) 2 Connector 3 Terminal Block (6 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-10-29 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
