NLRD-5F-CAT6A-PATCH

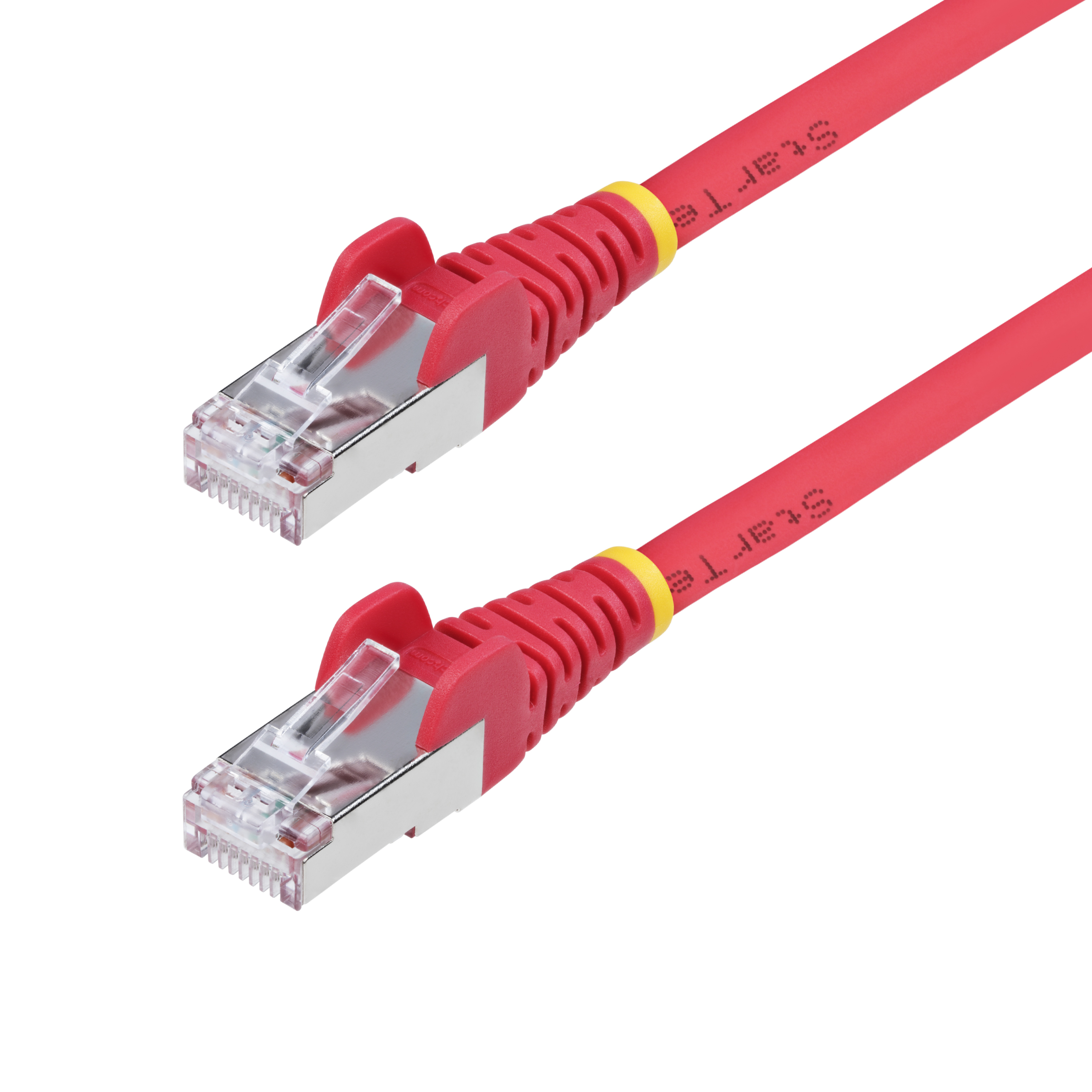

5ft Red CAT6A S FTP Snagless Patch cable LSZH
Connect reliably to a 10G network using this Shielded LSZH Cat6a Cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 5ft Red CAT6A S FTP Snagless Patch cable LSZH Product Number NLRD-5F-CAT6A-PATCH UPC 065030913898 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Copper Network Cables Category Level 1 Network Cables Category Level 2 Copper Ethernet Cables Category Level 3 Cat6a Cables - LSZH Family Cat6a Cables - LSZH Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Philippines Country of Origin Revision (1) XXXXXX174X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX048X Product Title (Ultra-Short) CAT6a Ethernet Cable Product Title (Short) 5ft Red CAT6a Ethernet Cable - LSZH Product Title (Medium) 5ft Red CAT6a Ethernet Cable, Snagless, 10G, 100W PoE, S/FTP, Bare Copper, LSZH Product Title (Standard) 5ft Red CAT6a Ethernet Cable, Snagless RJ45, 10G, 100W PoE, S/FTP, LSZH, 27AWG Bare Copper, 500MHz, Shielded Network Patch Cord Product Title (Long) 5ft Red CAT6a Ethernet Cable, Snagless RJ45, 10GbE, 100W PoE++, S/FTP, LSZH, 27AWG Pure Bare Copper Wire, 500MHz, Shielded Network Patch Cord w/Strain Reliefs, Individually Tested/ETL Verified Product Title (AMZ) 5ft Red CAT6a Ethernet Cable, Snagless RJ45, 10GbE, 100W PoE++, S/FTP, 500MHz, 27AWG Pure Bare Copper, LSZH Title Ingram (Part 1) CAT6a Ethernet Cable - Red Title Ingram (Part 2) 10GbE, S/FTP, LSZH, 100W PoE Website Product Headline Connect reliably to a 10G network using this Shielded LSZH Cat6a Cable Bullet 1 CAT6A ETHERNET CABLE: Shielded Snagless Cat6A cable is optimized for 10Gbps networks; Up to 500MHz range enhances signal reliability; Low Near-End Crosstalk (NEXT) and Return Loss (RL); Supports Power over Ethernet (PoE++) devices up to 100W Bullet 2 QUALITY CONSTRUCTION: Shielded 50-micron gold-plated connectors ensure a precise fit to reduce wear; 27AWG pure bare copper wire enables consistent performance characteristics; Al-mylar foil w/braided shield for enhanced EMI protection Bullet 3 SAFETY AND RELIABILITY: Individually Tested to meet ANSI/TIA-568.2-D standards for guaranteed Cat6A performance; Low Smoke Zero Halogen (LSZH) jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted Bullet 4 APPLICATIONS: Ideal for 10GBASE-T network deployments and switches; Connect reliably to PoE devices such as IP cameras and Access Points; PoE++ specifications complies with IEEE 802.3bt Type 4; Flexible LSZH jacket can be routed through tight spaces Bullet 5 THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our network cables are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Snagless S/FTP Cat6a cable supports 10Gbps and 500MHz; Ideal for 10GBASE-T networks/switches; Low Near-End Crosstalk (NEXT) and Return Loss (RL); /ETL; 100W PoE; Gold-Plated RJ45; 27AWG bare copper wire w/shield; Flexible LSZH jacket Bullets (Consolidated) - Snagless S/FTP Cat6a cable for 10G networks; Up to 100W PoE; Ideal for 10GBASE-T switches/PoE devices such as IP cameras/Access Points - 500MHz range enhances signal reliability; Low Near-End Crosstalk (NEXT) and Return Loss (RL) - Gold-plated connectors; 27AWG pure bare copper w/braided shield; Low Smoke Zero Halogen (LSZH) jacket is safe for enclosed/poorly ventilated spaces - 5-foot; Red; Snagless; 10Gbps; 100W PoE++; S/FTP; 0.22in O.D.; Tested w/ Fluke® CableAnalyzer/ETL Verified Marketing Copy Marketing Copy (No HTML) Website Search Keyword - cable utp cat 6a
- cat 6 cable
- cat 6a cable
- cat 6a ethernet cable
- cat 6a shielded cable
- cat6 cable
- cat6a cable
- cat6a ethernet cable
- cat6a ethernet patch cable
- cat6a network cable
- cat6a patch cable
- cat6a plenum cable
- cat6a shielded cable
- cat6a shielded ethernet cable
- cat6a shielded plenum cable
- cat6a stp cable
- cat6a utp cable
- ethernet cable
- ethernet cat 6a cable
- network cable
- rj45 cable
- rj45 ethernet cable
- rj45 network cable
- rj45 patch cable
- shielded cat 6a cable
- shielded ethernet cable
- snagless utp patch cable
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Prop 65 - Environmental - United States - Proposition 65 Warning Label
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
Power Delivery 100W Cable Length (mm) 1524 Cable OD 5.7 Color Red Conductor Type Stranded Copper Connector Style Straight Humidity 0% ~ 85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 1524 Product Width (mm) 11.5 Product Height (mm) 13.5 Product Weight (g) 62 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Wire Gauge 27 AWG (0.361 mm) Cable Rating CAT6a - 500 MHz ETL Verified Yes Maximum Data Transfer Rate 10 Gbps Cable Jacket Material Low Smoke Zero Halogen Cable Shield Material Aluminum-Mylar Foil with Braid Cable Shield Overlap Aluminium-Mylar Foil Cable Structure Shielded with Foiled Twisted Pairs (S/FTP) Cable Type Shielded Snag-less Connector Plating Gold Fire Rating LSZH Rated (Low Smoke Zero Halogen) Number of Conductors 4 Pair S/FTP Pair Shield Structure Aluminium-Mylar Foil Shielding S/FTP Wiring Standard TIA/EIA-T568B Carton Depth (mm) 380 Carton Height (mm) 290 Carton Quantity 100 Carton Weight Gross (g) 8250 Included in Package 1 - Cat6a Ethernet Cable - LSZH Number of Sub-Cartons 10 Package Depth (mm) 190 Package Height (mm) 12 Package Width (mm) 220 Package Weight (g) 68 Packaging Description 5ft Cat6a S/FTP Snagless Patch Cable, LSZH - Red Packaging Description India 5ft Cat6a S/FTP Snagless Patch Cable, LSZH - Red Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 A+ Not Required Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-08-14 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Length and color difference. Comparable SKU 2 Comment NA Digital Content Due Date 2024-11-25 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Graphic Design SKU Logic Naming Convention NLxy-xy-CAT6A-PATCH ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) CA,IN,MX,US Priority New Product High Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2024-08-07 Target Production Release 2024-08-14 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
