OM4RLCLC2M

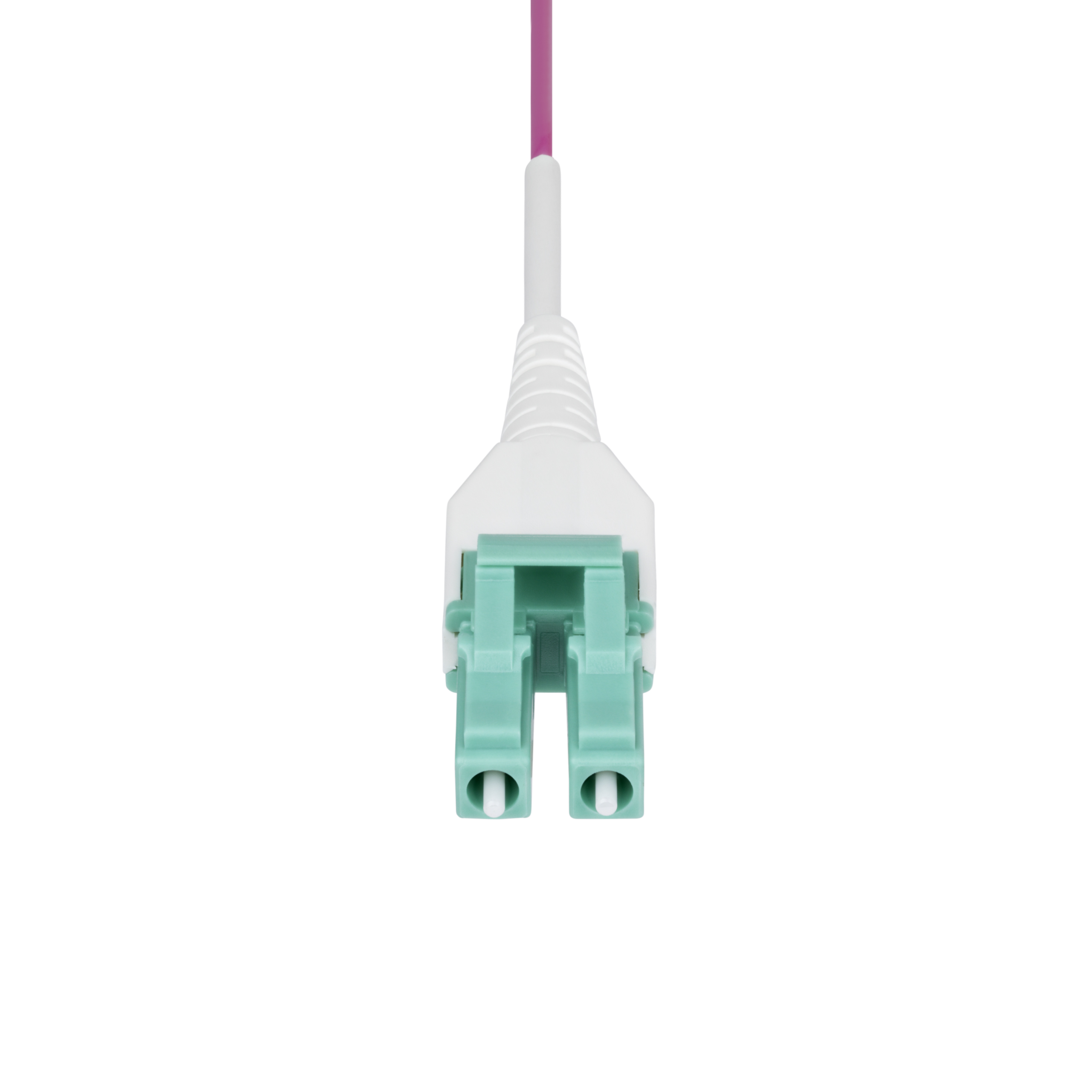

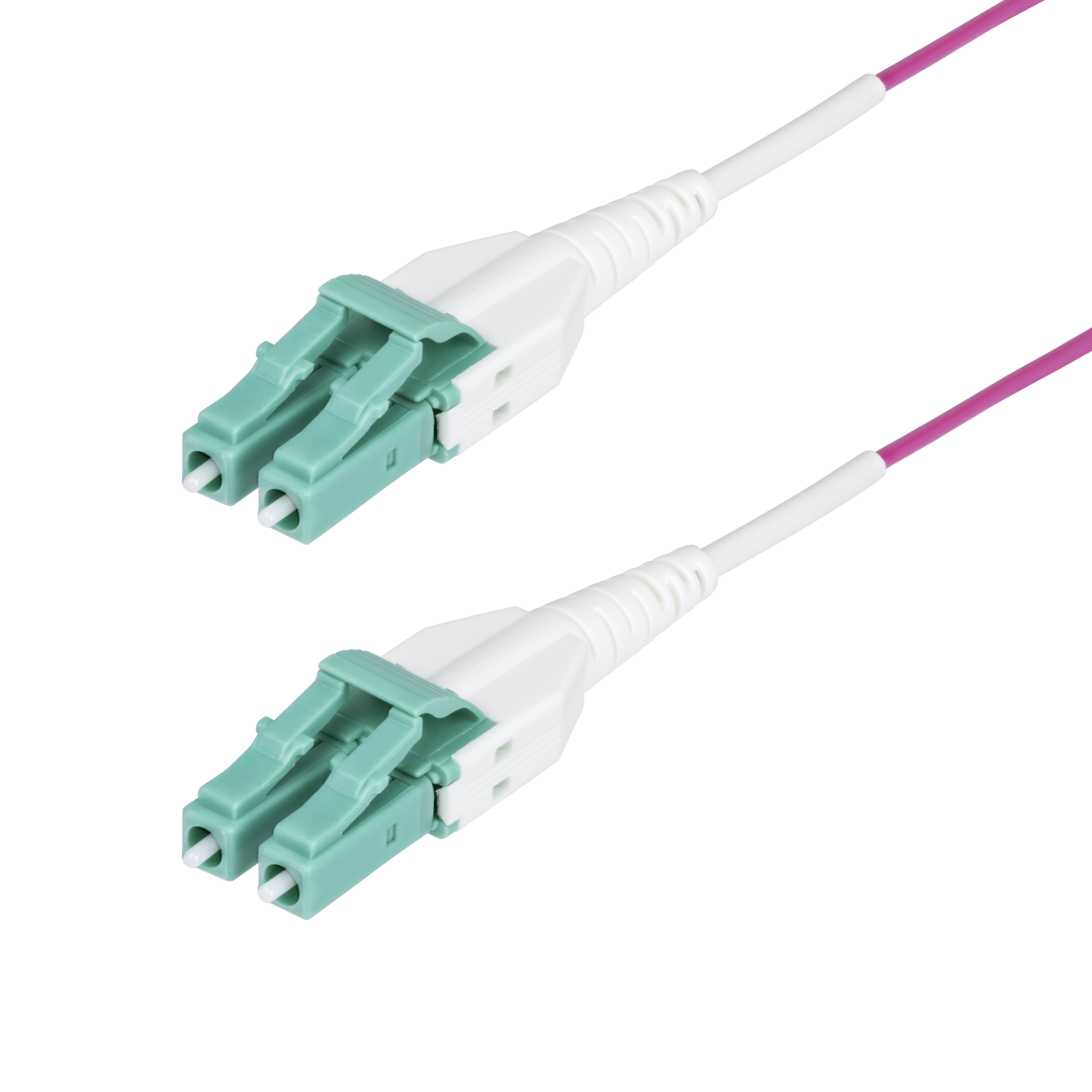

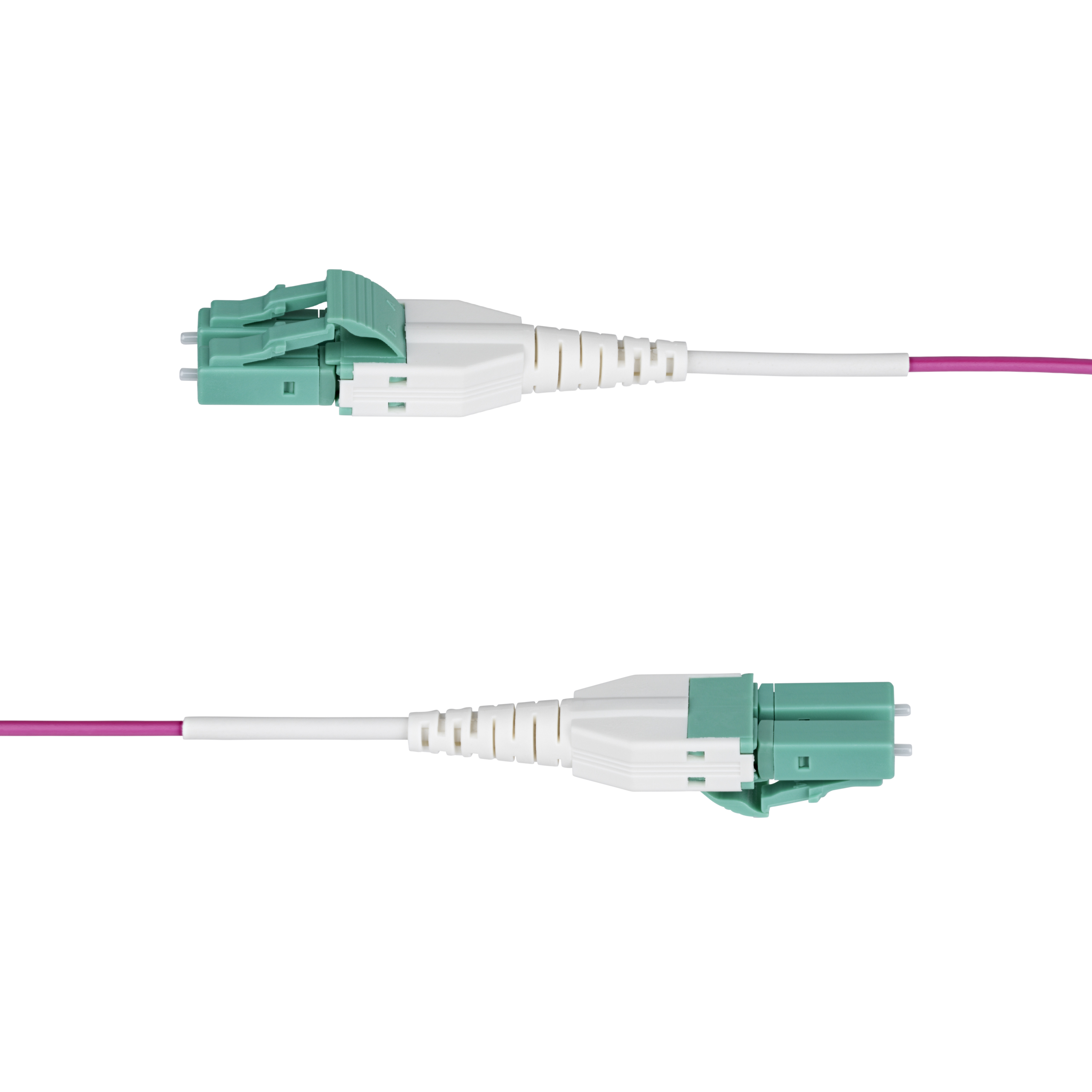

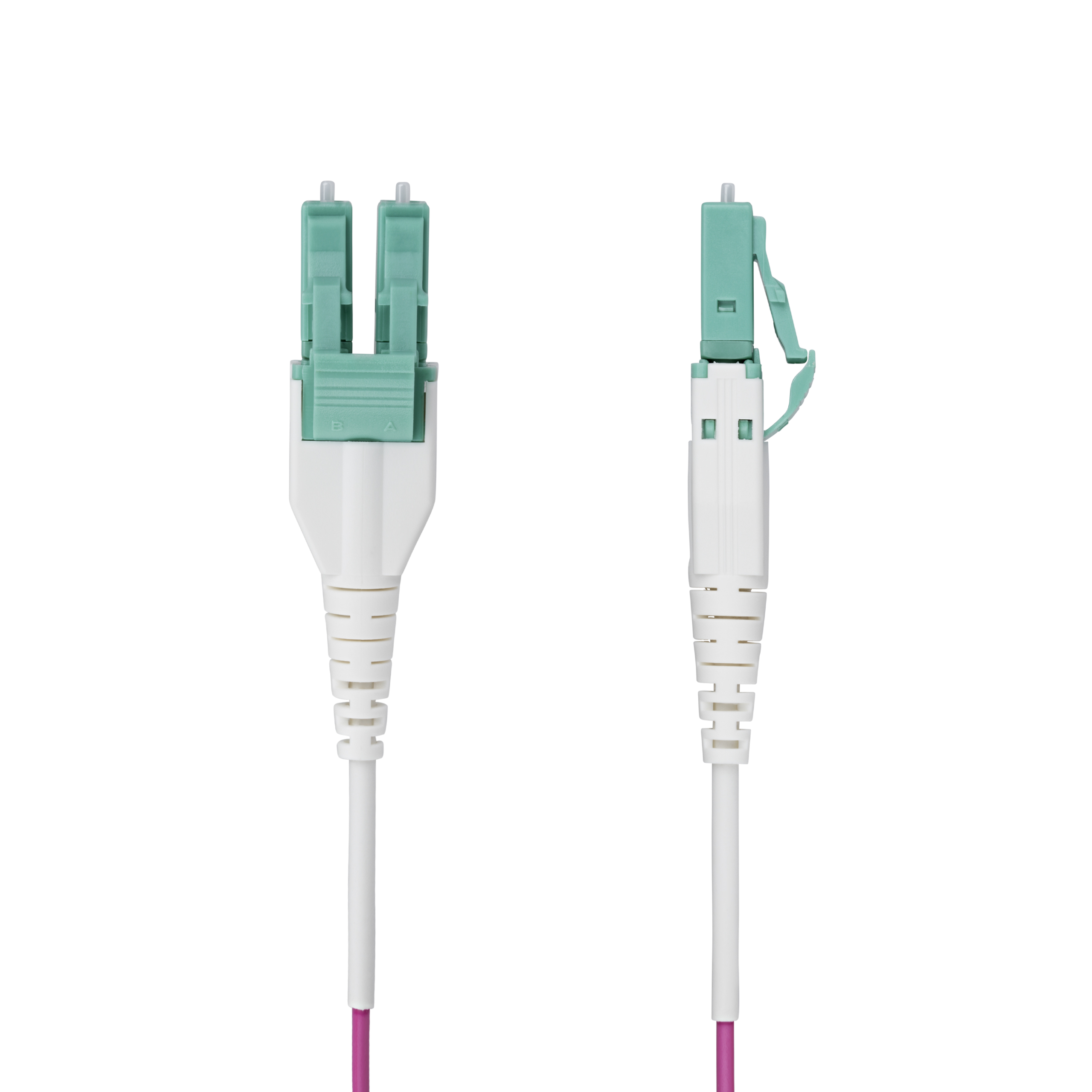

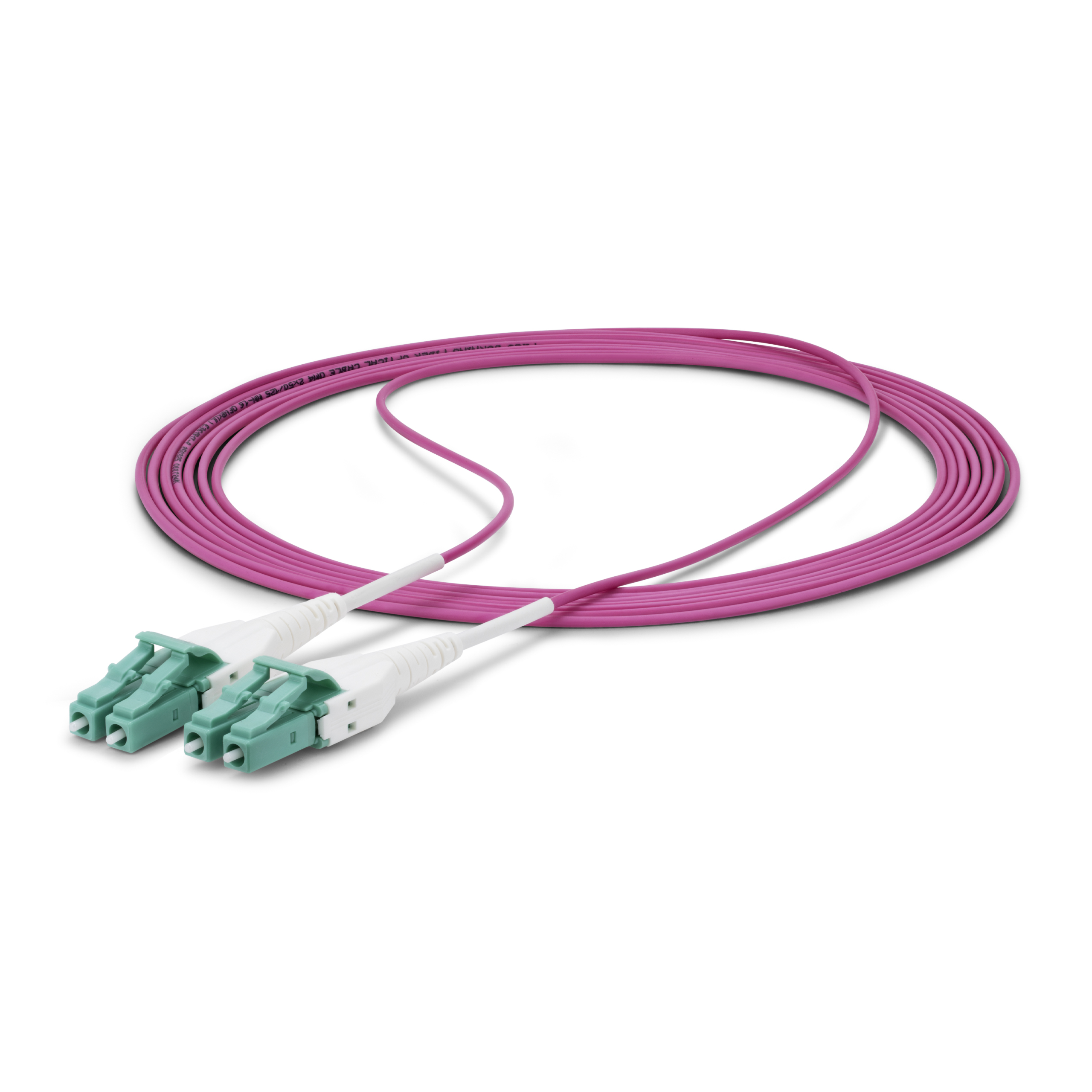

OM4 Fiber Optic Cable Violet MM Duplex LC LC OFNR 2M
Install Erika Violet OM4 fiber cables for easy identification and streamlined cable management
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name OM4 Fiber Optic Cable Violet MM Duplex LC LC OFNR 2M Product Number OM4RLCLC2M UPC 065030920759 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Fiber Network Cables Category Level 1 Network Cables Category Level 2 Fiber Cables Category Level 3 Multimode OM4 Fiber Cables Family OM4 Erika Violet Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX145X Product Title (Ultra-Short) LC/LC Fiber Cable Product Title (Short) 2m LC/UPC OM4 Fiber Cable, OFNR Riser Product Title (Medium) 2m (6.6ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable, Erika Violet, 100G, OFNR Product Title (Standard) 2m (6.6ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable, Erika Violet, 50/125, 100G, Uniboot Fiber Jumper Cord, OFNR Riser Product Title (Long) 2m (6ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable, Erika Violet, 50/125µm, 40G/100G, LOMMF/VCSEL, Uniboot Fiber Jumper Cord, OFNR Riser Rated Product Title (AMZ) 2m (6.6ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable, Erika Violet, 50/125, 40G/100G, Uniboot Fiber Jumper Cord, OFNR Riser Rated Title Ingram (Part 1) OM4 LC/LC Multimode Fiber Cable Title Ingram (Part 2) Uniboot/OFNR Riser/100G - 50/125 Website Product Headline Install Erika Violet OM4 fiber cables for easy identification and streamlined cable management Bullet 1 ERIKA VIOLET OM4: OM4 multimode fiber cable is immune to EMI and supports up to 100Gbps; Erika Violet jacket is TIA-standardized for OM4, avoiding OM3/OM4 confusion with Aqua cables; Compact uniboot design enhances airflow & access in dense installations Bullet 2 QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves return loss over PC polish; Robust molded strain reliefs minimize wear from bending; Protective Aramid yarn for increased tensile strength Bullet 3 SAFETY AND RELIABILITY: Each cable is individually tested for guaranteed OM4 performance and includes a test report; OFNR riser-rated cable jacket minimizes flame spread between floors in riser spaces; Attenuation value of 3dB/km meets TIA standards Bullet 4 WIDE COMPATIBILITY: Supports 1/10/40/100 Gbps full duplex transmission; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, and LC-based SFP/SFP+ transceivers Bullet 5 SPECS: 2-meter (6.6-foot); Color: Erika Violet (OM4); LC/LC UPC; 50/125µm; 850nm/1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; OFNR (Riser) Jacket; Cable OD: 1.6mm; Min Bend Radius: 7.5mm (0.29in) Bullets (Compact) OM4 Multimode LC/LC-UPC Fiber Cable supports up to 100Gbps full duplex; TIA-standard Erika Violet for OM4 identification; 50/125µm core w/OFNR Riser jacket; Bandwidth: 2000MHz•km at 850nm w/VCSEL; Cable OD: 1.6mm; Temp Range: -20 to 60°C (-4 to 140F) Bullets (Consolidated) 2m (6.6ft) OM4 LC/LC UPC OM4 LOMMF cable supports 1/10/40/100 Gbps duplex connections - Erika Violet is TIA-standardized for clear OM4 fiber identification; Compact uniboot LC connector is suitable for high-density installations; 50/125µm fiber core/cladding w/OFNR Riser Rated jacket - Optimized for ≥2000MHz.km at 850nm w/VCSEL; Facilitate high-bandwidth multimode transmissions between servers and Storage Area Networks (SANs) - Cord O.D.: 1.6mm; Temp Range: -20 to 60 DEGC (-4 to 140 DEGF) Marketing Copy Marketing Copy (No HTML) Applications - Use in 40/100 Gigabit Ethernet and Fiber Channel applications
- Supports VCSEL laser and LED light sources
- OFNR riser-rated for safe and compliant cable installations in vertical shafts and riser spaces within buildings
Website Search Keyword - 100g fiber optic cable
- 40g fiber optic cable
- Aqua OM4 Duplex multimode fiber
- blue fiber cable
- fiber cable
- fiber optic cable
- fiber optic cabling
- fiber optic om4
- fibre cable
- fibre optic cable
- fibre optic cabling
- lc fiber cable
- lc fibre cable
- lc lc fiber patch cable
- lc to lc fiber cable
- lc to lc fiber patch cable
- lc to lc fibre cable
- lc to lc multimode fiber cable
- mm fiber optic cable
- mm fibre optic cable
- multi mode fiber cable
- multi mode fibre cable
- multimode duplex fiber optic cable
- multimode fiber cable
- multimode fibre cable
- om4 fiber
- om4 multimode fiber
- optical fiber cable
- optical fibre cable
- N820-01M-OM4
- Riser rated fiber cable
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
Related Products - OM4RLCLC3M
- OM4RLCLC5M
- OM4RLCLC7M
- OM4RLCLC10M
- OM4RLCLC15M
- 450FBLCLC1
- LCLCL-1M-OM5-FIBER
Cable Length (mm) 2000 Cable OD 1.6 Color Erika Violet Humidity 0~90% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 2000 Product Width (mm) 12.6 Product Height (mm) 10.6 Product Weight (g) 10 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Cable Rating 1Gbps / 10Gbps / 40Gbps / 100Gbps Fiber Type Multi Mode Maximum Data Transfer Rate 100Gbps Wavelength - 850nm
- 1300nm
Cable Jacket Material OFNR Riser Classification OM4 Fiber Cable Type Duplex Fiber Classification OM4 Fiber Size 50/125 Fire Rating OFNR Riser Carton Depth (mm) 420 Carton Height (mm) 270 Carton Quantity 300 Carton Weight Gross (g) 10200 Included in Package 1 - 2m OM4 Multimode Fiber Optic Cable LC - LC Number of Sub-Cartons 20 Package Depth (mm) 230 Package Height (mm) 0.15 Package Width (mm) 180 Package Weight (g) 26 Packaging Description 2m (6.6ft) LC/LC OM4 Multimode Fiber Optic Cable, OFNR Riser, Erika Violet Packaging Description India 2m (6.6ft) LC/LC OM4 Multimode Fiber Optic Cable, OFNR Riser, Erika Violet Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 15 Sub-Carton Weight (g) 0 Connector 1 LC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 LC Duplex Fiber Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Apple Compatibility Apple Compatible Artwork Due Date 2025-03-20 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment DIFFERENT COLOR AND UNIBOOT Comparable SKU 2 Comment NA Digital Content Due Date 2025-04-25 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Priority New Product High Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2025-03-05 Target Production Release 2025-03-12 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
