Main Image
OPT2SATA

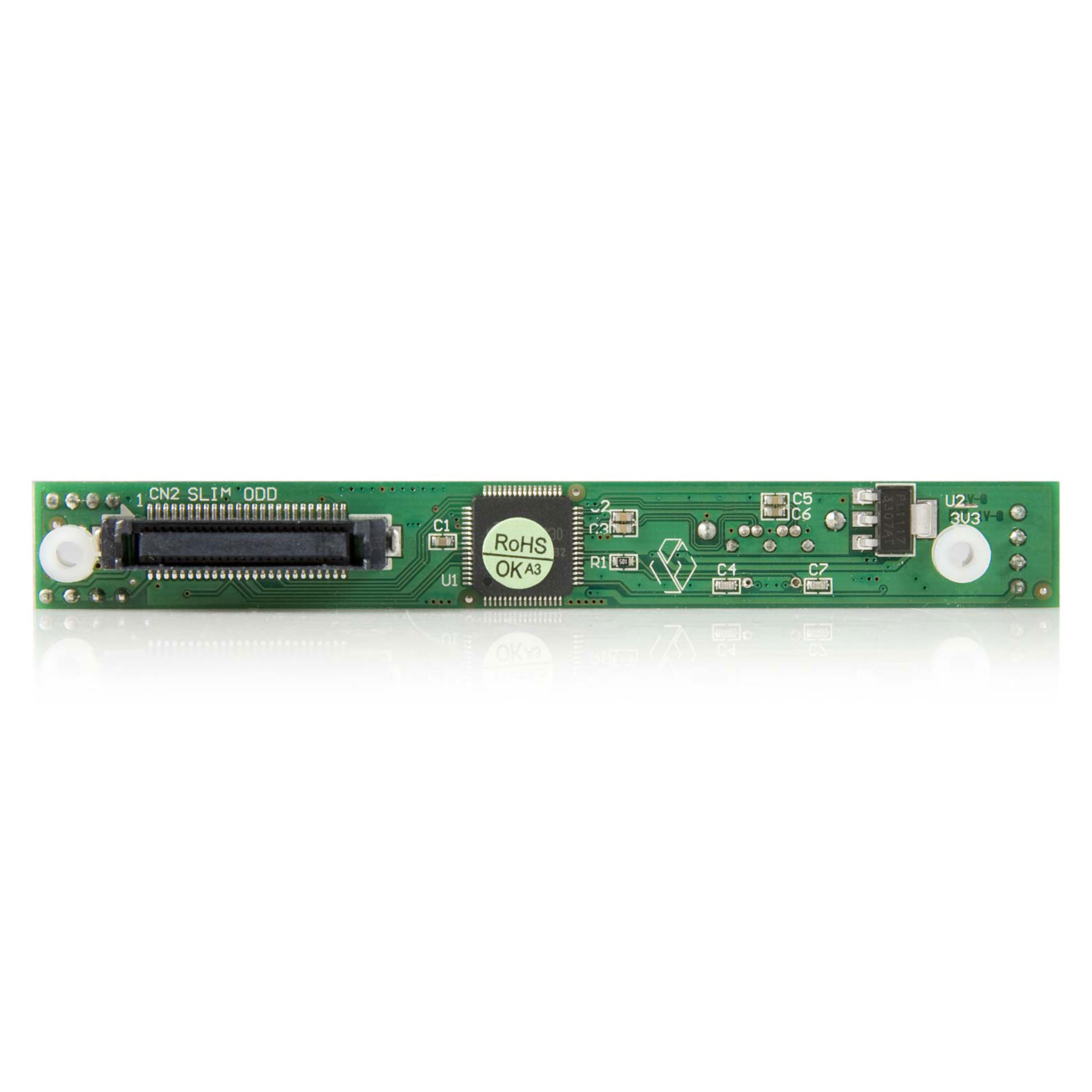

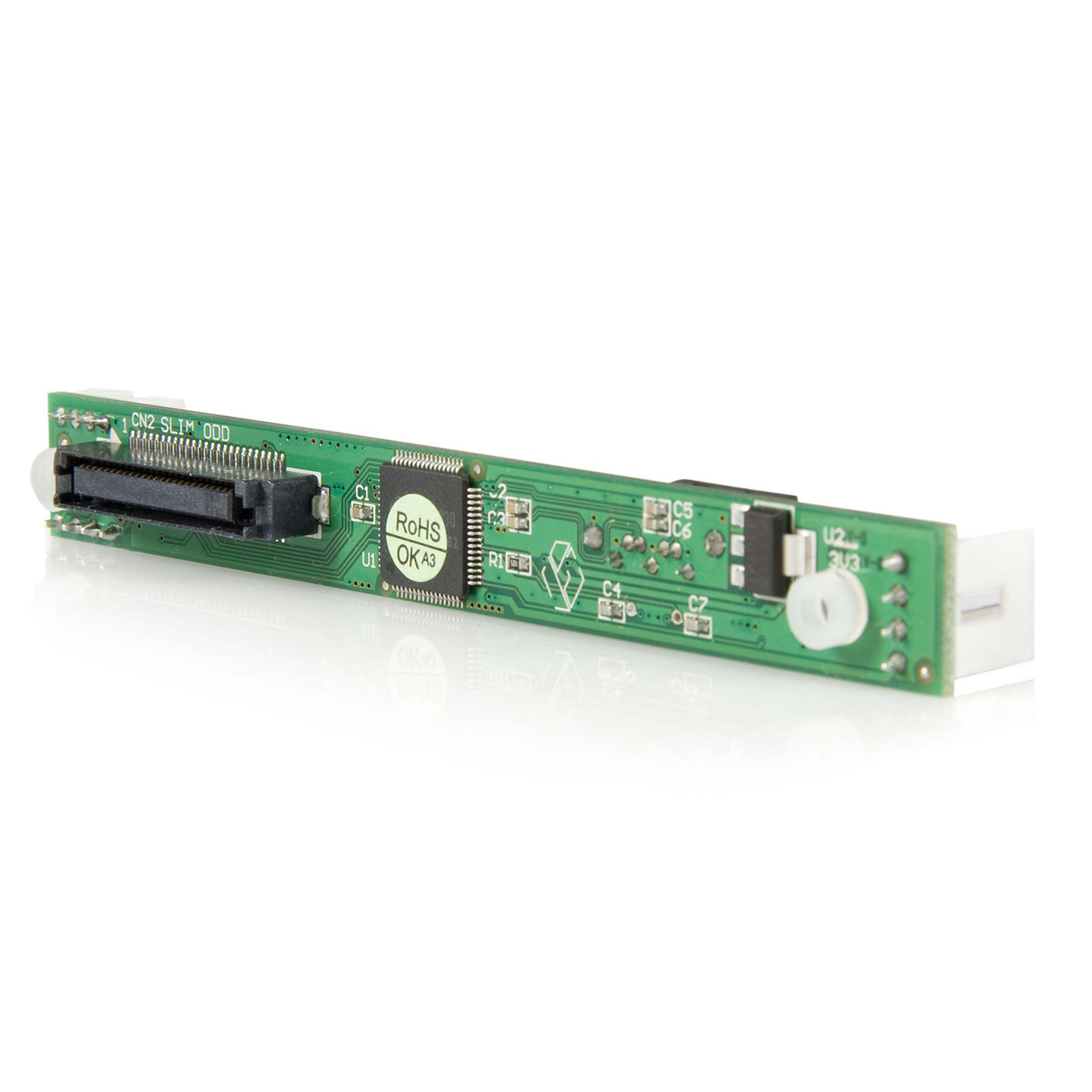

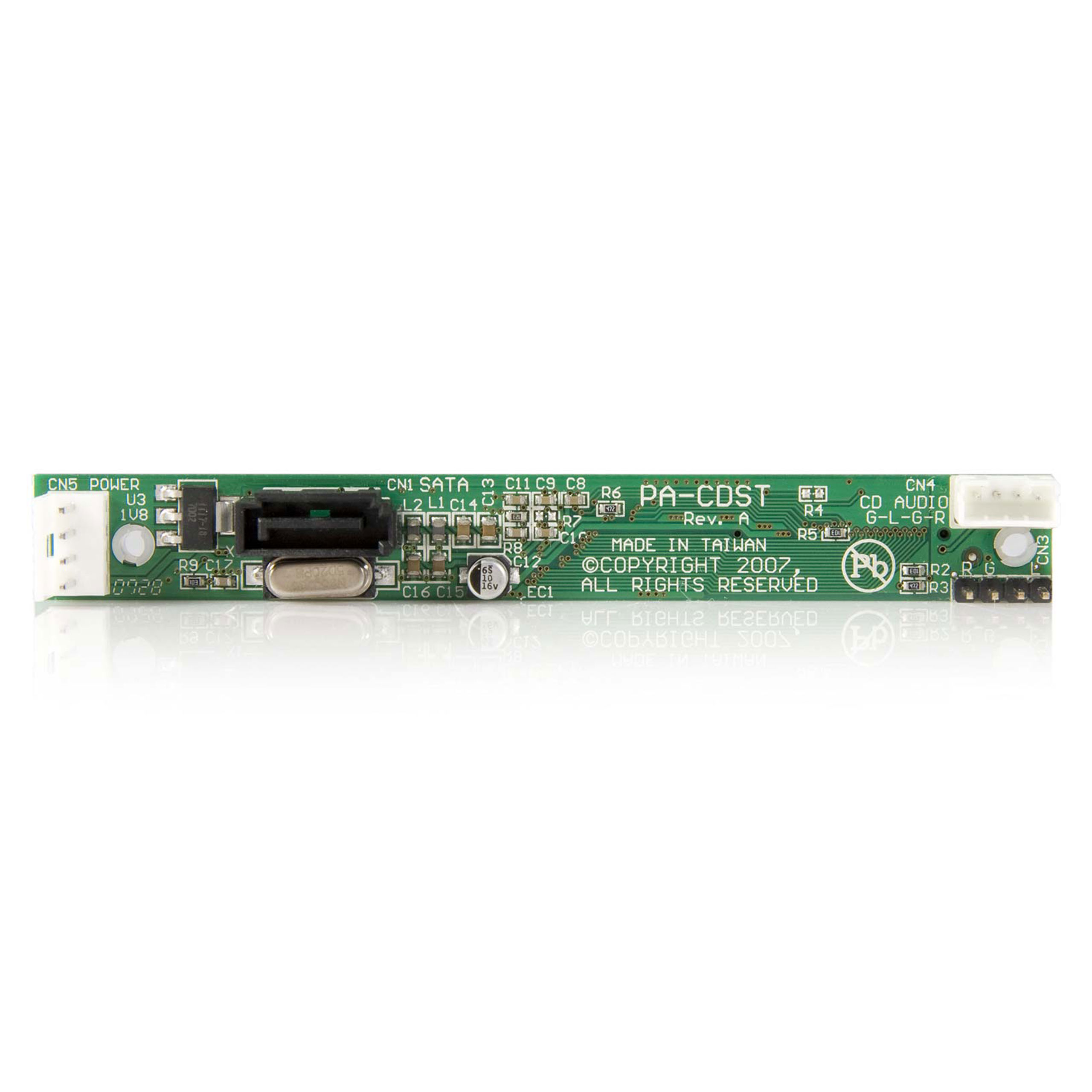

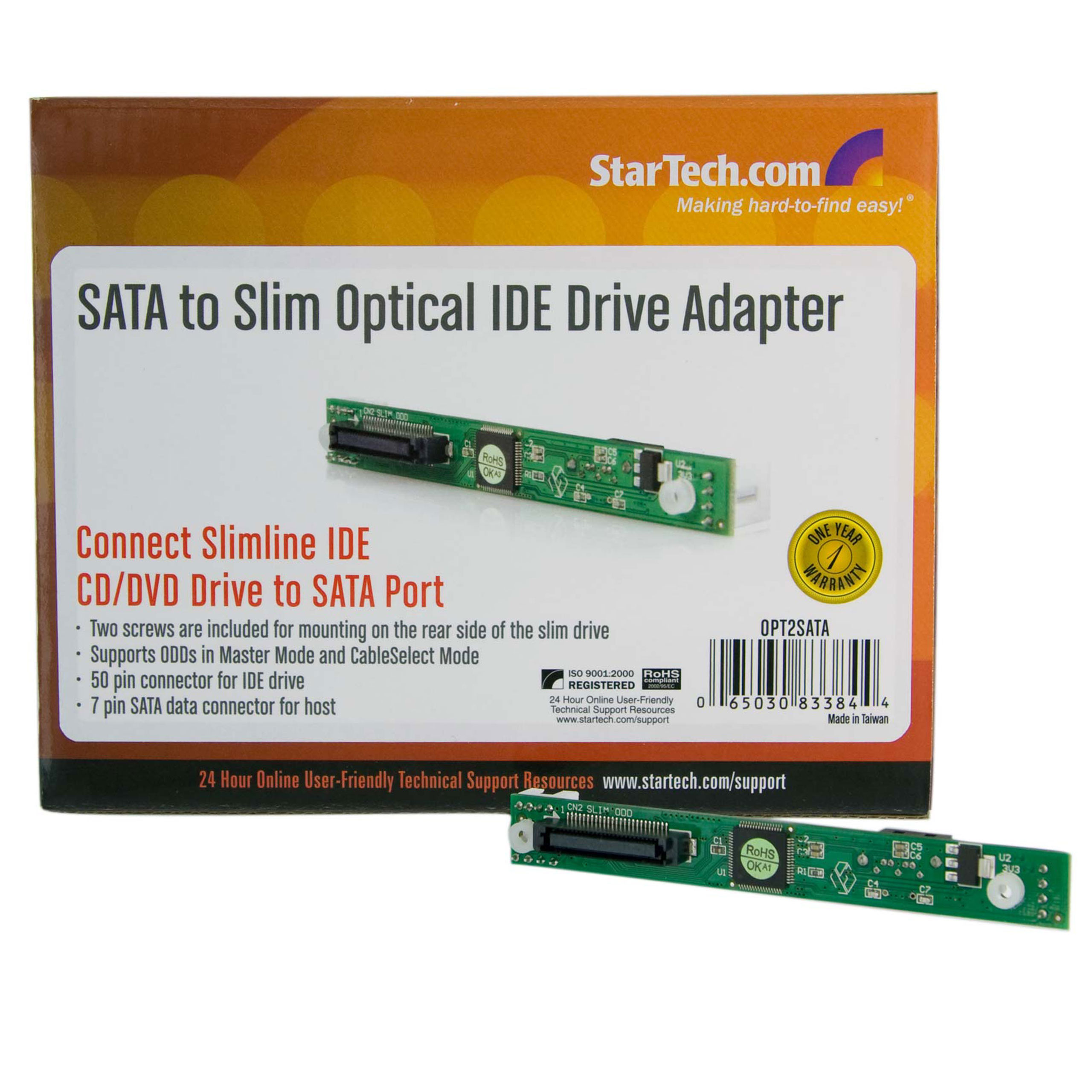

Slim Optical Drive to SATA Adapter
Connect a slimline optical IDE drive to a SATA motherboard
Main Image
Product Images
Product Images
BOM Image
Product Name Slim Optical Drive to SATA Adapter Product Number OPT2SATA UPC 065030833844 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Adapter Enclosures/Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) SATA to Slim Optical IDE Drive Product Title (Standard) SATA to Slim Optical IDE Drive Adapter Product Title (Long) SATA to Slim Optical IDE Drive Adapter Product Title (AMZ) SATA to Slim Optical IDE Drive Adapter (OPT2SATA) Title Ingram (Part 1) SATA to Slim Optical IDE Drive A Title Ingram (Part 2) dapter Website Product Headline Connect a slimline optical IDE drive to a SATA motherboard Bullet 1 Two screws are included for mounting on the rear side of the slim drive. Bullet 2 Supports ODDs in Master Mode and CableSelect Mode.(Note: Does not ework with Slave Mode ODD) Bullet 3 50 pin connector for IDE drive Bullet 4 7 pin SATA data connector for host Marketing Copy Applications Adapting older IDE based CD & DVD drives to newer SATA based systems Website Search Keyword - IDE CD Drive to SATA
- IDE CD ROM to serial ata
- IDE DVD RW
- slim slimeline CD DVD drive adapters
- optical drive adapter
Accessory Products SATA36 Related Products - CF2IDE18
- CF2X2IDE25
- SAT2CF
Humidity Max 95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 103 Product Width (mm) 19.8 Product Height (mm) 12.8 Product Weight (g) 11 TAA Compliant No OS Compatibility OS Independent Chipset ID JMicron - JM20330 Interface/Bridge IDE Carton Depth (mm) 380 Carton Height (mm) 320 Carton Quantity 50 Carton Weight Gross (g) 6200 Included in Package - 1 - Optical Drive Adapter
- 1 - Instruction Manual
- 2 - Mounting Screws
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 180 Package Quantity 1 Package Weight (g) 100 Packaging Description SATA to Slim Optical IDE Drive Adapter Packaging Description India SATA to Slim Optical IDE Drive Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 1 Connector 3 Slim ATAPI (50-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
