P011GI-NETWORK-CARD

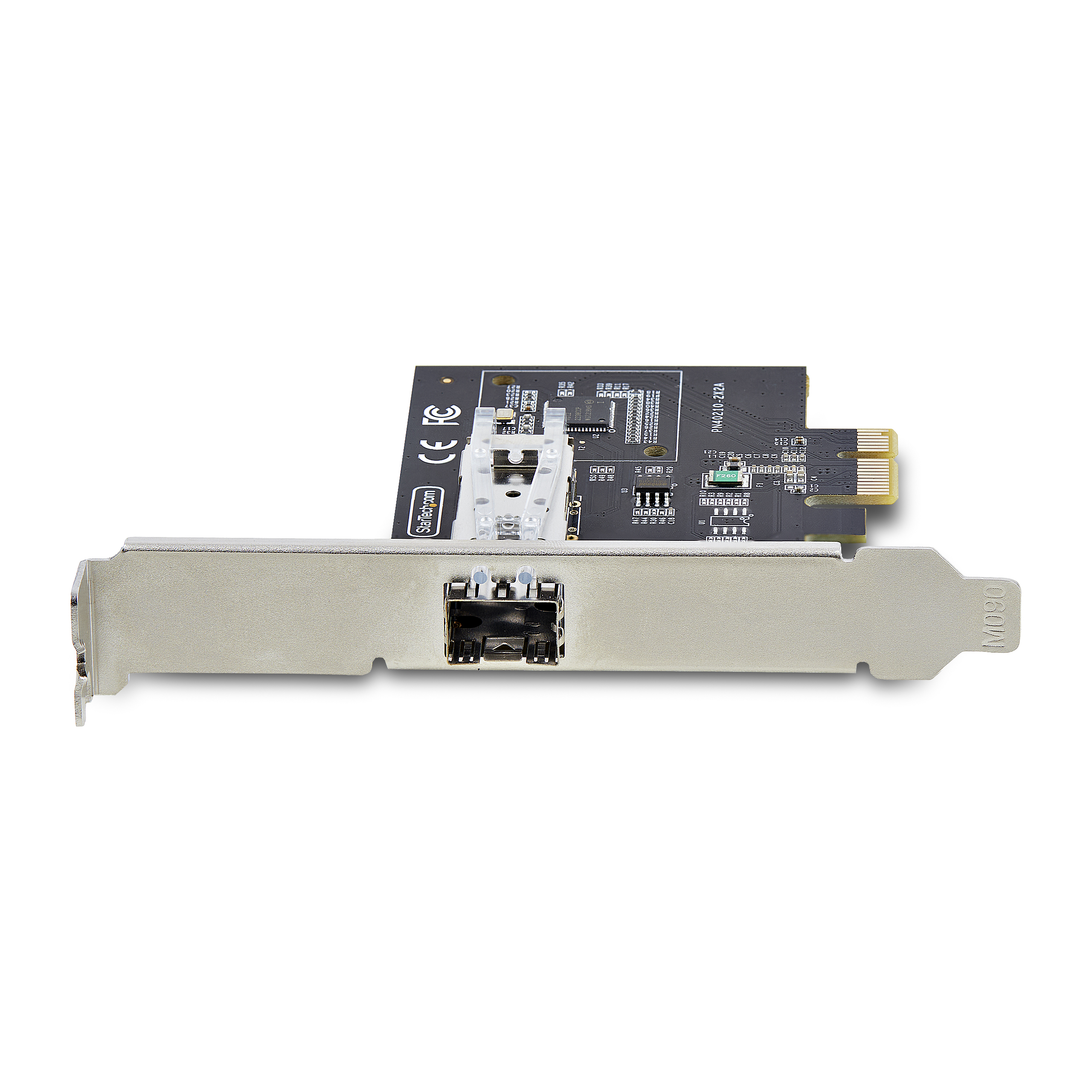

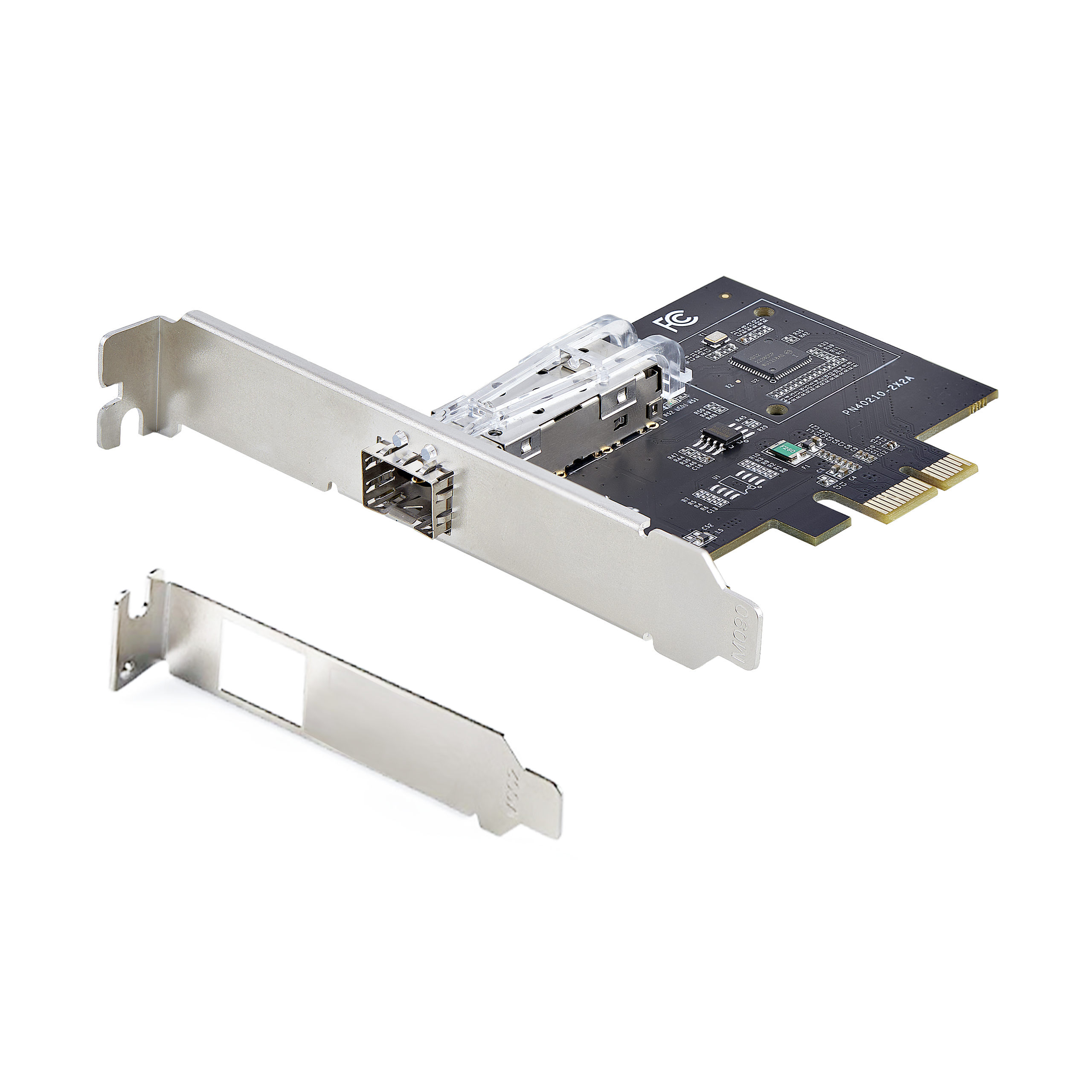

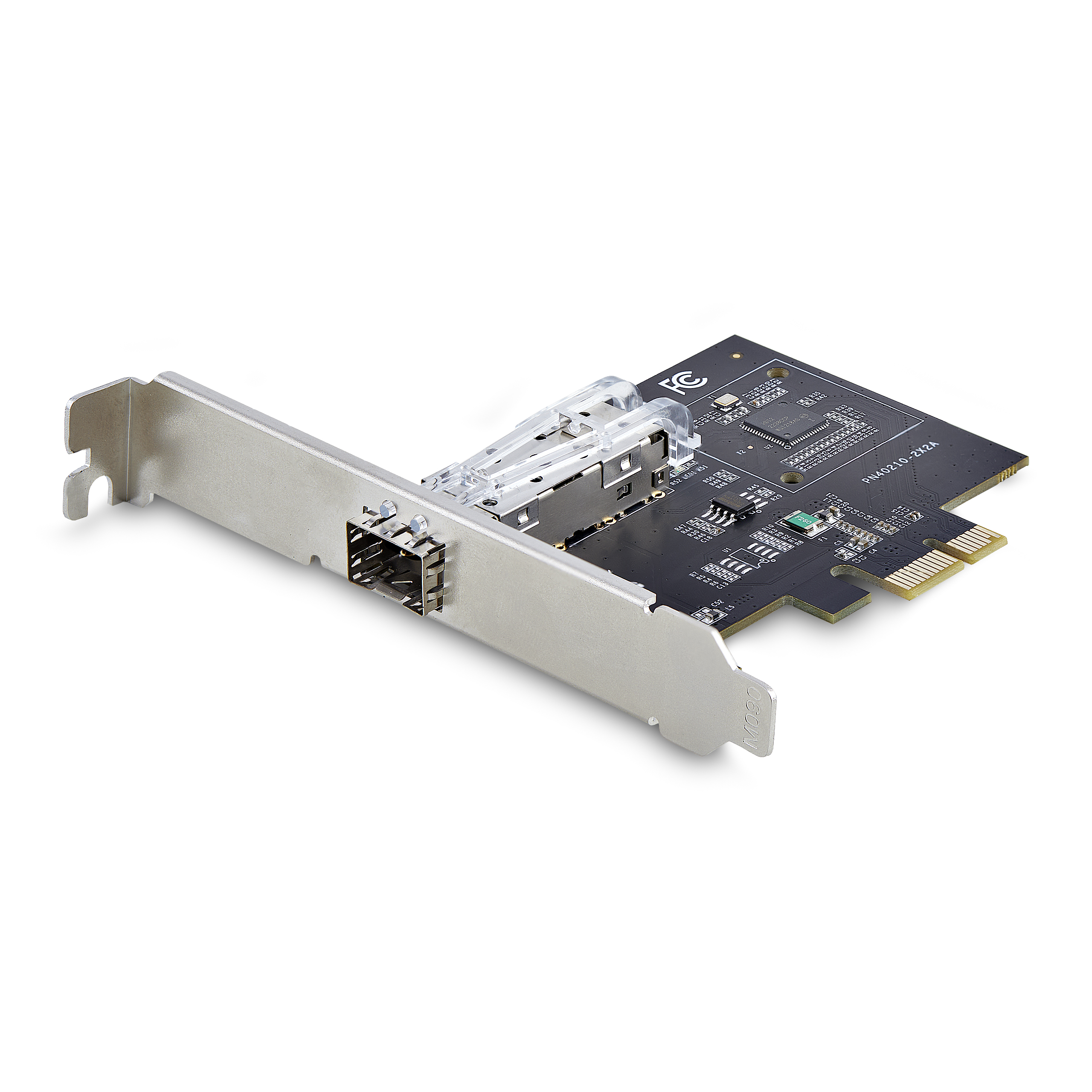

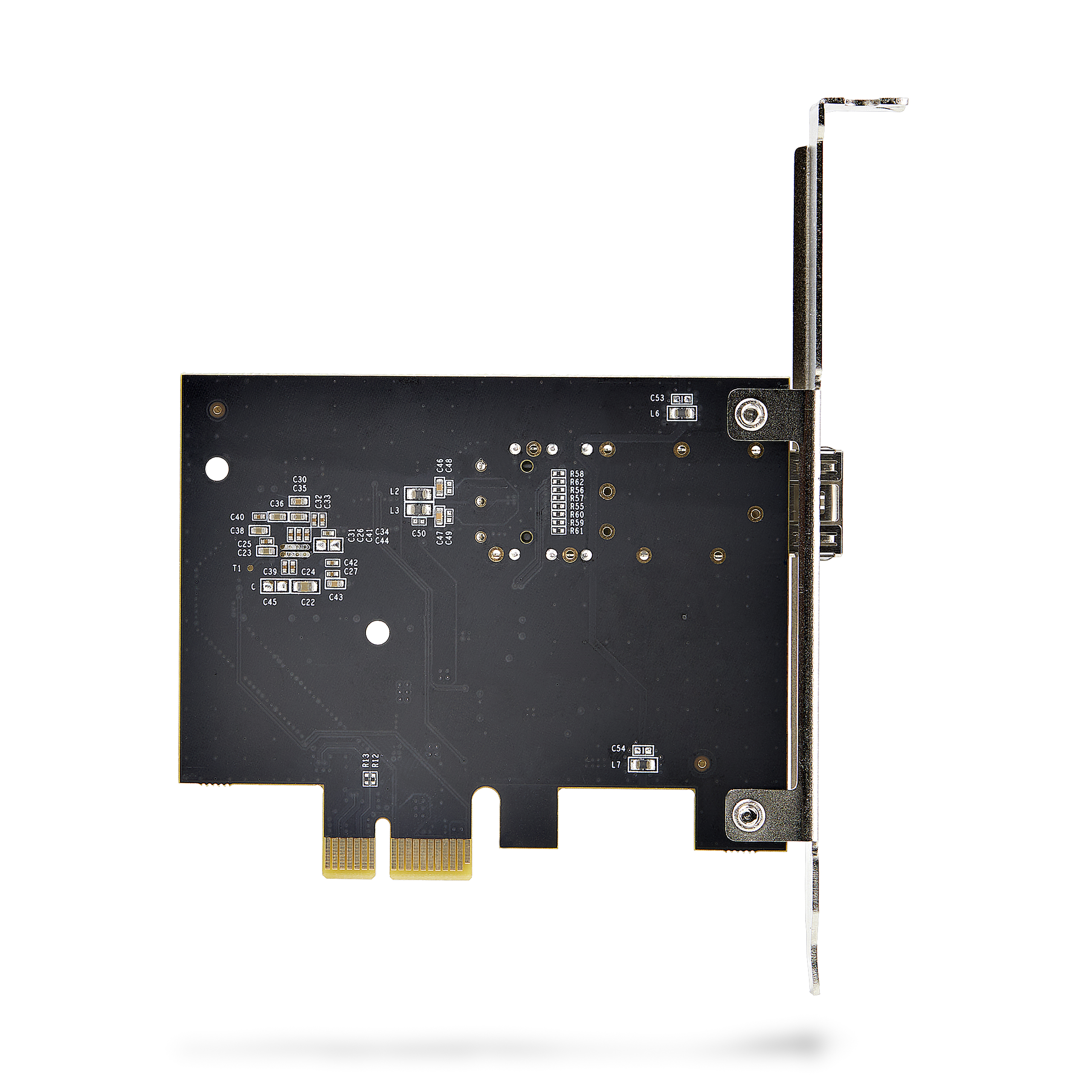

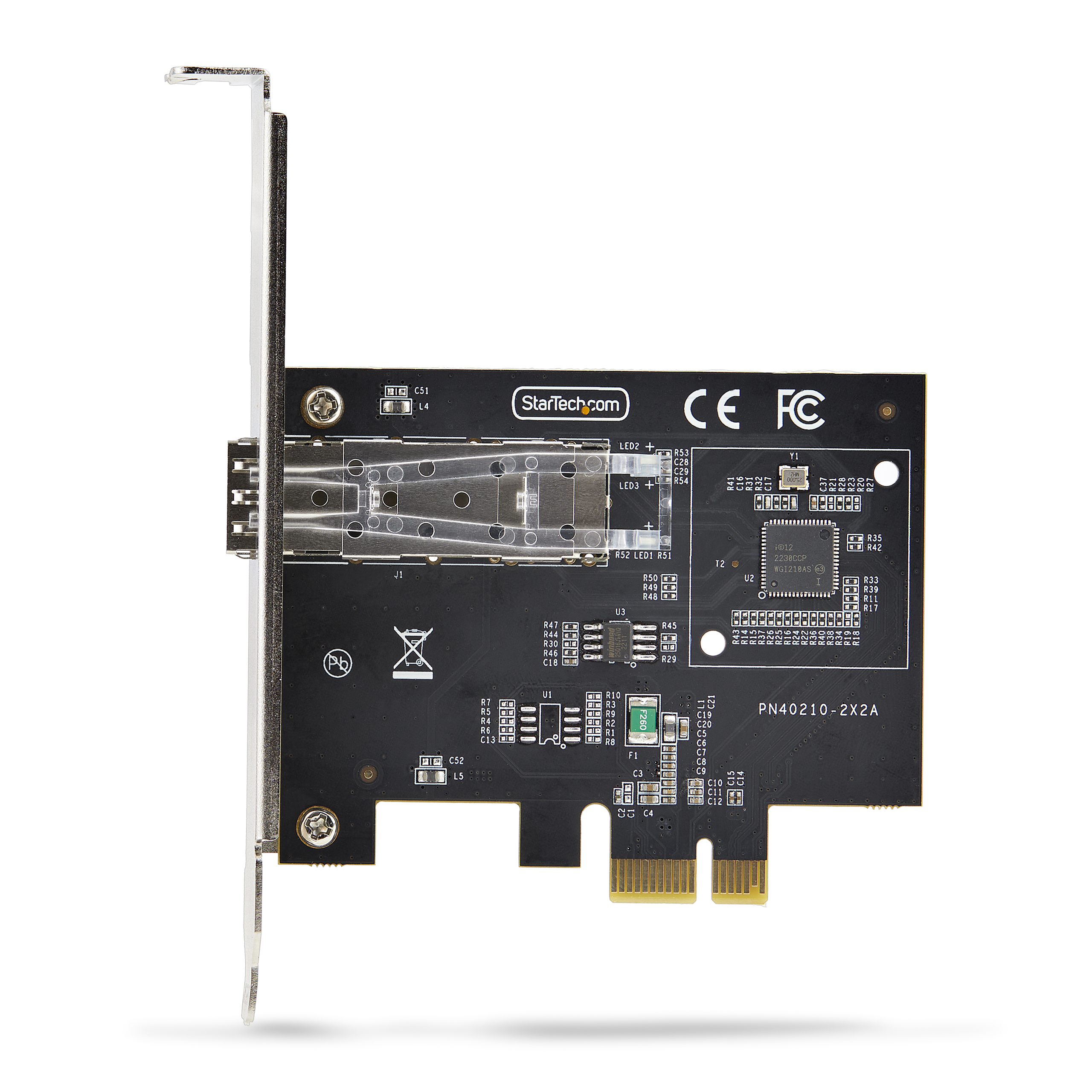

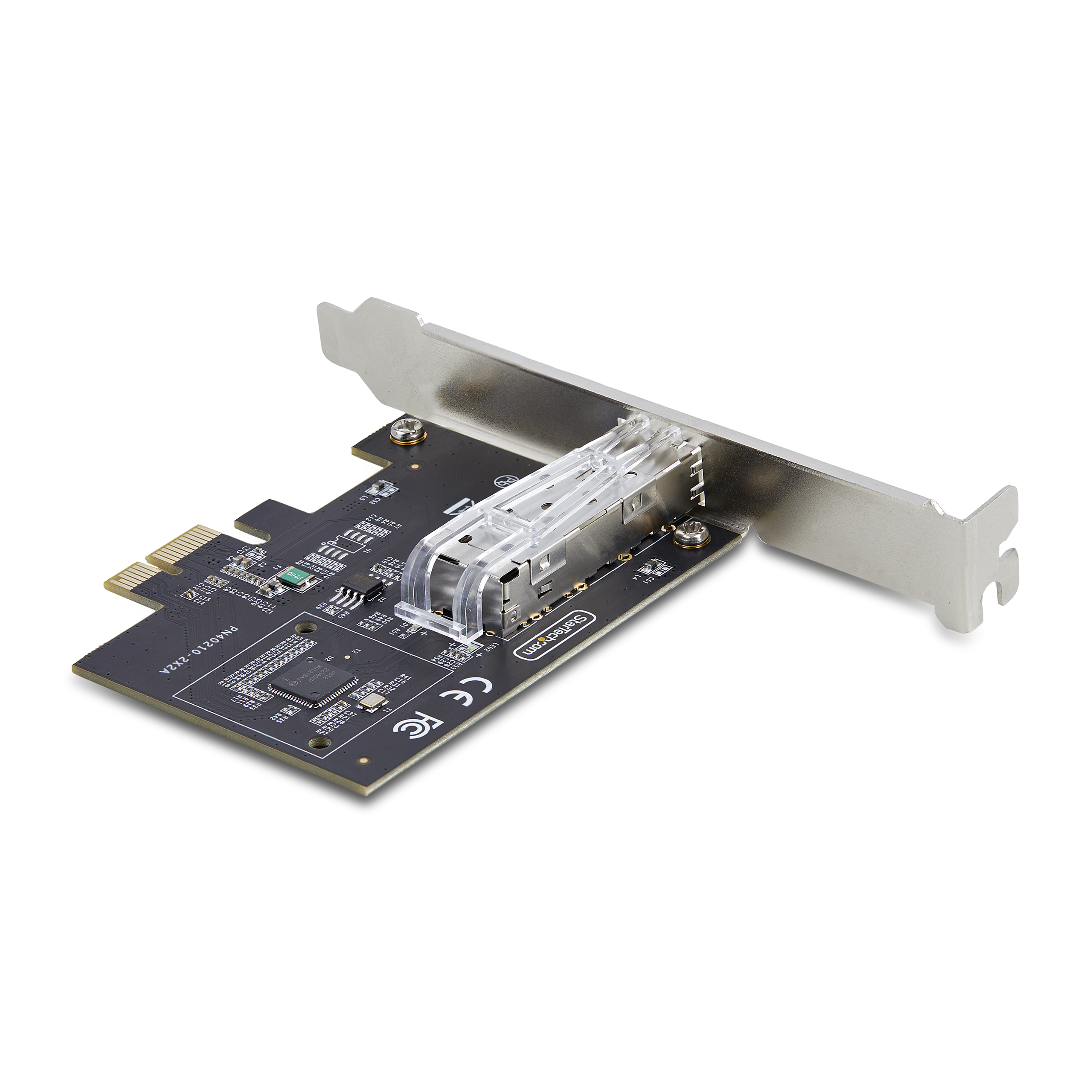

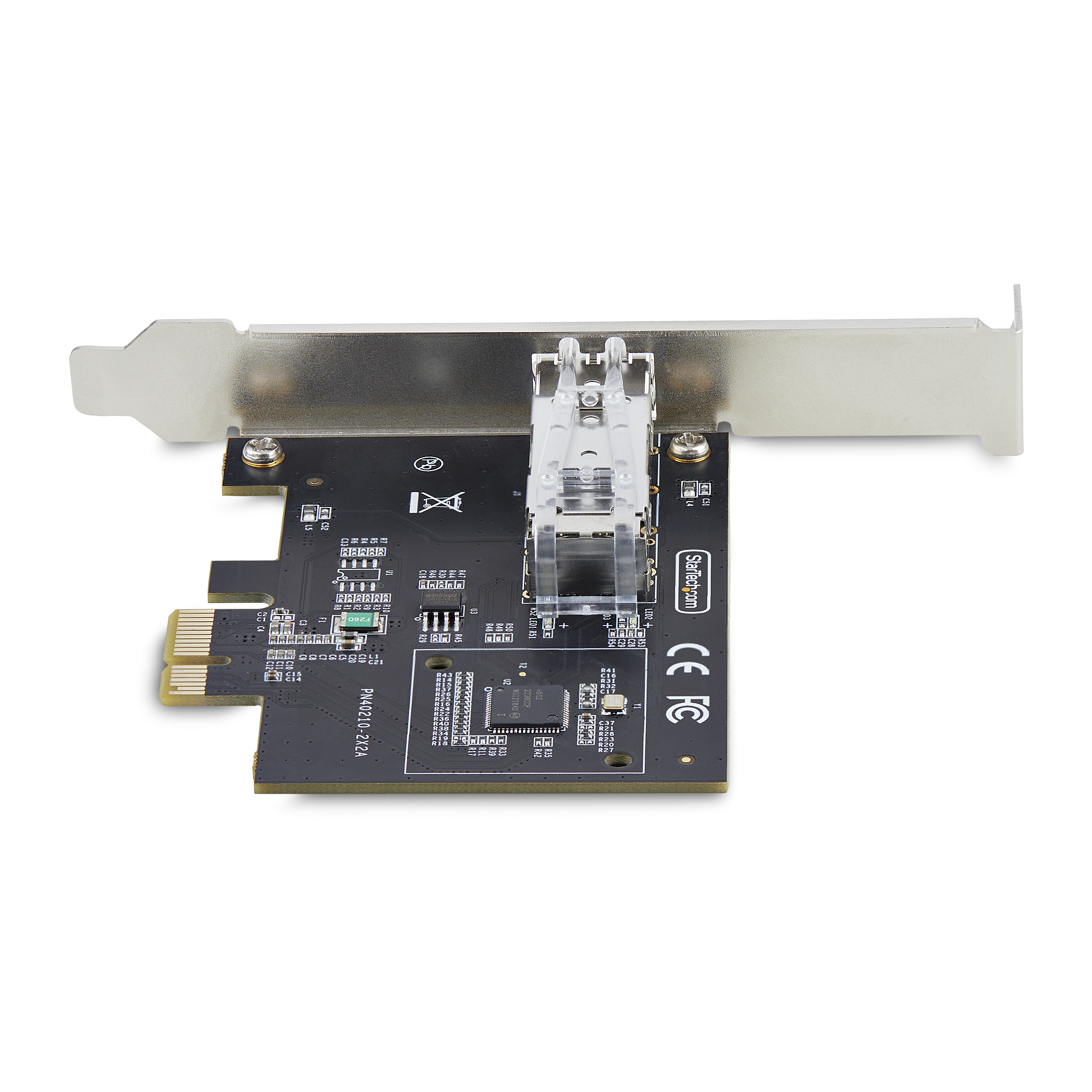

PCIe 2 1 x1 Single Open SFP Gigabit Network Card Intel I
Add a fiber/copper GbE SFP transceiver or Direct Attach Cable to a workstation or server
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name PCIe 2 1 x1 Single Open SFP Gigabit Network Card Intel I Product Number P011GI-NETWORK-CARD UPC 065030899987 Lifecycle status Active Warranty 2 Years Weighted Opportunity 129586 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Family PCIe Gigabit NIC - Single Port Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) 1-Port SFP Card Product Title (Short) 1-Port 1GbE SFP PCIe Network Card, NIC Product Title (Medium) 1-Port GbE SFP Network Card, PCIe 2.1, Copper/Fiber Optic Gigabit Ethernet NIC Product Title (Standard) 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS 1GbE Controller, 1000BASE Copper/Fiber Optic, Gigabit Ethernet NIC Product Title (Long) 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes - Windows and Linux Compatible Product Title (AMZ) 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes (P011GI-NETWORK-CARD) Title Ingram (Part 1) 1-Port Gbe SFP Network Card - Title Ingram (Part 2) Fiber Optic Gigabit NIC/Controller Website Product Headline Add a fiber/copper GbE SFP transceiver or Direct Attach Cable to a workstation or server Bullet 1 INTEL I210 SERIES NETWORK CARD: High-performance 1-port PCIe network card featuring Intel I210-IS chipset adds a Gigabit open SFP slot to a desktop or server; Supports IPv4, IPv6, TCP/UDP offloading, link aggregation Bullet 2 UNLOCKED 1GB SFP SLOT: Works with any Singlemode/Multimode MSA-compliant or branded SFP/direct attach copper cable (DACC) module; 1Gbps (full-duplex) bandwidth; Fiber enables longer cable runs than copper cabling while being immune to EMI Bullet 3 COMPATIBILITY: Works with Windows Server 2012 & up, Windows 10 & up, Linux, VMware ESXi 7.x, and Microsoft Hyper-V; PCI Express Ethernet NIC is compatible with PCIe version 2.1 and works in PCI Express x1 or larger expansion slots Bullet 4 THOUGHTFUL DESIGN: LED indicators for port status or network activity monitoring, and to assist with troubleshooting; Full-profile bracket installed by default with a Low-Profile bracket included Bullet 5 IT MANAGEABILITY: PXE boot enabled for centralized OS deployment and updates; 9K jumbo frame support for reduced packet overhead; VLAN tagging support for efficient network management; Supports Intel Virtualization Technology (VT-c, VMDq, SR-IOV) Bullets (Compact) PCIe Network Card with Intel I210-IS chip; Works with Single/Multimode MSA-compliant or branded SFPs; 1Gbps (full-duplex) bandwidth; LED indicators; PXE Boot, Jumbo Frame, VLAN support; Works with Windows/Windows Server/Linux/ESXi/Hyper-V Bullets (Consolidated) - Single-Port PCIe network interface card with Intel I210-IS chipset adds an open SFP slot to a desktop or server - Works with Single/Multimode SFPs; LED Link/Speed indicators; 1Gbps (full-duplex) bandwidth - PXE boot enabled for OS deployment/updates; Jumbo frame support for reduced packet overhead; VLAN support for network management - Works with Windows Server/Windows/Linux/VMware ESXi/Hyper-V; PCIe 2.1 compliant; Fits in PCI Express x1 or larger slots; Low-profile bracket included Marketing Copy Marketing Copy (No HTML) Applications Create a high-speed and flexible network infrastructure in data centers or enterprise networks Website Search Keyword - 1g sfp nic
- 1gb sfp network card
- 1gbase-t nic
- 1gbe sfp card
- 1 port nic card
- converged network adapter
- fiber lan card
- fiber optic network interface card
- pci express fiber optic card
- pcie fiber network card
- pcie gigabit ethernet card
- server nic card
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - This product does not support 10/100Mbps SFP modules.
- Fiber data transfer speeds and distances are dependent on the SFP module used (sold separately)
- - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11.
Accessory Products - SFPGLCLHSMST
- SFPGLCSXMMST
- SFPGESST
- SFPG1320C
- SFPG1340C
- SFPG1580C
- SFPLHSM
Related Products - P021GI-NETWORK-CARD
- P041GI-NETWORK-CARD
- PEX10GSFP4I
- PEX40GQSFDPI
- PEX40GQSFPI
Power Consumption (In Watts) 0.6 W Power Source Bus Powered Color Black Humidity 5% ~ 90% RH (non-condensing) Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 87.000 Product Width (mm) 67.000 Product Height (mm) 16.000 Product Weight (g) 40.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support Yes Full Duplex Support Yes General Specifications - VMDq Support
- Intel VT-c Support
- SR-IOV Support
Jumbo Frame Support 9K max. Maximum Data Transfer Rate 1Gbps OS Compatibility - Windows 10
- Windows 11
- Windows Server 2012
- Windows Server 2012 R2
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Linux
- VMware ESXi 7.0
Promiscuous Mode Yes PXE Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel I210-IS Industry Standards Interface/Bridge Fiber Ethernet LED Indicators Carton Depth (mm) 440 Carton Height (mm) 320 Carton Quantity 40 Carton Weight Gross (g) 6100 Included in Package - 1 - Open SFP Network Card
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Open Sfp Network Card
- 1 - Quick-Start Guide
- 1 - Low-Profile Bracket
Package Depth (mm) 217 Package Height (mm) 36 Package Width (mm) 149 Package Quantity 1 Package Weight (g) 138 Packaging Description 1-Port Open SFP Gigabit Network Card Packaging Description India 1-Port Open SFP Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 SFP Slot Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Not Required Artwork Due Date 2023-05-08 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Realtek chipset, T12 $283K, 1821 units (Feb 2023) Comparable SKU 2 Comment Ethernet version, T12 $196K, 7082 units (Feb 2023) Digital Content Due Date 2023-08-11 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-05-12 Target Production Release 2023-06-15 Tech Lead Stefan Tirolese Technical Writer Brian Chan Technology Lifecycle None Video Not Required
