P041GI-NETWORK-CARD

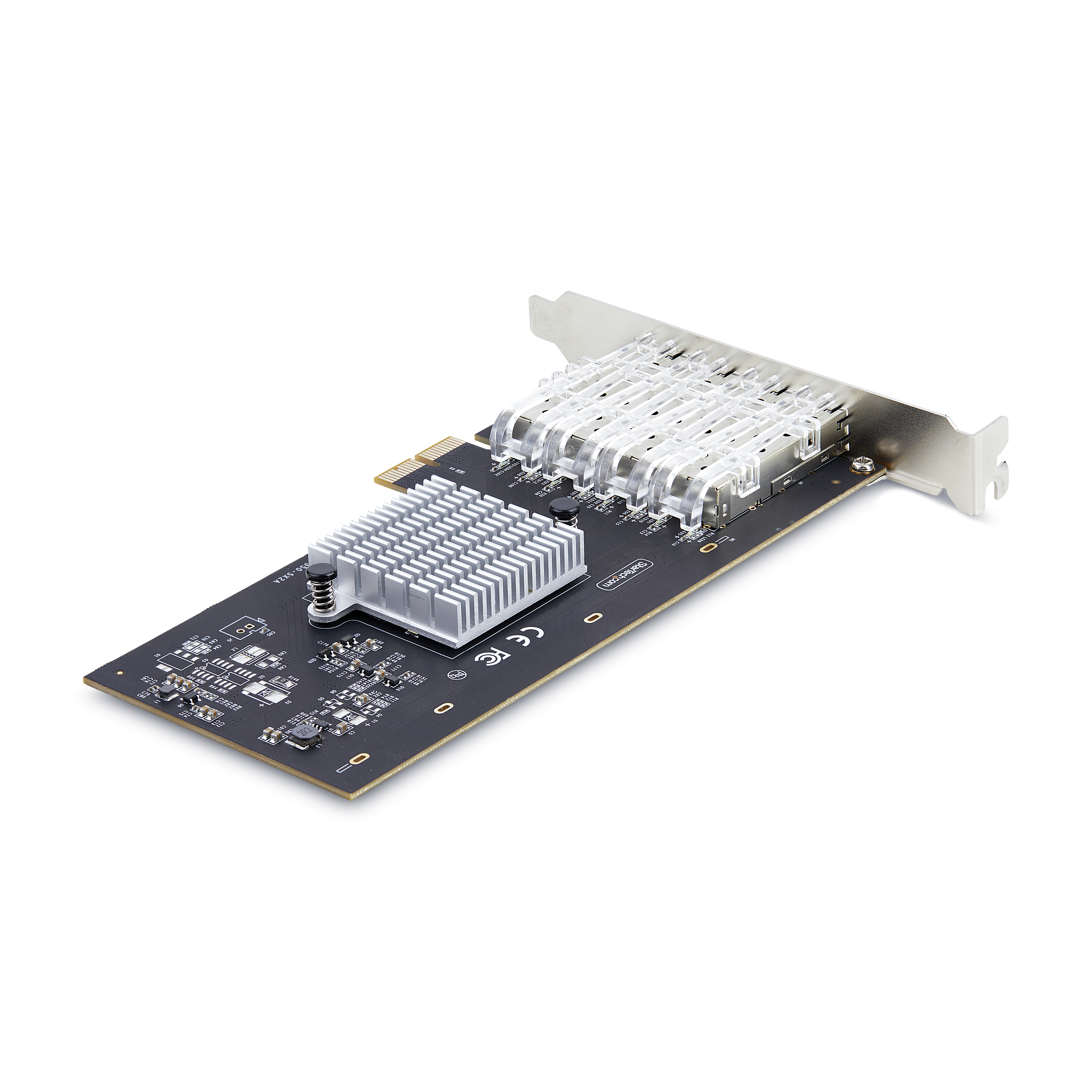

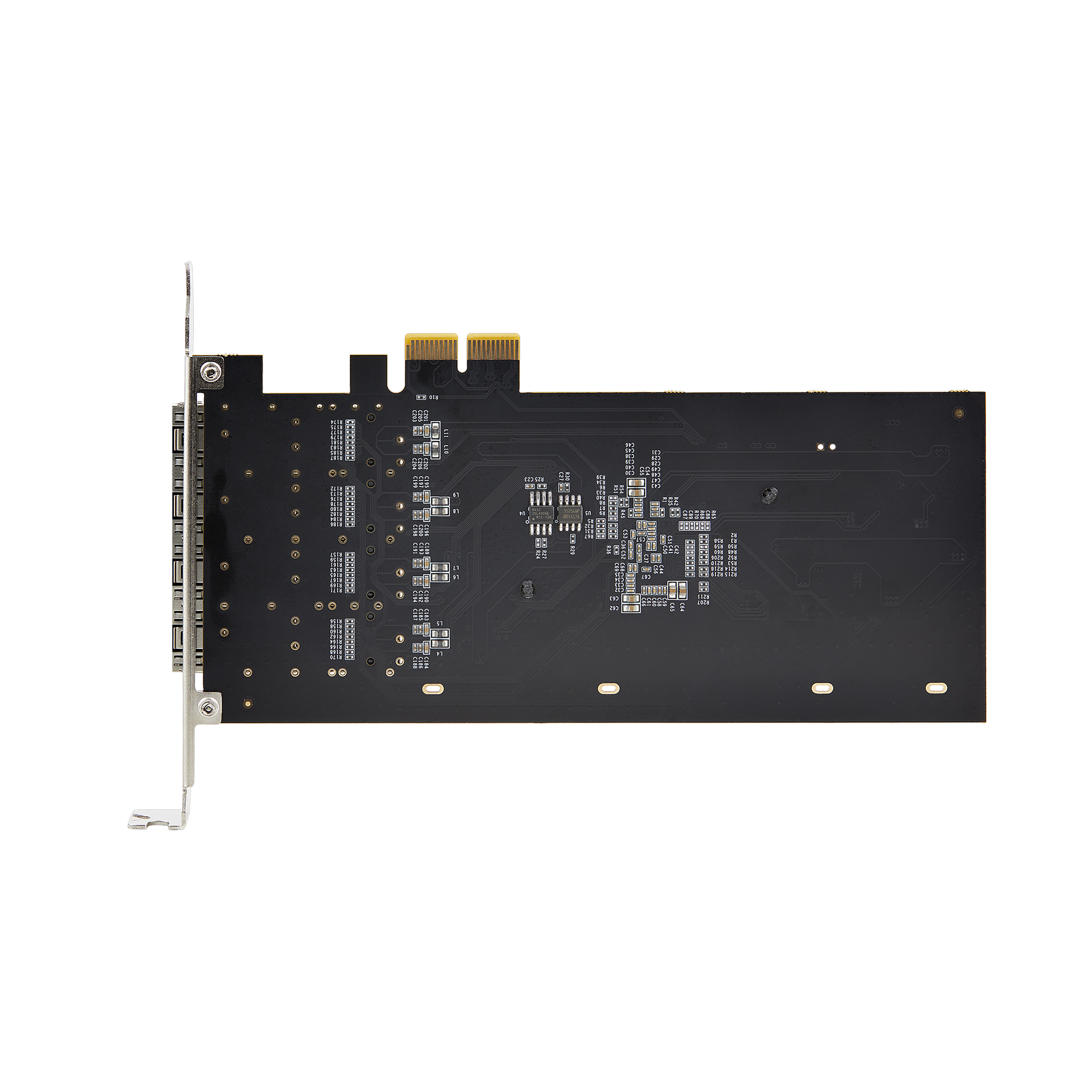

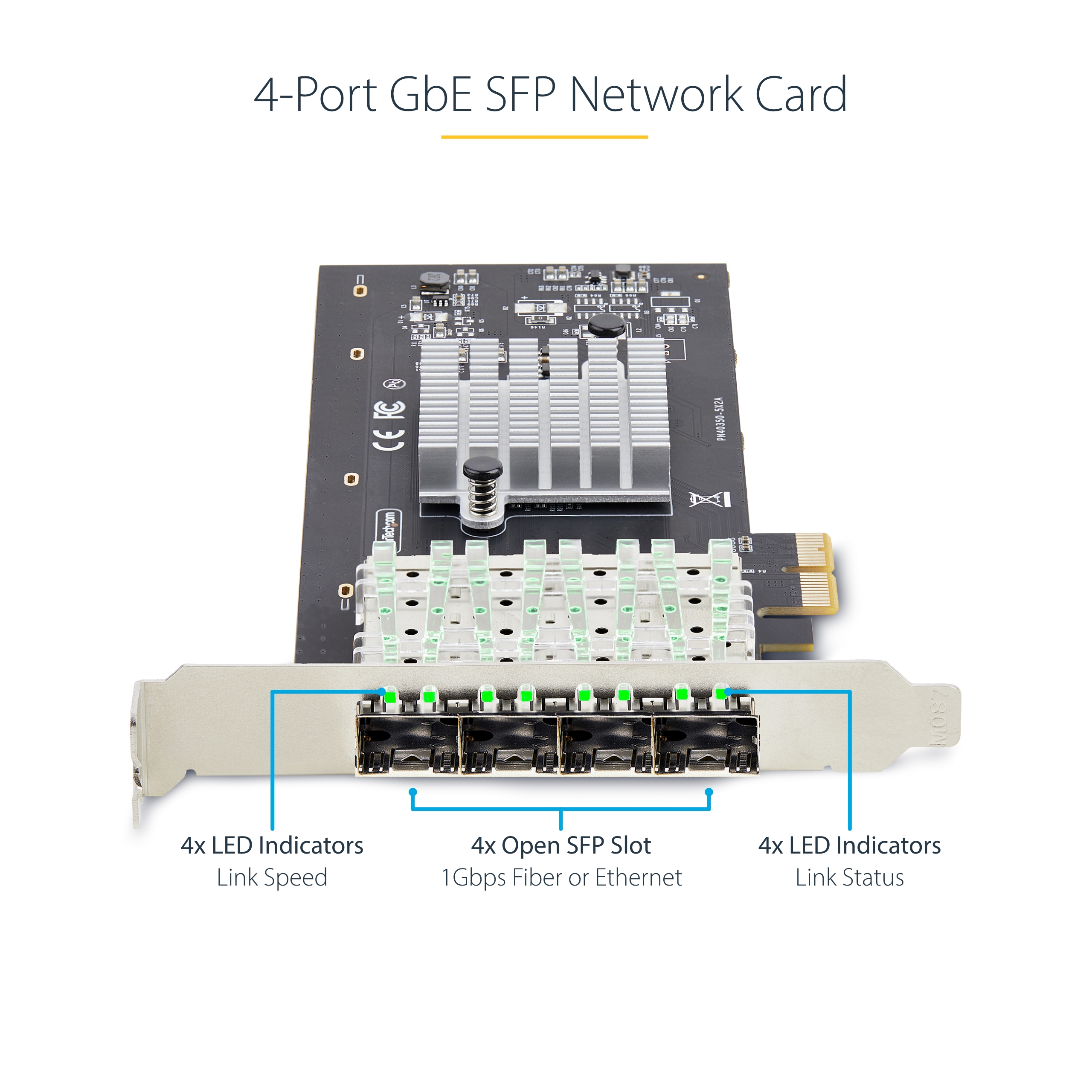

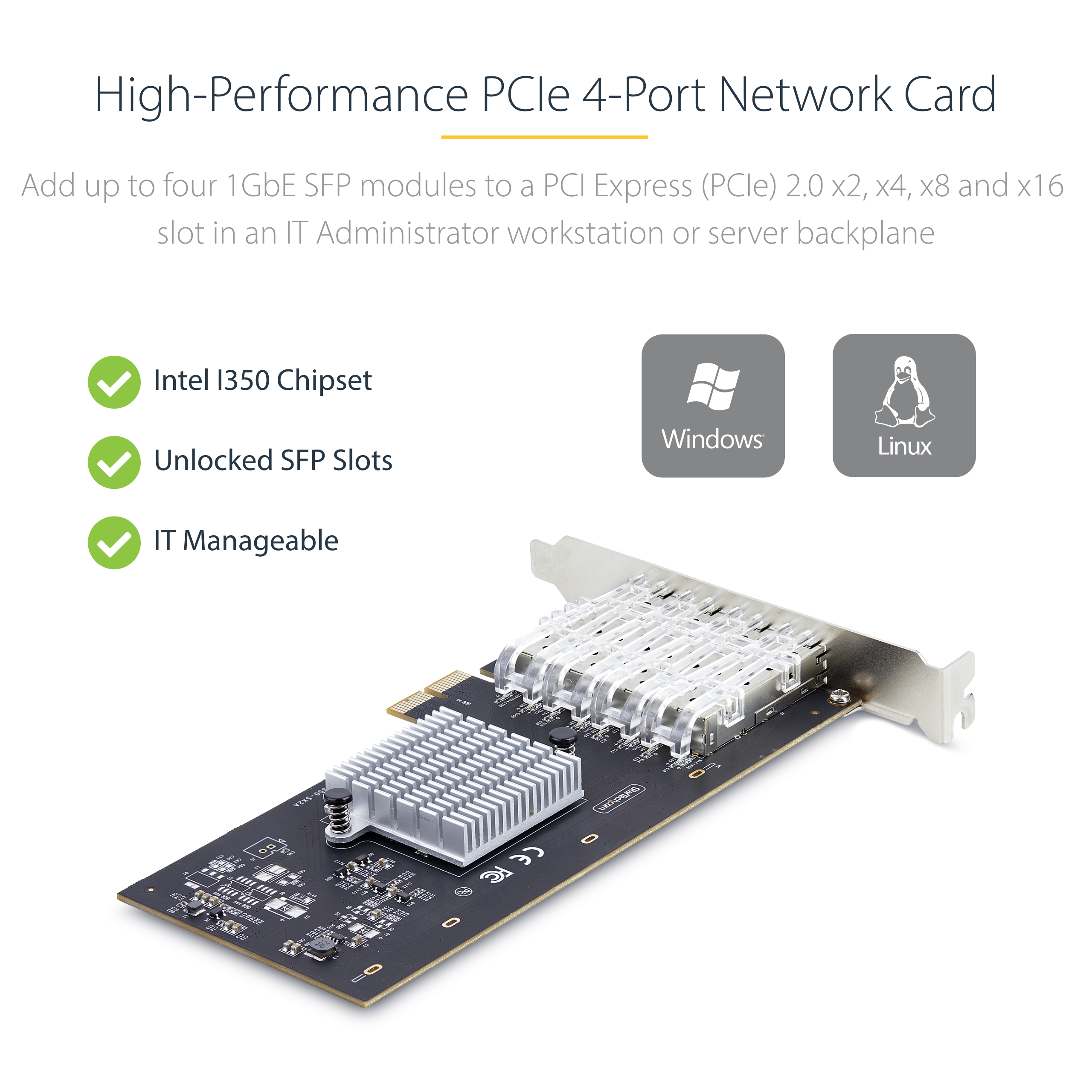

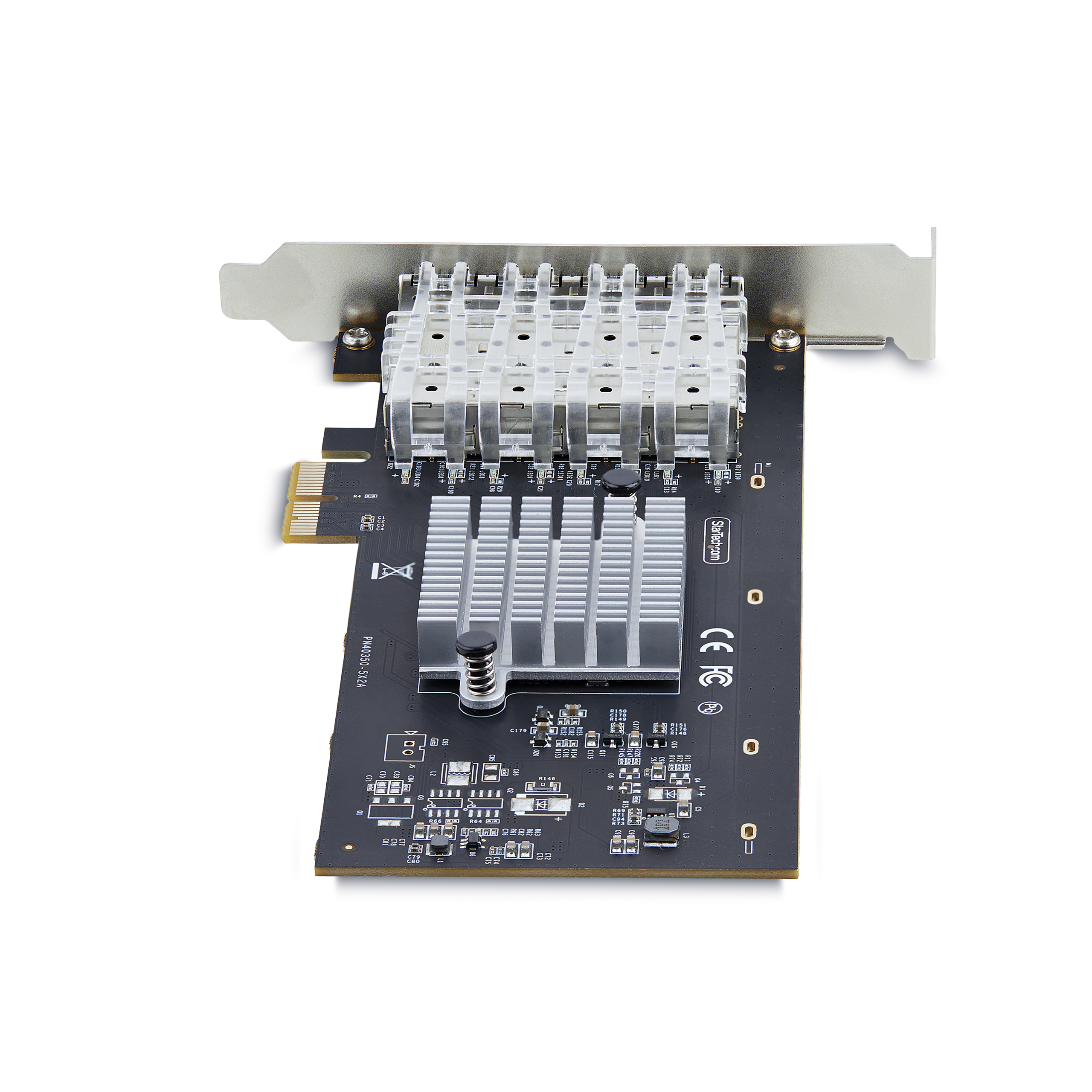

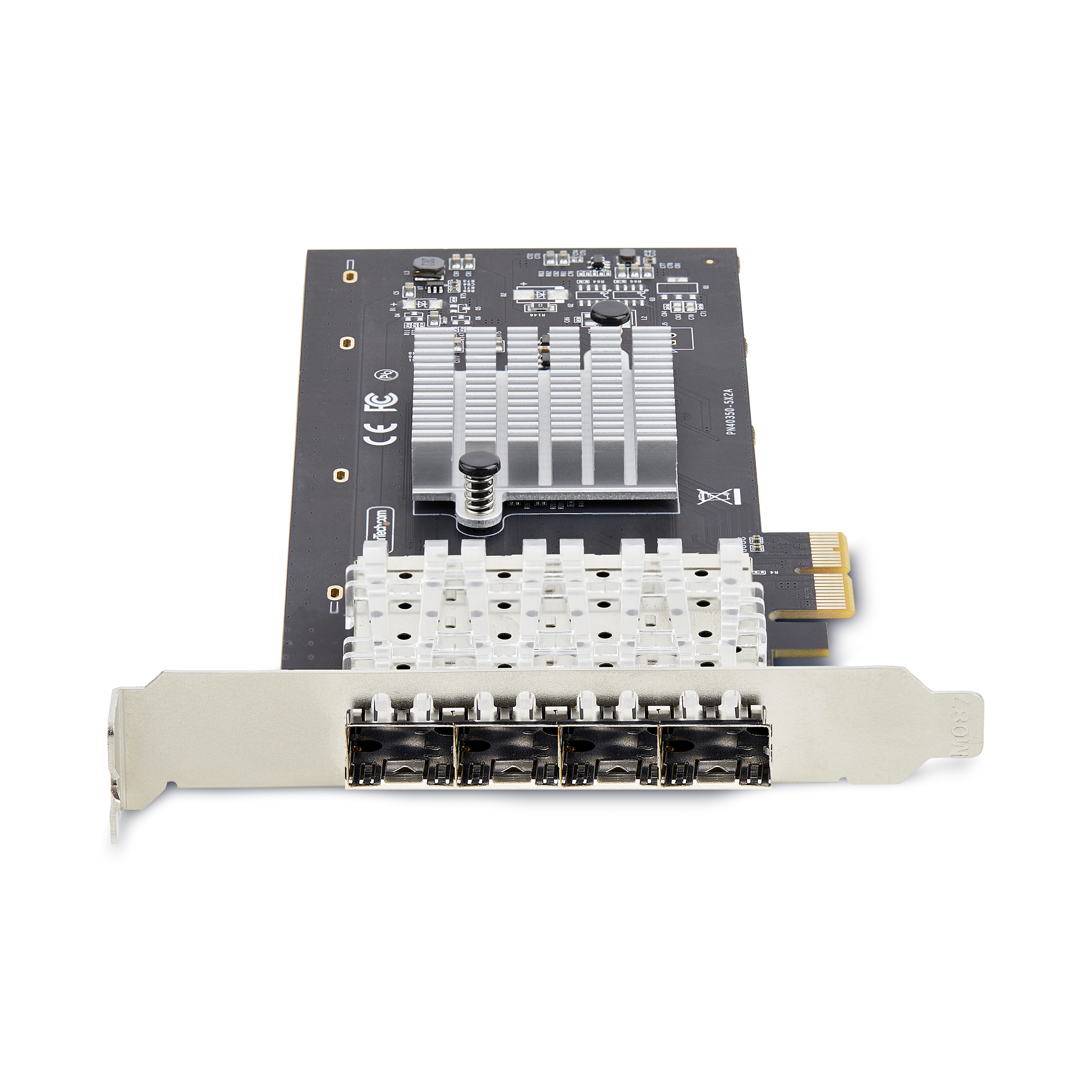

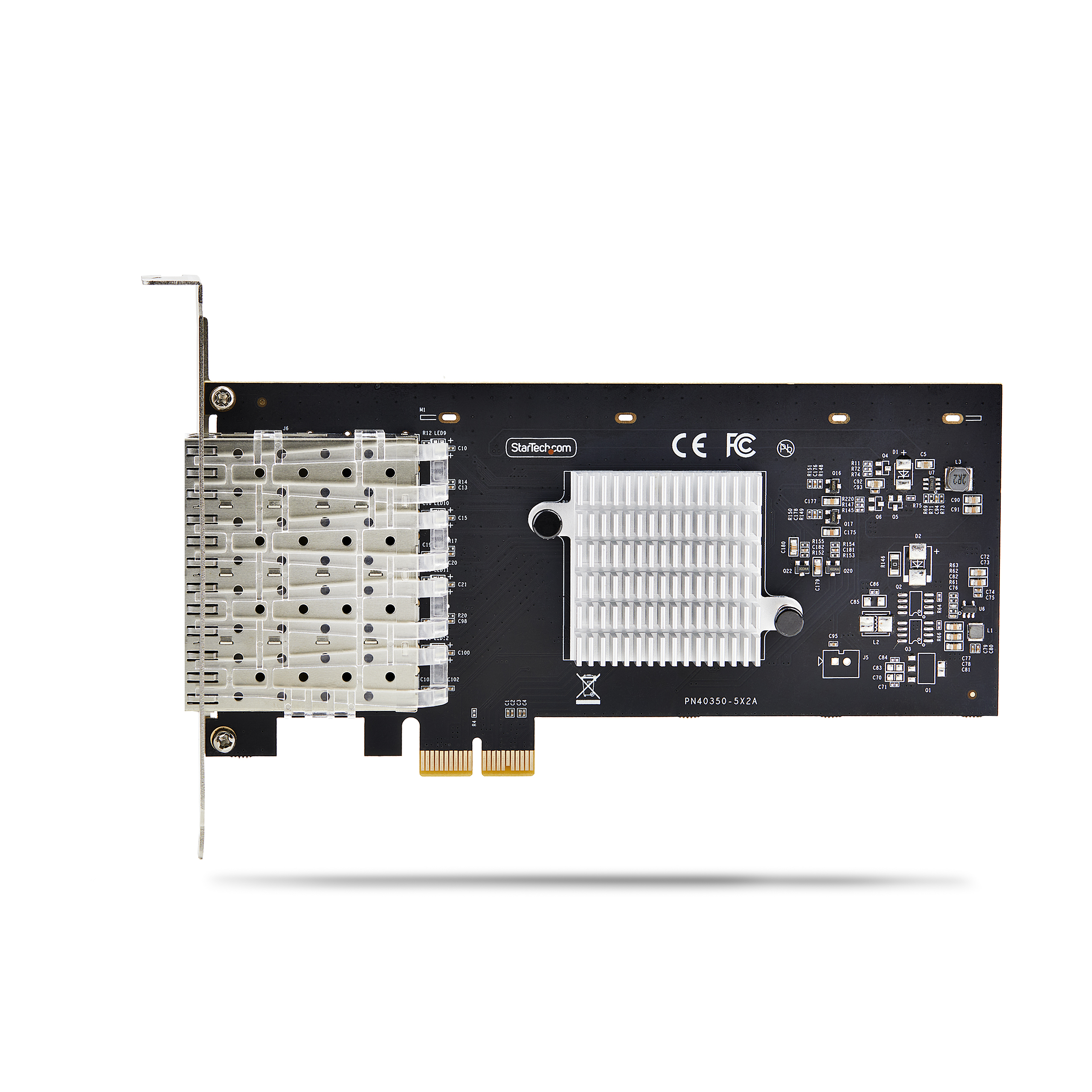

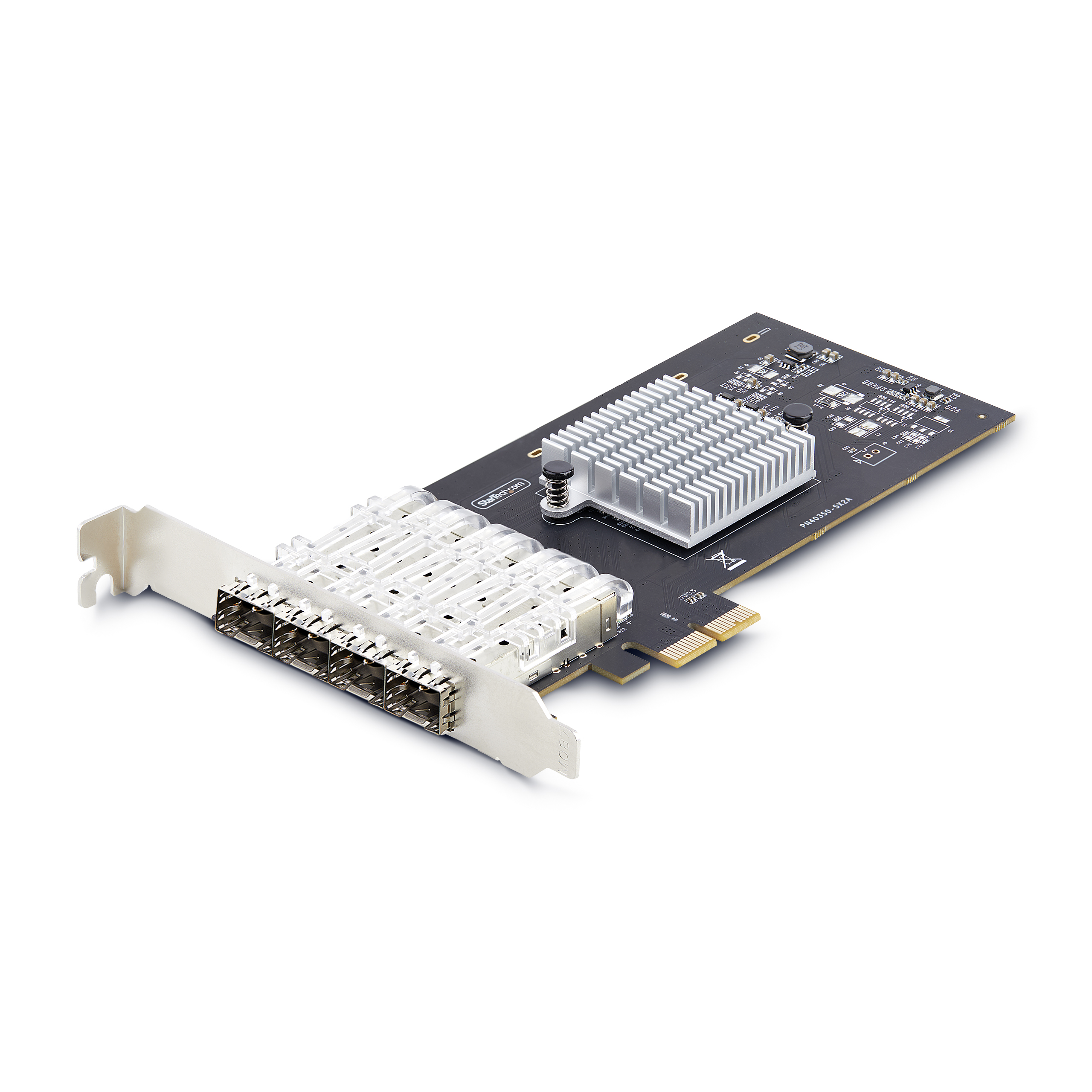

PCIe 2 0 x2 Quad Open SFP Gigabit Network Card Intel I35

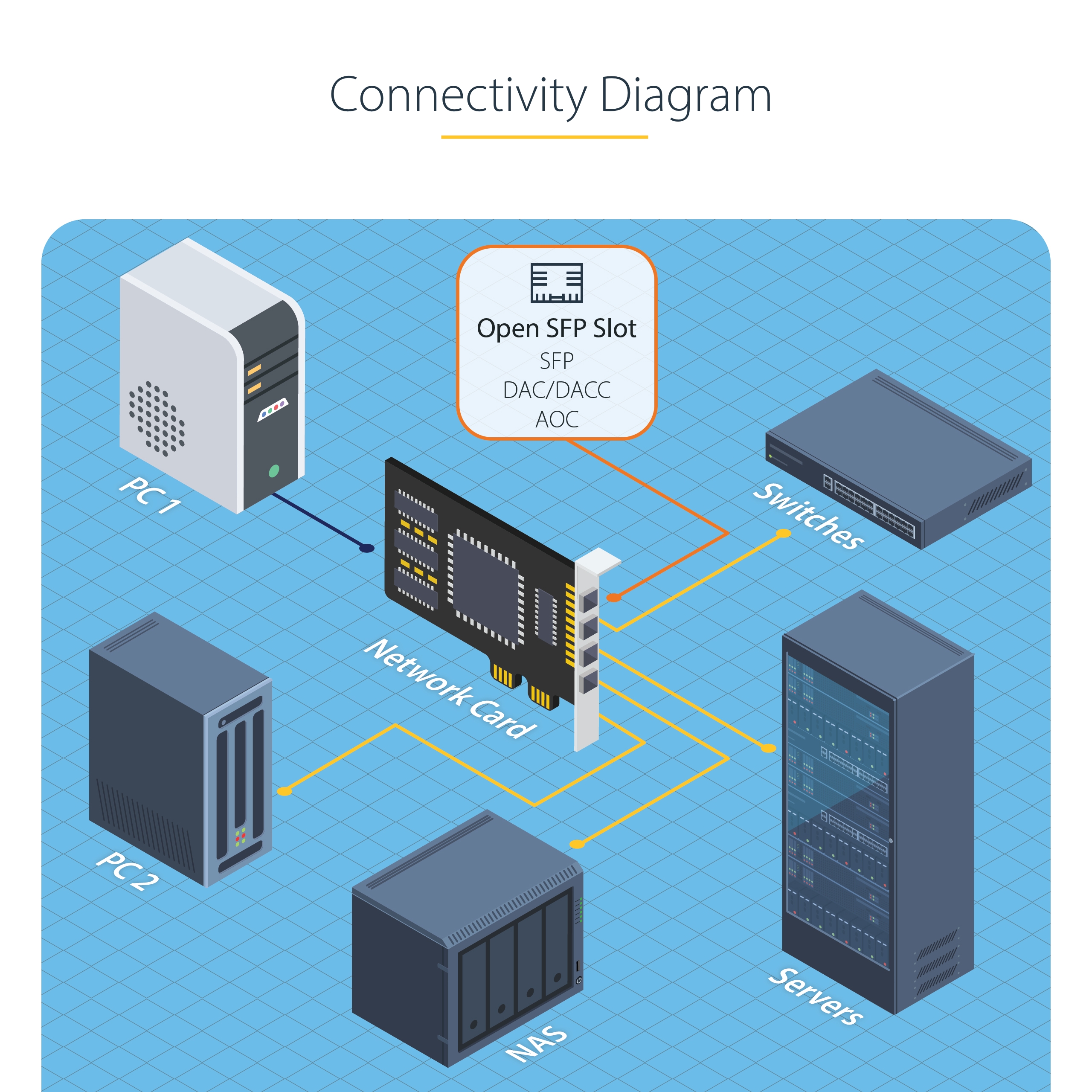

Add four fiber/copper GbE SFP transceivers or Direct Attach Cables to a workstation or server
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name PCIe 2 0 x2 Quad Open SFP Gigabit Network Card Intel I35 Product Number P041GI-NETWORK-CARD UPC 065030900287 Lifecycle status Active Warranty 2 Years Weighted Opportunity 403186 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Family No Family Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) 4-Port SFP Card Product Title (Short) 4-Port 1GbE SFP PCIe Network Card, NIC Product Title (Medium) 4-Port GbE SFP Network Card, PCIe 2.0, Copper/Fiber Optic Gigabit Ethernet NIC Product Title (Standard) 4-Port GbE SFP Network Card, PCIe 2.0 x2 (x4, x8, x16 Compatible), Intel I350-AM4, Copper/Fiber Optic, Gigabit Ethernet Product Title (Long) 4-Port GbE SFP Network Card, PCIe 2.0 x2 (x4, x8, x16 Compatible), Intel I350-AM4 4x 1GbE Controller, 1000BASE Copper/Fiber Optic, Desktop/Server Quad-Port Gigabit Ethernet NIC - Windows & Linux Product Title (AMZ) 4-Port GbE SFP Network Card, PCIe 2.0 x2 (x4, x8, x16 Compatible), Intel I350-AM4, Quad-Port Gbit Ethernet NIC Title Ingram (Part 1) 4-Port Gbe SFP Network Card - Title Ingram (Part 2) Fiber Optic Gigabit NIC/Controller Website Product Headline Add four fiber/copper GbE SFP transceivers or Direct Attach Cables to a workstation or server Bullet 1 INTEL I350 SERIES NETWORK CARD: High-performance PCIe 4-port network card featuring Intel I350-AM4 chipset adds four Gigabit open SFP slots to a desktop or server; Supports IPv4, IPv6, TCP/UDP offloading, link aggregation Bullet 2 UNLOCKED 1GB SFP SLOTS: Works with any Singlemode/Multimode MSA-compliant or branded SFP/direct attach copper cable (DACC) module; 1Gbps (full-duplex) bandwidth per port; Fiber enables longer cable runs than copper cabling while being immune to EMI Bullet 3 COMPATIBILITY: Works with Windows Server 2012 & up, Windows 10 & up, Linux, VMware ESXi 7.x, and Microsoft Hyper-V; PCI Express Network Adapter Card is compatible with PCIe version 2.1/2.0 and works in PCI Express x2, x4, x8, x16 expansion slots Bullet 4 THOUGHTFUL DESIGN: LED indicators for port status/activity monitoring, as well as to assist with troubleshooting; Gigabit Ethernet NIC features a built-in heatsink to keep controller chips running cool and ensure reliable, sustained performance Bullet 5 IT MANAGEABILITY: PXE boot enabled for centralized OS deployment and updates; 9K jumbo frame support for reduced packet overhead; VLAN tagging support for efficient network management; Supports Intel Virtualization Technology (VT-c, VMDq, SR-IOV) Bullets (Compact) PCIe quad-port NIC with Intel I350-AM4 chipset; AMT/vPRO for remote management - Single/Multi-mode SFPs; 1Gbps (full duplex) per port; LED indicators - PXE Boot, Jumbo Frame, VLAN - Windows/Windows Server/Linux/ESXi/HyperV - Fits PCIe x2, x4, x8, x16 Bullets (Consolidated) - Quad-Port PCIe network interface card with Intel I350-AM2 chipset adds two open SFP slots to a desktop/server - Works w/ Single/Multimode SFPs; LED Link/Speed indicators; 1Gbps (full-duplex) bandwidth per slot - PXE boot enabled for OS deployment/updates; Jumbo frame support for reduced packet overhead; VLAN support for network management - Windows Server/Windows/Linux/VMware ESXi/Hyper-V; PCIe 2.0 compliant; Fits in PCI Express x2, x4, x8, x16 expansion slots; Low-profile bracket included Marketing Copy Marketing Copy (No HTML) Applications Create a high-speed and flexible network infrastructure in data centers or enterprise networks Website Search Keyword - 1g sfp nic
- 1gb sfp network card
- 1gbase-t nic
- 1gbe sfp card
- 4 port nic card
- converged network adapter
- fiber lan card
- fiber optic network interface card
- pci express fiber optic card
- pcie fiber network card
- pcie gigabit ethernet card
- server nic card
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - This product does not support 10/100Mbps SFP modules.
- Fiber data transfer speeds and distances are dependent on the SFP module used (sold separately)
- - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11.
Accessory Products - SFPGLCLHSMST
- SFPGLCSXMMST
- SFPGESST
- SFPG1320C
- SFPG1340C
- SFPG1580C
- SFPLHSM
Related Products - P011GI-NETWORK-CARD
- P021GI-NETWORK-CARD
- PEX10GSFP4I
- PEX40GQSFDPI
- PEX40GQSFPI

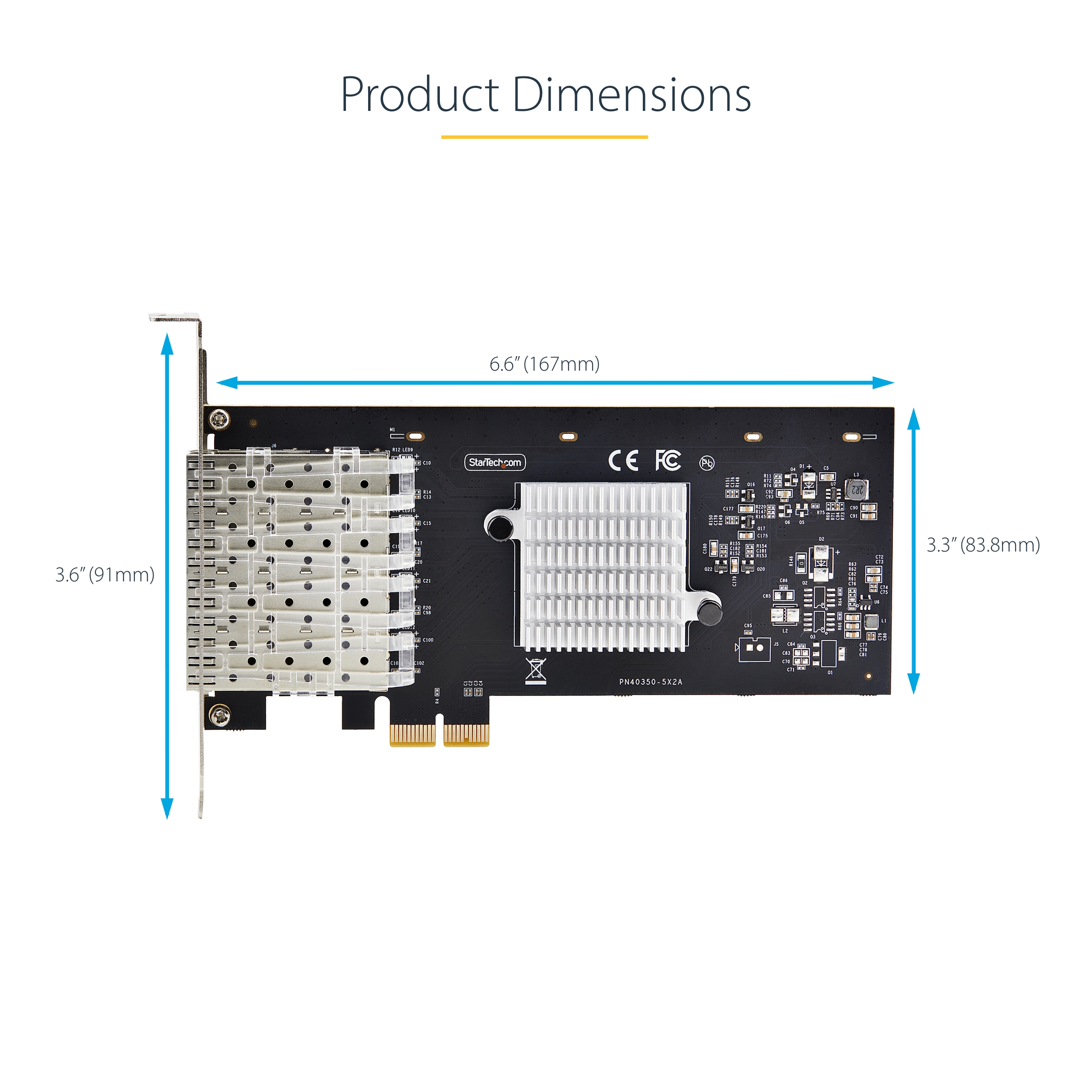

Power Consumption (In Watts) 3.5 W Power Source Bus Powered Color Black Humidity 5% ~ 90% RH (non-condensing) Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 167.000 Product Width (mm) 83.000 Product Height (mm) 10.000 Product Weight (g) 110.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support Yes Full Duplex Support Yes General Specifications - VMDq Support
- Intel VT-c Support
- SR-IOV Support
Jumbo Frame Support 9K max. Maximum Data Transfer Rate 1Gbps OS Compatibility - Windows 10
- Windows 11
- Windows Server 2012
- Windows Server 2012 R2
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Linux
- VMware ESXi 7.0

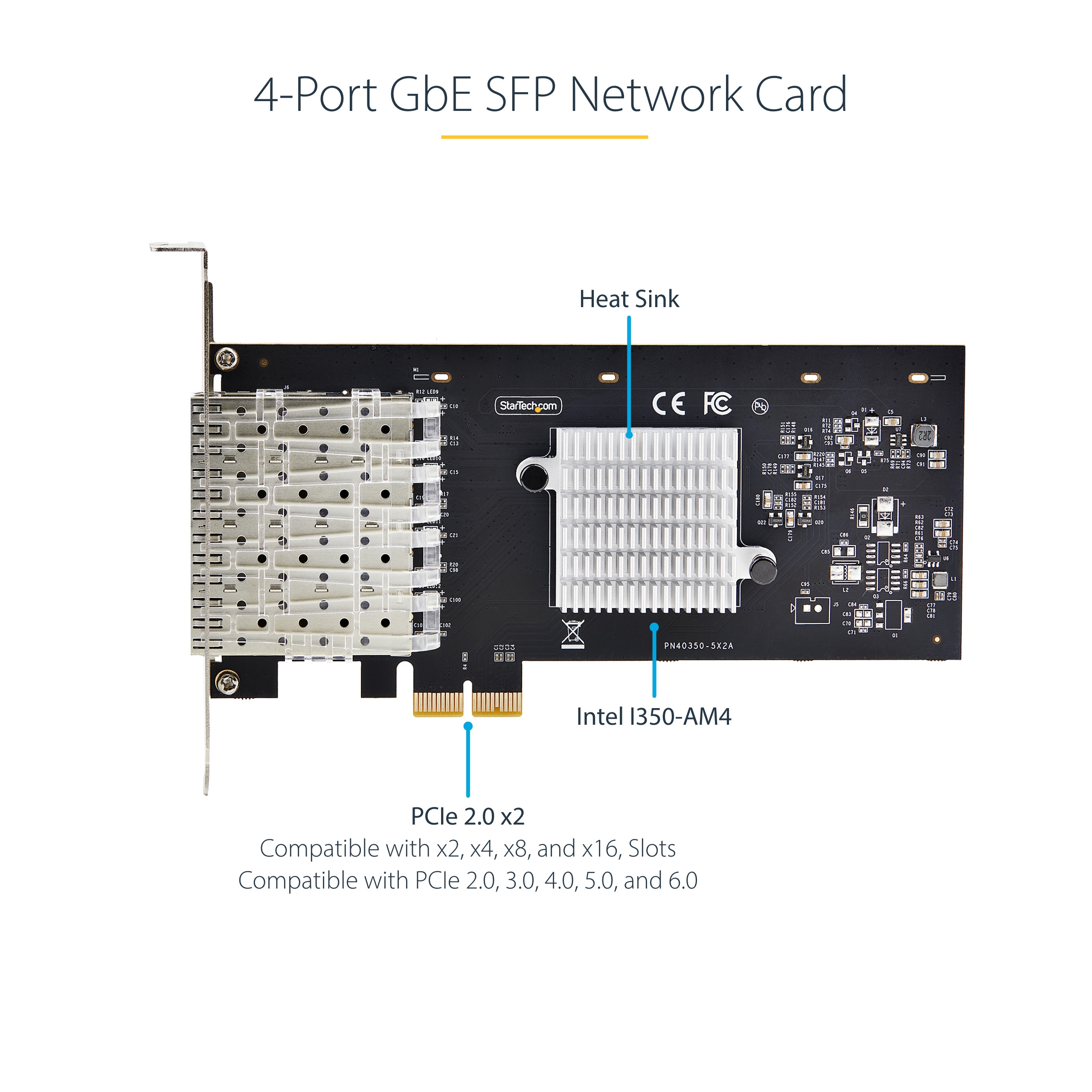

Promiscuous Mode Yes PXE Yes Bus Type PCI Express Card Type Standard Profile Chipset ID Intel I350-AM4 Industry Standards Interface/Bridge Fiber Ethernet LED Indicators Carton Depth (mm) 446 Carton Height (mm) 325 Carton Quantity 40 Carton Weight Gross (g) 8472 Included in Package - 1 - Open SFP Network Card
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Open Sfp Network Card
Package Depth (mm) 154 Package Height (mm) 38 Package Width (mm) 218 Package Quantity 1 Package Weight (g) 184 Packaging Description 4-Port Open SFP Gigabit Network Card Packaging Description India 4-Port Open SFP Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x2 Connector 1 (Quantity) 1 Connector 2 SFP Slot Connector 2 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Not Required Artwork Due Date 2023-05-08 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment Ethernet version, T12 $703K, 3464 units (Feb 2023) Comparable SKU 2 Comment Realtek, Ethernet version, T12 $188K, 1280 units (Feb 2023) Digital Content Due Date 2023-08-11 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-05-12 Target Production Release 2023-06-15 Tech Lead Stefan Tirolese Technical Writer Brian Chan Technology Lifecycle None Video Not Required
