P10Q4C-USB-CARD-LP

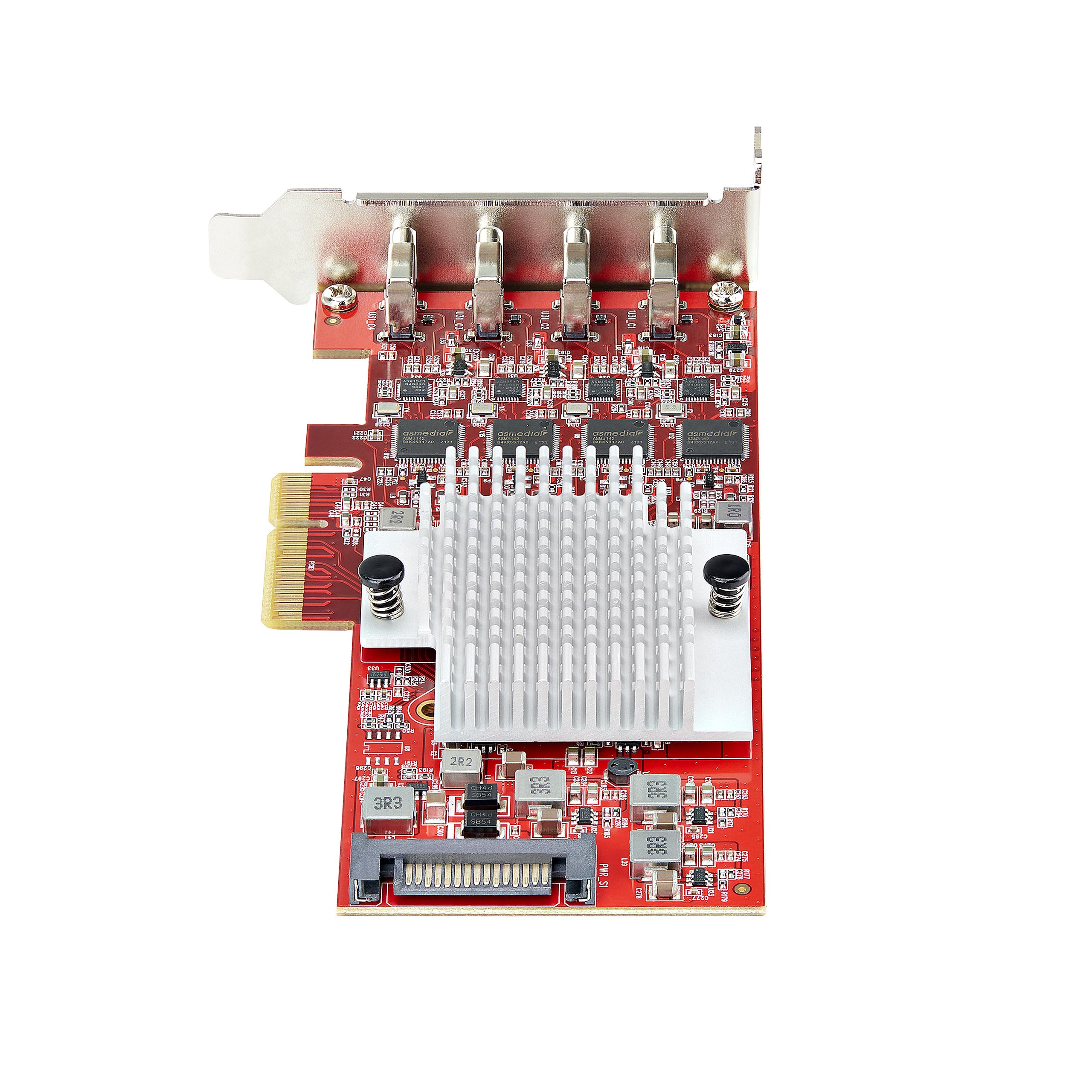

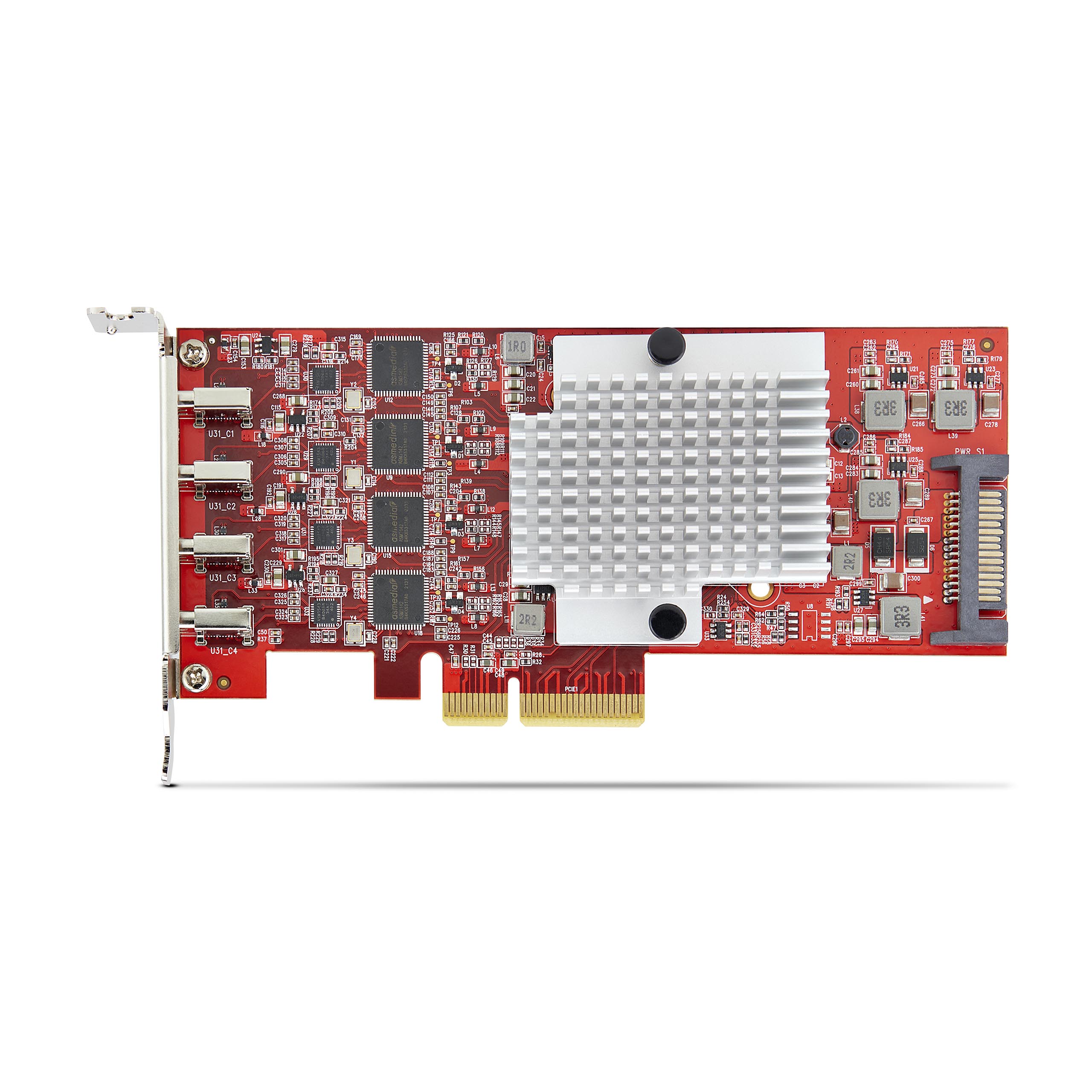

4-Port PCIe Quad Controller 10Gbps USB-C Card - Low-Profile

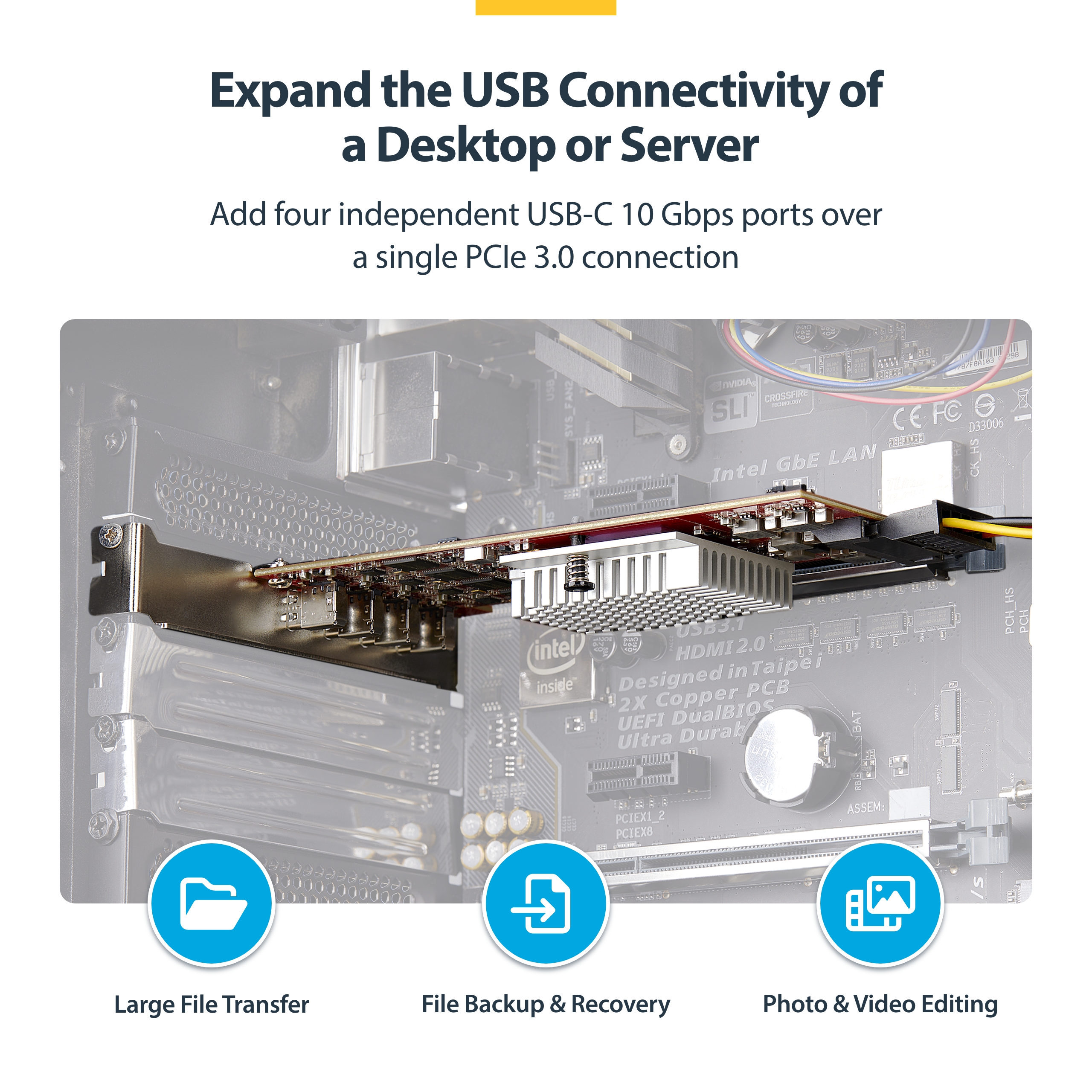

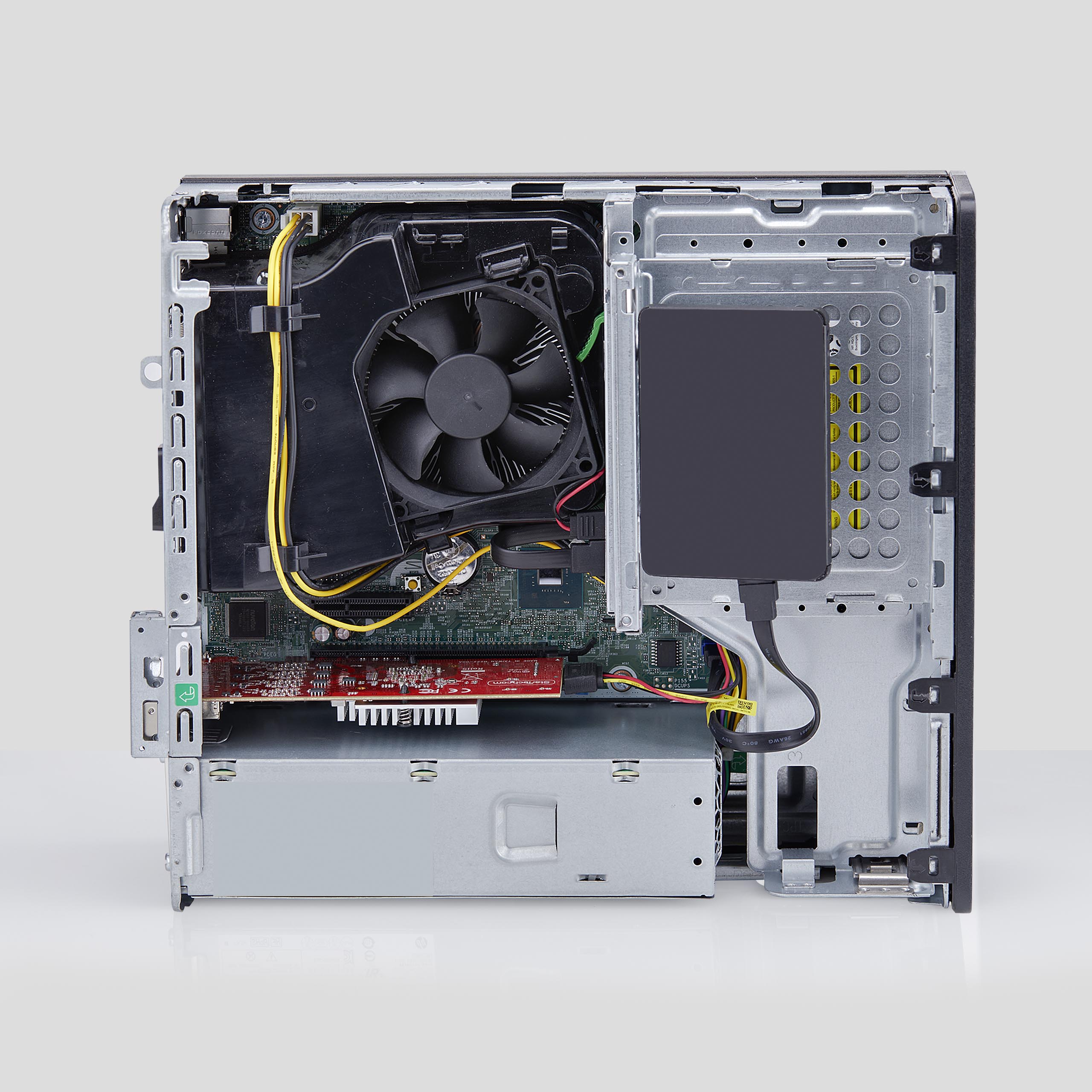

Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4-Port PCIe Quad Controller 10Gbps USB-C Card - Low-Profile Product Number P10Q4C-USB-CARD-LP UPC 065030920292 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-C Cards - 10Gbps Family USB-C Cards - 10Gbps - PCIe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 4-Port USB-C Card Product Title (Short) 4-Port USB Type-C PCIe Card, USB-C 10Gb Product Title (Medium) 4-Port USB Type-C PCIe Card, USB-C 3.2 10Gbps, 4x PCI USB Controllers, TAA Product Title (Standard) 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, TAA-Compliant Product Title (Long) 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant Product Title (AMZ) 4-Port USB-C 10Gbps PCIe Card, 4x Independent USB 3.2 Controllers, PCI Express 3.0, Low Profile, TAA Title Ingram (Part 1) 4-Port USB Type-C PCIe Card - Title Ingram (Part 2) USB-C 3.2 10Gbps, PCI Express, TAA Website Product Headline Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express Bullet 1 HIGH-PERFORMANCE USB CARD: Enhance a desktop computer or server by upgrading or expanding its USB connectivity with this four-port USB Type-C card; Features individual USB controllers for up to 10Gbps per port (data only); PCI Express 3.0; TAA-compliant Bullet 2 DEDICATED 10GBPS PER PORT: Features 4x USB controllers ensuring up to 10Gbps of bandwidth per port; High data throughput is ideal for large file transfers on external storage, simultaneous use of multiple USB-C devices, or using 10GbE USB network adapters Bullet 3 COMPATIBILITY: Windows/Linux/macOS compatible; Add-on card ships with low-profile bracket installed (standard profile included); PCIe 3.0 x4 (or larger) slot required; Plug-and-play drivers; Supported speeds: 10Gbps, 5Gbps, 480Mbps, 12Mbps, and 1.1Mbps Bullet 4 AUXILIARY SATA POWER: If the motherboard doesn't provide enough power, the built-in SATA power connection can be used to supply additional power to the USB ports; Internal USB-C PCIe expansion card can supply up to 5V 3A (15W) per port Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB 3.2 Gen 2 PCI Express Type-C card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Enhance a desktop/server w/ this 4-port USB 3.2 Gen 2 Type-C card - Independent USB controllers; Max 10Gbps per port; PCIe 3.0 - Ideal for high-speed file transfer/high-performance USB-C peripherals - Windows/Linux/macOS; Aux SATA power; 15W per port Bullets (Consolidated) - Enhance a desktop computer/server with this 4-port USB 3.2 Gen 2 Type-C card; Features individual USB controllers for up to 10Gbps per port; PCI Express 3.0 x4 - Ideal for file transfers/real-time photo and video editing on external storage/10GbE USB network adapters - Supports Windows/Linux/macOS; PCIe USB-C card ships w/ low-profile bracket (standard included) - Supports 10/5Gbps and 480/12/1.1Mbps; If PCIe power is insufficient a built-in SATA port can supply extra power; Max 15W per port Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - USB31CCV1M
- USB31CCV50CM
- UCC-3M-10G-USB-CABLE
- HB31C2A2CB
- HB31C2A1CGB
- HB31C4AB
- 10G8A2CS-USB-C-HUB
- M2-USB-C-NVME-SATA
- M2E1BMU31C
- M2E1BRU31C
- SDOCK4U313
- USB31CSAT3CB
- USB31C2SAT3
- 1B-USB-C-SDE-ADAPTER
- 1B-USB-C-CFE-ADAPTER
Related Products - PEXUSB3S44V
- PS4C3IA3-USB-C-CARD
- PEXUSB312A1C1H
- PEXUSB312A2C2V
- PEXUSB314A2V2
- PEXUSB312A3
- PEXUSB311AC3
- PEXUSB312C3
- P5Q4A-USB-CARD
- P10Q4C-USB-CARD

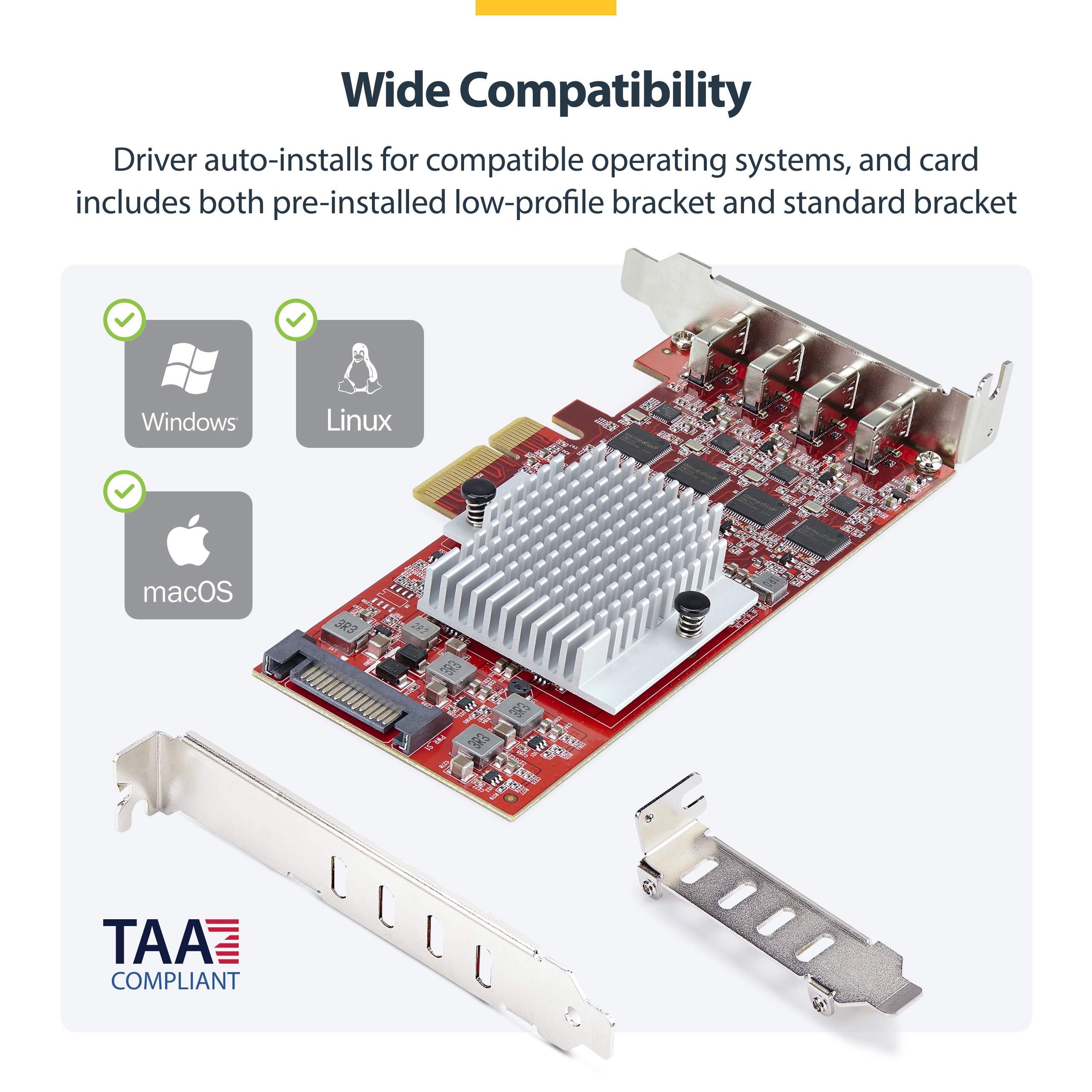

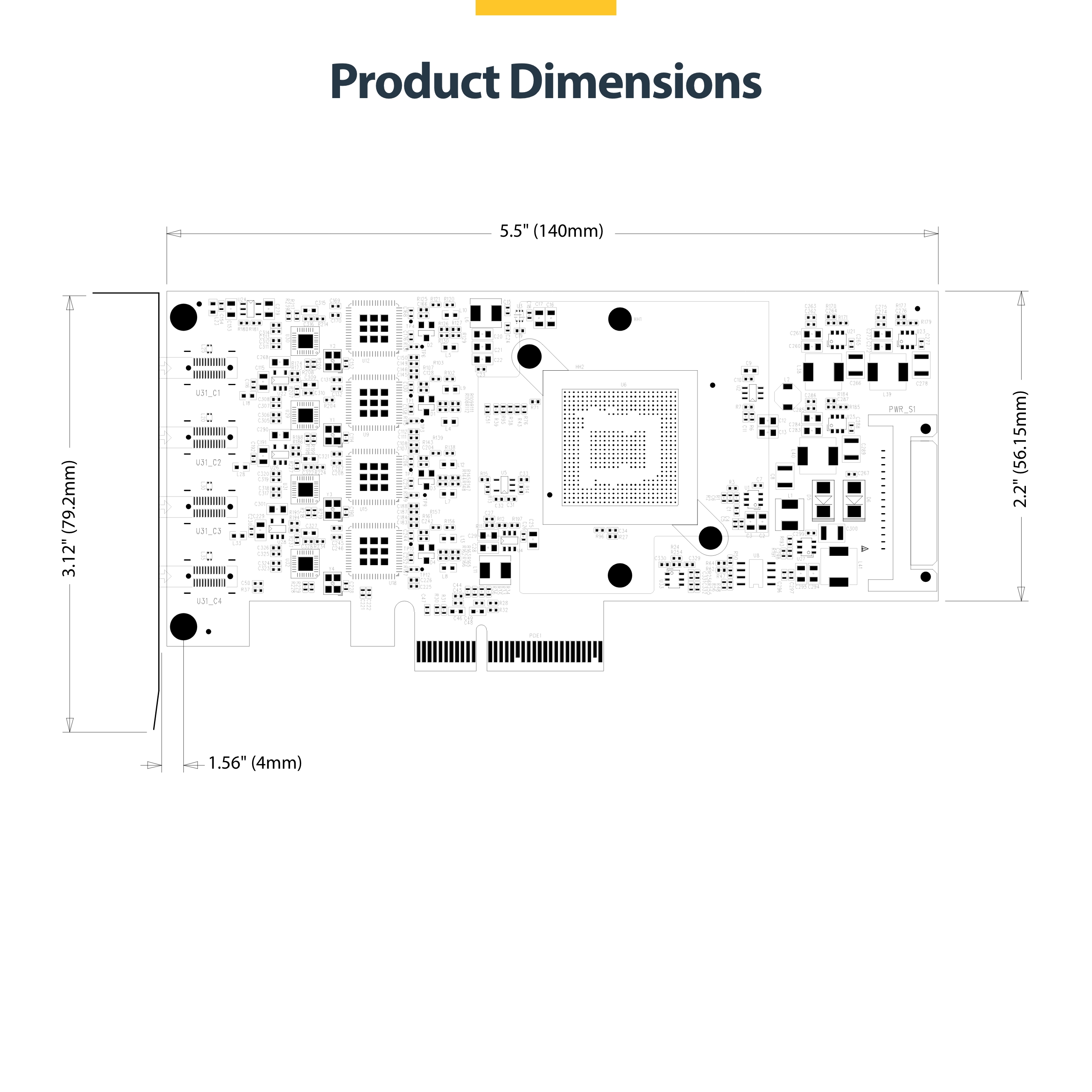

Power Delivery 15W Power Source Bus Powered Color Red Humidity 20% ~ 80% RH (non-condensing) Operating Temperature 0°C to 85°C (32°F to 185°F) Primary Material PCB Product Length (mm) 140 Product Width (mm) 56.15 Product Height (mm) 79.2 Product Weight (g) 100 Storage Temperature -25°C to -13°C (14°F to 185°F) TAA Compliant Yes Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate 10Gbps OS Compatibility - Windows 11
- Windows 10
- Windows Server 2022
- Windows Server 2019
- macOS Sequoia (15.0)
- macOS Sonoma (14.0)
- macOS Ventura (13.0)
- Linux
- macOS Tahoe (26.0)

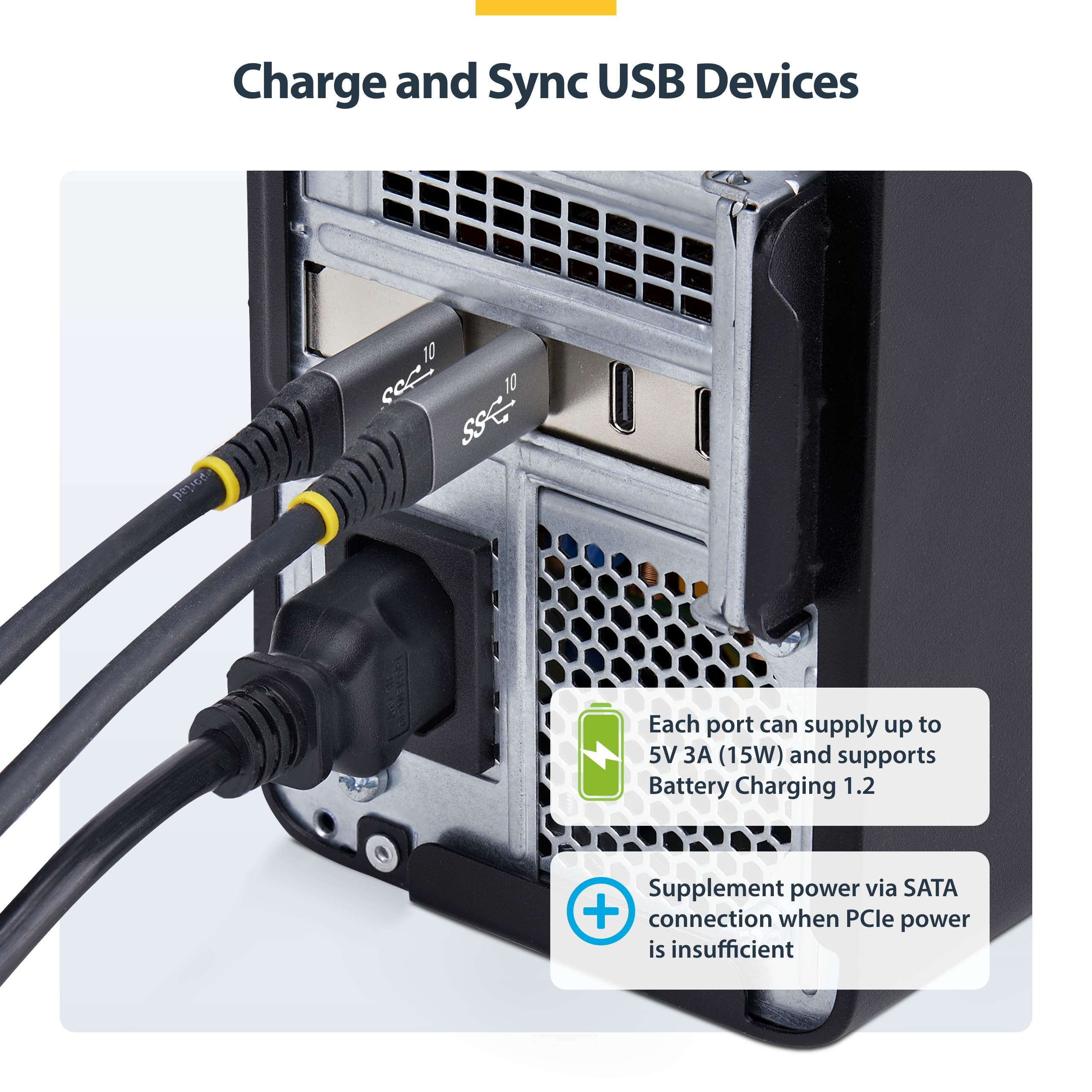

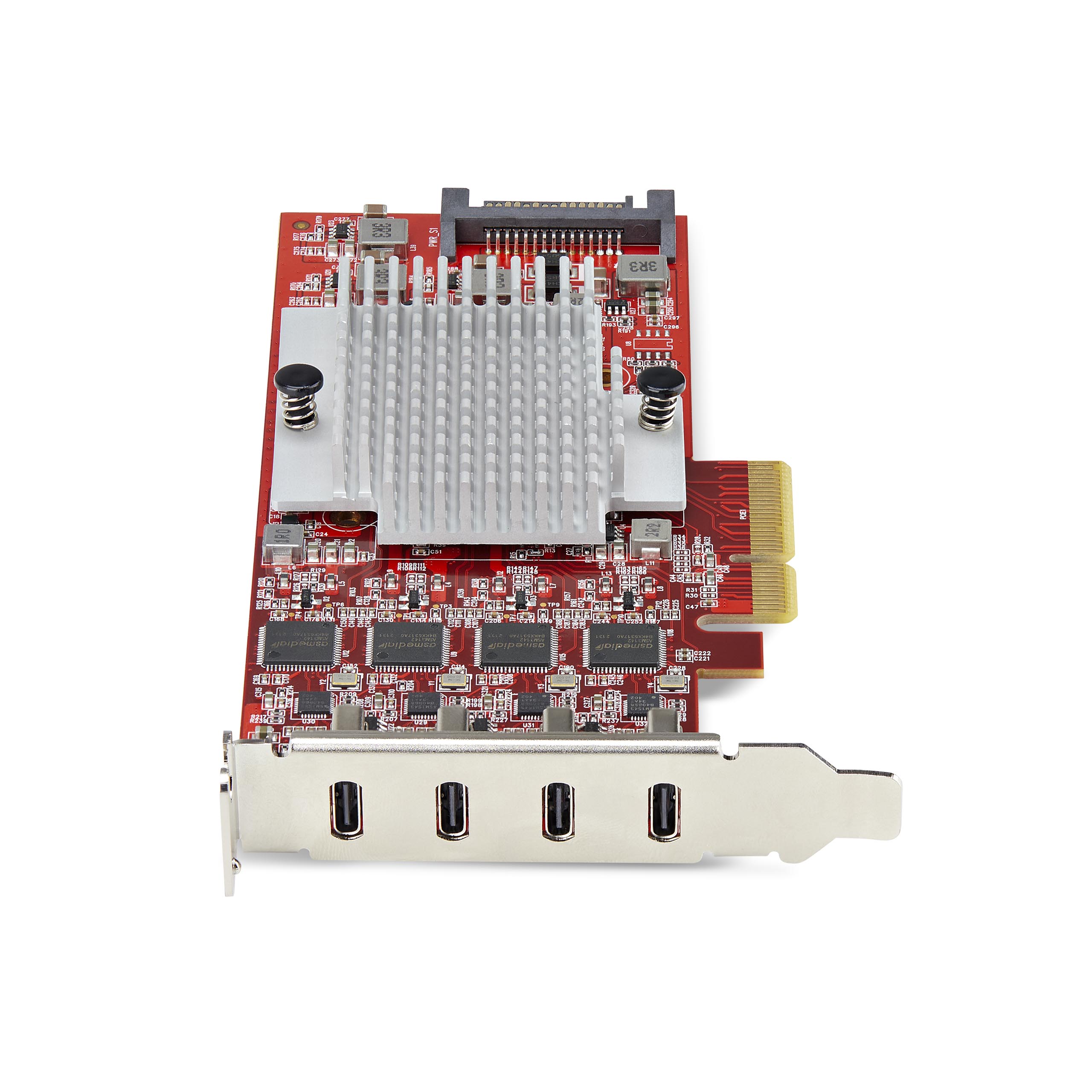

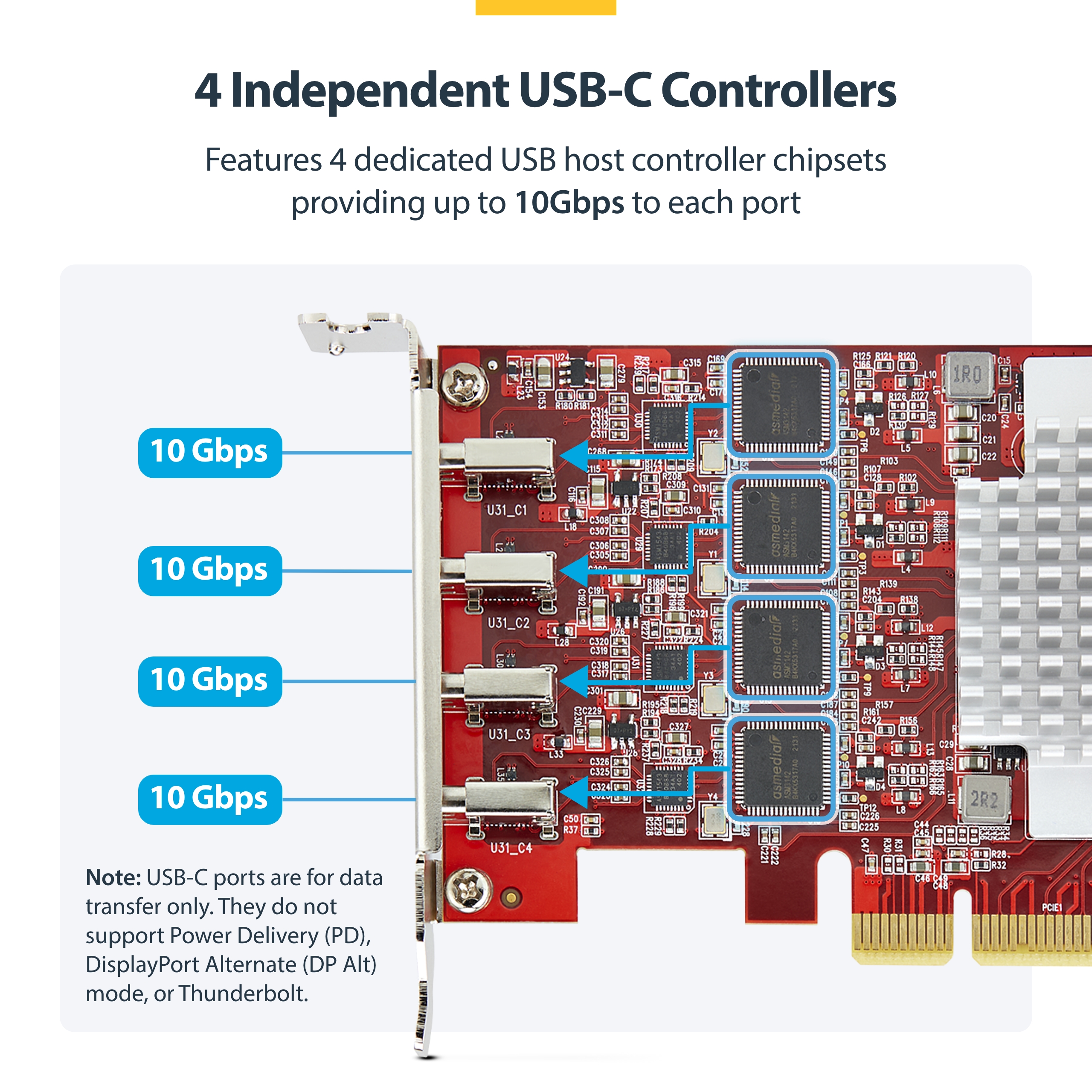

Total USB Power Output 15W max per port UASP Support Yes USB Speed USB 3.2 Gen 2 (10Gbps) USB Type and Rate USB 10Gbps Card Type Low Profile (SP bracket incl.) Chipset ID - ASMedia - ASM3142
- ASMedia - ASM1543
- ASMedia - ASM2812X

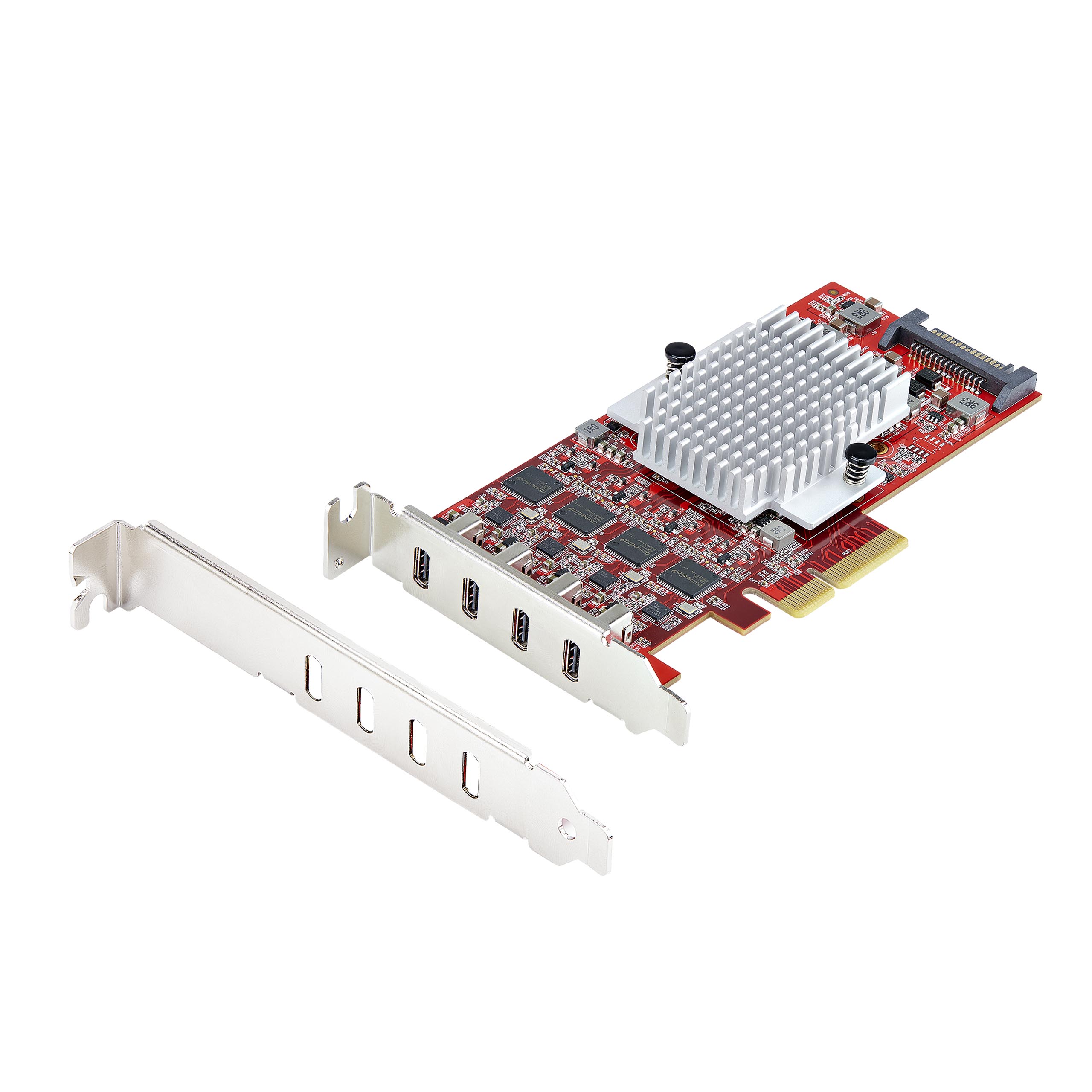

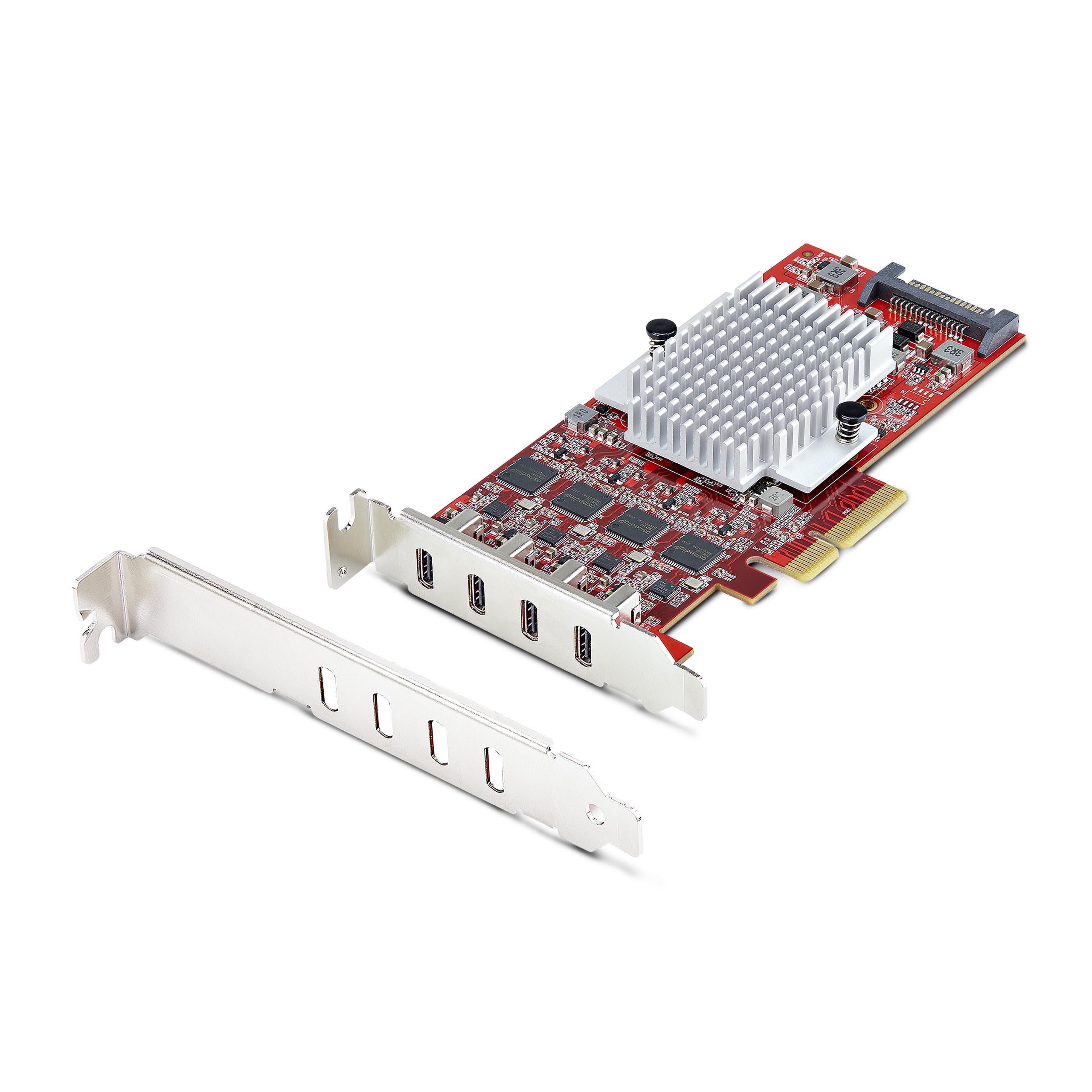

Industry Standards PCI Express 3.0 Interface/Bridge PCI Express IO Card Port Style Integrated on Card USB Port Type USB-C Carton Depth (mm) 380 Carton Height (mm) 500 Carton Quantity 60 Carton Weight Gross (g) 10600 Included in Package - 1 - PCIe USB Card (Low-Profile Bracket Installed)
- 1 - Standard-Profile Bracket
- 1 - Quick-Start Guide

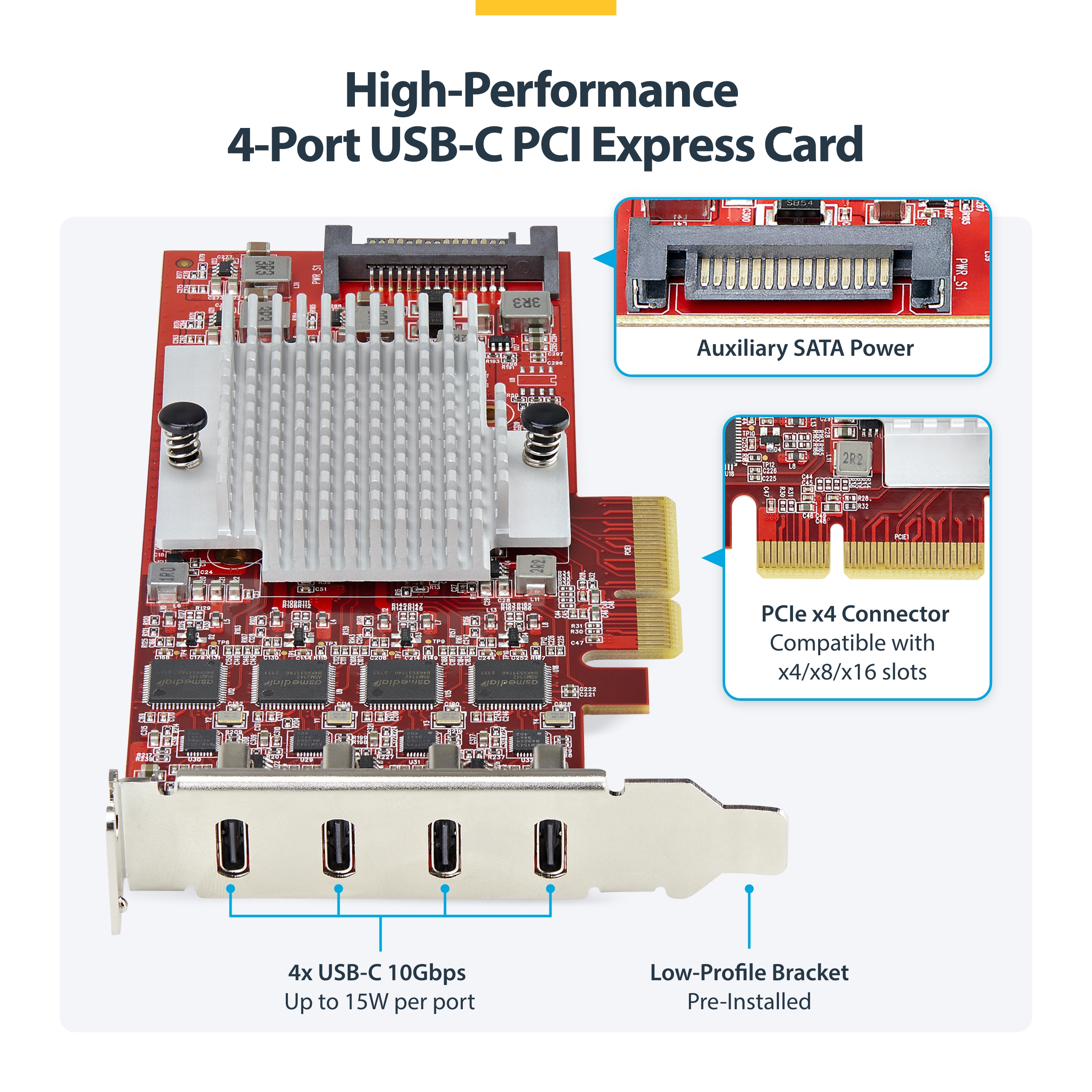

Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Weight (g) 160 Packaging Description 4-Port USB-C PCIe Card - 10Gbps - 4 Dedicated Controllers - Low-Profile Packaging Description India 4-Port USB-C PCIe Card - 10Gbps - 4 Dedicated Controllers - Low-Profile Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (10Gbps, 15W) Connector 1 (Quantity) 4 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Host Connector 1 PCI Express x4 Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2024-11-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 4-Port USB-A and USB-C 10Gbps dual controller PCIe Card Comparable SKU 2 Comment 4-Port USB-A 5Gbps quad controller PCIe Card Digital Content Due Date 2025-02-03 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology USB 3.2 Gen 2 / 10Gbps Priority New Product High Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-11-11 Target Production Release 2024-11-18 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
