P2AD122-KVM-SWITCH
2 Port USB A Single Monitor 4K DisplayPort 1 2 with USB 5 Gb
Share a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort display between two DisplayPort-enabled computers, featuring EDID Emulation and HDCP engine
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port USB A Single Monitor 4K DisplayPort 1 2 with USB 5 Gb Product Number P2AD122-KVM-SWITCH UPC 065030906548 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 2-Port DP KVM Switch Product Title (Short) 2-Port DisplayPort KVM Switch, USB 3.0 Product Title (Medium) 2-Port DisplayPort KVM Switch, 4K 60Hz, EDID Management, USB 3.0 Hub, TAA Product Title (Standard) 2-Port DisplayPort KVM Switch, 4K 60Hz, DP 1.2, HDCP 1.4, EDID Management, 2-Port USB 3.0 Hub, TAA Product Title (Long) 2-Port DisplayPort KVM Switch, 4K 60Hz, DP 1.2, EDID Management, 2-Port USB 3.0 Hub, 4x USB HID Ports, TAA Compliant Product Title (AMZ) 2-Port DisplayPort KVM Switch, 4K 60Hz, DP 1.2, HDCP 1.4, EDID Management, 2-Port USB 3.0 Hub, TAA Compliant Title Ingram (Part 1) 2-Port DisplayPort KVM Switch - Title Ingram (Part 2) 4K 60Hz, USB 3.0, EDID Management Website Product Headline Share a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort display between two DisplayPort-enabled computers, featuring EDID Emulation and HDCP engine Bullet 1 QUICK SWITCHING 4K 60HZ KVM: Control two DisplayPort-enabled desktops, workstations, or servers from one mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort monitor; Ideal for CAD, video editing, and content creation applications Bullet 2 EDID AND CONTENT MANAGEMENT: Switch between computers without disrupting your screen layout; Built-in EDID management and HDCP support maintain resolution stability, keep icons and windows in place; Ensure protected content streams without interruption Bullet 3 UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch provides BIOS control and works with any operating system including Windows, macOS, ChromeOS, and Linux, with no software required; Compatible with all hardware platforms such as Intel, AMD, and Apple Bullet 4 MULTIPLE SWITCHING OPTIONS: Switch between systems using push-buttons or hotkeys with audible confirmation; LED indicators provide at-a-glance port status, while independent audio control lets you monitor audio from one system while managing another Bullet 5 DURABLE DESIGN: Metal housing helps prevent Electro-magnetic Interference (EMI); 4kV Air and 4kV Contact ESD protection enhance the reliability and longevity of the KVM; Included rubber feet protect the work surface and keep KVM in place during operation Bullets (Compact) Control two DisplayPort desktops/servers using one mouse/keyboard/USB 5Gbps hub and 4K 60Hz monitor; EDID button to Copy/Auto-Detect/Default to 1080p; TAA-compliant KVM works with all operating systems and hardware platforms with no software required Bullets (Consolidated) Control two DisplayPort desktops/servers using one mouse/keyboard/USB 5Gbps hub and 4K 60Hz monitor - EDID button retains/auto-detects/defaults to reduce resolution issues; HDCP 1.4 - TAA-compliant KVM works with all operating systems and hardware platforms with no software required - Switch systems via push-buttons or hotkeys with LED indicators and audio monitoring from either system - Metal housing reduces EMI with 4kV ESD protection and rubber feet for stability and surface protection Marketing Copy Marketing Copy (No HTML) Applications - Share a monitor, mouse, keyboard, and stereo audio peripheral between two desktop computers
- Great for applications like CAD/CAM, video editing, and content creation
Website Search Keyword - 2 port displayport kvm switch
- 2 port kvm switch
- 4k 60hz displayport kvm
- computer monitor switch box
- displayport 1.2 kvm switch
- dp kvm switch
- keyboard mouse monitor switch
- kvm switch with audio
- kvm with usb
- USB 3.0 Hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
Accessory Products - DP14VMM2M
- MU6MMS
- USB3SAB6
- DP14VMM1M
- DP14VMM3M
- MU3MMS
- USB3SAB6BK
- USB3CAB1M
Related Products - D86A2-2-PORT-8K-KVM
- P2DD46A22-KVM-SWITCH
- P4AD122-KVM-SWITCH
Input Current 1.0A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 160 Product Width (mm) 100 Product Height (mm) 40 Product Weight (g) 640 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Audio Specifications - DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio
Auto Scan 3, 8, 15 & 30 seconds Hot-Key Selection Yes KVM IP Control No Maximum Cable Length (mm) 3000 Maximum Data Transfer Rate 5Gbps Maximum Digital Resolutions 4K 60Hz MTBF (hours) 130,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Supported Resolutions Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No LED Indicators Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 397 Carton Height (mm) 300 Carton Quantity 6 Carton Weight Gross (g) 6800 Included in Package - 1 - KVM Switch

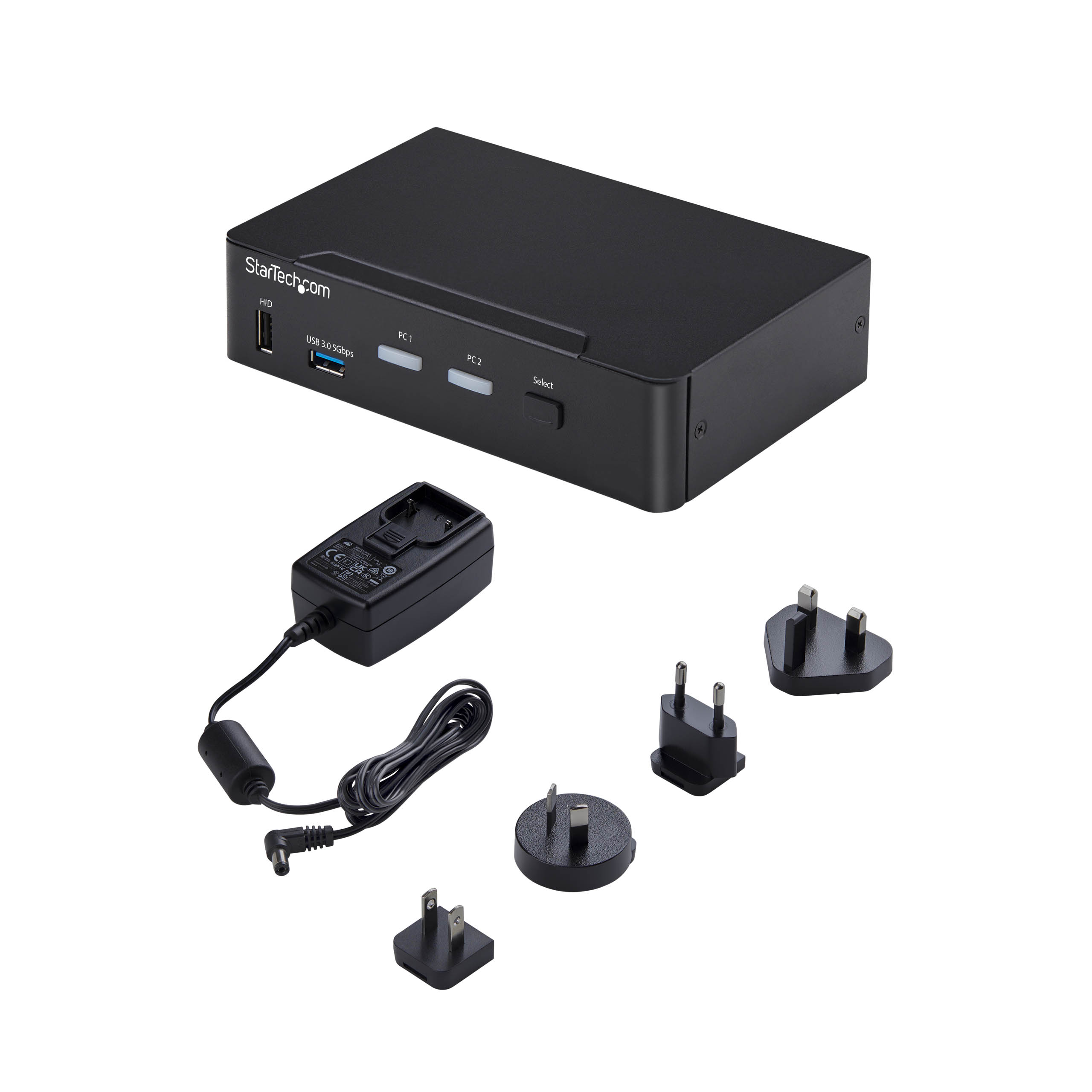

- 1 - Set of Rubber Feet
- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Product Documentation
Package Depth (mm) 238 Package Height (mm) 89 Package Width (mm) 184 Package Weight (g) 147 Packaging Description 2-Port 4K 60Hz DisplayPort KVM Switch - USB 5Gbps Hub - EDID Emulation Packaging Description India 2-Port 4K 60Hz DisplayPort KVM Switch - USB 5Gbps Hub - EDID Emulation Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 4 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 DisplayPort Connector 4 (Quantity) 1 Connector 5 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 5 (Quantity) 1 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 2 A+ Uploaded Actual Inbox Documents Created Compliance Insert & EN/DE QSG Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-10-07 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment 2-Port DisplayPort KVM Switch with USB 3.0 hub ports - 4K 60Hz Comparable SKU 2 Comment 2 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) and 4x USB 2.0 HID, Audio Digital Content Due Date 2025-06-16 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
- DisplayPort 1.2 / 4K 60Hz
