P2ADD121D-KVM-SWITCH
2-Port 4K DisplayPort Dual-View KVM Switch
Share a mouse, keyboard, USB hub, and dual 4K 60Hz DisplayPort monitors, between two DisplayPort-enabled computers, featuring dual-view video matrix capabilities
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2-Port 4K DisplayPort Dual-View KVM Switch Product Number P2ADD121D-KVM-SWITCH UPC 065030904346 Lifecycle status Active Warranty 2 Years Weighted Opportunity 105127 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2-Port DP KVM Switch Product Title (Short) 2-Port Dual-Monitor DisplayPort KVM Product Title (Medium) 2-Port Dual-Monitor DisplayPort KVM Switch with Video Matrix, 4K 60Hz, TAA Product Title (Standard) 2-Port Dual-Monitor DisplayPort KVM Switch with Dual View Video Matrix, 4K 60Hz, 4x USB Hub Ports, TAA Compliant Product Title (Long) 2-Port Dual-Monitor DisplayPort KVM Switch with Dual View Video Matrix, 4K 60Hz, 4x USB Hub Ports, Hotkey Switching, DP 1.2 Matrix KVM, TAA Compliant Product Title (AMZ) 2-Port Dual-Monitor DisplayPort KVM Switch with Dual View Video Matrix, 4K 60Hz, 4x USB Hub Ports, TAA Compliant Title Ingram (Part 1) 2-Port Dual-Monitor DP KVM Title Ingram (Part 2) Dual-View Video Matrix, 4K 60Hz Website Product Headline Share a mouse, keyboard, USB hub, and dual 4K 60Hz DisplayPort monitors, between two DisplayPort-enabled computers, featuring dual-view video matrix capabilities Bullet 1 VIDEO MATRIX KVM SWITCH: Functions as a KM-only or full KVM switch: view one screen from each computer and switch keyboard, mouse, and USB audio between them (KM only), or control both displays and peripherals from a single PC (KVM) Bullet 2 MULTIPLE SWITCHING OPTIONS: Easy to switch KVM ports using the front-facing pushbutton, hotkeys, or the included remote selector cable, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status Bullet 3 UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system including Windows, macOS, and Linux; No software required; Compatible with all hardware platforms such as Intel, AMD, and Apple Silicon Bullet 4 DURABLE DESIGN: Steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability and reliability of the KVM; Sturdy construction makes it ideal for installation in a variety of environments; 8kV Air/6kV Contact ESD protection Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts Bullets (Compact) View one display from each computer and switch the keyboard/mouse/audio device using hotkeys or switch all peripherals and both monitors like a standard KVM; Switch ports using the pushbutton/hotkeys/included remote selector cable; TAA Compliant Bullets (Consolidated) - KM-only or full KVM switch; View one screen from each computer and switch keyboard/mouse/USB audio between them (KM), or control both displays and peripherals from a single PC (KVM) - Pushbutton/hotkey/incl. remote selector cable switching - Audible buzzer for confirmation; LEDs for visual port status - TAA-Compliant KVM Switch provides BIOS/UEFI control; Works w/ any OS (Windows/macOS/Linux) & hardware platforms (Intel/AMD/Apple) - Steel housing helps protect against EMI enhancing reliability Marketing Copy Marketing Copy (No HTML) Applications - Monitor and switch between two computers using video matrix functionality
- Share dual monitors, a mouse, keyboard, and audio device between two desktop computers
Website Search Keyword - KVM Switch
- Video Matrix
- DisplayPort KVM
- KVM
- DP KVM Switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes This KVM Switch does not support Multi-Stream Transport (MST) pass-through Accessory Products - DISPLPORT3L
- DISPLPORT6L
- USB2HAB3
- USB2HAB6
Related Products - P4DD46A2-KVM-SWITCH
- P4AD122-KVM-SWITCH
- P2CDD143-KVM-SWITCH
- D86A2-4-PORT-8K-KVM
- P2DD46A22-KVM-SWITCH
Input Current 1A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 90% RH (non-condensing) Material Aluminum and Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 221 Product Width (mm) 105 Product Height (mm) 26 Product Weight (g) 640 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Audio Specifications Analog Stereo - 2 Channel Audio Auto Scan 10, 20, 30, 40, 50, and 60 seconds Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate 480Mbps Maximum Digital Resolutions 3840x2160 60Hz (4:4:4 10-bit) MTBF (hours) 87,298 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Supported Resolutions Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No Industry Standards LED Indicators Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 539 Carton Height (mm) 333 Carton Quantity 10 Carton Weight Gross (g) 16400 Included in Package - 1 - KVM Switch

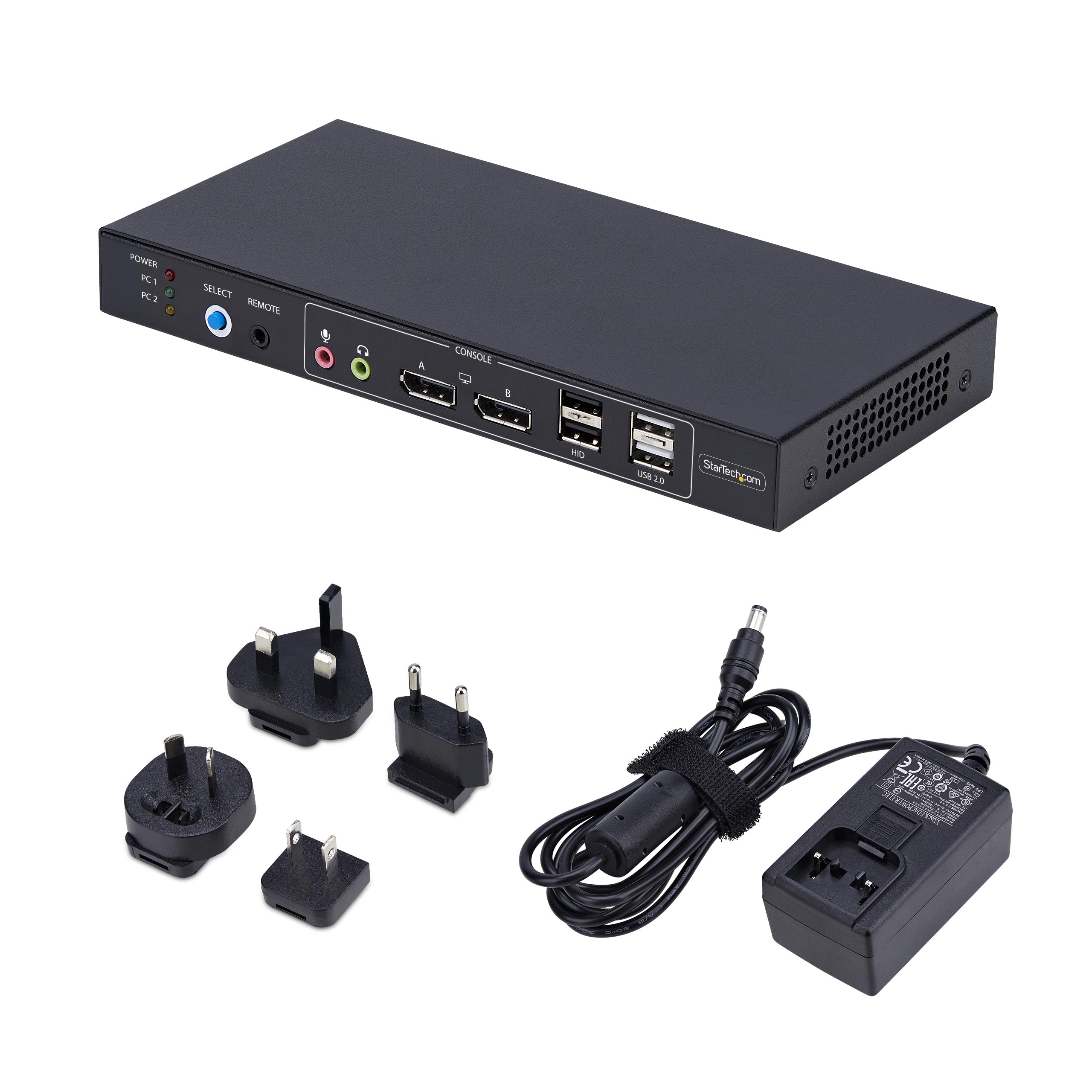

- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Quick-Start Guide
- 1 - Remote Selector Cable
Package Depth (mm) 250 Package Height (mm) 78 Package Width (mm) 292 Package Weight (g) 1540 Packaging Description 2-Port Dual-Monitor DisplayPort KVM with Dual-View Video Matrix - 4K 60Hz Packaging Description India 2-Port Dual-Monitor DisplayPort KVM with Dual-View Video Matrix - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-08-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment 2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz Comparable SKU 2 Comment 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub Digital Content Due Date 2025-03-31 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Priority New Product Medium Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-07-31 Target Production Release 2024-08-07 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
