P2ADDH462-KVM-SWITCH
2 Port Dual Monitor HDMI and DisplayPort KVM Switch USB 3
Share a mouse, keyboard, USB 5Gbps hub, 4K 60Hz DisplayPort monitor, and a 4K 60Hz HDMI monitor between two computers
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port Dual Monitor HDMI and DisplayPort KVM Switch USB 3 Product Number P2ADDH462-KVM-SWITCH UPC 065030909129 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2-Port DP+HDMI KVM Product Title (Short) 2-Port Dual-Monitor DP+HDMI KVM Switch Product Title (Medium) 2-Port Dual-Monitor DisplayPort & HDMI KVM Switch, 4K 60Hz, 2x USB 5Gbps Ports Product Title (Standard) 2-Port Dual-Monitor DisplayPort and HDMI KVM Switch, 4K 60Hz, 2-Port USB 5Gbps Hub, 2x USB HID Ports, Hotkeys, TAA Compliant Product Title (Long) 2-Port Dual-Monitor DisplayPort and HDMI KVM Switch, 4K 60Hz, 1x HDMI & 1x DP Monitor, 2-Port USB 5Gbps Hub, 2x USB HID Ports, TAA Compliant Product Title (AMZ) 2-Port Dual-Monitor DisplayPort and HDMI KVM Switch, 4K 60Hz, 2-Port USB 5Gbps Hub, 2x USB HID Ports, TAA Compliant Title Ingram (Part 1) 2-Port Dual-Monitor KVM Switch, Title Ingram (Part 2) DisplayPort + HDMI, 4K 60Hz Website Product Headline Share a mouse, keyboard, USB 5Gbps hub, 4K 60Hz DisplayPort monitor, and a 4K 60Hz HDMI monitor between two computers Bullet 1 HDMI + DISPLAYPORT KVM SWITCH: Enable a mixed-display setup with an HDMI and a DisplayPort monitor without adapters, and share peripherals, including a keyboard, mouse, audio device, and dual monitors, between two computers using this HDMI+DP KVM switch Bullet 2 EASILY SHARE USB DEVICES: Provides high-speed data transfer over two USB 3.0 ports for devices such as external SSDs and flash drives, alongside two dedicated USB HID ports for keyboard and mouse Bullet 3 UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system including Windows, macOS, ChromeOS, and Linux; No software required; Compatible with all hardware platforms such as Intel, AMD, and Apple Bullet 4 MULTIPLE SWITCHING OPTIONS: Easy to use KVM controls via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling another Bullet 5 DURABLE DESIGN: Steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability and reliability of the KVM; Sturdy construction makes it ideal for installation in a variety of environments; 8kV Air/6kV Contact ESD protection Bullets (Compact) TAA-Compliant HDMI+DP KVM switch enables a mixed-display setup without adapters; Share a keyboard, mouse, audio device, and dual monitors between two computers; BIOS/UEFI control; Works with any OS and hardware platform; Push-button/hotkey switching Bullets (Consolidated) - HDMI+DP KVM switch enables a mixed-display setup without adapters; Share a keyboard/mouse/audio between two computers - 2x USB 3.0 ports; 2x USB HID ports - KVM Switch provides BIOS/UEFI control - Works with any OS (Windows/macOS/ChromeOS/Linux) and all hardware platforms ( Intel/AMD/Apple) - Push-buttons or hotkey switching; LEDs for port selection status; Listen to audio on one computer while controlling the other - Durable steel housing; 8kV Air/6kV Contact ESD protection; TAA-Compliant Marketing Copy Marketing Copy (No HTML) Applications - Share an HDMI and DisplayPort display, a mouse, keyboard, and an audio device between two desktop computers
- Ideal for CAD/CAM, video editing, and content creation applications
Website Search Keyword - KVM Switch
- HDMI+DisplayPort KVM Switch
- HDMI + DP KVM Switch
- HDMI KVM Switch
- DisplayPort KVM Switch
- peripheral switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - HDMM2MP
- DISPLPORT6L
- USB3SAB6
- HDMM1MP
- DISPLPORT3L
Related Products - P4DD46A2-KVM-SWITCH
- P4AD122-KVM-SWITCH
- P2DD46A22-KVM-SWITCH
- P2DD46A2-KVM-SWITCH
Input Current 1A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 90% RH (non-condensing) Material Zinc-Plated Casing Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 163 Product Width (mm) 100 Product Height (mm) 66 Product Weight (g) 750 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Audio Specifications - HDMI - 7.1 Channel Audio
- DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio

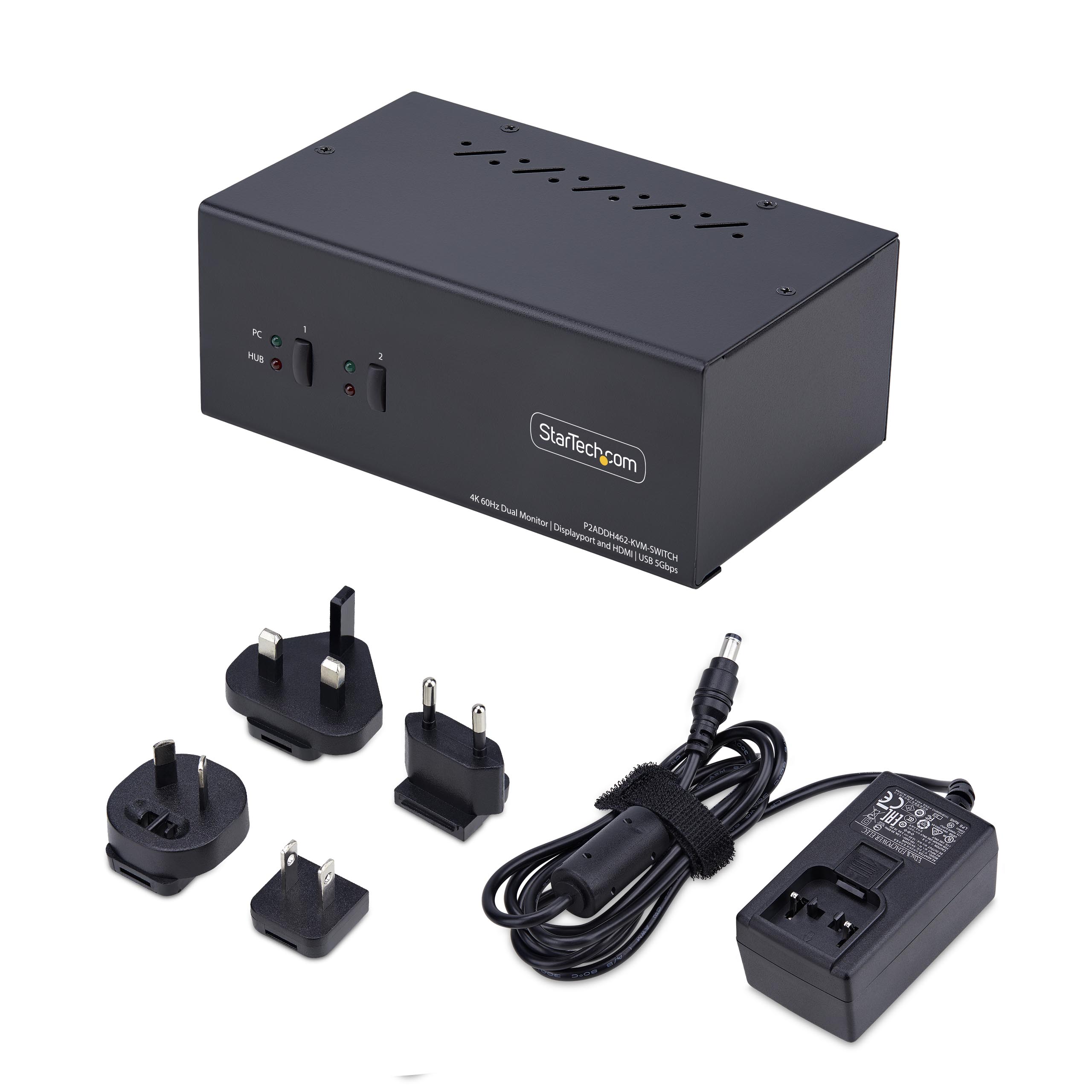

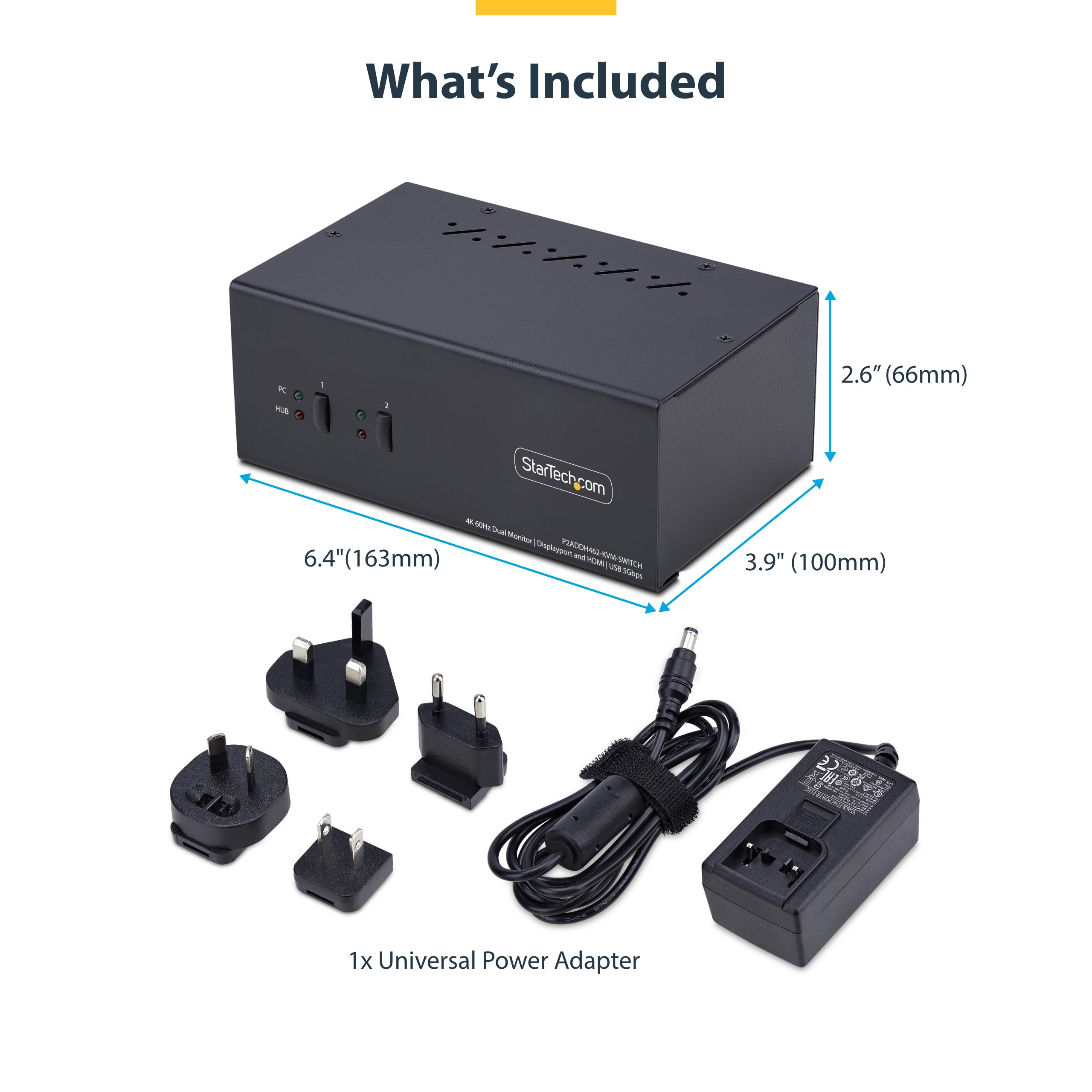

Hot-Key Selection Yes KVM IP Control No MTBF (hours) 138,390 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Supported Resolutions Audio Yes Cables Included No CAC Support No LED Indicators Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DisplayPort + HDMI Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 513 Carton Height (mm) 301 Carton Quantity 6 Carton Weight Gross (g) 8580 Included in Package - 1 - KVM Switch
- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Product Documentation

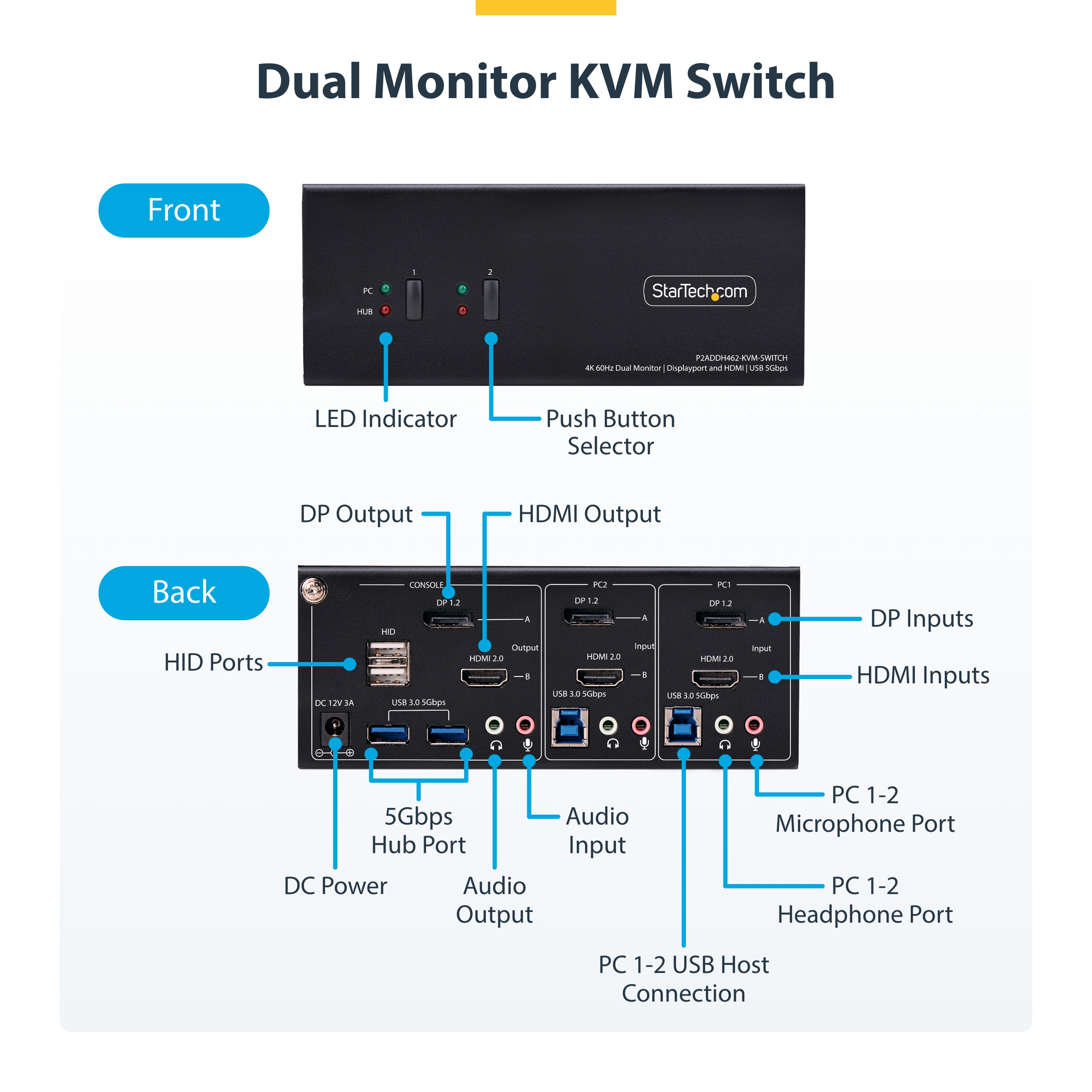

Package Depth (mm) 332 Package Height (mm) 127.9 Package Width (mm) 162 Package Weight (g) 128 Packaging Description 2-Port Dual-Monitor HDMI/DisplayPort KVM Switch - 4K 60Hz - USB 5Gbps Packaging Description India 2-Port Dual-Monitor HDMI/DisplayPort KVM Switch - 4K 60Hz - USB 5Gbps Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-A (1.5Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 2 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Connector 6 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 6 (Quantity) 1 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 2 Host Connector 2 HDMI Host Connector 2 (Quantity) 2 Host Connector 3 USB-B (5Gbps, 4.5W) Host Connector 3 (Quantity) 2 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 4 A+ Not Required Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Kathleen Marshall Apple Compatibility Apple Compatible Application Photos Uploaded Artwork Due Date 2024-10-11 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Dual monitor DP KVM with fast switching and USB 3.0 ports in the uniclass layout Comparable SKU 2 Comment Dual monitor DP KVM with fast switching and USB 3.0 ports. Digital Content Due Date 2025-02-03 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology - DisplayPort 1.4
- HDMI 2.0 / 4K 60 Hz and HDR
