P2CDD143-KVM-SWITCH
2 Port USB A Dual Monitor 8K DisplayPort 1 4 with USB 5 Gbps
Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port USB A Dual Monitor 8K DisplayPort 1 4 with USB 5 Gbps Product Number P2CDD143-KVM-SWITCH UPC 065030907712 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) DP 1.4 KVM Switch Product Title (Short) 2-Port Dual-Monitor DP 1.4 KVM Switch Product Title (Medium) 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz, DP 1.4, 2x USB 10Gbps Ports Product Title (Standard) 2-Port Dual-Monitor DisplayPort 1.4 KVM Switch, 8K 60Hz / 4K 144Hz, 2x USB 10Gbps Ports, Hotkey Switching, TAA Compliant Product Title (Long) 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB HID Ports, Hotkey Switching, TAA Compliant Product Title (AMZ) 2-Port Dual-Monitor DisplayPort 1.4 KVM Switch, 8K 60Hz / 4K 144Hz, 2x USB 3.2 10Gbps Ports, TAA Compliant Title Ingram (Part 1) 2-Port DP 1.4 KVM Switch - Title Ingram (Part 2) Dual-Monitor DisplayPort KVM Website Product Headline Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers Bullet 1 DUAL 8K 60HZ WITH HDR: Control two USB and DisplayPort-enabled desktops from a shared keyboard, mouse, audio device, and dual 8K 60Hz, 4K 144Hz, or 4K 120Hz DP 1.4 monitors; Supports HDR (up to 10-bit YCbCr 4:4:4); DSC required for maximum performance Bullet 2 FAST & COMPATIBLE SWITCHING: USB Emulation enables fast switching of up to four USB HID devices between two desktops/workstations; USB Emulation ensures compatibility with combo keyboards/mice; Works with any operating system and all hardware platforms Bullet 3 2X FASTER DATA TRANSFER: Two USB 3.2 Gen 2 (10Gbps) ports enable faster transfer speeds than USB Gen 1 (5Gbps) KVMs; Ideal for transferring large files or editing high-resolution photos/videos on external storage; 2x USB-C to USB-A 10Gbps cables included Bullet 4 MULTIPLE SWITCHING OPTIONS: Universal KVM Switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling the other Bullet 5 DURABLE DESIGN: Durable steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability/reliability of the KVM; Sturdy construction is ideal for installation in various environments; 8kV Air/6kV Contact ESD protection; TAA Compliant Bullets (Compact) Fast switch a keyboard/mouse and dual 8K 60Hz/4K 144Hz DisplayPort monitors between two DisplayPort-enabled desktops; 2x USB 10Gbps hub ports; Hotkey or Push-Button Switching; Listen to audio from one computer while controlling another; TAA Compliant Bullets (Consolidated) - Fast switch a keyboard/mouse/audio device and dual 8K 60Hz / 4K 144Hz DisplayPort monitors between two DisplayPort-enabled desktops; Supports up to 8-bit YCbCr 4:4:4 - USB Emulation ensures compatibility with combo keyboards/mice; 2x USB 10Gbps hub ports - Universal KVM Switch features push-buttons or hotkey switching; LEDs; Audible buzzer for confirmation of hotkey input - Listen to audio from one computer while controlling another - 8kV Air/6kV Contact ESD protection; Durable metal housing Marketing Copy Marketing Copy (No HTML) Applications - Share dual monitors, mouse, keyboard, and audio peripheral between two desktop computers
- Great for applications like CAD/CAM, video editing, and content creation
Website Search Keyword - 2 port displayport kvm switch
- 2 port kvm switch
- 8k 60hz displayport kvm
- computer monitor switch box
- displayport 1.4 kvm switch
- dp kvm switch
- keyboard mouse monitor switch
- kvm switch with audio
- kvm with usb
- USB 3.0 Hub
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - DO NOT USE - Disposal of Waste Batteries and Electrical & Electronic Equipment (WEEE)
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - United Kingdom - DO NOT USE - UK Waste Electrical and Electronic Equipment (WEEE) Regulations 2013.
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
System and Cable Requirements - A host that supports DisplayPort 1.4 and DSC is required for maximum video performance
- A host that supports USB 3.2 Gen 2 (10Gbps) is required for maximum transfer speeds using the USB hub ports
Accessory Products - DP14VMM2M
- MU6MMS
- DP14VMM1M
- DP14VMM3M
Related Products - D86A2-2-PORT-8K-KVM
- D86A2-4-PORT-8K-KVM
- P4DD46A2-KVM-SWITCH
- P2DD46A2-KVM-SWITCH
Input Current 1A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 80% RH (non-condensing) Material Metal Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 160.000 Product Width (mm) 100.000 Product Height (mm) 60.000 Product Weight (g) 756.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Audio Specifications - DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio
Auto Scan 3, 8, 15 & 30 seconds Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate 10Gbps Maximum Digital Resolutions 8K 60Hz Maximum Number of Users 1 MTBF (hours) 168,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included Yes CAC Support No Chipset ID Genesys Logic - GL3590 LED Indicators Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 260 Carton Height (mm) 300 Carton Quantity 6 Carton Weight Gross (g) 9000 Included in Package - 1 - KVM Switch

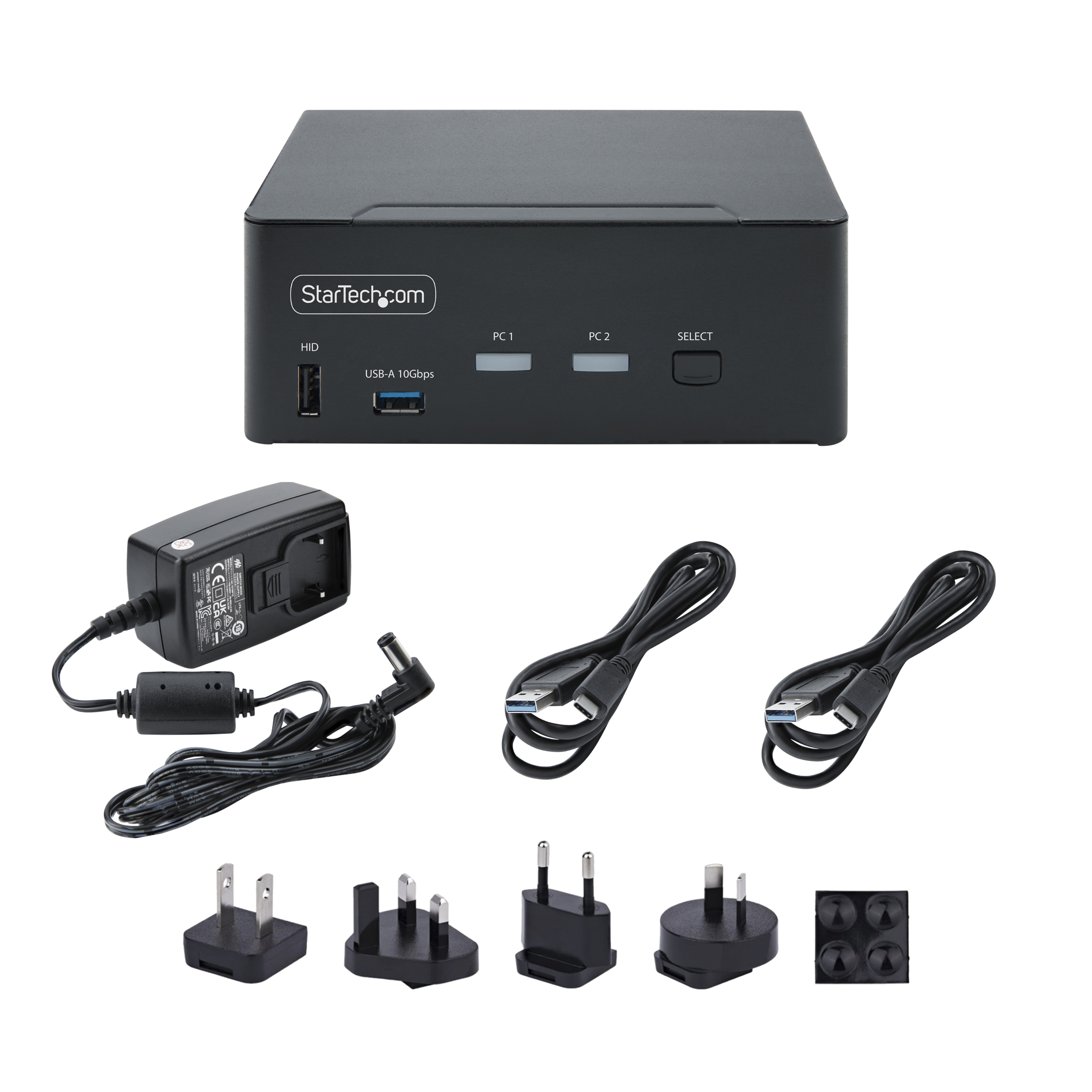

- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Set of Rubber Feet
- 1 - Quick-Start Guide
- 2 - 1m [3.3ft] USB-C to USB-A Cable
Package Depth (mm) 238 Package Height (mm) 89 Package Width (mm) 184 Package Weight (g) 1387 Packaging Description 2-Port Dual Monitor KVM Switch - DisplayPort - 8K 60Hz - USB-C 10Gbps Packaging Description India 2-Port Dual Monitor KVM Switch - DisplayPort - 8K 60Hz - USB-C 10Gbps Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (10Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 2 Connector 3 USB-A (1.5Mbps, 2.5W) Connector 3 (Quantity) 4 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Connector 5 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 5 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Required Artwork Due Date 2023-11-22 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment 2-Port DisplayPort Dual-Monitor KVM Switch with USB 2.0 hub ports - 4K 60Hz Comparable SKU 2 Comment 2-Port DisplayPort KVM Switch with USB 3.0 hub ports - 4K 60Hz Digital Content Due Date 2024-05-01 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
- DisplayPort 1.4 DSC / 8K 60Hz +
Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Shane Arnett Target Development Completion Date 2023-11-15 Target Production Release 2023-11-22 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Latest Video Not Required
