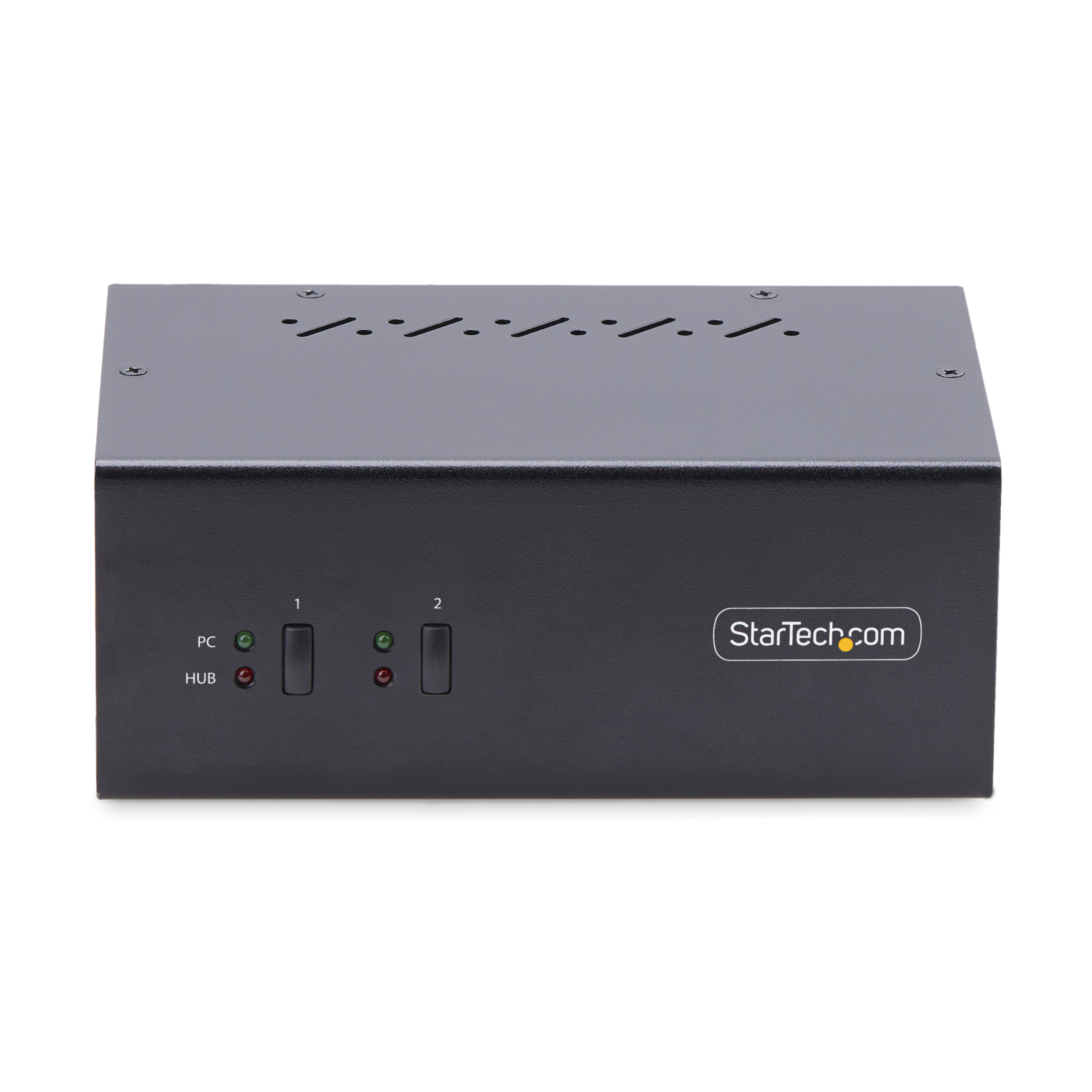

P2DD46A2-KVM-SWITCH
2 Port DisplayPort 1 2 Dual 4K 60Hz KVM Switch w USB 3 0

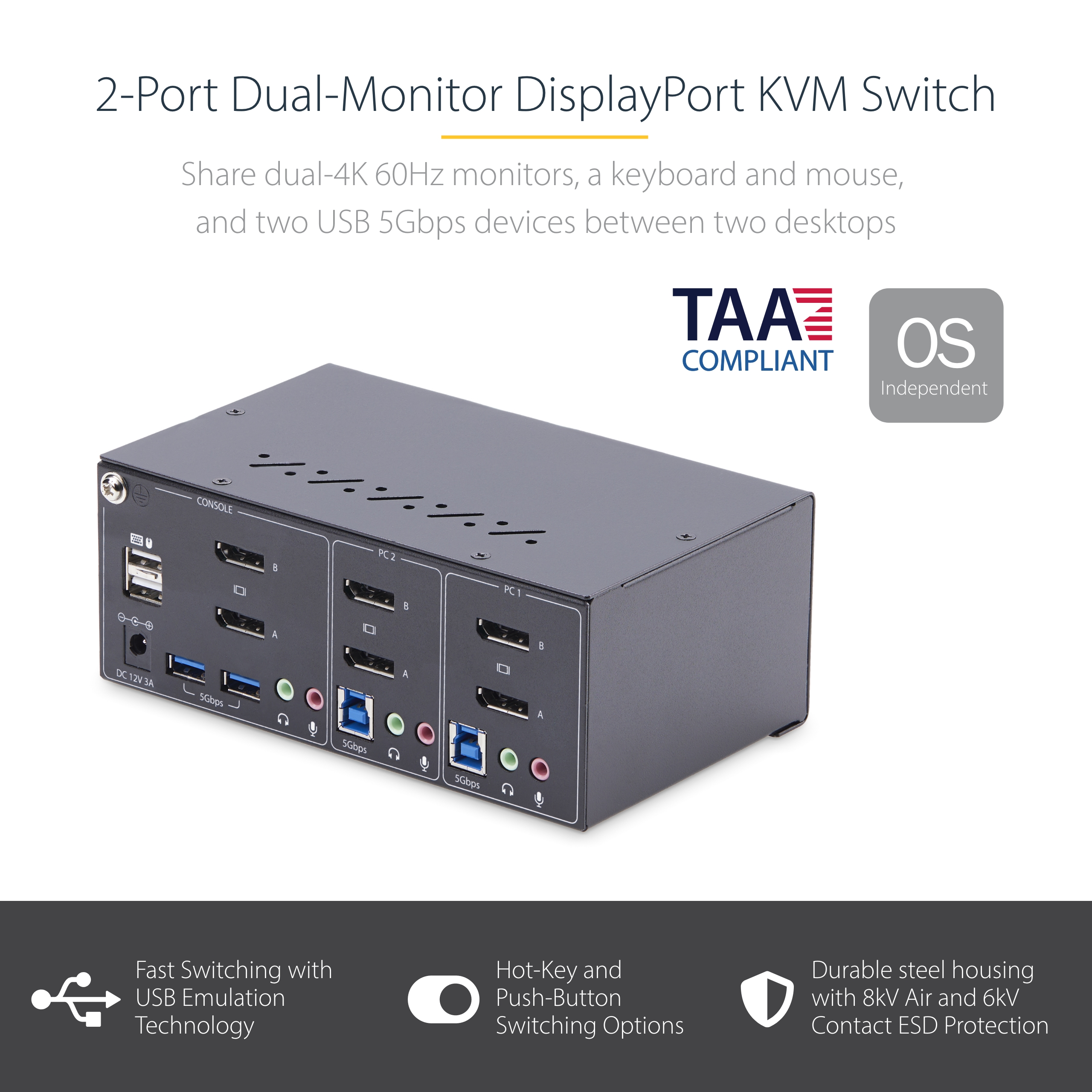

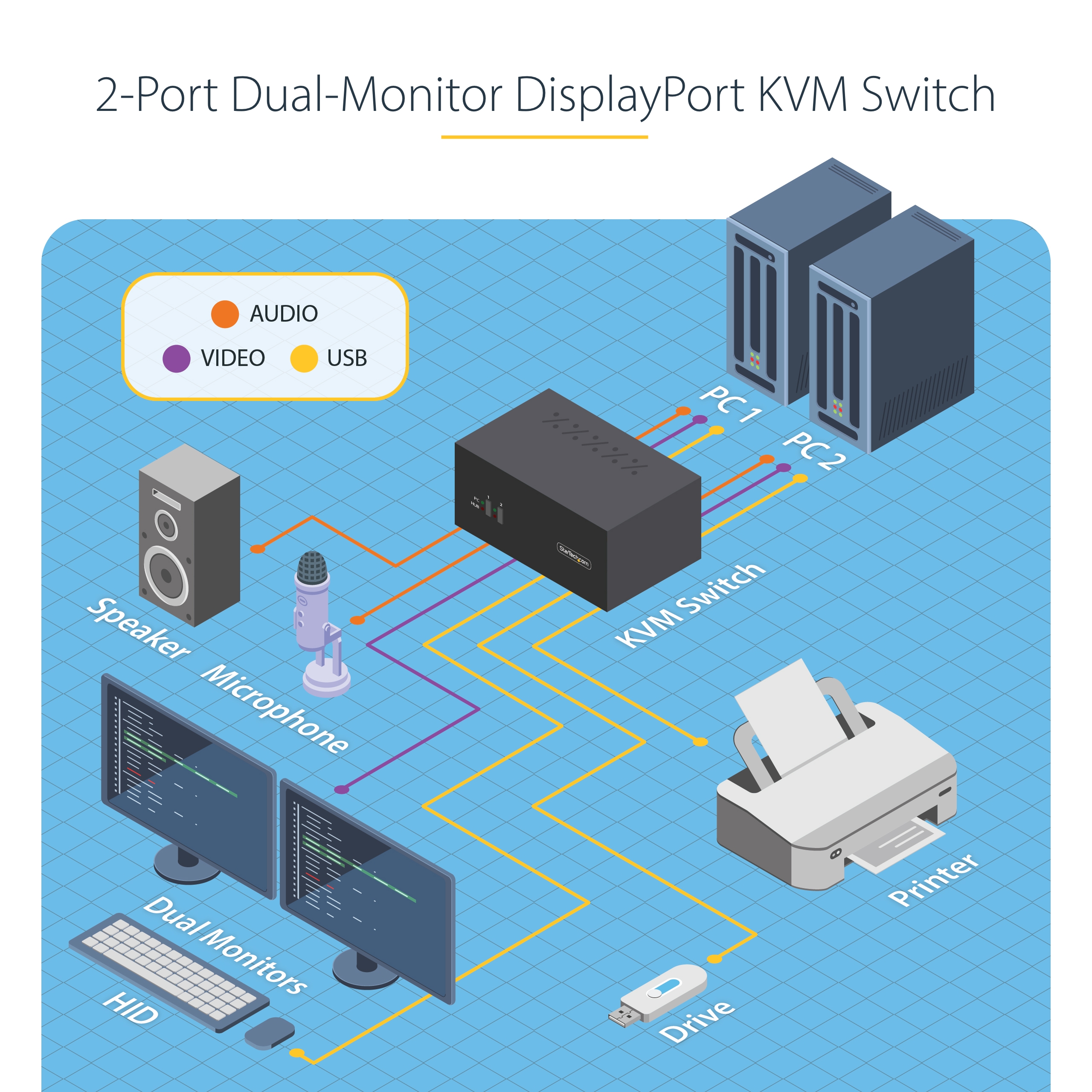

Share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between two DisplayPort-enabled computers
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 2 Port DisplayPort 1 2 Dual 4K 60Hz KVM Switch w USB 3 0 Product Number P2DD46A2-KVM-SWITCH UPC 065030899505 Lifecycle status Active Warranty 2 Years Weighted Opportunity 475186 Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2-Port KVM Switch Product Title (Short) 2-Port Dual-DisplayPort KVM Switch, 4K Product Title (Medium) 2-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Ports Product Title (Standard) 2-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Ports, Hotkey/Push-Button Switching, TAA Compliant Product Title (Long) 2-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey and Push-Button Switching, TAA Compliant - 3.5mm Audio, HDCP Product Title (AMZ) 2-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey and Push-Button Switching, TAA Compliant (P2DD46A2-KVM-SWITCH) Title Ingram (Part 1) 2-Port KVM Switch, 4K 60Hz - Title Ingram (Part 2) Dual-Monitor DisplayPort KVM Website Product Headline Share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between two DisplayPort-enabled computers Bullet 1 FAST SWITCHING: USB Emulation enables fast switching of a keyboard, video, and mouse between two DisplayPort and USB-A enabled desktops; USB Emulation ensures compatibility with combo keyboards/mice, as well as keyboards featuring additional function keys Bullet 2 DUAL 4K 60HZ & USB 5GBPS: TAA Compliant DisplayPort 1.2 KVM Switch supports up to two 4K 60Hz DisplayPort monitors with two USB 3.2 Gen 1 (5Gbps) Hub Ports and two USB 2.0 HID Ports; Ideal for CAD/CAM, video editing, and content creation applications Bullet 3 MULTIPLE SWITCHING OPTIONS: Universal KVM Switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling the other Bullet 4 DURABLE DESIGN: A durable steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability and reliability of the KVM; Sturdy construction makes it ideal for installation in a variety of environments; 8kV Air/6kV Contact ESD protection Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts Bullets (Compact) KVM Switch features USB Emulation enabling fast switching of a keyboard/video/mouse between 2x DisplayPort/USB-A enabled desktops; Dual 4K 60Hz DP monitors; 2x USB 5Gbps Ports; 2x USB 2.0 Ports; Hotkeys or Push-Button Switching; TAA Compliant Bullets (Consolidated) - Fast switching enabled by USB Emulation allow sharing of keyboard/video/mouse between two DisplayPort/USB-A enabled desktops - Universal KVM Switch supports dual 4K 60Hz DisplayPort monitors with 2x USB 3.2 Gen 1 (5Gbps) Hub Ports and 2x USB 2.0 HID Ports - KVM Switch features hotkeys or push-button switching; LEDs and Audible buzzer for confirmation of hotkey input - Listen to audio from one computer while controlling the other - TAA Compliant; Steel housing; Level-3 ESD protection Marketing Copy Marketing Copy (No HTML) Applications - Share dual displays, mouse, keyboard, and audio peripherals between two desktop computers
- Great for CAD/CAM, video editing, and content creation applications
Website Search Keyword - 2 port displayport kvm
- 2 port dual monitor kvm switch
- 2 port kvm switch
- 4k dual monitor kvm
- display port kvm
- display port switch
- displayport kvm 4k
- kvm switch displayport
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - All other Plastics
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Accessory Products - DP14VMM1M
- DP14VMM2M
- DP14VMM3M
- DP14VMM5M
- USB3CAB1M
- USB3CAB2M
- MU3MMS
- MU6MMS
Related Products - P4DD46A2-KVM-SWITCH
- P2DD46A22-KVM-SWITCH
- SV431DPDDUA2
- SV231DPDDUA2

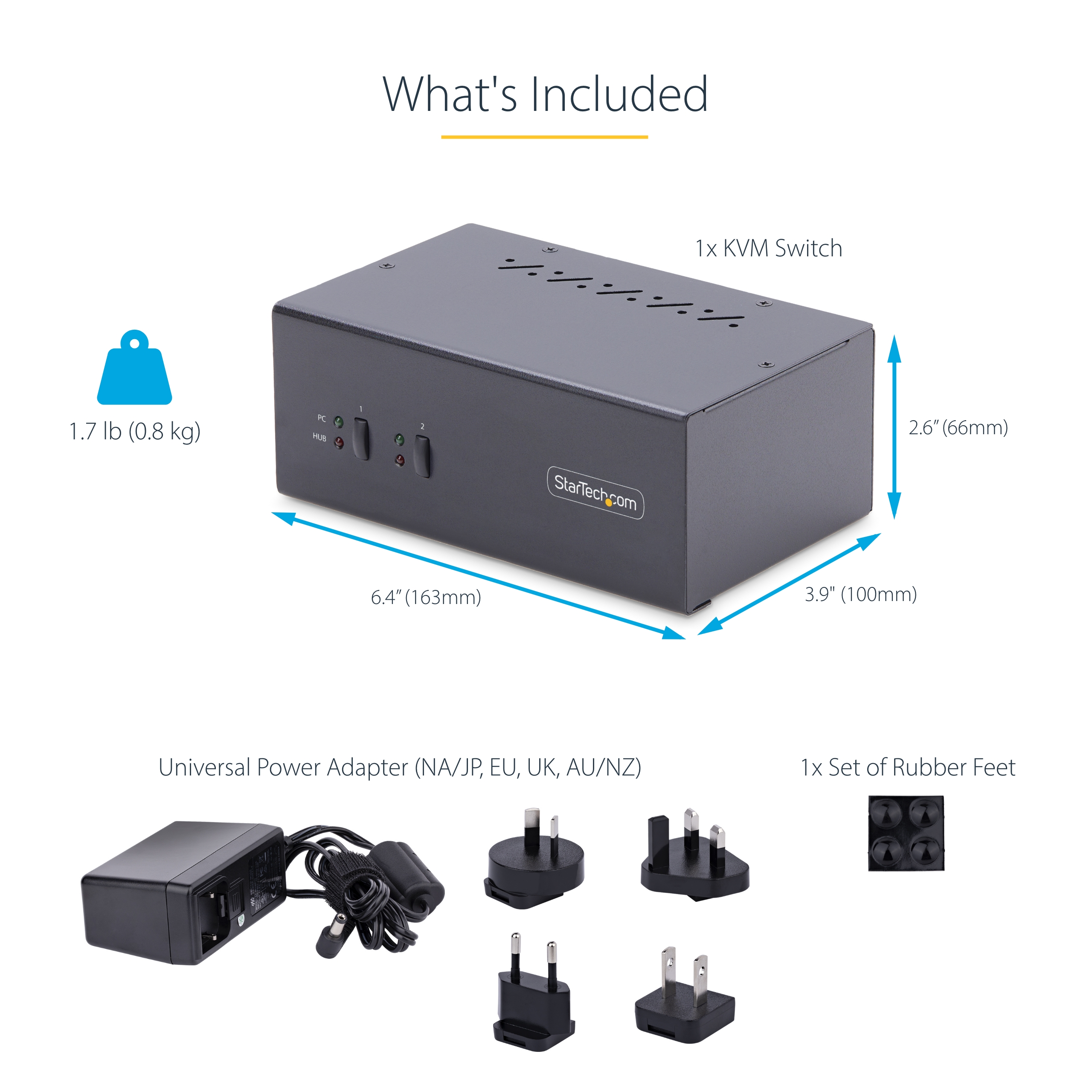

Input Current 1 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 0.1 W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0% ~ 90% RH (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 163.000 Product Width (mm) 100.000 Product Height (mm) 66.000 Product Weight (g) 750.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Audio Specifications - DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio
Auto Scan 10, 20, 30, 40, 50, and 60 seconds Hot-Key Selection Yes KVM IP Control No Maximum Cable Length (mm) 7500 Maximum Data Transfer Rate 5Gbps Maximum Digital Resolutions 3840 x 2160 60Hz MTBF (hours) 173,052 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Supported Resolutions Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 522 Carton Height (mm) 308 Carton Quantity 6 Carton Weight Gross (g) 8488 Included in Package - 1 - KVM Switch

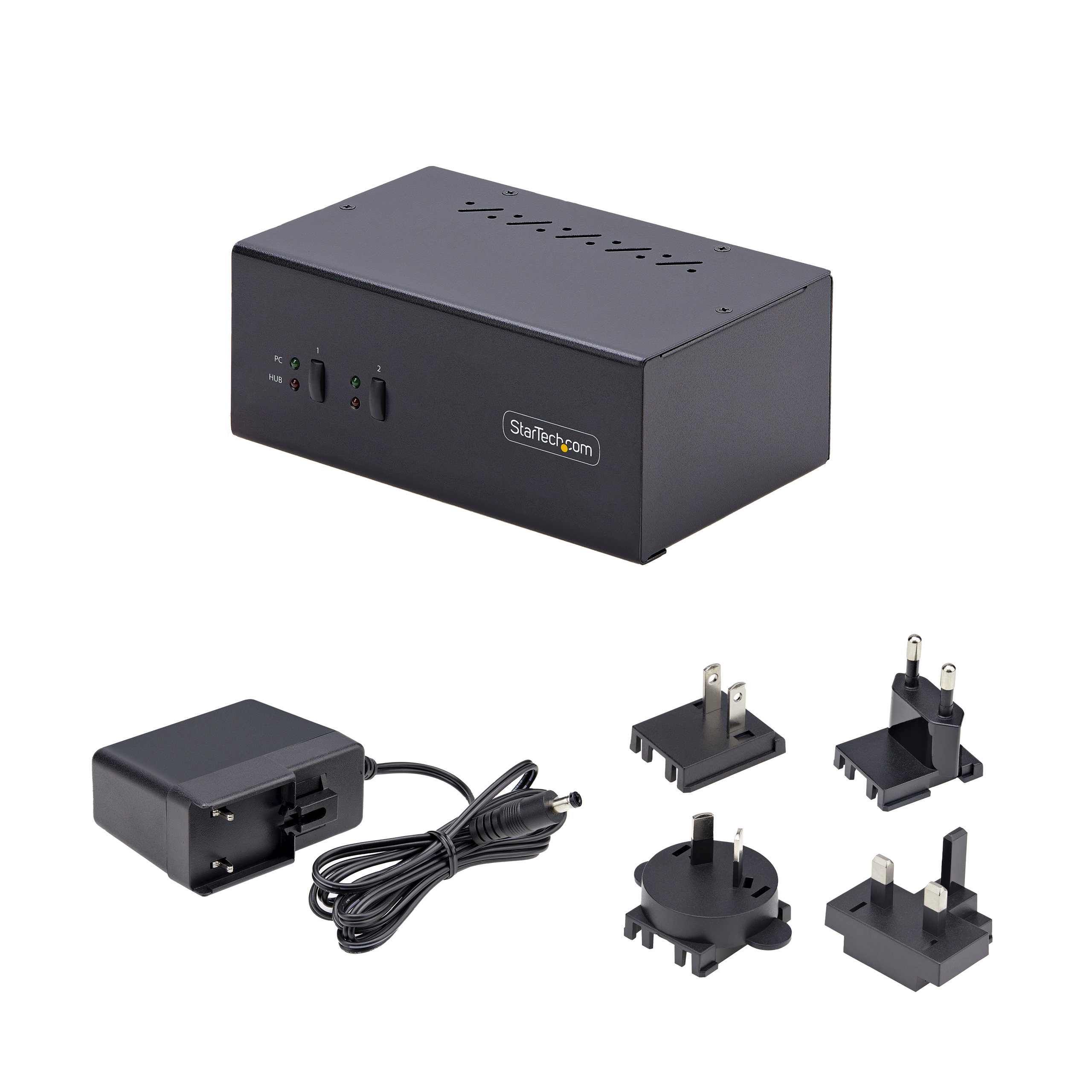

- 1 - Universal Power Adapter (NA/JP, EU, UK, NZ)
- 1 - Quick-Start Guide

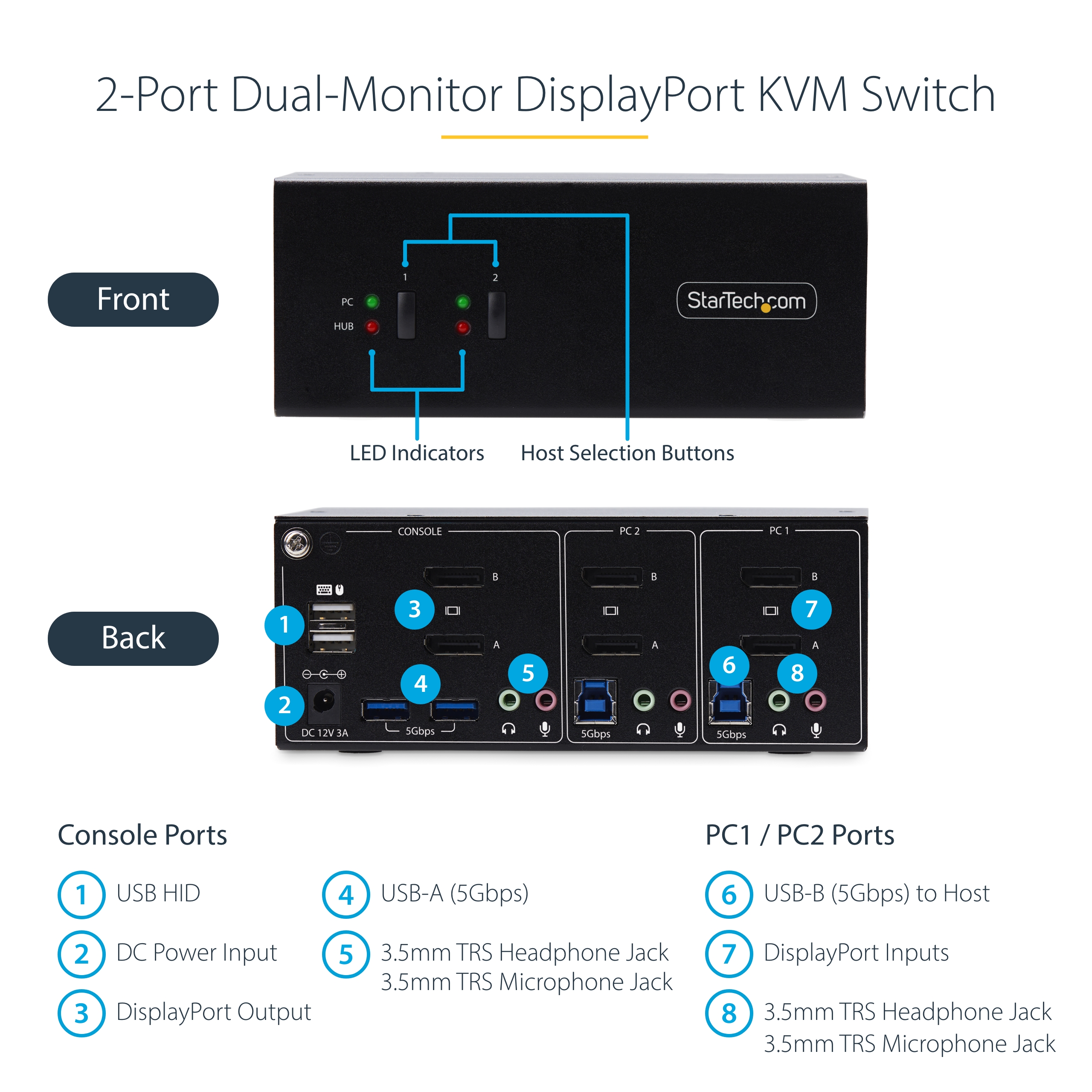

Package Depth (mm) 336 Package Height (mm) 139 Package Width (mm) 168 Package Quantity 1 Package Weight (g) 1264 Packaging Description 2-Port Dual Monitor KVM Switch - DisplayPort - 4K 60Hz Packaging Description India 2-Port Dual Monitor KVM Switch - DisplayPort - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 2 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Connector 5 Barrel Power (N-Type, OD 5.5mm / ID 2.5mm) Connector 5 (Quantity) 1 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Not Required Artwork Due Date 2023-05-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment 2-Port Dual DisplayPort USB 2.0 KVM Comparable SKU 2 Comment 2-Port Dual HDMI USB 3.2 Gen 1 KVM Digital Content Due Date 2023-08-10 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
- DisplayPort 1.2 / 4K 60Hz
Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-03-23 Target Production Release 2023-05-15 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Latest Vending Machine Not Compatible with Vending Machine Video Not Required
